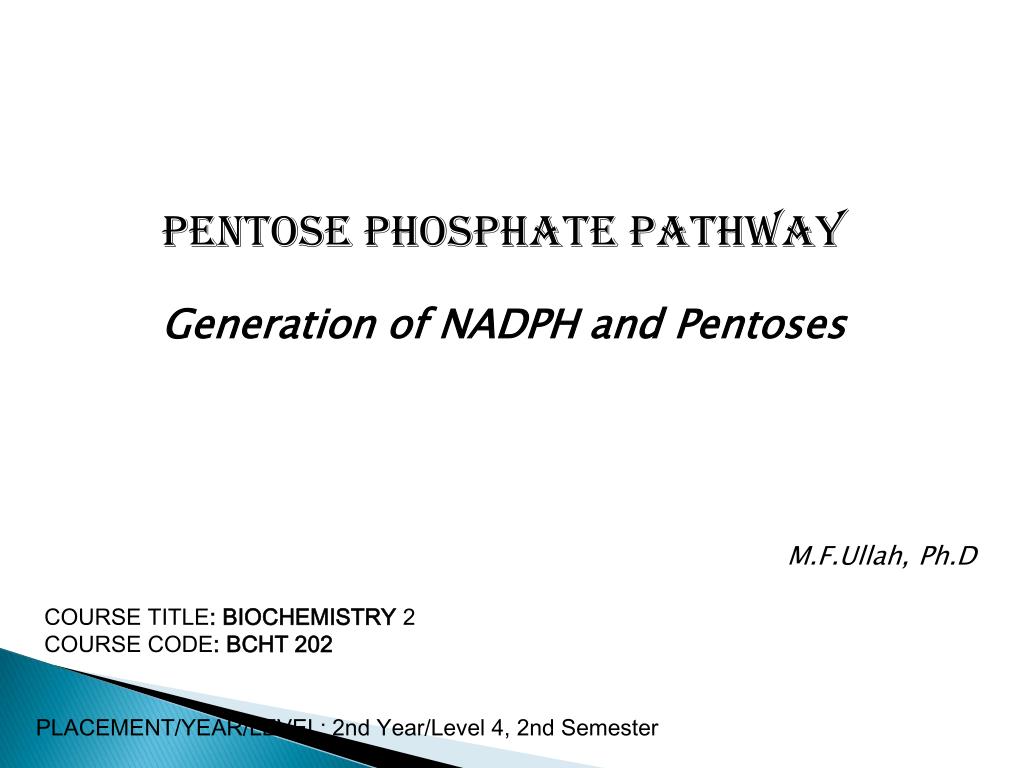

Pentose phosphate pathway

Pentose Phosphate Pathway

  • Generation of NADPH and Pentoses

M.F.Ullah, Ph.D

  • COURSE TITLE: BIOCHEMISTRY 2

    COURSE CODE: BCHT 202

PLACEMENT/YEAR/LEVEL: 2nd Year/Level 4, 2nd Semester


Pentose phosphate pathway

  • Function of PPP:

    • 1.NADPH production

    • Reducing power carrier in biosynthetic pathways such as fatty acid and cholesteraol synthesis

    • Role in glutathione cellular antioxidant system

    • 2. Ribose synthesis

    • i) Nucleic acids and nucleotides

    • 3. Gylcolytic intermediates


Pentose phosphate pathway

Characteristics of PPP:Oxidative and Non-oxidative Phases

  • Pentose Phosphate Pathway has two Phases:

  • 1. Oxidative phases

    • Reactions producing NADPH

    • Irreversible

  • 2. Non-oxidative phases

    • Produces ribose-5-P (Pentose sugar)

    • Produces intermediates of glycolytic pathway such as Fructose 6-P & Glyceraldehyde 3-P

    • Reversible reactions


Pentose phosphate pathway

NADPH producing reactions


Pentose phosphate pathway

Pentose phosphate and glycolytic intermediates producing reactionsNon-oxidative phase of Pentose Phosphate Pathway


Pentose phosphate pathway

Reactive Oxygen Species

Reactive oxygen species are highly reactive derivatives of oxygen that are formed by the transfer of electrons from redox active molecules (with high electron transfer potential) to molecular oxygen.

Example : Superoxide anion , Hydrogen peroxide

  • Production of superoxide in RBC

    • Hb-Fe2+ - O2 Hb-Fe3+ + O2-. (superoxide anion)

  • 2O2-. + 2H+H2O2 (Hydrogen peroxide)

  • (Superoxide dismutase)

  • Both O2-. & H2O2 can produce reactive free radical species such as hydroxyl radicals (OH.) and cause oxidative injury by damaging cellularproteins, DNA , cell membranes and lysis


Pentose phosphate pathway

Detoxification of Superoxide Anion and Hydrogen Peroxide

Cells have a number of antioxidant enzymes which remove reactive oxygen species

and therefore protect the cells from oxidative injury

  • Antioxidant enzymes

    • Superoxide dismutase (removes superoxide anion)

    • Catalase(removes hydrogen peroxide)

    • Glutathione peroxidase(removes hydrogen peroxide using reduced glutathione [ GSH))

    • Glutathione reductase(regenerates reduced glutathione (GSH) from oxidized glutathine (GS-SG) using NADPH)


Pentose phosphate pathway

G6PDH Deficiency and Hemolytic Anemia

Hemolytic anemia is a disorder in which the red blood cells are destroyed prematurely.

Hemolytic anemia is often inherited, such as Glucose-6-Phosphate Dehydrogenase deficiency (G6PD).

G6PD enzyme functions in the Pentose-Monophosphate shunt and catalyzes the production of NADPH which is required in the detoxification of the harmful oxidant H2O2 by glutathione antioxidant system.

Red cells deficient in G6PD are unable to produce NADPH to neutralize hydrogen peroxide - H2O2 converts to hydroxyl radicals and this can lead to oxidative damage/toxic injury.

Heinz bodies, aggregates of cross-linked hemoglobin, form on the cell membranes and

subject the cell to mechanical stress as it tries to go through small capillaries. The action of the

ROS on the cell membrane as well as mechanical stress from the lack of deformability result in hemolysis.
