  1. So really, what can we find out from hair? Hair Analysis

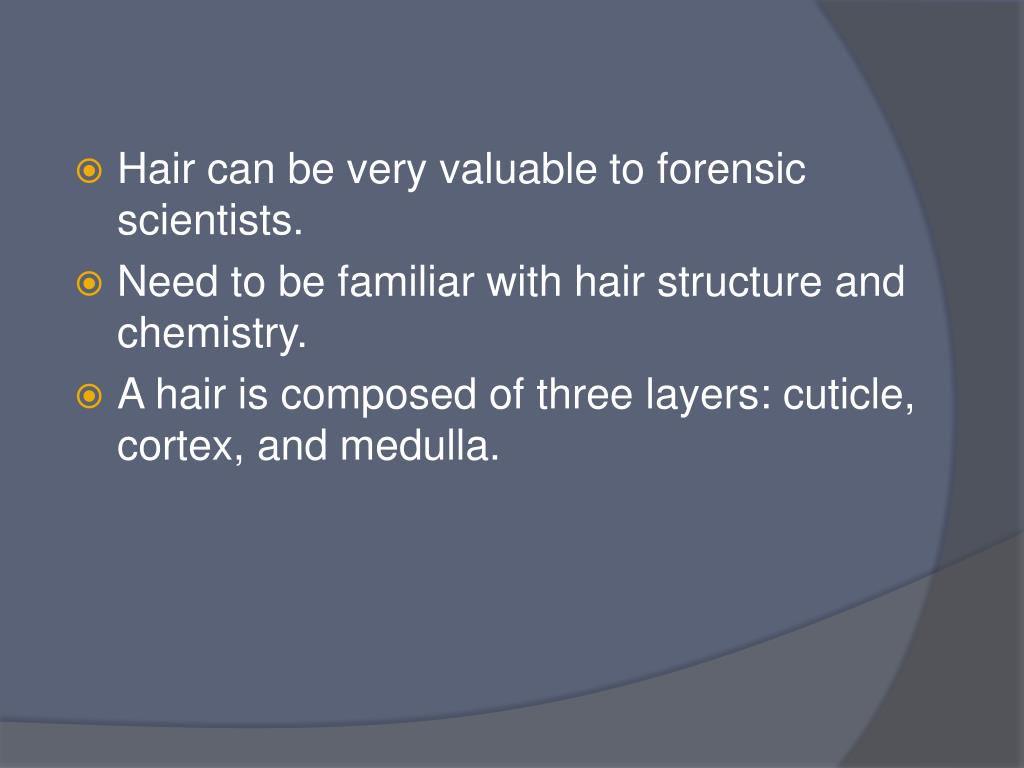

  2. Hair can be very valuable to forensic scientists. • Need to be familiar with hair structure and chemistry. • A hair is composed of three layers: cuticle, cortex, and medulla.

  3. Structure of Hair = away from root = toward root cuticle cortex Think of it like a pencil . . . medulla

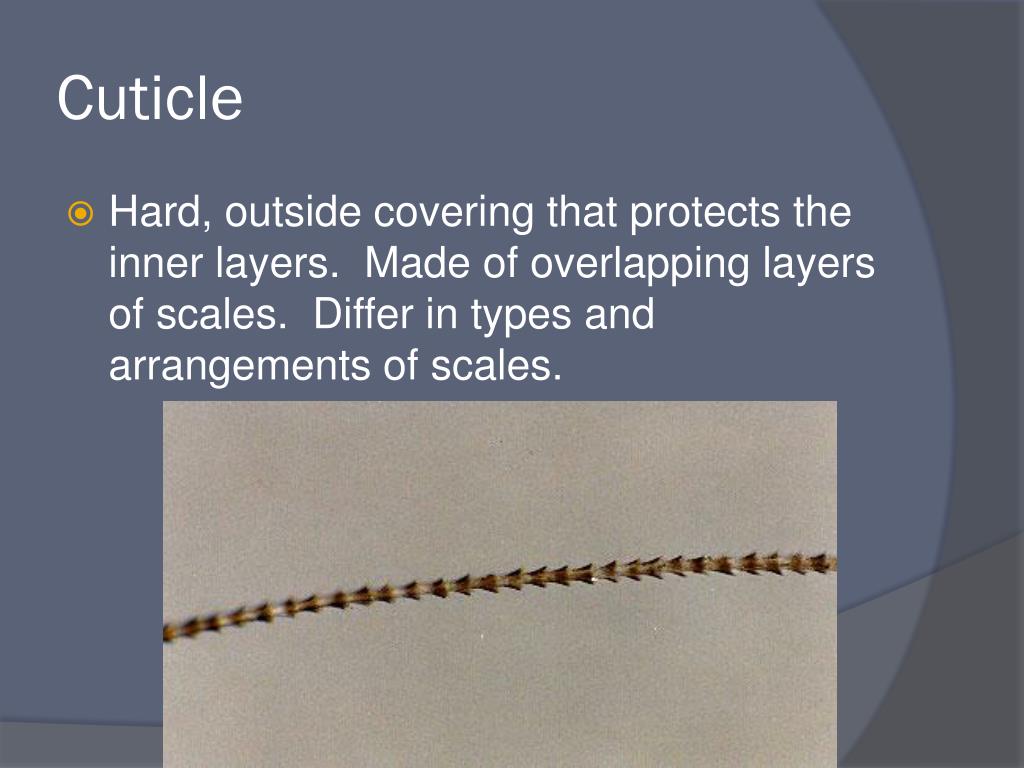

  4. Cuticle • Hard, outside covering that protects the inner layers. Made of overlapping layers of scales. Differ in types and arrangements of scales.

  5. Types of scales • Crown-like scales: found on very fine hair of rodents and bats, rarely in humans • Spinus or petal-like scales: protrude off from shafts of hair. NOT found on human, found on cats, seals, minks, etc. • Imbricate or flattened scales: overlap (like shingles on a roof). Found on humans and some animals

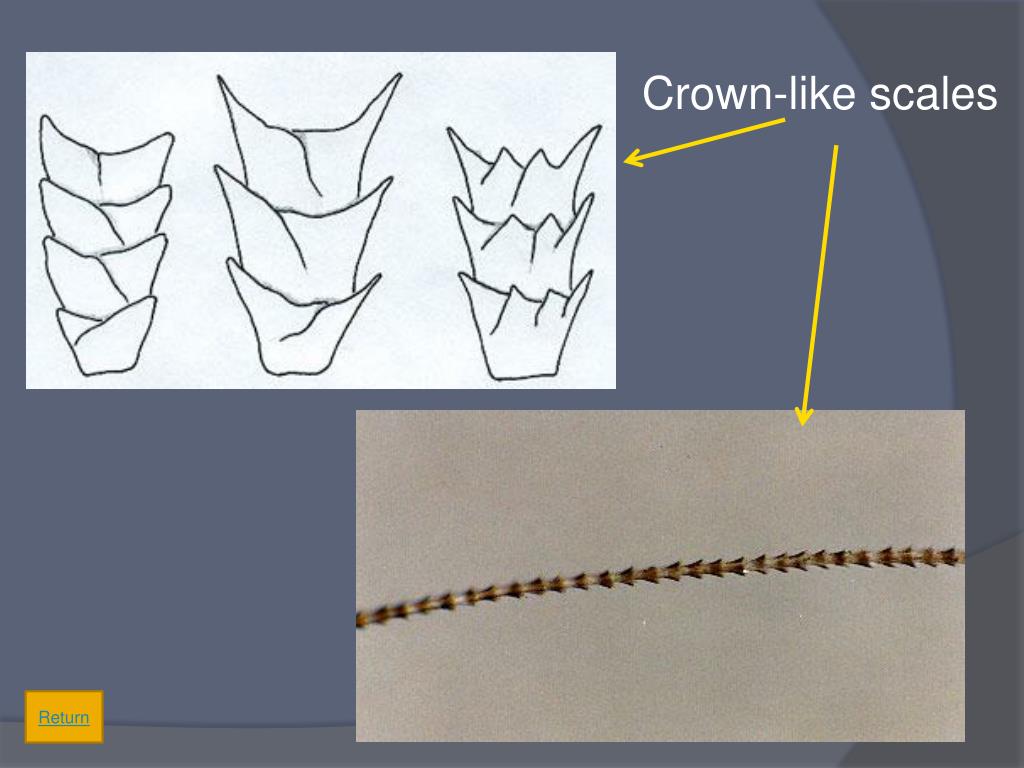

  6. Crown-like scales Return

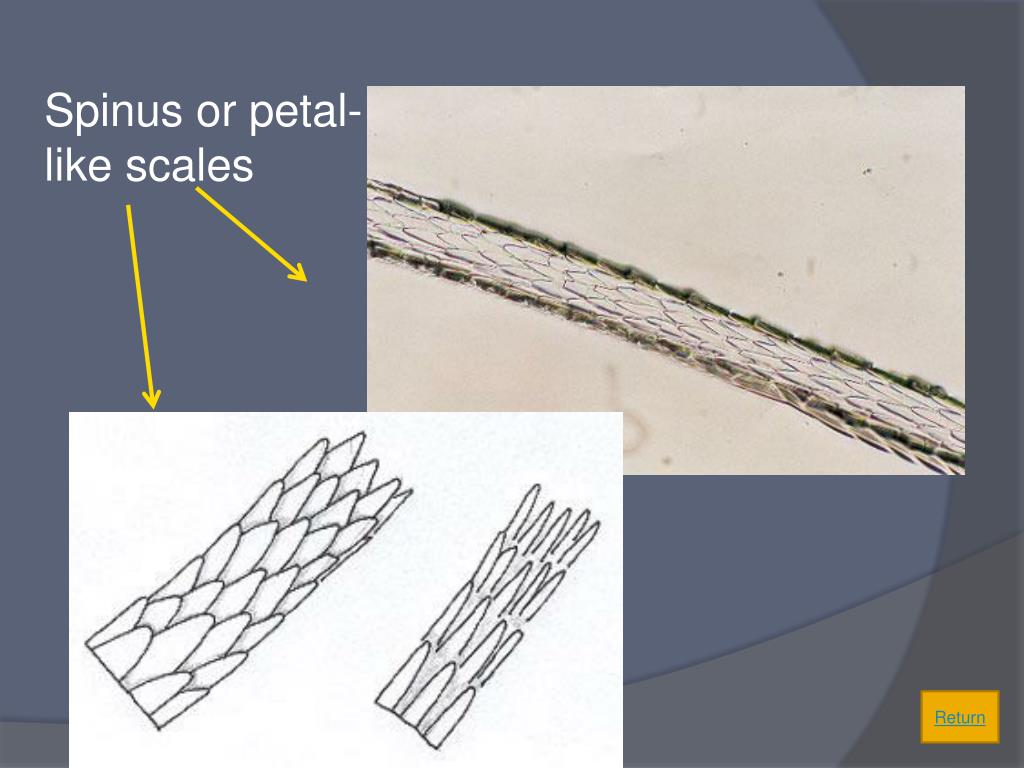

  7. Spinus or petal-like scales Return

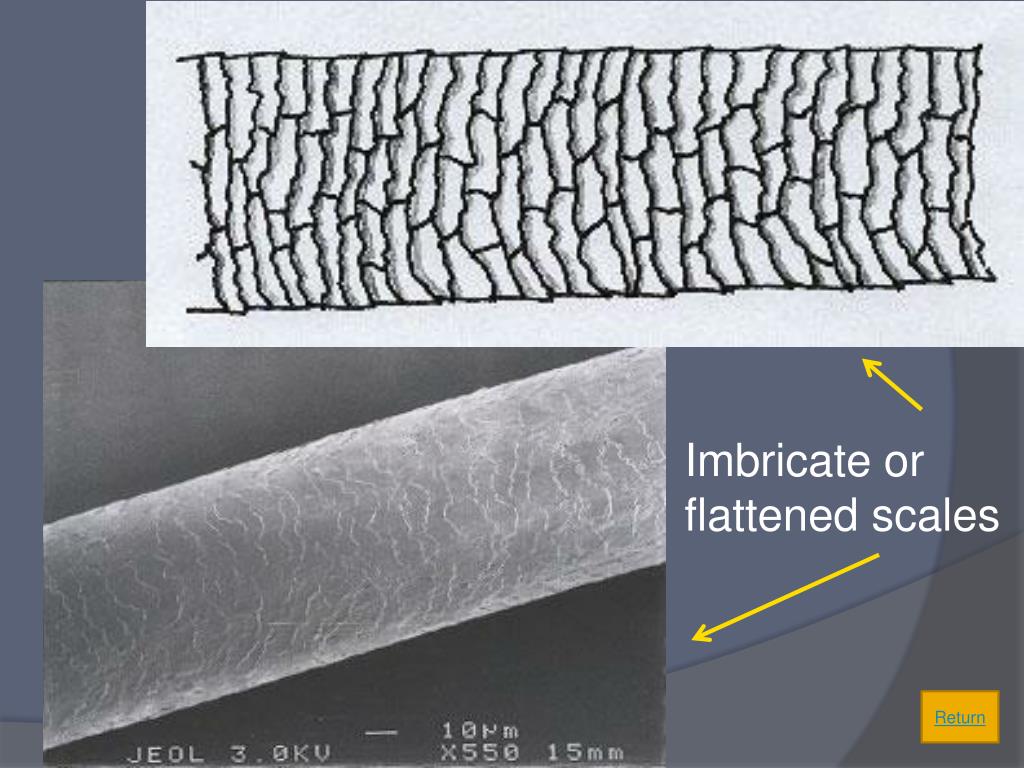

  8. Imbricate or flattened scales Return

  9. Cortex • Cortex: Made of cells within the cuticle. Makes up 75-90% of human hair. Contain pigment that give hair its color. • Forensic scientists use color, shape, and distribution of pigment granules.

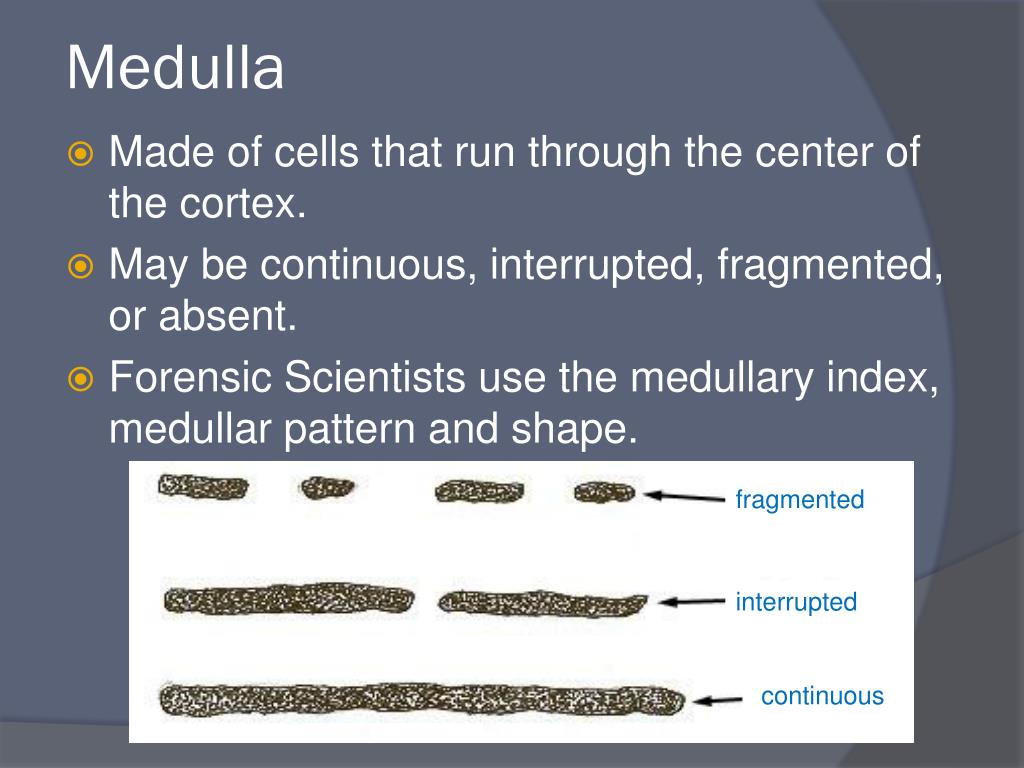

  10. Medulla • Made of cells that run through the center of the cortex. • May be continuous, interrupted, fragmented, or absent. • Forensic Scientists use the medullary index, medullar pattern and shape. fragmented interrupted continuous

  11. Medullary Index =diameter of medulla / diameter of hair • Humans index is <1/3 • Animals index is >1/2 • Thus animals generally have a thicker medulla than humans Image from: http://bigfoot-evidence.blogspot.com/2009/07/hair-analysis.html

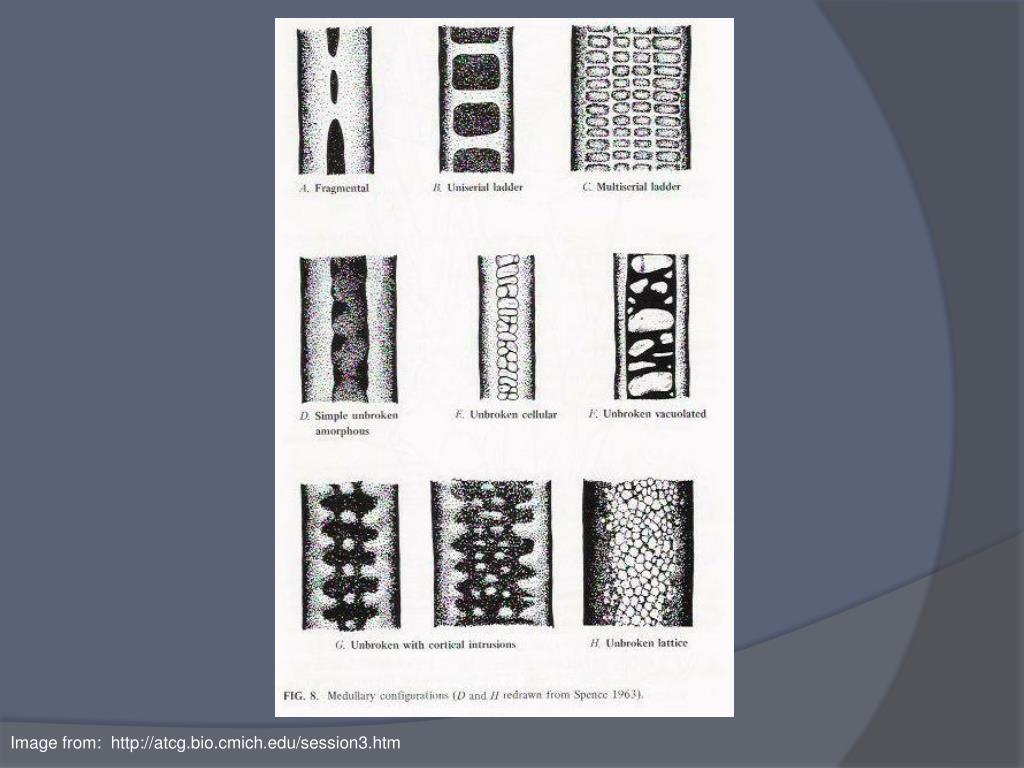

  12. Image from: http://atcg.bio.cmich.edu/session3.htm

  13. Animal Continuous Fragmented

  14. The Root Human roots look different based on whether they have been forcibly removed or if they are telogen hairs and have fallen out. Animal roots will vary, but in general have a spear shape. Fallen out Forcibly removed

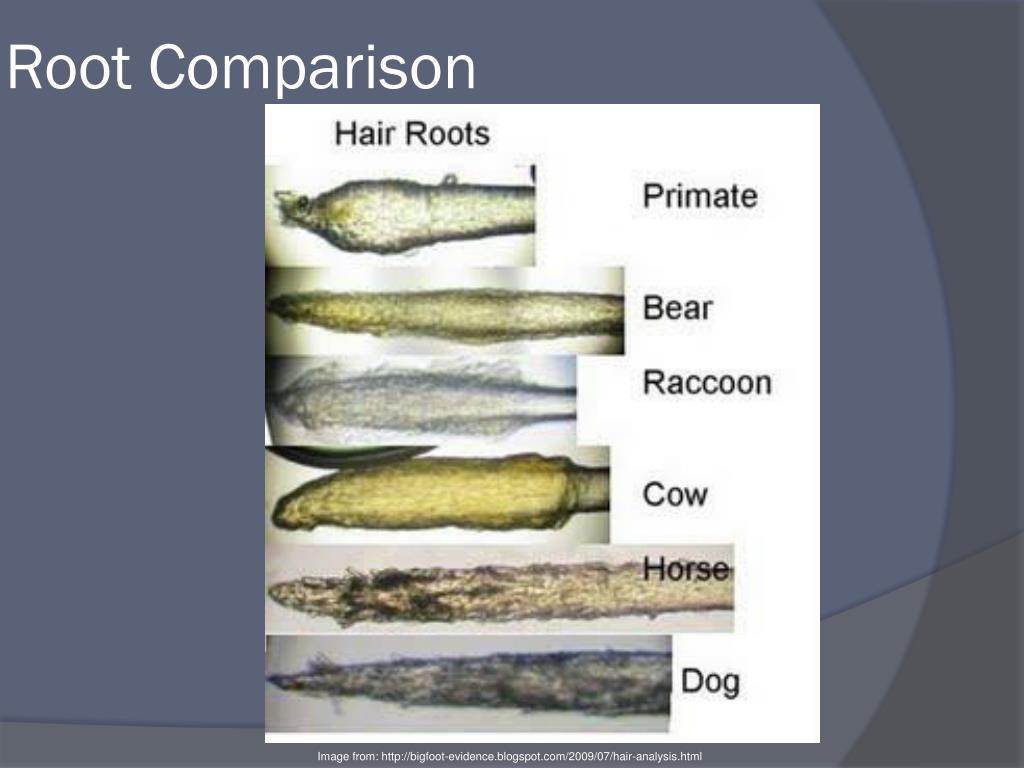

  15. Root Comparison Image from: http://bigfoot-evidence.blogspot.com/2009/07/hair-analysis.html

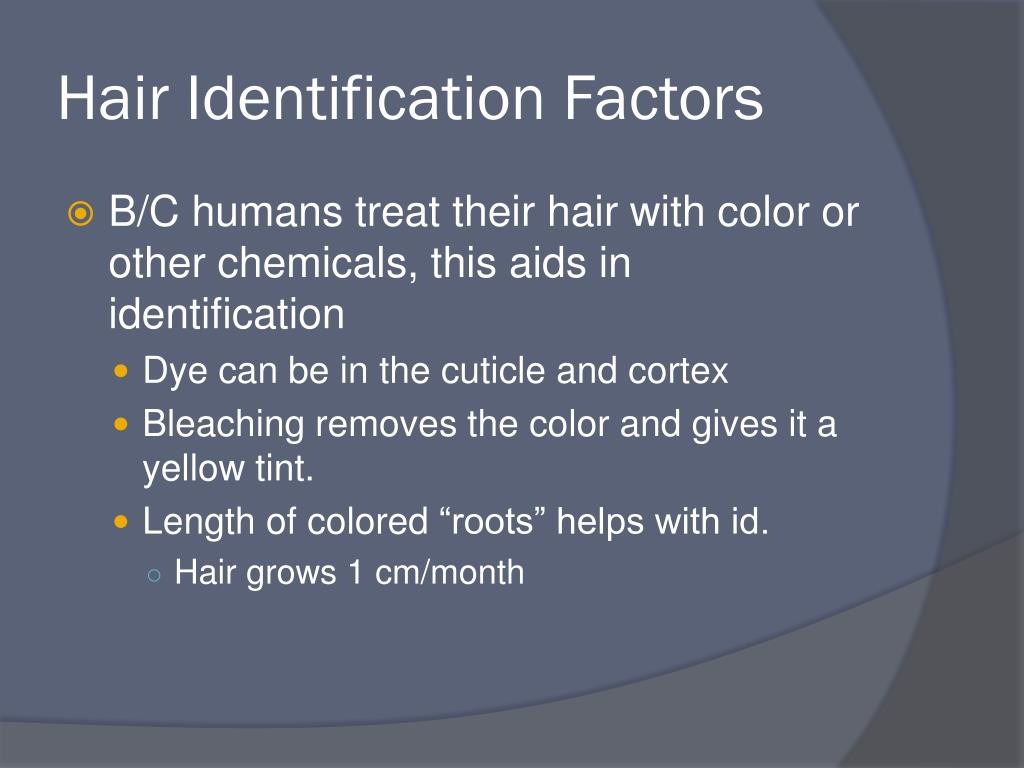

  16. Hair Identification Factors • B/C humans treat their hair with color or other chemicals, this aids in identification • Dye can be in the cuticle and cortex • Bleaching removes the color and gives it a yellow tint. • Length of colored “roots” helps with id. • Hair grows 1 cm/month

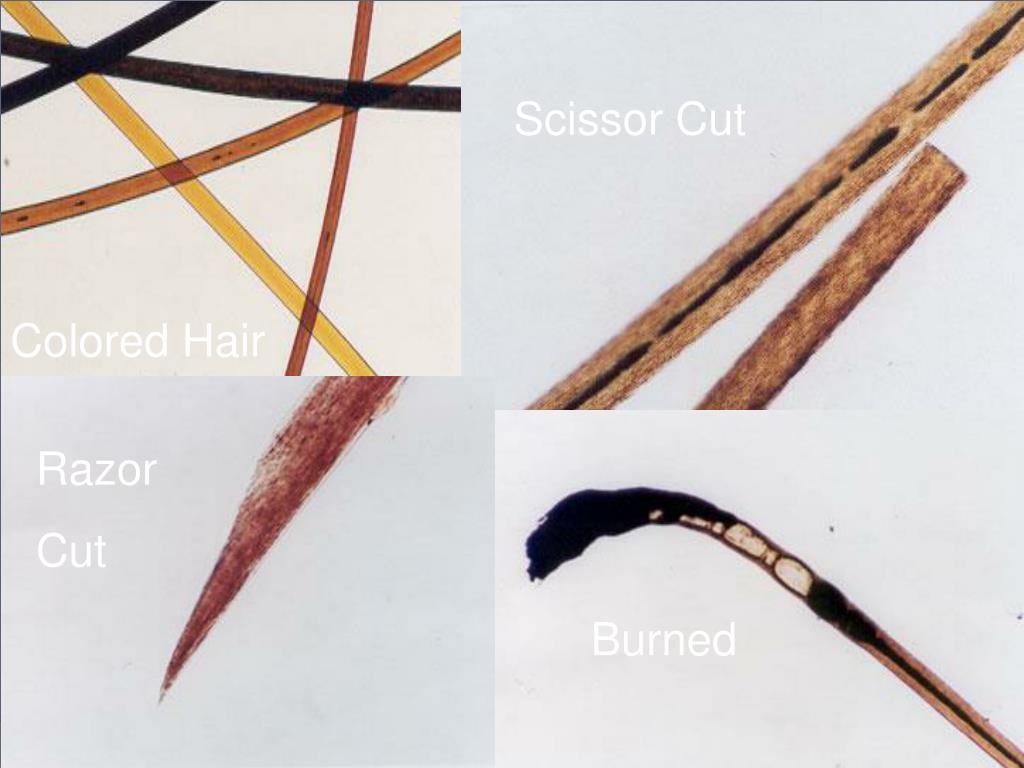

  17. Scissor Cut Colored Hair Razor Cut Burned

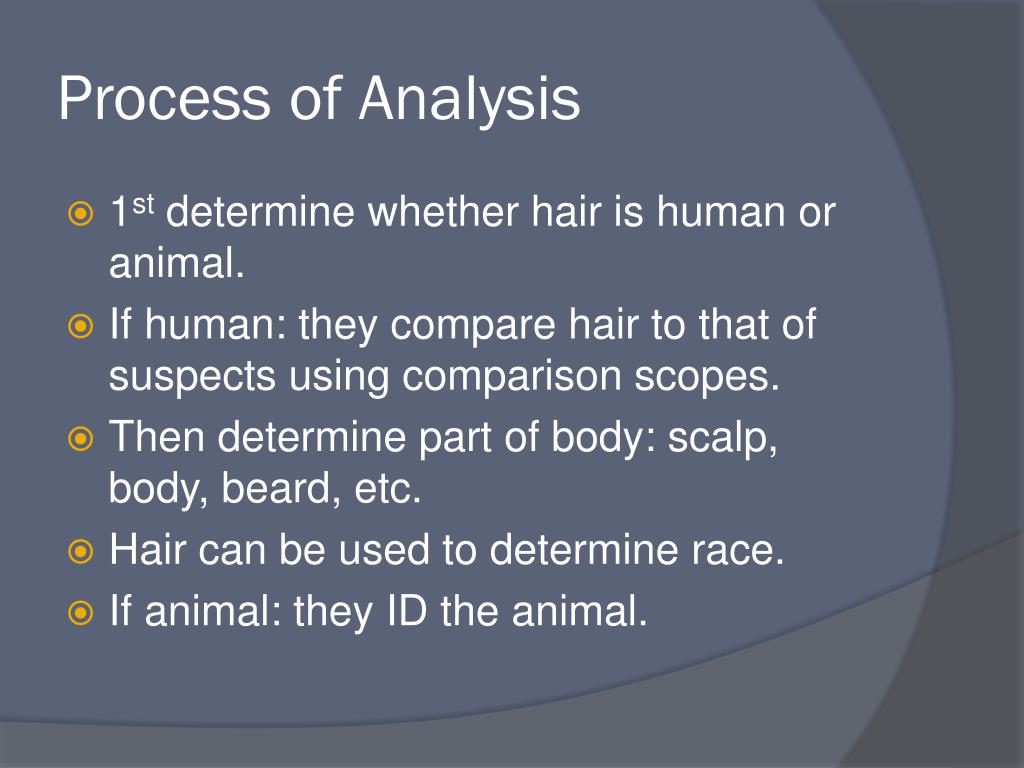

  18. Process of Analysis • 1st determine whether hair is human or animal. • If human: they compare hair to that of suspects using comparison scopes. • Then determine part of body: scalp, body, beard, etc. • Hair can be used to determine race. • If animal: they ID the animal.

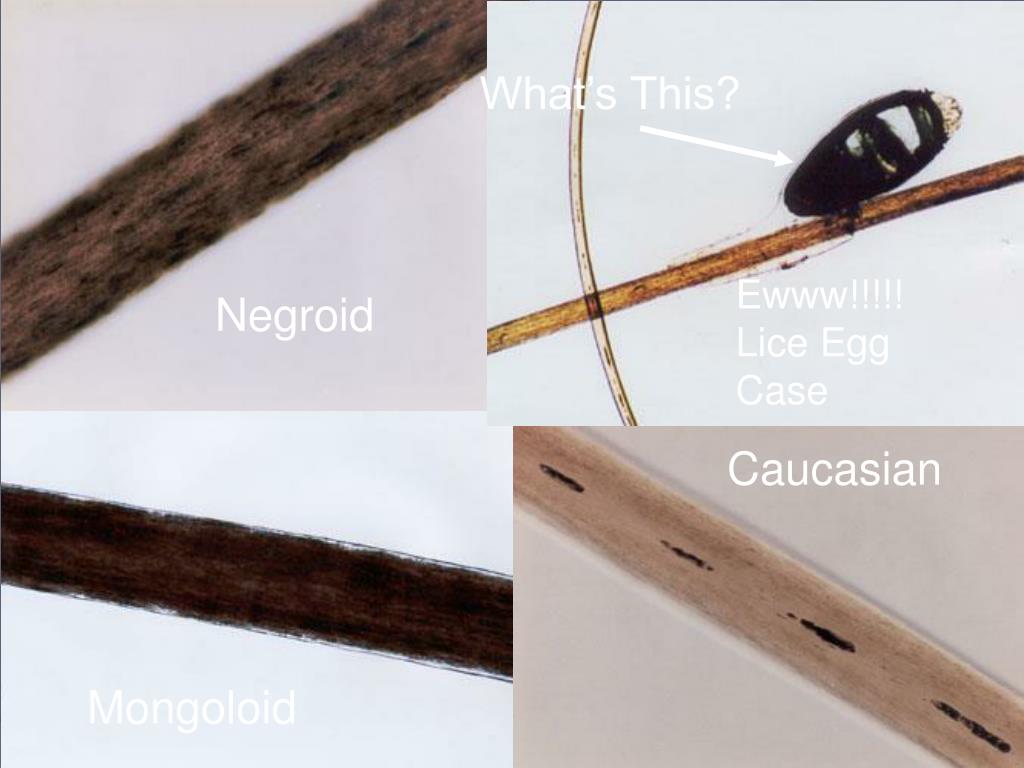

  19. What’s This? Ewww!!!!! Lice Egg Case Negroid Caucasian Mongoloid

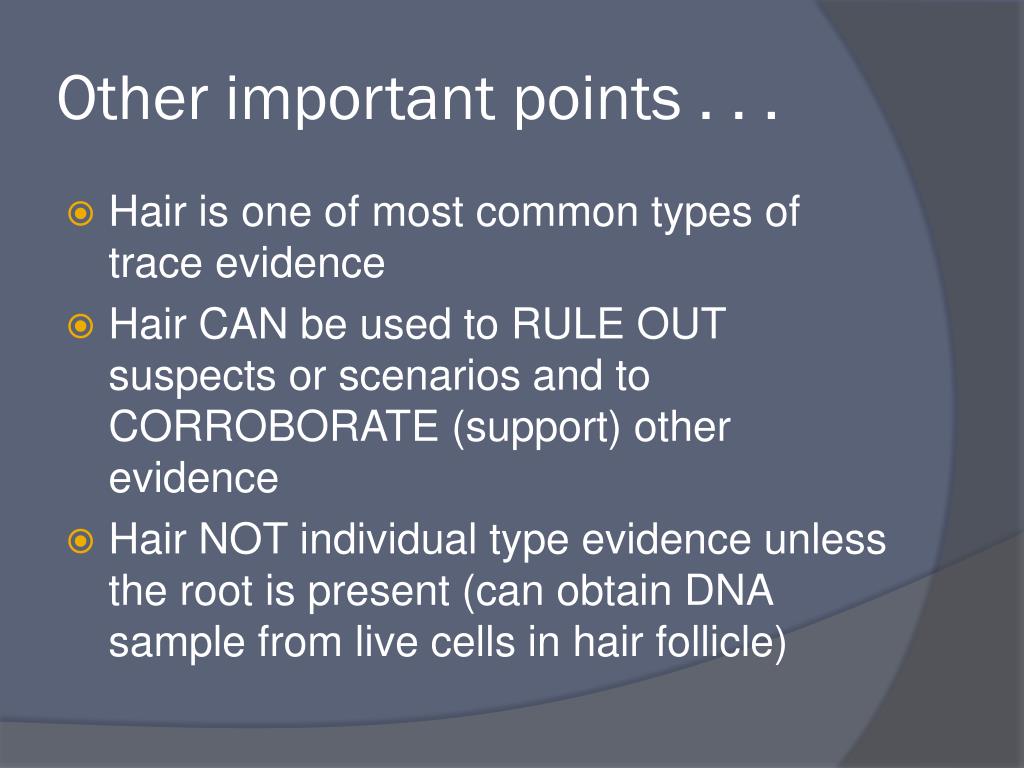

  20. Other important points . . . • Hair is one of most common types of trace evidence • Hair CAN be used to RULE OUT suspects or scenarios and to CORROBORATE (support) other evidence • Hair NOT individual type evidence unless the root is present (can obtain DNA sample from live cells in hair follicle)

  21. DNA from Hair • The root contains nuclear DNA. If the hair has been forcibly removed, some folicular tissue may be attached containing DNA. • The hair shaft contains abundant mitochondrial DNA, inherited only from the mother. It can be typed by comparing relatives if no DNA from the body is available.
