  1. TDAQ WG - CERN L0 LKr trigger • Pixel based trigger processor (2x8 or 4x4 calorimeter cells tiles) • Low granularity readout independent from the full granularity readout • Fast readout after L0 for software triggers • Region of Interest for Lkr full granularity readout

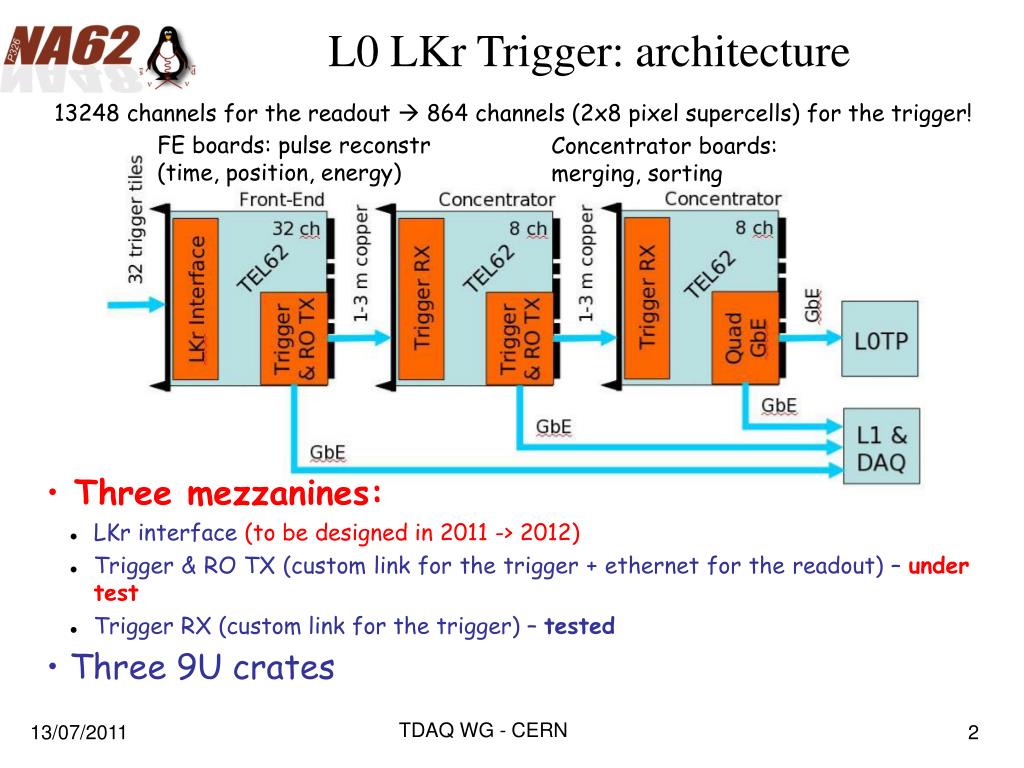

  2. TDAQ WG - CERN L0 LKr Trigger: architecture 13248 channels for the readout  864 channels (2x8 pixel supercells) for the trigger! FE boards: pulse reconstr (time, position, energy)‏ Concentrator boards: merging, sorting • Three mezzanines: • LKr interface (to be designed in 2011 -> 2012) • Trigger & RO TX (custom link for the trigger + ethernet for the readout) – under test • Trigger RX (custom link for the trigger) – tested • Three 9U crates

  3. TDAQ WG - CERN NA62 RX mezzanine NA62 RXmezzanine

  4. TDAQ WG - CERN NA62 TX Mezzanine NA62 TXmezzanine

  5. TDAQ WG - CERN NA62 TX Mezzanine • Tests ongoing • Power, clock, JTAG OK • Working on serdes interface

  6. TDAQ WG - CERN Cables • Prototypes assembled in our lab • Amphenol Halogen free cables (full production) should arrive now

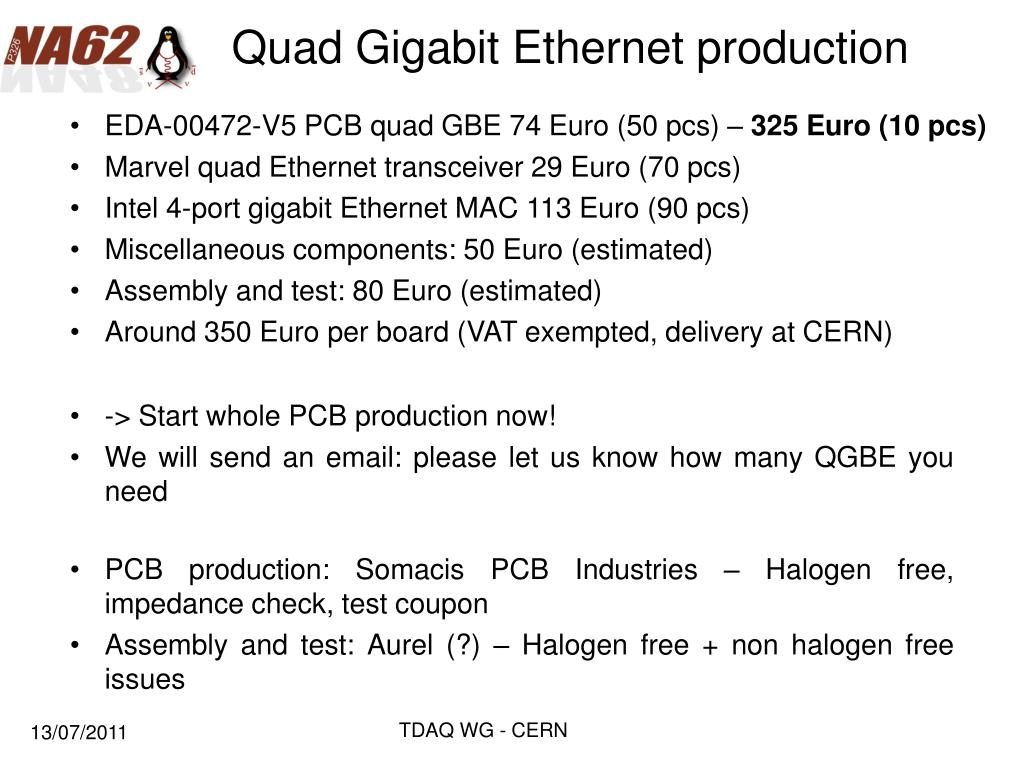

  7. TDAQ WG - CERN Quad Gigabit Ethernet production • EDA-00472-V5 PCB quad GBE 74 Euro (50 pcs) – 325 Euro (10 pcs) • Marvel quad Ethernet transceiver 29 Euro (70 pcs) • Intel 4-port gigabit Ethernet MAC 113 Euro (90 pcs) • Miscellaneous components: 50 Euro (estimated) • Assembly and test: 80 Euro (estimated) • Around 350 Euro per board (VAT exempted, delivery at CERN) • -> Start whole PCB production now! • We will send an email: please let us know how many QGBE you need • PCB production: Somacis PCB Industries – Halogen free, impedance check, test coupon • Assembly and test: Aurel (?) – Halogen free + non halogen free issues

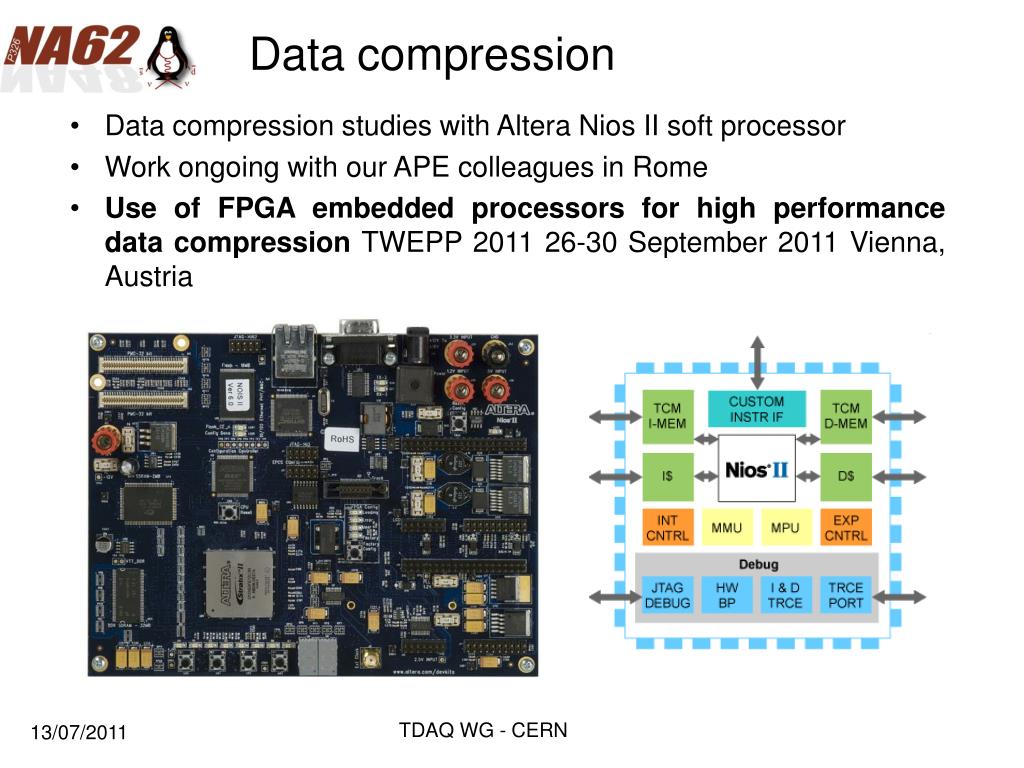

  8. TDAQ WG - CERN Data compression • Data compression studies with Altera Nios II soft processor • Work ongoing with our APE colleagues in Rome • Use of FPGA embedded processors for high performance data compression TWEPP 2011 26-30 September 2011 Vienna, Austria
