  1. Building a Decision Engine for Neutron/gMeasurements FIeld-Programmable Detection

  2. Flash ADC based, FPGA firmware readout

  3. Digital Pulse Processing (DPP) for Pulse Heights (PHA) 100/250 MHz, 12 bit

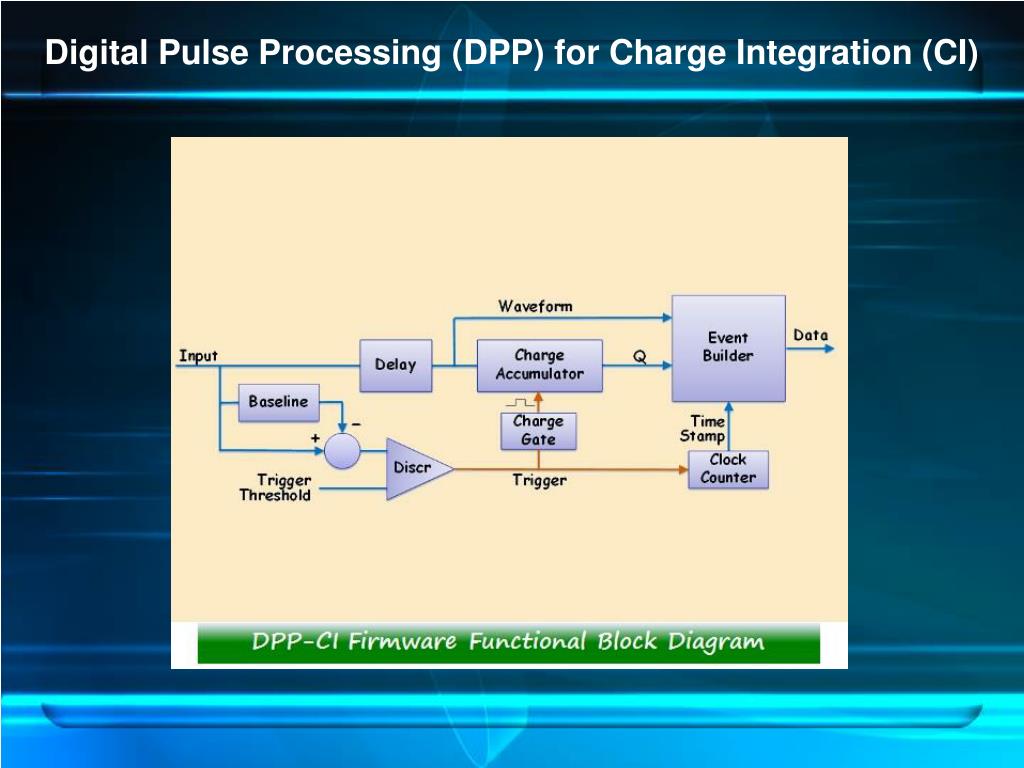

  4. Digital Pulse Processing (DPP) for Charge Integration (CI)

  5. Digital Pulse Processing (DPP) for Pulse Heights (PHA)

  6. Digital Pulse Processing (DPP) for Charge Integration (CI)

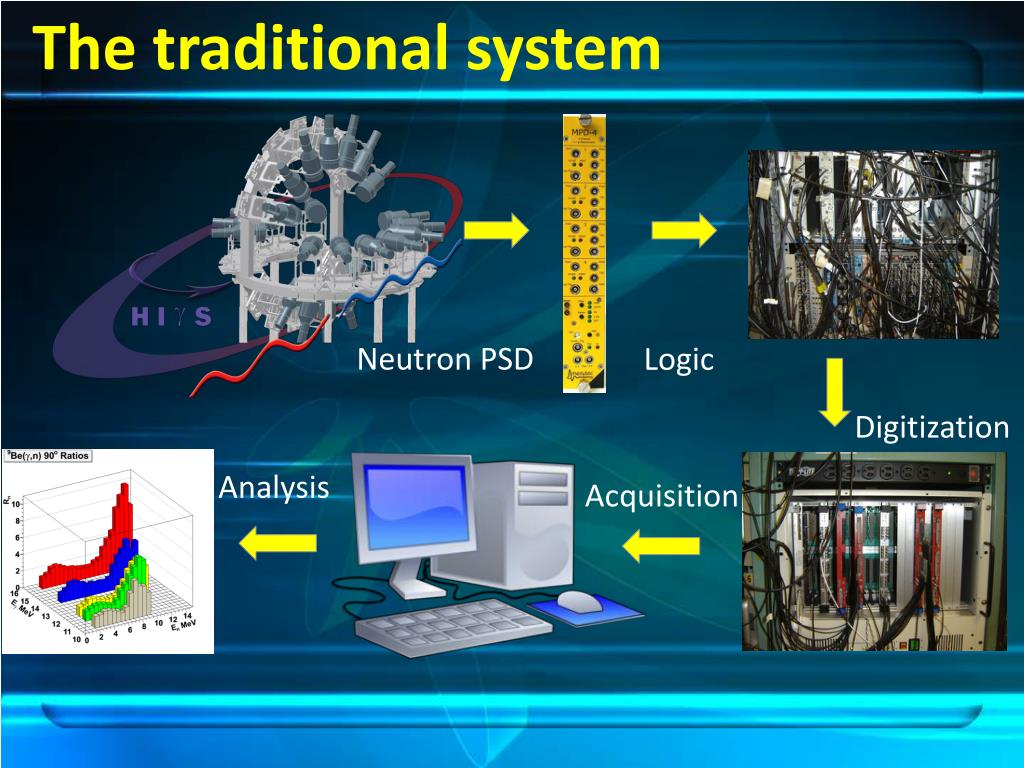

  7. The traditional system Neutron PSD Logic Digitization Analysis Acquisition

  8. The FPGA based System Field Programmable Gated Array Neutron PSD, ToF, Digitization, Analysis, List Output, DECISION

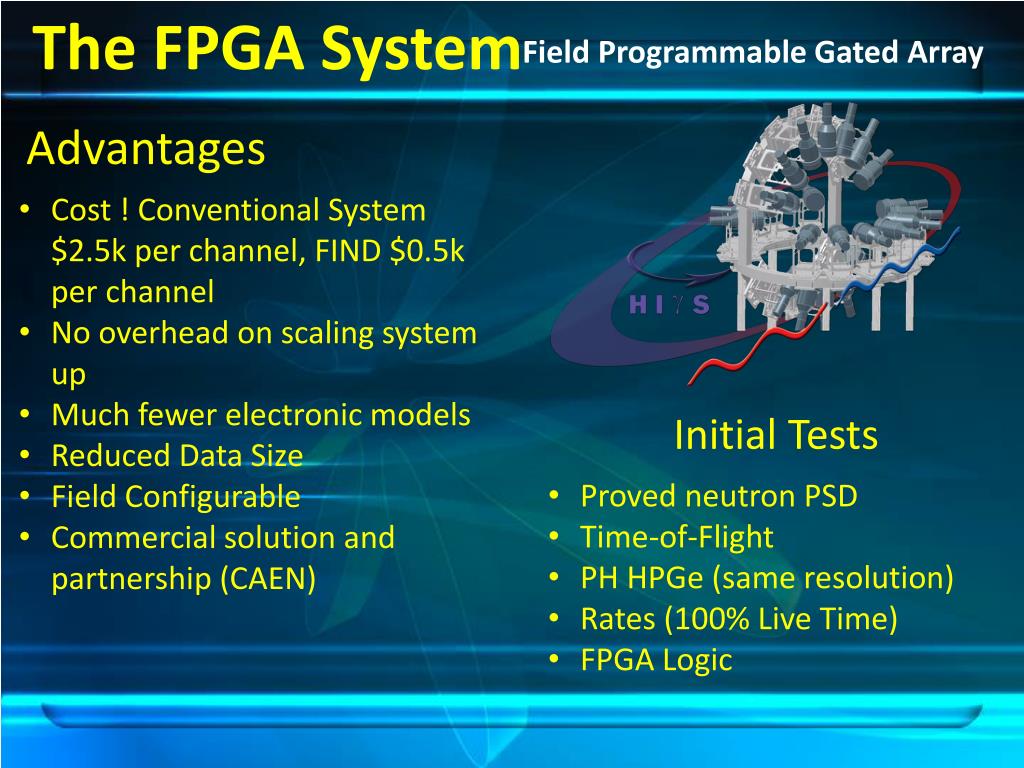

  9. The FPGASystem Field Programmable Gated Array Advantages • Cost ! Conventional System $2.5k per channel, FIND $0.5k per channel • No overhead on scaling system up • Much fewer electronic models • Reduced Data Size • Field Configurable • Commercial solution and partnership (CAEN) Initial Tests • Proved neutron PSD • Time-of-Flight • PH HPGe(same resolution) • Rates (100% Live Time) • FPGA Logic
