  1. Evolution Daikin Chiller Range Daikin branded McQuay products

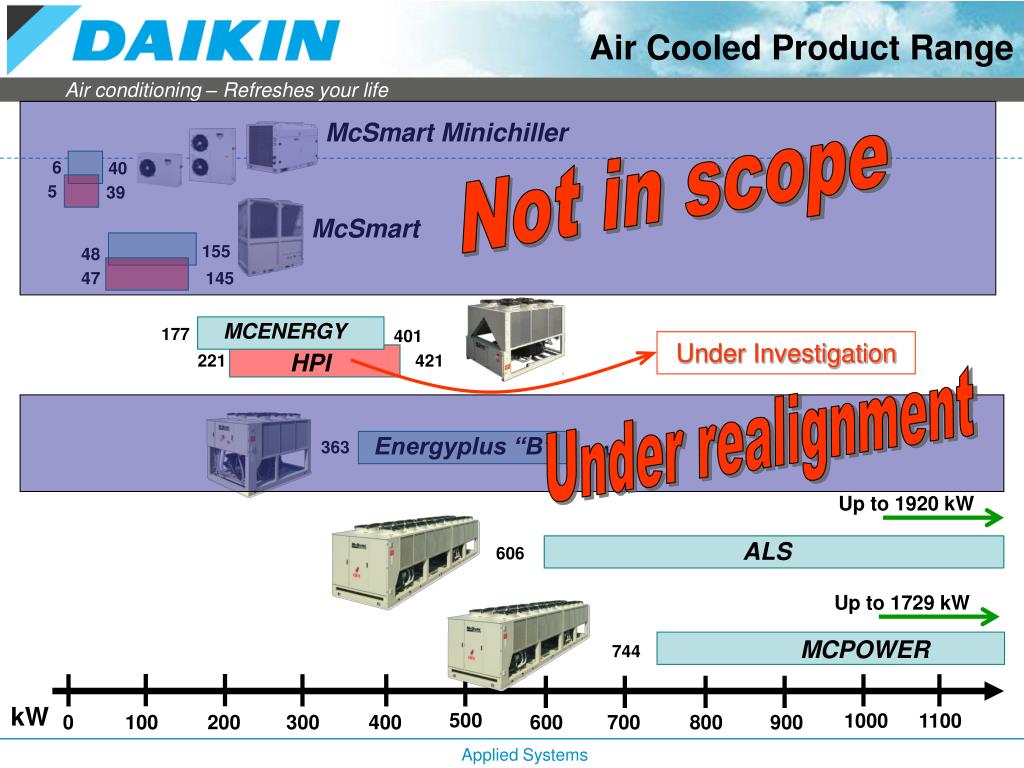

  2. Air Cooled Product Range McSmart Minichiller Not in scope 6 40 5 39 McSmart 155 48 47 145 MCENERGY 177 401 Under Investigation HPI 221 421 Under realignment Energyplus “B” 363 624 Up to 1920 kW ALS 606 Up to 1729 kW MCPOWER 744 kW 500 1000 1100 0 100 200 300 400 600 700 800 900 Applied Systems

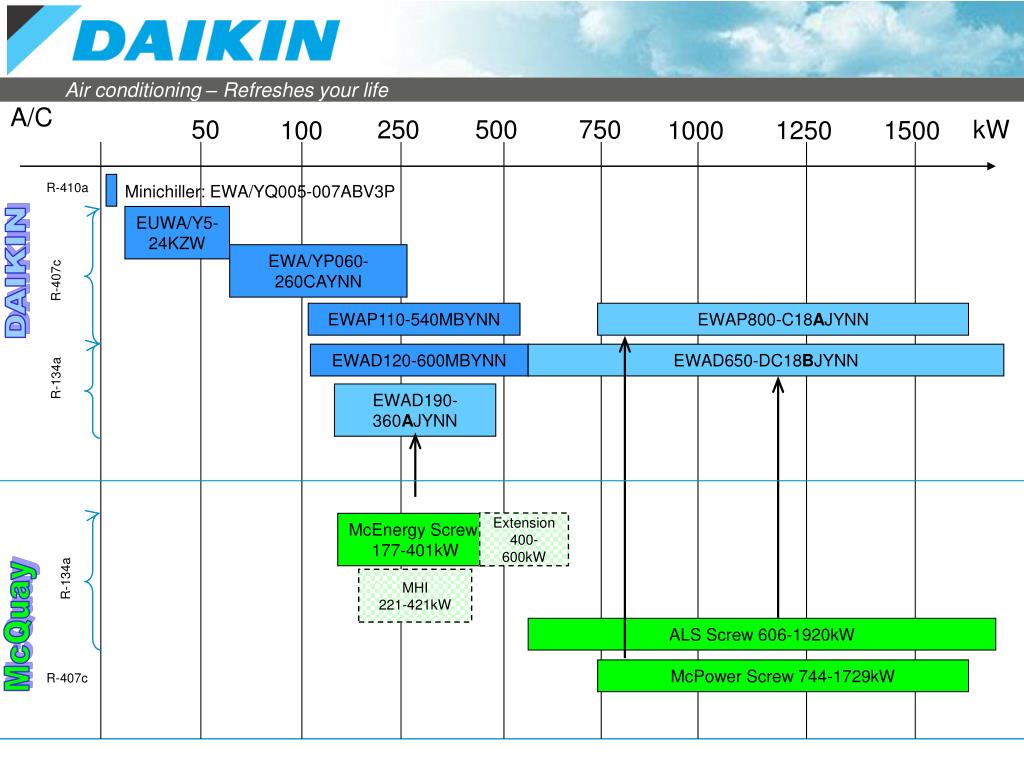

  3. A/C 50 250 500 750 kW 100 1000 1250 1500 R-410a Minichiller: EWA/YQ005-007ABV3P EUWA/Y5-24KZW EWA/YP060-260CAYNN DAIKIN R-407c EWAP110-540MBYNN EWAP800-C18AJYNN EWAD120-600MBYNN EWAD650-DC18BJYNN R-134a EWAD190-360AJYNN Extension 400-600kW McEnergy Screw 177-401kW R-134a MHI 221-421kW McQuay ALS Screw 606-1920kW McPower Screw 744-1729kW R-407c

  4. ALS EWAD650-C18BJYNN Frame4 • Cooling Range: 606 – 1920 kW • McQuay Single-Screw Compressor (Frame4) • 2 efficiency versions: Std up to 2,93 and High up to 3,32 (EER) • 2 – 3 – 4 truly independent refrigerant circuits • DX shell & tube evaporator – One pass refrigerant side • 4 noise levels (ST-OPRN-OPLN-Q/Z) down to 65 dB(A) • R134a Ecologic Refrigerant Applied Systems

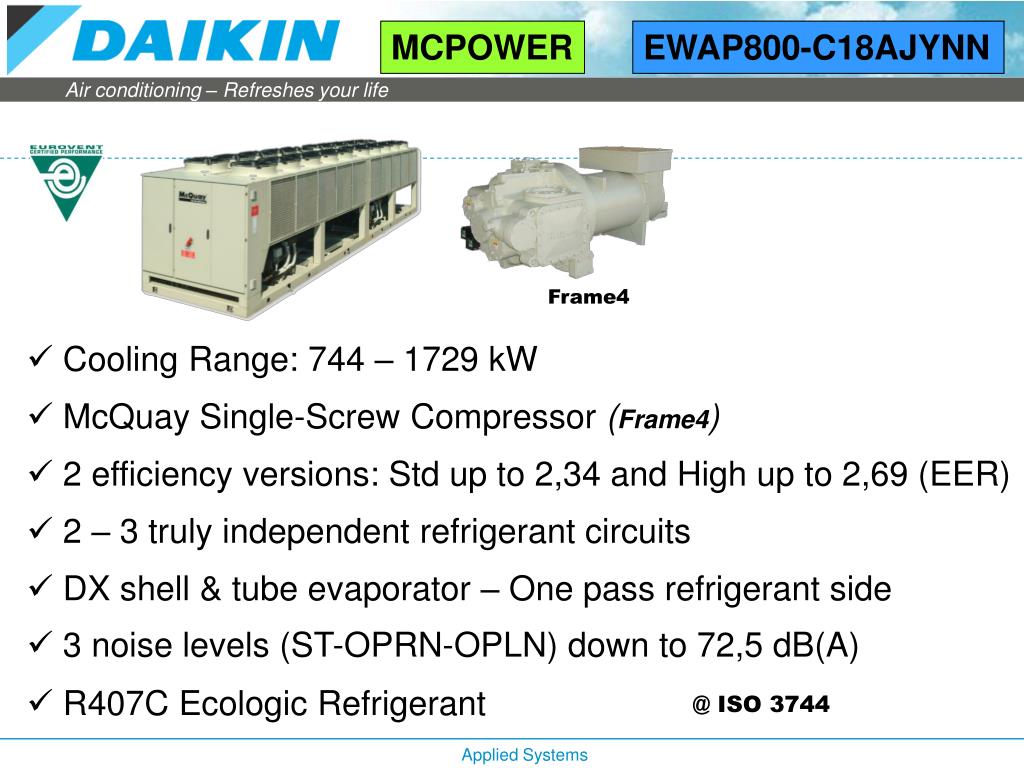

  5. MCPOWER EWAP800-C18AJYNN Frame4 • Cooling Range: 744 – 1729 kW • McQuay Single-Screw Compressor (Frame4) • 2 efficiency versions: Std up to 2,34 and High up to 2,69 (EER) • 2 – 3 truly independent refrigerant circuits • DX shell & tube evaporator – One pass refrigerant side • 3 noise levels (ST-OPRN-OPLN) down to 72,5 dB(A) • R407C Ecologic Refrigerant @ ISO 3744 Applied Systems

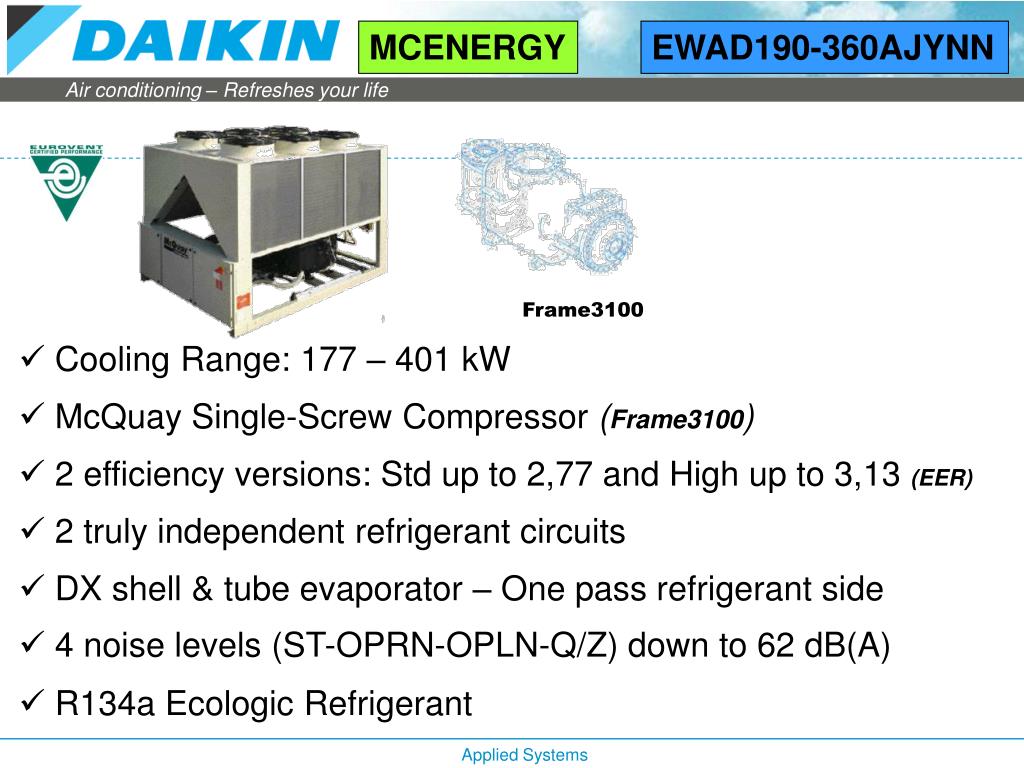

  6. MCENERGY EWAD190-360AJYNN Frame3100 • Cooling Range: 177 – 401 kW • McQuay Single-Screw Compressor (Frame3100) • 2 efficiency versions: Std up to 2,77 and High up to 3,13 (EER) • 2 truly independent refrigerant circuits • DX shell & tube evaporator – One pass refrigerant side • 4 noise levels (ST-OPRN-OPLN-Q/Z) down to 62 dB(A) • R134a Ecologic Refrigerant Applied Systems

  7. ENERGYPLUS Frame3200 • Cooling Range: 363 – 624 kW • McQuay Single-Screw Compressor (Frame3200) • 2 efficiency versions: Std up to 2,84 and High up to 3,11 (EER) • 2 truly independent refrigerant circuits • DX shell & tube evaporator – One pass refrigerant side • 4 noise levels (ST-OPRN-OPLN-Q/Z) down to 65 dB(A) • R134a Ecologic Refrigerant Under realignment Applied Systems

  8. WHZ 85 166 Water Cooled Products Cooling Capacity Range Not in scope Up to 1893 kW WHS 334 Phasing out WHS XE 344 957 ECOPLUS 166 604 Up to 2192 kW Under realignment PROXIMUS Extension 250 729 PFS 1050 369 Up to 9000 kW Not in scope in 1st phase WSC - WDC 300 kW 500 1000 1100 0 100 200 300 400 600 700 800 900

  9. W/C 50 100 250 500 750 1000 1250 1500 EWWP014-065KAW1N Scroll R-407C DAIKIN EWWD120-540MBYNN EWWD170-600DJYNN R-134a EWWD340-C19CJYNN EWWD360-C11AAYNN EWWD380-C11BJYNN R-410a EWWQ750-C20AJYNN R-410a Proximus 729-2192kW Extension 250-700 Ecoplus 166-541kW McQuay R-134a WHS 334-1893kW PFS 369-1050kW WSC/WDC Centrifugal 300-9000kW

  10. WHS EWWD340-C19CJYNN Frame4 • Cooling Range: 334 – 1893 kW • McQuay Single-Screw Compressor (Frame4) • EER range: 4,1 – 4,6 • 1 – 2 – 3 – 4 truly independent refrigerant circuits • DX shell & tube evaporator – One pass refrigerant side • Electronic Expansion device as standard • R134a Ecologic Refrigerant Applied Systems

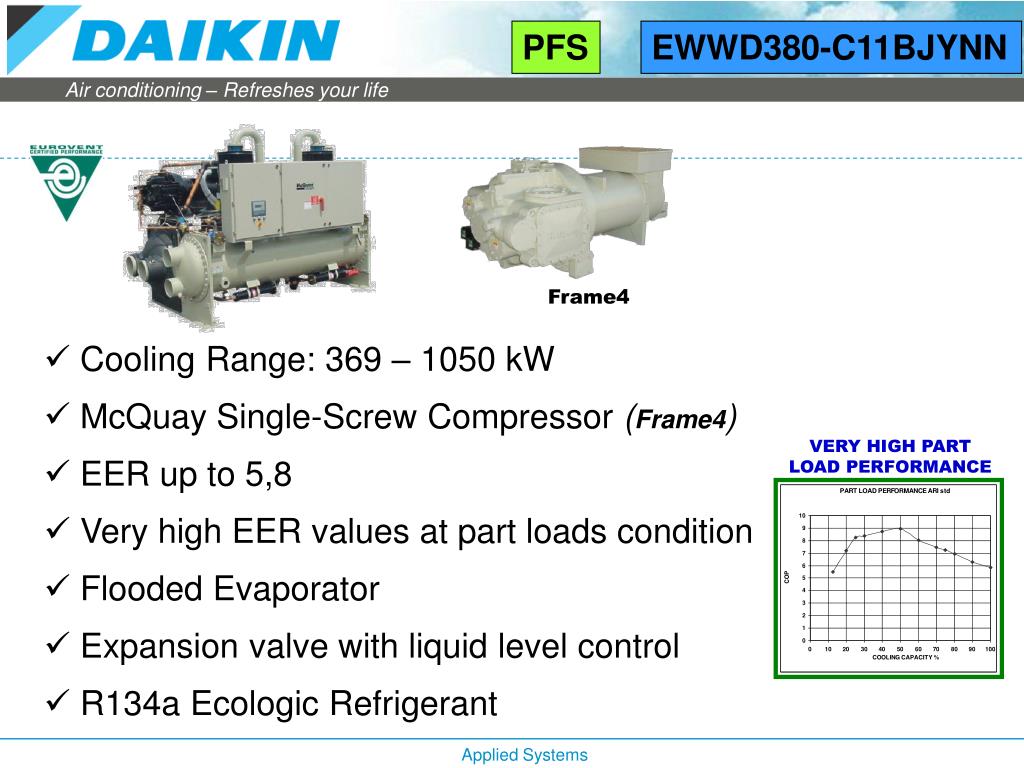

  11. PFS EWWD380-C11BJYNN Frame4 • Cooling Range: 369 – 1050 kW • McQuay Single-Screw Compressor (Frame4) • EER up to 5,8 • Very high EER values at part loads condition • Flooded Evaporator • Expansion valve with liquid level control • R134a Ecologic Refrigerant VERY HIGH PART LOAD PERFORMANCE Applied Systems

  12. ECOPLUS EWWD170-600DJYNN Frame3200 • Cooling Range: 166 – 604 kW • McQuay Single-Screw Compressor (Frame3200) • 2 efficiency versions: Std up to 4 and High up to 4,7 (EER) • 1 – 2 truly independent refrigerant circuits • DX shell & tube evaporator – One pass refrigerant side • Electronic Expansion device as standard • R134a Ecologic Refrigerant Applied Systems

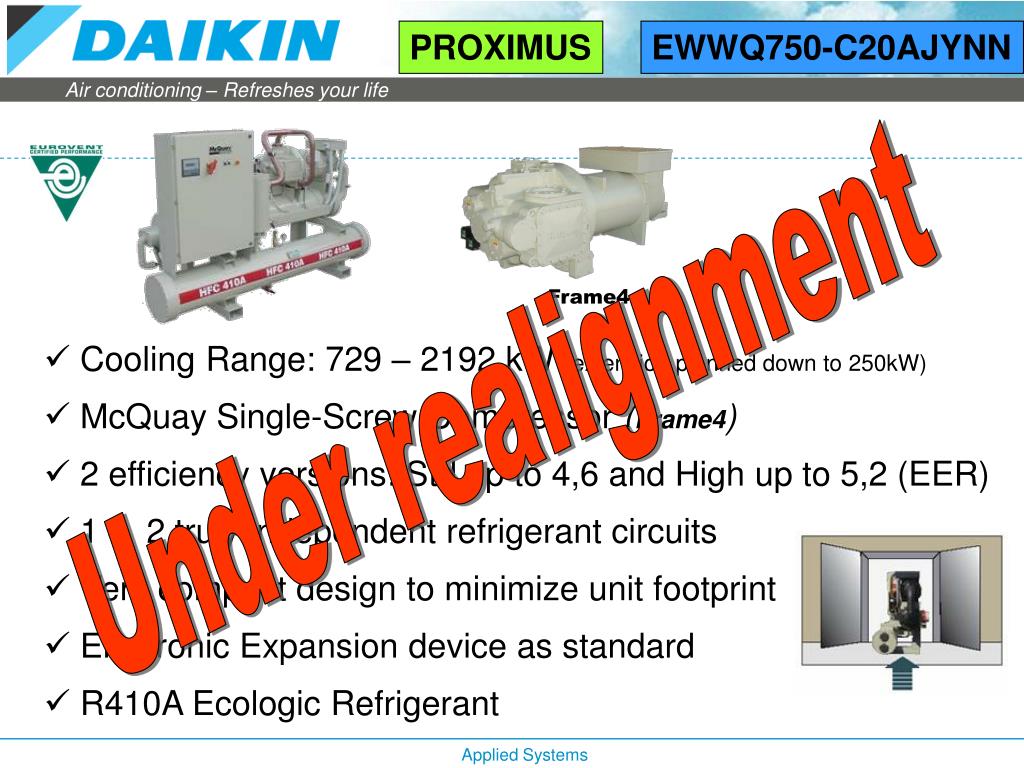

  13. PROXIMUS EWWQ750-C20AJYNN Frame4 Under realignment • Cooling Range: 729 – 2192 kW (extension planned down to 250kW) • McQuay Single-Screw Compressor (Frame4) • 2 efficiency versions: Std up to 4,6 and High up to 5,2 (EER) • 1 – 2 truly independent refrigerant circuits • Very compact design to minimize unit footprint • Electronic Expansion device as standard • R410A Ecologic Refrigerant Applied Systems

  14. WHS - XE Frame4 • Cooling Range: 344 – 957 kW • McQuay Single-Screw Compressor (Frame4) • 1 – 2 truly independent refrigerant circuits • DX shell & tube evaporator • EER range: 5,10 – 5,19 • Electronic Expansion device as standard • R134a Ecologic Refrigerant Phasing out Applied Systems

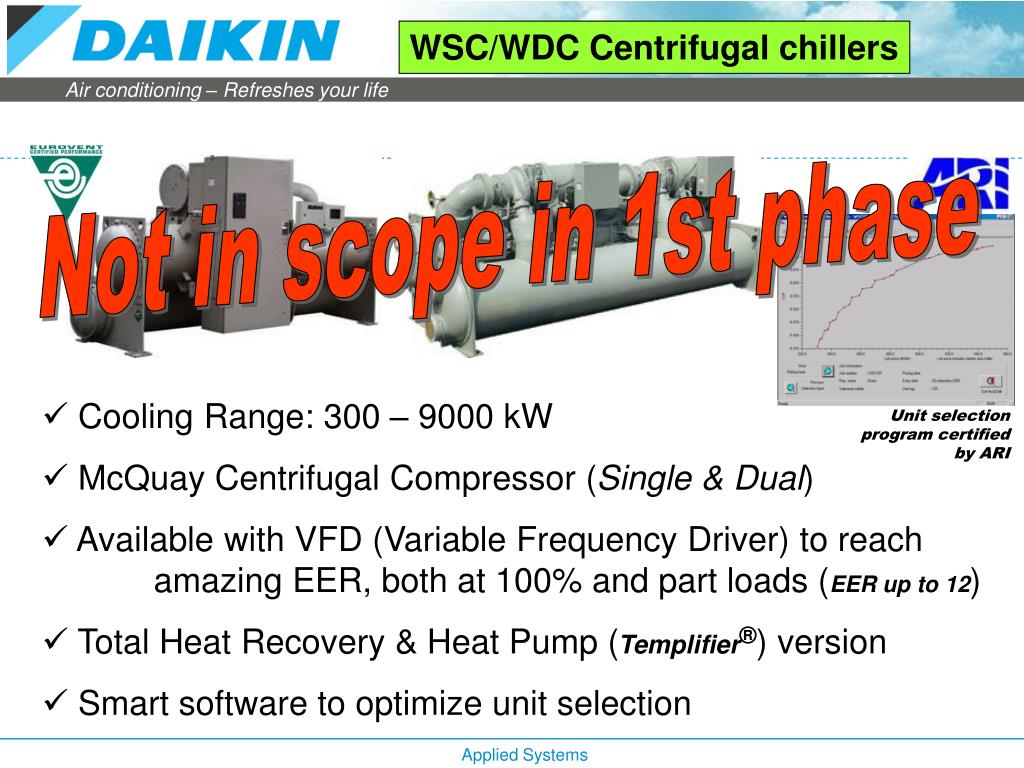

  15. WSC/WDC Centrifugal chillers Not in scope in 1st phase • Cooling Range: 300 – 9000 kW • McQuay Centrifugal Compressor (Single & Dual) • Available with VFD (Variable Frequency Driver) to reach amazing EER, both at 100% and part loads (EER up to 12) • Total Heat Recovery & Heat Pump (Templifier®) version • Smart software to optimize unit selection Unit selection program certified by ARI Applied Systems

  16. Overview on Nomenclature Daikin branded McQuay products

  17. Overview nomenclature A/C Applied Systems

  18. Overview nomenclature W/C Not for B07 purposes ME (remote condenser) and LR (remote condenser with liquid receiver) will be handled under SPN. Applied Systems

  19. Noise & Efficiency • Std Noise, Std Efficiency Base Model • OPRN: Reduced Noise, excludes compressor cabinet • OPLN: Low Noise, includes compressor cabinet • Std Noise, High Efficiency “A” Base Model • OPRN: Reduced Noise, excludes compressor cabinet • OPLN: Low Noise, includes compressor cabinet • Super Quiet, Std Efficiency “Q” Base Model • Super Quiet, High Efficiency “Z” Base Model • High Ambient = “H” Base Model Applied Systems

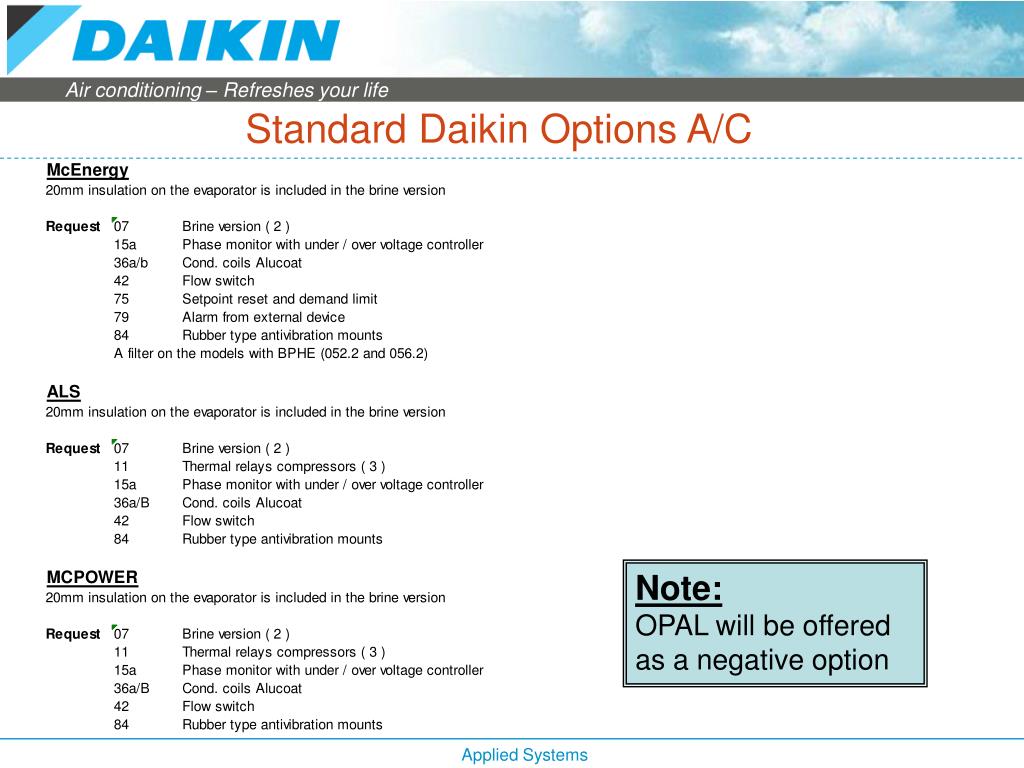

  20. Standard Daikin Options A/C Note: OPAL will be offered as a negative option Applied Systems

  21. Standard Daikin Options W/C Applied Systems

  22. Standard Options Available Applied Systems
