  1. EDAS: Providing an Environment for Decentralized Adaptive Services

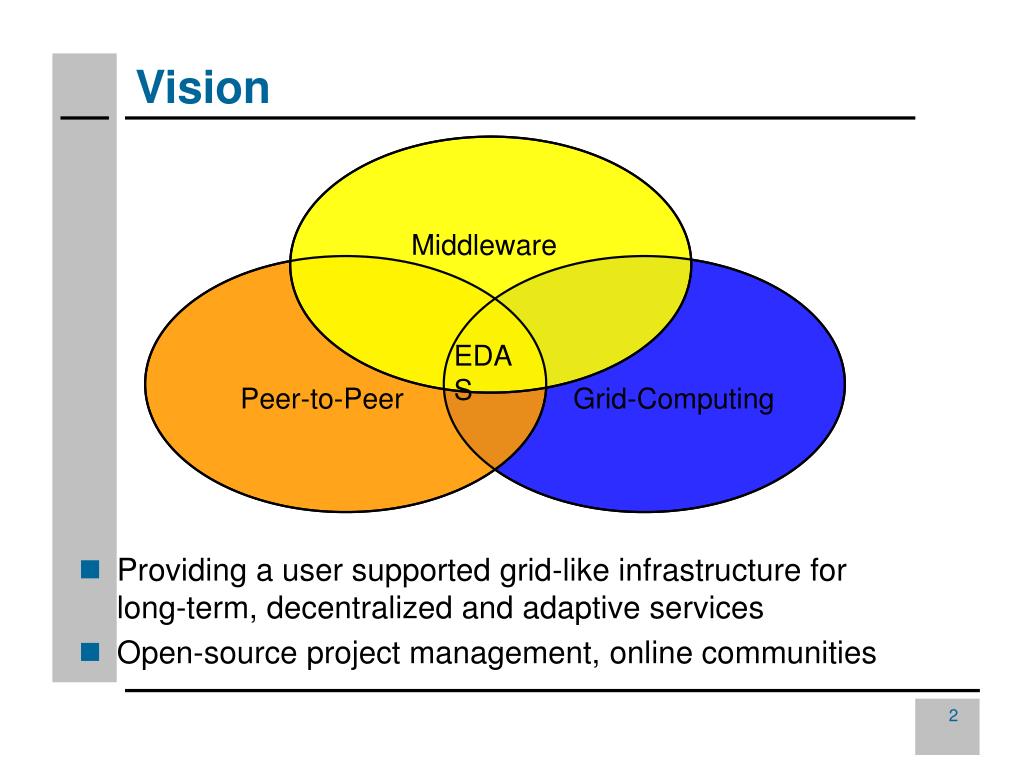

  2. Vision Middleware EDAS Peer-to-Peer Grid-Computing • Providing a user supported grid-like infrastructure forlong-term, decentralized and adaptive services • Open-source project management, online communities

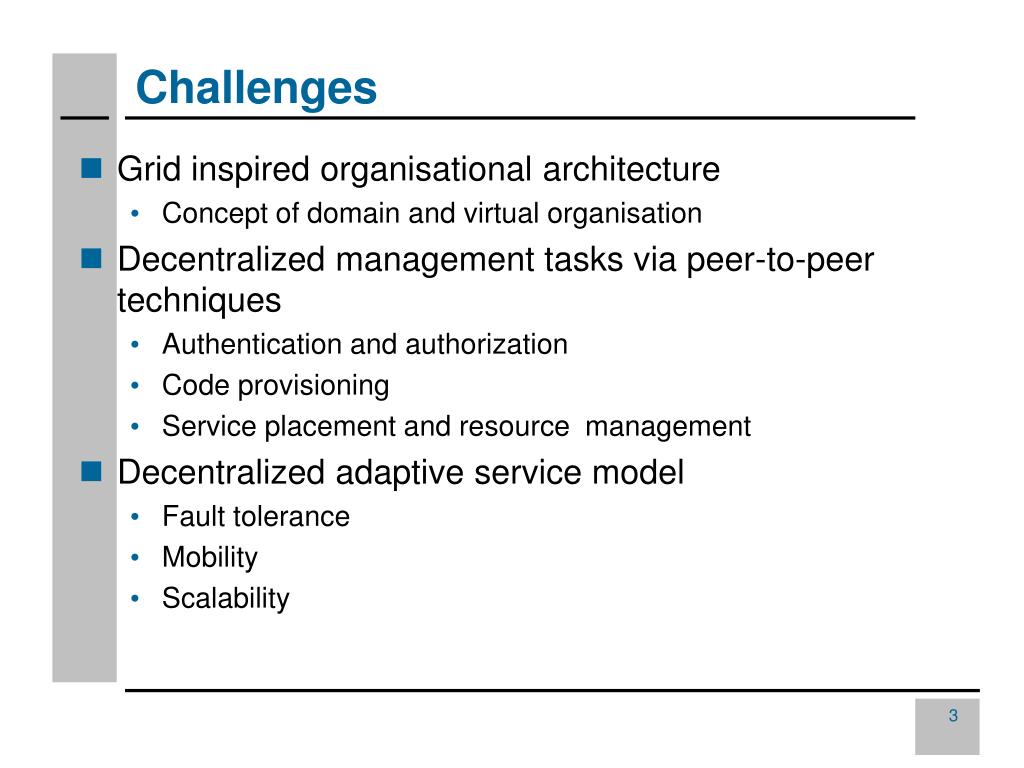

  3. Challenges • Grid inspired organisational architecture • Concept of domain and virtual organisation • Decentralized management tasks via peer-to-peer techniques • Authentication and authorization • Code provisioning • Service placement and resource management • Decentralized adaptive service model • Fault tolerance • Mobility • Scalability

  4. Outline • EDAS Architecture • Resource Management • Decentralized Adaptive Service • Agenda • Conclusion

  5. EDAS - Architecture • Institutions, companies and also single users are willing to support a project by providing resources • How should we use their resources? • Where place the service of our project?

  6. * 1..* Home Environment provides resources to 1 1 manages manages the execution of 1..* 1..* Node Decentralized, Adaptive Service Service Environment EDAS - Core Components • Home Environment (HE)- Connects all nodes of an administrative domain • Service Environment (SE) - Provides a distributed execution environment for services • Decentralized, Adaptive Service (DAS) - Dynamically distributed within the scope of an service environment

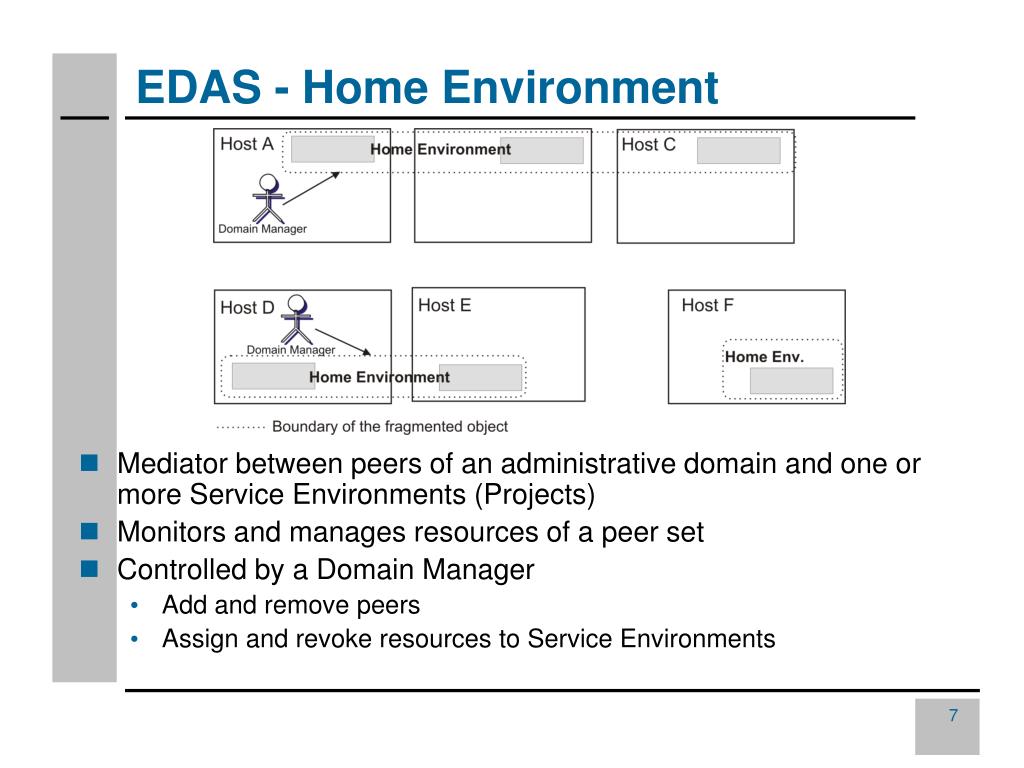

  7. EDAS - Home Environment • Mediator between peers of an administrative domain and one or more Service Environments (Projects) • Monitors and manages resources of a peer set • Controlled by a Domain Manager • Add and remove peers • Assign and revoke resources to Service Environments

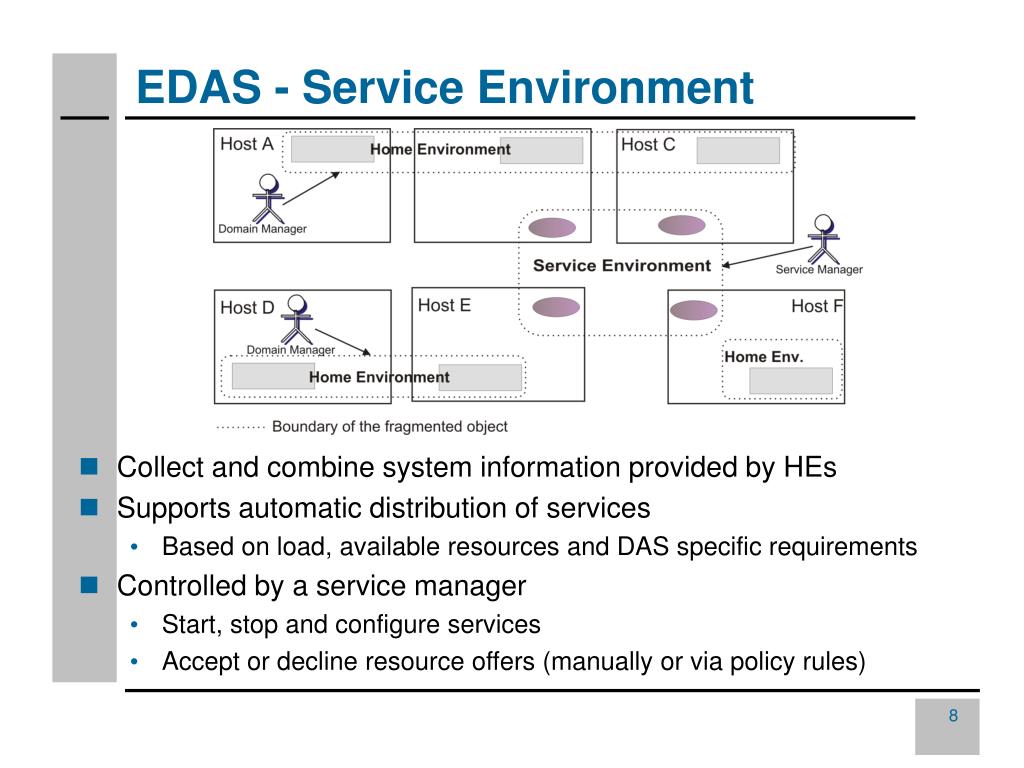

  8. EDAS - Service Environment • Collect and combine system information provided by HEs • Supports automatic distribution of services • Based on load, available resources and DAS specific requirements • Controlled by a service manager • Start, stop and configure services • Accept or decline resource offers (manually or via policy rules)

  9. EDAS -Decentralized Adaptive Service • Decentralized, Adaptive Services expand or shrink autonomoulsy depending on • Service demand • Fault tolerance reasons etc. • Could have different internal service-structure models and ideally change its service structure over time if necessary

  10. Resource Management • Core idea: Controlled resource sharing • Home Environments offer fixed amount of resources to Service Environments • Service Environment can accept or decline resource offers • Tasks of the Home Environment • Resource monitoring of physical resources: CPU, network, memory, disk • Local Area Placement • Manage service placement at domain level • Keep service environment limits • Task of the Service Environment • Wide Area Placement • Manage service placement in scope of a project

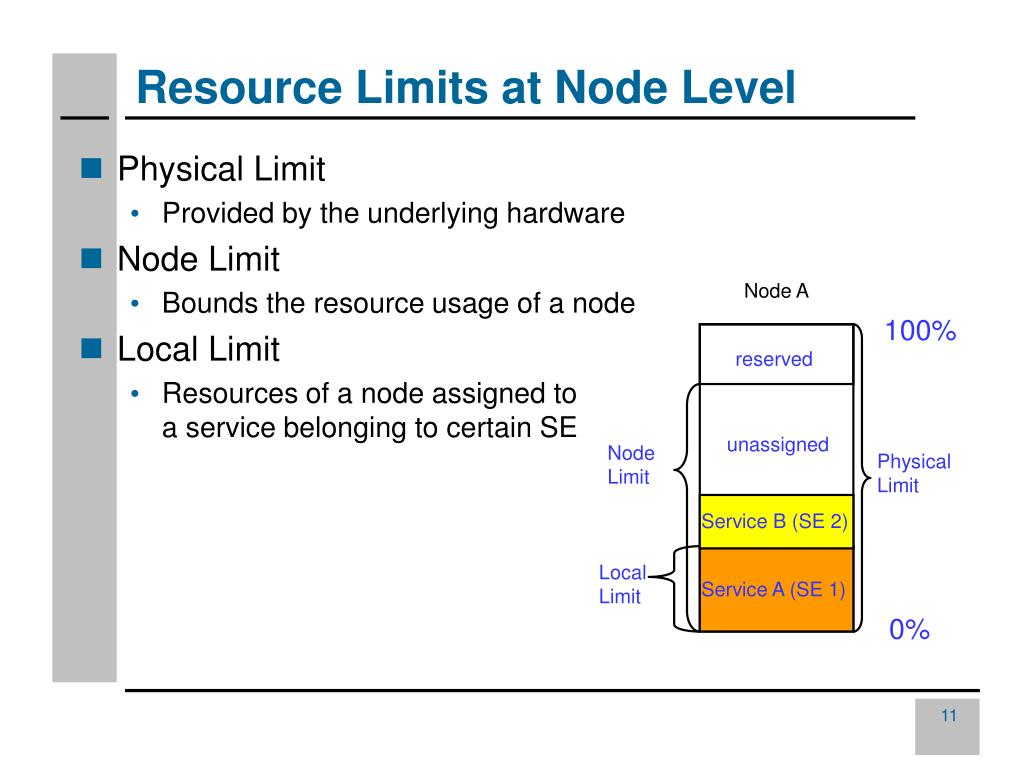

  11. Resource Limits at Node Level • Physical Limit • Provided by the underlying hardware • Node Limit • Bounds the resource usage of a node • Local Limit • Resources of a node assigned to a service belonging to certain SE Node A 100% reserved unassigned Node Limit Physical Limit Service B (SE 2) Local Limit Service A (SE 1) 0%

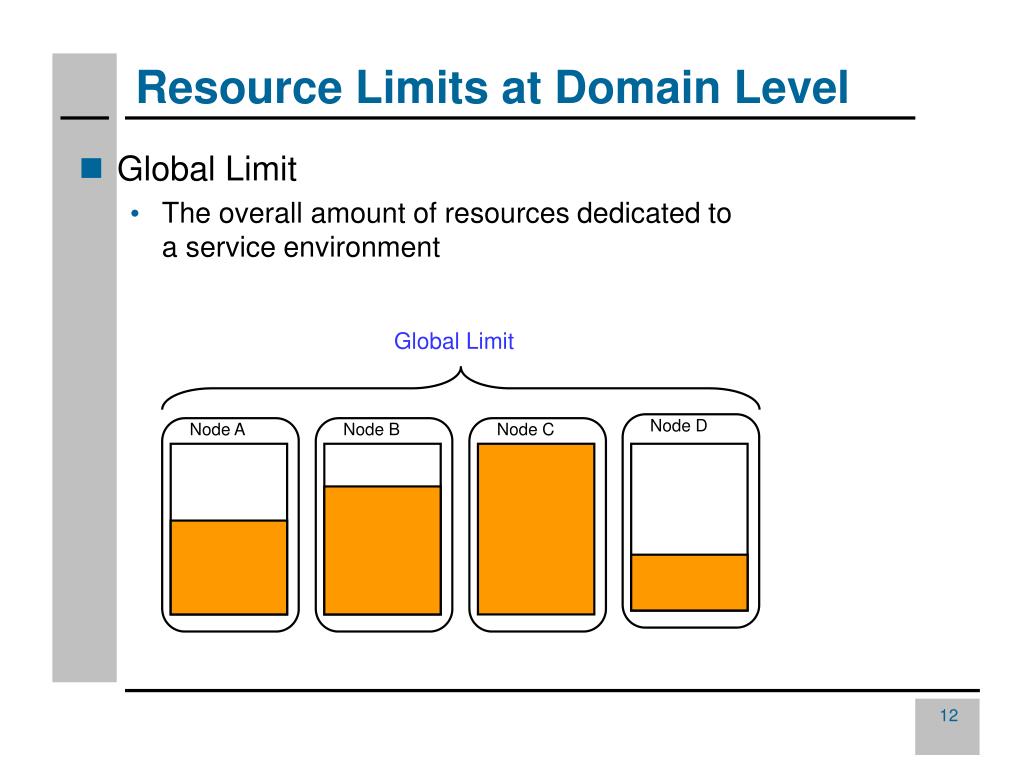

  12. Resource Limits at Domain Level • Global Limit • The overall amount of resources dedicated to a service environment Global Limit Node D Node A Node B Node C

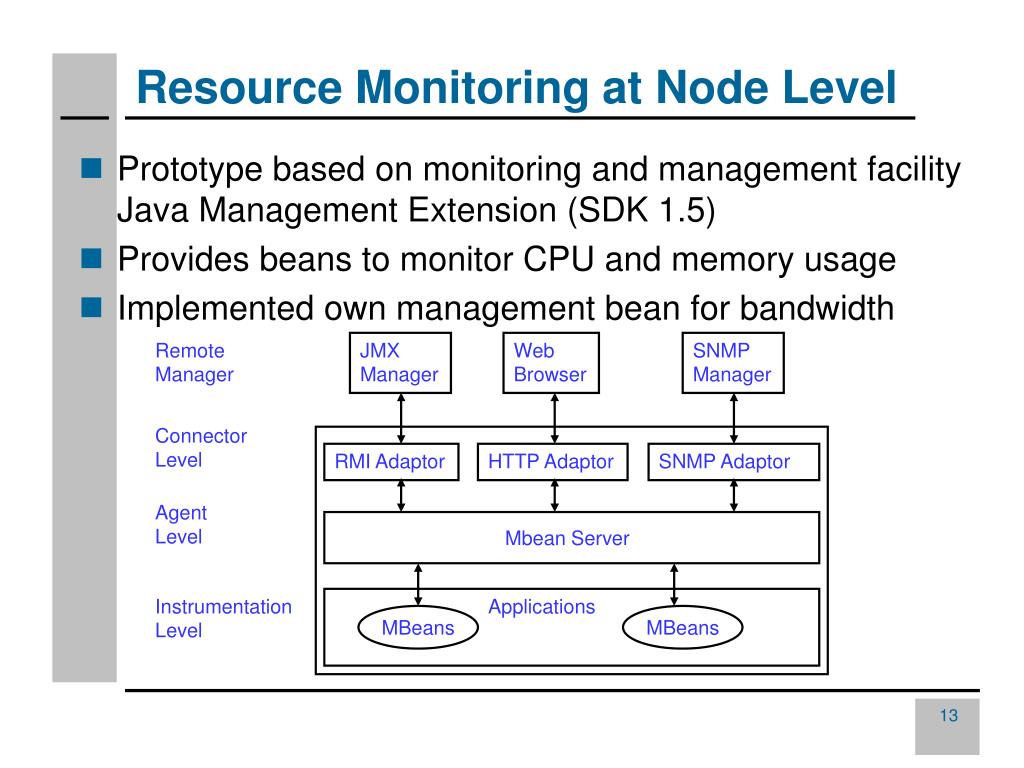

  13. MBeans MBeans Resource Monitoring at Node Level • Prototype based on monitoring and management facility Java Management Extension (SDK 1.5) • Provides beans to monitor CPU and memory usage • Implemented own management bean for bandwidth Remote Manager JMX Manager Web Browser SNMP Manager Connector Level RMI Adaptor HTTP Adaptor SNMP Adaptor Agent Level Mbean Server Instrumentation Level Applications

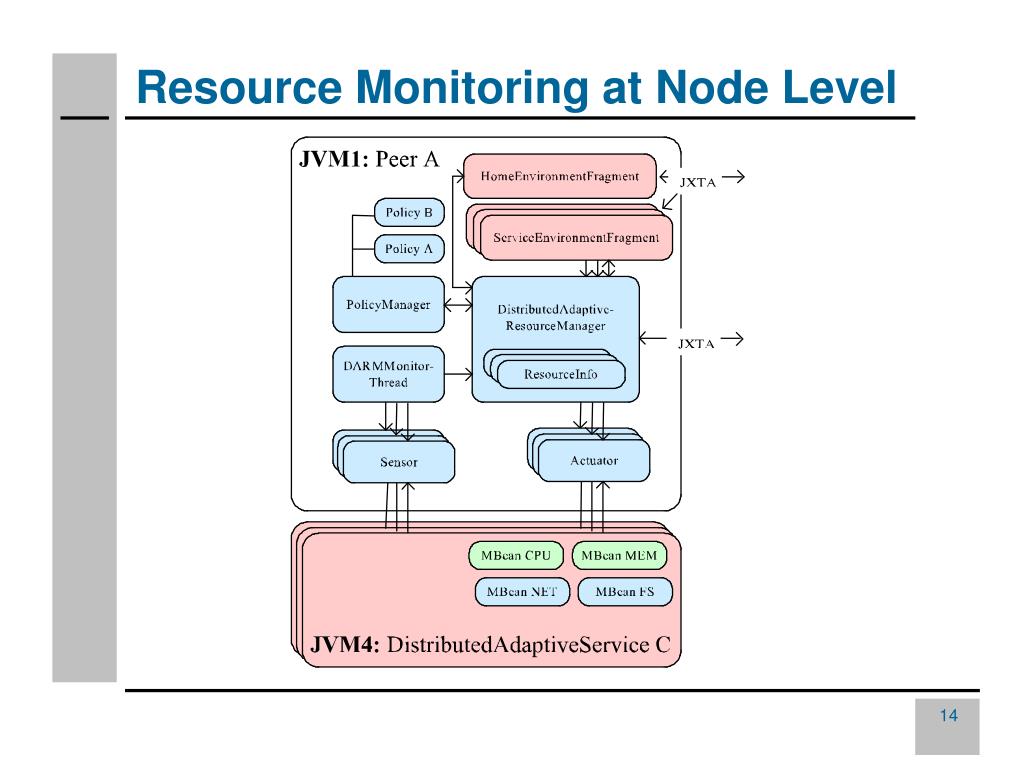

  14. Resource Monitoring at Node Level

  15. Service A Service Placement at Domain Level Node D Node A Node B Node C • Problem • Resource demand of services can dynamically change • Restrictions • Collocation and dislocation of services at the same node • Goal • Avoid service migration if possible • Placement algorithm should balance resource usage and keep limits

  16. Node A Node B Node C Node D Keeping Resource Limits • Problem • Resource demand of services can dynamically change but we have to keep the global limit • More time critical than service placement • Approach • Rededication of limits

  17. Keeping Resource Limits • Solution: Diffusive load balancing algorithm • All nodes supporting a service environment at a domain are connected in small overlapping groups • Frequent exchange and balancing of free resources (free slack) • If free resources locally reach zero the global limit is reached • Additionally exchange neighbour and resource limit information to compensate failed nodes

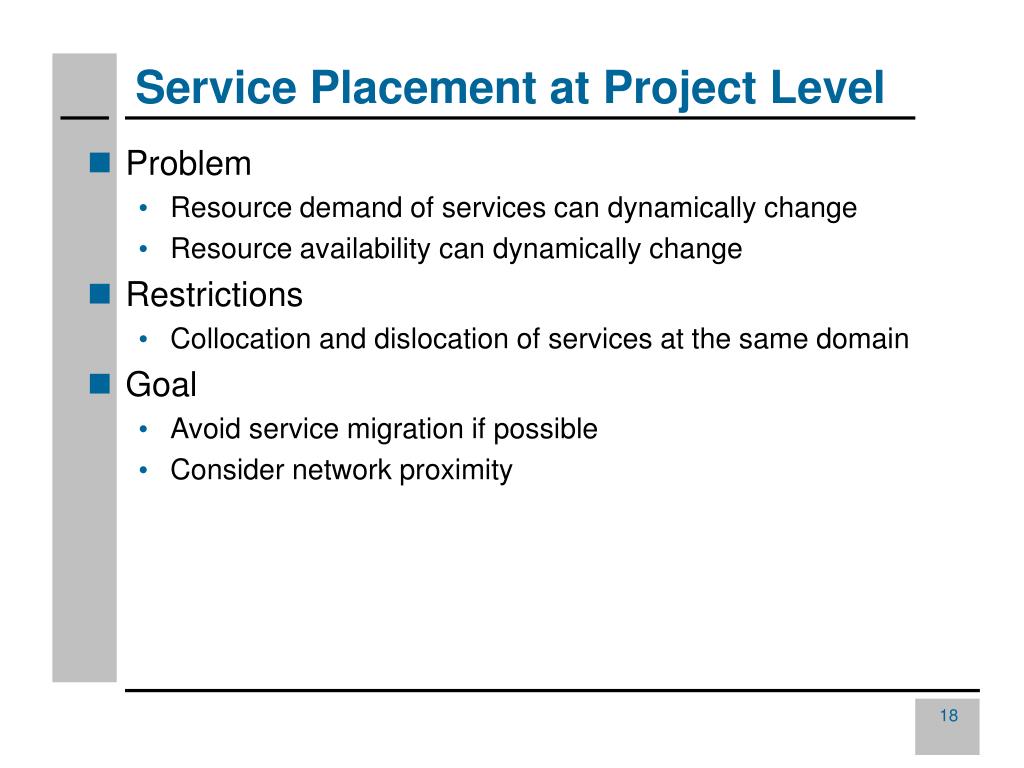

  18. Service Placement at Project Level • Problem • Resource demand of services can dynamically change • Resource availability can dynamically change • Restrictions • Collocation and dislocation of services at the same domain • Goal • Avoid service migration if possible • Consider network proximity

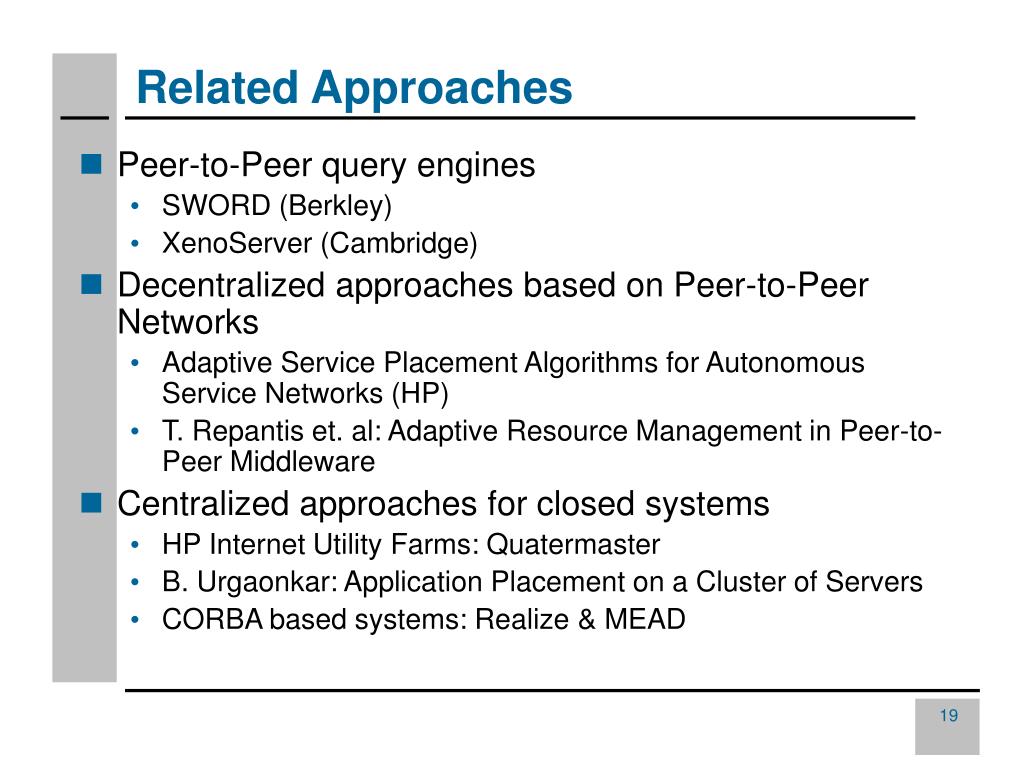

  19. Related Approaches • Peer-to-Peer query engines • SWORD (Berkley) • XenoServer (Cambridge) • Decentralized approaches based on Peer-to-Peer Networks • Adaptive Service Placement Algorithms for Autonomous Service Networks (HP) • T. Repantis et. al: Adaptive Resource Management in Peer-to-Peer Middleware • Centralized approaches for closed systems • HP Internet Utility Farms: Quatermaster • B. Urgaonkar: Application Placement on a Cluster of Servers • CORBA based systems: Realize & MEAD

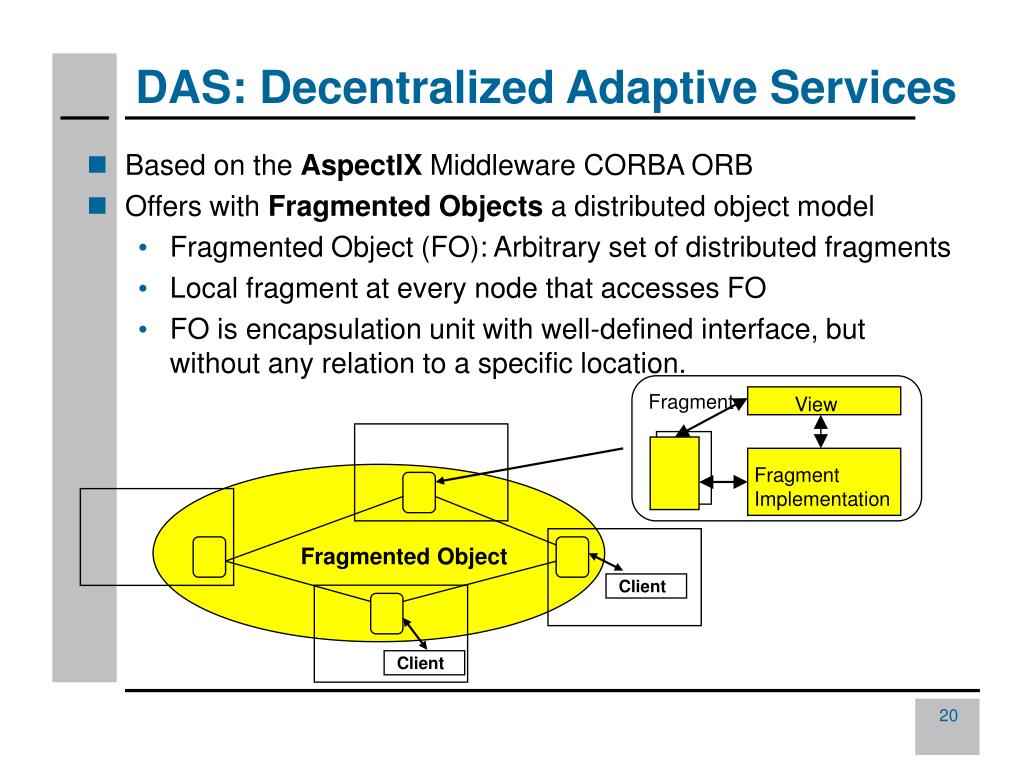

  20. Fragment View Fragment Implementation Client Client DAS: Decentralized Adaptive Services • Based on the AspectIX Middleware CORBA ORB • Offers with Fragmented Objects a distributed object model • Fragmented Object (FO): Arbitrary set of distributed fragments • Local fragment at every node that accesses FO • FO is encapsulation unit with well-defined interface, but without any relation to a specific location. Fragmented Object

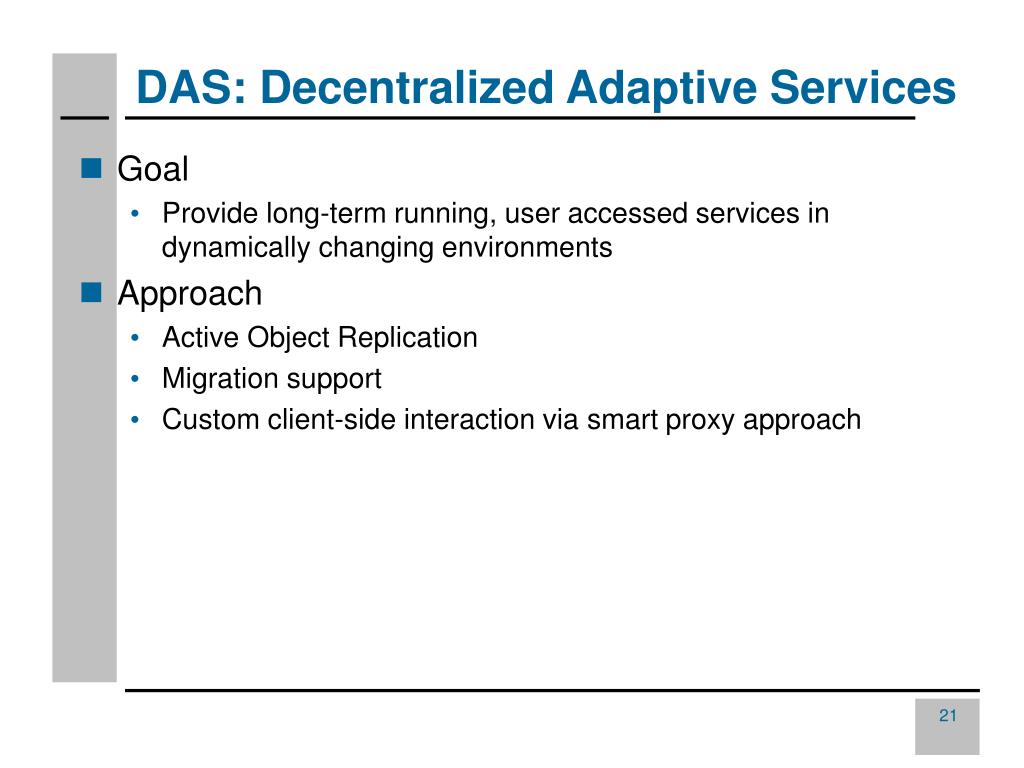

  21. DAS: Decentralized Adaptive Services • Goal • Provide long-term running, user accessed services in dynamically changing environments • Approach • Active Object Replication • Migration support • Custom client-side interaction via smart proxy approach

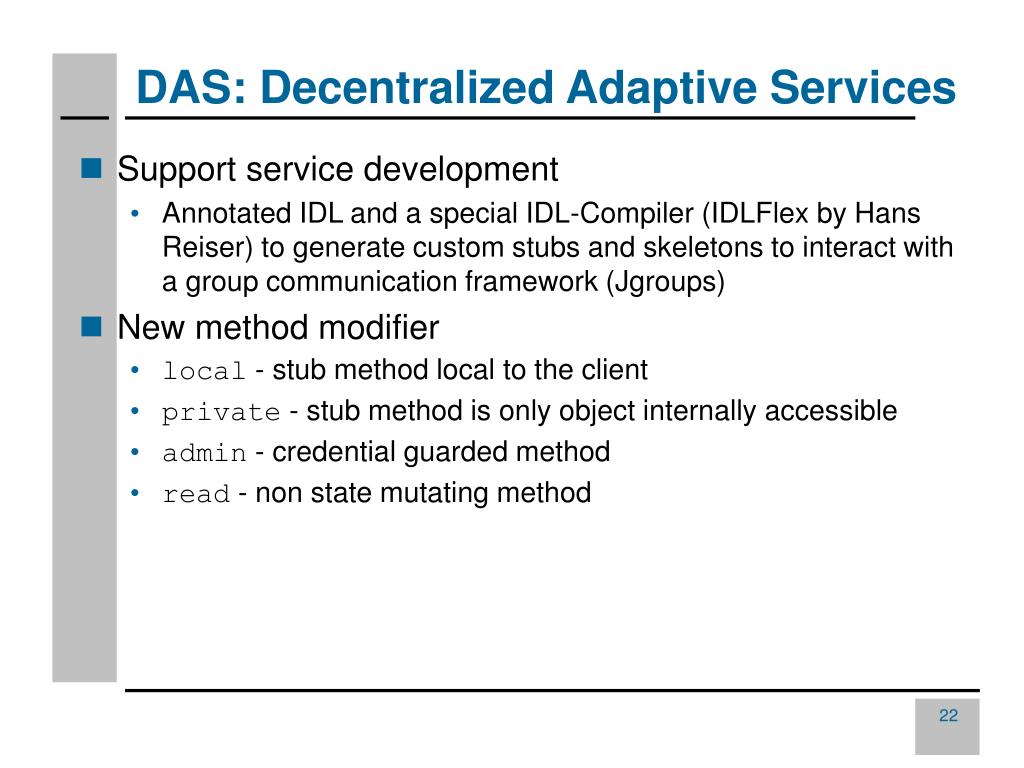

  22. DAS: Decentralized Adaptive Services • Support service development • Annotated IDL and a special IDL-Compiler (IDLFlex by Hans Reiser) to generate custom stubs and skeletons to interact with a group communication framework (Jgroups) • New method modifier • local - stub method local to the client • private - stub method is only object internally accessible • admin - credential guarded method • read - non state mutating method

  23. Client Client DAS: Decentralized Adaptive Services • Replicas can be dynamically created and moved inside the scope of the fragmented object • Client-side fragments can be exchanged • Example Service: Version Control Service • Replicated service core holds only current file information and manages concurrent access • Files might be stored on different nodes of the Service Environment Node A Node A Replica Replica GC (Jgroups) Node A Node A Custom Fragment Custom Fragment

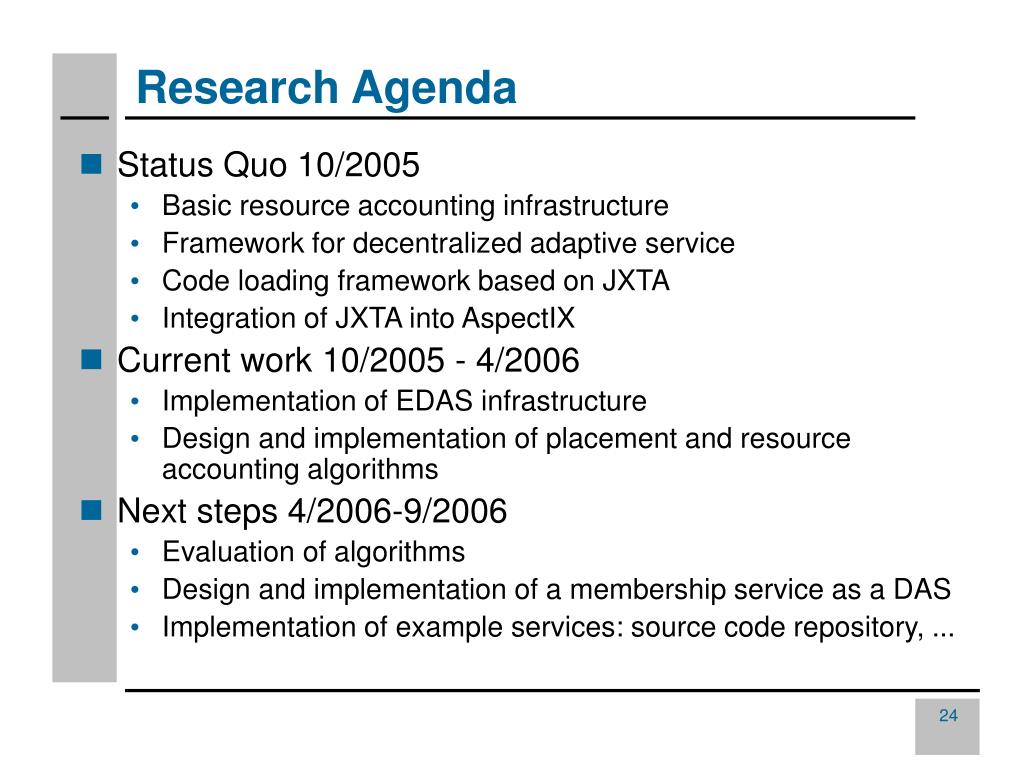

  24. Research Agenda • Status Quo 10/2005 • Basic resource accounting infrastructure • Framework for decentralized adaptive service • Code loading framework based on JXTA • Integration of JXTA into AspectIX • Current work 10/2005 - 4/2006 • Implementation of EDAS infrastructure • Design and implementation of placement and resource accounting algorithms • Next steps 4/2006-9/2006 • Evaluation of algorithms • Design and implementation of a membership service as a DAS • Implementation of example services: source code repository, ...

  25. Conclusion • Grid like infrastructure • Resource management support • Decentralized adaptive service model • Long term perspective provide a project management infrastructure like SourceForge • Further information: http://www.aspectix.org • Questions?

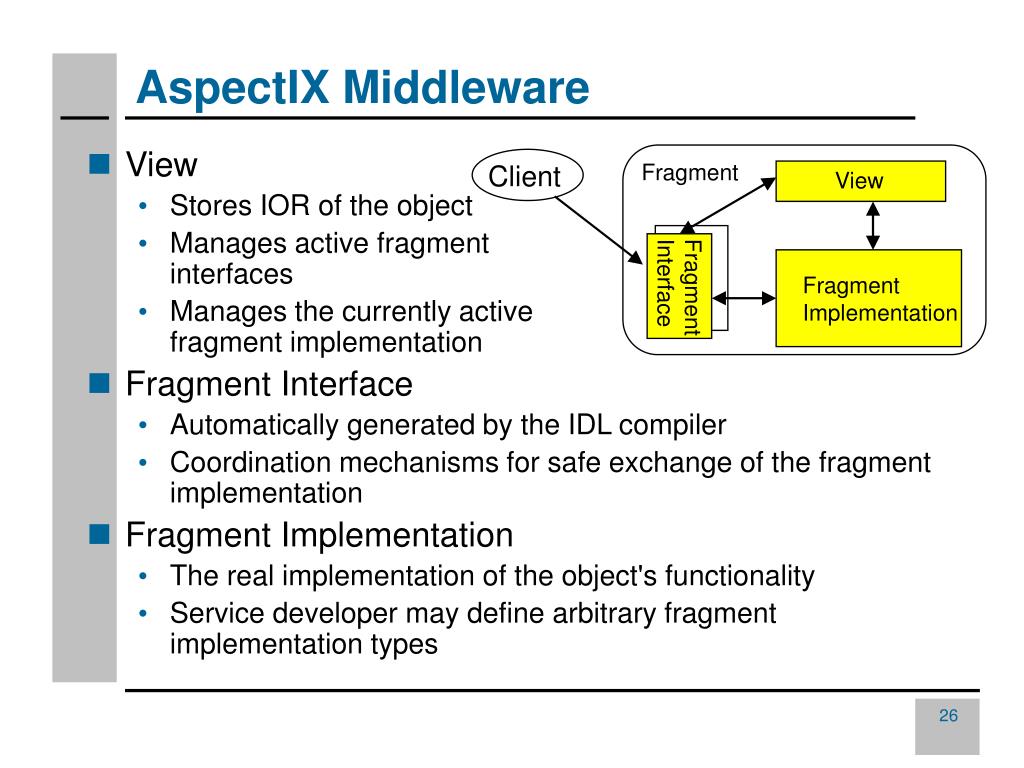

  26. AspectIX Middleware • View • Stores IOR of the object • Manages active fragment interfaces • Manages the currently active fragment implementation • Fragment Interface • Automatically generated by the IDL compiler • Coordination mechanisms for safe exchange of the fragment implementation • Fragment Implementation • The real implementation of the object's functionality • Service developer may define arbitrary fragment implementation types Fragment Client View Fragment Interface Fragment Implementation

  27. DAS: Decentralized Adaptive Services • Example Service: Version Control Service (VCS) • Replicated service core holds only information about where to find the files and manages concurrent access • Files might be stored on different nodes of the Service Environment or anywhere else • Ensures small service state and makes service easy relocatable Service Environment 3: data:getFile() Client Node 1: getFile() 2: url:getFile()

  28. Resource Limits at Node Level • Physical Limit • Provided by the underlying hardware • Node Limit • Bounds the resource usage of a node • Local Limit • Resources of a node assigned to a service Node A 100% reserved unassigned Node Limit Physical Limit Service B (SE 2) Local Limit Service A (SE 1) 0%

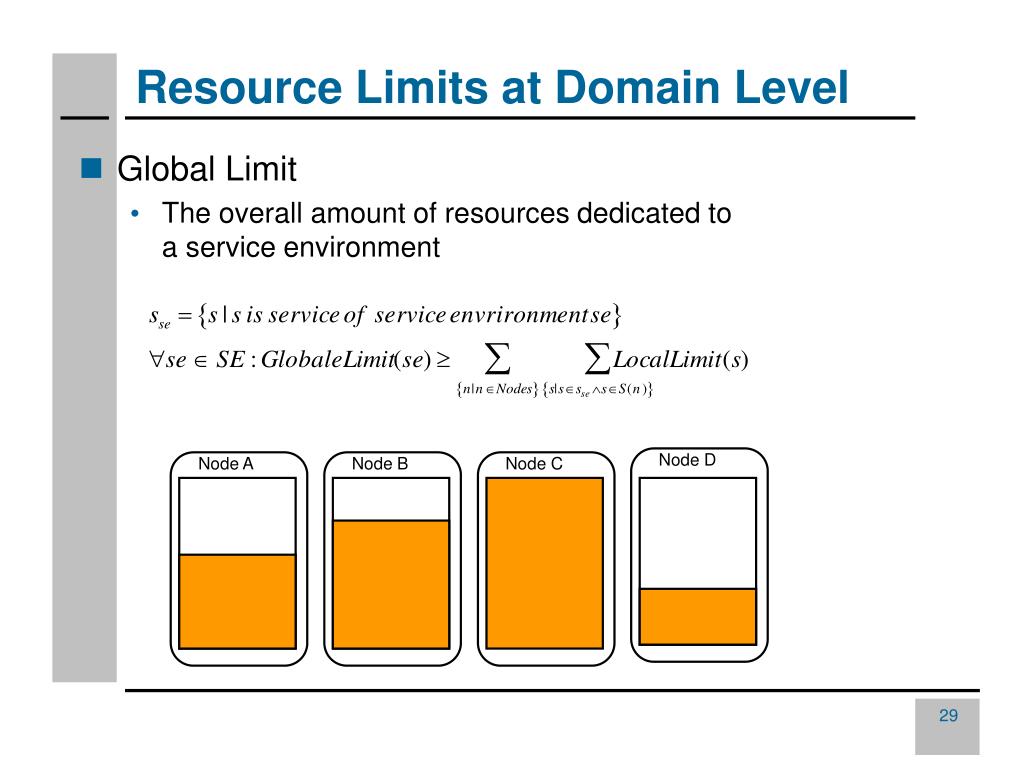

  29. Resource Limits at Domain Level • Global Limit • The overall amount of resources dedicated to a service environment Node D Node A Node B Node C
