  1. Passage Retrieval using HMMs HARD 2004 University of Illinois at Urbana-Champaign Jing Jiang ChengXiang Zhai

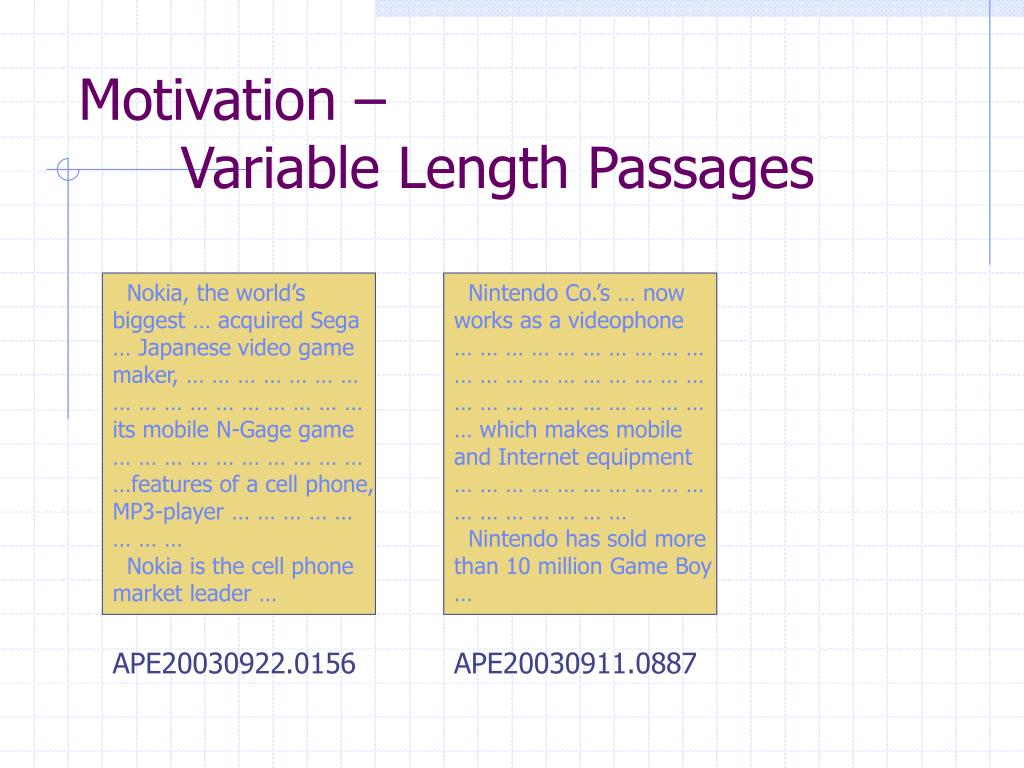

  2. Motivation – Variable Length Passages Nokia, the world’s biggest … acquired Sega … Japanese video game maker, … … … … … … … … … … … … … … … … … its mobile N-Gage game … … … … … … … … … … …features of a cell phone, MP3-player … … … … … … … … Nokia is the cell phone market leader … Nintendo Co.’s … now works as a videophone … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … which makes mobile and Internet equipment … … … … … … … … … … … … … … … … … Nintendo has sold more than 10 million Game Boy … APE20030922.0156 APE20030911.0887

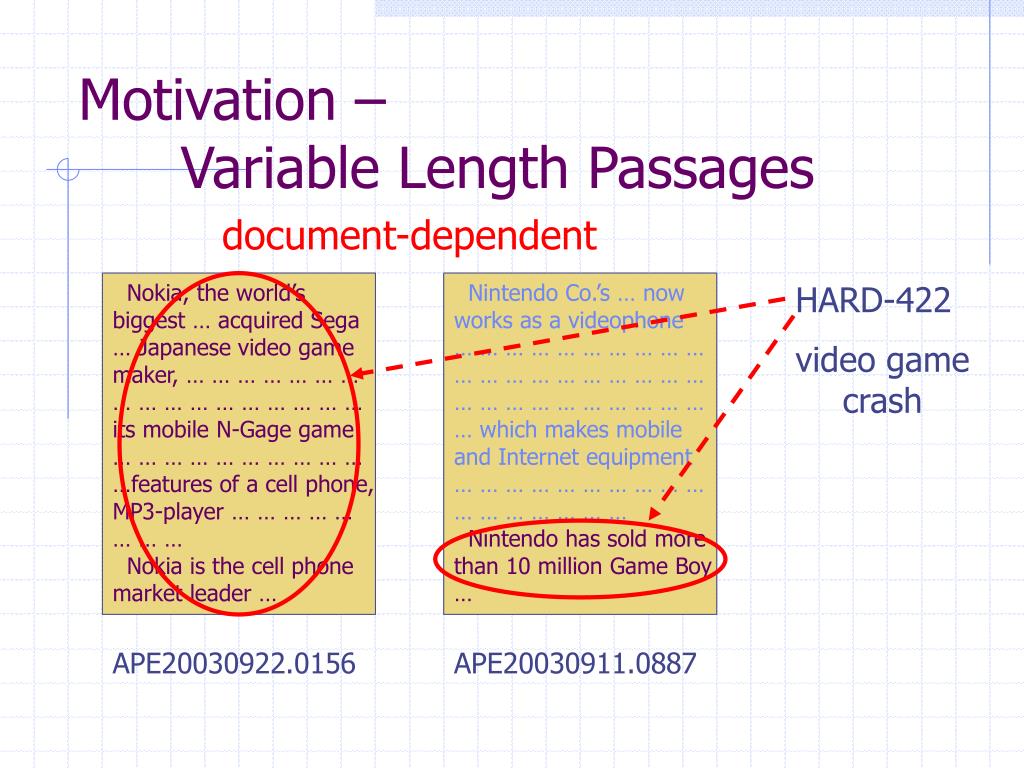

  3. Motivation – Variable Length Passages document-dependent Nokia, the world’s biggest … acquired Sega … Japanese video game maker, … … … … … … … … … … … … … … … … … its mobile N-Gage game … … … … … … … … … … …features of a cell phone, MP3-player … … … … … … … … Nokia is the cell phone market leader … Nintendo Co.’s … now works as a videophone … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … which makes mobile and Internet equipment … … … … … … … … … … … … … … … … … Nintendo has sold more than 10 million Game Boy … HARD-422 video game crash APE20030922.0156 APE20030911.0887

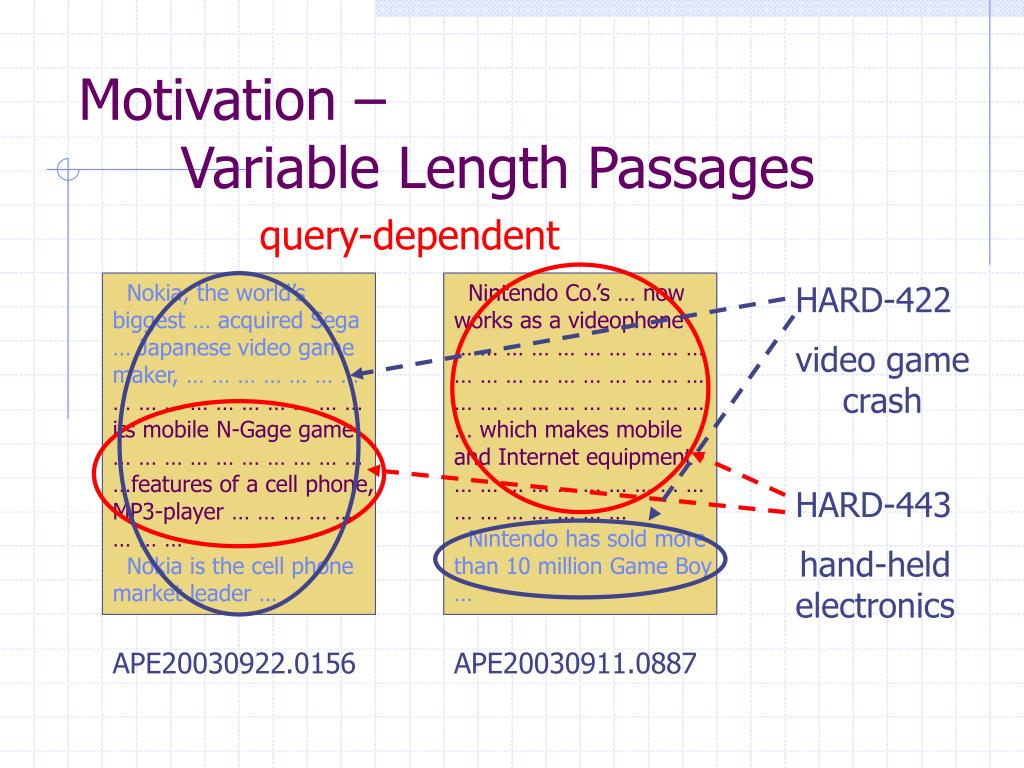

  4. Motivation – Variable Length Passages query-dependent Nokia, the world’s biggest … acquired Sega … Japanese video game maker, … … … … … … … … … … … … … … … … … its mobile N-Gage game … … … … … … … … … … …features of a cell phone, MP3-player … … … … … … … … Nokia is the cell phone market leader … Nintendo Co.’s … now works as a videophone … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … which makes mobile and Internet equipment … … … … … … … … … … … … … … … … … Nintendo has sold more than 10 million Game Boy … HARD-422 video game crash HARD-443 hand-held electronics APE20030922.0156 APE20030911.0887

  5. Research Question • Passage length is • document-dependent • query-dependent How to detect variable-length passages?

  6. Previous Work on Passage Retrieval • Structural or semantic boundary • Passage is not query-specific. • Fixed-length • Passage length is not query-specific. • Passage content may not be coherent. • Arbitrary – MultiText • Only query words are considered. • Heuristics are used to reduce search space. • HMM-based • The method is promising, but previous work didn’t fully explore its potential.

  7. w w … w w w w … w w w w … w HMM-Based Method document

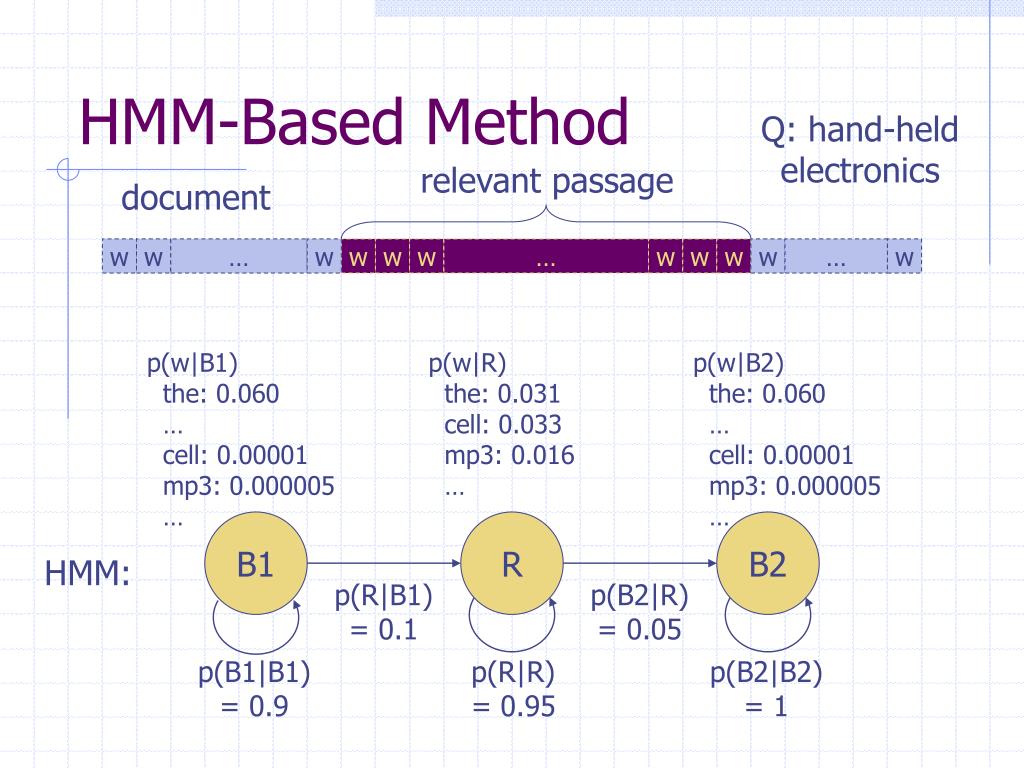

  8. w w … w w w w … w w w w … w p(w|B1) the: 0.060 … cell: 0.00001 mp3: 0.000005 … p(w|R) the: 0.031 cell: 0.033 mp3: 0.016 … p(w|B2) the: 0.060 … cell: 0.00001 mp3: 0.000005 … B1 R B2 HMM: p(R|B1) = 0.1 p(B2|R) = 0.05 p(B1|B1) = 0.9 p(R|R) = 0.95 p(B2|B2) = 1 HMM-Based Method Q: hand-held electronics relevant passage document

  9. w w … w w w w … w w w w … w p(w|B1) the: 0.060 … cell: 0.00001 mp3: 0.000005 … p(w|R) the: 0.031 cell: 0.033 mp3: 0.016 … p(w|B2) the: 0.060 … cell: 0.00001 mp3: 0.000005 … B1 R B2 HMM: p(R|B1) = 0.1 p(B2|R) = 0.05 p(B1|B1) = 0.9 p(R|R) = 0.95 p(B2|B2) = 1 HMM-Based Method Q: hand-held electronics relevant passage document B B … B R R R … R R R B … B

  10. B1 R B2 Constructing the HMM

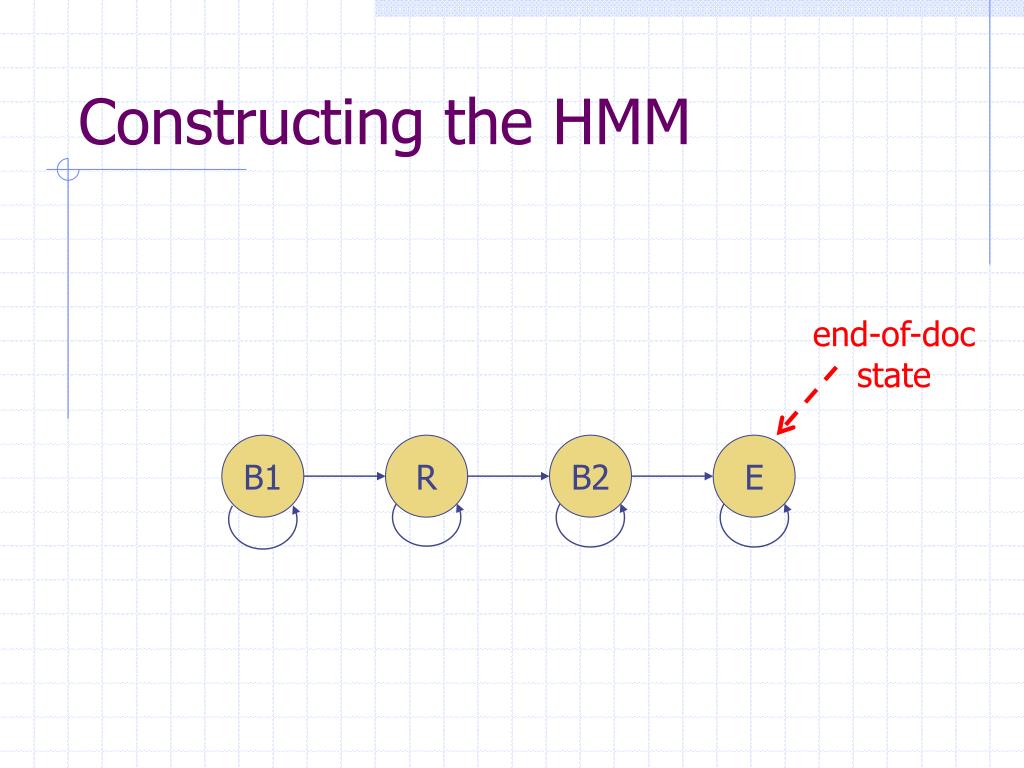

  11. B1 R B2 E Constructing the HMM end-of-doc state

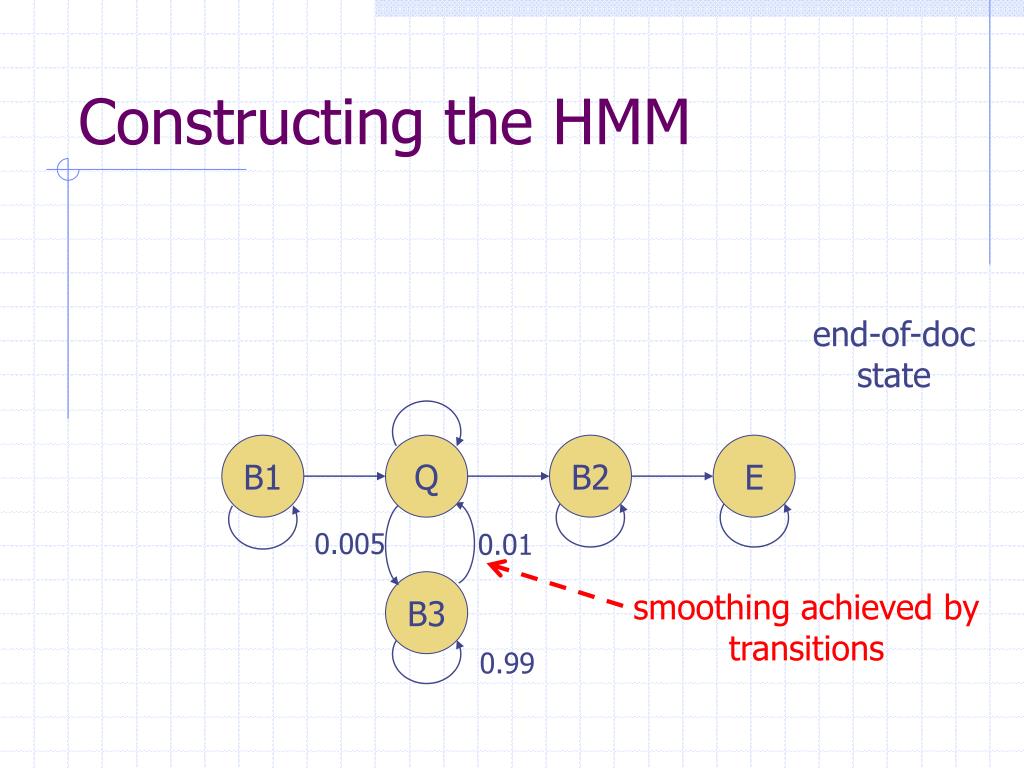

  12. B1 Q B2 E B3 Constructing the HMM end-of-doc state 0.005 0.01 smoothing achieved by transitions 0.99

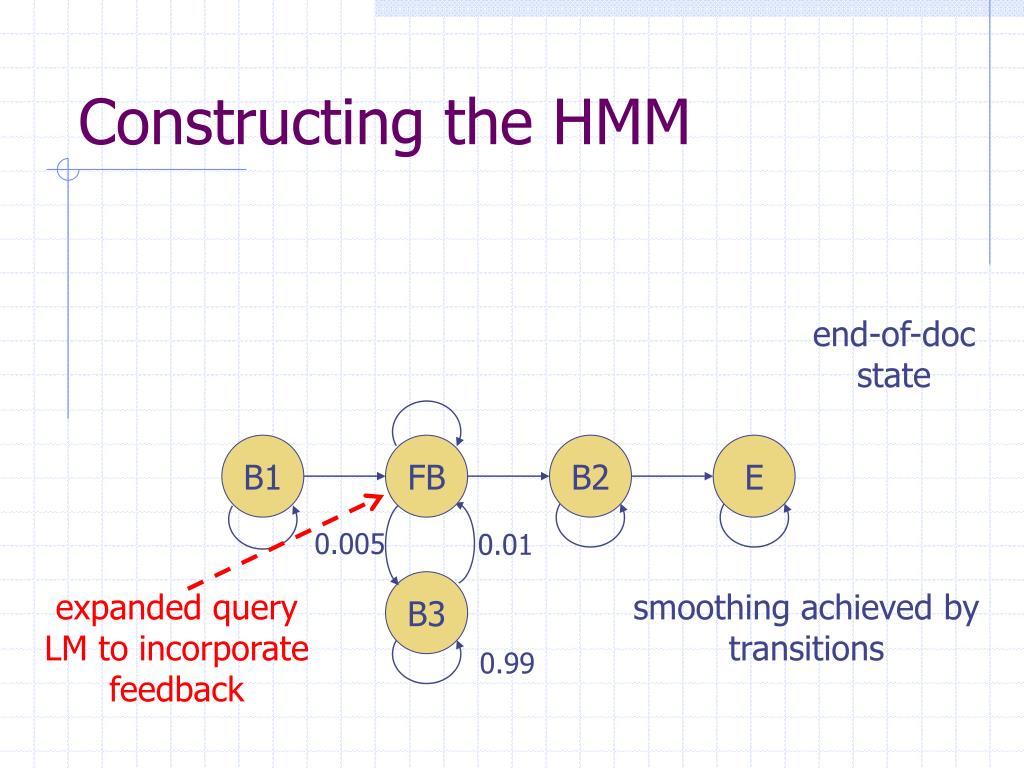

  13. B1 FB B2 E B3 Constructing the HMM end-of-doc state 0.005 0.01 expanded query LM to incorporate feedback smoothing achieved by transitions 0.99

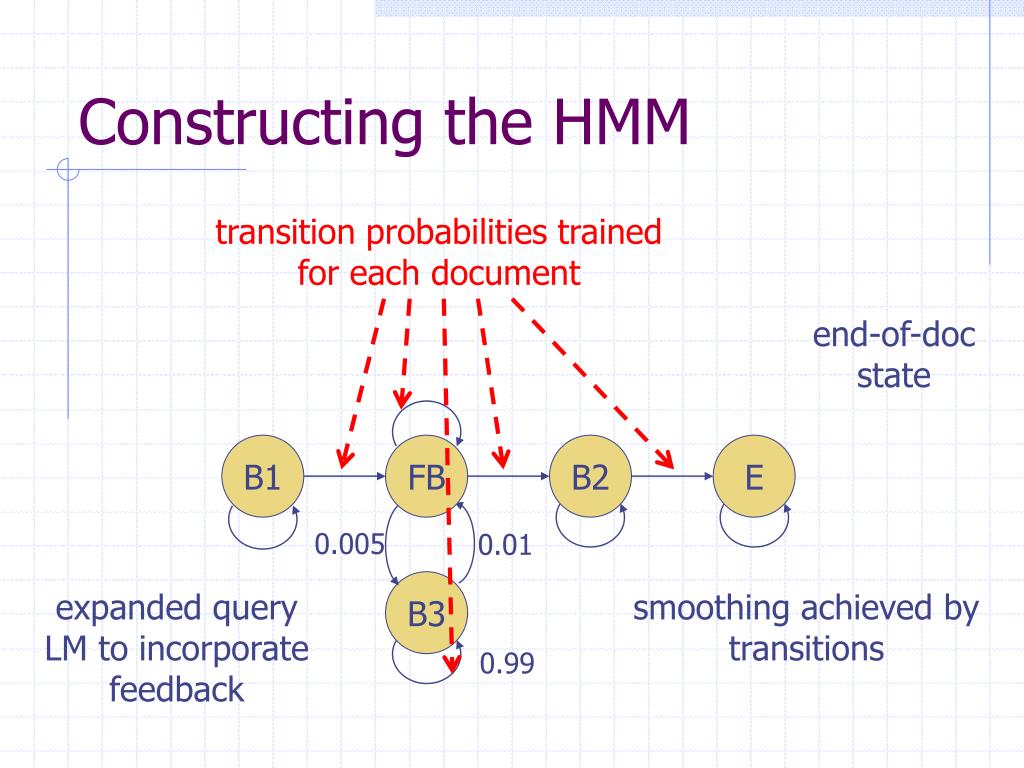

  14. B1 FB B2 E B3 Constructing the HMM transition probabilities trained for each document end-of-doc state 0.005 0.01 expanded query LM to incorporate feedback smoothing achieved by transitions 0.99

  15. true passage w w … … w w w w w w w w w w … … w w w w w w w w w w … … w w short passage with artificial boundary B1 FB B2 E B3 w … w w w w w w … w w w w w … w passage extended to the natural topical boundary Passage Extension

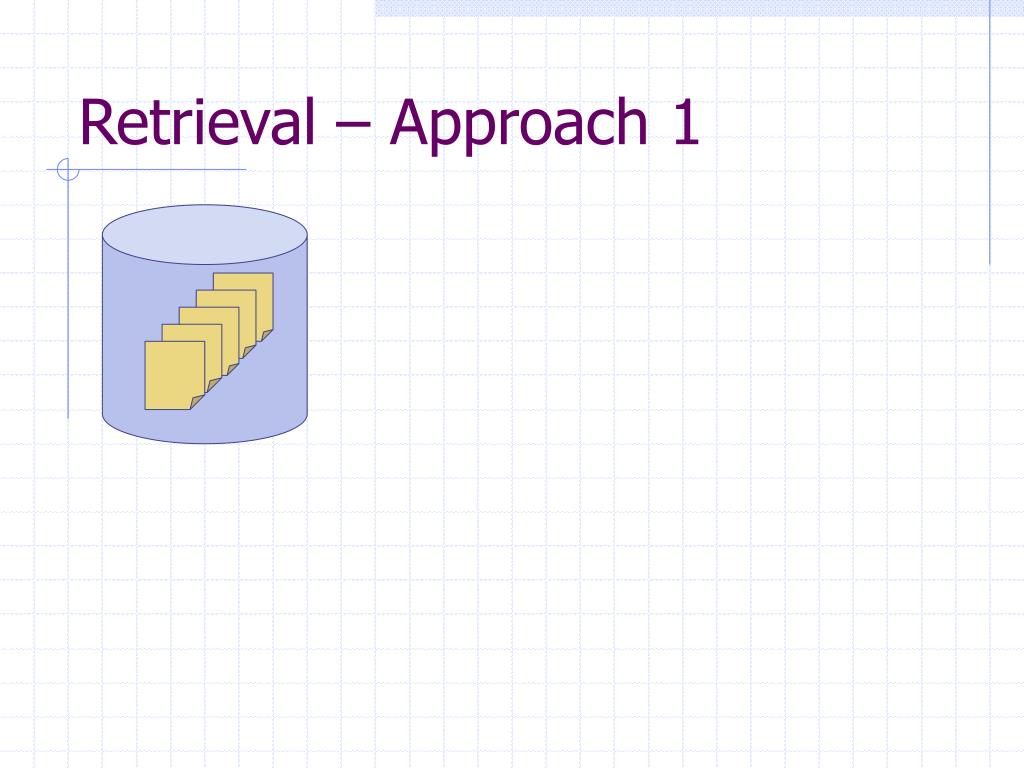

  16. Retrieval – Approach 1

  17. 1 2 3 … n Retrieval – Approach 1 ranking

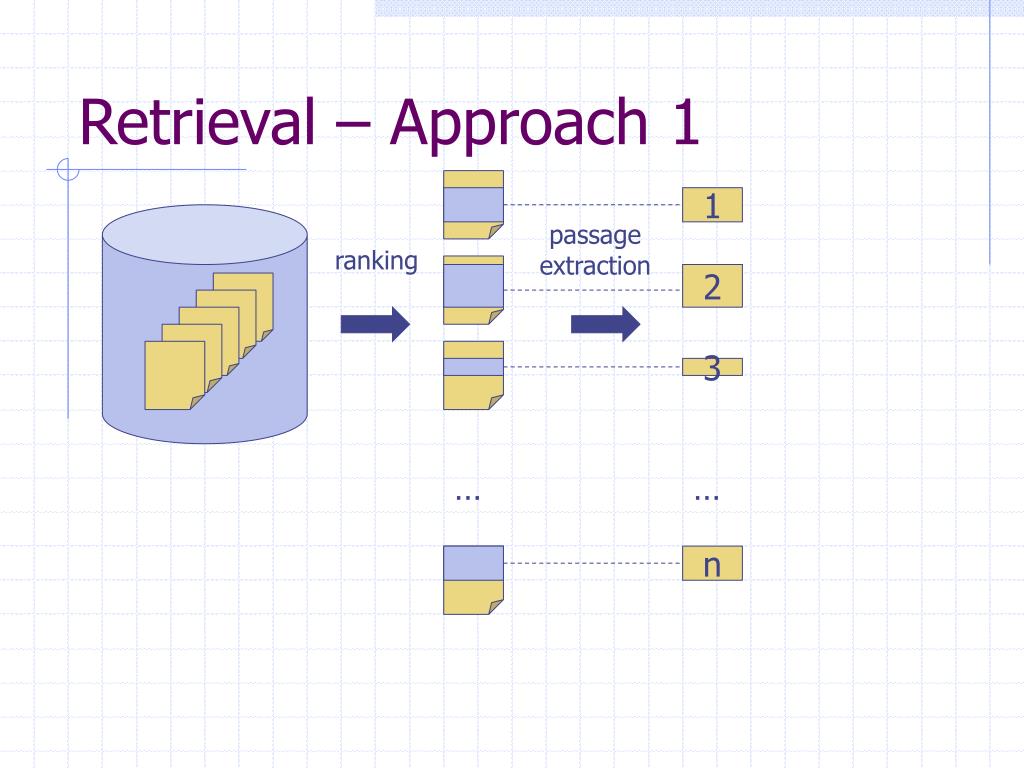

  18. 1 2 3 … n Retrieval – Approach 1 passage extraction ranking …

  19. 1 passage extraction ranking 2 3 … n Retrieval – Approach 2

  20. fixed- length passages 1 1 ranking 2 HMM 2 3 3 … … n n our focus f0: 120-word passages, relevance feedback b0: whole-document ranking, pseudo-feedback f1: HMM-extended 60-word passages, relevance feedback Retrieval – Our Approach

  21. Passage-Level Results • Overall, baseline was the best.

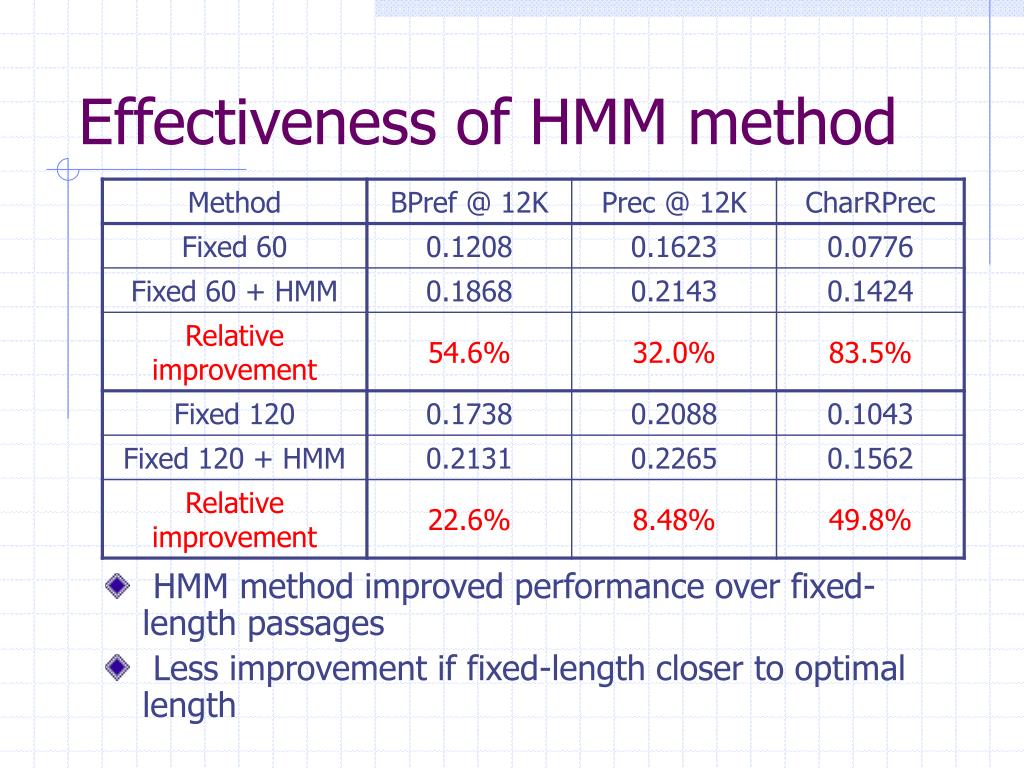

  22. Effectiveness of HMM method HMM method improved performance over fixed-length passages Less improvement if fixed-length closer to optimal length

  23. Diagnosis Runs KL-divergence works poorly on passages non-optimal parameter setting HMM improves boundaries

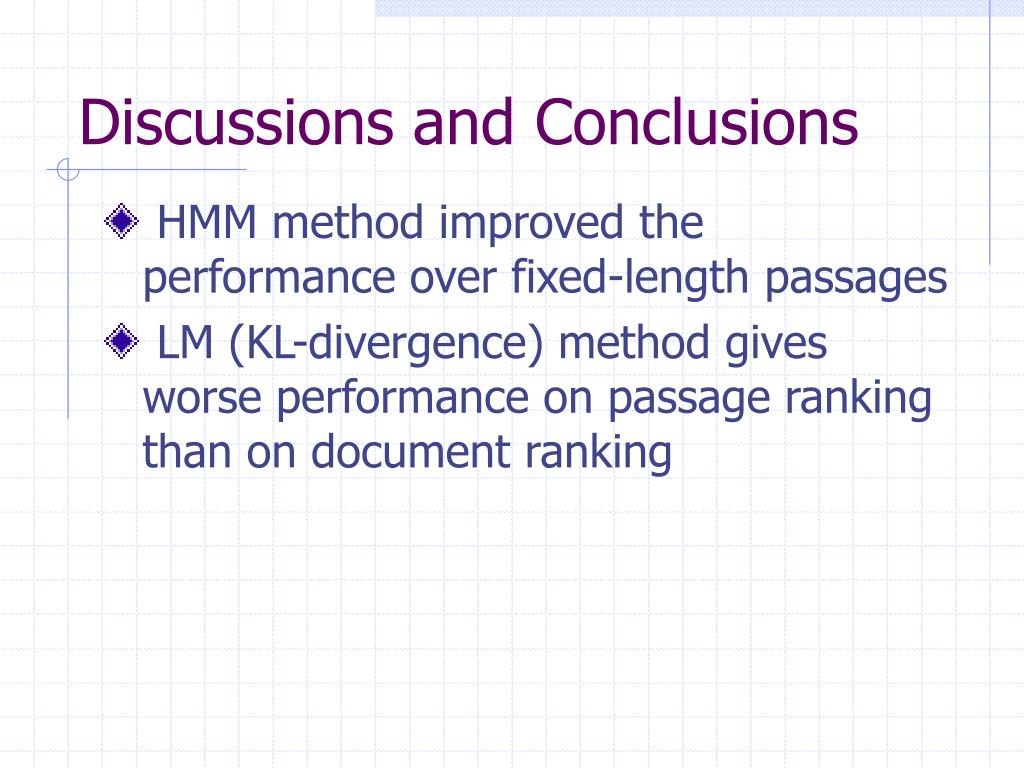

  24. Discussions and Conclusions • HMM method improved the performance over fixed-length passages • LM (KL-divergence) method gives worse performance on passage ranking than on document ranking

  25. The End • Questions?
