Presentation Transcript

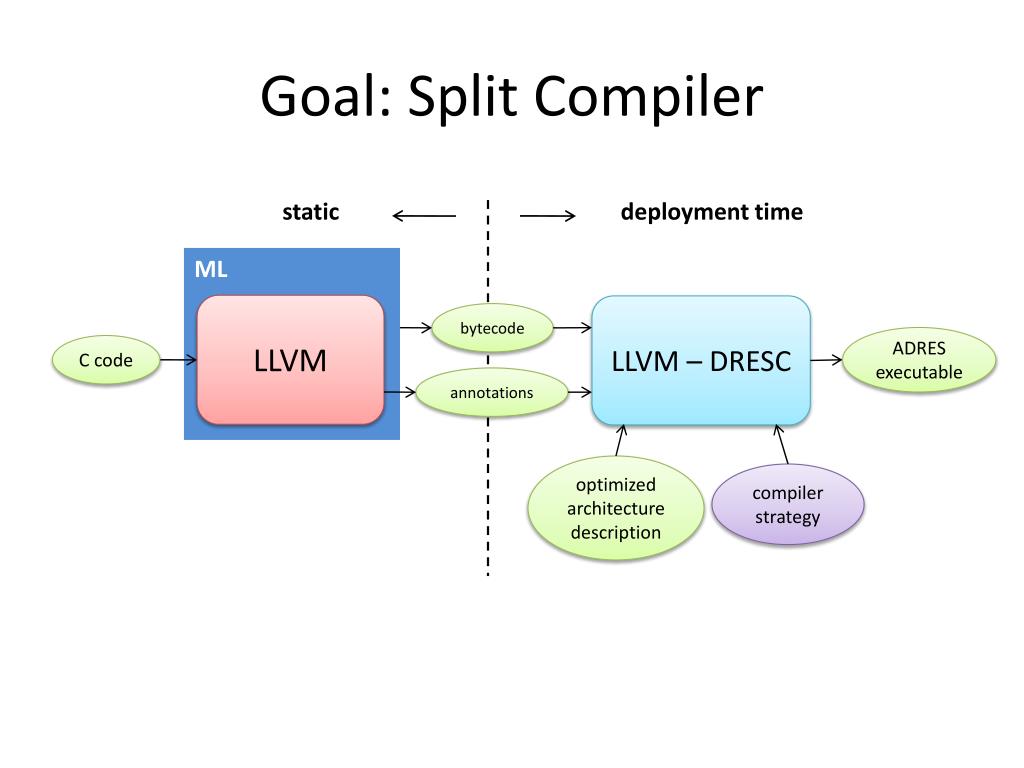

Goal split compiler
Goal: Split Compiler

static

deployment time

ML

LLVM

LLVM – DRESC

bytecode

ADRES executable

C code

annotations

optimized architecture description

compiler strategy

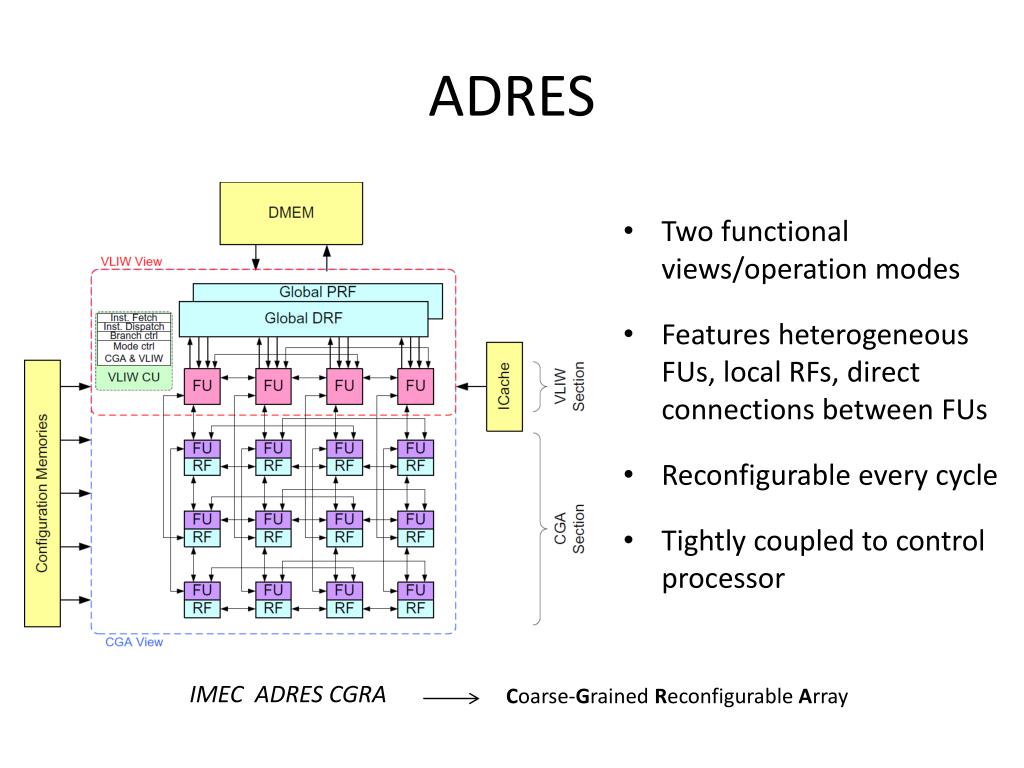

Adres
ADRES

  • Two functional views/operation modes

  • Features heterogeneous FUs, local RFs, direct connections between FUs

  • Reconfigurable every cycle

  • Tightly coupled to control processor

IMEC ADRES CGRA

Coarse-Grained Reconfigurable Array



Scheduling phases

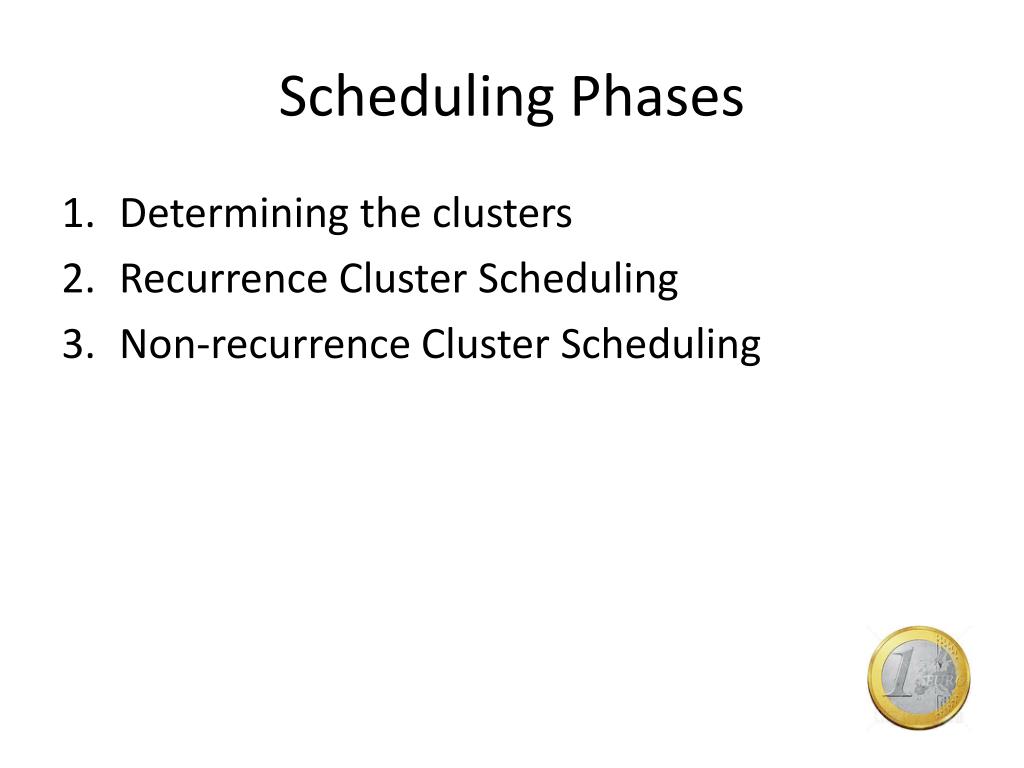

Scheduling Phases

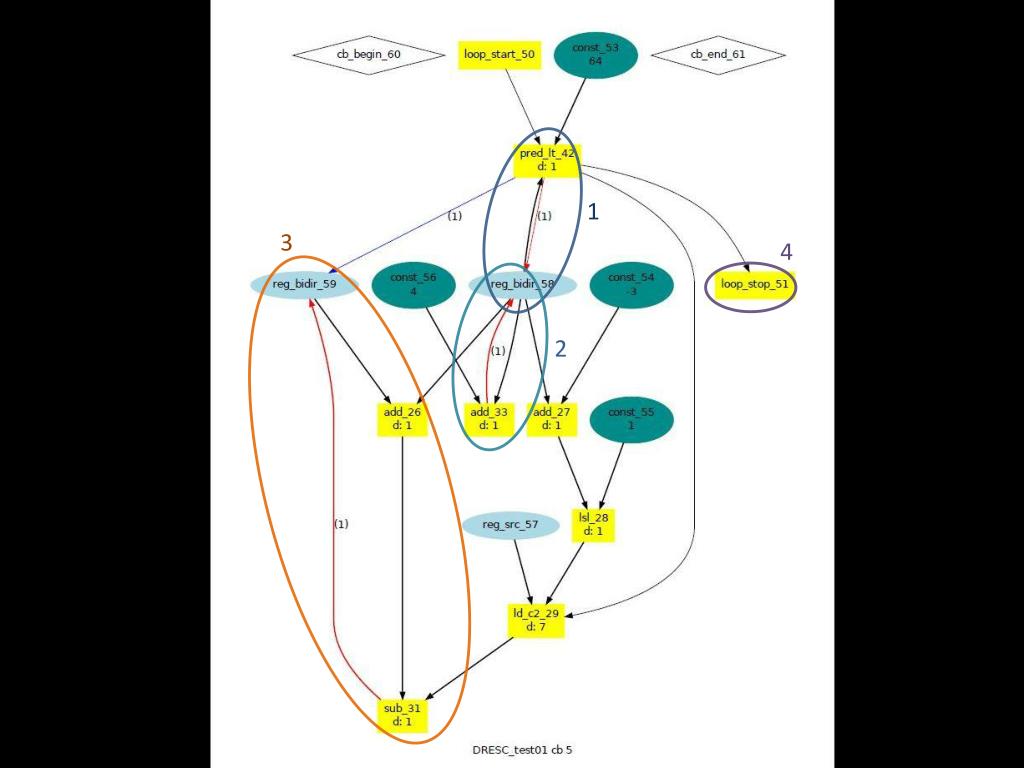

  • Determining the clusters

  • Recurrence Cluster Scheduling

  • Non-recurrence Cluster Scheduling



1

3

4

2


2 recurrence cluster scheduling

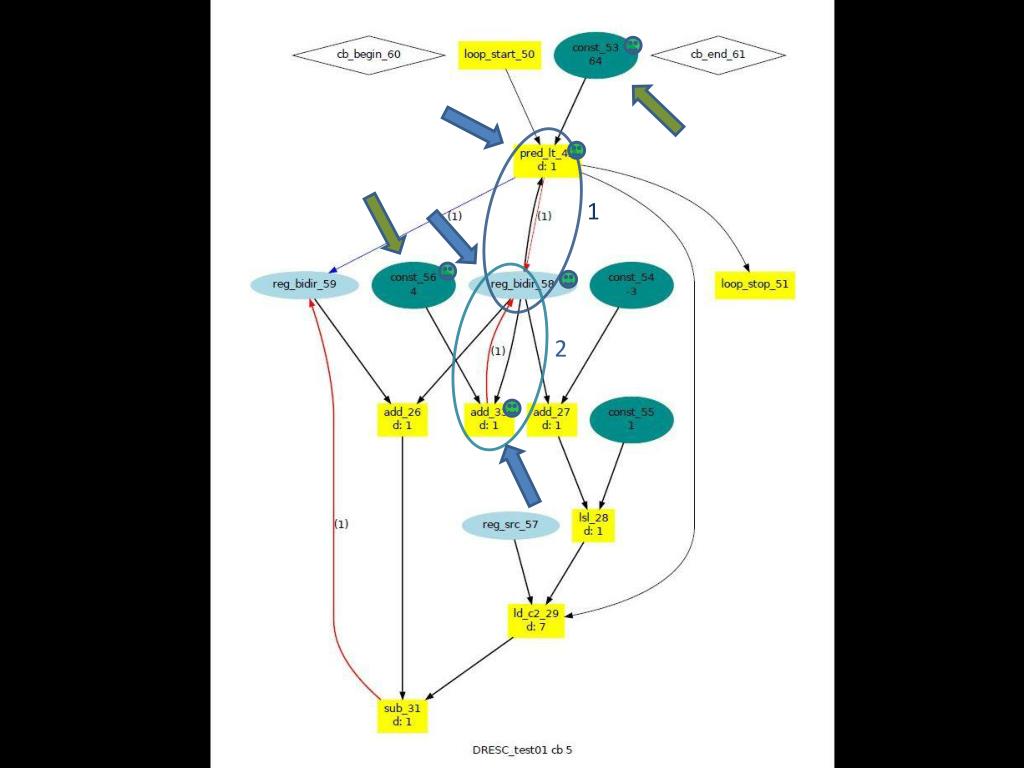

2. Recurrence Cluster Scheduling

  • Schedule incoming tree of cluster

  • Schedule recurrence cluster



1

2


3

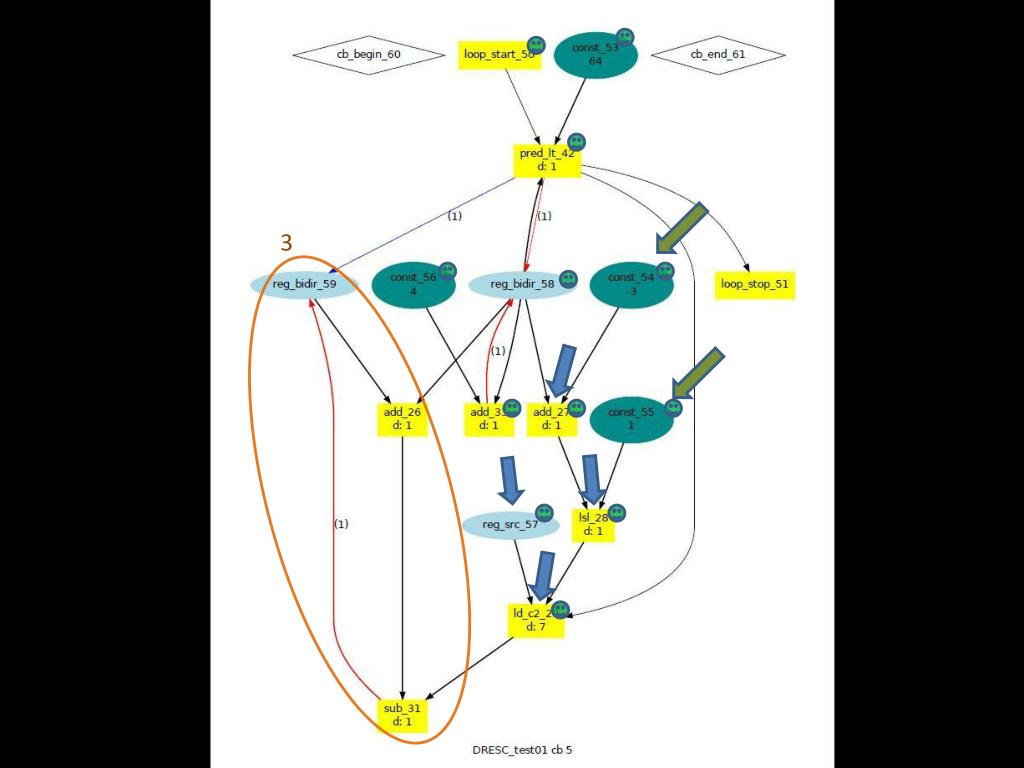

2 ii schedule recurrence cluster

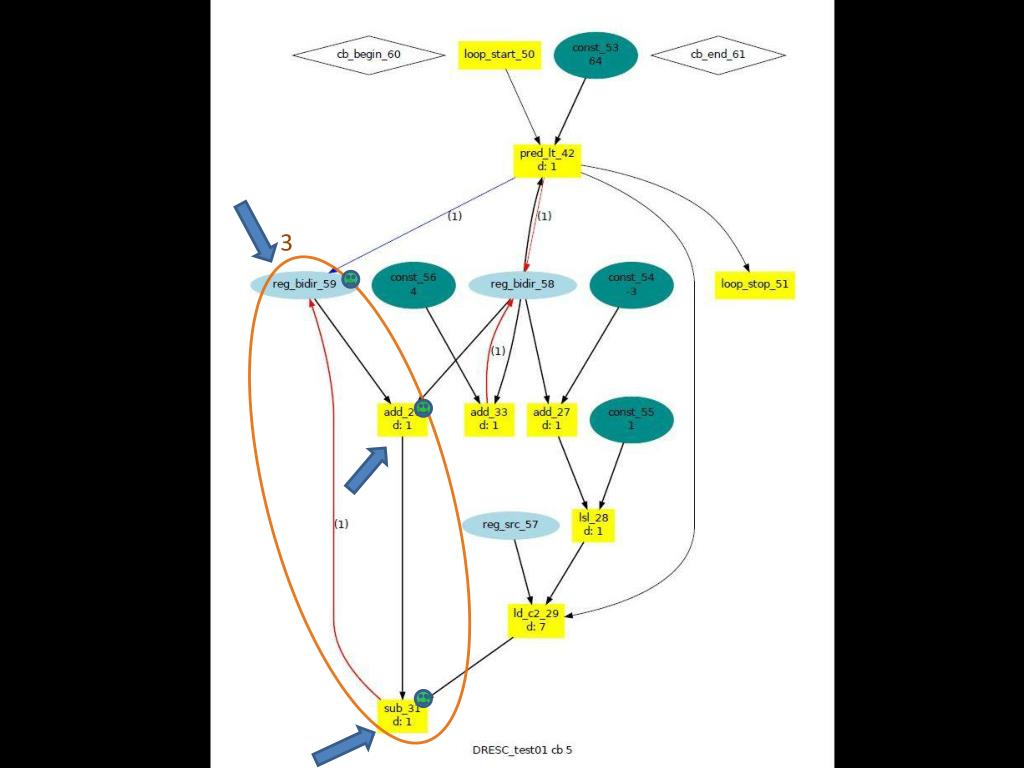

2.II Schedule recurrence cluster

  • All recurrence clusters are scheduled in a reverse manner


3


1

2



4




2

1

4

3

5


4

3

5
