  1. Authentication,Authorization,AccountingBreakout Session Von Welch, NCSA NSF CyberSecurity Summit Feb 22, 2007

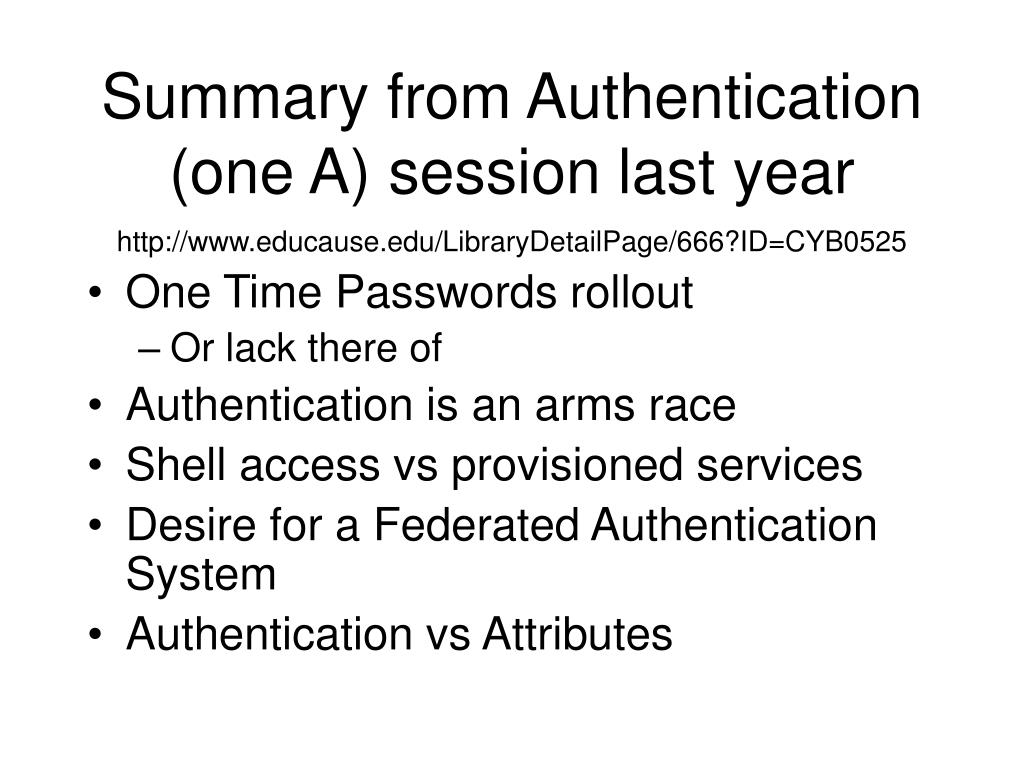

  2. Summary from Authentication (one A) session last year http://www.educause.edu/LibraryDetailPage/666?ID=CYB0525 • One Time Passwords rollout • Or lack there of • Authentication is an arms race • Shell access vs provisioned services • Desire for a Federated Authentication System • Authentication vs Attributes

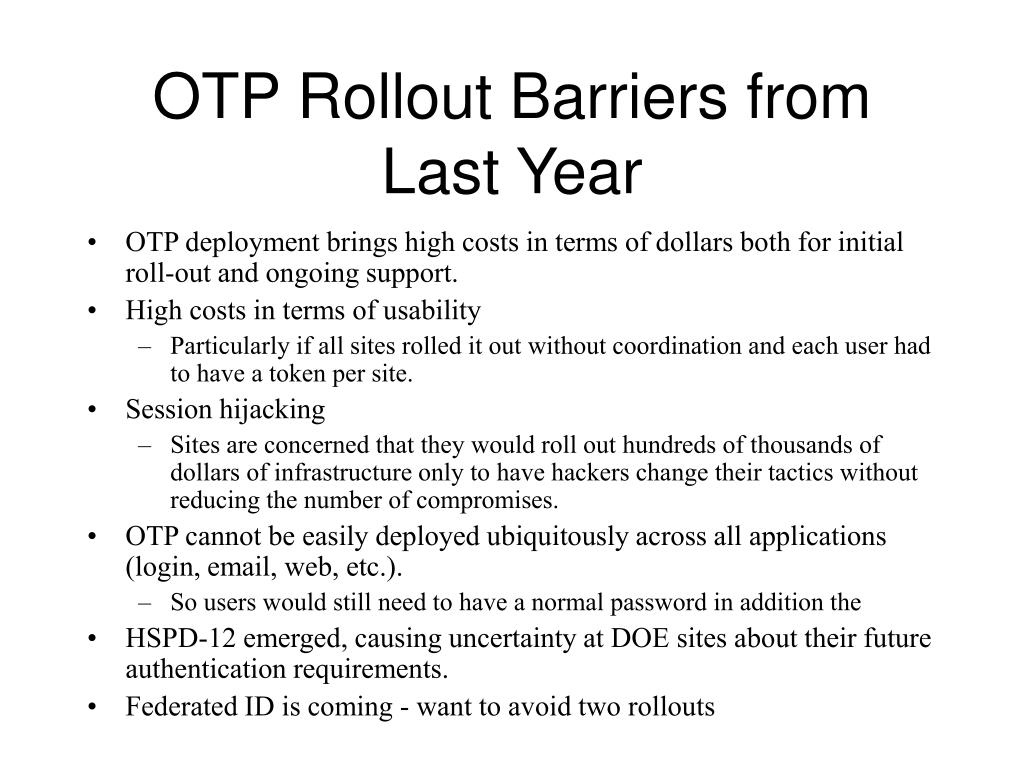

  3. OTP Rollout Barriers from Last Year • OTP deployment brings high costs in terms of dollars both for initial roll-out and ongoing support. • High costs in terms of usability • Particularly if all sites rolled it out without coordination and each user had to have a token per site. • Session hijacking • Sites are concerned that they would roll out hundreds of thousands of dollars of infrastructure only to have hackers change their tactics without reducing the number of compromises. • OTP cannot be easily deployed ubiquitously across all applications (login, email, web, etc.). • So users would still need to have a normal password in addition the • HSPD-12 emerged, causing uncertainty at DOE sites about their future authentication requirements. • Federated ID is coming - want to avoid two rollouts

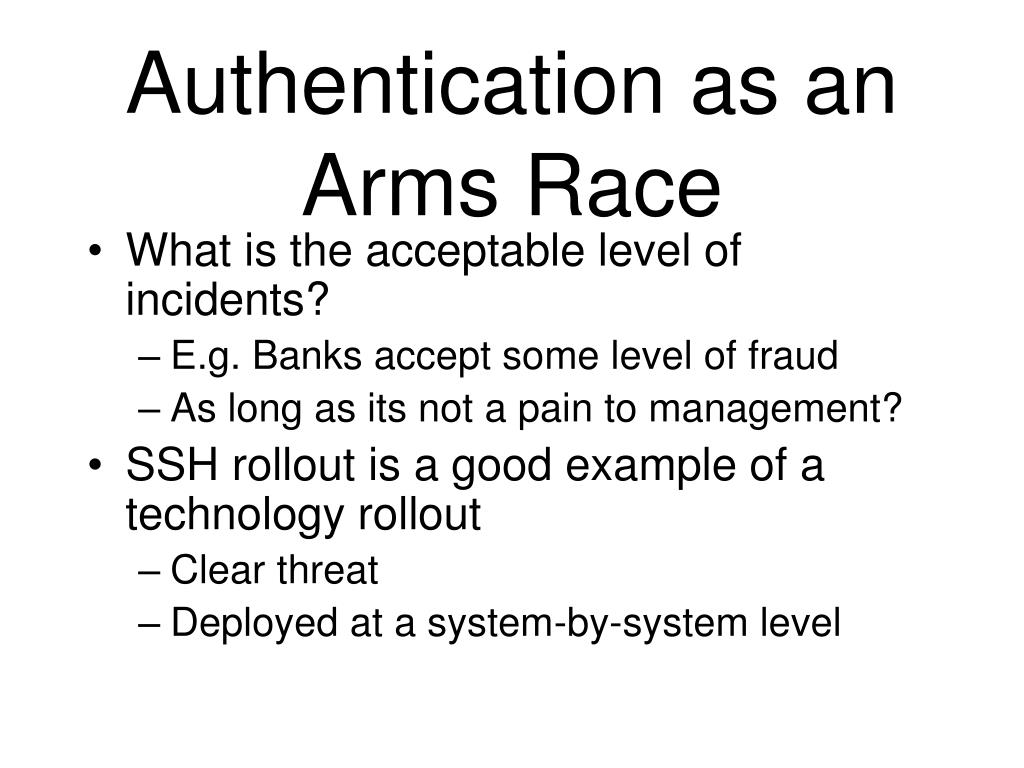

  4. Authentication as an Arms Race • What is the acceptable level of incidents? • E.g. Banks accept some level of fraud • As long as its not a pain to management? • SSH rollout is a good example of a technology rollout • Clear threat • Deployed at a system-by-system level

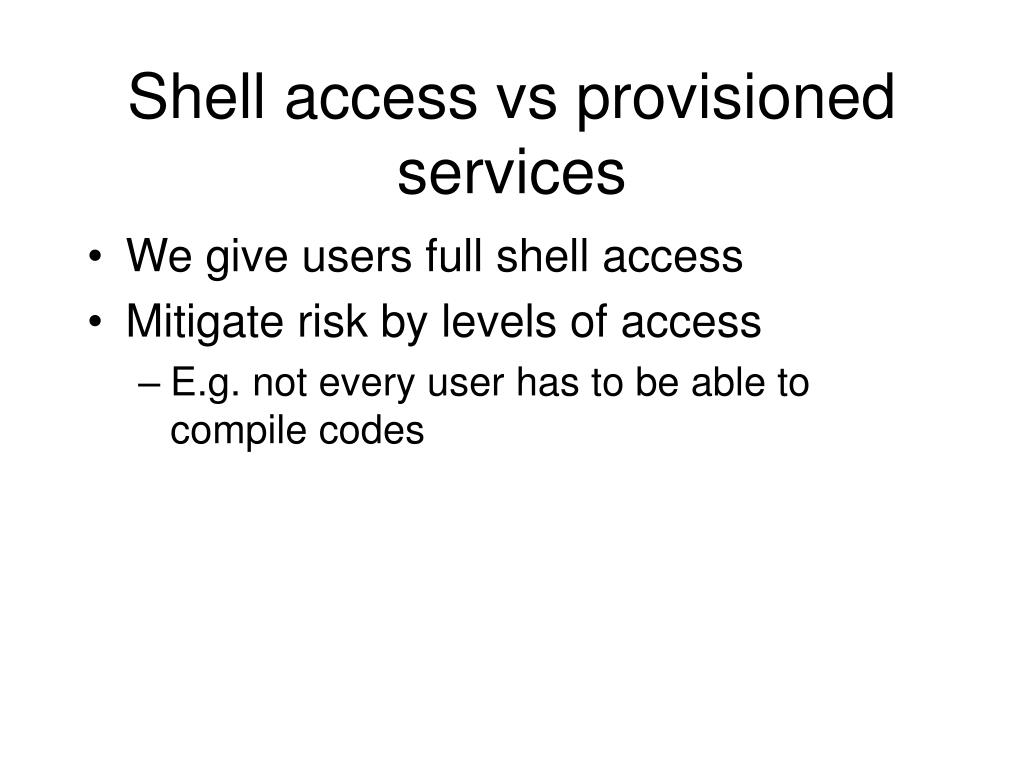

  5. Shell access vs provisioned services • We give users full shell access • Mitigate risk by levels of access • E.g. not every user has to be able to compile codes

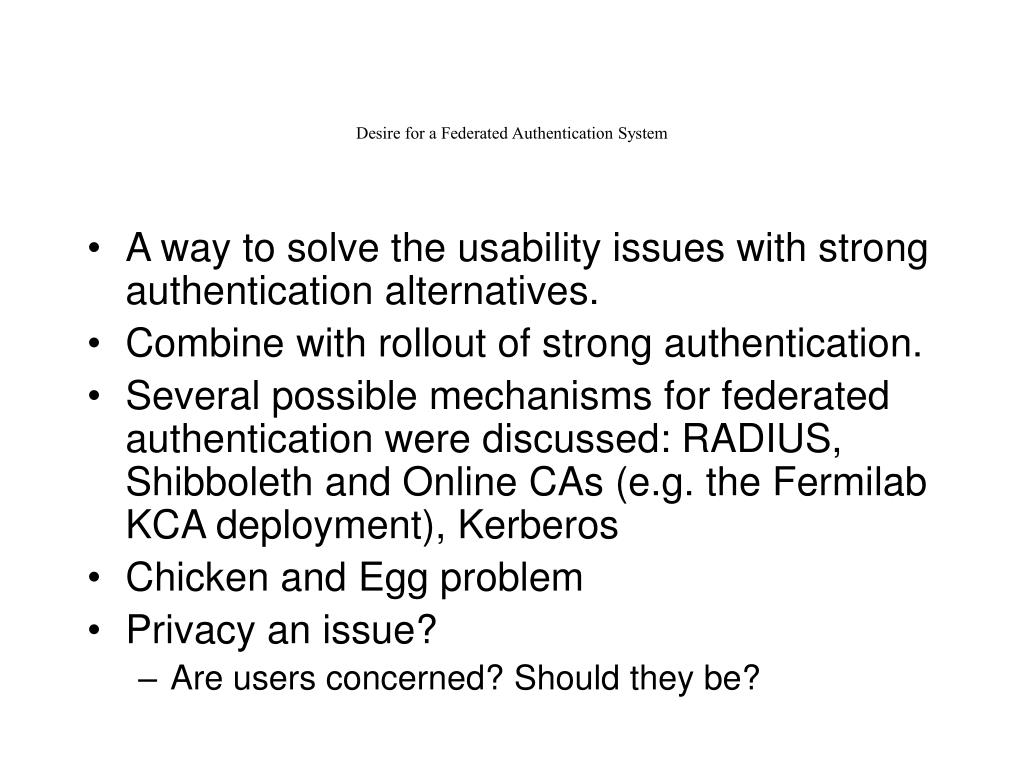

  6. Desire for a Federated Authentication System • A way to solve the usability issues with strong authentication alternatives. • Combine with rollout of strong authentication. • Several possible mechanisms for federated authentication were discussed: RADIUS, Shibboleth and Online CAs (e.g. the Fermilab KCA deployment), Kerberos • Chicken and Egg problem • Privacy an issue? • Are users concerned? Should they be?

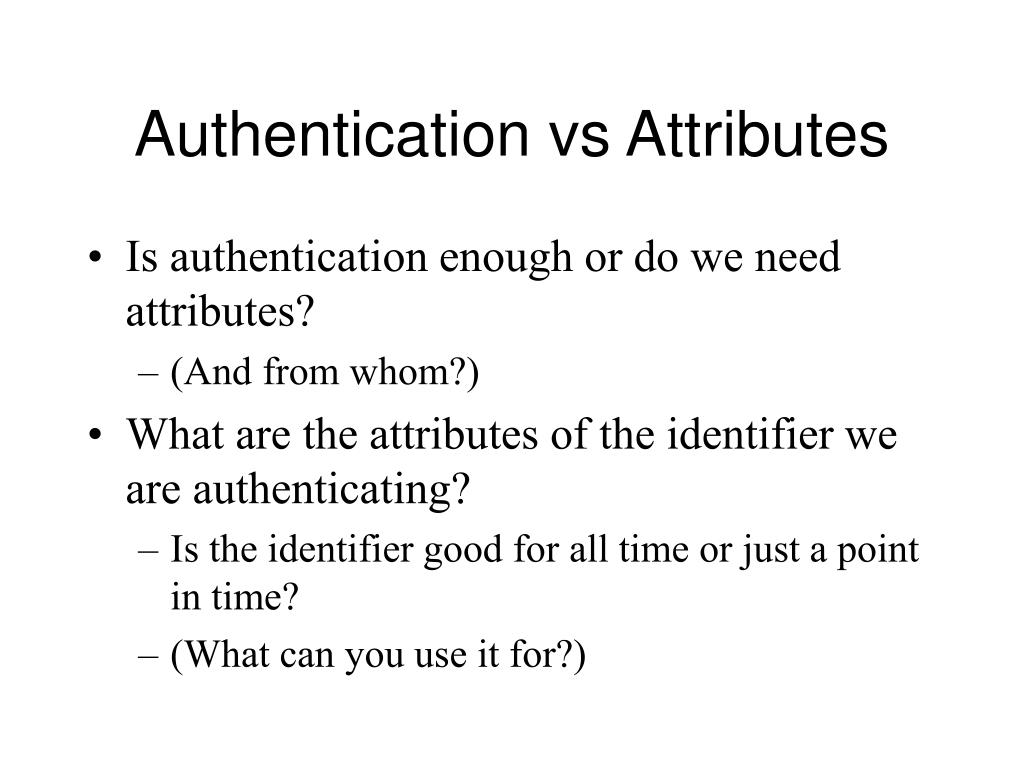

  7. Authentication vs Attributes • Is authentication enough or do we need attributes? • (And from whom?) • What are the attributes of the identifier we are authenticating? • Is the identifier good for all time or just a point in time? • (What can you use it for?)

  8. Future Work • Hardware token usability • What can we do to be less concerned about hackers? Several options were • mentioned. • Having systems based on virtual machines to create “disposable” servers that could be easily discard to be compromised. • Using provisioned services, or chroot() environments to allow for the matching of service capabilities to the strength of authentication. • Creative second factors in place of hardware tokens • Preventing session hijacking • Validation of remote systems

  9. Future work (cont) • How we determine the level of sensitivity of a particular request so that we can determine the strength of authentication that should accompany it. • What packets belong to what users? (CALEA) • Level of coordination is required for our upgrading of authentication? • SSH allowed for very independent authentication, • Namespace management, name federation, and identity management were discussed as areas needing work to manage the binding of different user names together in a federated environment.

  10. Recent news… • "PayPal Security Key” • http://tinyurl.com/yg9q5r • $5/year for personal PayPal accounts • Number of other banks have adopted over the past few years - ETrade,USBank… • AOL supports OpenID for 63 million users • http://dev.aol.com/aol-and-63-million-openids • (AOL’s $1.95/month OTP service gone?) • Shibboleth access to Fastlane • http://tinyurl.com/2flztj • TeraGrid Federated Id Testbed • http://gridshib.globus.org/tg-paper.html

  11. Discussion begins here • Google Apps has SAML2 SP interface • Accounting -> Auditing • Keeping track of what is going on • Centralized services help with this

  12. AAA Breakout Results

  13. Threats • Vandalism/Petty - e.g. Web Sites • Vandalism/Serious - e.g. Data • Stealing information • Stealing computing cycles • Stealing storage/distribution - e.g. warez • Launching attacks on other sites • “Enclaves” - e.g. TeraGrid • Embarrassment

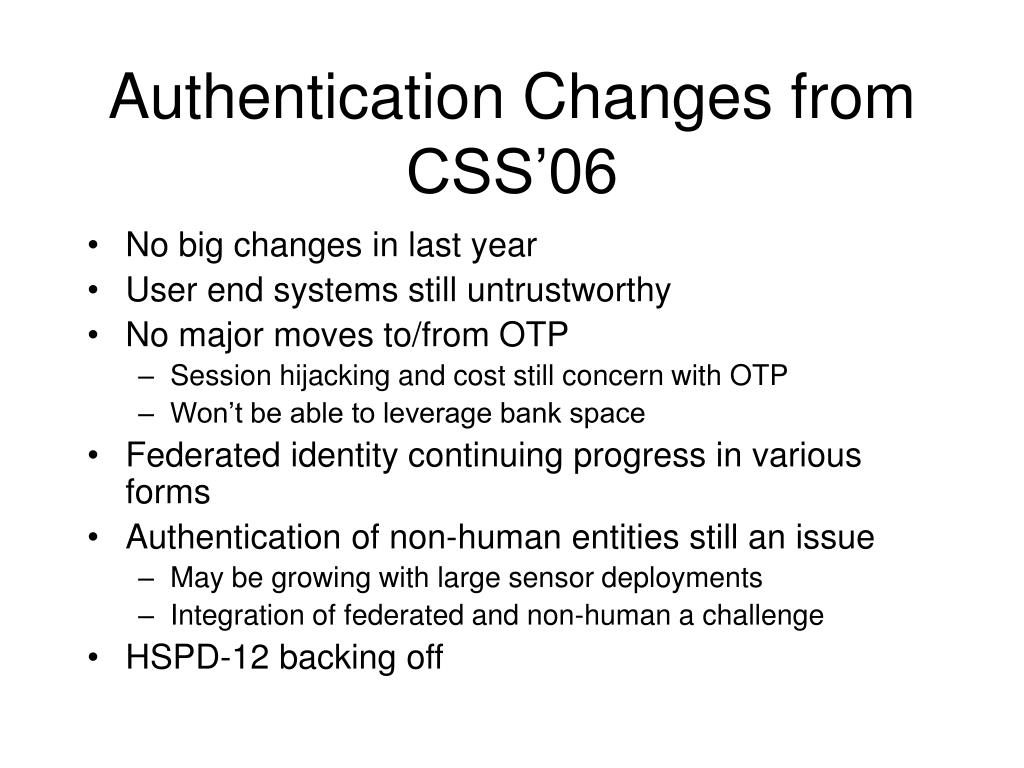

  14. Authentication Changes from CSS’06 • No big changes in last year • User end systems still untrustworthy • No major moves to/from OTP • Session hijacking and cost still concern with OTP • Won’t be able to leverage bank space • Federated identity continuing progress in various forms • Authentication of non-human entities still an issue • May be growing with large sensor deployments • Integration of federated and non-human a challenge • HSPD-12 backing off

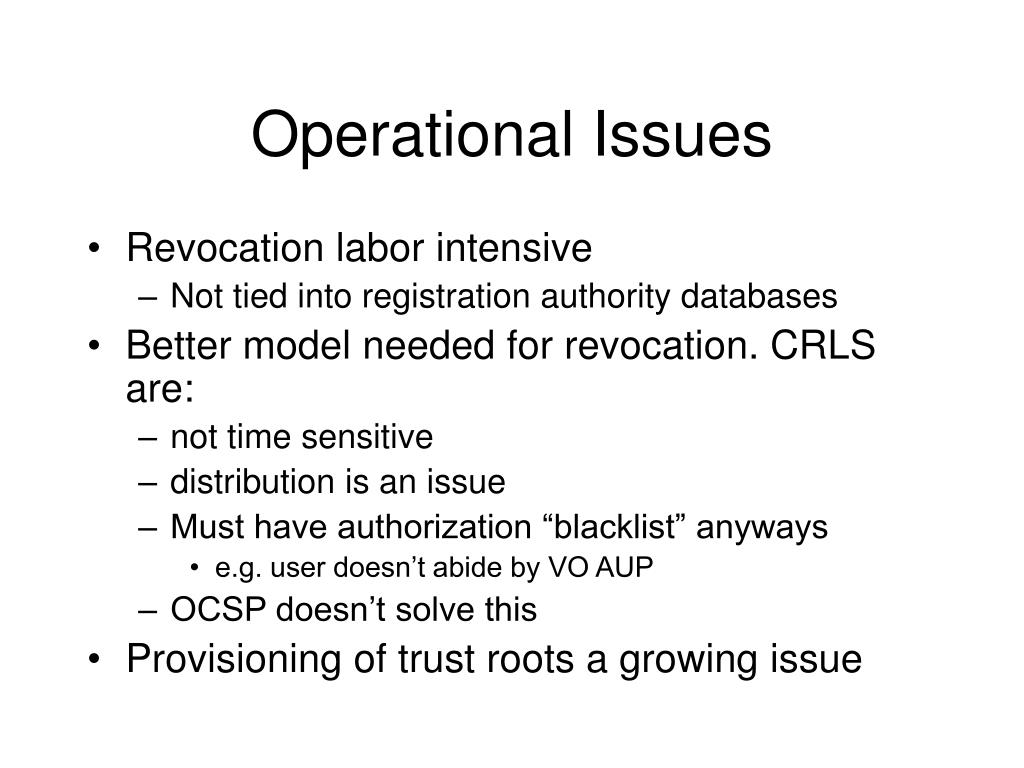

  15. Operational Issues • Revocation labor intensive • Not tied into registration authority databases • Better model needed for revocation. CRLS are: • not time sensitive • distribution is an issue • Must have authorization “blacklist” anyways • e.g. user doesn’t abide by VO AUP • OCSP doesn’t solve this • Provisioning of trust roots a growing issue

  16. User Education • Catching user education and policies up with technology • E.g. Password Safe, Firefox plugins that manage unique (random) passwords for multiple sites • USB token implementations available • These are non-traditional use of passwords - require different policies

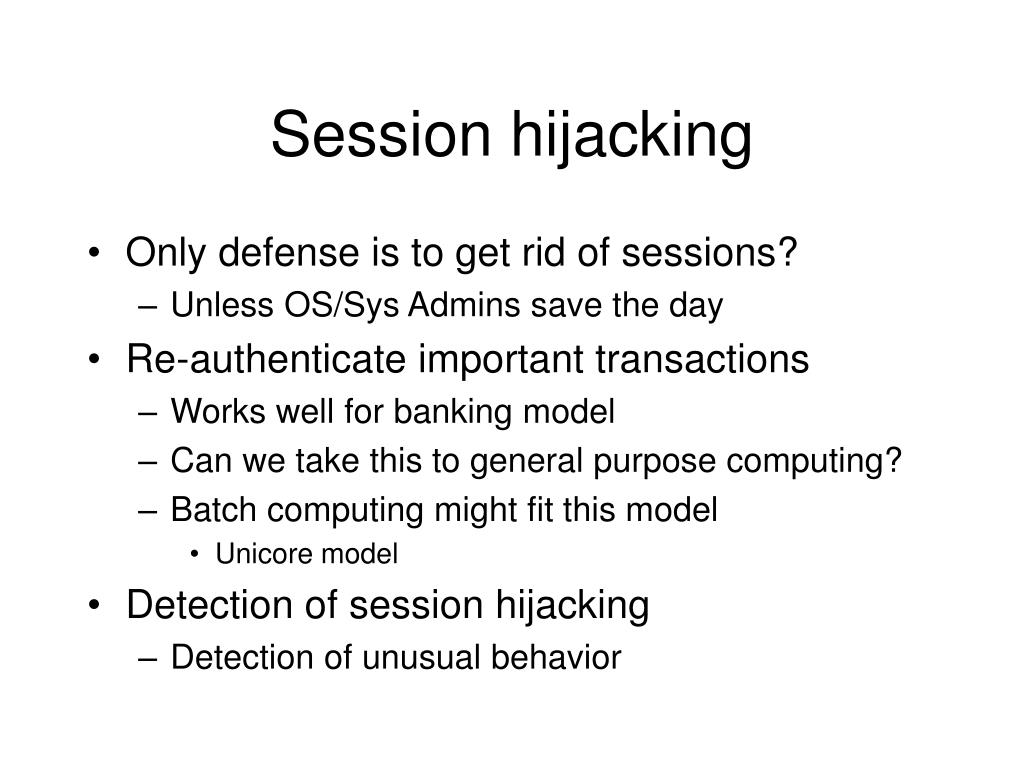

  17. Session hijacking • Only defense is to get rid of sessions? • Unless OS/Sys Admins save the day • Re-authenticate important transactions • Works well for banking model • Can we take this to general purpose computing? • Batch computing might fit this model • Unicore model • Detection of session hijacking • Detection of unusual behavior

  18. OTP Issues • Issues still cost, usability (esp. multiple sites), session hijacking • Will users just share them? • Do we care? Is this a threat we’re concerned about? • SMS messages over cell phone • RSA, SecureComputing, EU Banks • Charge per text message • Almost ubiquitous • Some Banks moving to OTP tokens, won’t allow outside use • Will Paypal’s $5 OTP succeed? • Will banks allow use for anything else? • Many more banks have moved to non-OTP two-factor • Need a way to allow users to have a single token for use at multiple sites • federated identity approach • Cell phone

  19. Federated Identity • Progressing • Policies and requirements for LOA, Incident Response, Liability, Privacy, “Citizenship” requirements • Campus requirements for meeting LoAs understood • P2P vs Federated Id? • OpenId vs SAML; Analogous to PGP vs PKI.

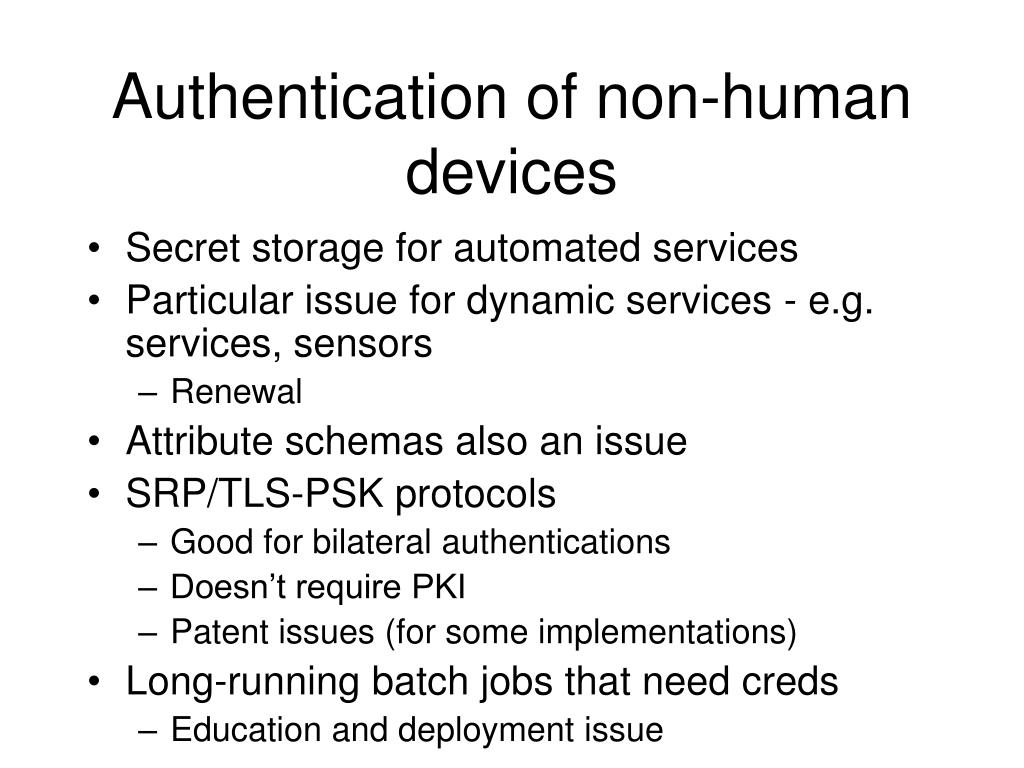

  20. Authentication of non-human devices • Secret storage for automated services • Particular issue for dynamic services - e.g. services, sensors • Renewal • Attribute schemas also an issue • SRP/TLS-PSK protocols • Good for bilateral authentications • Doesn’t require PKI • Patent issues (for some implementations) • Long-running batch jobs that need creds • Education and deployment issue

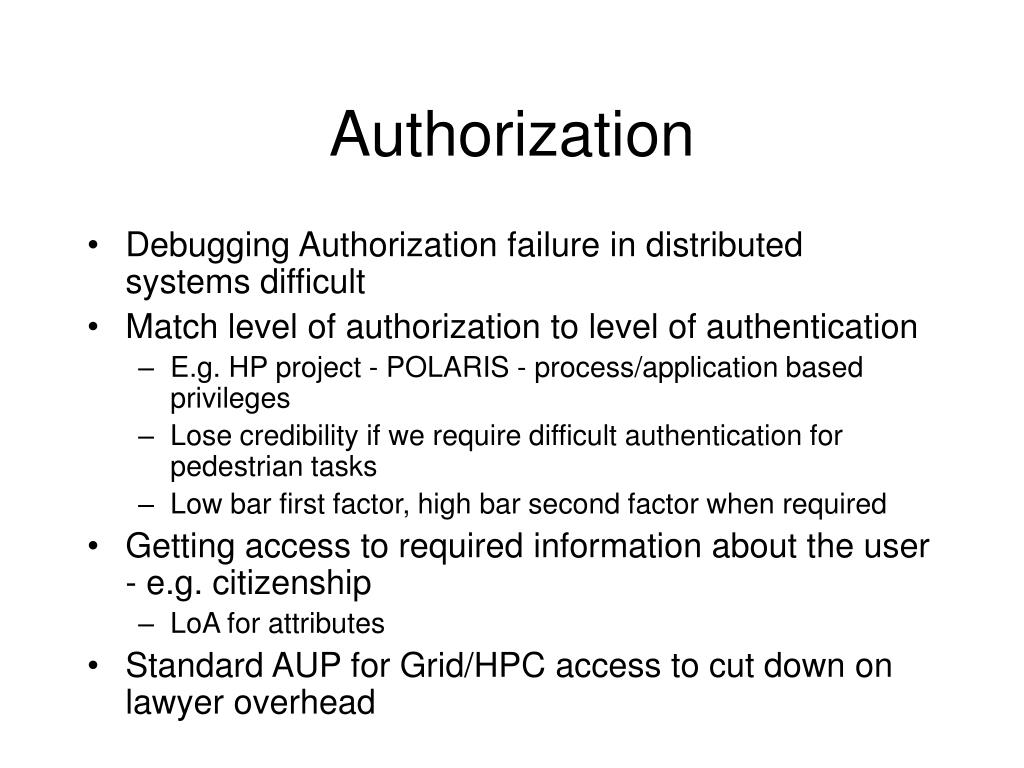

  21. Authorization • Debugging Authorization failure in distributed systems difficult • Match level of authorization to level of authentication • E.g. HP project - POLARIS - process/application based privileges • Lose credibility if we require difficult authentication for pedestrian tasks • Low bar first factor, high bar second factor when required • Getting access to required information about the user - e.g. citizenship • LoA for attributes • Standard AUP for Grid/HPC access to cut down on lawyer overhead

  22. Auditing/Accounting • Need to share across sites for IR forensics • policy and technical issue • Standardization of log formats, semantics • instrumentation of distributed systems/VOs • Federating accounts names at different sites • Detection of authentication mis-use/impersonation • Is there a requirement for collecting demographics for Grids/VOs? • Debugging of failures

  23. Browsers as the UI for HPC • Browsers becoming more important to HPC authentication • E.g. TeraGrid Science Gateway • Policies, education need to take this into account • Agreement on browser single sign-on interoperability

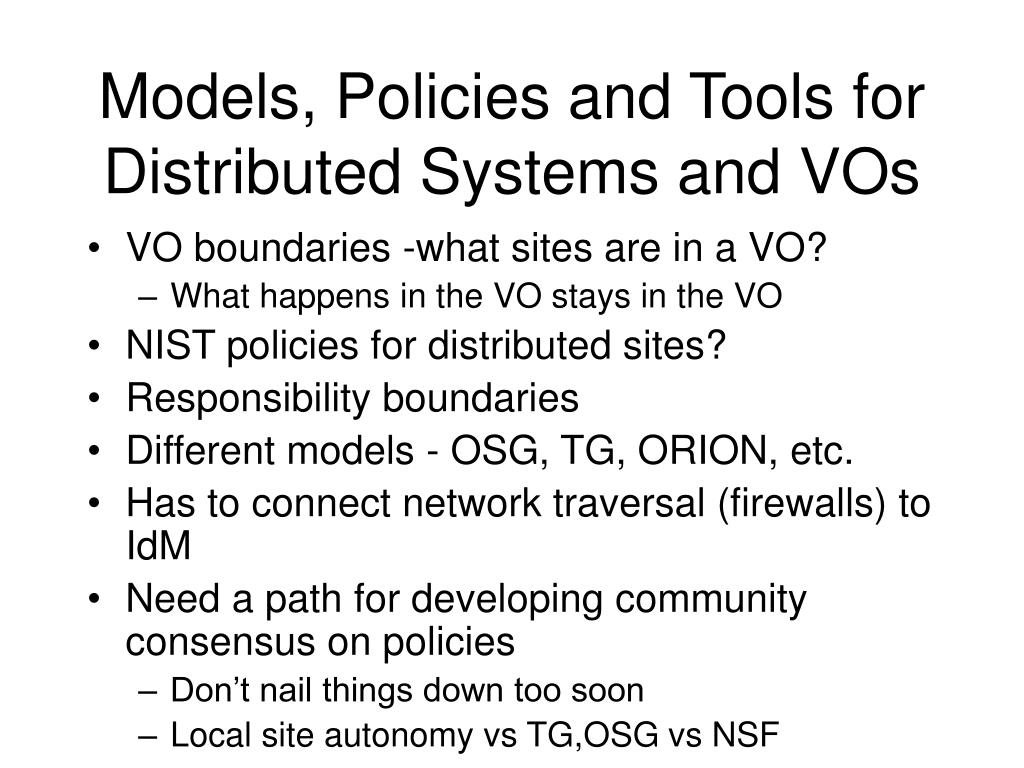

  24. Models, Policies and Tools for Distributed Systems and VOs • VO boundaries -what sites are in a VO? • What happens in the VO stays in the VO • NIST policies for distributed sites? • Responsibility boundaries • Different models - OSG, TG, ORION, etc. • Has to connect network traversal (firewalls) to IdM • Need a path for developing community consensus on policies • Don’t nail things down too soon • Local site autonomy vs TG,OSG vs NSF

  25. Issues • Are we authenticating the right things? • Sessions vs transactions • Are we authenticating them strongly enough? • How do we detect when authentication is spoofed? • And what fails.
