data structures

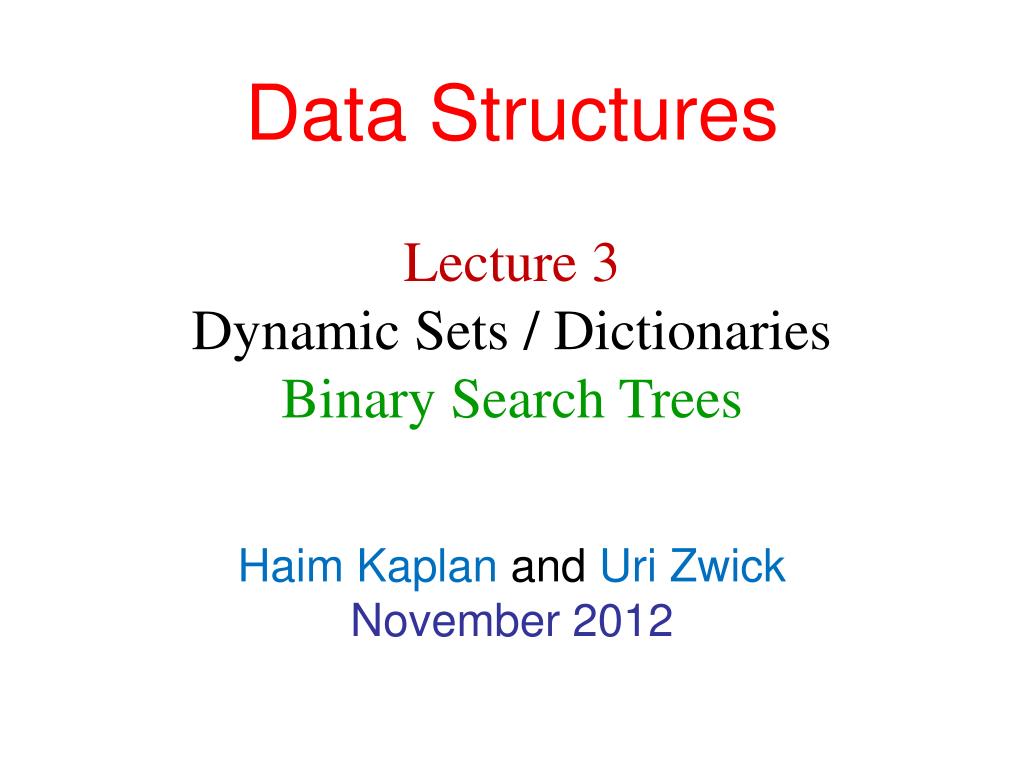

Lecture 3

Dynamic Sets / Dictionaries

Binary Search Trees

Data Structures

Haim Kaplan and Uri ZwickNovember 2012

dictionaries dynamic sets

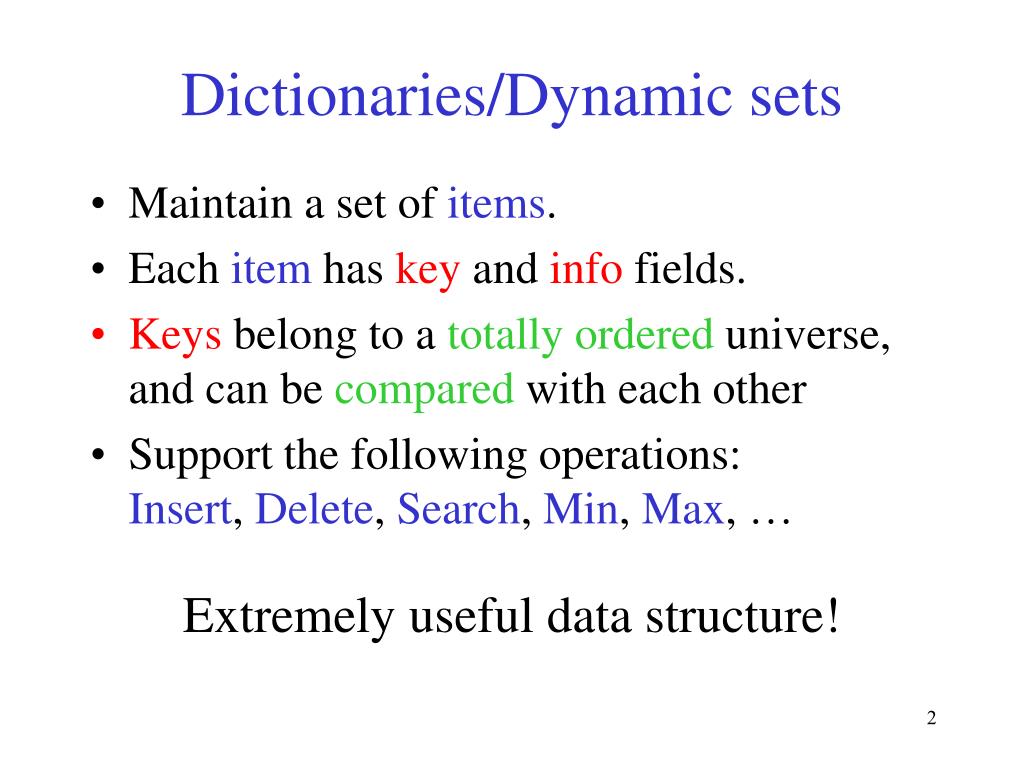

Dictionaries/Dynamic sets
  • Maintain a set of items.
  • Each item has key and info fields.
  • Keys belong to a totally ordered universe, and can be compared with each other
  • Support the following operations: Insert, Delete, Search, Min, Max, …

Extremely useful data structure!

abstract data type dictionaries
Abstract Data Type: Dictionaries

Dic-Item(k,i) – Create a dictionary item containing keyk andinfoi, Key(I), Info(I) – The keyand info contained in Dic-ItemI.

  • Dictionary() – Create an emptydictionary
  • Insert(D,I) – Insert Iinto D
  • Delete(D,I) – Delete Ifrom D (assuming Iis in D)
  • Search(D,k) – Find a dic-item with key k in D, if any.
  • Min(D) – Return the dic-item with the minimum key in D.
  • Max(D) – Return the dic-item with the maximum key in D.
  • Successor(D,I) – Return the successor of Iin D.
  • Predecessor(D,I) – Return the predecessor of Iin D.

Assume that dic-items have distinct keys

implementing dictionaries using lists
Implementing dictionaries using lists
  • Store the dic-items in a list (in no particular order).
  • Insert a new dic-item to an arbitrary position of the list, e.g., the first or last position.
  • Delete a dic-item by either using a supplied pointer to it, or by first locating it in the list.
  • Search, and other operations, are implemented by scanning the list.
implementing dictionaries using doubly linked lists ver 1
Implementing dictionaries using doubly linked lists (ver. 1)
  • Store the dic-items in a list, in no particular order.
  • Insert a new dic-item to an arbitrary position of the list, e.g., the first or last position.
  • Delete a dic-item using a supplied pointer to it.
  • Search, and other operations, are implemented by scanning the list.

Insert, Delete – O(1) time

Other operations – O(n) time

implementing dictionaries using doubly linked lists ver 2
Implementing dictionaries using doubly linked lists (ver. 2)
  • Store the dic-items in a list, in increasing order of keys.
  • Insert a new dic-item to the appropriate position
  • Delete a dic-item by using a supplied pointer to it.
  • Search is implemented by scanning the list, stopping when the key of the current item is larger than the key sought.

Insert,Search – O(n) time (or O(n/2) “on average”)

Delete – O(1) time

Min, Max, Successor, Predecessor – O(1) time

implementing dictionaries using circular arrays

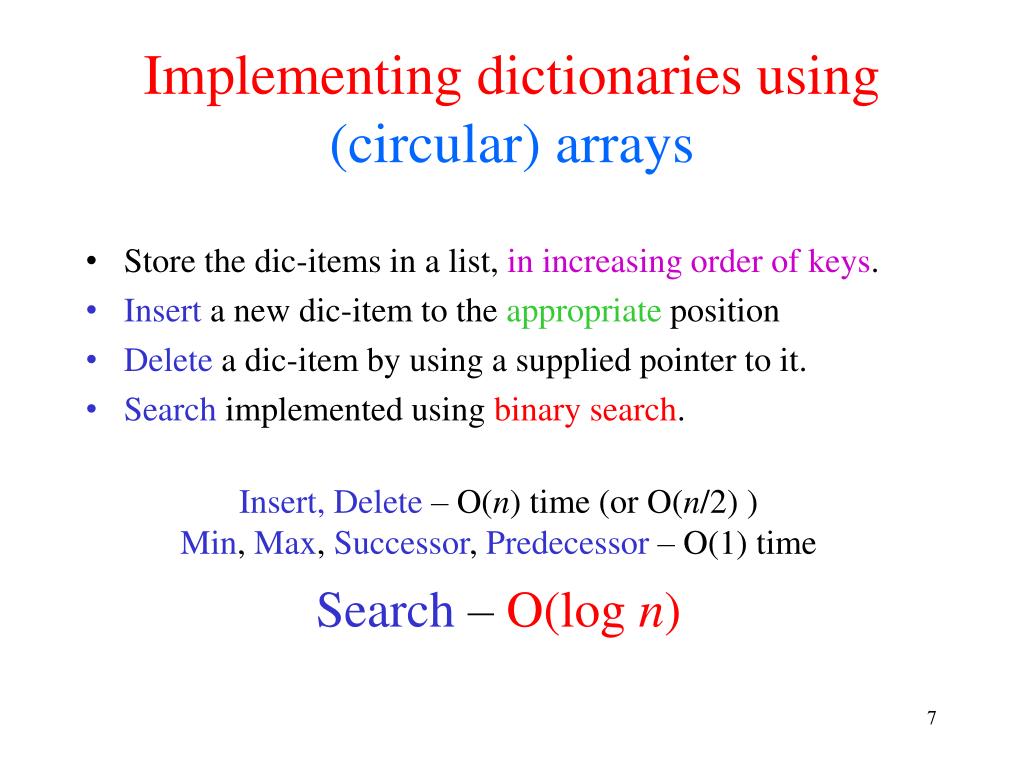

Implementing dictionaries using (circular) arrays
  • Store the dic-items in a list, in increasing order of keys.
  • Insert a new dic-item to the appropriate position
  • Delete a dic-item by using a supplied pointer to it.
  • Search implemented using binary search.

Insert, Delete– O(n) time (or O(n/2) )

Min, Max, Successor, Predecessor – O(1) time

Search – O(log n)

binary search
Binary search

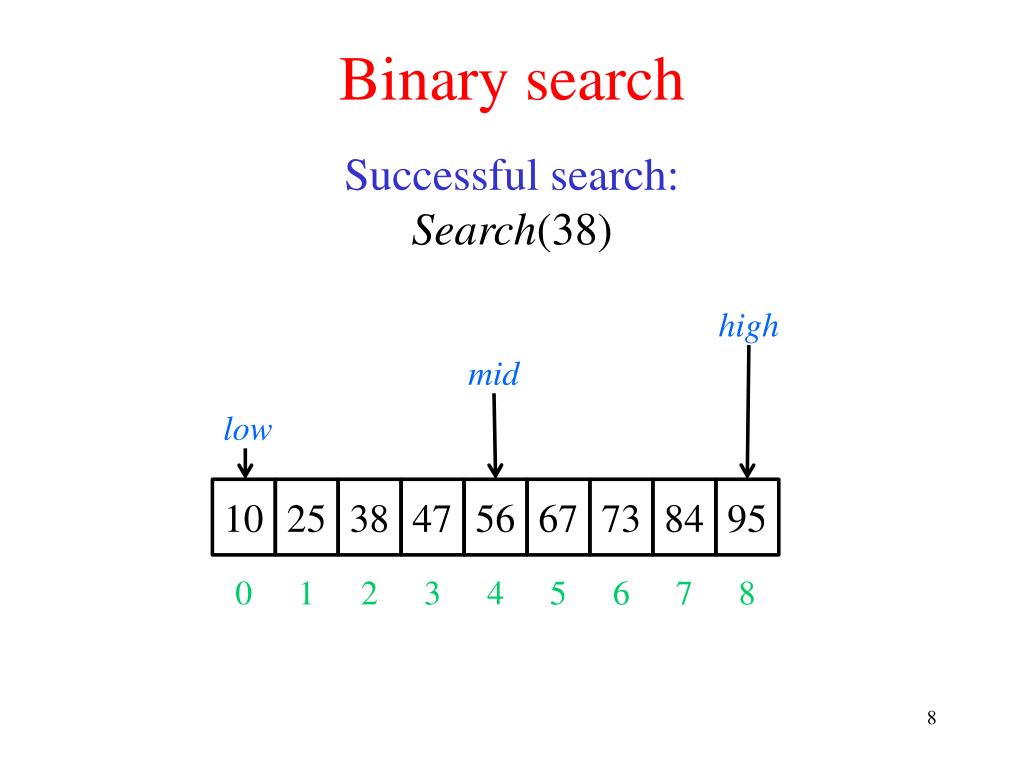

Successful search:Search(38)

high

mid

low

10

25

38

47

56

67

73

84

95

0

1

2

3

4

5

6

7

8

binary search1
Binary search

Unsuccessful search:Search(39)

high

mid

low

10

25

38

47

56

67

73

84

95

0

1

2

3

4

5

6

7

8

binary search2
Binary search

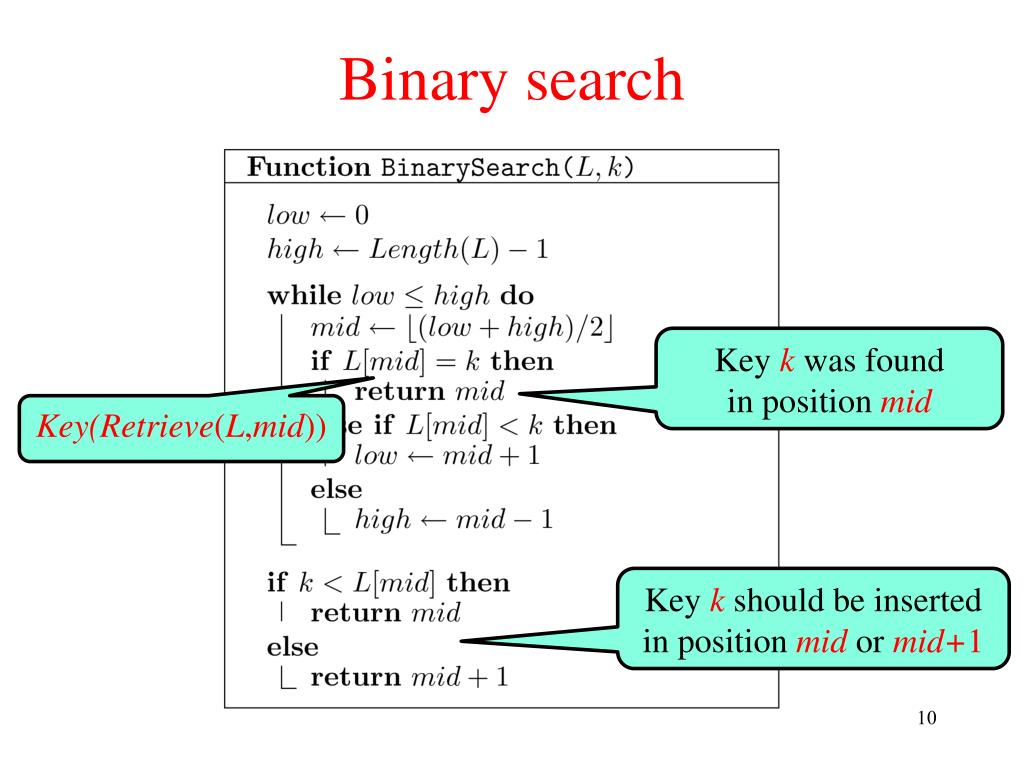

Key k was foundin position mid

Key(Retrieve(L,mid))

Key k should be insertedin position mid or mid+1

binary search trees

7

2

8

1

5

10

Binary search trees

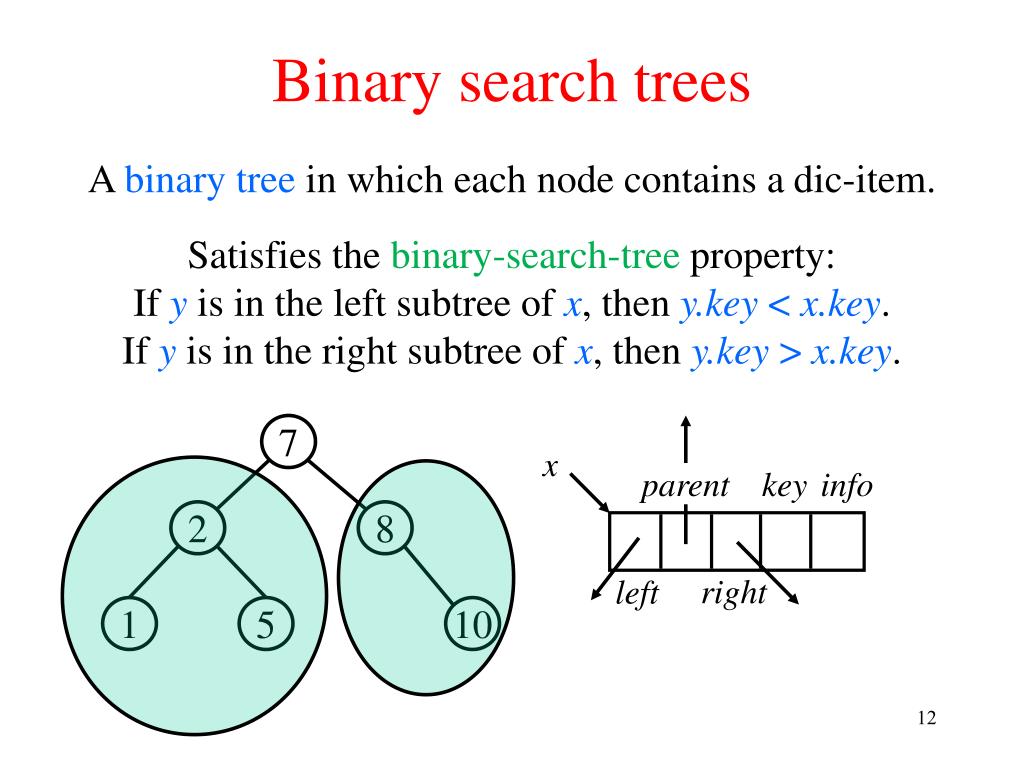

A binary tree in which each node contains a dic-item.

Satisfies the binary-search-tree property:If y is in the left subtree of x, then y.key < x.key.

If y is in the right subtree of x, then y.key > x.key.

x

parent

key

info

right

left

binary search trees1

7

2

8

1

5

10

Binary search trees

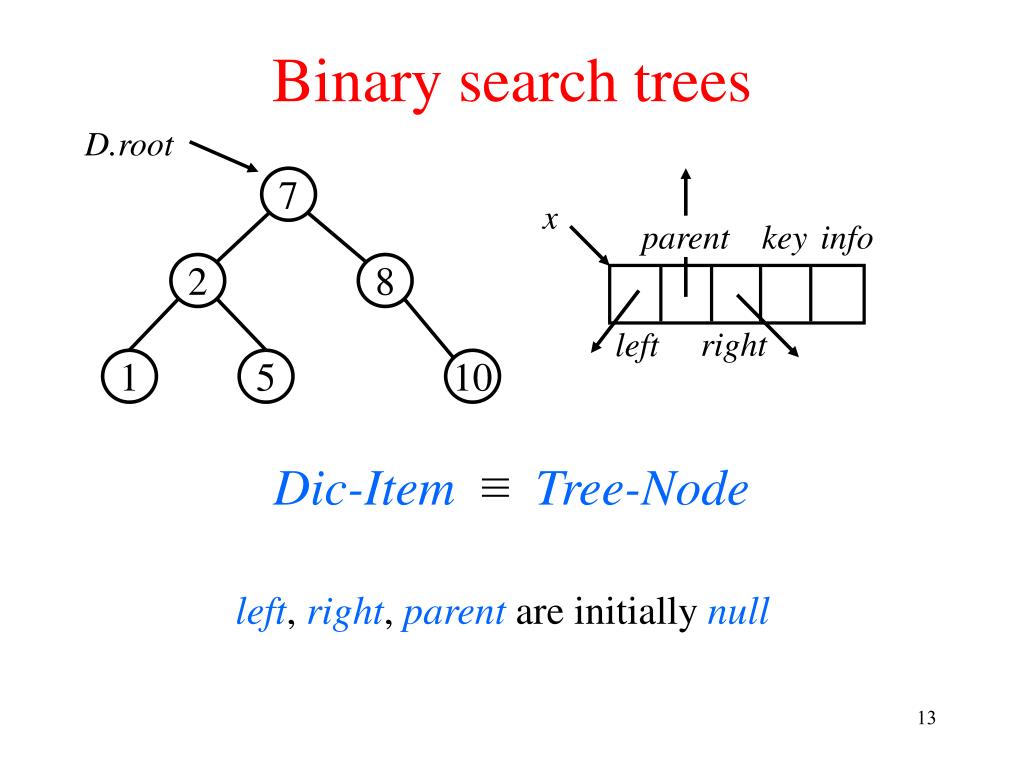

D.root

x

Dic-Item ≡ Tree-Node

parent

key

info

right

left

left, right, parent are initially null

a set can be represented using several different trees

1

7

2

2

8

8

1

5

10

7

10

5

A set can be represented using several different trees

height=4

4

height=2

2

3

1

1

2

0

0

0

1

0

Height – length of a longest path to a leaf

0

tree search x k look for k in the subtree of x

7

2

8

1

10

5

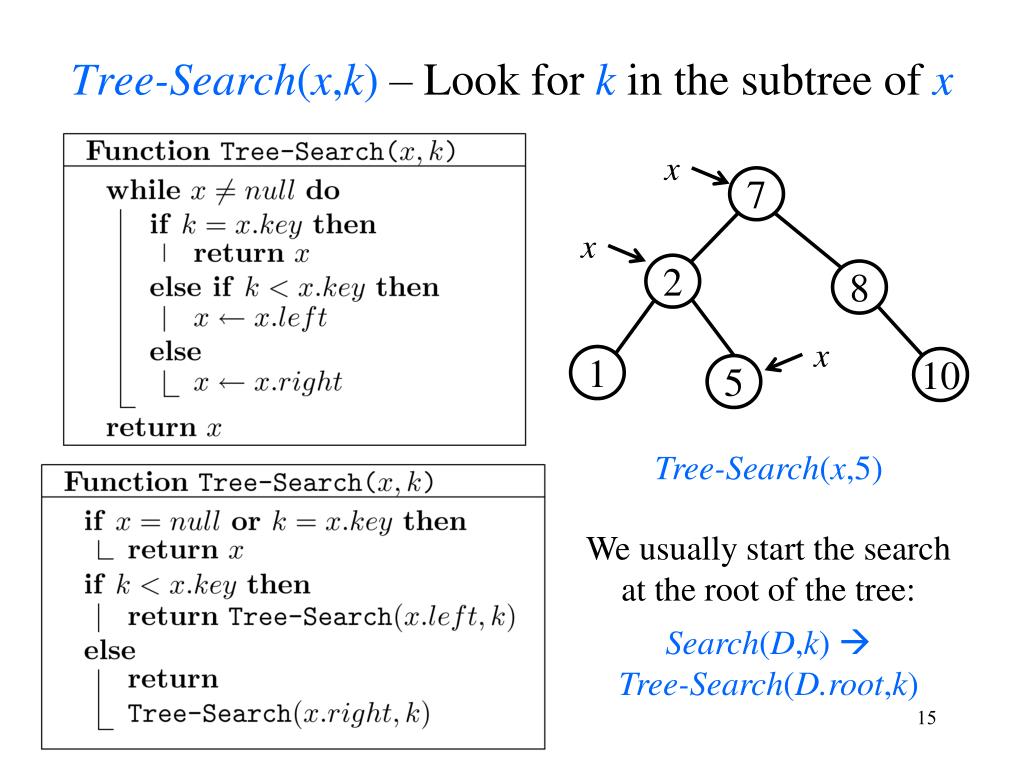

Tree-Search(x,k) – Look for k in the subtree of x

x

x

x

Tree-Search(x,5)

We usually start the search at the root of the tree:

Search(D,k)  Tree-Search(D.root,k)

tree position x k look for k in the subtree of x return the last node encountered

7

2

8

1

10

5

Tree-Position(x,k) – Look for k in the subtree of xReturn the last node encountered

x

x

x

y

y

y

Tree-Position(x,6)

Returns the node containing 5

Tree-Position(x,k) is used to find insertion points

printing the elements of a bst in sorted order in order walk

7

2

8

1

5

10

Printing the elements of a BST in sorted order(In-order walk)

3

1

4

0

2

5

Printing, of course, is just an example…

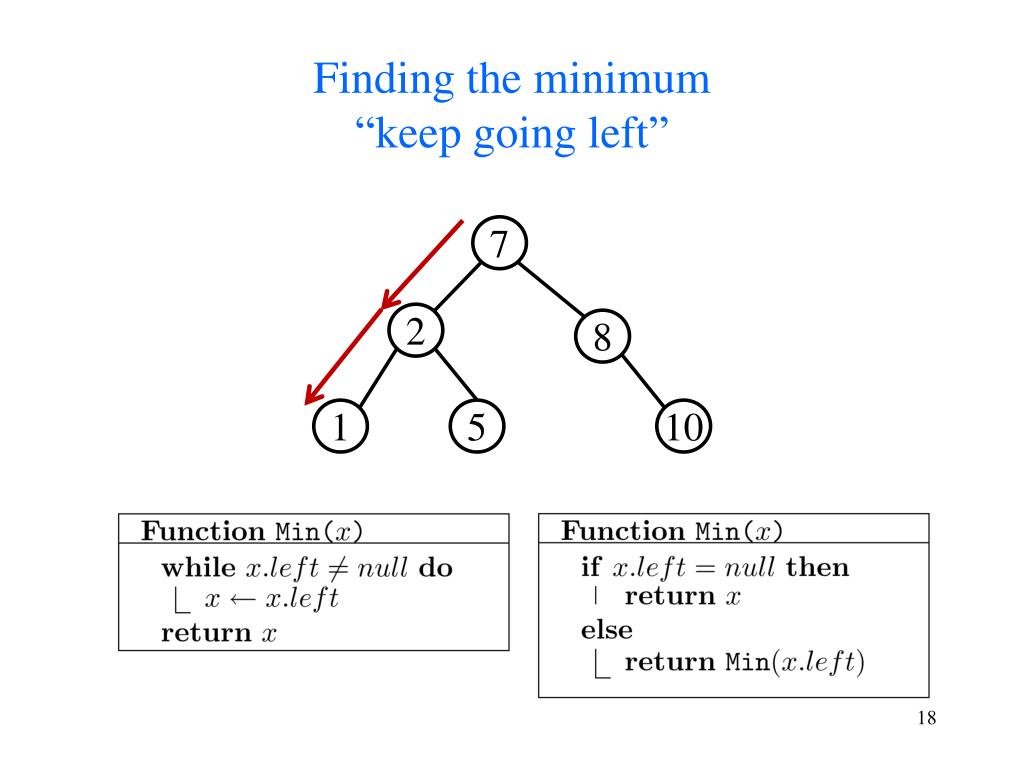

successor x
Successor(x)

If x has a right child, the successor of xis the minimal element in x.right.

x

“Go right once, and then left all the way”

What if x.right=null ?

successor x1
Successor(x)

If x.right=null, the successor of x is the lowestancestory of x such that x is in its right subtree

y

“Go up from x untilthe first turn right’’

x

successor x2
Successor(x)

y

If x has the largest key, then Successor(x)=null.

x

Predecessor is symmetric

insertions

7

2

8

1

5

10

Insertions

6

9

Insert(6)

Insert(9)

binary search tree animations
Binary Search Tree Animations

http://webdiis.unizar.es/asignaturas/EDA/AVLTree/avltree.html

http://webdiis.unizar.es/asignaturas/EDA/AVLTree/avltree.html

For the time being, turn all buttons on the right off

Warning: There are some differences with what we learn

deletion easy cases first
Deletion: easy cases first

7

2

8

1

5

10

6

9

Delete(6) – 6 is a leaf; simply remove it.

Delete(8) – 8 has only one child; bypass it.

Delete(10) – 10 has only one child; bypass it.

Delete(2) – more complicated…

deletion of a binary node
Deletion of a binary node

If z has two children,let y be the successor of z

z

y has no left child

Remove y from the tree

Replace z by y

y

Binary-search-tree property preserved!

Is it enough to let z.keyy.key?

And maybe also z.infoy.info?

analysis
Analysis

Each operation takes O(h+1)time, where h is the height of the tree

In general h may be as large as n

Want to keep the tree with small h

balanced trees
Balanced trees

A full tree of height h contains n=2h+1 − 1 nodes

h = log2(n+1)−1

How do we keep the tree more or less balanced?

randomly built bsts

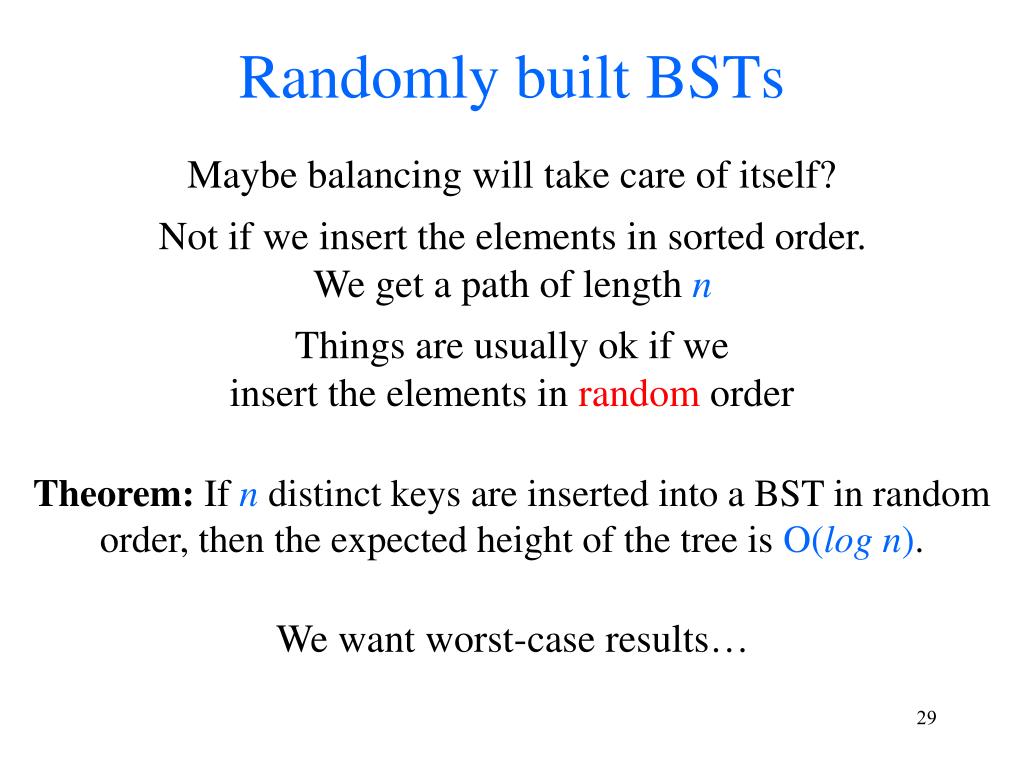

Randomly built BSTs

Maybe balancing will take care of itself?

Not if we insert the elements in sorted order.We get a path of length n

Things are usually ok if weinsert the elements in random order

Theorem: If n distinct keys are inserted into a BST in random order, then the expected height of the tree is O(log n).

We want worst-case results…

rotations
Rotations

x

y

Right rotate

y

x

A

C

A

C

B

B

Left rotate
