Process flowsheet generation design through a group contribution approach

Process Flowsheet Generation & Design Through a Group Contribution Approach

Loïc d’Anterroches

CAPEC

Friday Morning Seminar, Spring 2005


Introduction

Introduction

???

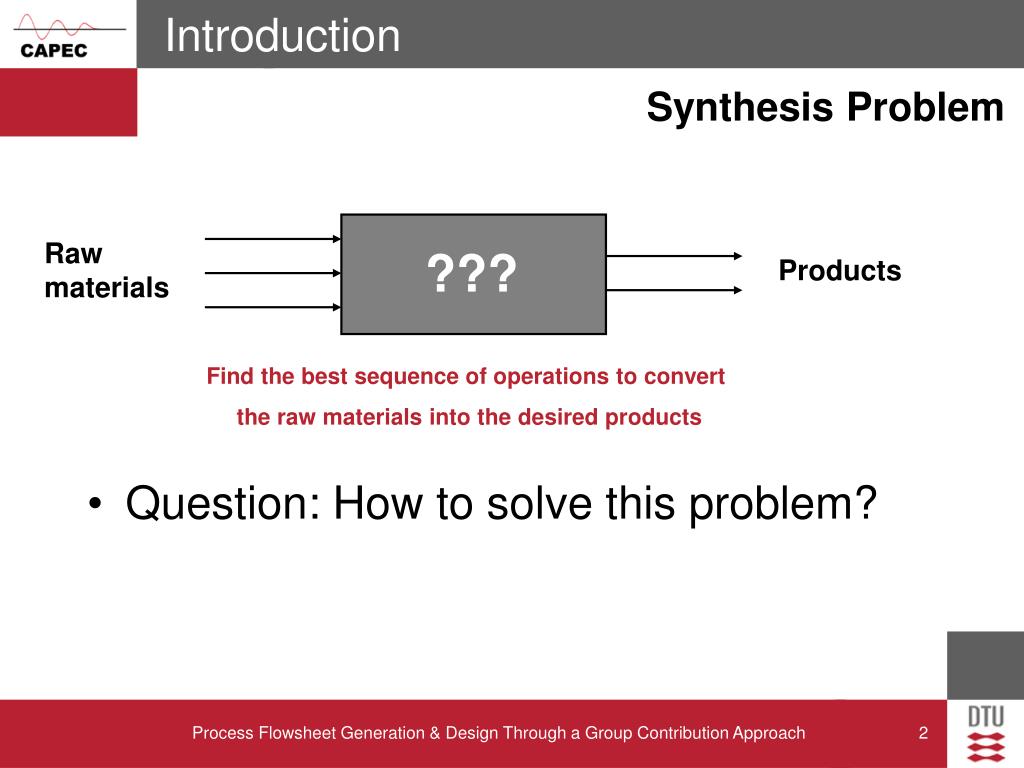

Synthesis Problem

  • Question: How to solve this problem?

Raw materials

Products

Find the best sequence of operations to convert

the raw materials into the desired products

Process Flowsheet Generation & Design Through a Group Contribution Approach


Introduction1

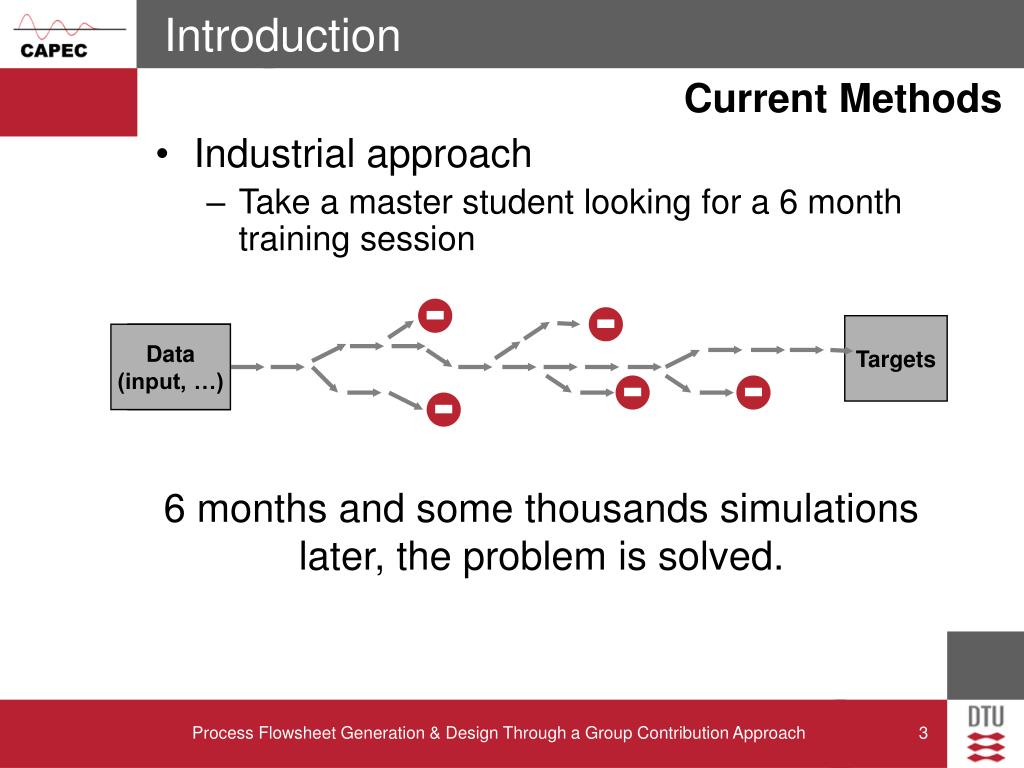

Introduction

Current Methods

  • Industrial approach

    • Take a master student looking for a 6 month training session

Targets

Data

(input, …)

Data

6 months and some thousands simulations later, the problem is solved.

Process Flowsheet Generation & Design Through a Group Contribution Approach


Introduction2

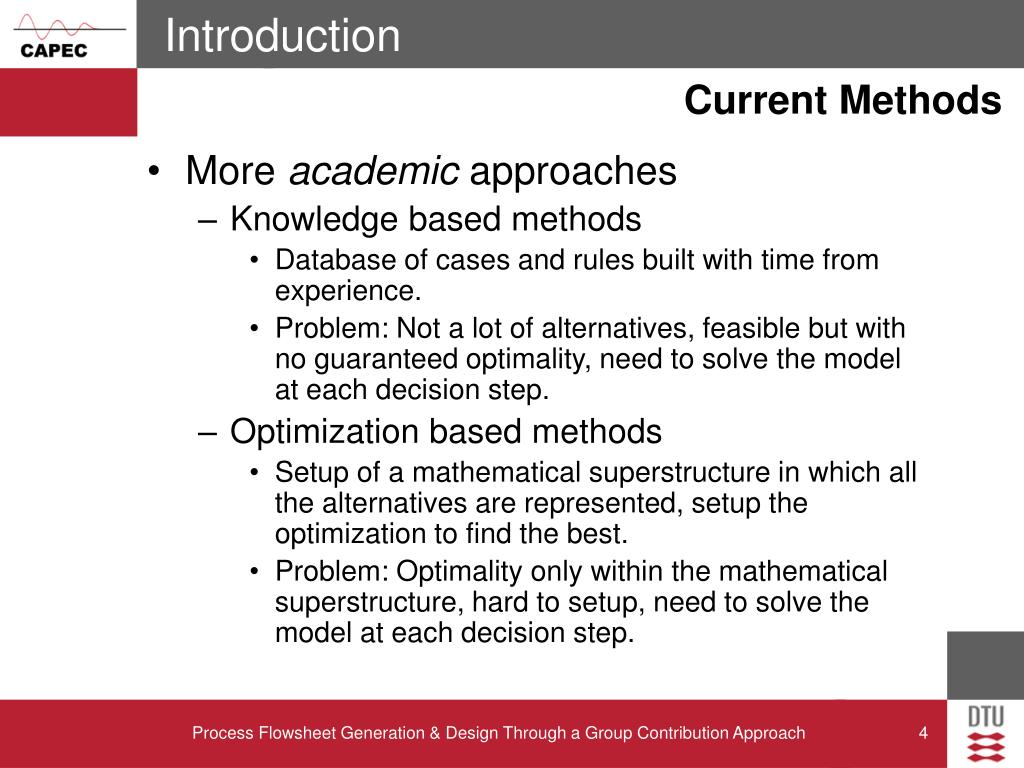

Introduction

Current Methods

  • More academic approaches

    • Knowledge based methods

      • Database of cases and rules built with time from experience.

      • Problem: Not a lot of alternatives, feasible but with no guaranteed optimality, need to solve the model at each decision step.

    • Optimization based methods

      • Setup of a mathematical superstructure in which all the alternatives are represented, setup the optimization to find the best.

      • Problem: Optimality only within the mathematical superstructure, hard to setup, need to solve the model at each decision step.

Process Flowsheet Generation & Design Through a Group Contribution Approach


Introduction3

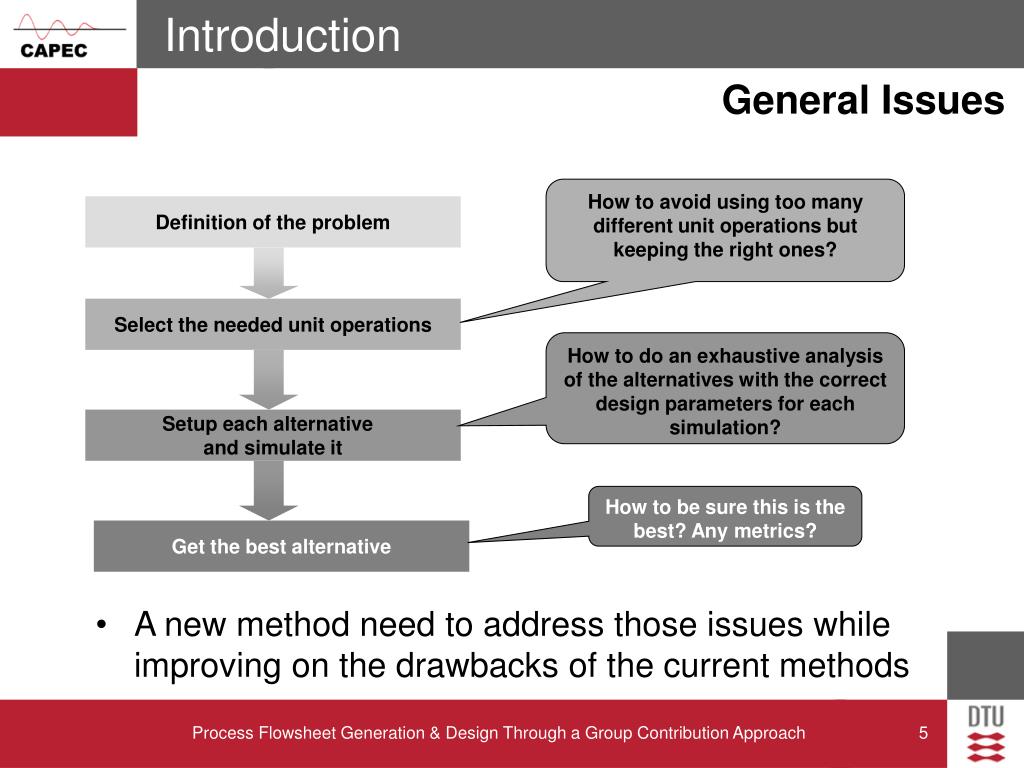

Introduction

General Issues

  • A new method need to address those issues while improving on the drawbacks of the current methods

How to avoid using too many different unit operations but keeping the right ones?

Definition of the problem

Select the needed unit operations

How to do an exhaustive analysis of the alternatives with the correct design parameters for each simulation?

Setup each alternative and simulate it

How to be sure this is the best? Any metrics?

Get the best alternative

Process Flowsheet Generation & Design Through a Group Contribution Approach


Introduction4

Introduction

Core Idea and Main Objectives

  • Core Idea

    • Apply the group contribution approach for property estimation to the synthesis, design and modelling of a process flowsheet, with process-groups representing units, bonds representing streams, rules for flowsheet feasibility and a function of group contributions predicting the performance of the flowsheet.

  • Main Objectives

    • Efficient on a large range of problems

    • Ability to integrated and reuse knowledge over the time

    • Computer implementation for ease of use

Process Flowsheet Generation & Design Through a Group Contribution Approach


Introduction5

Introduction

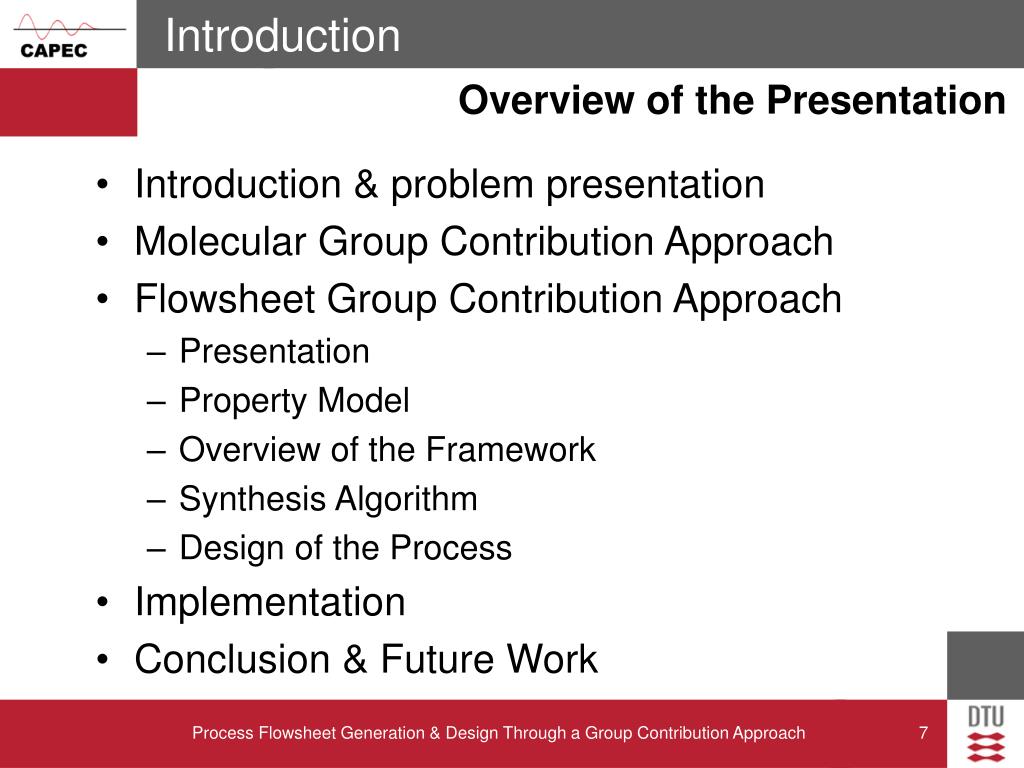

Overview of the Presentation

  • Introduction & problem presentation

  • Molecular Group Contribution Approach

  • Flowsheet Group Contribution Approach

    • Presentation

    • Property Model

    • Overview of the Framework

    • Synthesis Algorithm

    • Design of the Process

  • Implementation

  • Conclusion & Future Work

Process Flowsheet Generation & Design Through a Group Contribution Approach


Molecular group contribution approach

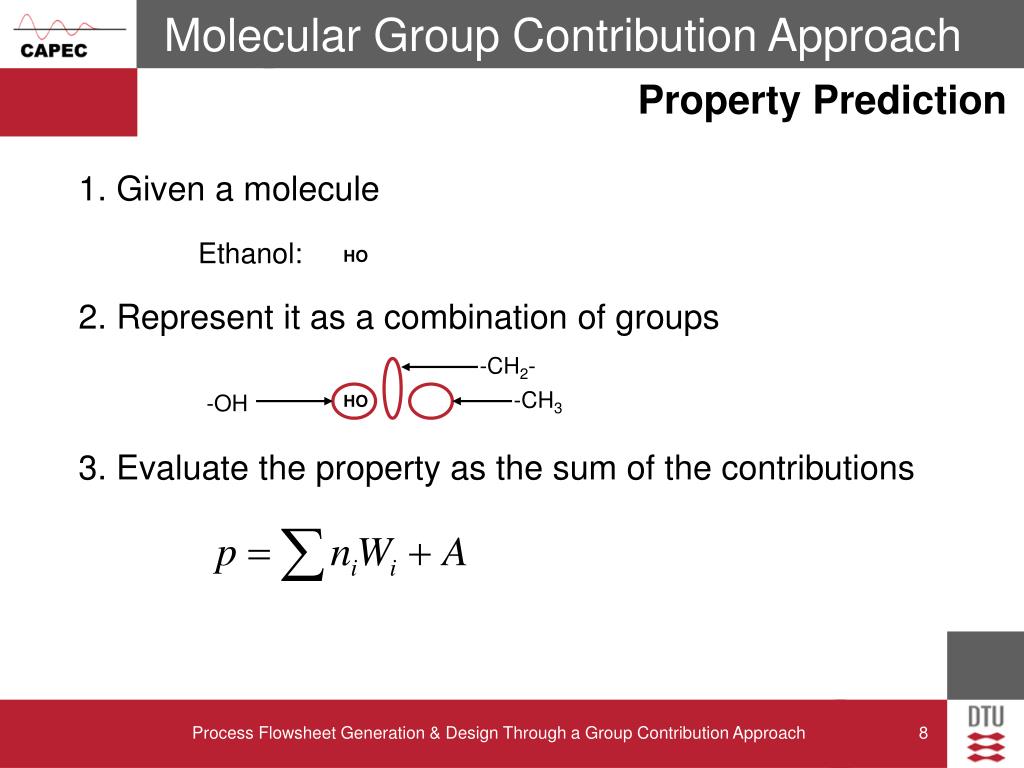

Molecular Group Contribution Approach

Property Prediction

1. Given a molecule

Ethanol:

2. Represent it as a combination of groups

-CH2-

-CH3

-OH

3. Evaluate the property as the sum of the contributions

Process Flowsheet Generation & Design Through a Group Contribution Approach


Molecular group contribution approach1

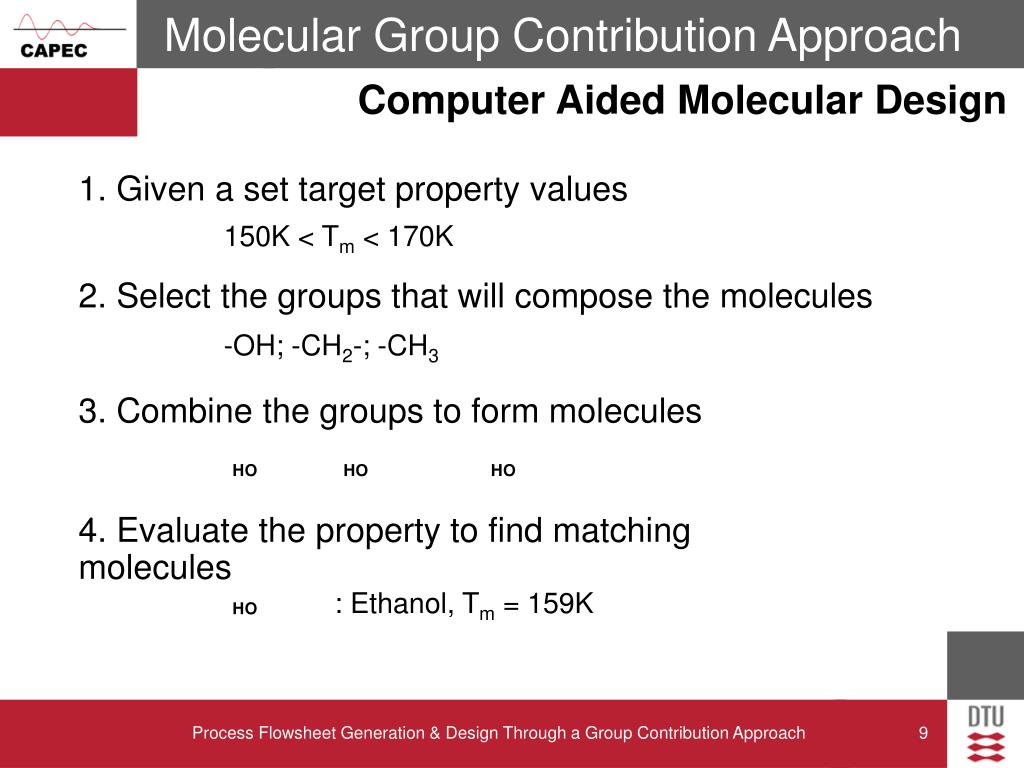

Molecular Group Contribution Approach

: Ethanol, Tm = 159K

Computer Aided Molecular Design

1. Given a set target property values

150K < Tm < 170K

2. Select the groups that will compose the molecules

-OH; -CH2-; -CH3

3. Combine the groups to form molecules

4. Evaluate the property to find matching molecules

Process Flowsheet Generation & Design Through a Group Contribution Approach


Flowsheet group contribution approach

Flowsheet Group Contribution Approach

Presentation

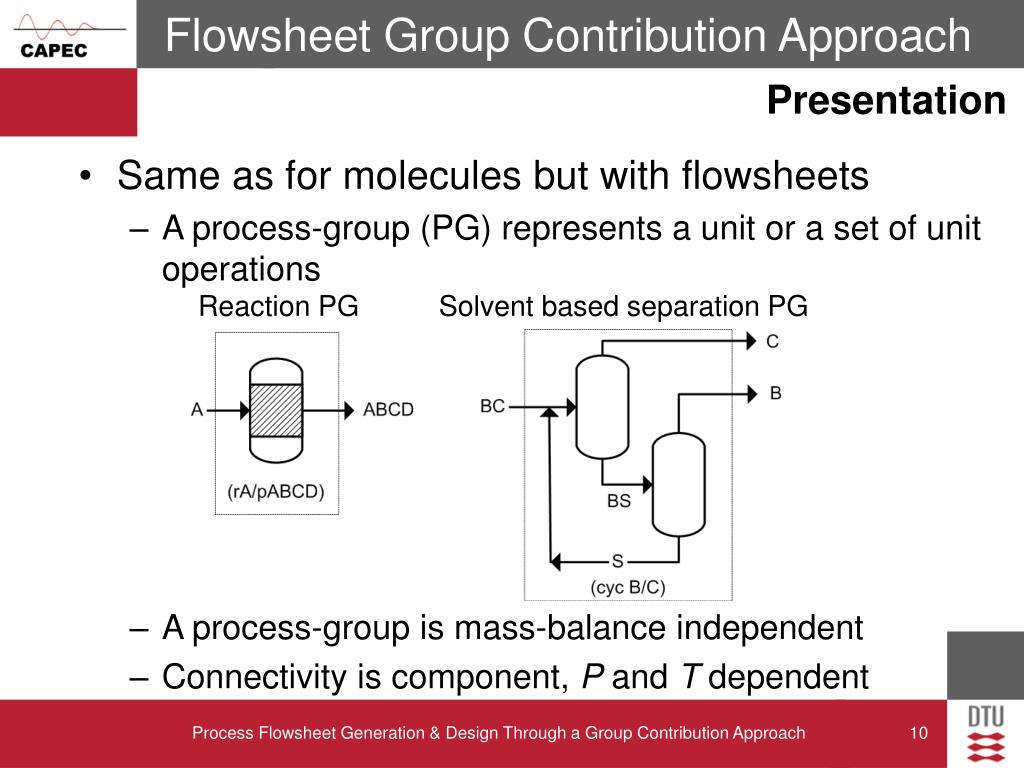

  • Same as for molecules but with flowsheets

    • A process-group (PG) represents a unit or a set of unit operations

Reaction PG

Solvent based separation PG

  • A process-group is mass-balance independent

  • Connectivity is component, P and T dependent

Process Flowsheet Generation & Design Through a Group Contribution Approach


Flowsheet group contribution approach1

Flowsheet Group Contribution Approach

Presentation

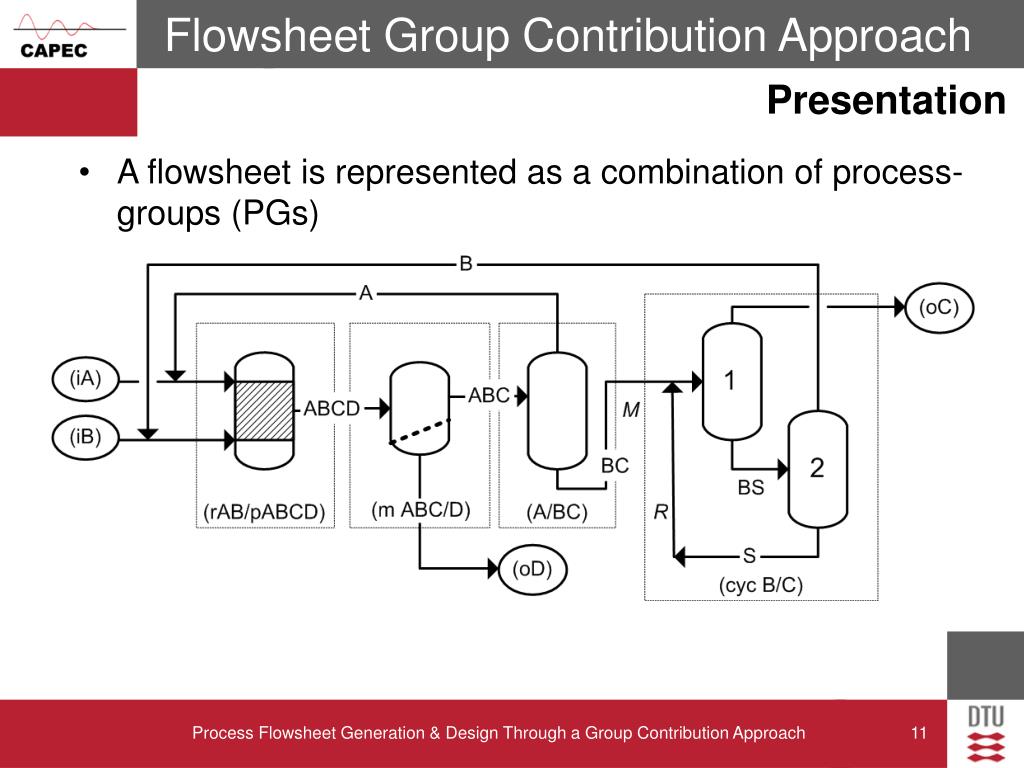

  • A flowsheet is represented as a combination of process-groups (PGs)

Process Flowsheet Generation & Design Through a Group Contribution Approach


Flowsheet group contribution approach2

Flowsheet Group Contribution Approach

Overview of the Framework

Process Flowsheet Generation & Design Through a Group Contribution Approach


Flowsheet group contribution approach3

Flowsheet Group Contribution Approach

Property Model

  • Energy index for distillation column process-group

  • pk : Topology factor

  • ak : Regressed contribution of PG k

  • dijk : Driving force between the 2 key components

  • A : Regressed constant

  • Energy index for solvent based separation

  • R : Solvent reflux of solvent

  • dijk : Solvent free force between the 2 components

Process Flowsheet Generation & Design Through a Group Contribution Approach


Flowsheet group contribution approach4

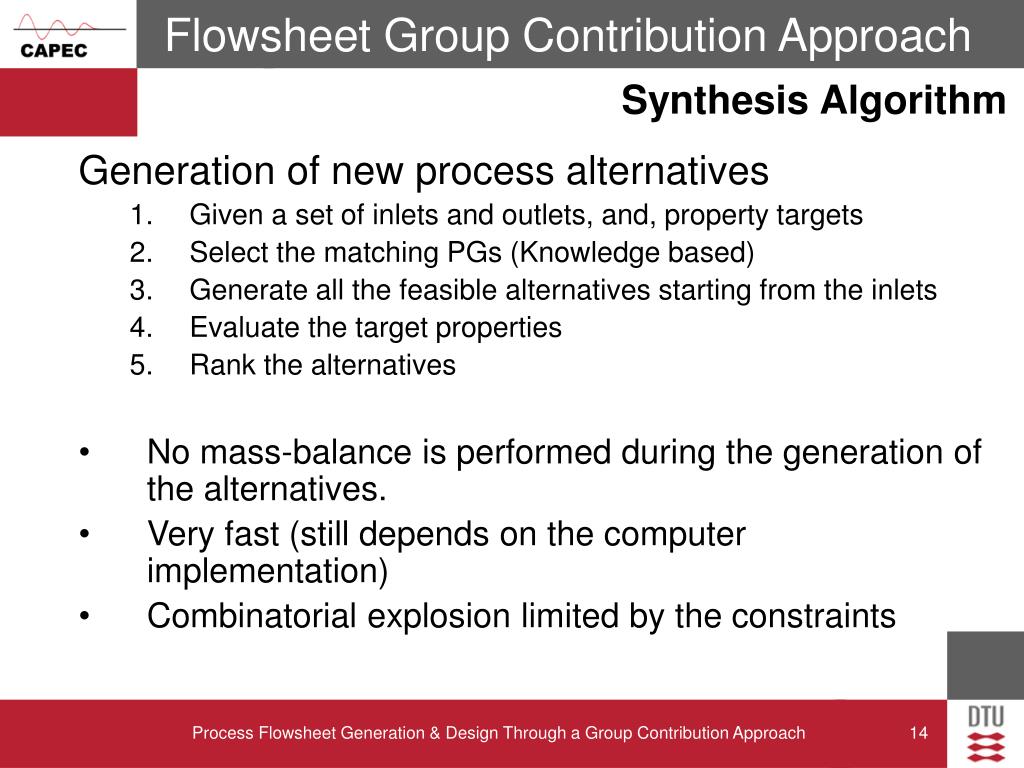

Flowsheet Group Contribution Approach

Synthesis Algorithm

Generation of new process alternatives

  • Given a set of inlets and outlets, and, property targets

  • Select the matching PGs (Knowledge based)

  • Generate all the feasible alternatives starting from the inlets

  • Evaluate the target properties

  • Rank the alternatives

  • No mass-balance is performed during the generation of the alternatives.

  • Very fast (still depends on the computer implementation)

  • Combinatorial explosion limited by the constraints

  • Process Flowsheet Generation & Design Through a Group Contribution Approach


    Flowsheet group contribution approach5

    Flowsheet Group Contribution Approach

    Synthesis Algorithm

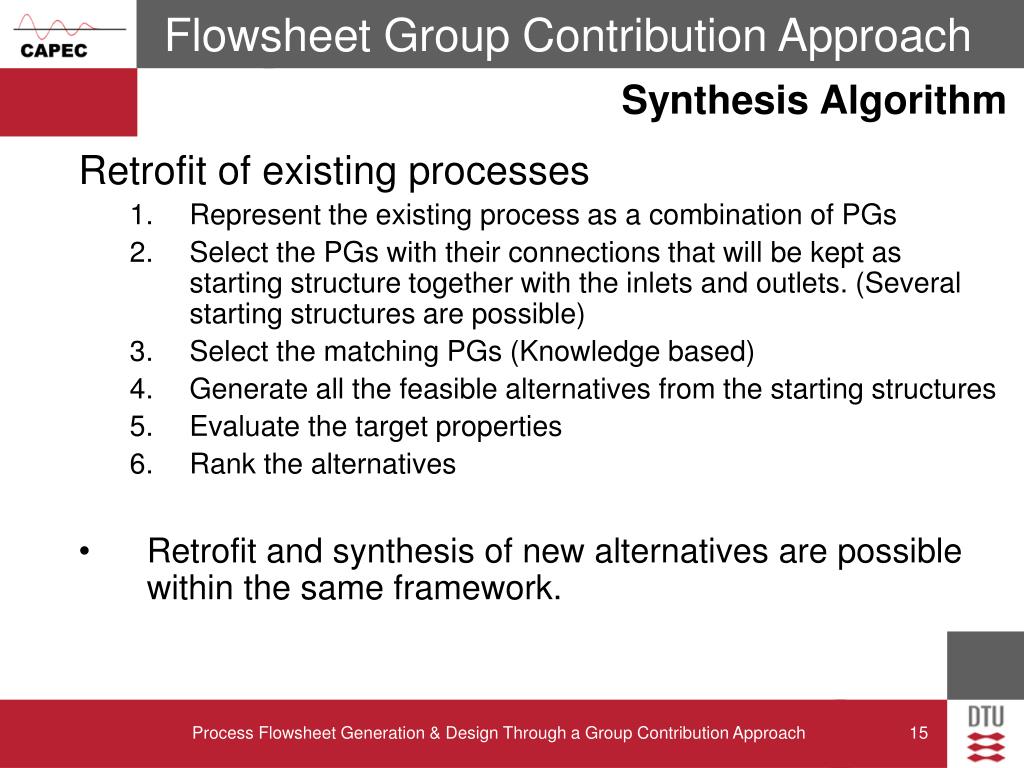

    Retrofit of existing processes

    • Represent the existing process as a combination of PGs

    • Select the PGs with their connections that will be kept as starting structure together with the inlets and outlets. (Several starting structures are possible)

    • Select the matching PGs (Knowledge based)

    • Generate all the feasible alternatives from the starting structures

    • Evaluate the target properties

    • Rank the alternatives

  • Retrofit and synthesis of new alternatives are possible within the same framework.

  • Process Flowsheet Generation & Design Through a Group Contribution Approach


    Flowsheet group contribution approach6

    Flowsheet Group Contribution Approach

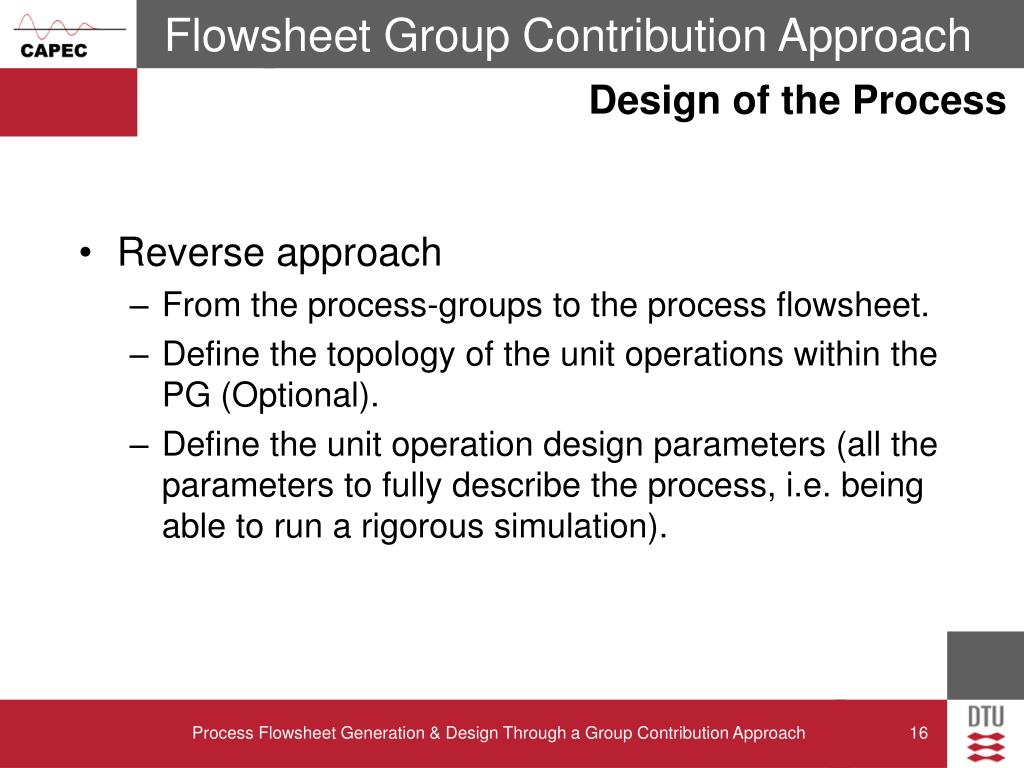

    Design of the Process

    • Reverse approach

      • From the process-groups to the process flowsheet.

      • Define the topology of the unit operations within the PG (Optional).

      • Define the unit operation design parameters (all the parameters to fully describe the process, i.e. being able to run a rigorous simulation).

    Process Flowsheet Generation & Design Through a Group Contribution Approach


    Flowsheet group contribution approach7

    Flowsheet Group Contribution Approach

    Design of the Process

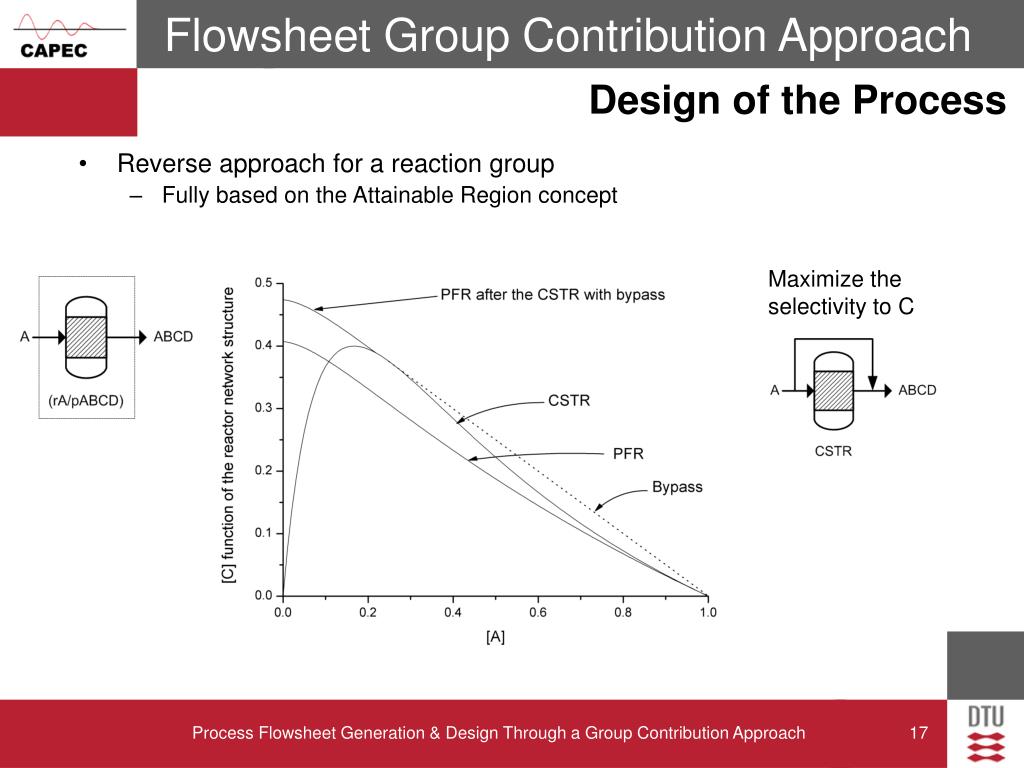

    • Reverse approach for a reaction group

      • Fully based on the Attainable Region concept

    Maximize the selectivity to C

    Process Flowsheet Generation & Design Through a Group Contribution Approach


    Flowsheet group contribution approach8

    Distillation 1

    Distillation 2

    Flowsheet Group Contribution Approach

    Number of stages

    35

    30

    Feed location

    20

    12

    Top product specifications

    Acetone 0.965

    Chloroform 0.965

    Bottom product specifications

    Acetone 0.05

    Chloroform 0.05

    Design of the Process

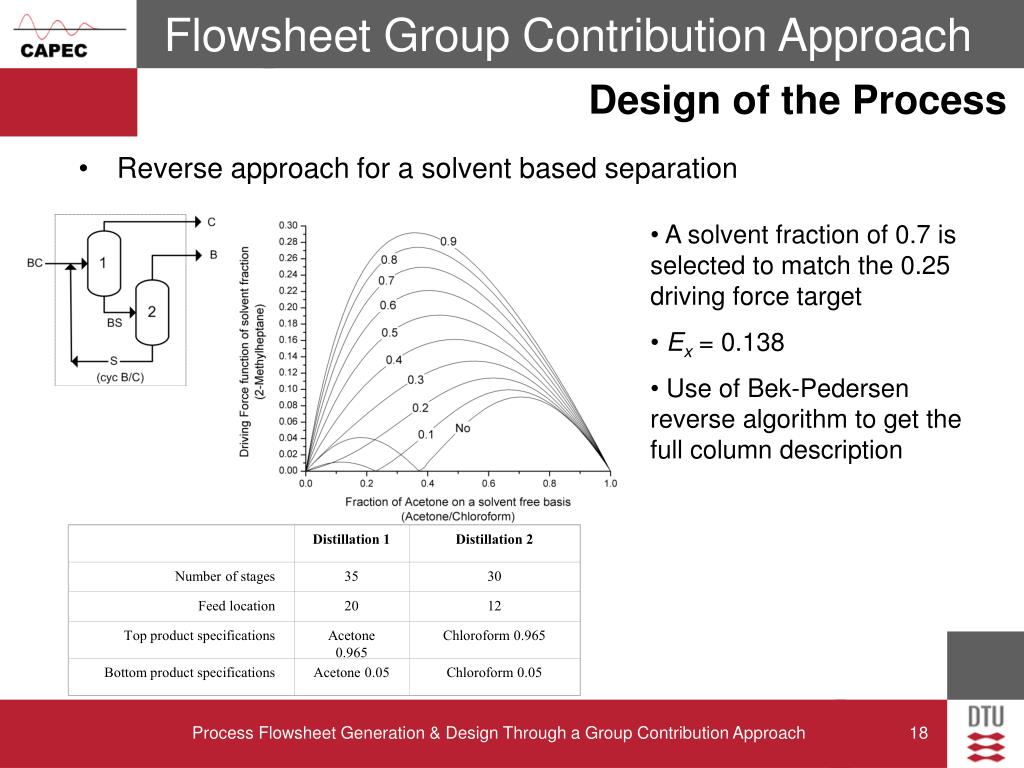

    • Reverse approach for a solvent based separation

    • A solvent fraction of 0.7 is selected to match the 0.25 driving force target

    • Ex = 0.138

    • Use of Bek-Pedersen reverse algorithm to get the full column description

    Process Flowsheet Generation & Design Through a Group Contribution Approach


    Flowsheet group contribution approach9

    Flowsheet Group Contribution Approach

    Implementation

    • Software implementation

    Process Flowsheet Generation & Design Through a Group Contribution Approach


    Flowsheet group contribution approach10

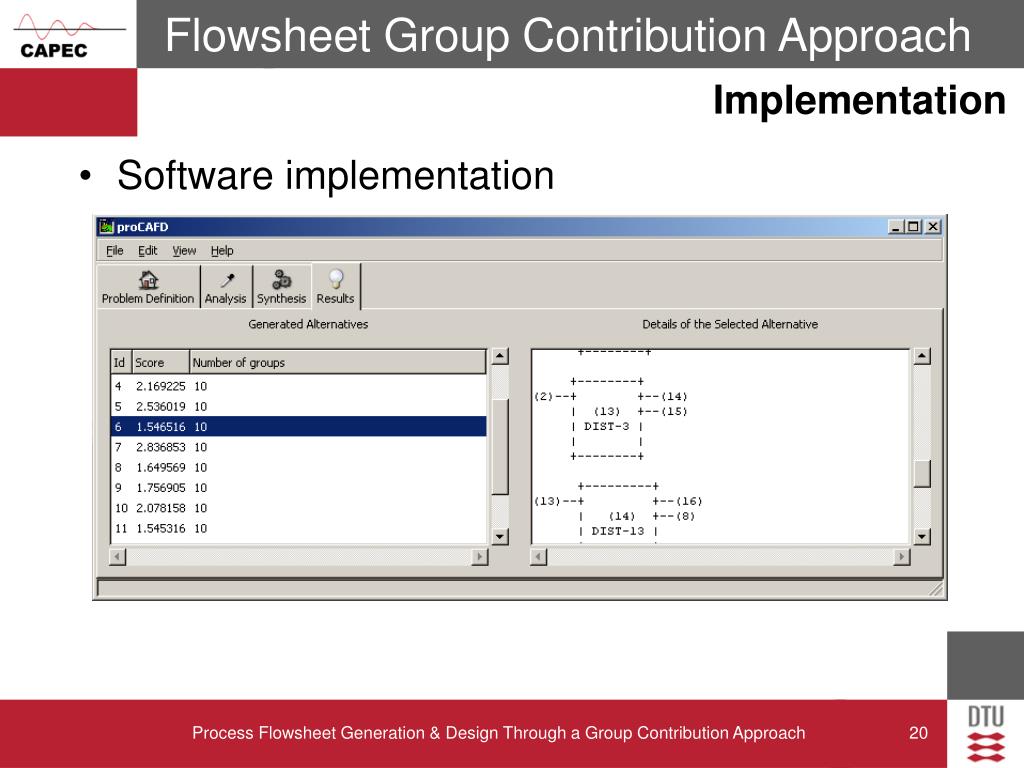

    Flowsheet Group Contribution Approach

    Implementation

    • Software implementation

    Process Flowsheet Generation & Design Through a Group Contribution Approach


    Conclusion future work

    Conclusion & Future Work

    What with Respect to the Objectives?

    • Efficient on a large range of problems

      • Current PGs:

        • Simple distillation, pressure swing, solvent based, kinetic reaction, fixed conversion reaction

      • Theoretically computationally efficient1

    • Ability to integrated and reuse knowledge over the time

      • Yes, if an efficient sequence is found, a translation as a PG is possible  ease of use

    • Computer implementation for ease of use

      • Going on.

        1. in practice the current implementation of the underlining graph theory could be improved

    Process Flowsheet Generation & Design Through a Group Contribution Approach


    Conclusion future work1

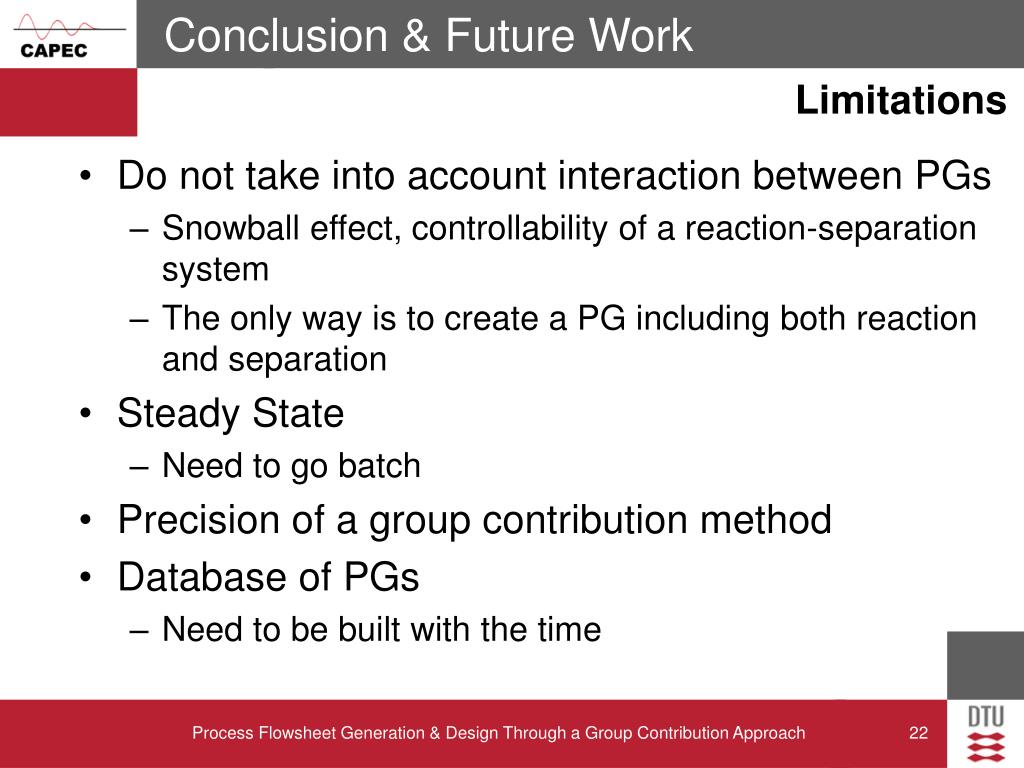

    Conclusion & Future Work

    Limitations

    • Do not take into account interaction between PGs

      • Snowball effect, controllability of a reaction-separation system

      • The only way is to create a PG including both reaction and separation

    • Steady State

      • Need to go batch

    • Precision of a group contribution method

    • Database of PGs

      • Need to be built with the time

    Process Flowsheet Generation & Design Through a Group Contribution Approach


    Conclusion future work2

    Conclusion & Future Work

    Future Work

    • Single stage separation

      • Flash, crystallization (Work already done)

    • Try on a full scale complex process

      • Multiple reaction/separation blocks with complex units and recycles between the reaction/separation blocks

    Process Flowsheet Generation & Design Through a Group Contribution Approach
