Presentation Transcript


  1. VideofiedOverviewPresentation www.videofied.com

  2. WhatisVideofied? • Wireless Alarm System with Video Verification • Indoor and Outdoor PIRS with integrated cameras and IR • 10 sec video on activation – alarm recipient sees what triggered the PIR • Confirms Crimes in Progress/Reduces False Alarms • Video confirmation can lead to faster response & higher arrest rates • TOTALLY Wire free • Battery operated – control panel & all devices • Wireless devices • GPRS reporting to Monitoring Station (IP also available) • Fast & Simple Installation/Deployment. • No wires, no power supply, no phone line, no broadband, and no waiting www.videofied.com

  3. The PIR Cameras • Radio Transceivers • 2 way encrypted External PIR Camera • Motion Sensor Internal PIR Camera • Night Vision • Digital Camera • Self-powered • No AC connection • 2 to 4 year battery life Infrared Illuminators www.videofied.com

  4. Alarm & Video Transmission • MotionViewer detects intruder and sends 10 second clip of intrusion over radio to the panel • Panel transmits alarm/video over IP/GPRS to ARC • Option to forward alarm & video as email to alert list • Most leading UK ARCs integrated • Alarms & videos can also be sent via a cloud server direct to one or more smartphones or other Internet enabled device (opportunity for “bells only” residential market) www.videofied.com

  5. Videofied in Action Camera Reaction Time <5ms False alarms can be discounted – no despatch costs Urgent response for genuine crimes in progress Minimises losses Proven to generate arrests www.videofied.com

  6. False Alarms – No Need for Expensive Call Outs Don’t let your alarm system make a monkey out of you ... or take the Mickey www.videofied.com

  7. Genuine Activations – Day or Night Video provides certainty of a crime in progress and encourages fast response.... Without the video you have no idea what caused the alarm activation www.videofied.com

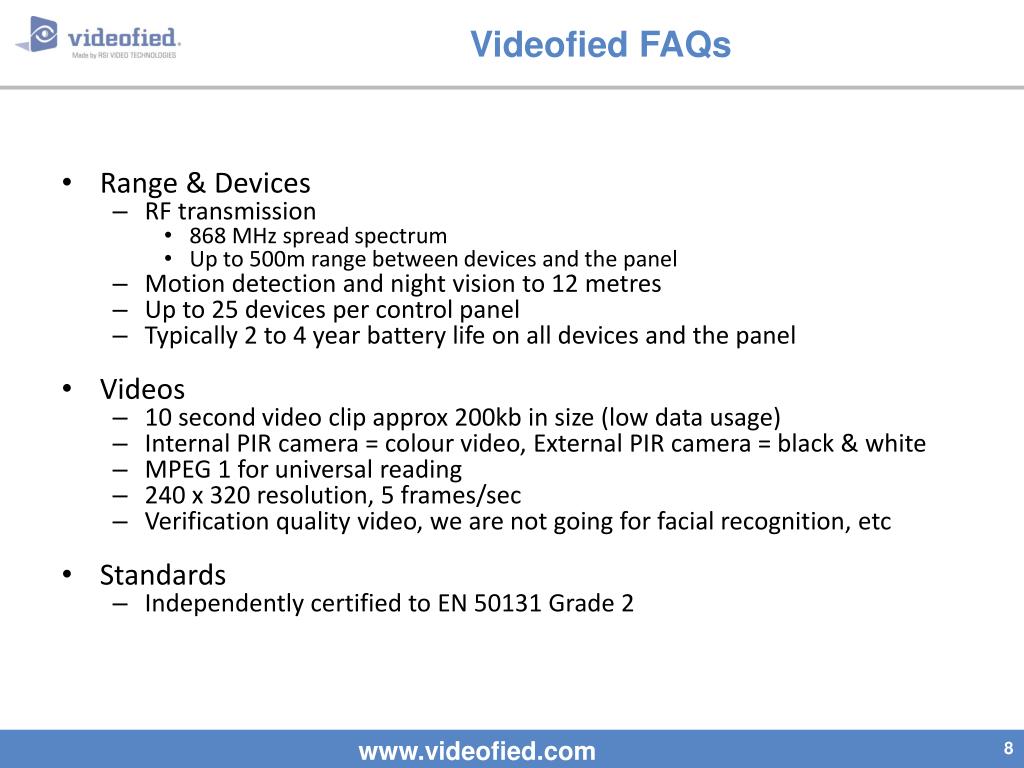

  8. VideofiedFAQs • Range & Devices • RF transmission • 868 MHz spread spectrum • Up to 500m range between devices and the panel • Motion detection and night vision to 12 metres • Up to 25 devices per control panel • Typically 2 to 4 year battery life on all devices and the panel • Videos • 10 second video clip approx 200kb in size (low data usage) • Internal PIR camera = colour video, External PIR camera = black & white • MPEG 1 for universal reading • 240 x 320 resolution, 5 frames/sec • Verification quality video, we are not going for facial recognition, etc • Standards • Independently certified to EN 50131 Grade 2 www.videofied.com

  9. Videofied Control Panels • Broad range of panels for different applications/ markets with features including; • Relay input/outputs • Arming from a “host” • panel • IP65 (outdoor panel) • 2 way voice capability • Integrated siren • Integrated keypad • IP connectivity • Optional mains power • Booster RF/GPRS • antenna capability • Mapping of camera to • an input, e.g. a Panic • button www.videofied.com

  10. VideofiedPeripherals Universal Transmitter Contact “Blind” PIR Smoke Exterior Prox Arming Remote Arming Exterior Siren/Strobe Interior Siren Keypad www.videofied.com

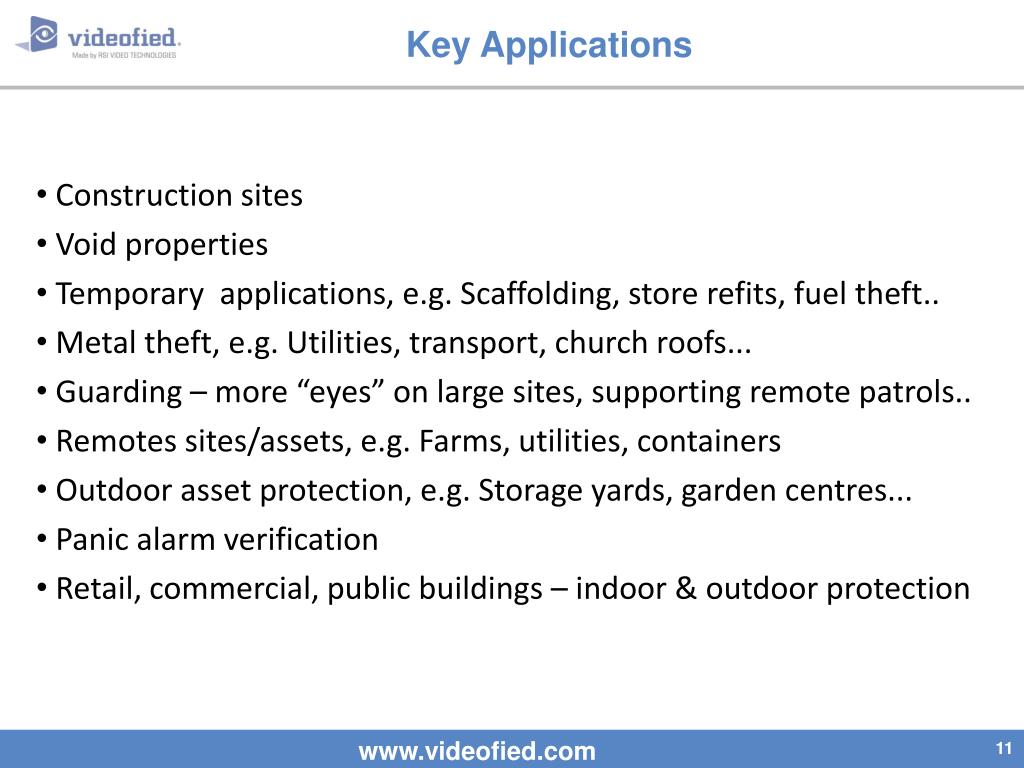

  11. Key Applications • Construction sites • Void properties • Temporary applications, e.g. Scaffolding, store refits, fuel theft.. • Metal theft, e.g. Utilities, transport, church roofs... • Guarding – more “eyes” on large sites, supporting remote patrols.. • Remotes sites/assets, e.g. Farms, utilities, containers • Outdoor asset protection, e.g. Storage yards, garden centres... • Panic alarm verification • Retail, commercial, public buildings – indoor & outdoor protection www.videofied.com

  12. Construction Site Example Ideal for Construction Site Managers – No power, phone line or broadband requirements. Simple installation with no cabling. PIR cameras can be easily moved around site as it develops www.videofied.com

  13. Void Property Example External and Internal Protection Early detection and confirmation of intruders Protectthe entire facility, including all entry points and the rooftop. No mains power required. www.videofied.com

  14. Residential – Home Alarm & Monitoring • Highervalue solution for the home owner • End user interactivity through Apps • arm/disarm • view system status/log • take photo or video • Professionally monitored 24/7 or; • Self monitoring option • alarm and video to phone(s) • ideal for current “bells only” market • police response more likely with video (“I can see someone in my house….”) www.videofied.com

  15. Who are RSI Video Technologies? • Based in Strasbourg, France. International sales office in Paris. • Founded in 2000 • Specialists in wireless/RF technology • Focus exclusively on the Videofied system • Sold 1 million devices in over 40 countries • Products now in their third generation • Multiple patent holder • Only company to combine video verification , wireless transmission, and battery power in one system • Sales only through Installers & Security Companies www.videofied.com

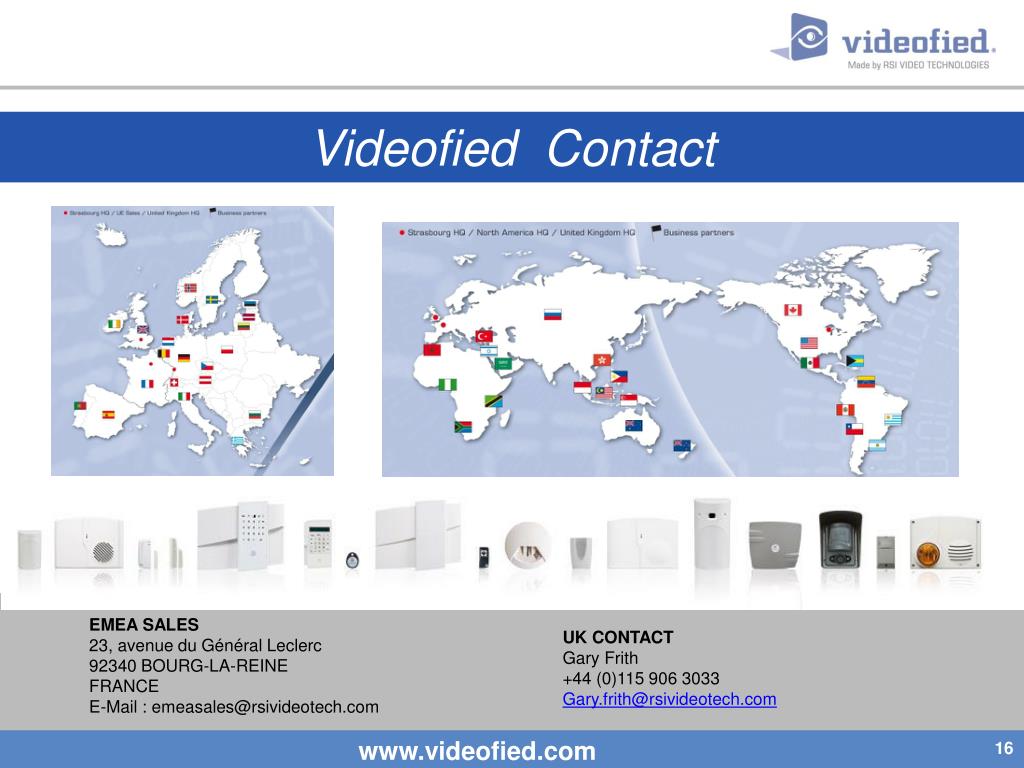

  16. Videofied Contact EMEA SALES 23, avenue du Général Leclerc 92340 BOURG-LA-REINE FRANCE E-Mail : emeasales@rsivideotech.com UK CONTACT Gary Frith +44 (0)115 906 3033 Gary.frith@rsivideotech.com www.videofied.com
