Kverneland chopper range multipurpose

Kverneland Chopper range

Multipurpose

Product Information 2015


Kverneland chopper range multipurpose

Content

Multipurpose chopper range

  • FM

  • FHS

  • FHP

  • FHP plus

  • FRO

  • FRH

  • FRD


Kverneland chopper range multipurpose

Kverneland FMGrass chopper


Kverneland chopper range multipurpose

Kverneland FM Chopper

  • For tractors up to 50 hp

  • A small, medium duty flail mower for easier jobs

  • For use on slightly rough grounds and other green areas, in amenity areas, for tidying up gardens etc.

  • Height adjustable rear roller 133 x 3.6 mm with scraper

  • Available with: Universal blades, cup blades and rock blades

  • Offsetable 3-point linkage, cat. 1

  • Floating lower links (slotted hole)


Kverneland chopper range multipurpose

Rotor

  • Dynamically balanced rotor

  • Free floating cutting tools (flail concept)

  • 40 mm bearing hub

  • Spherical sealed ball bearings

  • 101.6 x 8 mm rotor tube

  • Rotor speed 1993 rpm

  • FM is not available with hammers


Kverneland chopper range multipurpose

Blades

  • For use in mainly grass land

  • Tidying gardens

  • For easy and moderate jobs

  • Universal blades, fitted with an

    extra shackle

  • For use in stony conditions

  • Extra shackle helps to pivot

    over stones

  • Same cutting effect as

    universalblades

  • For use in medium to light

    conditions

  • Tidying pasture

  • Maintaining grass land

  • Chopping straw and stubble


Kverneland chopper range multipurpose

Technical data


Kverneland chopper range multipurpose

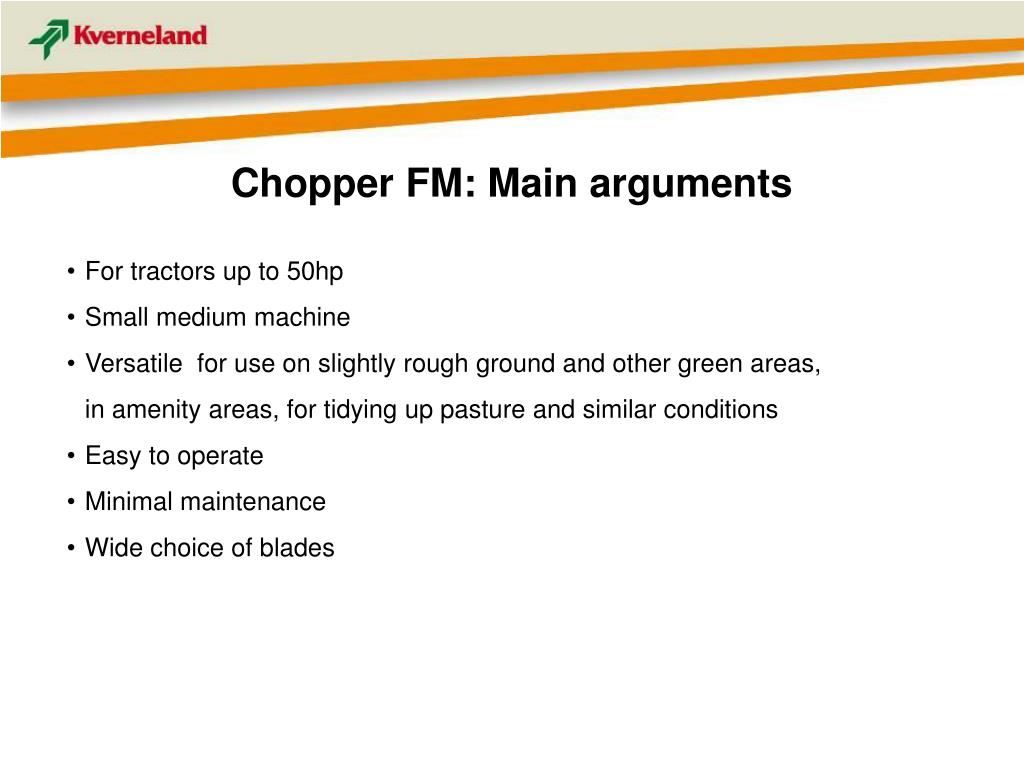

Chopper FM: Main arguments

  • For tractors up to 50hp

  • Small medium machine

  • Versatile for use on slightly rough ground and other green areas,

    in amenity areas, for tidying up pasture and similar conditions

  • Easy to operate

  • Minimal maintenance

  • Wide choice of blades


Kverneland chopper range multipurpose

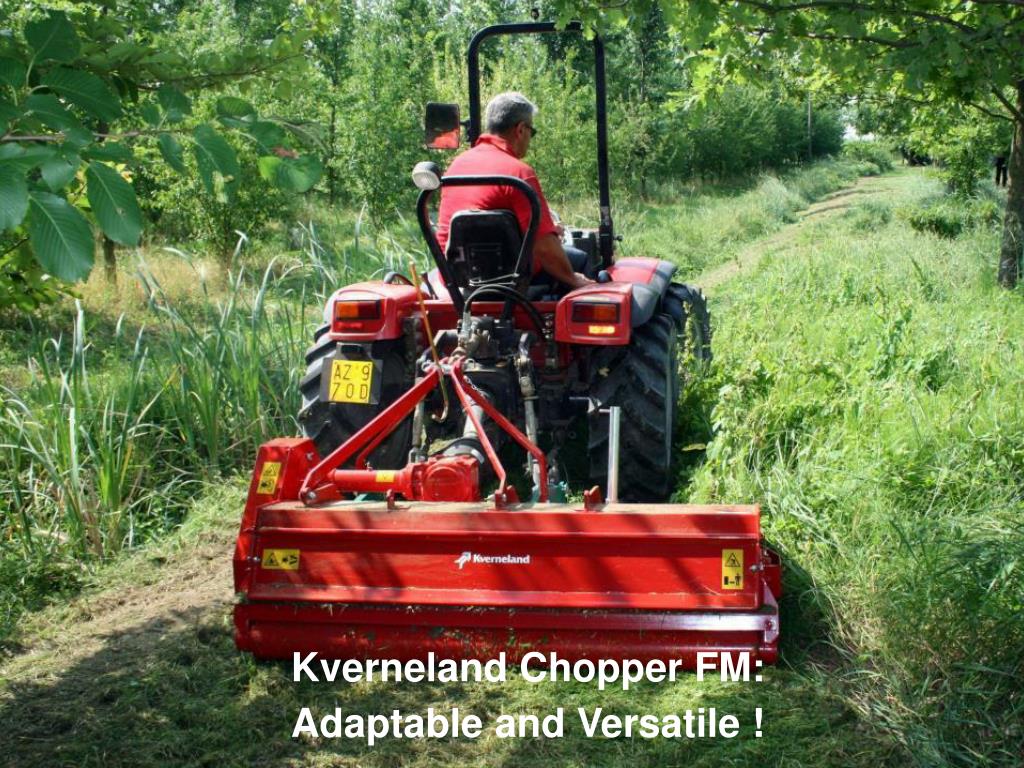

Kverneland Chopper FM:

Adaptable and Versatile !


Kverneland chopper range multipurpose

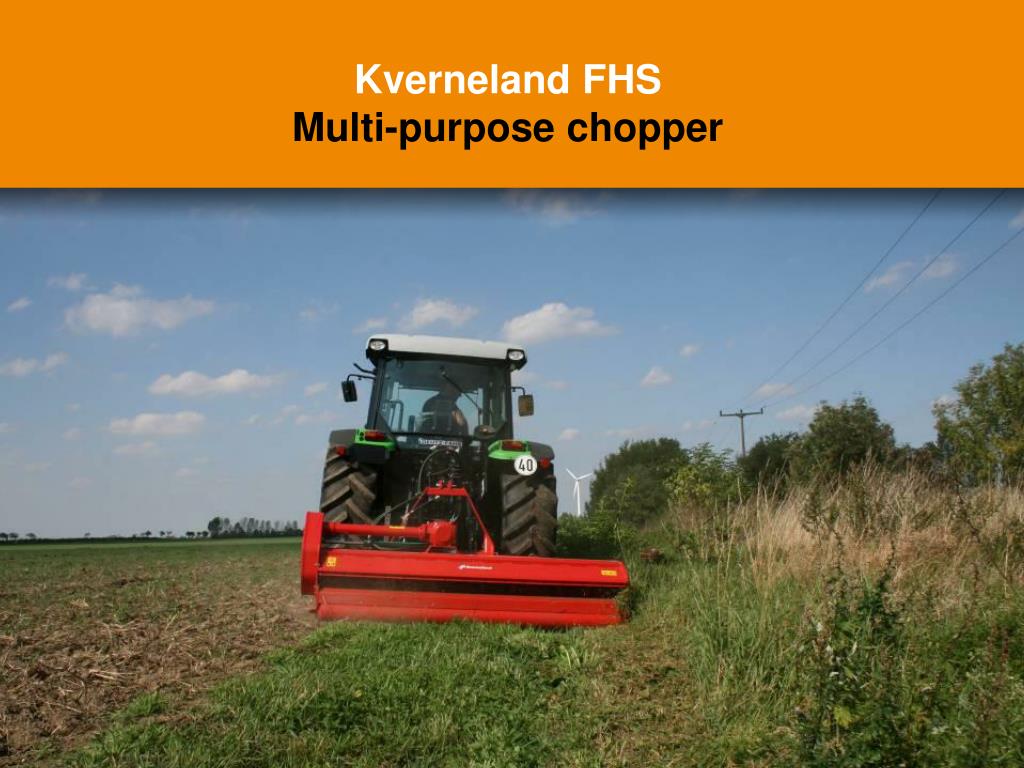

Kverneland FHSMulti-purpose chopper


Kverneland chopper range multipurpose

Kverneland FHS Chopper

  • High versatile solution for grass and crops purposes

  • Possibility of clearing out field edges, orchards, road edges by offset

  • Possibility to equip rotor with various blades = excellent shredding quality


Kverneland chopper range multipurpose

Frame

  • Compact, low profiled and rounded shapes but studied for heavy duty applications

  • Robust headstock design taken from Kverneland power harrow for a ”family look”

  • 3 point linkage close to the tractor = minimun lift power required and maximun field manoeuvrability


Kverneland chopper range multipurpose

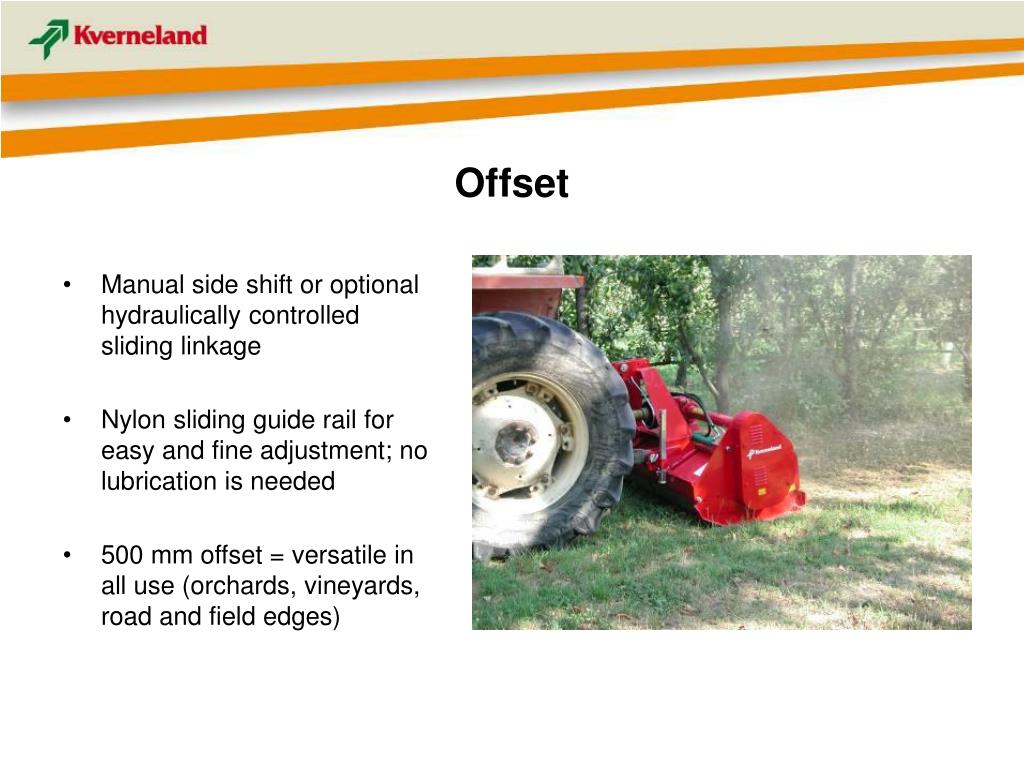

Offset

  • Manual side shift or optional hydraulically controlled sliding linkage

  • Nylon sliding guide rail for easy and fine adjustment; no lubrication is needed

  • 500 mm offset = versatile in all use (orchards, vineyards, road and field edges)


Kverneland chopper range multipurpose

Gearbox and lateral drive

  • Gearbox up to 80hp - PTO speed drive 540rpm

  • 5 V belts with automatic tensioner spring loaded always ensure stable rotor transmission

  • Lateral drive protected by robust but smooth cover = high protection and maximum respect of orchards vegetation


Kverneland chopper range multipurpose

Rotor

  • A strong tube 169 x10mm is the basis: total cutting diameter is 450mm

  • It is supported by 2 self adjustable spherical bearings with grease nipple

  • Large rotor diameter = easy and precise balancing and smooth running without vibration


Kverneland chopper range multipurpose

FHS: Technical data Rotor


Kverneland chopper range multipurpose

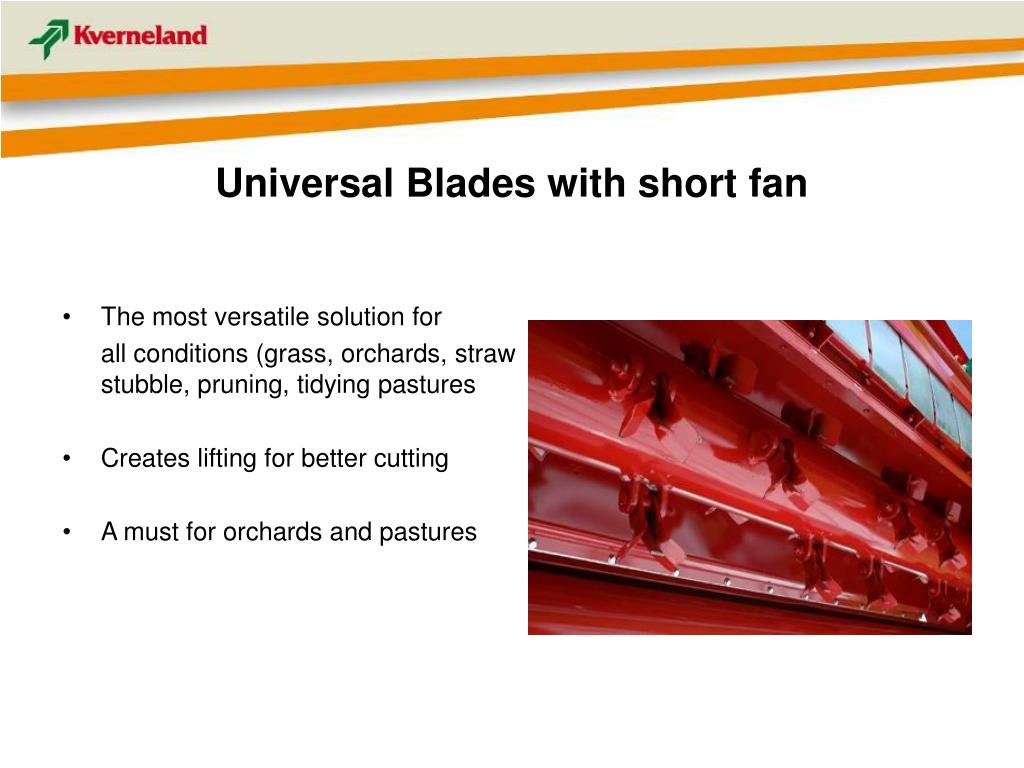

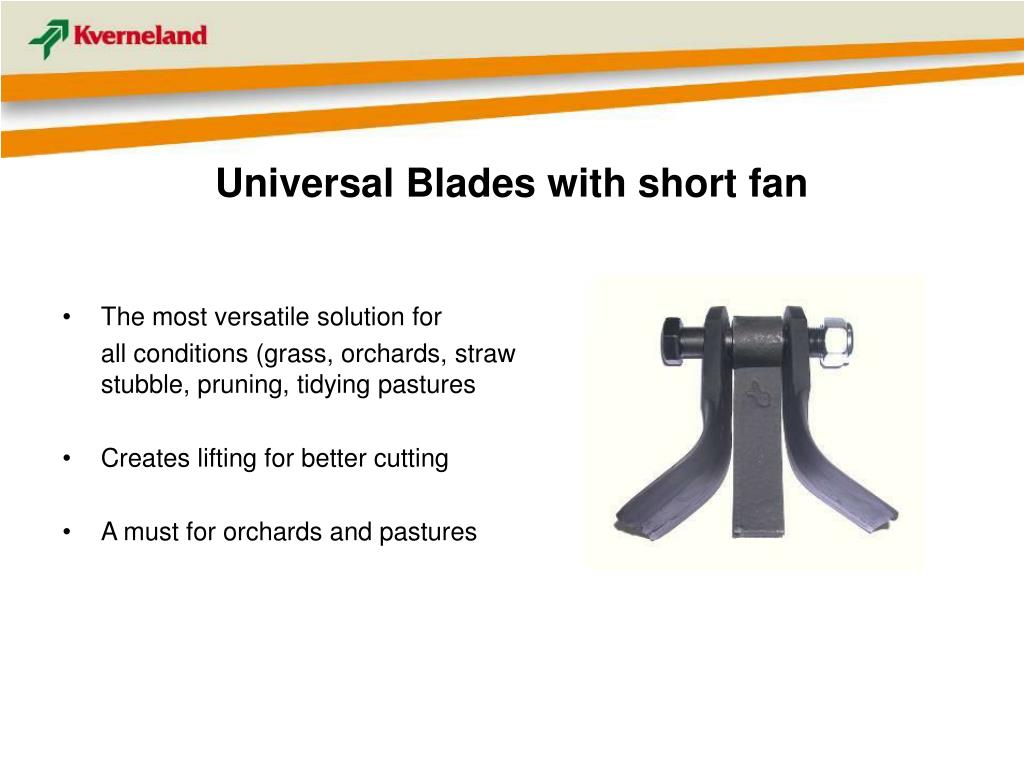

Universal Blades with short fan

  • The most versatile solution for

    all conditions (grass, orchards, straw stubble, pruning, tidying pastures

  • Creates lifting for better cutting

  • A must for orchards and pastures


Kverneland chopper range multipurpose

Hammer Blades

  • For heavy conditions, set aside land with heavy undergrowth, branches

  • Special shape of the hammer creates a suction effect and lift the material for even cutting

  • Excellent for orchards after pruning


Kverneland chopper range multipurpose

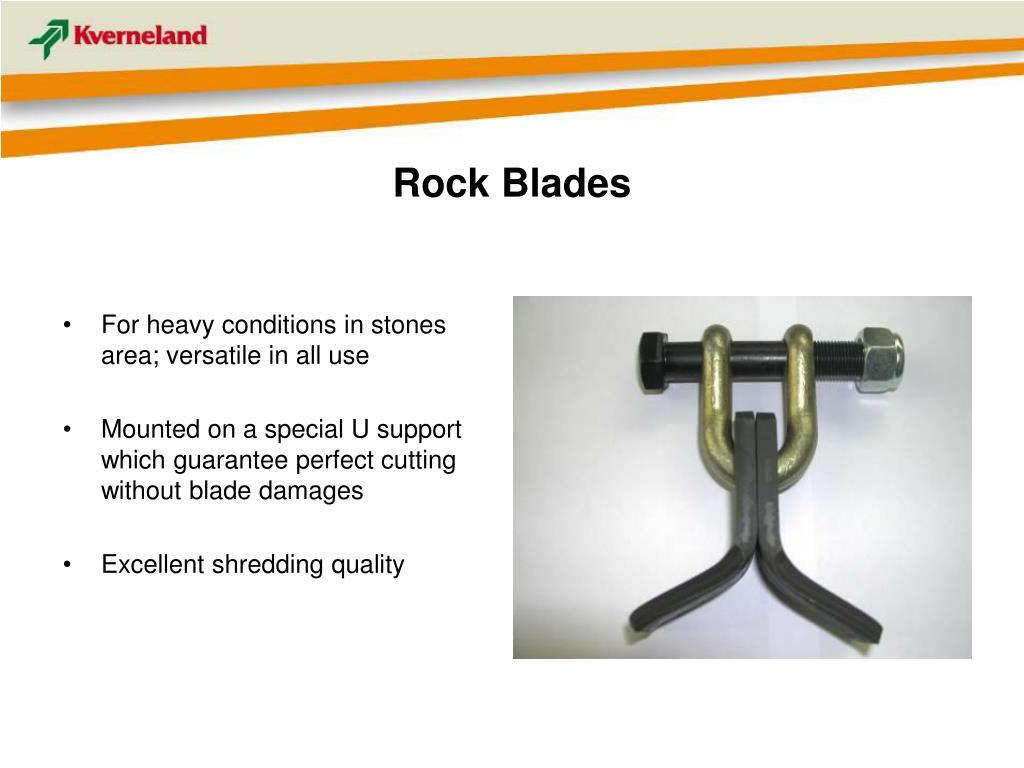

Rock Blades

  • For heavy conditions in stones area; versatile in all use

  • Mounted on a special U support which guarantee perfect cutting without blade damages

  • Excellent shredding quality


Kverneland chopper range multipurpose

Counter knife

  • U-counter knifes available for more intense shredding and heavy conditions

  • Specially fitted for short fan blades

  • Extra fine cutting for grass, maize, straw and pruning


Kverneland chopper range multipurpose

Double skin – standard equipment

  • Available for all models in the new FH range as it is included in the frame

  • Standard thickness of 4 mm

  • Recommended for the most treacherous conditions

  • Extends the life of the chassis


Kverneland chopper range multipurpose

Rake tine kit (option)

  • Increase shredding effect in the orchards pruning

  • Omogeneus and accurate harvesting and cutting of pruning and brushes

  • Recommend with long and pressed residues of pruning in heavy conditions


Kverneland chopper range multipurpose

Rear roller - skids

  • Standard equipment for reliable deep control in any conditions

  • Diameter 160 mm and adjustable scraper always ensure correct field performance

  • Bearing hub integrated and interchangeable via skid

  • High performance bearings

    with grease nipples


Kverneland chopper range multipurpose

FHS: Technical data


Kverneland chopper range multipurpose

Chopper FHS: Main arguments

  • For tractors up to 80hp

  • Compact heavy duty machine

  • Versatile for use in soft and top fruit orchards, vineyards and light undergrowth

  • It is equally at home tidying pasture and other grass fields and chopping straw and stubble after combine harvesting.

  • Solid construction for long life

  • Minimal maintenance

  • Wide choice of blades

  • Sideways adjustment to maneuver around or under trees and bushes


Kverneland chopper range multipurpose

Kverneland Chopper FHS:

Efficient and durable !


Kverneland chopper range multipurpose

Kverneland FHPSide pivoting chopper


Kverneland chopper range multipurpose

Kverneland FHP Chopper

  • High versatile solution for farming and road maintenance purpose

  • Due to possibility of different working angle positions make FHP an indispensable equipment

  • Compact but robust allow high maneuverability and ensure high reliability during working operations


Kverneland chopper range multipurpose

Headstock

  • A square tube 120x120mm is the basis of the headstock. Arc bended design guarantee excellence supporting on torsion stress

  • Strong welding process ensure high resistance at all against stress coming from intensive use

  • Heavily tested in Klepp (shaking test) simulating difficult working operations


Kverneland chopper range multipurpose

Headstock and articulation

  • Headstock studied for different working operations; fields, ridges (1) or edges (2)

  • A robust parallelogram articulation allow wide range of movements and efficacy support of the chopper unit

  • Precise assembly, easy maintenance make FHP comfortable in use getting the best performances in all conditions

(1)

(2)


Kverneland chopper range multipurpose

Offset articulation

  • Different offset positions can be reached by different working width

  • The gearbox inside machine dimension allow a better control in transport and working operations

  • The gearbox inside machine shape is more protected and permit easy maintenance of the lateral transmission (belts)


Kverneland chopper range multipurpose

Offset working angle, horizontal position (2mt)


Kverneland chopper range multipurpose

Transport position +90° angle


Kverneland chopper range multipurpose

Max working position -65° angle


Kverneland chopper range multipurpose

Frame

  • Compact, low profiled and rounded shapes but studied for heavy duty applications

  • Strong protection to avoid damages and wearing coming from intensive use

  • Easy maintenance trough different grasing points access


Kverneland chopper range multipurpose

Gearbox and lateral drive

  • Gearbox up to 110hp with freewheel inside - PTO speed drive 540rpm

  • 5 V belts with automatic tensioner spring loaded always ensure stable rotor transmission

  • By automatic belts tensioner low maintenance requirement (no more settings of the belts)


Kverneland chopper range multipurpose

Safety and protection

  • As standard an oil accumulator (180bar loaded) prevent damages due to obstacles collision, by folding in chopping unit

  • Frame and bearings are protected by tube or plate

  • Wearing strips are bolted below the skids. Reduce costs and labor time during maintenance operations


Kverneland chopper range multipurpose

Rotor

  • A strong tube 169x10mm is the base: total cutting diameter is 450mm

  • It is supported by 2 self adjustable spherical bearings with grease nipple

  • Large rotor diameter = easy and precise balancing and smooth running without vibration


Kverneland chopper range multipurpose

FHP: Technical data Rotor


Kverneland chopper range multipurpose

Universal Blades with short fan

  • The most versatile solution for

    all conditions (grass, orchards, straw stubble, pruning, tidying pastures

  • Creates lifting for better cutting

  • A must for orchards and pastures


Kverneland chopper range multipurpose

Hammer Blades

  • For heavy conditions, set aside land with heavy undergrowth, branches

  • Special shape of the hammer creates a suction effect and lift the material for even cutting

  • Excellent for orchards after pruning


Kverneland chopper range multipurpose

Rock Blades

  • For heavy conditions in stones area; versatile in all use

  • Mounted on a special U support which guarantee perfect cutting without blade damages

  • Excellent shredding quality


Kverneland chopper range multipurpose

Counter knife

  • A second U-counter knifes available (as option) for more intense shredding and heavy conditions

  • Specially fitted for hammers blades

  • One counterknife is already standard; it provide for extra fine cutting for grass, maize, straw and pruning


Kverneland chopper range multipurpose

Double skin – standard equipment

  • Available as standard in all FHP because included in the frame construction

  • Standard thickness of 4 mm

  • Recommended for the most treacherous conditions

  • Extends the life of the chassis


Kverneland chopper range multipurpose

Rear roller

  • Standard equipment for reliable deep control in any conditions

  • 195 mm diameter and self-cleaning (the tools are running very close to roller profile - 15mm)

  • High performance bearing integrated in the roller

  • External greasing nipples for a faster maintenance


Kverneland chopper range multipurpose

FHP: Technical data


Kverneland chopper range multipurpose

Chopper FHP: Main arguments

  • For tractors up to 110hp

  • Compact heavy duty machine suggested for all purposes (farms needs, road maintenance…)

  • Versatile in all conditions due to extremely efficient articulation (-65° & +90°)

  • Solid construction for long life

  • Minimal maintenance requirement and low costs

  • Standard rotor for a wide choice of blades

  • High performance rotor: 2245rpm and high numbers of tools (13 per meter)

  • Oil accumulator as standard prevent damages in case of obstacle collision

  • Automatic belts tensioner always ensure correct tension and no maintenance


Kverneland chopper range multipurpose

Kverneland Chopper FHP:

the specialist in road and field maintenances !


Kverneland chopper range multipurpose

Kverneland FHP plusSide pivoting chopper


Kverneland chopper range multipurpose

Kverneland FHP plus Chopper

  • High versatile solution for farming and road maintenance purpose

  • Due to possibility of different working angle positions make FHP plus an indispensable equipment

  • Compact but robust allow high maneuverability and ensure high reliability during working operations


Kverneland chopper range multipurpose

Headstock

  • A square tube 120x120mm is the basis of the headstock. Arc bended design guarantee excellence supporting on torsion stress

  • Strong welding process ensure high resistance at all against stress coming from intensive use

  • Heavily tested in Klepp (shaking test) simulating difficult working operations


Kverneland chopper range multipurpose

Headstock and articulation

(1)

  • Headstock studied for different working operations; fields, ridges (1) or edges (2)

  • A robust parallelogram articulation allow wide range of movements and efficacy support of the chopper unit

  • Precise assembly, easy maintenance make FHP plus comfortable in use getting the best performances in all conditions

(2)


Kverneland chopper range multipurpose

Working and Transport angle

Working position: -65° angle

Working position: horizontal

Transport position: vertical +90°


Kverneland chopper range multipurpose

FHPplus 200/230

1950

280

2040/2350

772

2590/2900

1255

Work width 2040/2350


Kverneland chopper range multipurpose

1130 (FHP+200)

1400 (FHP+230)

1630 (FHP+200)

1900 (FHP+230)

65°

MAX DEPTH

915

MAX OFFSET

1200


Kverneland chopper range multipurpose

MAX OFFSET

1960

495


Kverneland chopper range multipurpose

2170

2480

2590

2900

420

395

425


Kverneland chopper range multipurpose

Frame

  • Compact, low profiled and rounded shapes but studied for heavy duty applications

  • Strong protection to avoid damages and wearing coming from intensive use

  • Easy maintenance trough different grasing points access


Kverneland chopper range multipurpose

Gearbox and lateral drive

  • Gearbox up to 150hp with freewheel inside - PTO speed drive 540rpm

  • 5 V belts with automatic tensioner spring loaded always ensure stable rotor transmission

  • By automatic belts tensioner low maintenance requirement (no more settings of the belts)


Kverneland chopper range multipurpose

Safety and protection

  • As standard an oil accumulator (180bar loaded) prevent damages due to obstacles collision, by folding in chopping unit

  • Frame and bearings are protected by tube or plate

  • Wearing strips are bolted below the skids. Reduce costs and labor time during maintenance operations


Kverneland chopper range multipurpose

Rotor

  • A strong tube 169x10mm is the base: total cutting diameter is 450mm

  • It is supported by 2 self adjustable spherical bearings with grease nipple

  • Large rotor diameter = easy and precise balancing and smooth running without vibration


Kverneland chopper range multipurpose

FHP: Technical data Rotor


Kverneland chopper range multipurpose

Universal Blades with short fan

  • The most versatile solution for

    all conditions (grass, orchards, straw stubble, pruning, tidying pastures

  • Creates lifting for better cutting

  • A must for orchards and pastures


Kverneland chopper range multipurpose

Hammer Blades

  • For heavy conditions, set aside land with heavy undergrowth, branches

  • Special shape of the hammer creates a suction effect and lift the material for even cutting

  • Excellent for orchards after pruning


Kverneland chopper range multipurpose

Rock Blades

  • For heavy conditions in stones area; versatile in all use

  • Mounted on a special U support which guarantee perfect cutting without blade damages

  • Excellent shredding quality


Kverneland chopper range multipurpose

Counter knife

  • A second U-counter knifes available (as option) for more intense shredding and heavy conditions

  • Specially fitted for hammers blades

  • One counterknife is already standard; it provide for extra fine cutting for grass, maize, straw and pruning


Kverneland chopper range multipurpose

Double skin – standard equipment

  • Available as standard in all FHP plus because included in the frame construction

  • Standard thickness of 4 mm

  • Recommended for the most treacherous conditions

  • Extends the life of the chassis


Kverneland chopper range multipurpose

Rear roller

  • Standard equipment for reliable deep control in any conditions

  • 195 mm diameter and self-cleaning (the tools are running very close to roller profile - 15mm)

  • High performance bearing integrated in the roller

  • External greasing nipples for a faster maintenance


Kverneland chopper range multipurpose

FHP plus: Technical data


Kverneland chopper range multipurpose

Chopper FHP plus: Main arguments

  • For tractors up to 150hp

  • Compact heavy duty machine suggested for all purposes (farms needs, road maintenance…)

  • Versatile in all conditions due to extremely efficient articulation (-65° & +90°)

  • Solid construction for long life

  • Minimal maintenance requirement and low costs

  • Standard rotor for a wide choice of blades

  • High performance rotor: 2243rpm and high numbers of tools (13 per meter)

  • Oil accumulator as standard prevent damages in case of obstacle collision

  • Automatic belts tensioner always ensure correct tension and no maintenance


Kverneland chopper range multipurpose

Kverneland FROMulti-purpose chopper

FRO Chopper Front – Rear – Offset


Kverneland chopper range multipurpose

Chopper FRO: Front – Rear- Offset

  • A multi-purpose machine for chopping grass, set-aside land and stubble.

  • Versatile use on grass, pasture, set-aside land and stubble

  • Possibility of clearing out field edges, orchards, road edges by hydraulic offset

  • Possibility of front and rear mounting

  • Hammer blades or universal Y blades with short fan blades


Kverneland chopper range multipurpose

Headstock

  • Well proven heavy duty headstock design from Kverneland power harrows is taken over into this chopper model

  • Gives a family look within the Kverneland range

  • Double headstock for front and rear mounting option


Kverneland chopper range multipurpose

Hydraulic Offset

  • Precisely aligned offset guidance

  • Off-set frame machined after welding process

  • Nylon sliding bushes

  • Hydraulic offset of 500mm


Kverneland chopper range multipurpose

Hydraulic Offset

  • Ideal for clearing out field edges

  • Versatile use also for road maintenance


Kverneland chopper range multipurpose

Hydraulic Offset – Auto-alignment

  • Gearbox fitted into the headstock

  • Pto angle does not change during offset

  • Reduced wearing and longer lifetime of pto-shaft, crosses and jokes


Kverneland chopper range multipurpose

Versatile for front and rear use


Kverneland chopper range multipurpose

Driveline and Gearbox

  • 140 hp gearbox

  • Gearbox stays in fixed position in the headstock, even if offset is activated

  • Always a fixed and nearly straight pto-angle, when machine is in centre or offset position

  • Free-wheel integrated into the gearbox

  • Lateral drive by telescopic shaft, protected by tube


Kverneland chopper range multipurpose

Lateral Drive

  • 5 XPZ V-belts

  • Invertible pulleys for 540 or 1000 rpm drive

  • 2 Maintenance free upper ball bearings

  • Idler wheel with automatic tensioner spring ensures always stable and low wearing on belt drive


Kverneland chopper range multipurpose

Rotor

  • A strong 219x8mm tube firms the basis

  • Large diametre ensures easy and precise balancing and smooth running without vibrations

  • Therefore the rotor stays straight in operation for an even cut

  • 2 rows self adjustable pherical bearings 1212 with grease nipple


Kverneland chopper range multipurpose

FRO: Technical data Rotor


Kverneland chopper range multipurpose

Hammer Blades

  • For heavy conditions, set aside land with heavy undergrowth, branches

  • Special shape of the hammer creates a suction effect and lifts the material for even cutting, i.e. in tractor wheel marks


Kverneland chopper range multipurpose

Universal Y with short fan blades

  • Multi-Purpose Blade for light to medium shredding

  • Fine shredding effect

  • Ideal for grass land, maize and cereal stubble, clearing out field eges

  • Additional fan blade creates a suction effect and lifts the material up for a

    perfect cut


Kverneland chopper range multipurpose

Counter knives and double skin

Standard U-counter knive, plus additional 2nd U-counter knive

  • 1 standard U-counter knive

  • 2nd U-counter knive available for more intense shredding and heavy conditions

  • Also combinable with double skin

  • 2nd counter knive to be fitted here


Kverneland chopper range multipurpose

Rear roller

  • Standard equipment

  • Reliable depth control in any conditions

  • 160mm diametre

  • 45mm bearing hub with greasable ball bearings

  • Replaceable bearing housing

  • Bearing Hub integrated and interchangeable via skid

  • Roller protected by a cover


Kverneland chopper range multipurpose

Wheel kit for front use

  • Optional equipment

  • Ø 580mm

  • Pivoting

  • For front use only


Kverneland chopper range multipurpose

FRO: Technical data


Kverneland chopper range multipurpose

Chopper FRO: Main arguments

  • For tractors up to 140hp

  • Versatile for use; front, rear and offsetability

  • Multi-purpose chopper; grass, stubble, fruit orchards, vineyards and light undergrowth

  • Solid construction for long life

  • Minimal maintenance

  • Auto-line driveline always straight pto, even in off-set position

  • Wide choice of blades

  • Reliable machine for excellent work


Kverneland chopper range multipurpose

Kverneland Chopper FRO:

Front – Rear - Offset !


Kverneland chopper range multipurpose

Kverneland FRHMulti-purpose chopper


Kverneland chopper range multipurpose

Kverneland FRH Chopper

  • A multi-purpose machine for chopping grass, set-aside land and stubble.

  • Versatile use on grass, pasture, set-aside land and stubble

  • Possibility of clearing out field edges, orchards, road edges by hydraulic offset

  • Hammer blades or universal Y blades with short fan blades


Kverneland chopper range multipurpose

Frame

  • Headstock designed and tested for heavy applications

  • Headstock with “family” look taken from power harrow design

  • Sliding tube integrated in the headstock; all forces stress are concentrated on 3 points linkage

  • Always standard with hydraulic offset of 52cm


Kverneland chopper range multipurpose

Gearbox and lateral transmission

  • Central gearbox up to 160 hp with integrated free wheel as standard

  • PTO tractor input can be 540 or 1000rpm; by inverting belt pulleys FRH always keep same rotor rpm

  • 5 grooved V-belts combined with automatic belts tensioner always ensure smooth transmission, preventing slippage in toughest working conditions. No any maintenance is required


Kverneland chopper range multipurpose

Rotor

  • A strong tube 245x10mm firms the basis. Standard for universal and hammer blades

  • Large diameter ensures easy and precise balancing and smooth running without vibrations

  • The wide diameter of the rotor (540mm) guarantee an excellence cut with lower power requirement

  • 2 rows self adjustable spherical bearings 1212 with grease nipple


Kverneland chopper range multipurpose

FRH: Technical data Rotor


Kverneland chopper range multipurpose

Blades

Universal Y with long fan blades

  • Multi purpose blade for light and medium shredding

  • The additional fan blades create a suction effect lifting up the material for a perfect cut

  • Fine shredding result especially in combination with counterknife

  • Ideal for grass land, maize, cereal stubble, sunflower stalks


Kverneland chopper range multipurpose

Blades

Hammer blades

  • Heavy duty blades suggested for set aside land, branches and pruning

  • By special design of the hammer creates suction effect and lifts the material up

  • Maximum crashing effect in combination with counterknife and double skin

  • The special design of the hammers avoid self-collision with rotor tube


Kverneland chopper range multipurpose

Counter knife and Double skin

  • One counterknife is standard on all FRH choppers

  • A second counterknife is available as option

  • A double skin can be bolted if FRH works in stony areas (option)

  • Counterknife and double skin suggested for finer shredding residues and longer working life of the frame


Kverneland chopper range multipurpose

Skids

  • Standard equipment for working depth control during field operations

  • Special skids profile avoid bulldozer effect on land stubble

  • Solid construction and easy adjustments by different halls position

  • Bolted wearing strip allow easy maintenances reducing costs


Kverneland chopper range multipurpose

Roller

  • Standard equipment for reliable deep control in any conditions

  • 245 mm diameter and self-cleaning (the tools are running very close to roller profile - 15mm)

  • High performance bearing protected by 2 plates

  • Easy adjustments of the working depth by 3 different halls

  • External greasing nipples for a faster maintenance


Kverneland chopper range multipurpose

FRH: Technical data


Kverneland chopper range multipurpose

Chopper FRH: Main arguments

  • For tractors up to 160hp

  • Heavy construction for a reliable utilization

  • Versatile rotor for perfect shredding in all conditions

  • Easy operations in the field by hydraulic offset (52cm movements)

  • Hardly tested in order to fulfill all farmers demands

  • Minimal maintenance

  • Reduction of maintenance cost

  • Precise assembly and accurate rotor balancing

  • More than 40 years experiences in building choppers


Kverneland chopper range multipurpose

Kverneland Chopper FRH:

Useful and reliable !


Kverneland chopper range multipurpose

Kverneland FRDMulti-purpose chopper


Kverneland chopper range multipurpose

Kverneland FRD Chopper

  • A multi-purpose machine for chopping grass, set-aside land and stubble.

  • Versatile use on grass, pasture, set-aside land and stubble

  • Possibility of clearing out field edges, orchards, road edges by hydraulic offset

  • Hammer blades or universal Y blades with short fan blades


Kverneland chopper range multipurpose

Front or rear mounting?

  • Double headstock allow front or rear mounting of the FRD

  • Headstocks with “family” look taken from power harrow design

  • Sliding tube integrated in the headstock; all forces stress are concentrated on 3 points linkage

  • Always standard with hydraulic offset of 52cm


Kverneland chopper range multipurpose

Gearbox and lateral transmission

  • Central gearbox up to 160 hp with double integrated free wheel as standard

  • PTO tractor input can be 540 or 1000rpm; by inverting belt pulleys FRD always keep same rotor rpm

  • 5 V-belts combined with automatic belts tensioner always ensure smooth transmission, preventing slippage in toughest working conditions. No any maintenance is required


Kverneland chopper range multipurpose

Rotor

  • A strong tube 245x10mm firms the basis. Standard for universal and hammer blades

  • Large diameter ensures easy and precise balancing and smooth running without vibrations

  • The wide diameter of the rotor (540mm) guarantee an excellence cut with lower power requirement

  • 2 rows self adjustable spherical bearings 1212 with grease nipple


Kverneland chopper range multipurpose

FRD: Technical data Rotor


Kverneland chopper range multipurpose

Blades

Universal Y with middle fan blades

  • Multi purpose blade for light and medium shredding

  • The additional fan blades create a suction effect lifting up the material for a perfect cut

  • Fine shredding result especially in combination with counterknife

  • Ideal for grass land, maize, cereal stubble, sunflower stalks


Kverneland chopper range multipurpose

Blades

Hammer blades

  • Heavy duty blades suggested for set aside land, branches and pruning

  • By special design of the hammer creates suction effect and lifts the material up

  • Maximum crashing effect in combination with counterknife and double skin

  • The special design of the hammers avoid self-collision with rotor tube


Kverneland chopper range multipurpose

Counter knife and Double skin

  • One counterknife is standard on FRD choppers

  • A second counterknife is available as option

  • A double skin can be bolted if FRD works in stony areas (option)

  • Counterknife and double skin suggested for finer shredding residues and longer working life of the frame


Kverneland chopper range multipurpose

Skids

  • Standard equipment for working depth control during field operations

  • Special skids profile avoid bulldozer effect on land stubble

  • Solid construction and easy adjustments by different halls position

  • Bolted wearing strip allow easy maintenances reducing costs


Kverneland chopper range multipurpose

Roller

  • Standard equipment for reliable deep control in any conditions

  • 245 mm diameter and self-cleaning (the tools are running very close to roller profile - 15mm)

  • High performance bearing protected by 2 plates

  • Easy adjustments of the working depth by 3 different halls

  • External greasing nipples for a faster maintenance


Kverneland chopper range multipurpose

FRD: Technical data


Kverneland chopper range multipurpose

Chopper FRD: Main arguments

  • For tractors up to 160hp

  • Useful for front and rear tractor mounting

  • Versatile rotor for perfect shredding in all conditions

  • Easy operations in the field by hydraulic offset (52cm movements)

  • Hardly tested in order to fulfill all farmers demands

  • Minimal maintenance

  • Reduction of maintenance cost

  • Precise assembly and accurate rotor balancing

  • More than 40 years experiences in building choppers


Kverneland chopper range multipurpose

Kverneland Chopper FRD:

Versatile and unique !


  • Login
