Presentation Transcript

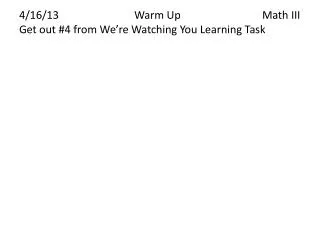

  1. 4/16/13 Warm Up Math IIIGet out #4 from We’re Watching You Learning Task

  2. April 16th, 2013 Frequency Distribution

  3. What is Frequency Distribution? Retail Management Testing Scores Frequency Distribution is a convenient system for organizing large amounts of data. • A number of classes or binsare determined, and all values in a class are tallied and grouped together • The most common way of displaying frequency distributions is by using a histogram. • Histogram: a type of bar graph in which the width of each bar represents a class interval (the range of each class) and the height of the bar represents the frequency in that interval • Class or Bin Limits: the upper and lower values in each interval • Class or Bin Marks: the midpoints of the classes (the average of the upper and lower limits) Class interval Classes

  4. Example 1: The winning scores for the first 38 Super Bowls are:35, 33, 16, 23, 16, 24, 14, 24, 16, 21, 32, 27, 35, 31, 27, 26, 27, 38, 38, 46, 39, 42, 20, 55, 20, 37, 52, 30, 49, 27, 35, 31, 34, 23, 34, 20, 48, 32 • Find the range of the data. b) Determine an appropriate class/bin interval. • Find the class/bin marks. d) Construct a frequency distribution of the data e) Draw a histogram of the data.

  5. Example 1: The winning scores for the first 38 Super Bowls are:35, 33, 16, 23, 16, 24, 14, 24, 16, 21, 32, 27, 35, 31, 27, 26, 27, 38, 38, 46, 39, 42, 20, 55, 20, 37, 52, 30, 49, 27, 35, 31, 34, 23, 34, 20, 48, 32 f) What conclusions can you determine from the graph?

  6. Assignment: pg. 894 #10 & 11
