DC-AC Converters (inverters)

  • The function is to convert a DC fixed voltage into a symmetric AC output of fixed or variable frequency and amplitude

  • Applications:

    • variable speed AC drives

    • Uninterruptable AC power supplies

    • Single phase and 3 phase applications.


Principle of operation half bridge inverter l.jpg

Principle of operation (half-bridge inverter)

Output voltage is v0=vA-vO


Single phase bridge inverter l.jpg

Single phase bridge inverter


3phase dc ac converters inverters l.jpg

3phase DC-AC converters (inverters)


Slide11 l.jpg

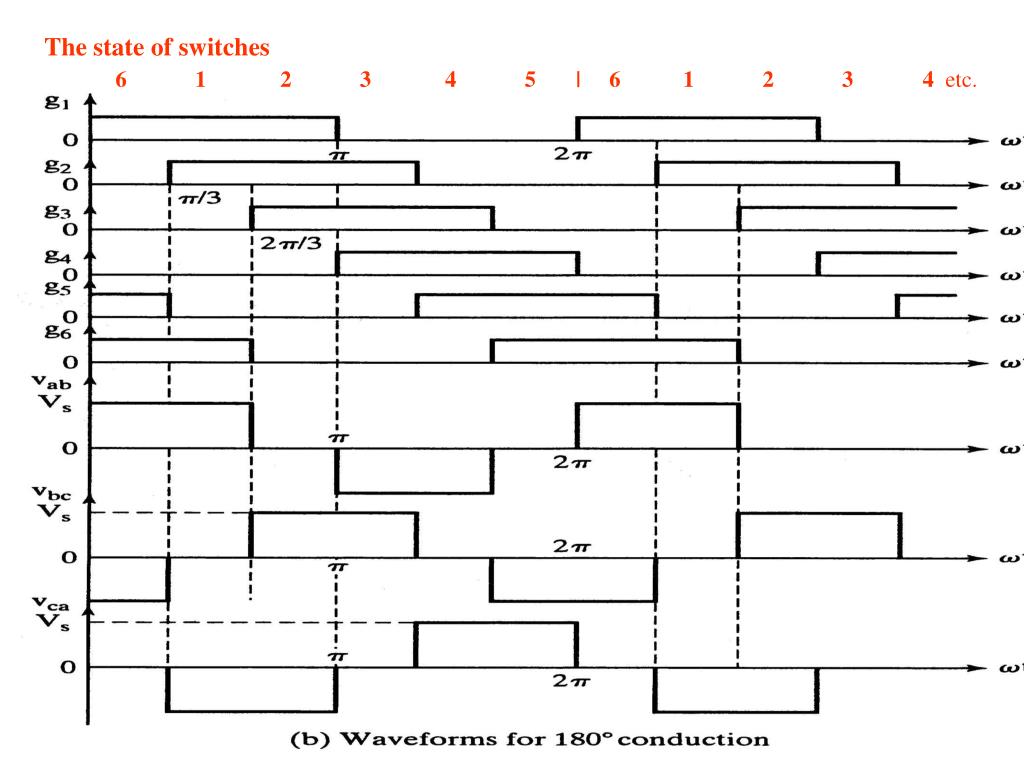

The state of switches

6 1 2 3 4 5 | 6 1 2 3 4 etc.
