Suspension systems

Suspension Systems

Consumer Auto


What is a suspension system
What is a Suspension System?

  • It supports the weight of the car

  • It keeps tires in firm contact with road

  • It prevents body roll when cornering

  • It keeps the wheels in alignment


Typical suspension system parts
Typical Suspension System Parts

  • Control arm

  • Spring

  • Shock

  • Ball joint

  • Knuckle


Control arms
Control Arms

  • Can be an arm that in the shape of an “A” (purple)

  • Some are a heavy duty rod

  • Used to keep the tires in alignment

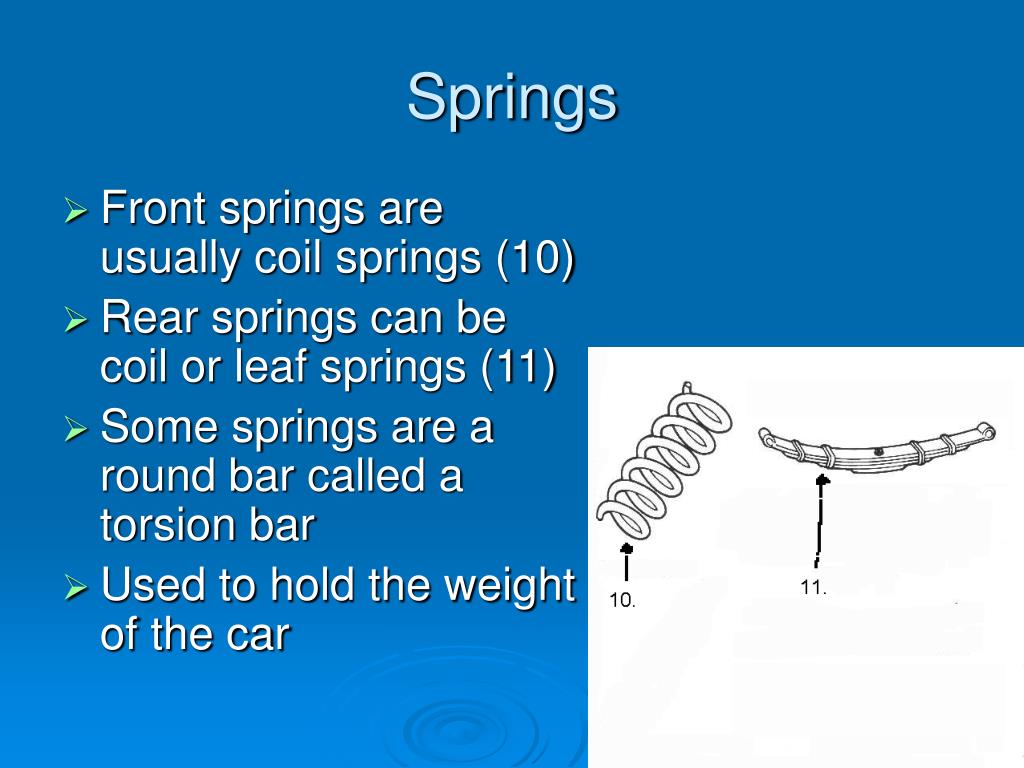

Springs
Springs

  • Front springs are usually coil springs (10)

  • Rear springs can be coil or leaf springs (11)

  • Some springs are a round bar called a torsion bar

  • Used to hold the weight of the car


Ball joint
Ball Joint

  • Mounted in the control arm, it lets the tire turn as well as go up and down at the same time

  • The other end mounts to the spindle


Steering knuckle blue green
Steering Knuckle (Blue Green)

  • Holds the tire to the car using a spindle

  • Attaches to the lower control arm and the strut or upper control arm

  • Connects to the tie rods for steering


Shock absorber
Shock Absorber

  • Stops the car from bouncing excessively

  • Helps prevent rapid tire wear

  • Does not support the weight of the car


Types of suspension systems
Types of Suspension Systems

Short Arm/Long Arm McPherson Strut


Short arm long arm suspension parts
Short Arm/Long Arm Suspension Parts

  • Upper & lower control arms

  • Upper & lower ball joint

  • Steering knuckle

  • Coil spring

  • Shock

  • Stabilizer bar & link


Short arm long arm suspension operation
Short Arm/Long Arm Suspension Operation

  • Control arms mounted to frame and the steering knuckle

  • Upper arm shorter than lower, making them unequal in length

  • Provides a way for the tires to maintain traction with the road when the car goes over bumps


Mcpherson strut suspension parts
McPherson Strut Suspension Parts

  • McPherson strut

  • Coil spring

  • Lower control arm

  • Knuckle

  • Stabilizer bar

  • Strut rod

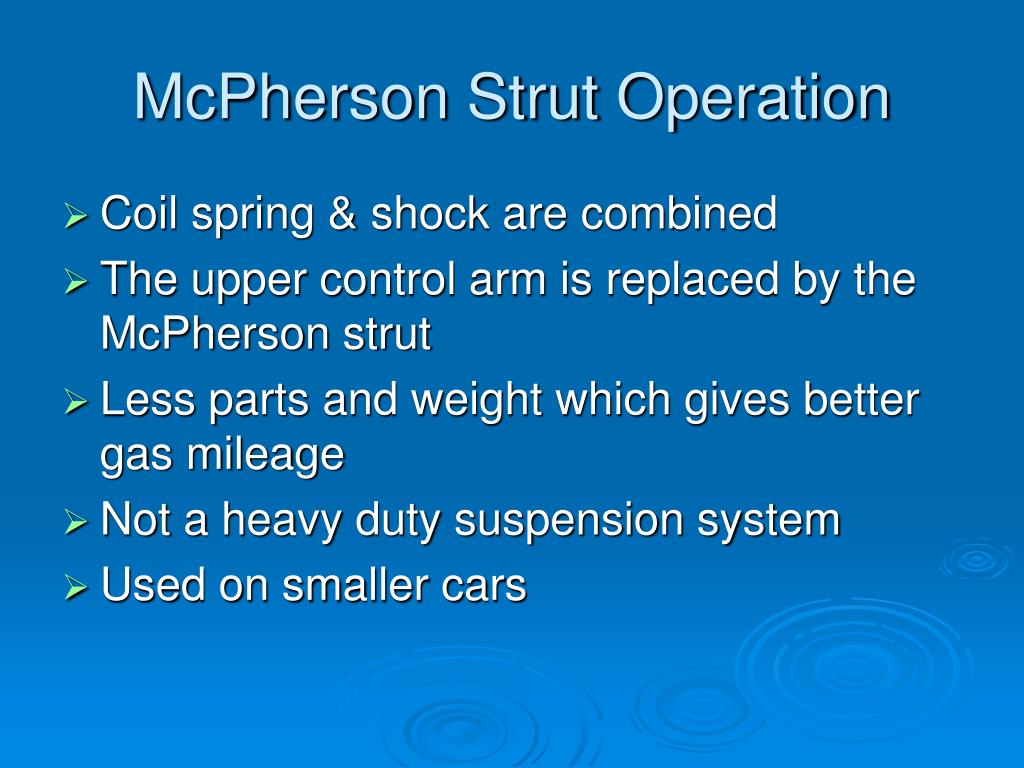

Mcpherson strut operation
McPherson Strut Operation

  • Coil spring & shock are combined

  • The upper control arm is replaced by the McPherson strut

  • Less parts and weight which gives better gas mileage

  • Not a heavy duty suspension system

  • Used on smaller cars


Shock absorbers
Shock Absorbers

  • Used on SLA systems

  • Dampens the rebound of the spring

  • Stops spring oscillations

  • Provides resistance one way (extending)

  • Can wear out


Shock absorber inspection
Shock Absorber Inspection

  • Look at the shock for signs of damage

  • Look for leaking fluid from the ram end

  • Test the operation by jumping on the car to see if it bounces more than once

  • Replace the shock if it is bad

  • Replace in pairs


Air shocks
Air Shocks

  • Used to adjust height or help sagging springs

  • Used on rear

  • Air added and released manually

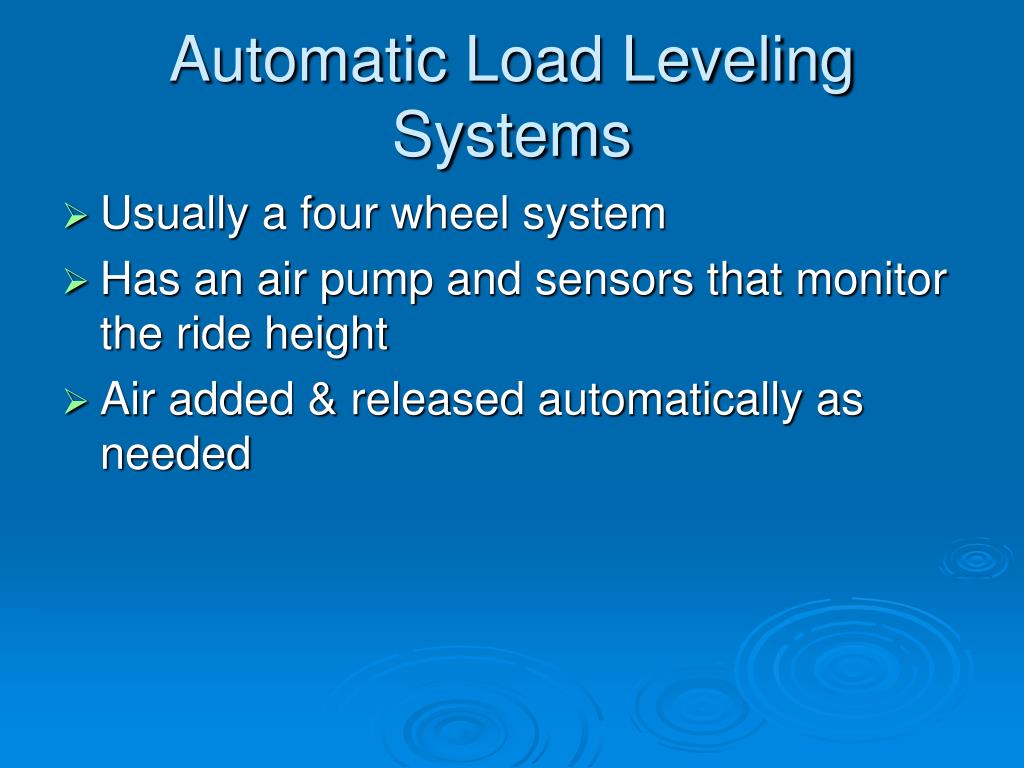

Automatic load leveling systems
Automatic Load Leveling Systems

  • Usually a four wheel system

  • Has an air pump and sensors that monitor the ride height

  • Air added & released automatically as needed


Active suspension systems
Active Suspension Systems

  • Springs & shocks replaced with actuators

  • Actuators work by hydraulics

  • They adjust the height of the car and the stiffness of the ride

  • Sensors automatically correct ride without input from the driver


Review
Review

  • Do shocks correct ride height?

  • What are the 2 types of springs?

  • Active suspension replaces springs and shocks with this part.

  • SLA stands for what?

  • What part does the McPherson strut suspension not have?


Review1
Review

  • What is the purpose of the ball joint?

  • Why do we need springs in the suspension?

  • In what type of car is McPherson strut suspension used?

  • What is one reason why we have suspension systems

  • The spindle attaches to what 2 parts?
