Presentation Transcript

  1. Occultation by Charon 2005 C313.2 • Observed by 4 MIT–Williams teams on 5 telescopes: • Pico dos Dias (Brazil) – clouded out • (Jay Pasachoff and Steven Souza) • Cerro Armazones (Chile) • (Bryce Babcock and Joseph Gangestad) • Las Campanas (Chile) • Cerro Pachón (Chile) Movie of C313.2 from Las Campanas- http://occult.mit.edu/research/C313OccMovie.php

  2. Cerro Armazones, Chile (L to R) M. J. Person, B. A. Babcock, & J. W. Gangestad Pico dos Dias, Brazil S. P. Souza (L), J. M. Pasachoff (R)

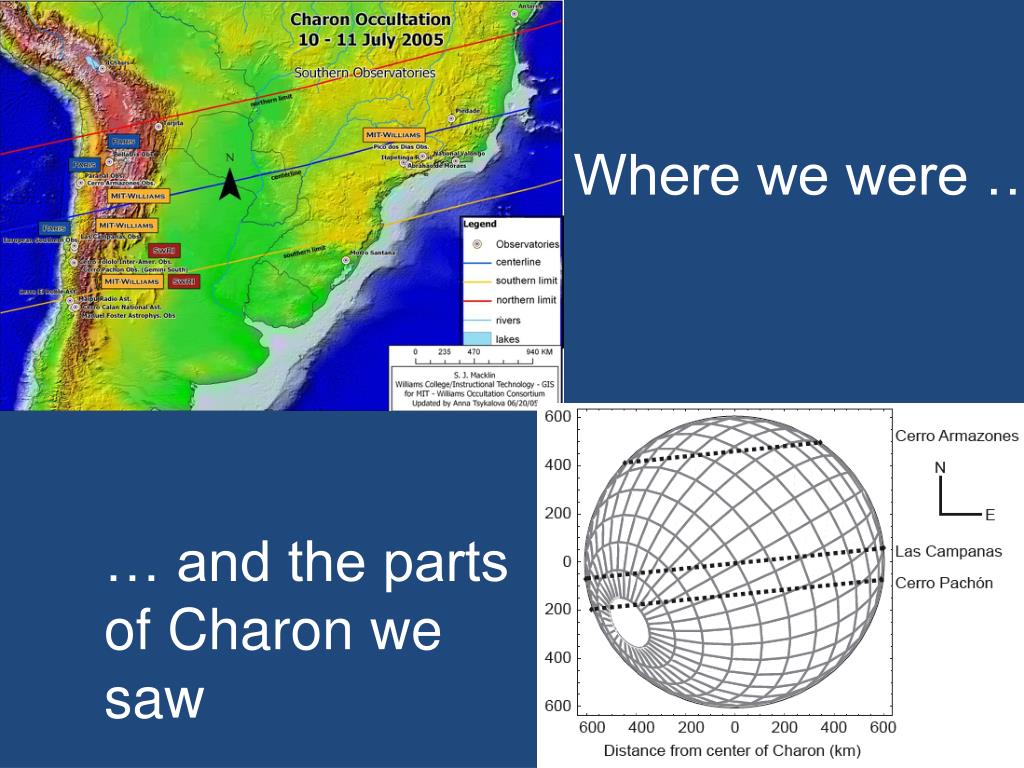

  3. Where we were … … and the parts of Charon we saw

  4. Cerro Armazones Light Curve Duration: 37 sec Mid-time: 03:36:36.5 UT Sharp drop  No atmosphere detected

  5. Team Light Curves Du Pont Telescope (2.5 m), Las Campanas Clay Telescope (6.5 m), Las Campanas 6.5-m 2.5-m 8-m 0.85-m Gemini South (8 m) Cerro Pachón Cerro Armazones (0;.84 m), Antofagasta, Chile

  6. Upper Limits on Charon’s Atmosphere Seconds after reference time Clay Telescope data Gas Molecular Weight (amu) Number density (1013 cm-3) CH4 16.04 2.0 H2O 18.02 3.4 Ne 20.18 11.9 N2 28.01 2.3 Ar 39.95 2.0 Gulbis, A.A.S., Elliot, J.L., Person, M.J., Adams, E.R., Babcock, B.A., Emilio, M., Gangestad, J.W., Kern, S.D., Kramer, E.A., Osip, D.J., Pasachoff J.M., Souza, S.P., Tuvikene, T. “Charon’s radius and atmospheric constraints from stellar occultation observations” Nature, in press

  7. Radius and Composition Constraints Radius: 606 ± 8 km Density: 1.72 ± 0.15 g/cm3 Rock/Ice: 0.63 ± 0.05 This rock/ice fraction is consistent with a collisional formation scenario. http://ncsdweb.ncsd.k12.wy.us/planetarium/ART/moonimpact.jpg
