  1. Asterisk Jargon Carl Davis

  2. Agenda • What is Asterisk? • PBX Definition and Functionality • Architecture Overview • Jargon • Network Interfaces • VoIP Connections • Dial Plan • Codec • Channel • Context • Extension • Application • Variable • Macro

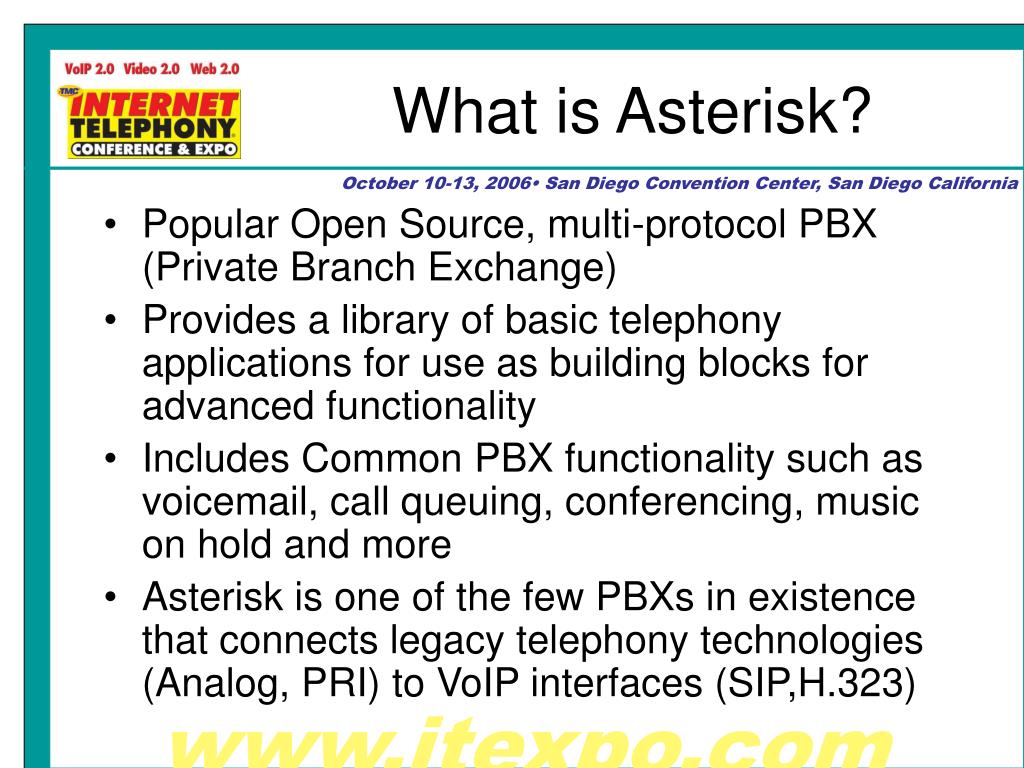

  3. What is Asterisk? • Popular Open Source, multi-protocol PBX (Private Branch Exchange) • Provides a library of basic telephony applications for use as building blocks for advanced functionality • Includes Common PBX functionality such as voicemail, call queuing, conferencing, music on hold and more • Asterisk is one of the few PBXs in existence that connects legacy telephony technologies (Analog, PRI) to VoIP interfaces (SIP,H.323)

  4. Asterisk Architecture

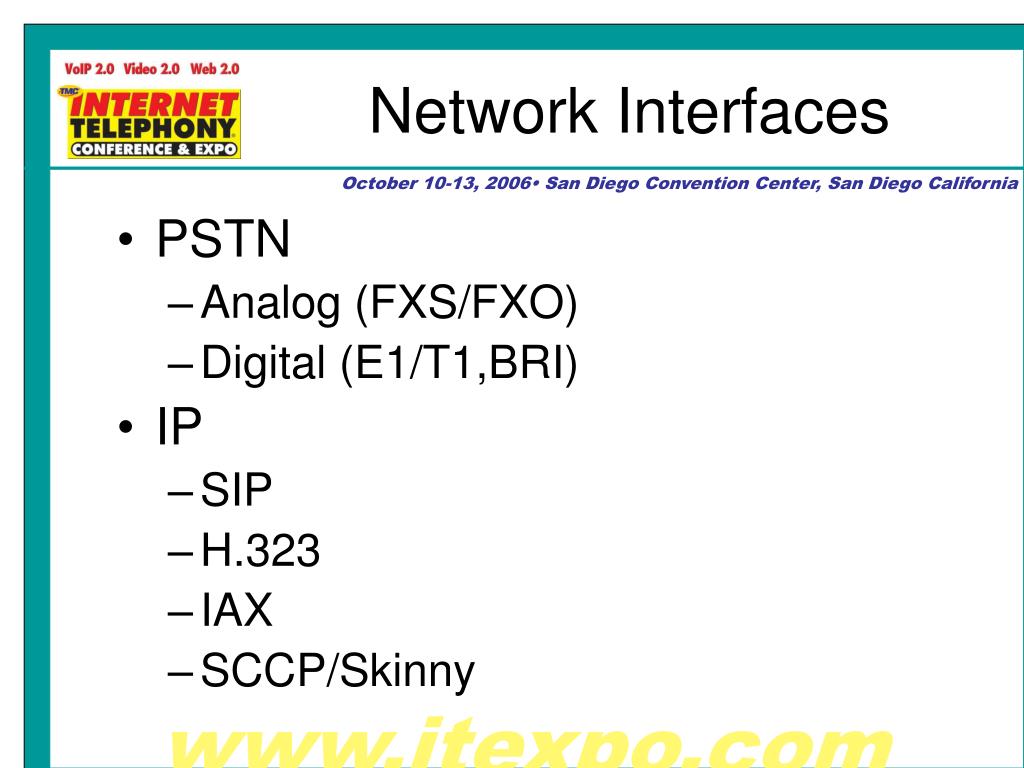

  5. Network Interfaces • PSTN • Analog (FXS/FXO) • Digital (E1/T1,BRI) • IP • SIP • H.323 • IAX • SCCP/Skinny

  6. FXS/FXO • Analog Line Interface • FXS – Foreign Exchange Station • Generates Dialtone • Generates Ring • Connects to Analog Phones (aka Stations) • FXO – Foreign Exchange Office • Accepts Dialtone from Central Office (CO) • Provides Connection to the CO

  7. T1 • Primarily Used In US • T1 – PSTN Digital Interface • CAS – Channel Associated Signaling (Wink, Immediate, etc) • 24 Voice Channels • MF/DTMF In-band Signaling • PRI – Primary Rate Interface (“D” Channel) • 23 Voice Channels • 1 Data Channel • Q.931 Messages

  8. E1 • ITU-T Specification • Digital Interface • CAS – Channel Associated Signaling • 30 Voice Channels • R2MF • PRI – Primary Rate Interface (“D” Channel) • 28 Voice Channels • 2 Data Channel • Q.931 Messages

  9. Telephony Channels • Telephony Connections • Channels map physical FXO and FXS connections to logical Asterisk channels • Trunkgroups – an advanced topic • Non-Facility Associated Signaling (NFAS) • Generic Requirement-303 (GR-303) • These relationships are defined in the zapata.conf channel configuration

  10. Connections (Users/Peers/Friends) • VoIP Connections • Users -> connections that authenticate to us (phones, etc) • Peers –> authenticate us (to a service provider) • Friends ->Connections that may do both • These relationships are defined in the channel configuration (sip.conf, iax.conf)

  11. Channels • Telephony connections to the PBX • Call Processing in Asterisk Is Centered Around Channels • Drivers for various kinds of connections • IP (SIP,H.323,IAX,SCCP,MGCP) • PSTN (Analog, PRI, BRI)

  12. Channel Types Channel Types can be Physical or Logical • Agent: ACD Agent channel • Console: Linux console client driver for sound cards (using OSS or ALSA) • H.323: An older VOIP protocol • IAX and IAX2: Inter-Asterisk Exchange protocol, Asterisk's own VOIP protocol • MGCP: Media Gateway Control Protocol, another VOIP protocol • SIP: Session Initiation Protocol, the most common VOIP protocol • Skinny and SCCP: Drivers for Cisco Skinny Client Control Protocol (a VOIP protocol) • VOFR: voice over frame relay Adtran style • VPB: For connecting ordinary telephone and telephone lines using Voicetronix cards • Zap: For connecting ordinary telephones and telephone lines using Digium cards. Also for TDMoE and for zaphfc

  13. Channel Drivers Channel drivers offering other technologies can be optionally installed: • Bluetooth: Allows the use of bluetooth devices to change routing - see CVS "chan_btp" • CAPI: ISDN CAPI channel • mISDN: mISDN channel • vISDN: vISDN channel (native BRI channel for HFC chipsets) • SCCP: An alternate Skinny/SCCP channel • Sirrix: ISDN BRI for Sirrix cards (with optional ISDN encryption) • UNISTIM: Nortel Unistim channel • Unicall: Replacement for zaptel, with R2 support • SS7: SS7 (ISUP on MTP2/3) channel

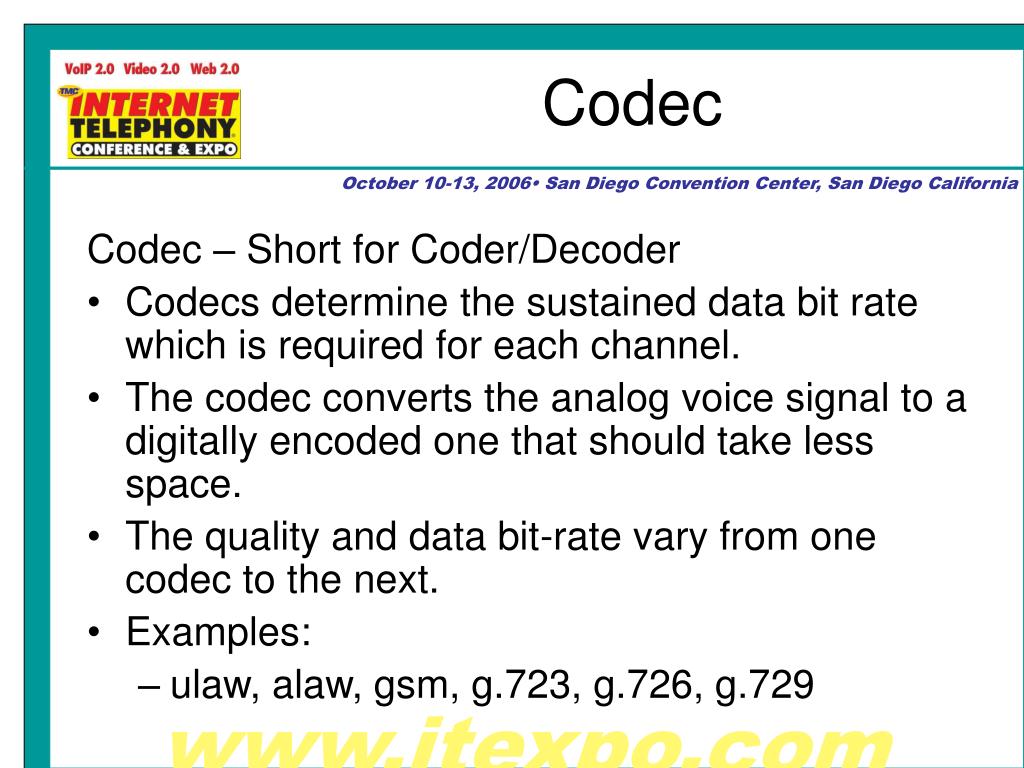

  14. Codec Codec – Short for Coder/Decoder • Codecs determine the sustained data bit rate which is required for each channel. • The codec converts the analog voice signal to a digitally encoded one that should take less space. • The quality and data bit-rate vary from one codec to the next. • Examples: • ulaw, alaw, gsm, g.723, g.726, g.729

  15. Dialplan The "road map" for your Asterisk PBX. • specifies how Asterisk handles calls. • consists of a list of instructions or steps that Asterisk should follow. To successfully set up your Asterisk system, it is absolutely vital that you understand dialplans.

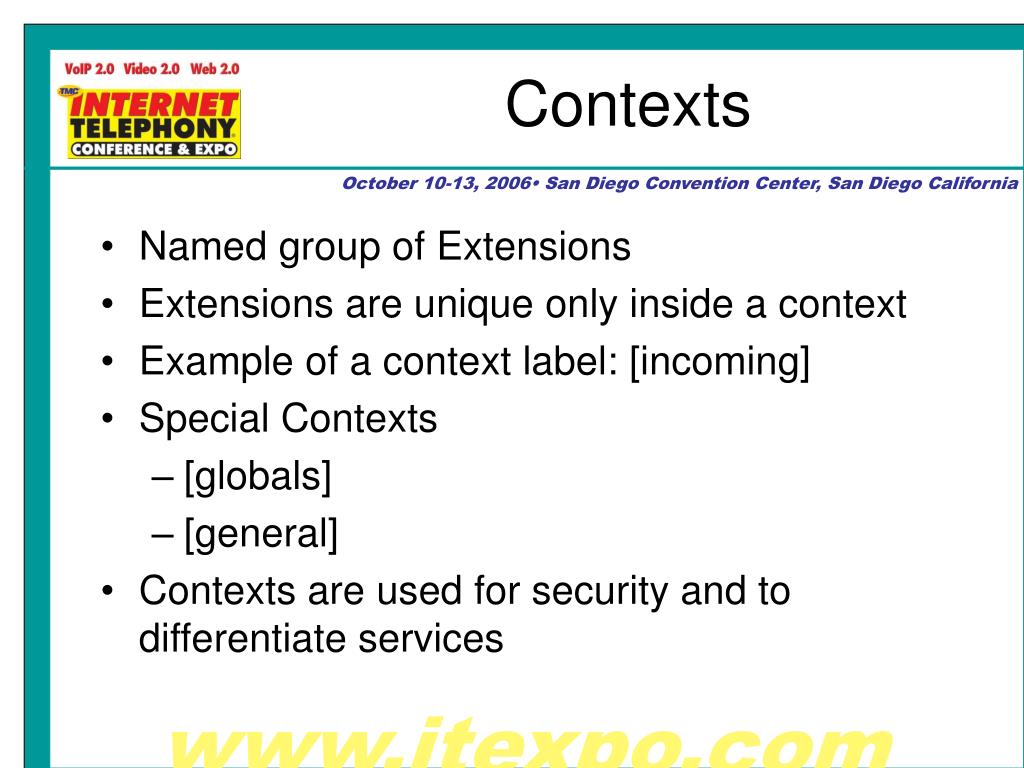

  16. Contexts • Named group of Extensions • Extensions are unique only inside a context • Example of a context label: [incoming] • Special Contexts • [globals] • [general] • Contexts are used for security and to differentiate services

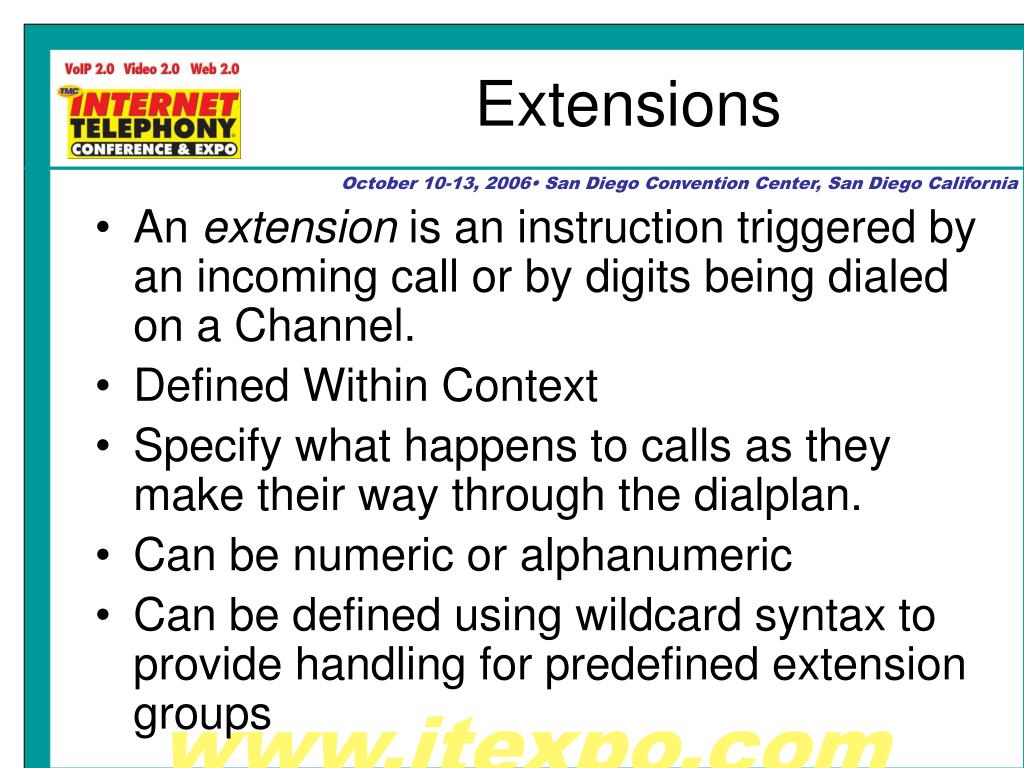

  17. Extensions • An extension is an instruction triggered by an incoming call or by digits being dialed on a Channel. • Defined Within Context • Specify what happens to calls as they make their way through the dialplan. • Can be numeric or alphanumeric • Can be defined using wildcard syntax to provide handling for predefined extension groups

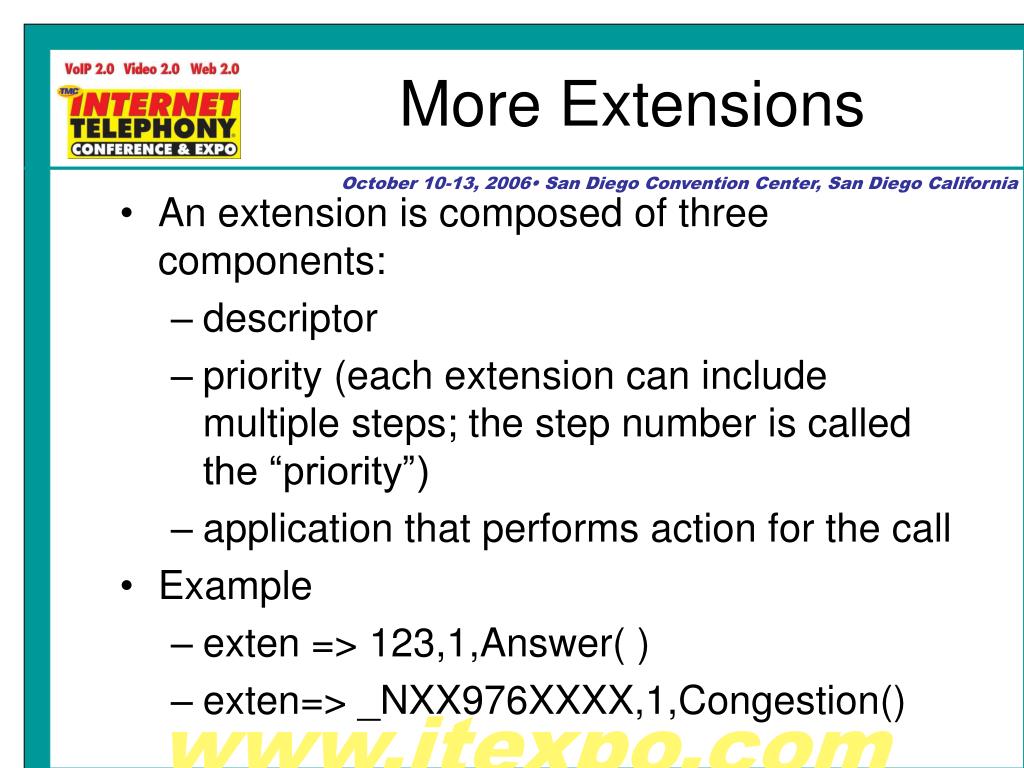

  18. More Extensions • An extension is composed of three components: • descriptor • priority (each extension can include multiple steps; the step number is called the “priority”) • application that performs action for the call • Example • exten => 123,1,Answer( ) • exten=> _NXX976XXXX,1,Congestion()

  19. Special Extension • ‘s’ - extension • Calls entering a context without a specific destination (i.e. ring on FXO line), they are handled automatically by the s extension. • Example • [incoming] • exten => s,1,Answer( ) • exten => s,n,Playback(hello-world) • exten => s,n,Hangup( )

  20. Priority • Defines step number in an Extension script • Numbered sequentially, starting with 1 • Unnumbered Priority • ‘n’ priority, - “next” • Takes the number of the previous priority and adds 1 • No need to re-number dial plan when changes are made. • Example: • exten => 123,1,Answer( ) • exten => 123,n,do something • exten => 123,n,do something else • exten => 123,n,Hangup( ) • Label Priority • exten => 123,n(label),do something • Executes one Specific Application

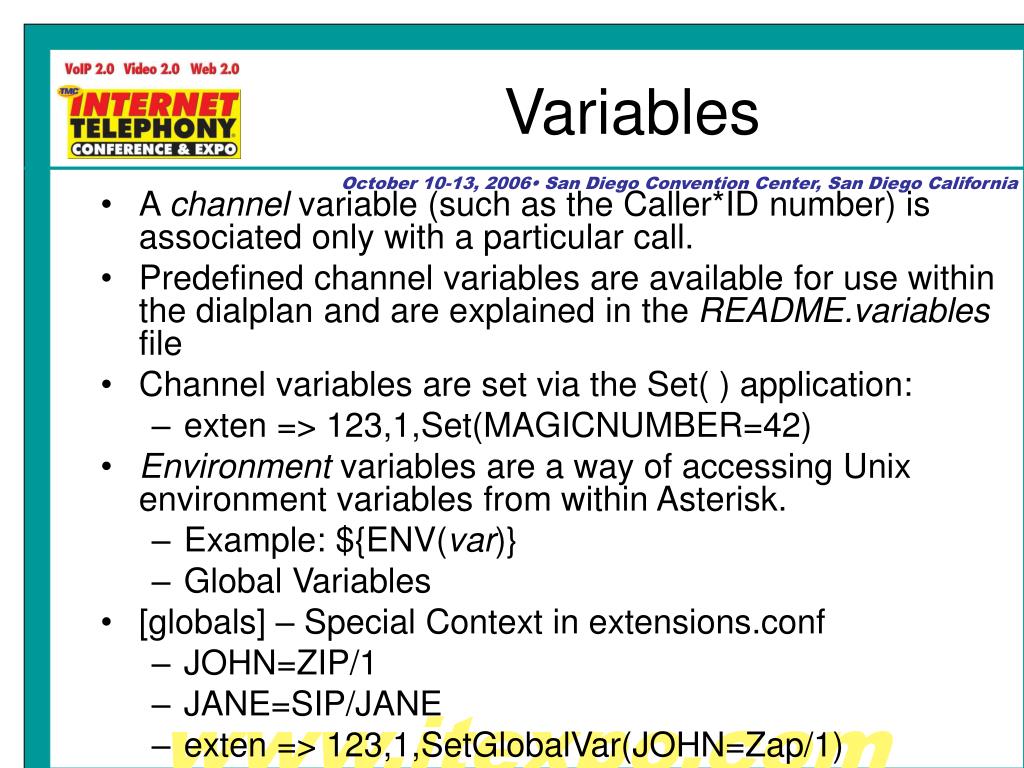

  21. Variables • A channel variable (such as the Caller*ID number) is associated only with a particular call. • Predefined channel variables are available for use within the dialplan and are explained in the README.variables file • Channel variables are set via the Set( ) application: • exten => 123,1,Set(MAGICNUMBER=42) • Environment variables are a way of accessing Unix environment variables from within Asterisk. • Example: ${ENV(var)} • Global Variables • [globals] – Special Context in extensions.conf • JOHN=ZIP/1 • JANE=SIP/JANE • exten => 123,1,SetGlobalVar(JOHN=Zap/1)

  22. Applications • Applications are the workhorses of the dialplan. • performs a specific action on the current channel • Types • Generic (Authenticate, VMAuthenticate, etc) • Billing (SetAccount, SetAMAFlags) • Call Processing (Answer, Busy, Dial, Hangup) • Caller Presentation (SetCallerID, SetCallerCIDName) • Database (DBdel, DBget, DBput) • Application Interface (AGI, EAGI, PERL, PHP) • Audio (Playback, Playtones, MusicOnHold) • Voicemail & Conferencing (MeetMe, VoiceMailMain) • Queue/ACD (AddQueueMember, AgentLogin)

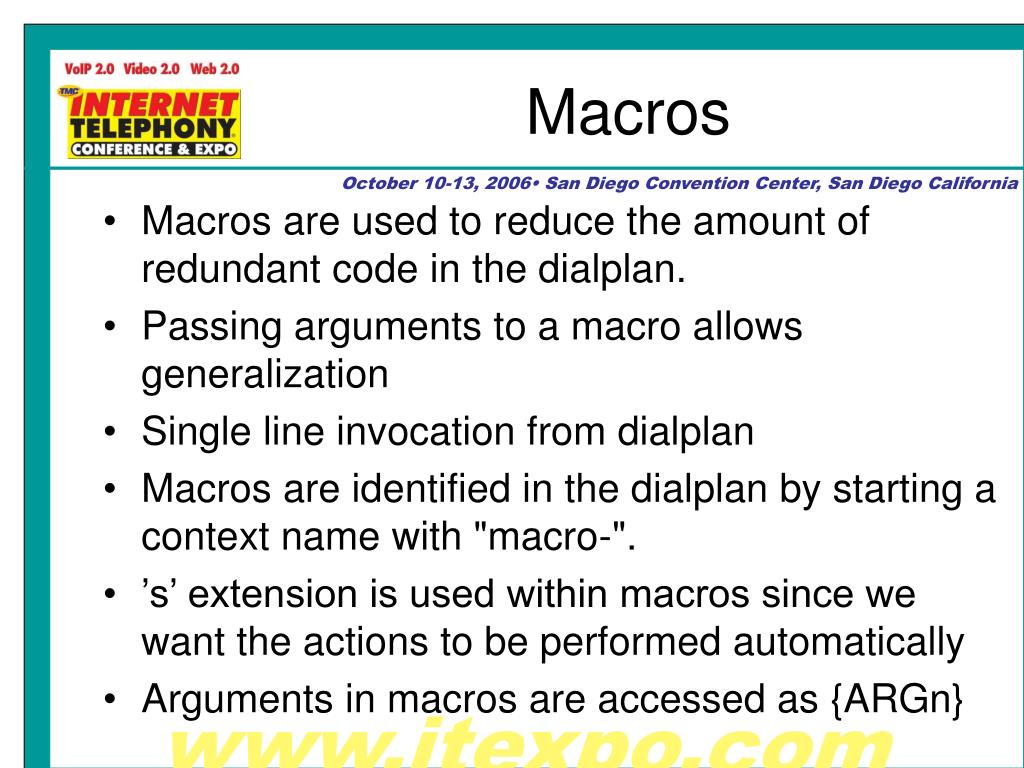

  23. Macros • Macros are used to reduce the amount of redundant code in the dialplan. • Passing arguments to a macro allows generalization • Single line invocation from dialplan • Macros are identified in the dialplan by starting a context name with "macro-". • ’s’ extension is used within macros since we want the actions to be performed automatically • Arguments in macros are accessed as {ARGn}

  24. Example Macro [macro-dialuser] exten => s,1,GotoIf($[${DB_EXISTS(CFD/${MACRO_EXTEN})} = 0]?checkdnd) exten => s,n,set(CFD=${DB_RESULT}) exten => s,n,set(MYEXTEN=${MACRO_EXTEN}) exten => s,n,goto(staff_incoming,${CFD},1) exten => s,n(checkdnd),GotoIf($[${DB_EXISTS(DND/${MACRO_EXTEN})} = 0]?dialuser,1) ; Tell them we are not all there exten => s,n,Playback(tt-monkeysintro) exten => s,n,Hangup exten => dialuser,1,dial(${ARG1},15) exten => dialuser,n,goto(d-${DIALSTATUS},1)

  25. Example Macro (cont) exten => d-NOANSWER,1,Answer exten => d-NOANSWER,n,wait(2) exten => d-NOANSWER,n,Playback(vm-nobodyavail) exten => d-NOANSWER,n,Hangup exten => d-BUSY,1,Answer exten => d-BUSY,n,wait(2) exten => d-BUSY,n,Playback(tt-allbusy) exten => d-BUSY,n,Hangup exten => _d-.,1,Answer exten => _d-.,n,wait(2) exten => _d-.,n,Playback(pbx-invalid) exten => _d-.,n,Hangup

  26. Q&A Carl Davis President & Chief Architect Stellar System Technologies, Inc carl_davis@stellarsystech.com www.stellarsystech.com Executive Director High Tech Business Council of Rochester www.htbc.org
