memory 2

Memory - 2

ECE 561 - Lecture 13 Memory 2

memory
Memory
  • The internal structure of the ICs
  • ROM Types and RAM

ECE 561 - Lecture 13 Memory 2

memory types

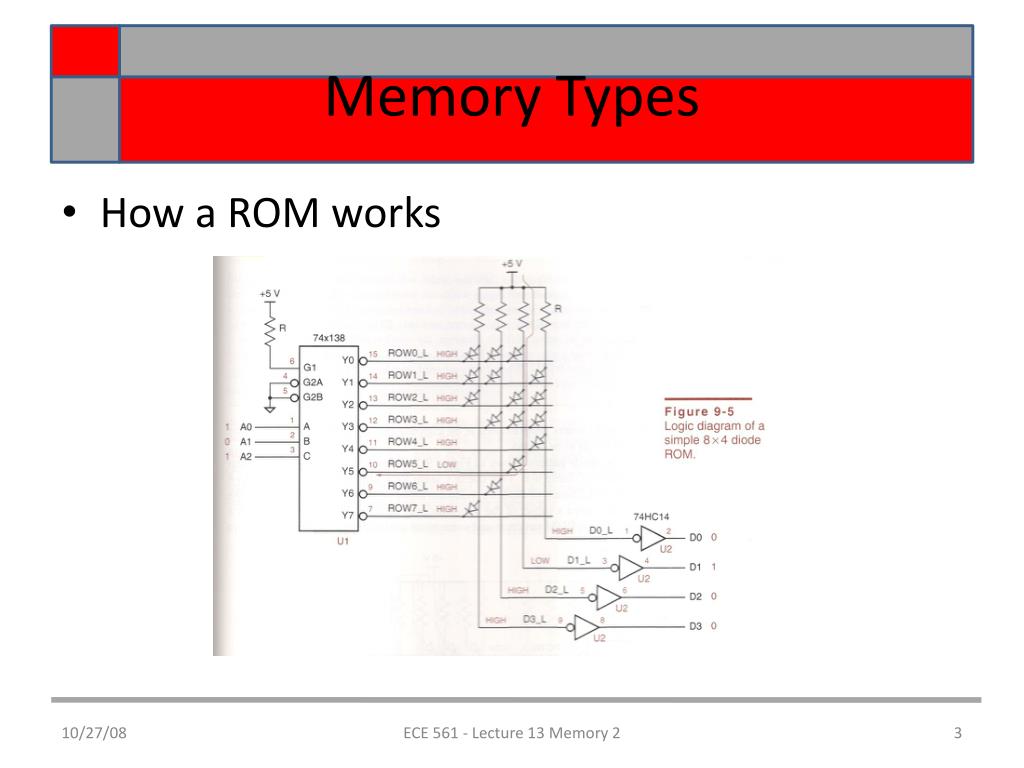

Memory Types
  • How a ROM works

ECE 561 - Lecture 13 Memory 2

a 128 x 1 rom
A 128 x 1 ROM
  • The basic structure

ECE 561 - Lecture 13 Memory 2

larger array sizes
Larger Array Sizes
  • Arranged in blocks

ECE 561 - Lecture 13 Memory 2

commercial rom types
Commercial ROM Types
  • Table 9-5
    • Type Tech ReadCyc WrCyc Comments
    • MASK ROM NMOS 10-100ns 4 weeks Write once, low pwr
    • CMOS
    • MASK ROM Bipolar <100ns 4 weeks Write once, h pwr
    • low density
    • PROM Bipolar <100ns 10-50us/byte Write once, h pwr
    • EPROM NMOS 25-200ns 10-50us/byte Reusable, low pwr
    • CMOS
    • EEPROM NMOS 50-200ns 10-50us/byte 10,000 to 100,000
    • writes per location

ECE 561 - Lecture 13 Memory 2

eprom

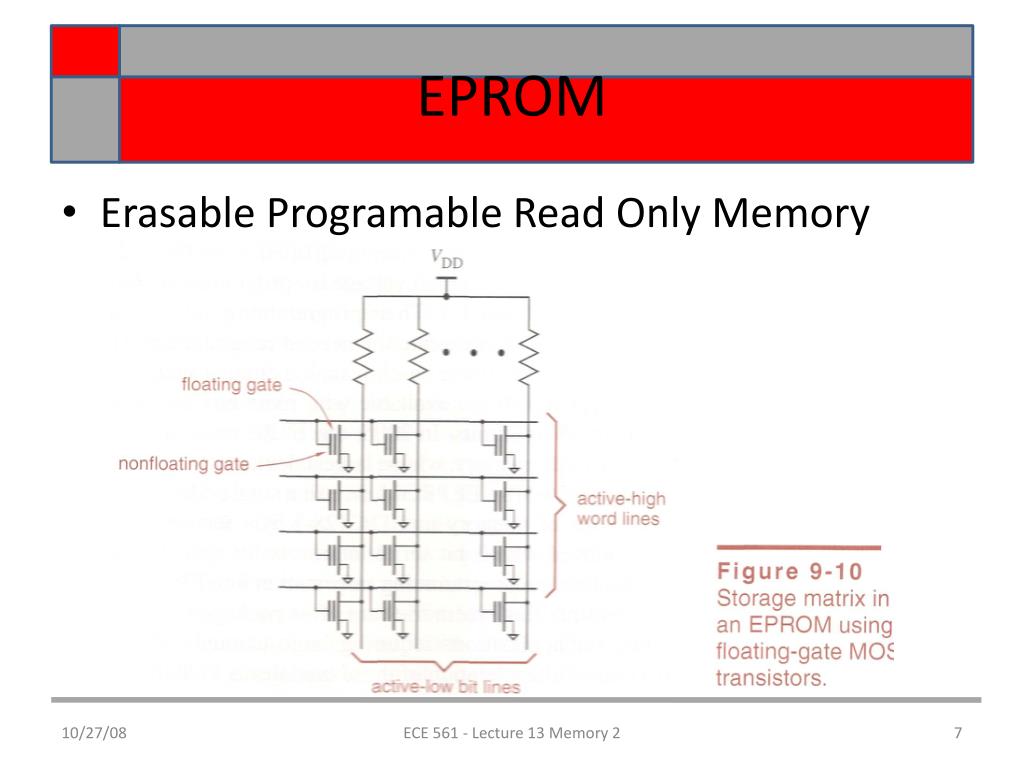

EPROM
  • Erasable Programable Read Only Memory

ECE 561 - Lecture 13 Memory 2

eprom1
EPROM
  • Uses a floating gate for the FET at each bit location
  • User uses a programming voltage that causes a temporary breakdown in the dielectric between the gate and the floating gate to charge it.
  • When programming voltage is removed the charge stays
  • How long? EPROM manufacturers “guarantee” properly programmed bit has 70% of charge after 10 years.
  • Use UV light to erase

ECE 561 - Lecture 13 Memory 2

eeprom
EEPROM
  • Electrically Erasable PROM
  • Like the EPROM only electrically erasable in circuit.
  • Many times referred to a “flash” programmable memory
  • Very slow on writes so not a substitute for RAM

ECE 561 - Lecture 13 Memory 2

general block diagram
General Block Diagram

xROM

ECE 561 - Lecture 13 Memory 2

general timing
General Timing
  • General timing parameters

ECE 561 - Lecture 13 Memory 2

the timing parameters

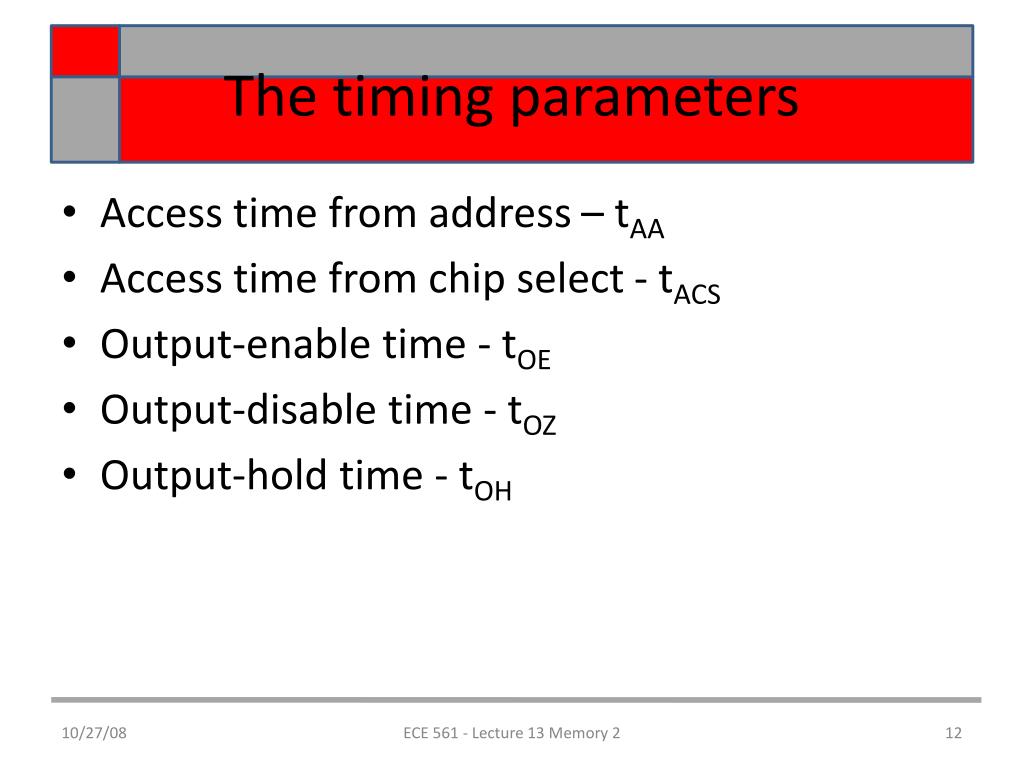

The timing parameters
  • Access time from address – tAA
  • Access time from chip select - tACS
  • Output-enable time - tOE
  • Output-disable time - tOZ
  • Output-hold time - tOH

ECE 561 - Lecture 13 Memory 2

r w memory
R/W Memory
  • Memory to store and retrieve data when more than F/Fs
  • A few types
  • Static RAM – SRAM
    • As long as power is maintained data is held

ECE 561 - Lecture 13 Memory 2

slide14
SRAM
  • The data storage

ECE 561 - Lecture 13 Memory 2

a static ram chip
A static RAM chip
  • Internal – an arrangement of storage sturctures

ECE 561 - Lecture 13 Memory 2

sram timing
SRAM Timing
  • Timing for write similar (see Fig 9-23)

ECE 561 - Lecture 13 Memory 2

slide17
DRAM
  • Next step in memory is Synchronous SRAM which has a clocked interface for control, address and data.
  • Then comes DRAM – dynamic ram
  • In DRAM data is stored
  • in a semiconductor
  • capicator.

ECE 561 - Lecture 13 Memory 2

dram read

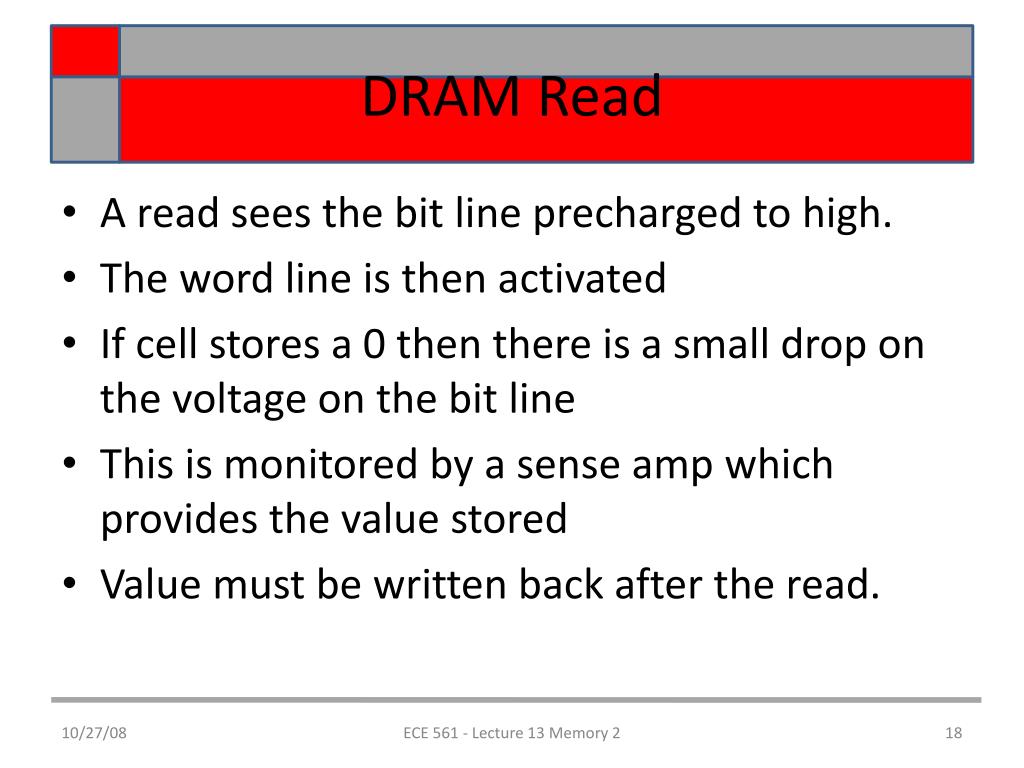

DRAM Read
  • A read sees the bit line precharged to high.
  • The word line is then activated
  • If cell stores a 0 then there is a small drop on the voltage on the bit line
  • This is monitored by a sense amp which provides the value stored
  • Value must be written back after the read.

ECE 561 - Lecture 13 Memory 2

dram refresh

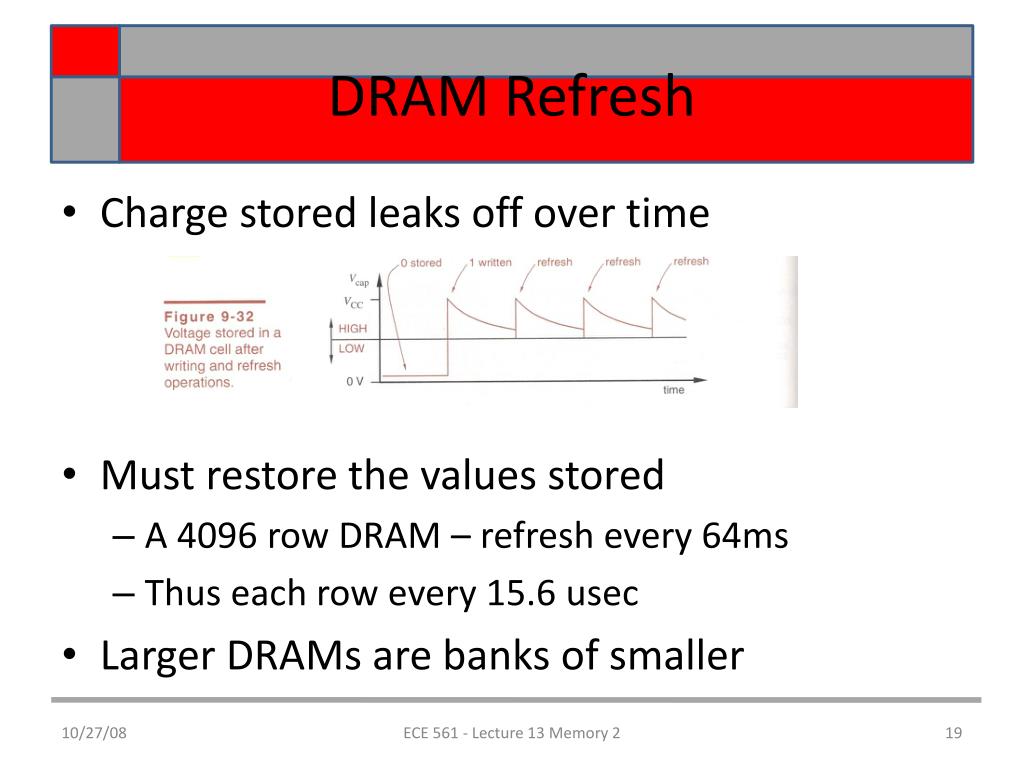

DRAM Refresh
  • Charge stored leaks off over time
  • Must restore the values stored
    • A 4096 row DRAM – refresh every 64ms
    • Thus each row every 15.6 usec
  • Larger DRAMs are banks of smaller

ECE 561 - Lecture 13 Memory 2

ddr sdram
DDR SDRAM
  • Double data rate SDRAM
  • Double the data transfer rate of an SDRAM by transferring on both edges of the clock
  • Access and setup times are the same as SRAM
  • Increased data thruput as data is transferred in blocks.

ECE 561 - Lecture 13 Memory 2
