  1. Electric Fields Physics

  2. Analogy The electric field is the space around an electrical charge just like a gravitational field is the space around a mass.

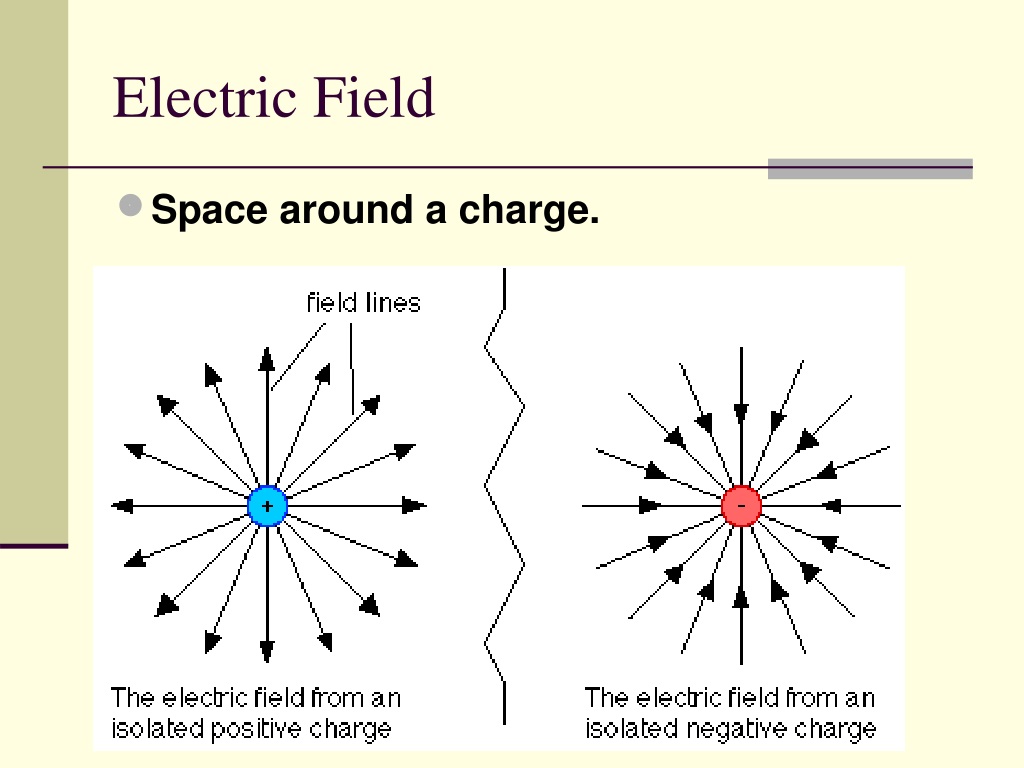

  3. Electric Field • Space around a charge.

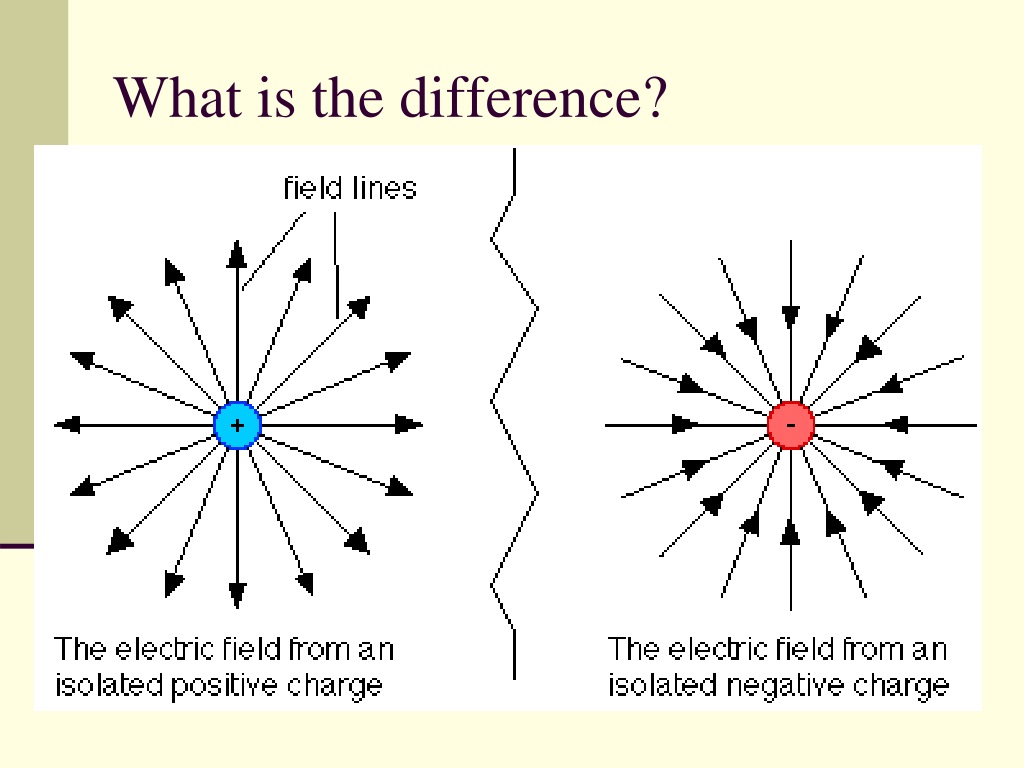

  4. What is the difference?

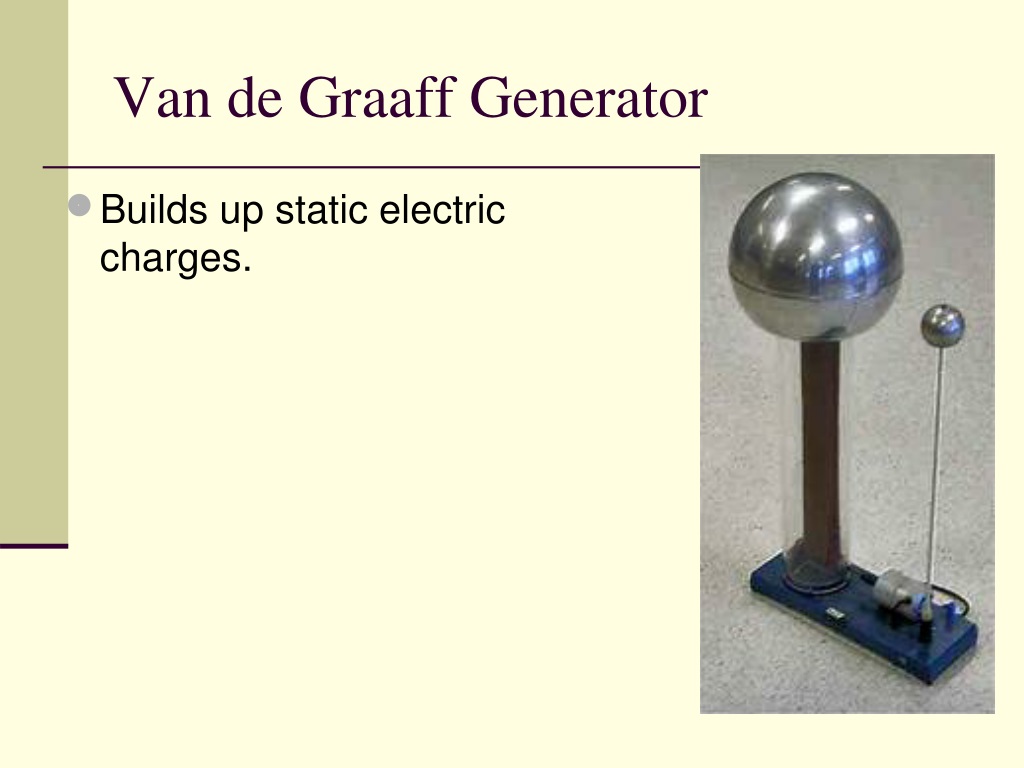

  5. Van de Graaff Generator • Builds up static electric charges.

  6. Electric Field Vector, E • E = F/ qo • qo , positive test charge • E is a vector quantity • Unit: N/C • E is analogous to the gravitational field, g, where g=F/m

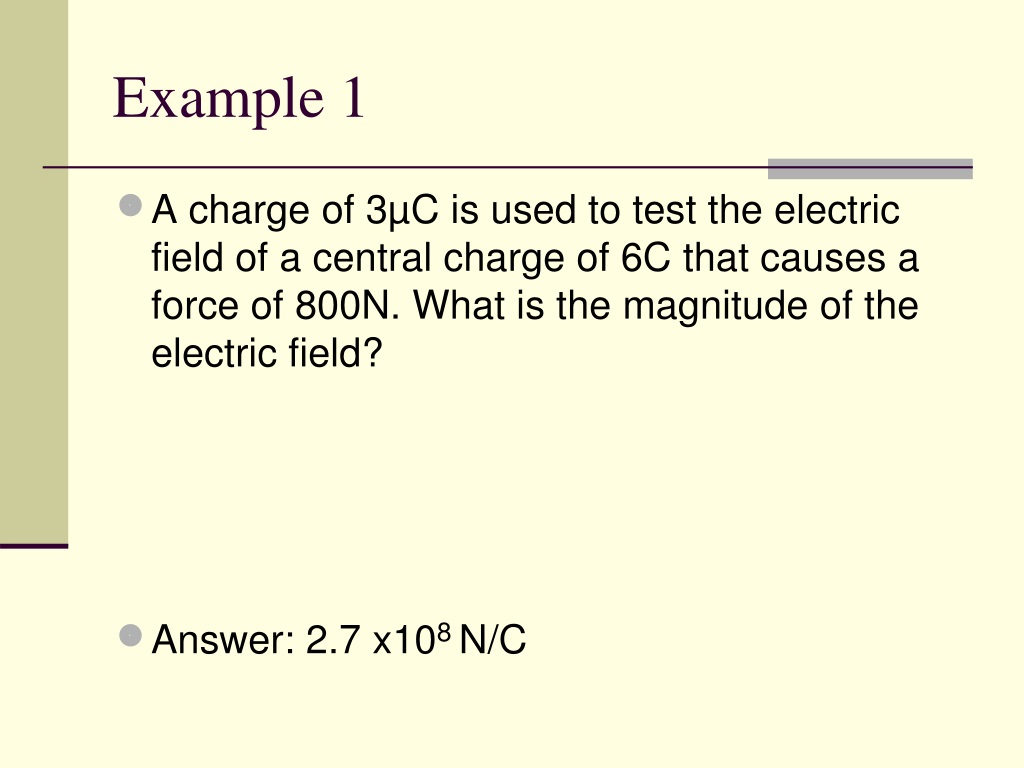

  7. Example 1 • A charge of 3µC is used to test the electric field of a central charge of 6C that causes a force of 800N. What is the magnitude of the electric field? • Answer: 2.7 x108 N/C

  8. Electric Field Lines

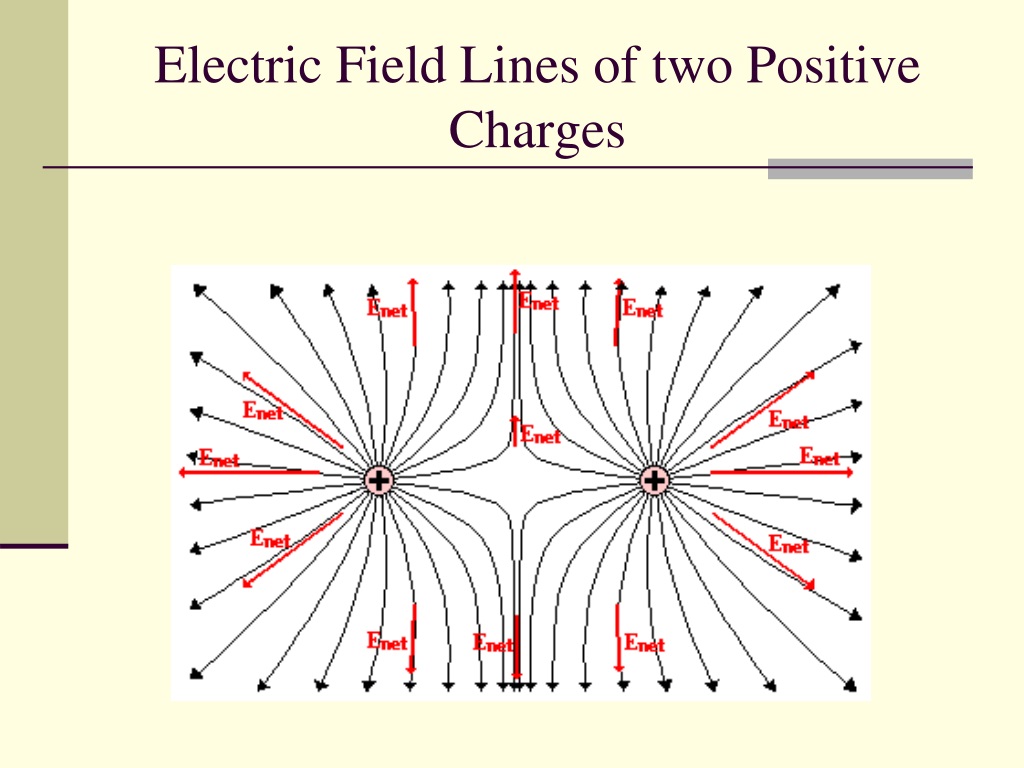

  9. Electric Field Lines of two Positive Charges

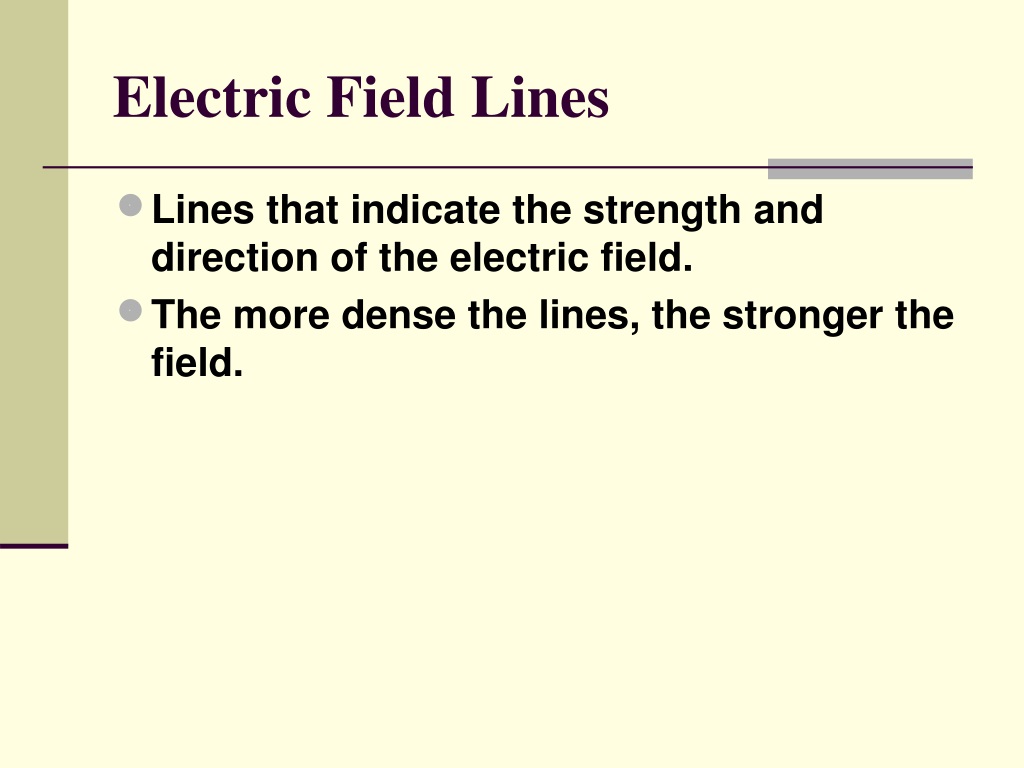

  10. Electric Field Lines • Lines that indicate the strength and direction of the electric field. • The more dense the lines, the stronger the field.

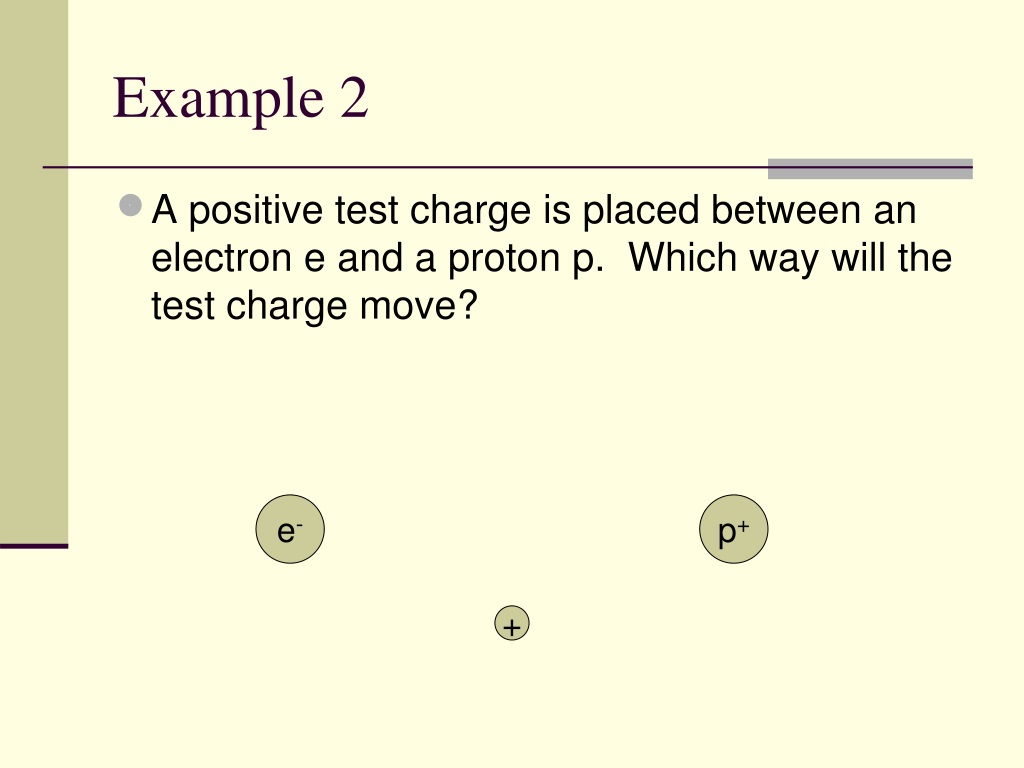

  11. Example 2 • A positive test charge is placed between an electron e and a proton p. Which way will the test charge move? e- p+ +

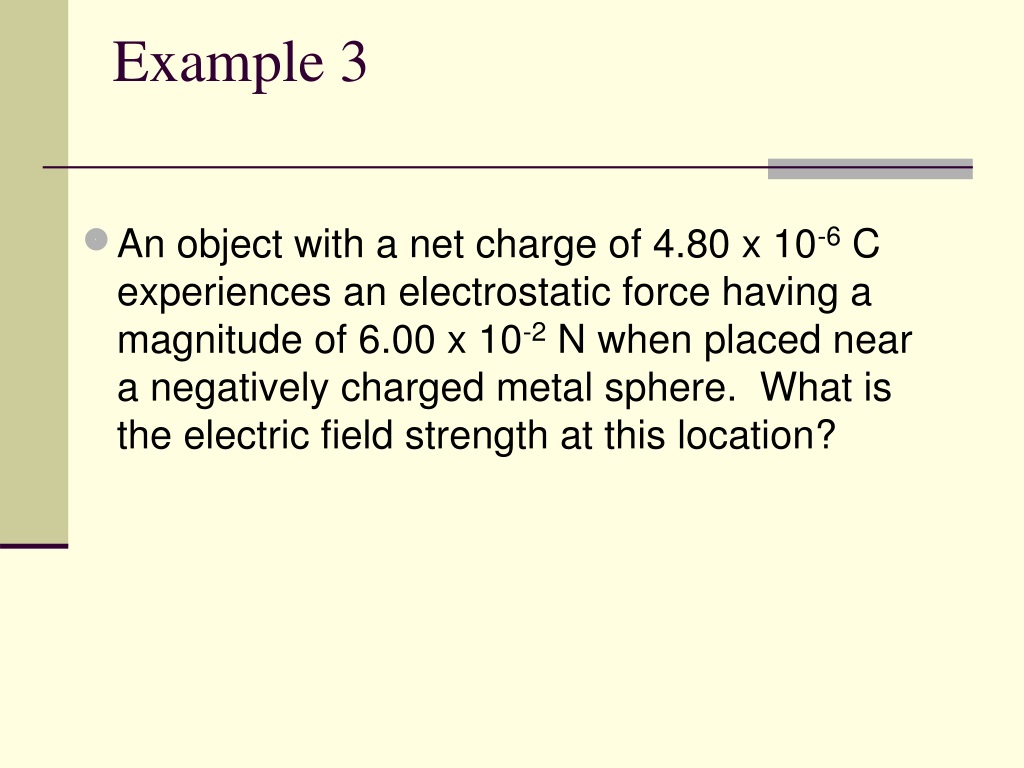

  12. Example 3 • An object with a net charge of 4.80 x 10-6 C experiences an electrostatic force having a magnitude of 6.00 x 10-2 N when placed near a negatively charged metal sphere. What is the electric field strength at this location?

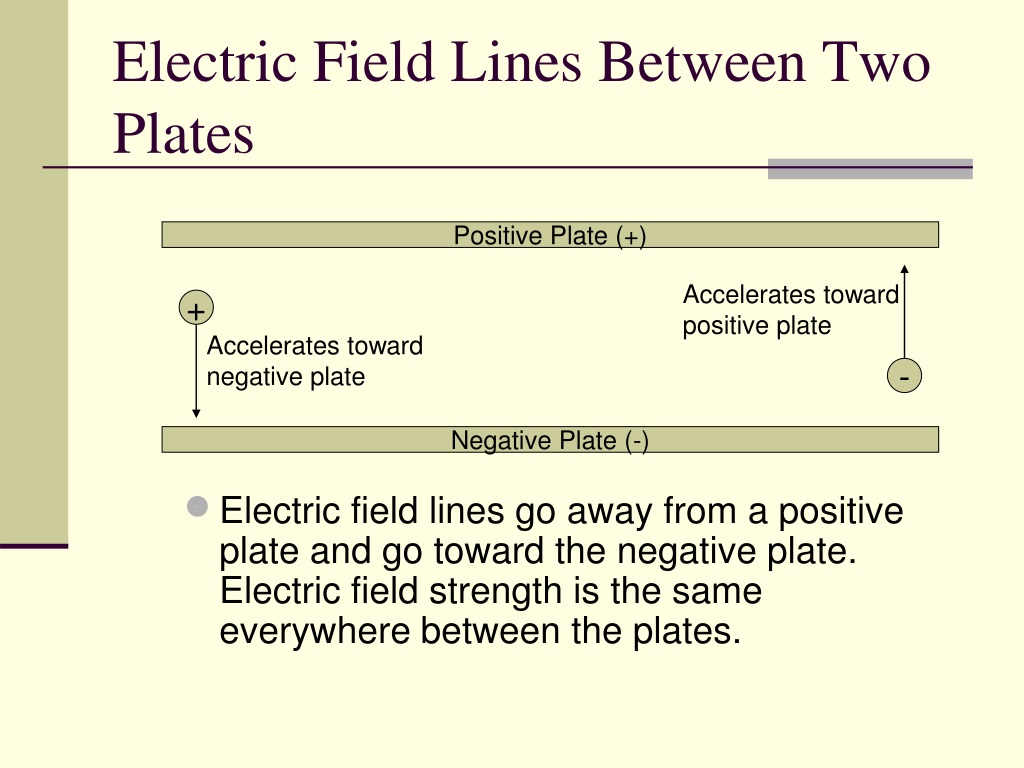

  13. Electric Field Lines Between Two Plates • Electric field lines go away from a positive plate and go toward the negative plate. Electric field strength is the same everywhere between the plates. Positive Plate (+) Accelerates toward positive plate + Accelerates toward negative plate - Negative Plate (-)

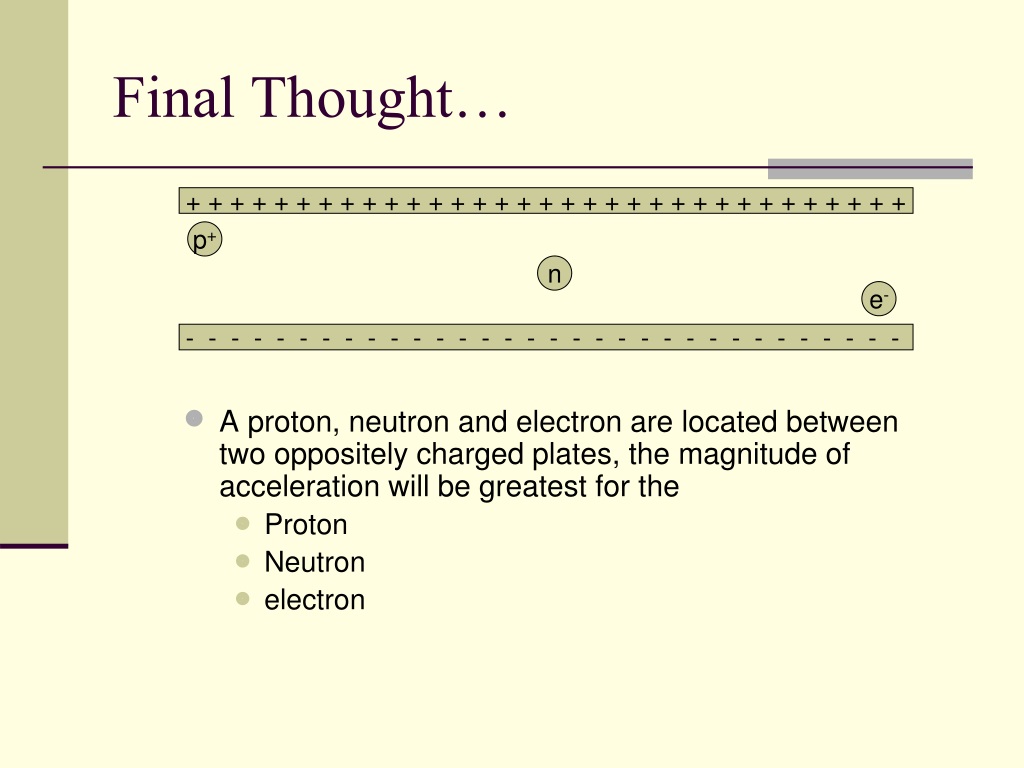

  14. Final Thought… • A proton, neutron and electron are located between two oppositely charged plates, the magnitude of acceleration will be greatest for the • Proton • Neutron • electron + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + p+ n e- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

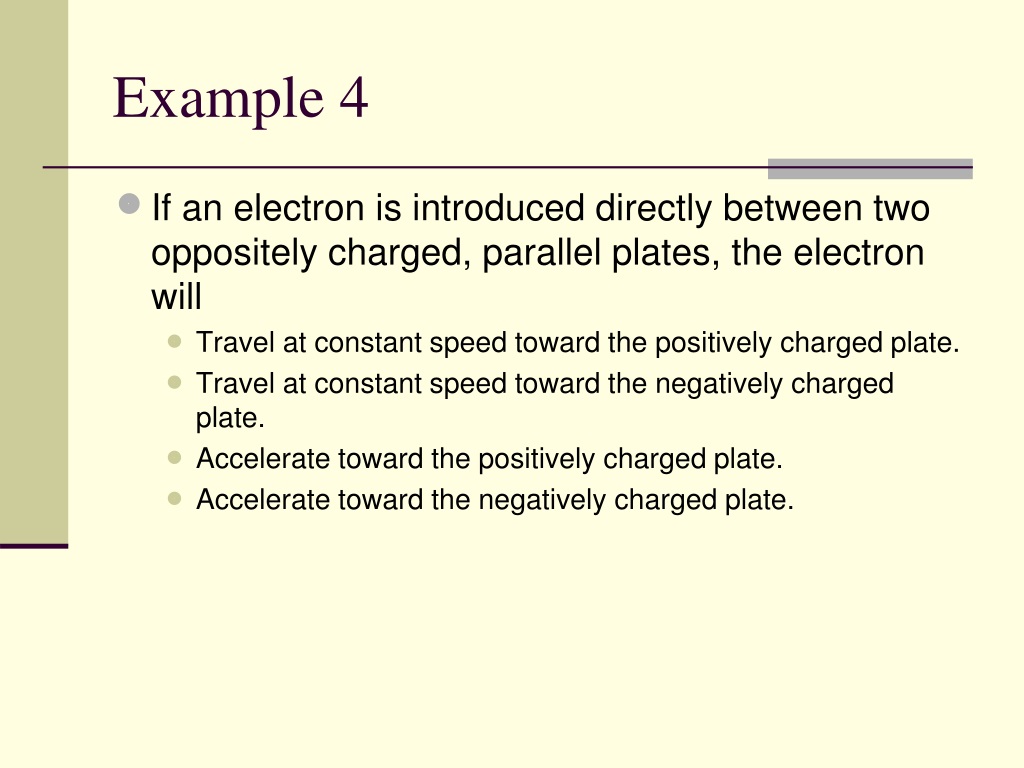

  15. Example 4 • If an electron is introduced directly between two oppositely charged, parallel plates, the electron will • Travel at constant speed toward the positively charged plate. • Travel at constant speed toward the negatively charged plate. • Accelerate toward the positively charged plate. • Accelerate toward the negatively charged plate.

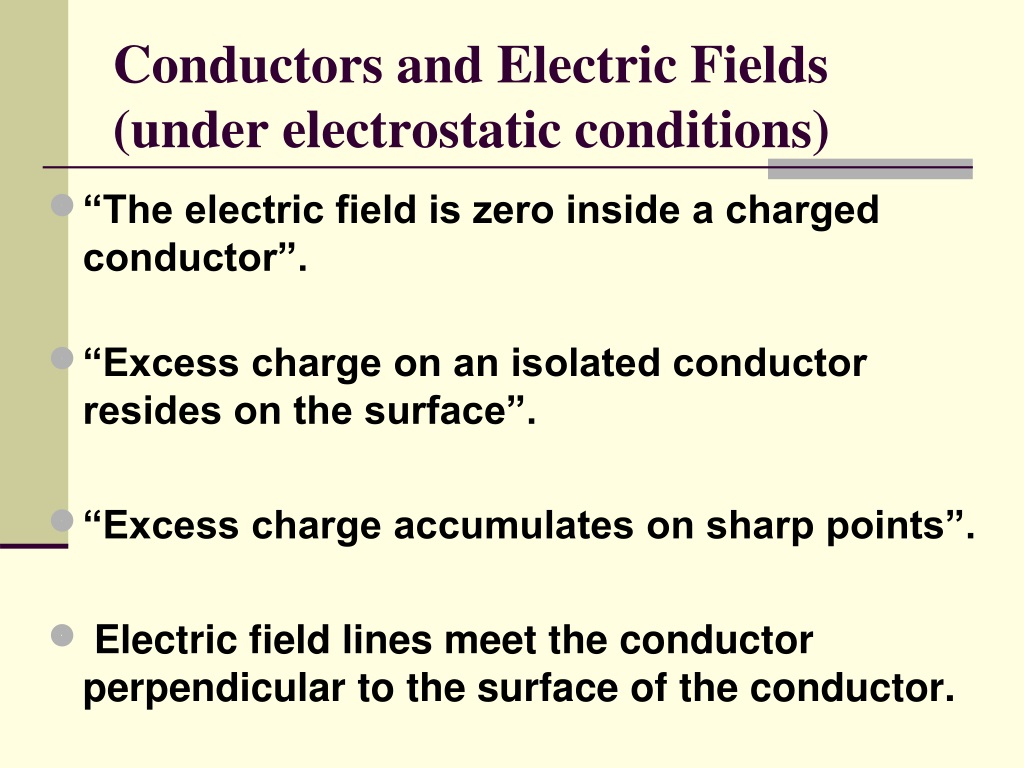

  16. Conductors and Electric Fields (under electrostatic conditions) • “The electric field is zero inside a charged conductor”. • “Excess charge on an isolated conductor resides on the surface”. • “Excess charge accumulates on sharp points”. • Electric field lines meet the conductor perpendicular to the surface of the conductor.

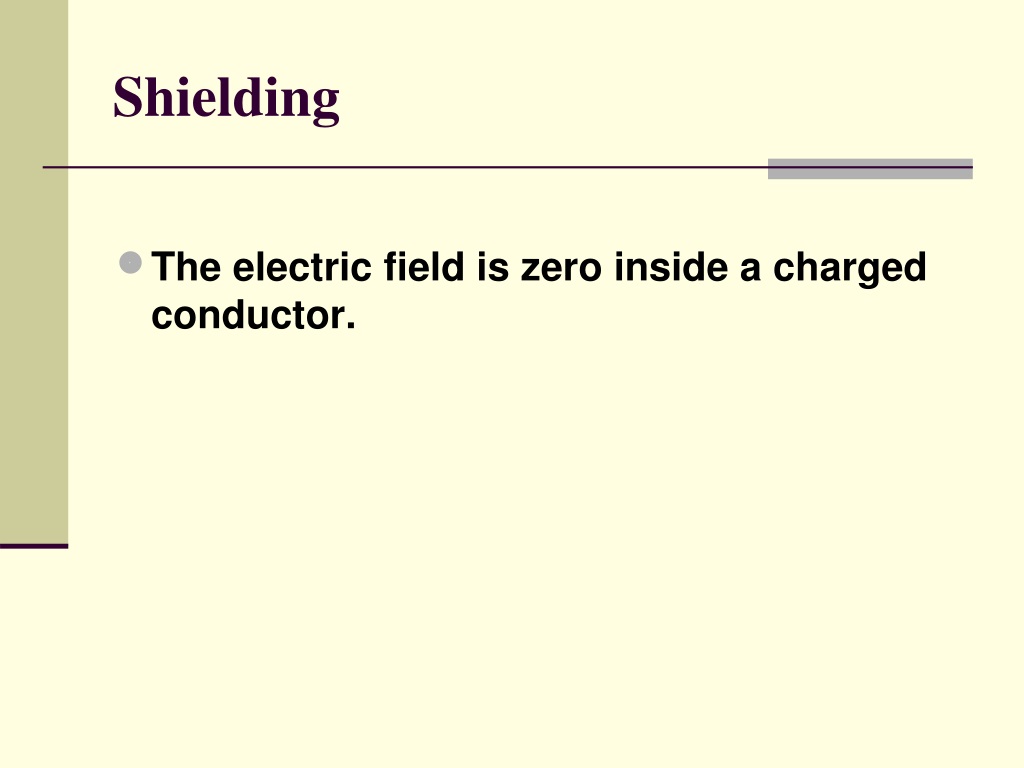

  17. Shielding • The electric field is zero inside a charged conductor.

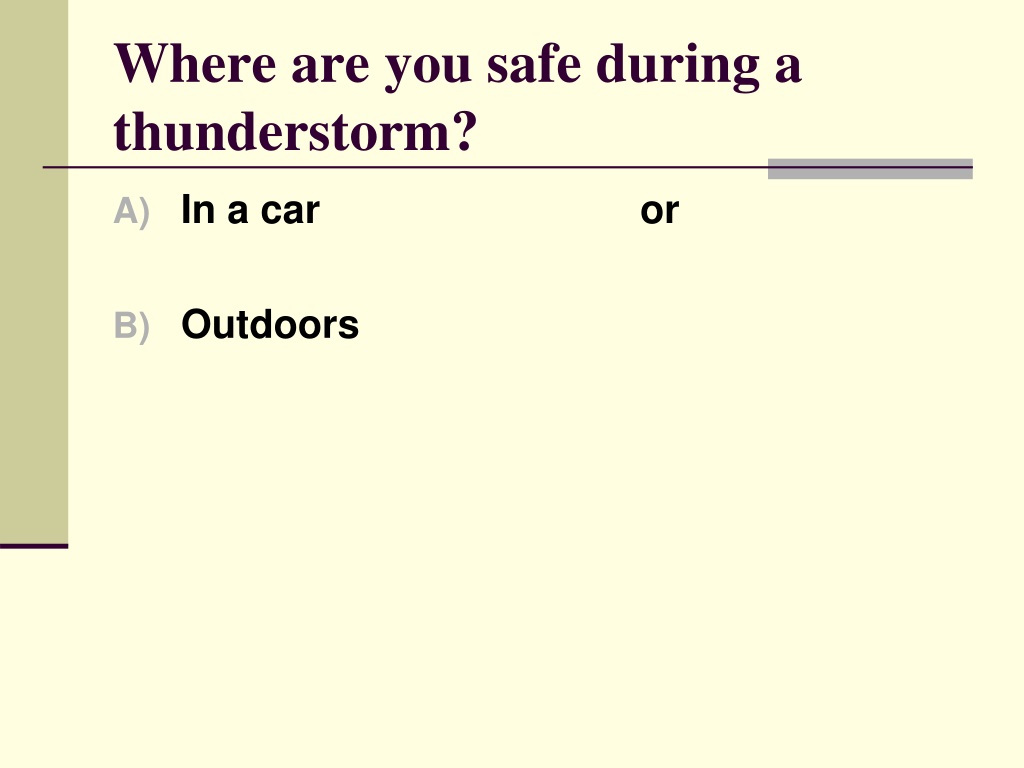

  18. Where are you safe during a thunderstorm? • In a car or • Outdoors

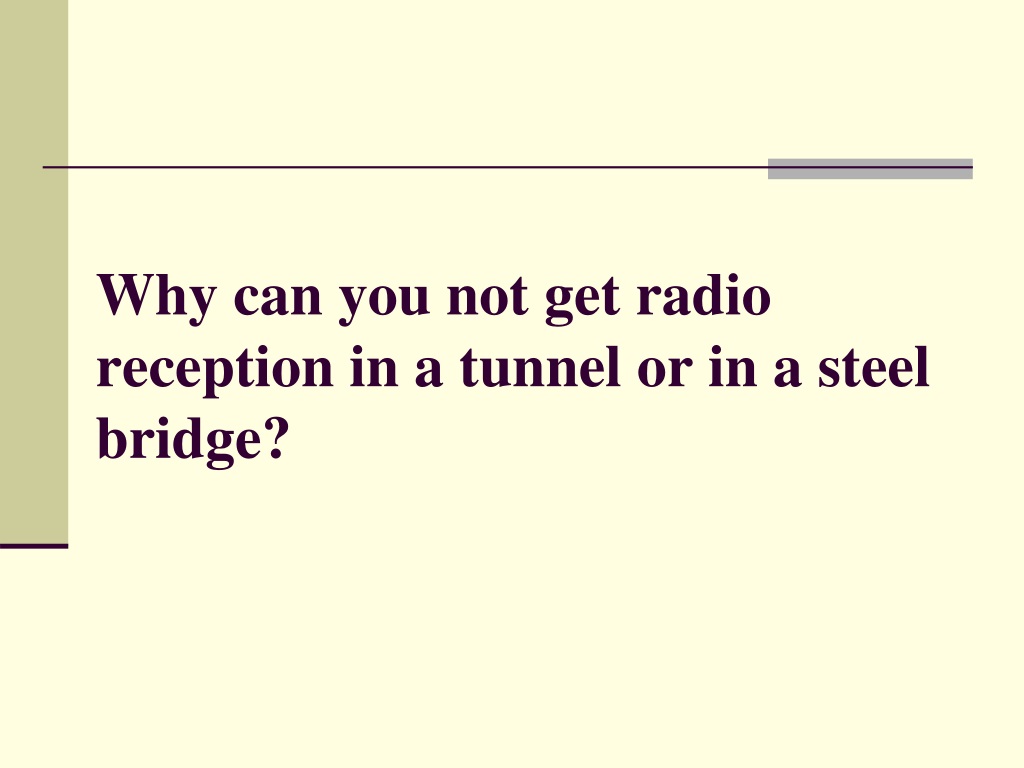

  19. Why can you not get radio reception in a tunnel or in a steel bridge?

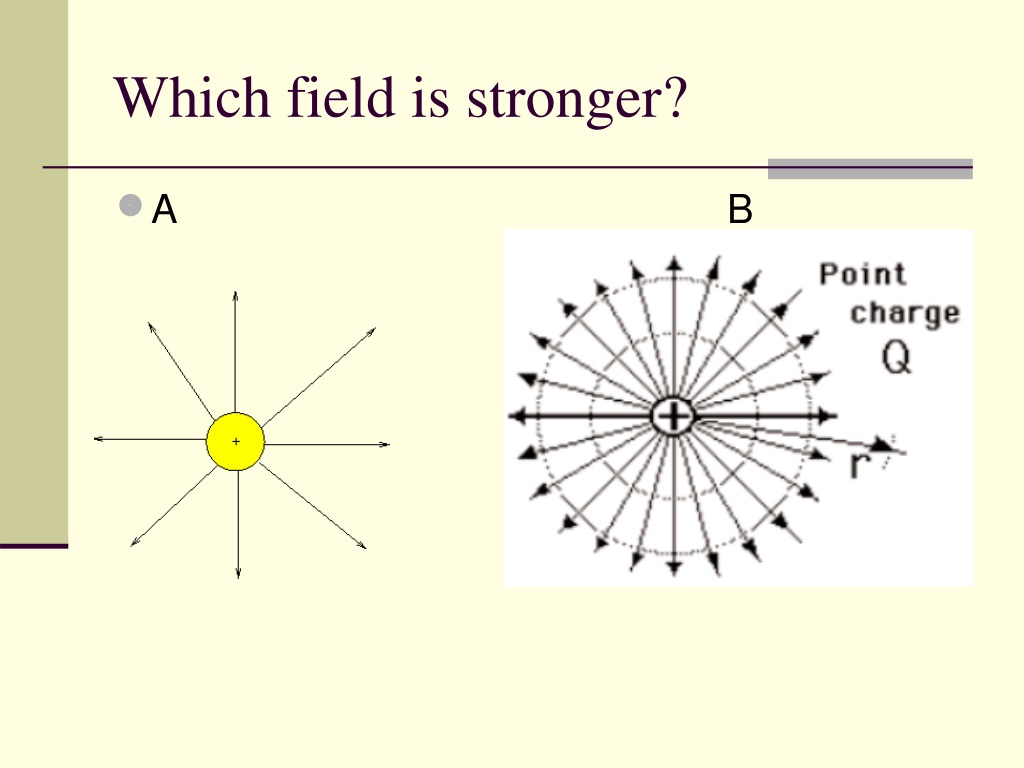

  20. Which field is stronger? • A B

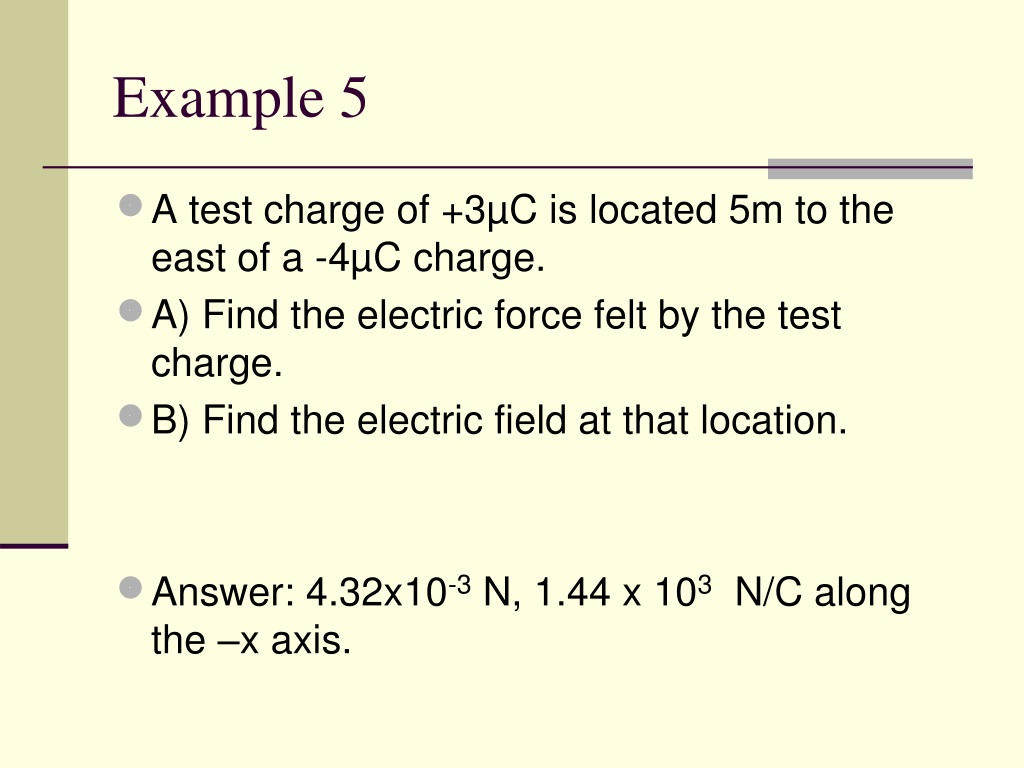

  21. Example 5 • A test charge of +3µC is located 5m to the east of a -4µC charge. • A) Find the electric force felt by the test charge. • B) Find the electric field at that location. • Answer: 4.32x10-3 N, 1.44 x 103 N/C along the –x axis.

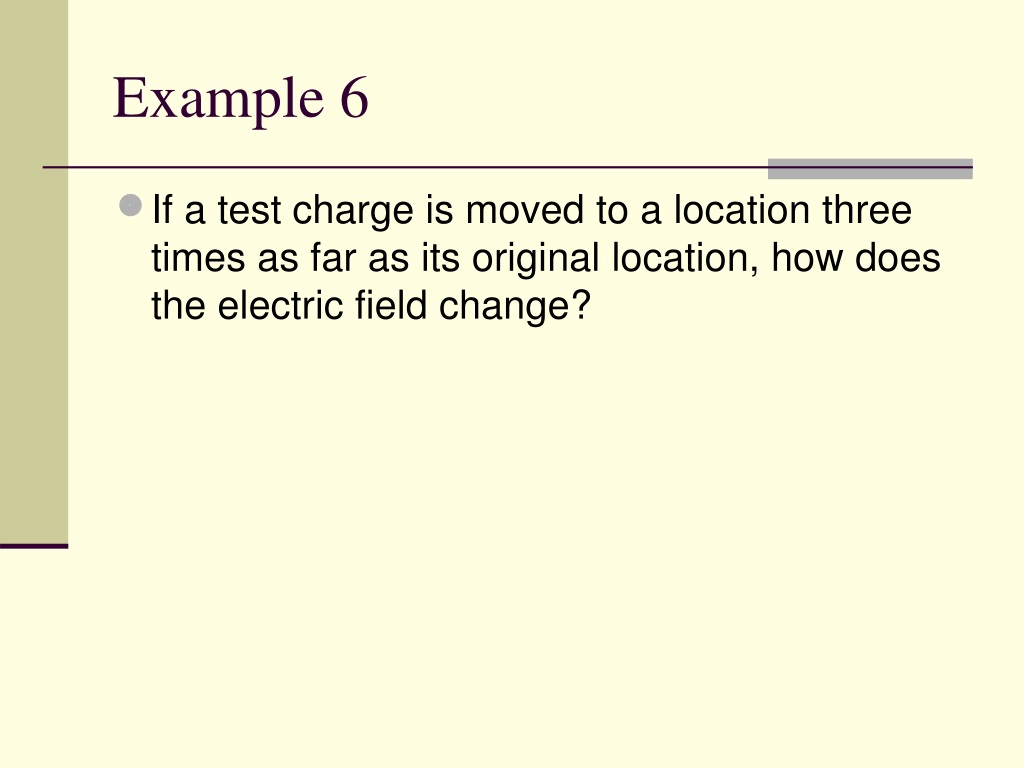

  22. Example 6 • If a test charge is moved to a location three times as far as its original location, how does the electric field change?
