Determining the k a of an acid-base indicator

Determining the k a of an acid-base indicator. Experiment 6. Indicator. HIn + H 2 O ↔ In - + H 3 O + Red blue Ka = [H 3 O + ] [In - ]/[HIn] [H 3 O + ] = Ka [HIn]/[In - ] (-log [H 3 O + ]) = (-log Ka) + (log [In - ]/[HIn]) pH = pKa + log [In - ]/[HIn]. Determining Ka.

coligny
Download Presentation

Determining the k a of an acid-base indicator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Determining the ka of an acid-base indicator Experiment 6

  2. Indicator HIn + H2O ↔ In- + H3O+ Redblue Ka = [H3O+] [In-]/[HIn] [H3O+] = Ka [HIn]/[In-] (-log [H3O+]) = (-log Ka) + (log [In-]/[HIn]) pH = pKa + log [In-]/[HIn]

  3. Determining Ka • Ka = [H3O+] [In-]/[HIn] • Adjust pH slightly and measure the concentration of all three species, independently • H3O+ (pH meter) • In- and HIn (spectroscopy)

  4. Ka = [H+][In-]/[HIn]

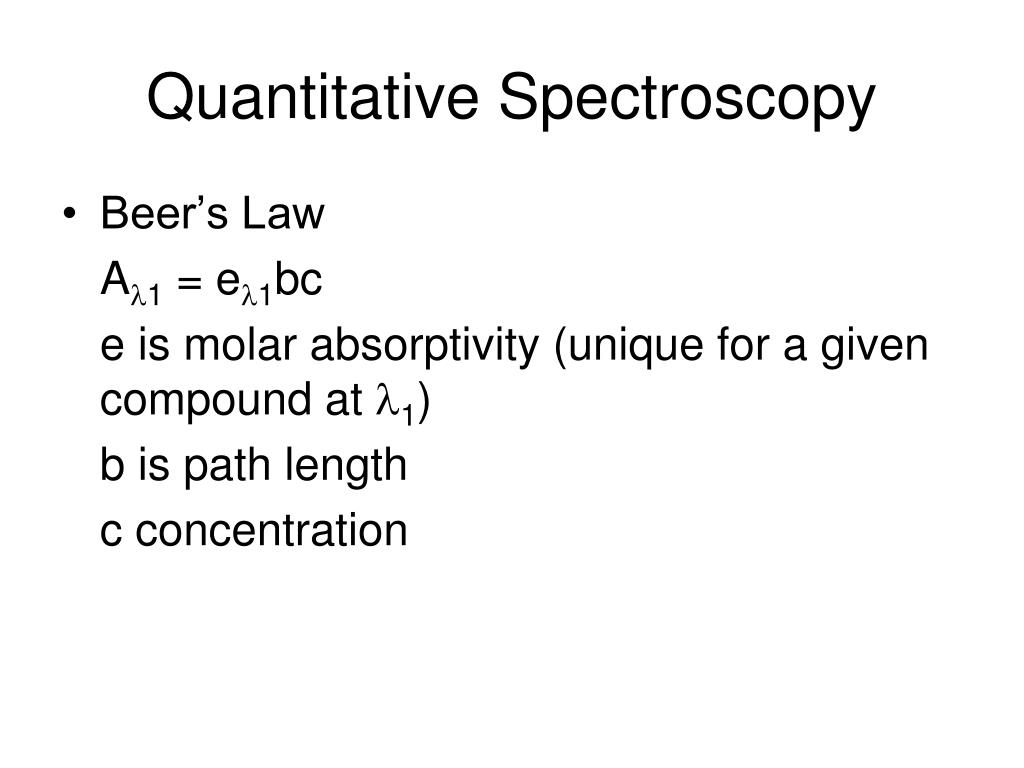

  5. Quantitative Spectroscopy • Beer’s Law Al1 = el1bc e is molar absorptivity (unique for a given compound at l1) b is path length c concentration

  6. Standard Practice • Prepare standards of known concentration • Measure absorbance at lmax • Plot A vs. concentration • Obtain slope • Use slope (and intercept) to determine the concentration of the analyte in the unknown

  7. Typical Beer’s Law Plot

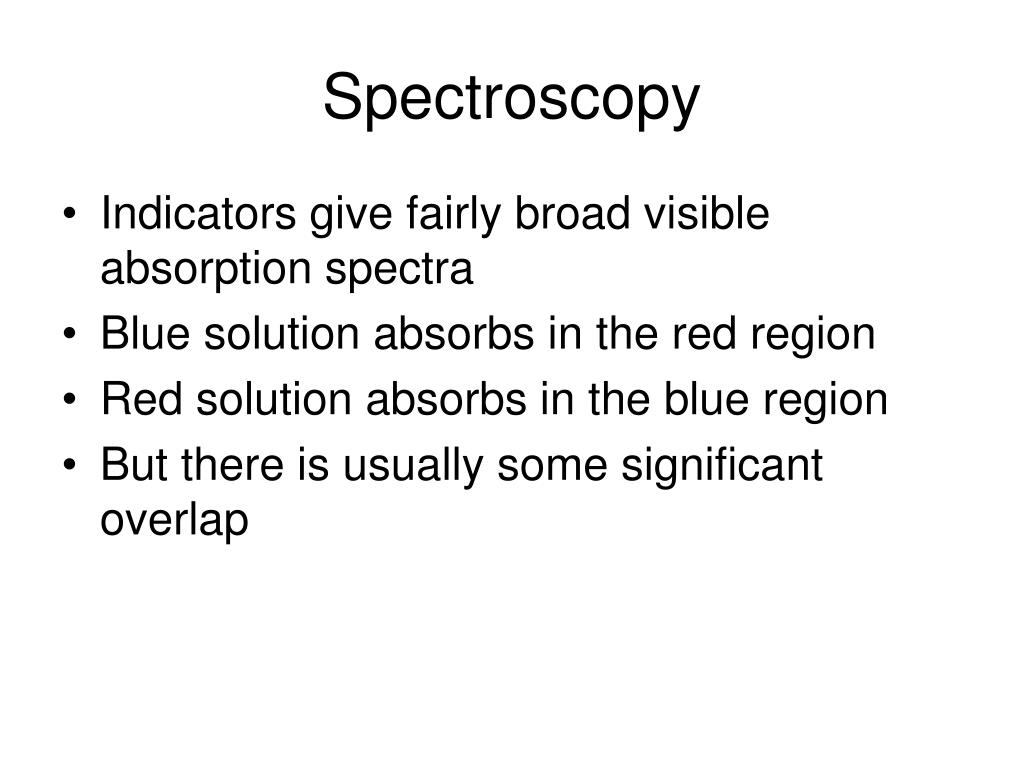

  8. Spectroscopy • Indicators give fairly broad visible absorption spectra • Blue solution absorbs in the red region • Red solution absorbs in the blue region • But there is usually some significant overlap

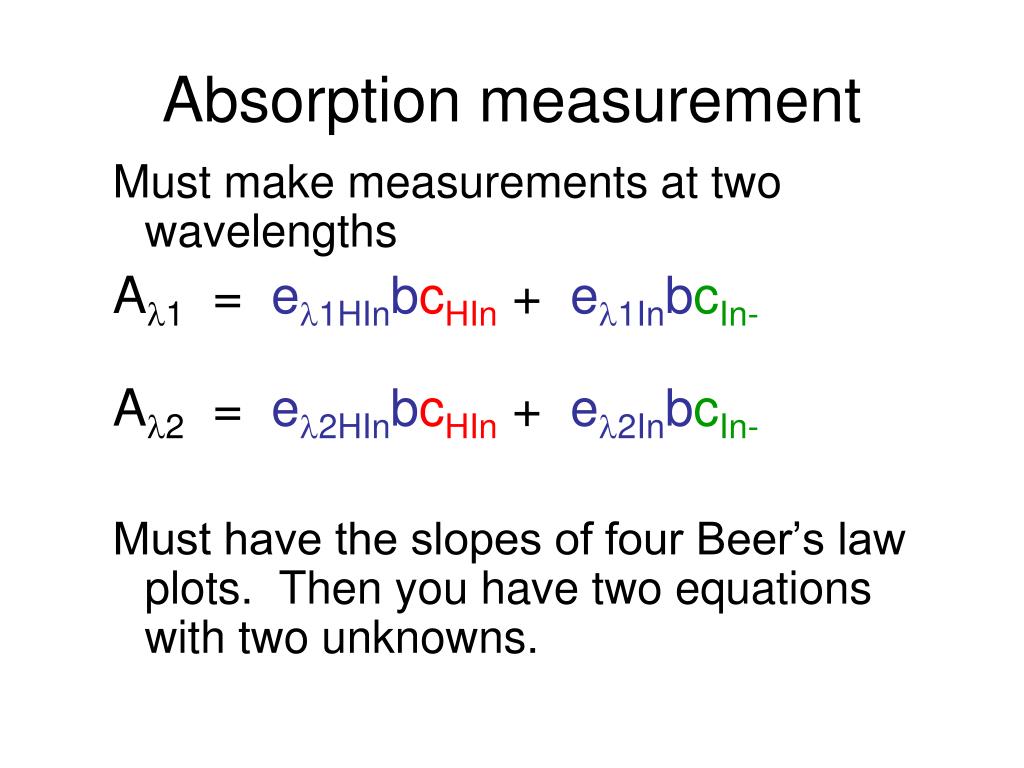

  9. Absorption measurement Must make measurements at two wavelengths Al1 = el1HInbcHIn + el1InbcIn- Al2 = el2HInbcHIn + el2InbcIn- Must have the slopes of four Beer’s law plots. Then you have two equations with two unknowns.

  10. The four slopes • Measure standard solutions of Indicator adjusted to high pH (three pH units above pKa) [In-]/[HIn] = 1000 • Measure standard solutions of Indicator adjusted to low pH (three pH units below pKa) [HIn]/[In-] = 1000 • These solution will be prepared and measured to produce the four Beer’s Law Plots (each set at both wavelengths)

  11. In the lab • Prepare Indicator solution adjusted to the proper pH • Measure its pH and Absorbance at 430 nm and 565 nm • Adjust pH with dilute HCl or NaOH by .2 pH units and remeasure • Continue until you have five measurements within 1.0 pH units above and below the starting pH

  12. Spreadsheet • Use data to produce four Beer’s Law Plots • Determine slopes of Beer’s Law Plots • Calculate [H+] from the pH • Use slopes to solve the system of two equations for [HIn] and [In-] • Solve for Ka, Ka = [H+][In-]/[HIn] • Solve for pKa, pKa = -logKa • Calculate averages and 95 % CL
