Static Equilibrium

Static Equilibrium. AP Physics Lecture Notes. Rotation and Angular Momentum.ppt. Conditions for Equilibrium. S F = 0 S t = 0. Truck on a Bridge. N 1. N 2. W B. W T. 1 st Condition. 2 st Condition. Truck on a Bridge. W T. N 1. N 2. W B. 1 st Condition. 2 nd Condition. T.

cole-lynch
Download Presentation

Static Equilibrium

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Static Equilibrium AP Physics Lecture Notes Rotation and Angular Momentum.ppt

  2. Conditions for Equilibrium SF = 0 St = 0

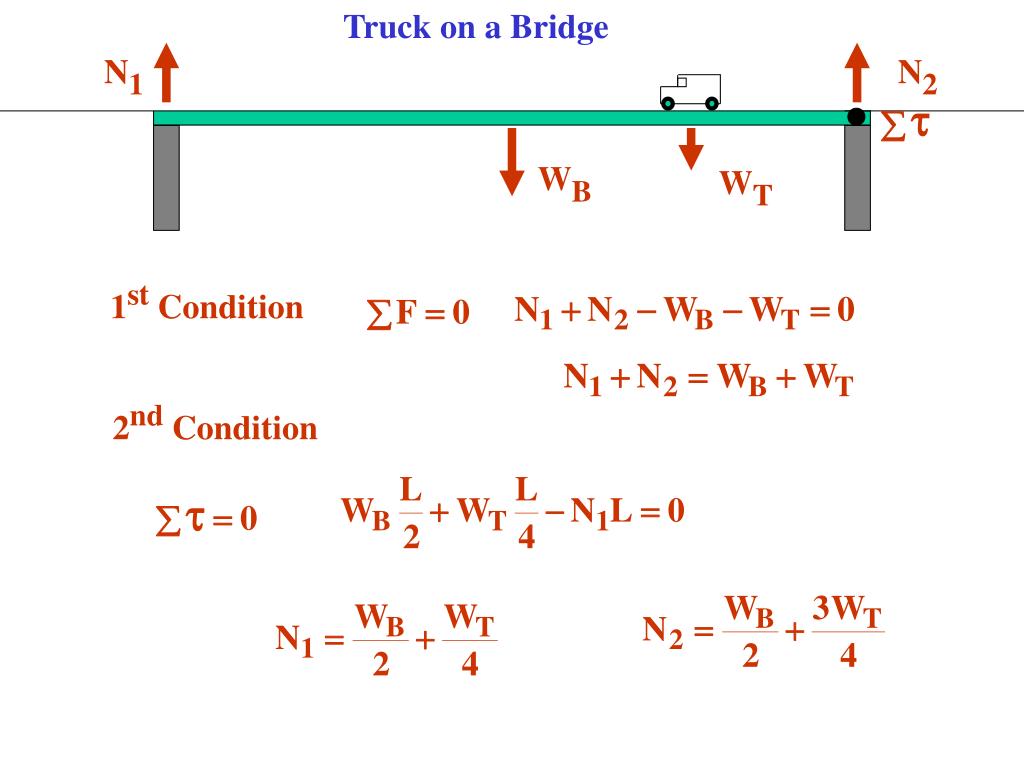

  3. Truck on a Bridge N1 N2 WB WT 1st Condition 2st Condition

  4. Truck on a Bridge WT N1 N2 WB 1st Condition 2nd Condition

  5. T F N WB WS Physics Hanging a Sign q

  6. Hanging a Sign d = L sin(q) d Find Tension in cable T F 1st Condition N q A L WB WS 2nd Condition

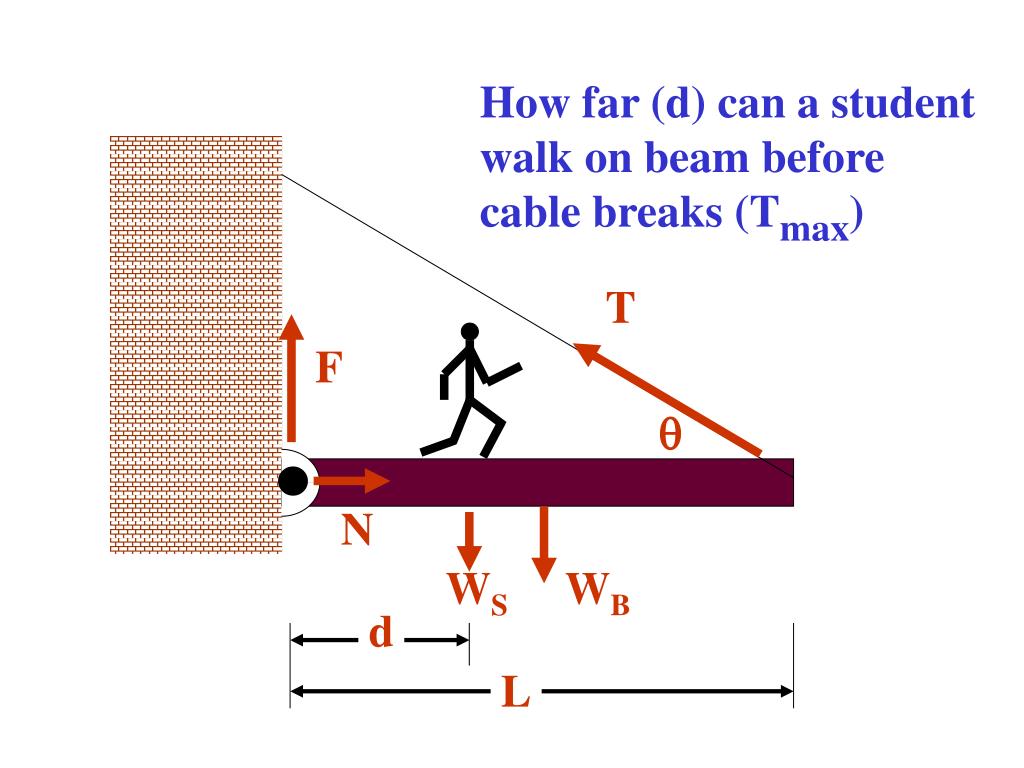

  7. T F N WS WB d L How far (d) can a student walk on beam before cable breaks (Tmax) q

  8. L d Tmax F q o N WS WB Walking Student When T reaches Tmax

  9. Frictionless wall d P Mg N m mg f How far can a student walk up a ladder before it slips q

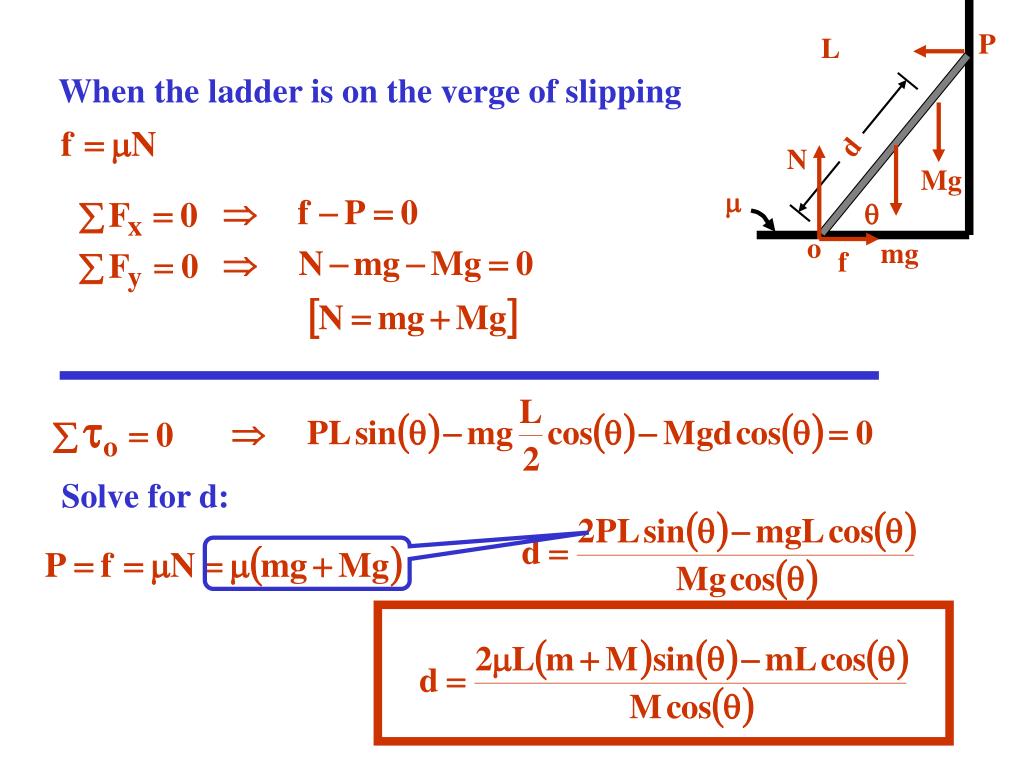

  10. P L d N Mg m q o mg When the ladder is on the verge of slipping f Solve for d:

  11. Equilibrium END Rotation and Angular Momentum.ppt
