C Programming Revision

C Programming Revision. Malcolm Wilson. Variables. Types int, char, double, long. NO type for string see later. unsigned above. assignment X=2 ; C= ‘ v ’ ;. Keywords. C has a small number of “ keywords ” http://tigcc.ticalc.org/doc/keywords.html. Standard I/O. p rintf ()

Download Presentation

C Programming Revision

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. C Programming Revision Malcolm Wilson

  2. Variables • Types int, char, double, long. NO type for string see later. • unsigned above. • assignment X=2 ; C=‘v’;

  3. Keywords • C has a small number of “keywords” • http://tigcc.ticalc.org/doc/keywords.html

  4. Standard I/O • printf() • scanf() • Format specifiers %d, %f, %c, %s http://en.wikipedia.org/wiki/Printf http://en.wikipedia.org/wiki/Scanf

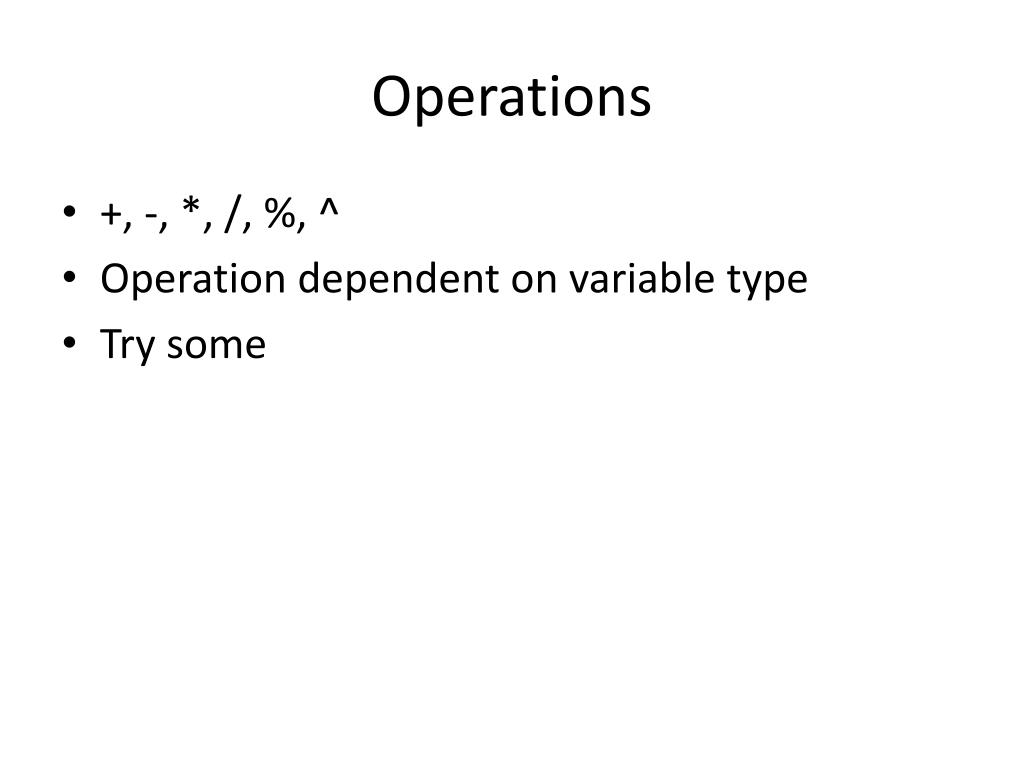

  5. Operations • +, -, *, /, %, ^ • Operation dependent on variable type • Try some

  6. Boolean • Any value other than zero is true. • Watch out for == “is equal to”.

  7. Control for(i=0, i<9, i++) { code block} while (x<8) {code block} if (y==2) {code block} elseif(y==7) {code block} else {code block}

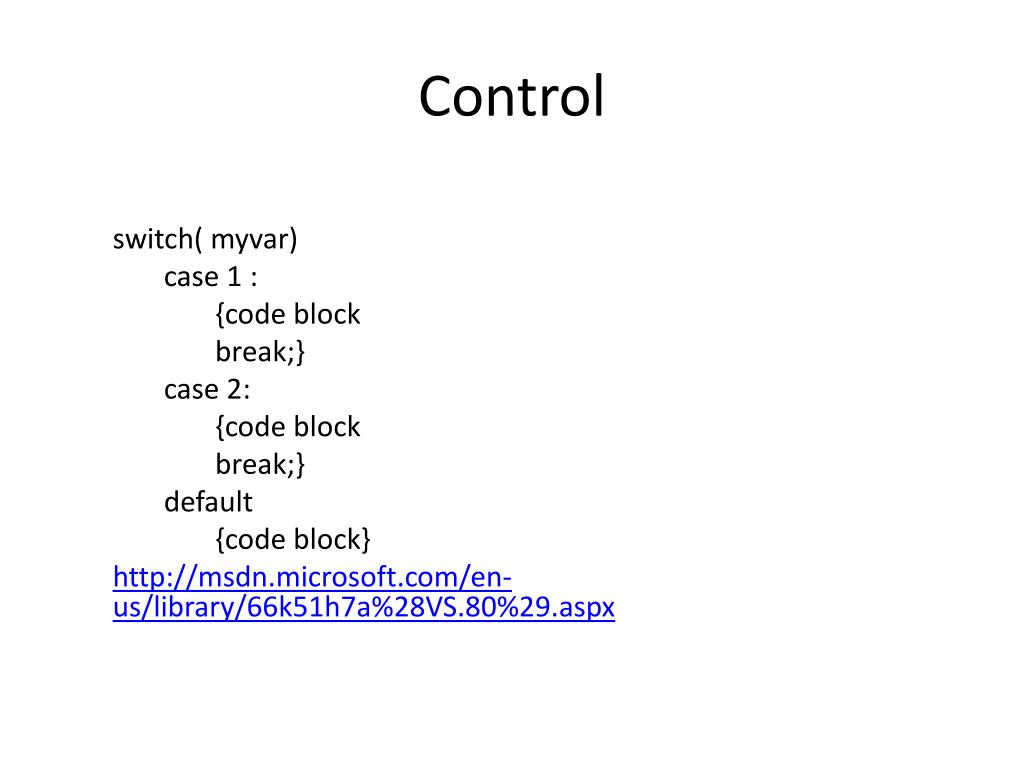

  8. Control switch( myvar) case 1 : {code block break;} case 2: {code block break;} default {code block} http://msdn.microsoft.com/en-us/library/66k51h7a%28VS.80%29.aspx

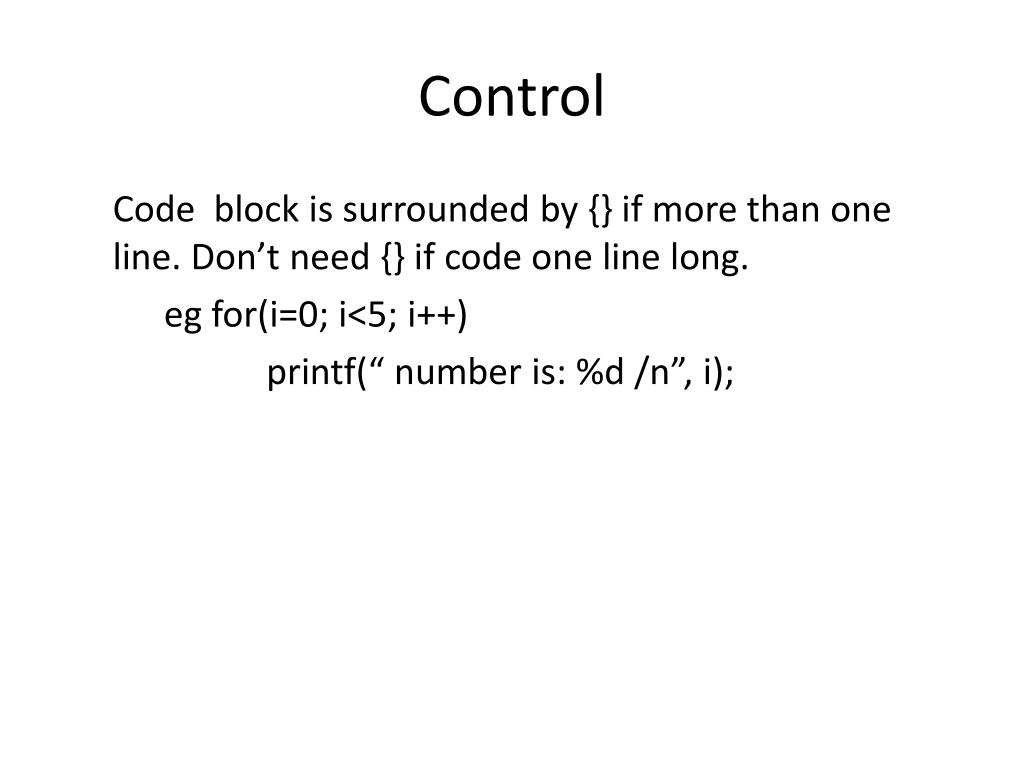

  9. Control Code block is surrounded by {} if more than one line. Don’t need {} if code one line long. eg for(i=0; i<5; i++) printf(“ number is: %d /n”, i);

  10. Functions and Prototypes • C is composed of functions, and must have at least one function called main(). • Functions accept parameters and return values • A “prototype” should be written which indicates what data types a function should accept and return. • Eg int mynumberfunction( int num1, int num2) ;

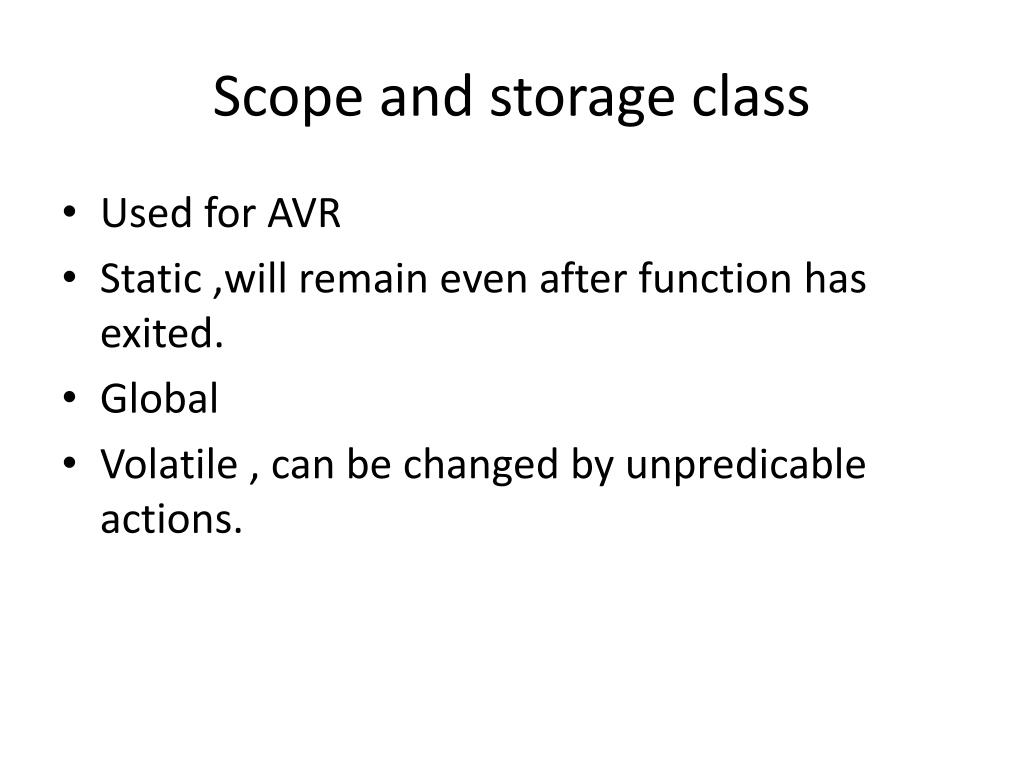

  11. Scope and storage class • Used for AVR • Static ,will remain even after function has exited. • Global • Volatile , can be changed by unpredicable actions.

  12. Preprocessor directives • #include • “localfile” • <standard_locations> /usr/include • #define • #define WIDTH 80 • #define LENGTH ( WIDTH + 10 ) • #define u8  unsigned char

  13. Arrays and strings • int myarray[5]; • int myarray[5]={1, 2, 3}; • int myarray[]={1,2,3,4,5}; • char mychararray=“malcolm”; • A string is a “null terminated” char array.

  14. Structures struct struct_name {       structure_member;       ...     } instance_1,instance_2 instance_n; OR struct struct_name instance_1,instance_2 ,instance3 After defining the structure. http://cprogramminglanguage.net/c-structure.aspx

  15. Structures • Using typedef to avoid struct structurename all the time. • typedef struct{         unsigned int house_number;          char street_name[50];           int zip_code;           char country[50];    } address;    address billing_addr;    address shipping_addr;

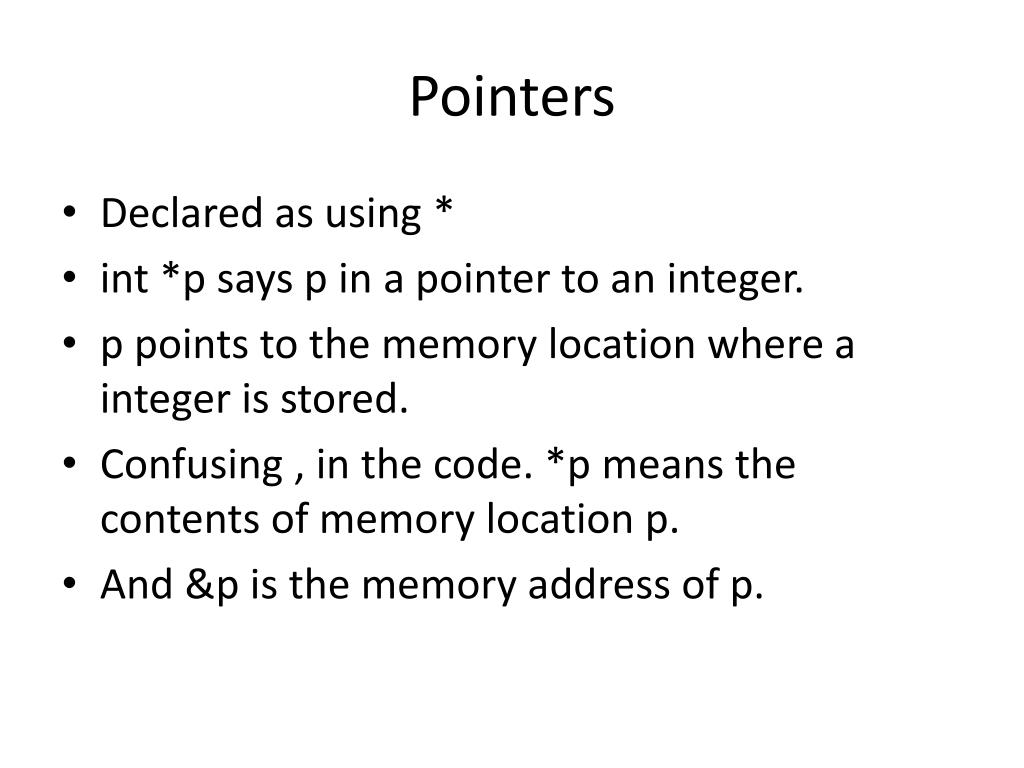

  16. Pointers • Declared as using * • int *p says p in a pointer to an integer. • p points to the memory location where a integer is stored. • Confusing , in the code. *p means the contents of memory location p. • And &p is the memory address of p.

  17. Pointers and arrays • myarray is the same as &myarray[0] • So if an array is initialised as char name[]=“malcolm”; • *(name+3) will be ‘c’;

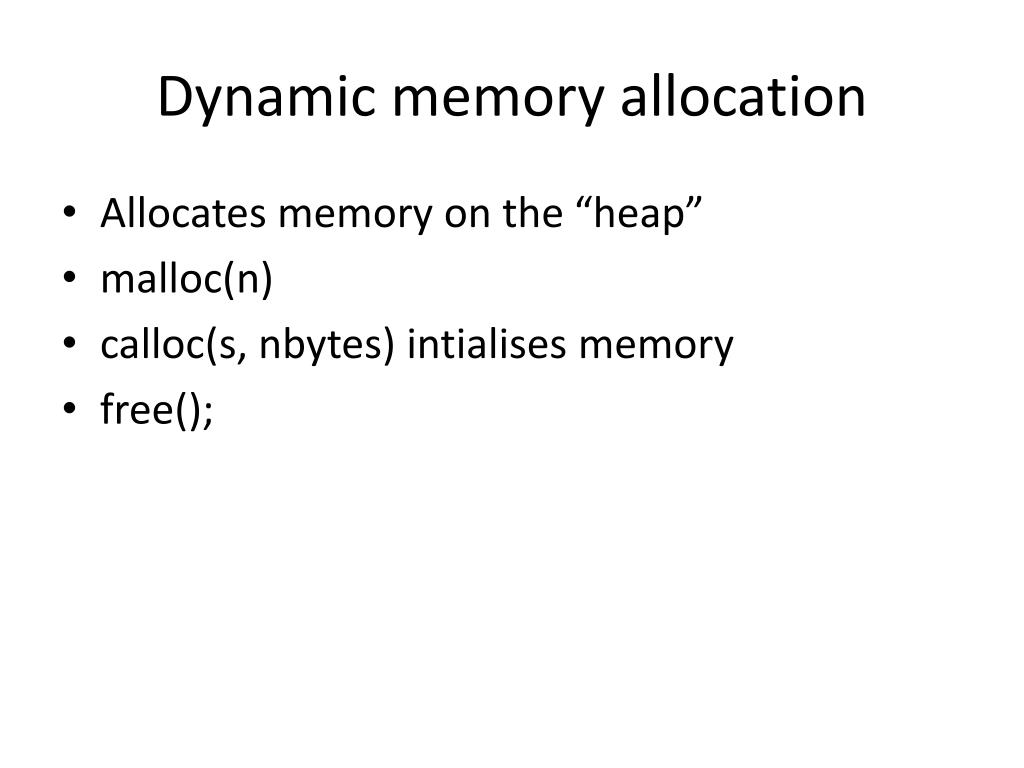

  18. Dynamic memory allocation • Allocates memory on the “heap” • malloc(n) • calloc(s, nbytes) intialises memory • free();

  19. sizeof() • Used for malloc to allocate memory

  20. Pointers and structures #include <stdio.h> #include <stdlib.h> main() { • printf("hello world \n"); • structmystruct{ • int age; • char buffer[20]; • }mydata; • mydata.age=45; • printf("age is %d \n", mydata.age); • structmystruct * d; • d=malloc(sizeof(structmystruct)); • d->age=53; • printf("pointed age is %d \n", d->age); }

  21. argv and argc • int main (int argc, char *argv[]) { } • argc , argument count • argv , argument vector

  22. Boo Boo’s in C • Forgetting the semicolon • Using = in a boolean expression instead of ==. • Completing a loop with no code being executed. • while(test); { code block}

  23. Deep C • Lvalues, Rvalues • Inline functions • Pointers to functions • Pointers to pointers and multidimensional arrays.
