  1. Instructor & Todd Lammle Sybex CCNA 640-802 Chapter 9: VLAN’s

  2. Chapter 9 Objectives The CCNA Topics Covered in this chapter include: • What is a VLAN? • VLAN Memberships • VLAN links • Frame tagging • VTP • Trunking • Configuring VLANs • Inter-VLAN Communication • Configuration examples 2

  3. Virtual LANs (VLANs) • Definition:A logical grouping of network users and resources connected to administratively defined ports on a switch. • Smaller broadcast domains • Organized by: • Location • Function • Department • Application or protocol

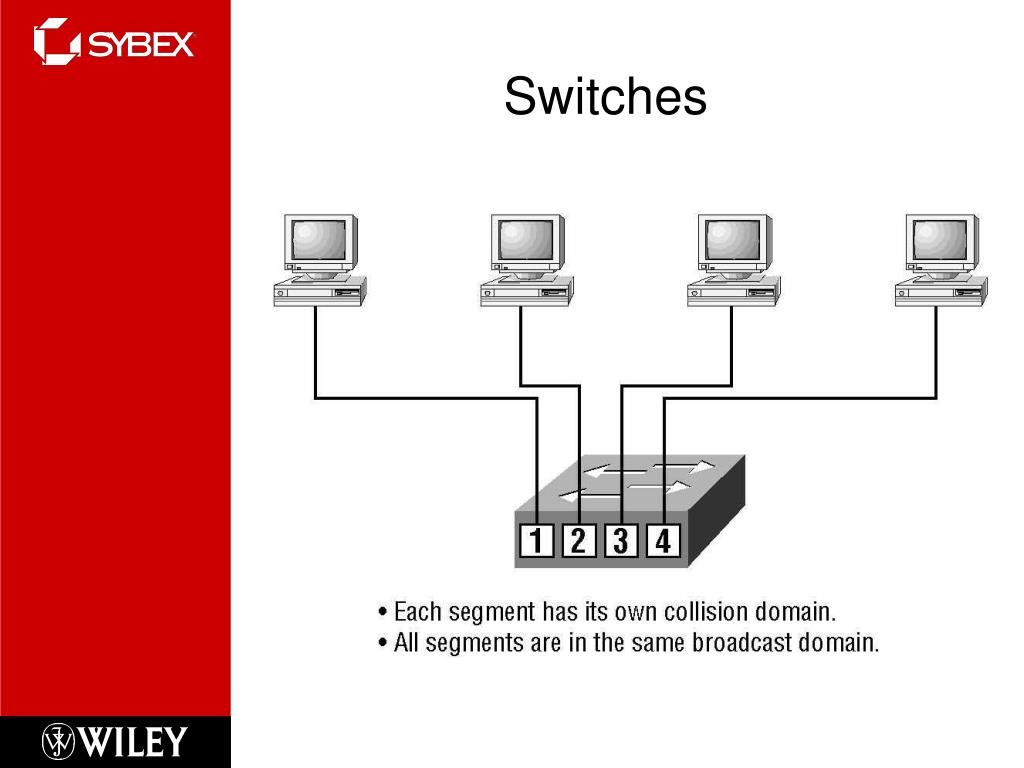

  4. Switches

  5. Features of VLANs • Simplify network management • Provides a level of security over a flat network • Flexibility and Scalability

  6. Broadcast Control • Broadcasts occur in every protocol • Bandwidth & Broadcasts • Flat network • VLANs & Broadcasts

  7. Flat Network Structure

  8. Security • Flat network problems • VLANs

  9. Flexibility & Scalability • Layer-2 switches only read frames • Can cause a switch to forward all broadcasts • VLANs • Essentially create broadcast domains • Greatly reduces broadcast traffic • Ability to add wanted users to a VLAN regardless of their physical location • Additional VLANs can be created when network growth consumes more bandwidth

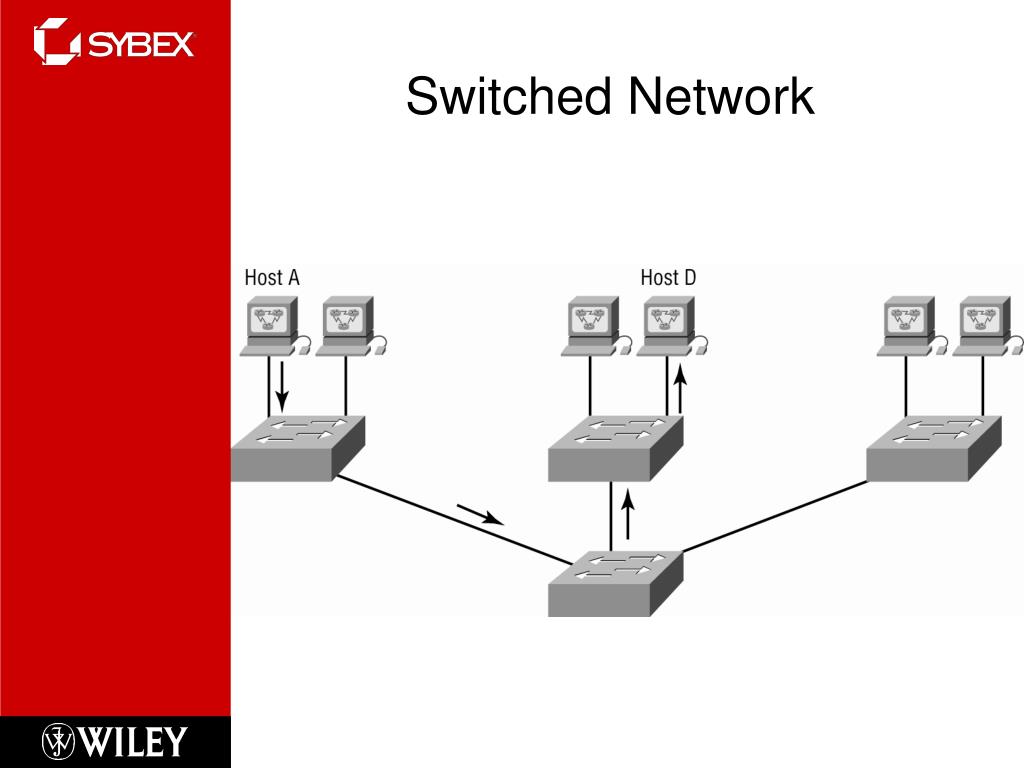

  10. Switched Network

  11. Physical LANs Connected To A Router

  12. VLANs Remove The Physical Boundary

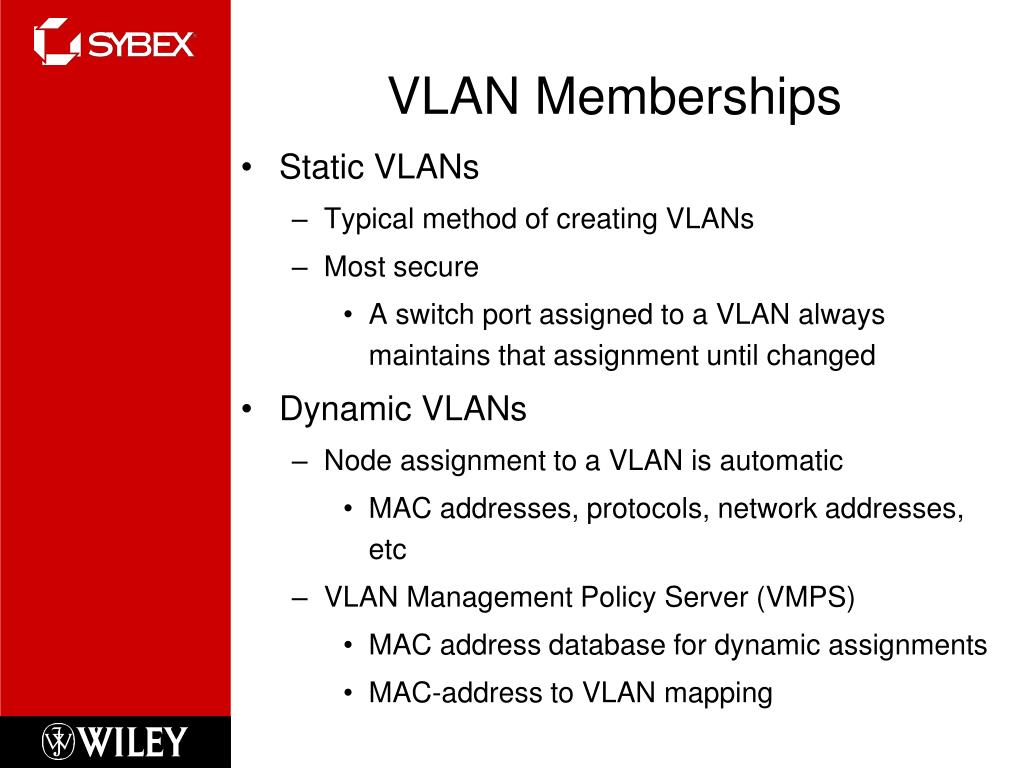

  13. VLAN Memberships • Static VLANs • Typical method of creating VLANs • Most secure • A switch port assigned to a VLAN always maintains that assignment until changed • Dynamic VLANs • Node assignment to a VLAN is automatic • MAC addresses, protocols, network addresses, etc • VLAN Management Policy Server (VMPS) • MAC address database for dynamic assignments • MAC-address to VLAN mapping

  14. Identifying VLANs • Access links • A link that is part of only one VLAN • Trunk links • Carries multiple VLANs

  15. Identifying VLANs (cont.)

  16. Frame Tagging • Definition: A means of keeping track of users & frames as they travel the switch fabric & VLANs • User-defined ID assigned to each frame • VLAN ID is removed before exiting trunked links & access links

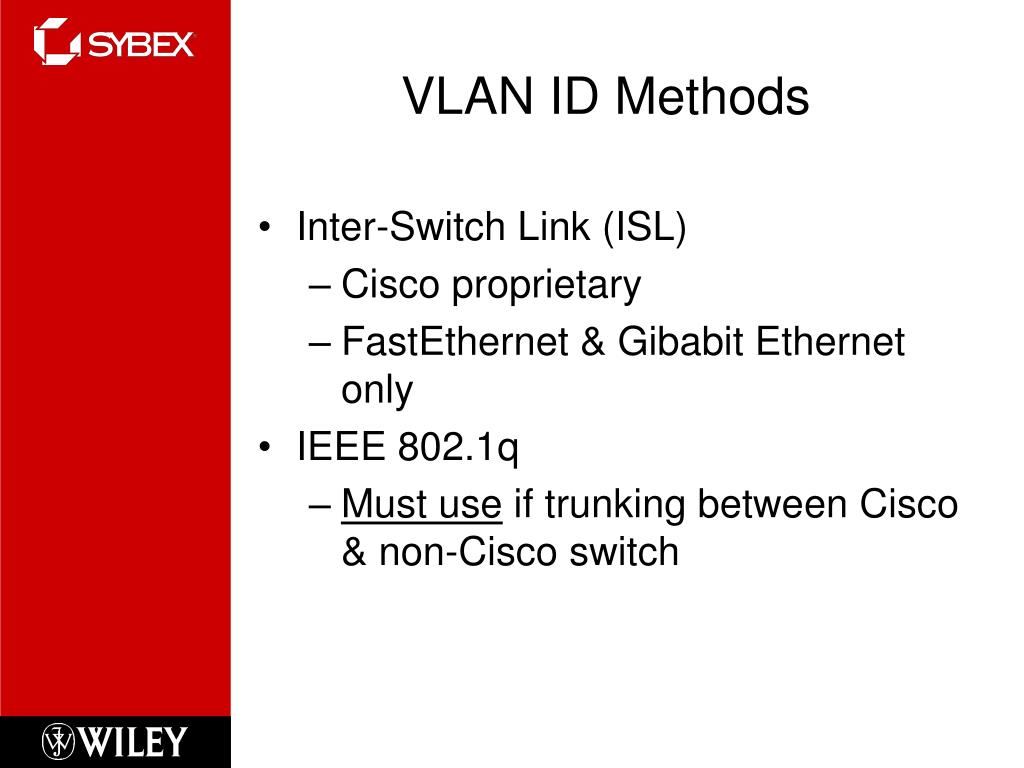

  17. VLAN ID Methods • Inter-Switch Link (ISL) • Cisco proprietary • FastEthernet & Gibabit Ethernet only • IEEE 802.1q • Must use if trunking between Cisco & non-Cisco switch

  18. Inter-Switch Link (ISL) Protocol • Definition: A means of explicitly tagging VLAN information onto an Ethernet frame • Allows VLANs to be multiplexed over a trunk line • Cisco proprietary • External tagging process

  19. VLAN Trunk Protocol (VTP) • Purpose: to manage all configured VLANs across a switch internetwork & maintain consistency • Allows an administrator to add, delete, & rename VLANs

  20. VTP Benefits • Benefits • Consistent configuration • Permits trunking over mixed networks • Accurate tracking • Dynamic reporting • Plug-and-Play • A VTP server must be created to manage VLANs

  21. VTP Modes

  22. VTP Modes of Operation • Server • Default for all Catalyst switches • Minimum one server for a VTP domain • Client • Receives information + sends/receives updates • Cannot make any changes • Transparent • Does not participate in a VTP domain but forwards VTP advertisements • Can add/delete VLANs • Locally significant

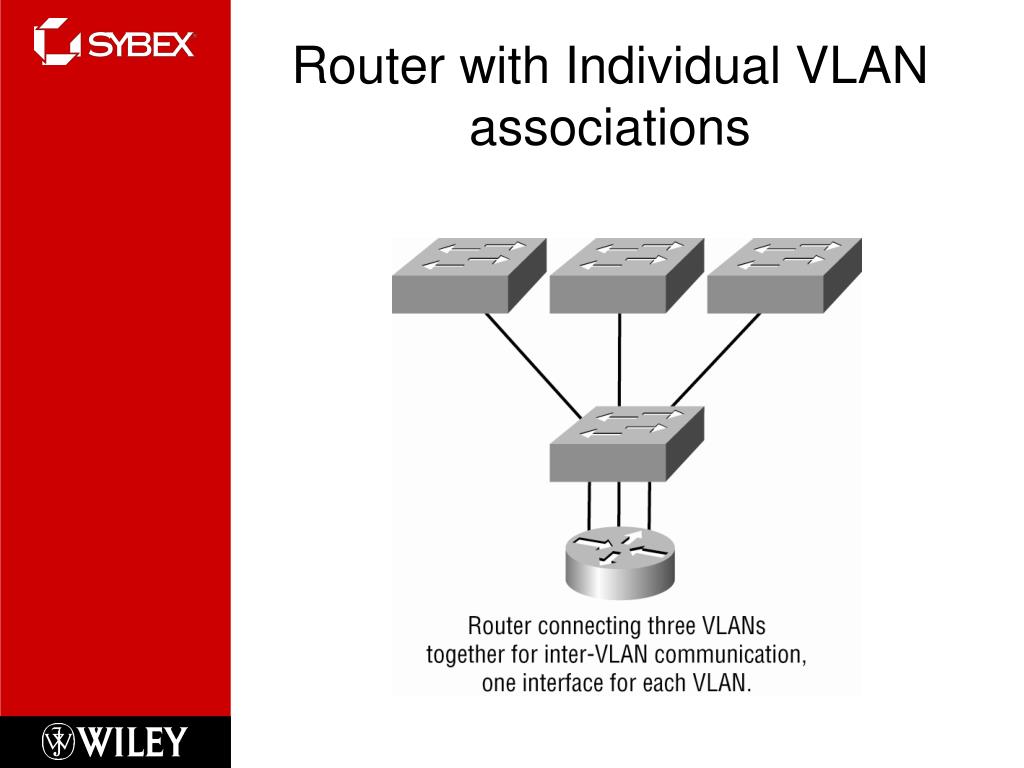

  23. Router with Individual VLAN associations

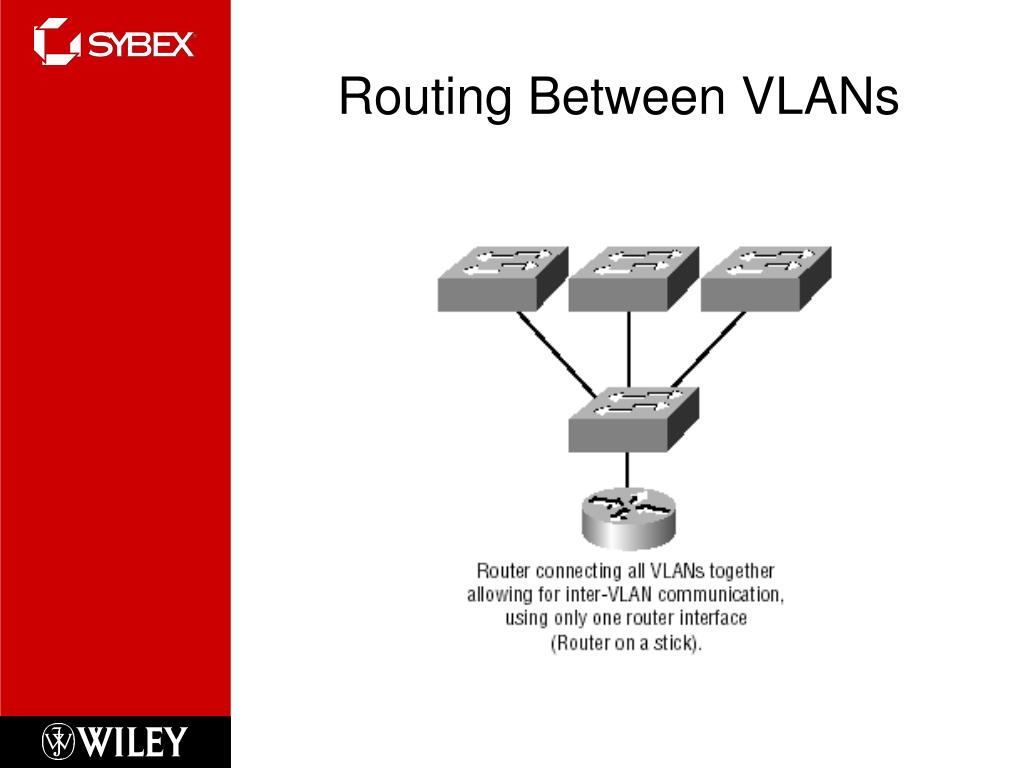

  24. Routing Between VLANs

  25. Configuring VLANs • Creating VLANs • Assigning Switch Ports to VLANs • Configuring Trunk Ports • Configuring Inter-VLAN routing

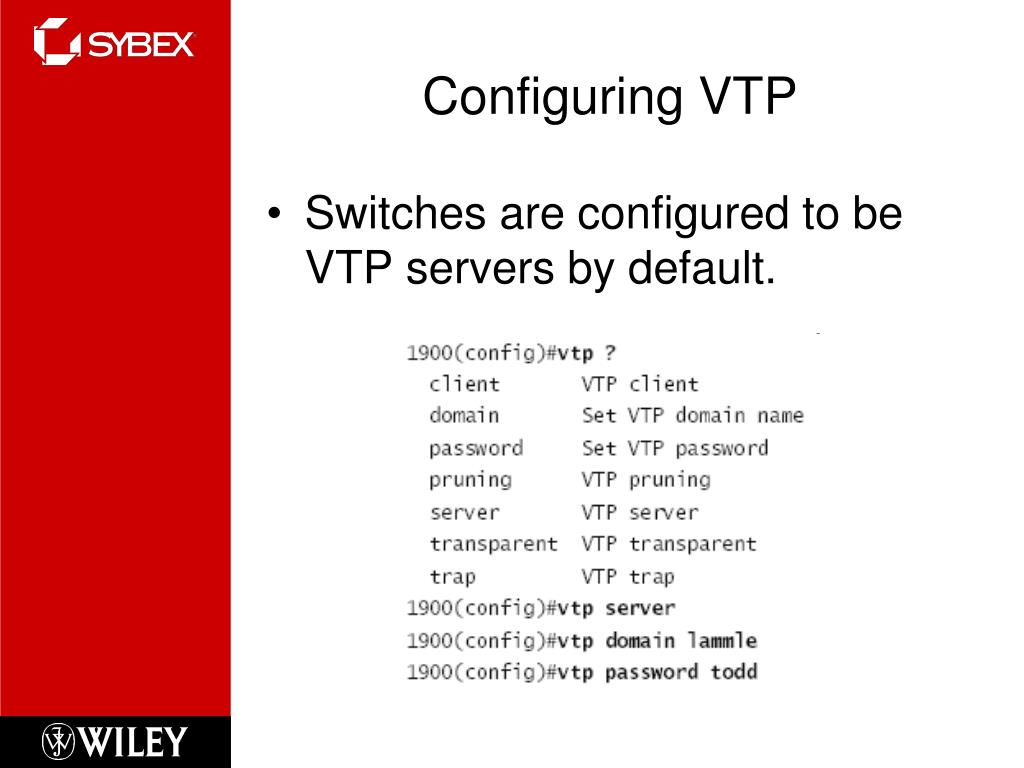

  26. Configuring VTP • Switches are configured to be VTP servers by default.

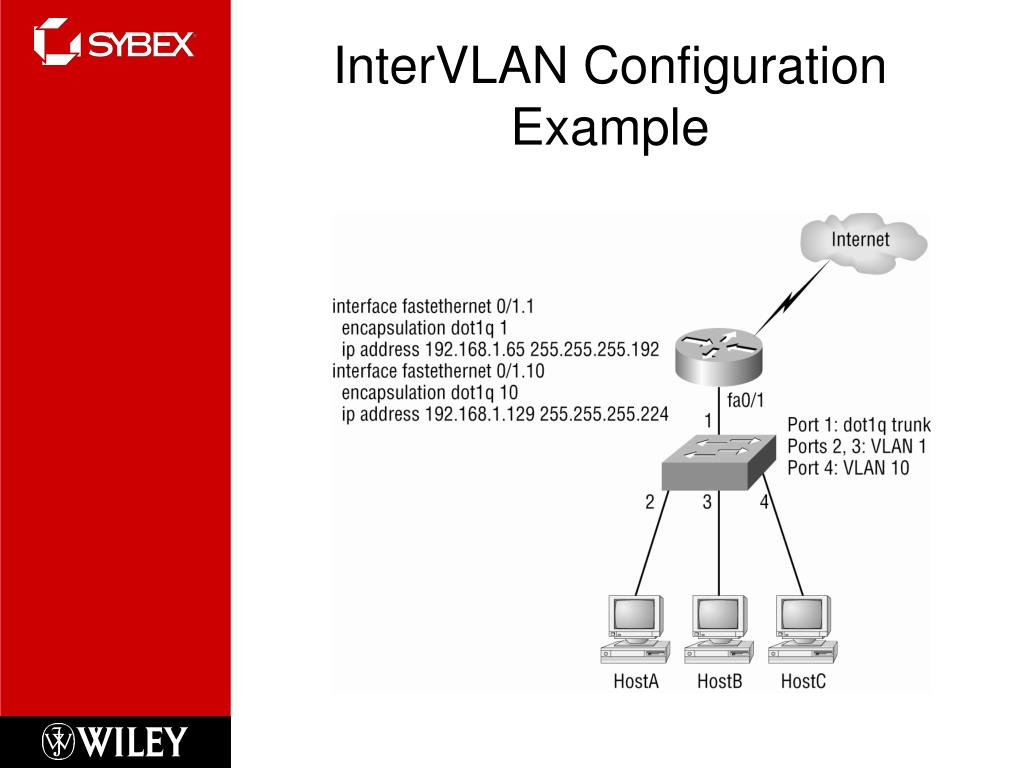

  27. InterVLAN Configuration Example

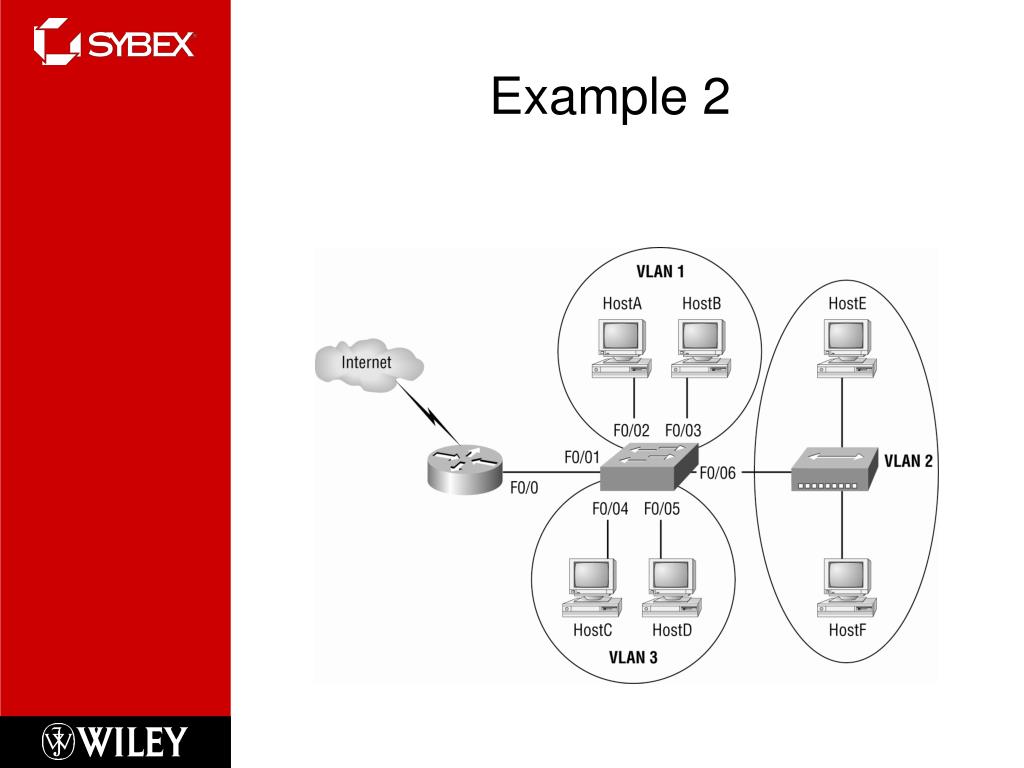

  28. Example 2

  29. Example 3

  30. Example 4

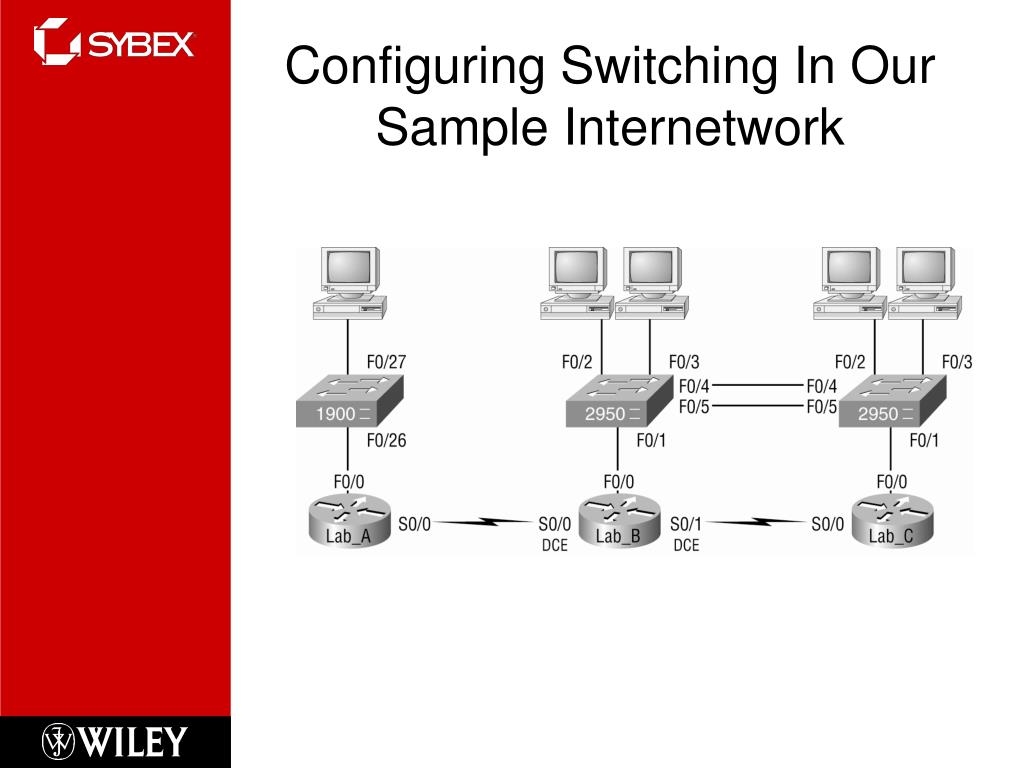

  31. Configuring Switching In Our Sample Internetwork

  32. 2950C

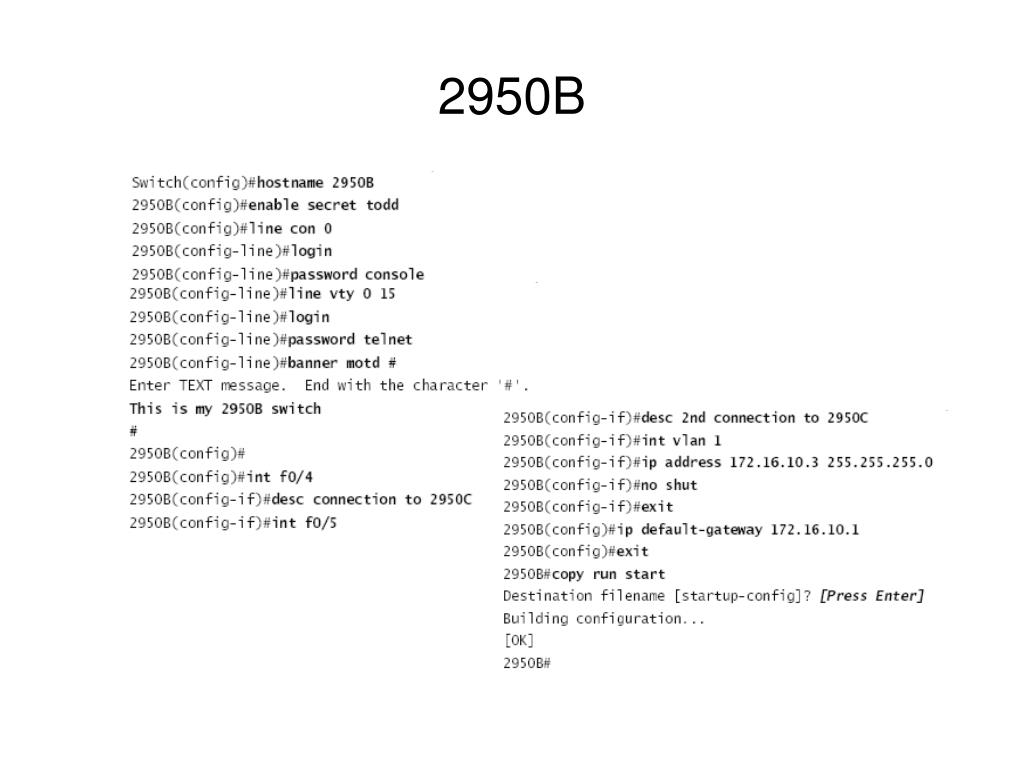

  33. 2950B

  34. Setting Up Trunking

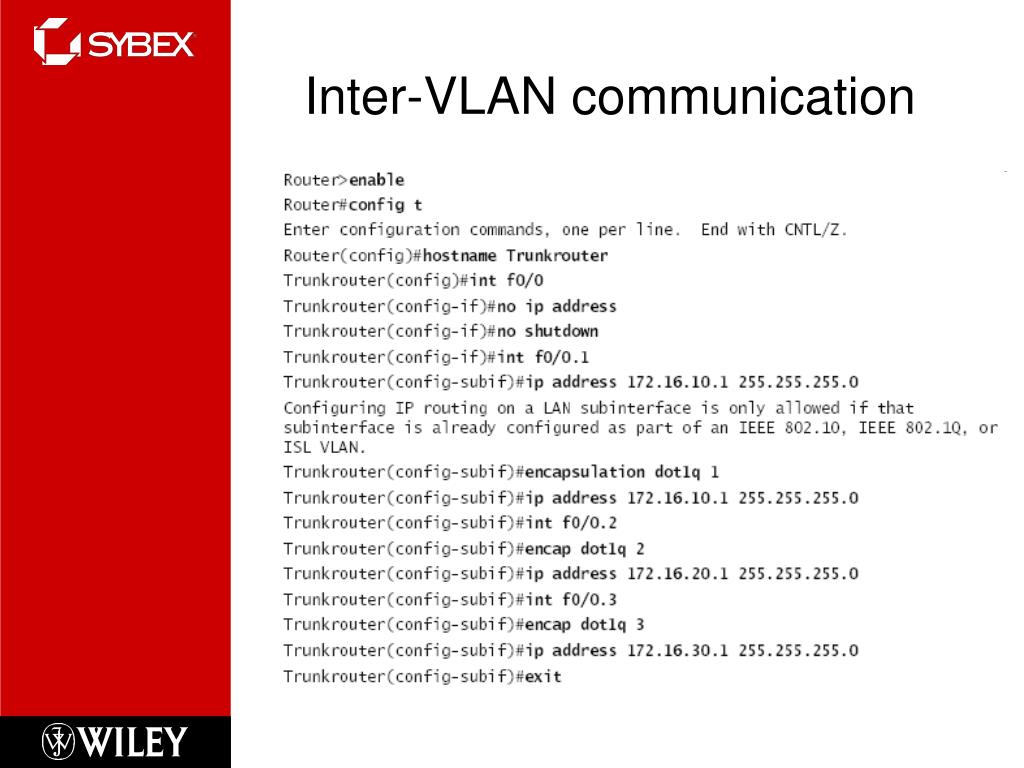

  35. Inter-VLAN communication

  36. Written Labs and Review Questions • Open your books and go through all the written labs and the review questions. • Review the answers in class. 36
