  1. DTI Research Projects in Image-Guided Therapy Lauren O’Donnell

  2. Neurosurgical Planning for White Matter • Tumor mass effect displaces • Gray matter (GM) • White matter (WM) • Tracts are not visible during surgery • Electrocortical stimulation for GM not WM • Healthy WM and tumor may have same “jello-like” consistency • To preserve function • Avoid crucial tracts • Incision and trajectory planning • Challenges in DTI Tractography for IGT • Displacement complicates tract selection/identification • Edema may interrupt tract tracing • Anatomy not completely traced by single tensor Defining Spatial Relationships Between fMRI and Fiber Tracts

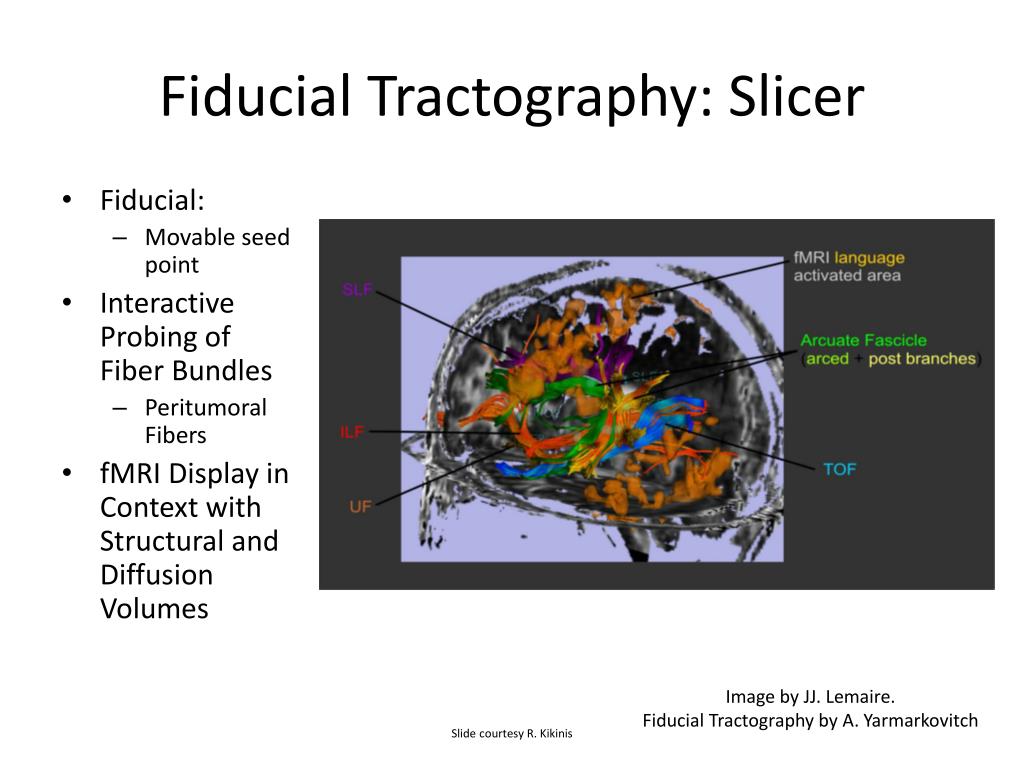

  3. Fiducial Tractography: Slicer • Fiducial: • Movable seed point • Interactive Probing of Fiber Bundles • Peritumoral Fibers • fMRI Display in Context with Structural and Diffusion Volumes Image by JJ. Lemaire. Fiducial Tractography by A. Yarmarkovitch Slide courtesy R. Kikinis

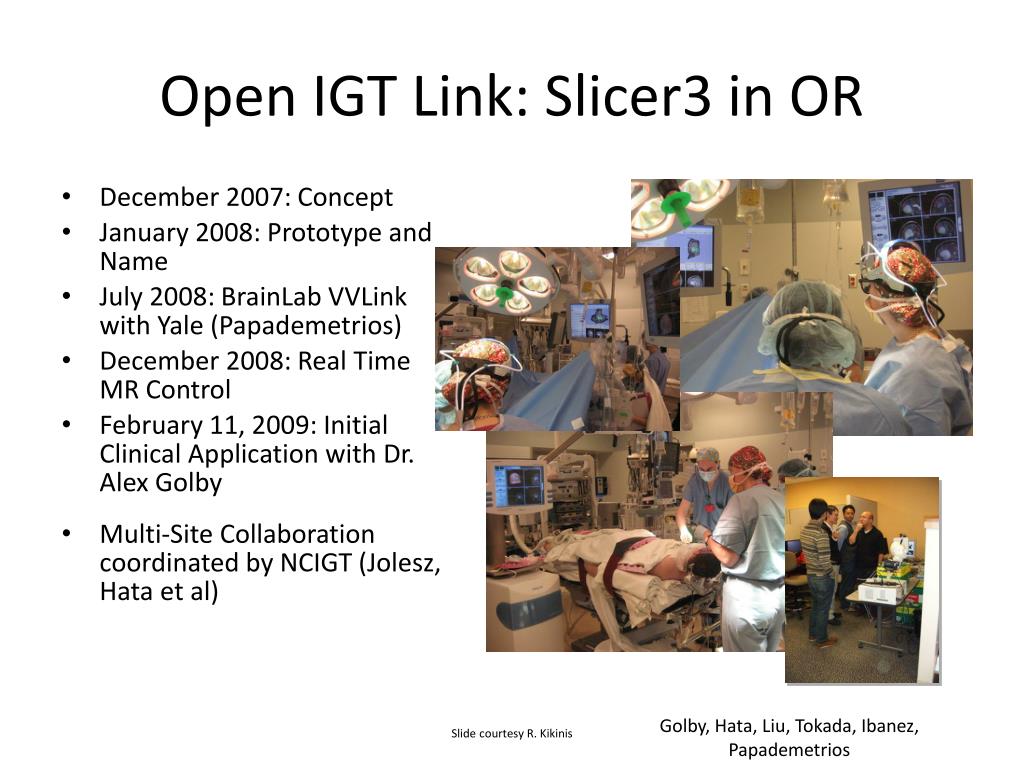

  4. Open IGT Link: Slicer3 in OR • December 2007: Concept • January 2008: Prototype and Name • July 2008: BrainLab VVLink with Yale (Papademetrios) • December 2008: Real Time MR Control • February 11, 2009: Initial Clinical Application with Dr. Alex Golby • Multi-Site Collaboration coordinated by NCIGT (Jolesz, Hata et al) Golby, Hata, Liu, Tokada, Ibanez, Papademetrios Slide courtesy R. Kikinis

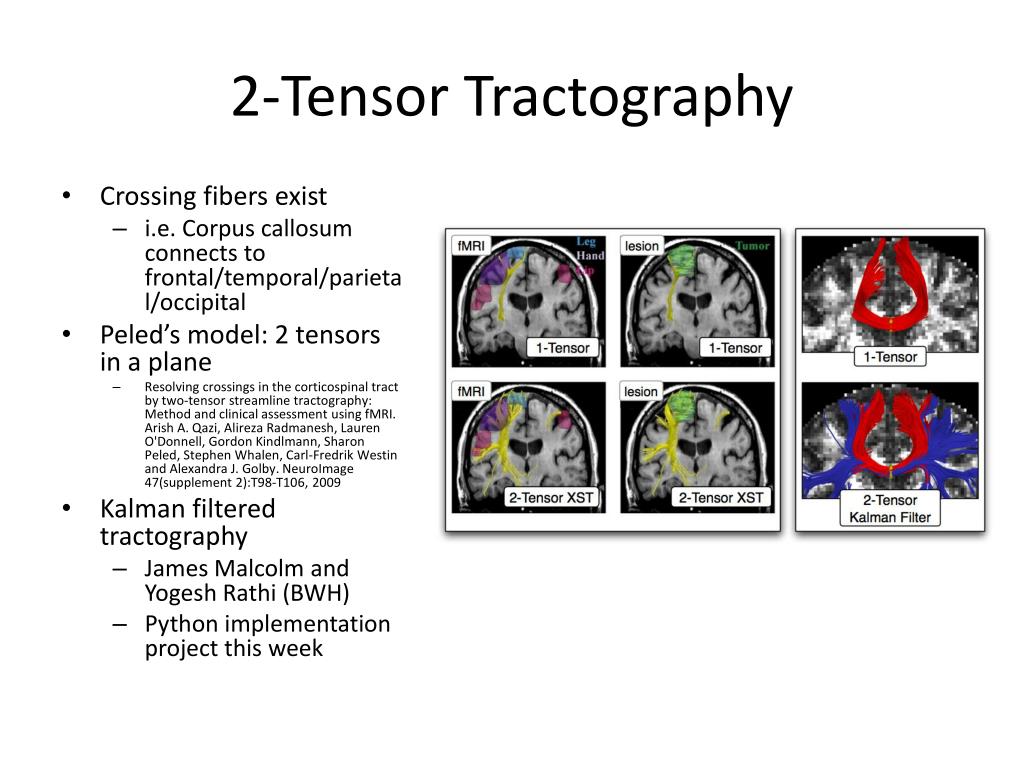

  5. 2-Tensor Tractography • Crossing fibers exist • i.e. Corpus callosum connects to frontal/temporal/parietal/occipital • Peled’s model: 2 tensors in a plane • Resolving crossings in the corticospinal tract by two-tensor streamline tractography: Method and clinical assessment using fMRI. Arish A. Qazi, Alireza Radmanesh, Lauren O'Donnell, Gordon Kindlmann, Sharon Peled, Stephen Whalen, Carl-Fredrik Westin and Alexandra J. Golby. NeuroImage 47(supplement 2):T98-T106, 2009 • Kalman filtered tractography • James Malcolm and Yogesh Rathi (BWH) • Python implementation project this week

  6. DTI+fMRI Atlas Project: Identify displaced tracts • Proposed model • fMRI-fiber distances O’Donnell et. al. Defining Spatial Relationships Between fMRI and Fiber Tracts. MICCAI Diffusion Workshop 2009

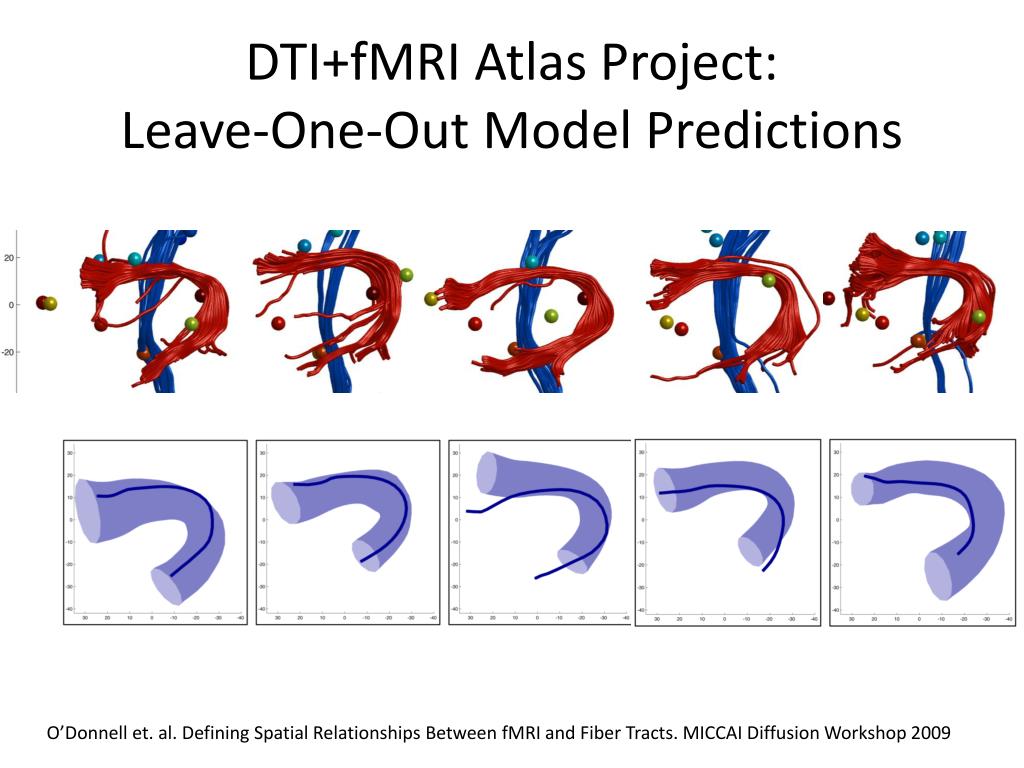

  7. DTI+fMRI Atlas Project: Leave-One-Out Model Predictions O’Donnell et. al. Defining Spatial Relationships Between fMRI and Fiber Tracts. MICCAI Diffusion Workshop 2009
