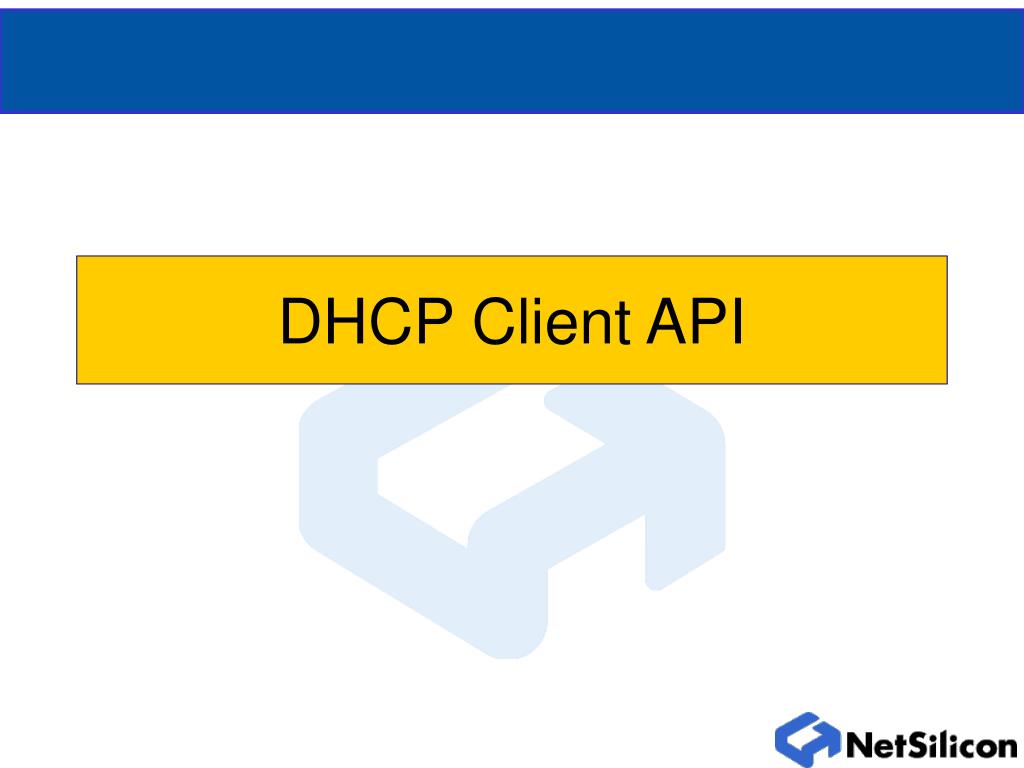

DHCP Client API


Auto configuration with dhcp

1

Discover

2

Offer

3

4

Request

Acknowledge

Auto-Configuration with DHCP

DHCP Server

NETWORK


Enabling the dhcp client

Using Appconf.h

Set APP_USE_NVRAM to 0

Set APP_IP_USE_DHCP to 1

Using NVRAM

Set APP_USE_NVRAM to 0

Use the useDHCP datamember

Enable or disable DHCP through the defaultParameters record defaultParams) or NVRAM (nvParams)

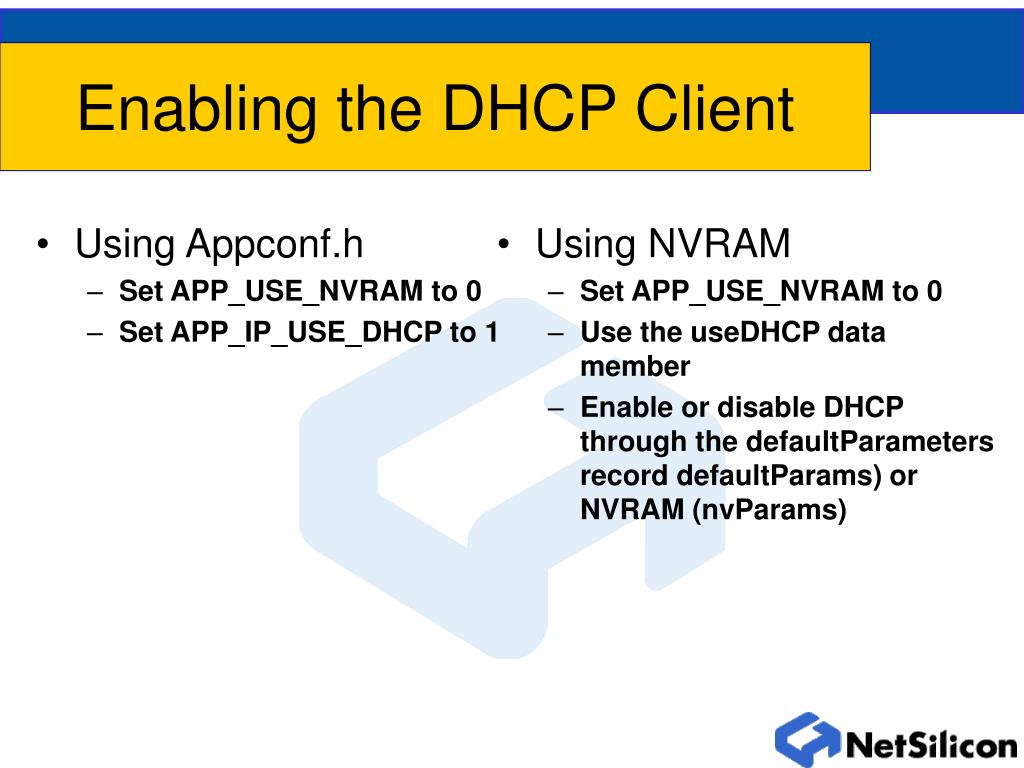

Enabling the DHCP Client


After enabling the client

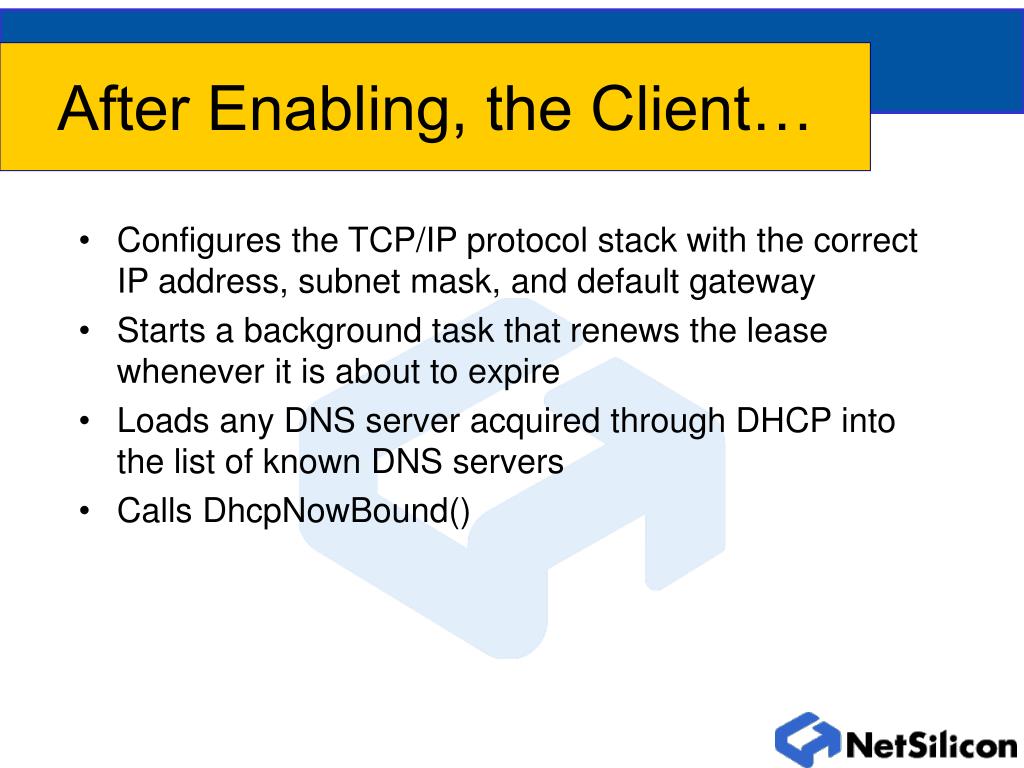

After Enabling, the Client…

  • Configures the TCP/IP protocol stack with the correct IP address, subnet mask, and default gateway

  • Starts a background task that renews the lease whenever it is about to expire

  • Loads any DNS server acquired through DHCP into the list of known DNS servers

  • Calls DhcpNowBound()


Dhcp api

DhcpNowBound()

DhcpLostLease()

Called when DHCP server acknowledges the client.

IP Parameters accessible from within this function:

IP Address

Subnet Mask

Default Gateway

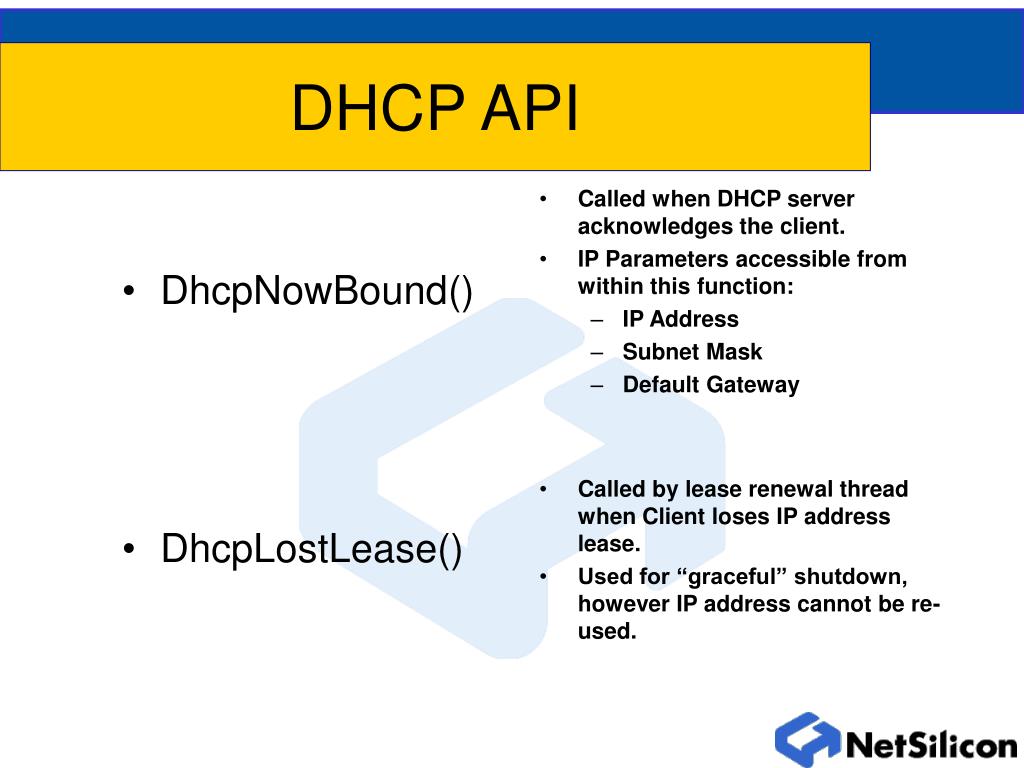

DHCP API

  • Called by lease renewal thread when Client loses IP address lease.

  • Used for “graceful” shutdown, however IP address cannot be re-used.
