  1. Comparison of Discrimination Methods for the Classification of Tumors Using Gene Expression Data Presented by: Tun-Hsiang Yang

  2. purpose of this paper • Compare the performance of different discrimination methods • Nearest Neighbor classifier • Linear discriminant analysis • Classification tree • Machine learning approaches: bagging, boosting • Investigate the use of prediction votes to assess the confidence of each prediction

  3. Statistical problems: • The identification of new/unknown tumor classes using gene expression profiles Clustering analysis/unsupervised learning • The classification of malignancies into known classes Discriminant analysis/supervised learning • The identification of marker genes that identified different tumor classes  Variable (Gene) selection

  4. Datasets Gene expression data on p genes for n mRNA samples: n x p matrix X={x ij}, where x ij denotes the expression level of gene (variable) j in ith mRNA sample(observation) Response: k-dimensional vector Y={yi}, where yi denotes the class of observation i • Lymphoma dataset (p=4682, n=81,k=3) • Leukemia dataset (p=3571, n=72, k=3 or 2) • NCI 60 dataset (p=5244, n=61, k=8)

  5. Data preprocessing • Imputation of missing data (KNN) • Standardization of data (Euclidean distance) • preliminary gene selection • Lymphoma dataset (p=4682  p=50, n=81,k=3) Leukemia dataset (p=3571p=40, n=72, k=3) NCI 60 dataset (p=5244p=30, n=61, k=8)

  6. Visual presentation of Leukemia dataset P=3571 p=40 Correlation matrix (72x72) ordered by class Black: 0 correlation / Red: positive correlation / Green: negative correlation

  7. Prediction Methods • Supervised Learning Methods • Machine learning approaches

  8. Supervised Learning Methods • Nearest Neighbor classifier(NN) • Fisher Linear Discriminant Analysis (LDA) • Weighted Gene Voting • Classification trees (CART)

  9. Nearest Neighbor The k-NN rule • Find the k closest observations in the learning set • Predict the class for each element in the test dataset by majority vote • K is chosen by minimizing cross-validation error rate

  10. Linear Discirminantion Analysis FLDA consists of • finding linear functions a’x of the gene expression levels x=(x1, …,xp)with large ratio of between groups to within groups sum of squares • Predicting the class of an observation by the class whose mean vector is closest to the discrimination variables

  11. Maximum likelihood discriminant rules • Predicts the class of an observation x as C(x)=argmaxkpr(x|y=k)

  12. Weighted Gene Voting • An observation x=(x1,…xp) is classified as 1 iff • Prediction strength as the margin of victory(p9)

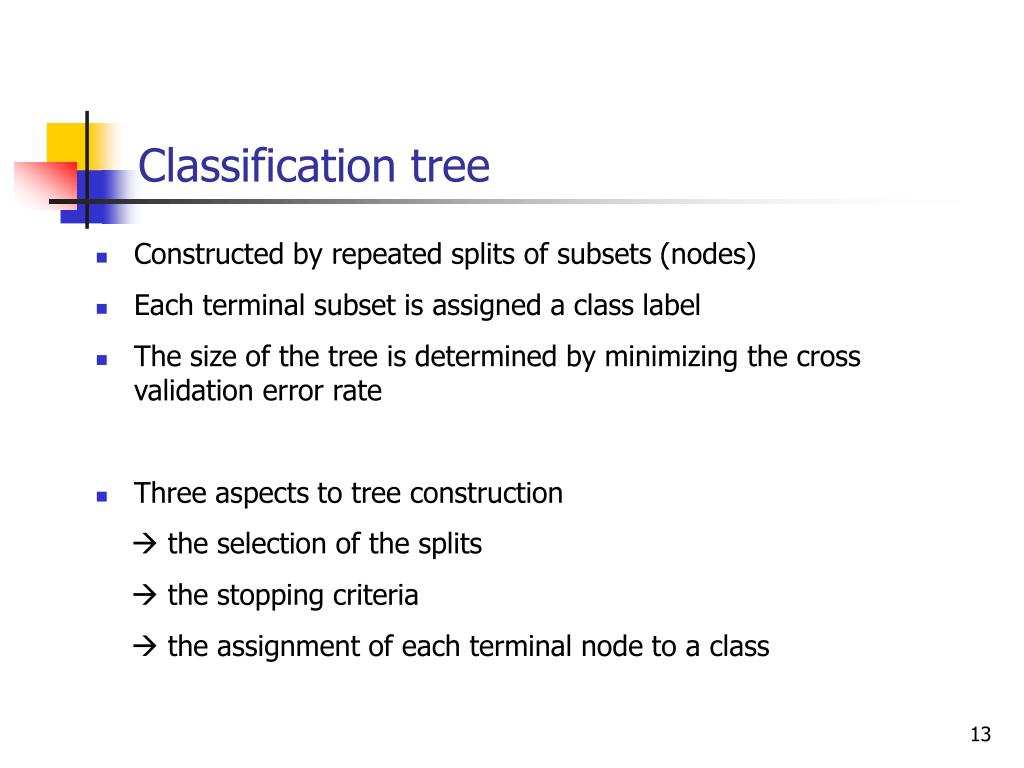

  13. Classification tree • Constructed by repeated splits of subsets (nodes) • Each terminal subset is assigned a class label • The size of the tree is determined by minimizing the cross validation error rate • Three aspects to tree construction  the selection of the splits  the stopping criteria  the assignment of each terminal node to a class

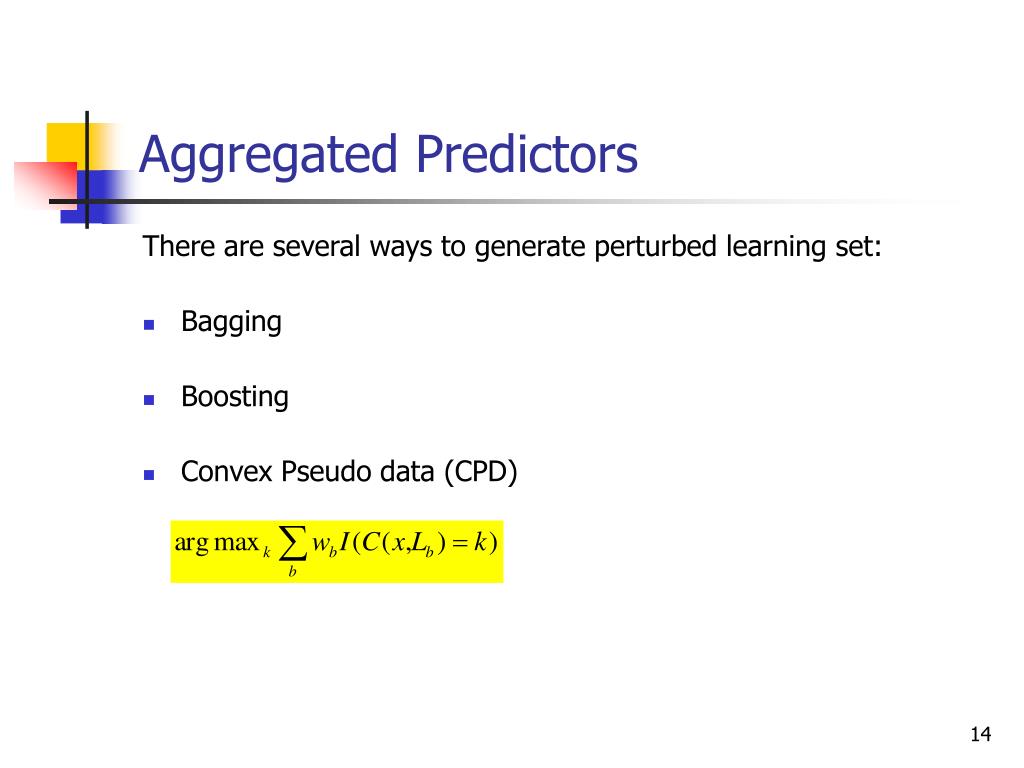

  14. Aggregated Predictors There are several ways to generate perturbed learning set: • Bagging • Boosting • Convex Pseudo data (CPD)

  15. Bagging Predictors are built for each sub-sample and aggregated by Majority voting with equal wb=1 Non-parametric bootstrap: • drawing at random with replacement to form a perturbed learning sets of the same size as the original learning set • By product: out of bag observations can be used to estimate misclassification rates of bagged predictors • A prediction for each observation (xi, yi) is obtained by aggregating the classifiers in which (xi,yi) is out-of-bag

  16. Bagging (cont.) Parametric bootstrap: • Perturbed learning sets are generated according to a mixture of MVN distributions • For each class k, the class sample mean and covariance matrix were taken as the estimates of distribution parameters • Make sure at least one observation sampled from each class

  17. Boosting The bth step of the boosting algorithm • Get another learning set Lb of the same size nL • Build a classifier based on Lb • Run the learning set L let di=1 if the ith case is classified incorrectly di=0 otherwise • Define b=Pidi and Bbdi=(1- b)/ b Update by pi=piBbdi/  piBbdi • Re-sampling probabilities are reset to equal if b>=1/2 or b=0

  18. Prediction votes For aggregated classifiers, prediction votes assessing the strength of a prediction may be defined for each observation The prediction vote (PV) for an observation x

  19. Study Design • Randomly divide the dataset into a learning and test set (2:1 scheme) For each of N=150 runs: • Select a subset of p genes from the learning set with the largest BSS/WSS • Build the different predictors using the learning sets with p genes • Apply the predictors to the observations in the test set to obtain test set error rates

  20. Results • Test set error rates: apply classifier build based on learning set to test set. Summarized by box-plot over runs • Observation-wise error rates: for each observation, record the proportion of times it was classified incorrectly. Summarized by means of survival plots • Variable selection: compare the effect of increasing or decreasing number of genes (variables)

  21. Leukemia data, two classes

  22. Leukemia data, three classes

  23. Lymphoma data

  24. Conclusions • In the main comparison, NN and DLDA had the smallest error rates, while FLDA had the highest error rates • Aggregation improved the performance of CART classifiers, the largest gains being with boosting and bagging with CPD • For the lymphoma and leukemia datasets, increasing the number of variables to p=200 did not affect much the performance of the various classifiers. There was an improvement for the NCI 60 dataset. • A more carefully selection of a small number of genes (p=10) improved the performance of FLDA dramatically
