Capillary Pressure: Reservoir SealCapillary Pressure / Saturation Relationship (Sw* Model)

reservoir seal
Reservoir Seal

Seal

Seal

Fault

(impermeable)

Oil/water

contact (OWC)

Migration route

Reservoir

rock

Hydrocarbon

accumulation

in the

reservoir rock

Top of maturity

Source rock

reservoir seal1
Reservoir Seal
  • The seal for a reservoir is usually provided by a water wet zone with low (but finite) permeability
    • Typically a shale
  • Darcy’s Law would indicate that with a finite permeability, gravity effect alone would cause petroleum to pass upward through the seal due to density difference, over a long (geologic) time period
    • Darcy’s Law is a “Rate Process” (ENGR 112)
  • For multiple phases flowing, the Darcy flow potential includes pressure, gravity, and capillary pressure terms
    • Effect of displacement pressure of seal halts upward migration of petroleum in trap
    • Displacement pressure of seal can limit total height of reservoir, from free water level to highest elevation in reservoir
slide4

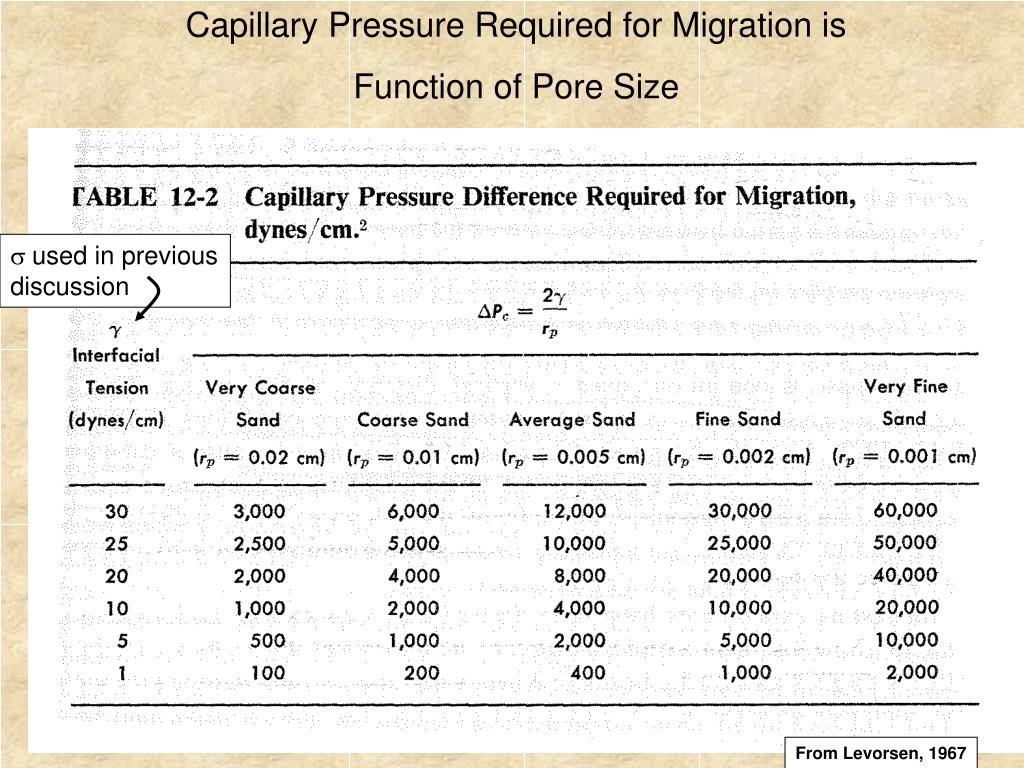

Capillary Pressure Required for Migration is

Function of Pore Size

s used in previous discussion

From Levorsen, 1967

slide5

Capillary Pressure Required for Migration is

Function of Pore Size

From Levorsen, 1967

s w power law model
Sw* Power Law Model
  • Having an equation model for capillary pressure curves is useful
    • Smoothing of laboratory data
    • Determination of l
    • Analytic function for integration (future topic)
  • The Sw* Power Law Model is an empirical model that has proven to work well
    • Model parameters: Swi, Pd, l
s w power law model1
Sw* Power Law Model
  • Sw* rescales x-axis

Sw*=0

Sw*=1

Sw*, fraction

s w power law model2
Sw* Power Law Model
  • Power Law Equations plot as Log-Log straight line
s w power law model3
Sw* Power Law Model
  • Straight line models are excellent for
    • Interpolation and data smoothing
    • Extrapolation
    • Self Study: review Power Law Equations (y=axb) and how to determine coefficients, a and b given two points on the straight log-log line
s w power law model4
Sw* Power Law Model
  • Pd, l can be determined from Log-Log plot
  • But, Swi can be difficult to determine from Cartesian plot, if data does not clearly show vertical asymptote
s w power law model5
Sw* Power Law Model
  • Choosing wrong Swi limits accuracy of determining Pd, l
