Patent Processing with GATE

Kalina Bontcheva, Valentin TablanUniversity of Sheffield

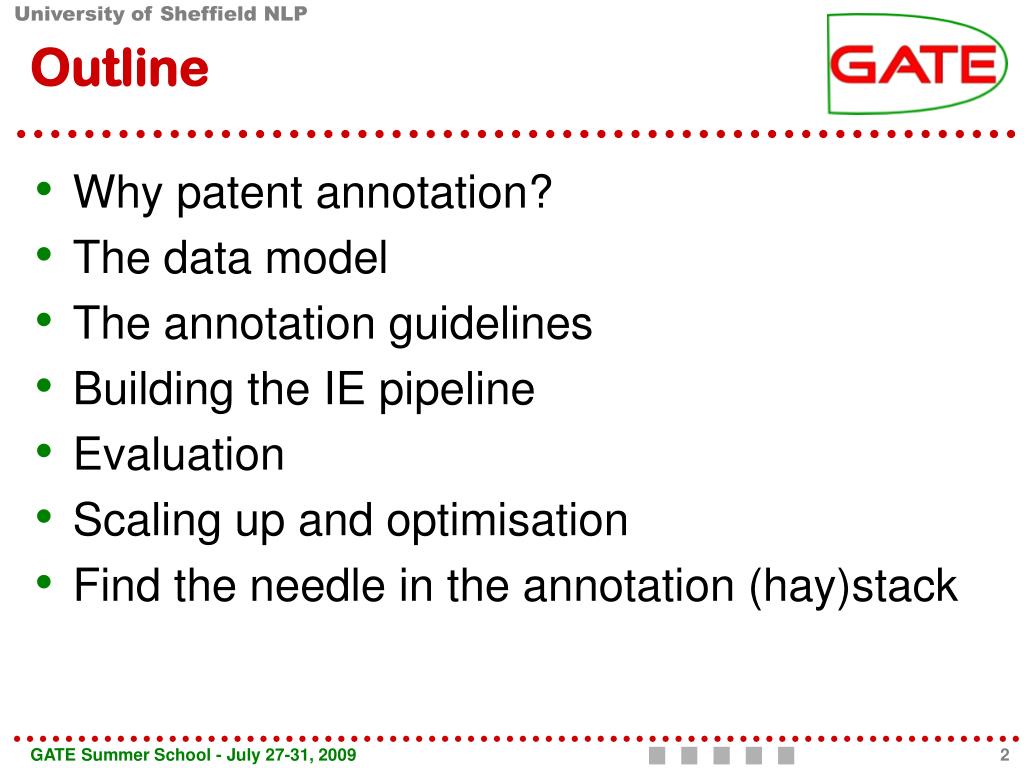

Outline

Outline

  • Why patent annotation?

  • The data model

  • The annotation guidelines

  • Building the IE pipeline

  • Evaluation

  • Scaling up and optimisation

  • Find the needle in the annotation (hay)stack

GATE Summer School - July 27-31, 2009


What is semantic annotation

What is Semantic Annotation?

  • Semantic Annotation:

    • Is about attaching tags and/or ontology classes to text segments;

    • Creates a richer data space and can allow conceptual search;

  • Suitable for high-value content

  • Can be:

    • Fully automatic, semi-automatic, manual

    • Social

    • Learned

GATE Summer School - July 27-31, 2009


Semantic annotation

Semantic Annotation

GATE Summer School - July 27-31, 2009


Why annotate patents

Why annotate patents?

  • Simple text search works well for the Web, but,

    • patent searchers require high recall (web search requires high precision);

    • patents don't contain hyperlinks;

    • patent searchers need richer semantics than offered by simple text search;

    • patent text amenable to HLT due to regularities and sub-language effects.

GATE Summer School - July 27-31, 2009


How can annotation help

How can annotation help?

  • Format irregularities

    • “Fig. 3”, “FIG 3”, “Figure 3”, etc.

  • Data normalisation

    • “Figures. 3 to 5” -> FIG. 2, FIG 4, FIG 5.

    • “23rd Oct 1998” -> 19981023

  • Text mining – discovery of:

    • product names and materials;

    • references to other patents, publications and prior art;

    • measurements.

    • etc.

GATE Summer School - July 27-31, 2009


Manual vs automatic

Manual vs. Automatic

  • Manual SA

    • high quality

    • very expensive

    • requires small data or many users (e.g flickr, del.icio.us).

  • Automatic SA

    • inexpensive

    • medium quality

    • can only do simple tasks

  • Patent data

    • too large to annotate manually

    • too difficult to annotate fully automatically

GATE Summer School - July 27-31, 2009


The sam projects

The SAM Projects

  • Collaboration between Matrixware, Sheffield GATE team, and Ontotext

  • Started in 2007 and ongoing

    • Pilot study for applicability of Semantic Annotation to patents

    • GATE Teamware: Infrastructure for collaborative semantic annotation

    • Large scale experiments

    • Mimir: Large scale indexing infrastructure supporting hybrid search (text, annotations, meaning)

GATE Summer School - July 27-31, 2009


Technologies

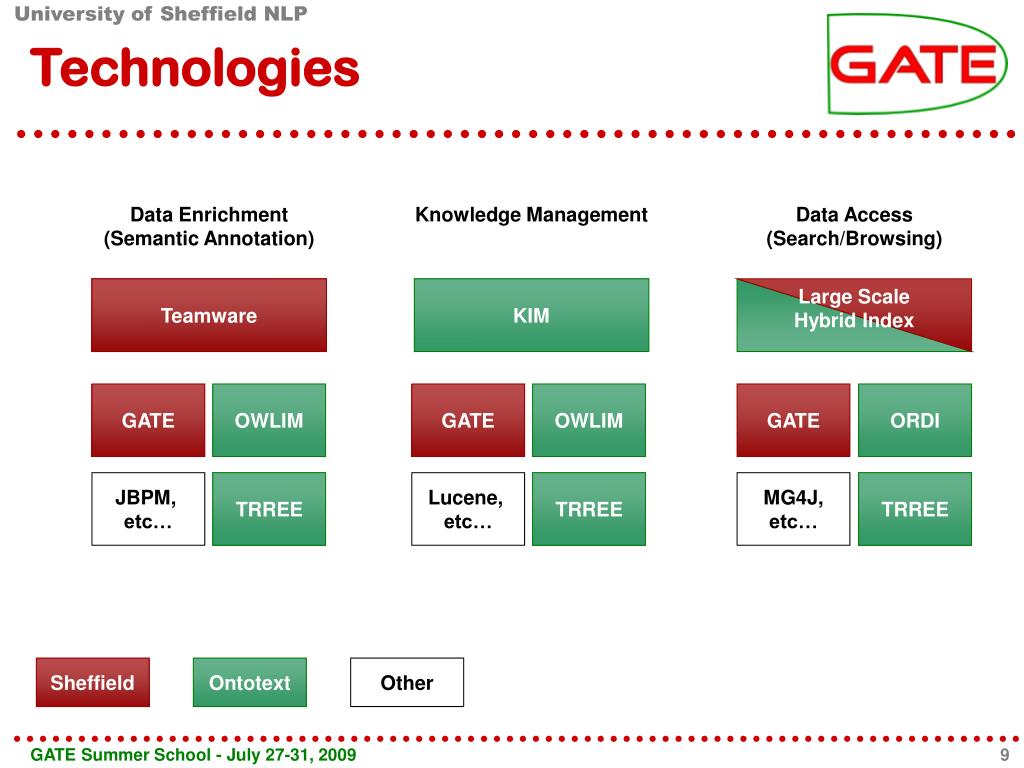

Technologies

Data Enrichment

(Semantic Annotation)

Knowledge Management

Data Access

(Search/Browsing)

Teamware

KIM

Large Scale

Hybrid Index

GATE

OWLIM

GATE

OWLIM

GATE

ORDI

JBPM,

etc…

TRREE

Lucene,

etc…

TRREE

MG4J,

etc…

TRREE

Sheffield

Ontotext

Other

GATE Summer School - July 27-31, 2009


Teamware revisited a key sam infrastructure

Teamware revisited: A Key SAM Infrastructure

Collaborative Semantic Annotation Environment

  • Tools for semi-automatic annotation;

  • Scalable distributed text analytics processing;

  • Data curation;

  • User/role management;

  • Web-based user interface.

GATE Summer School - July 27-31, 2009


Semantic annotation experiments

Semantic Annotation Experiments

Wide Annotation

  • Cover a range of generally useful concepts:

    Documents, document parts, references

  • High level detail.

    Deep Annotation

  • Cover a narrow range of concepts

    Measurements

  • As much detail as possible.

GATE Summer School - July 27-31, 2009


Data model

Data Model

GATE Summer School - July 27-31, 2009


Example bibliographic data

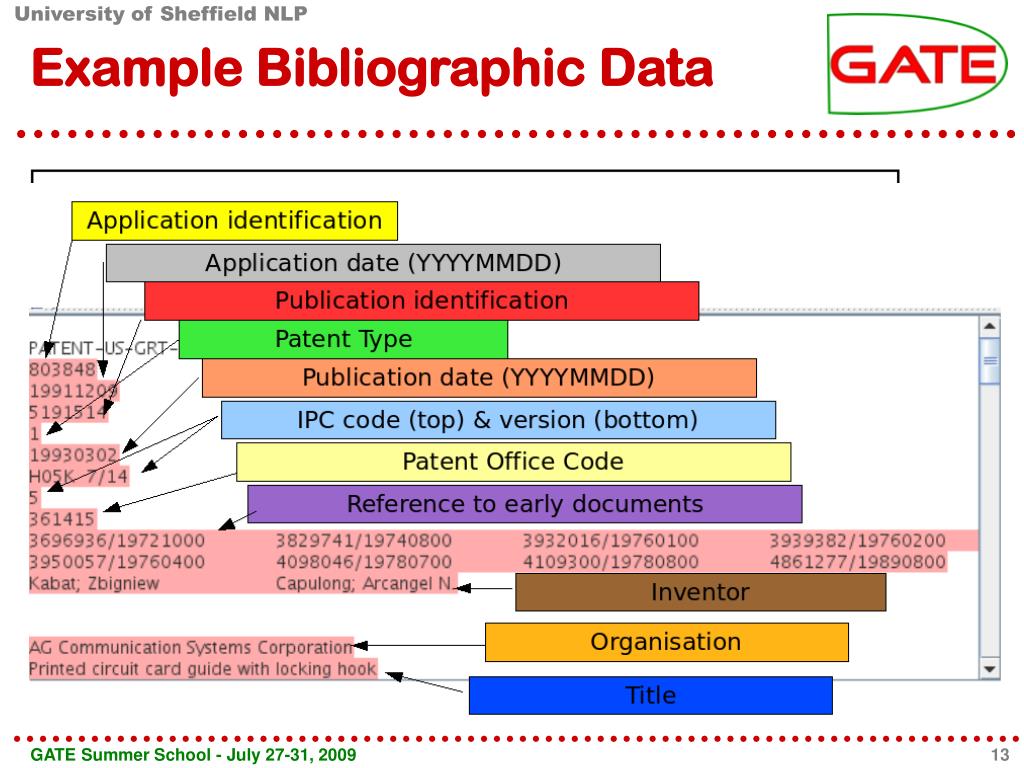

Example Bibliographic Data

GATE Summer School - July 27-31, 2009


Example measurements

Example measurements

GATE Summer School - July 27-31, 2009


Example references

Example References

GATE Summer School - July 27-31, 2009


The patent annotation guidelines

The Patent Annotation Guidelines

  • 11 pages (10 point font), with concrete examples, general rules, specific guidelines per type, lists of exceptions, etc.

  • The section on annotating measurements is 2 pages long!

  • The clearer the guidelines – the better Inter-Annotator Agreement you’re likely to achieve

  • The higher the IAA – the better automatic results can be obtained (less noise!)

  • The lengthier the annotations – the more scope for error there is, e.g., references to other papers had the lowest IAA

GATE Summer School - July 27-31, 2009


Annotating scalar measurements

Annotating Scalar Measurements

  • numeric value including formulae

  • always related to a unit

  • more than one value can be related to the same unit

  • ... [80]% of them measure less than [6] um [2] ...

  • [2x10 -7] Torr

  • [29G×½]” needle

  • [3], [5], [6] cm

  • turbulence intensity may be greater than [0.055], [0.06] ...


Annotating measurement units

Annotating Measurement Units

  • including compound unit

  • always related to at least one scalarValue

  • do not include a final dot

  • %, :, / should be annotated as unit

  • deposition rates up to 20 [nm/sec]

  • a fatigue life of 400 MM [cycles]

  • ratio is approximately 9[:]7


Annotation schemas measurements example

Annotation Schemas: Measurements Example

<?xml version="1.0"?>

<schema xmlns="http://www.w3.org/2000/10/XMLSchema">

<element name="Measurement">

<complexType>

<attribute name="type" use="required">

<simpleType>

<restriction base="string">

<enumeration value="scalarValue"/>

<enumeration value="unit"/>

</restriction>

</simpleType>

</attribute>

<attribute name="requires-attention" use="optional">

<simpleType>

<restriction base="string">

<enumeration value="true"/>

<enumeration value="false"/>

</restriction>

</simpleType>

</attribute>


The ie pipeline

The IE Pipeline

  • JAPE Rules vs Machine Learning

    • Moving the goal posts: dealing with unstable annotation guidelines

      • JAPE – just change a few rules hopefully

      • ML – could require significant manual re-annotation effort of the training data

    • Bootstrapping training data creation with JAPE patterns – significantly reduces the manual effort

    • For ML to be successful, we need IAA to be as high as possible – noisy data problem otherwise

    • Insufficient training data initially, so chose JAPE approach

GATE Summer School - July 27-31, 2009


Example japes for references

Example JAPEs for References

Macro: FIGNUMBER //Numbers 3, 45, also 3a, 3b

(

{Token.kind == "number"}

({Token.length == "1",Token.kind == "word"})?

)

Rule:IgnoreFigRefsIfThere

Priority: 1000

( {Reference.type == "Figure"} )--> {}

Rule:FindFigRefs

Priority: 50

(

(

({Token.root == "figure"} | {Token.root == "fig"})

({Token.string == "."})?

((FIGNUMBER) | (FIGNUMBERBRACKETS) ):number

):figref

)-->

:figref.Reference = {type = "Figure", id = :number.Token.string}

GATE Summer School - July 27-31, 2009


Example rule for measurements

Example Rule for Measurements

Rule: SimpleMeasure

/*

* Number followed by a unit.

*/

(

({Token.kind == "number"})

):amount

({Lookup.majorType == "unit"}):unit

-->

:amount.Measurement = {type = scalarValue,

rule = "measurement.SimpleMeasure"},

:unit.Measurement = {type = unit,

rule = "measurement.SimpleMeasure"}

GATE Summer School - July 27-31, 2009


The ie annotation pipeline

The IE Annotation Pipeline

GATE Summer School - July 27-31, 2009


Hands on identify more patterns

Hands-on: Identify More Patterns

  • Open Teamware and login

  • Find corpus patents-sample

  • Run ANNIC to identify some patterns for references to tables and figures and measurements

    • There are already POS tags, Lookup annotations, morphological ones

    • Units for measurements are Lookup.majorType == “unit”

GATE Summer School - July 27-31, 2009


The teamware annotation project

The Teamware Annotation Project

  • Iterated between JAPE grammar development, manual annotation for gold-standard creation, measuring IAA and precision/recall for JAPE improvements

  • Initially gold standard doubly annotated until good IAA is obtained, then moved to 1 annotator per document

  • Had 15 annotators working at the same time

GATE Summer School - July 27-31, 2009


Measuring iaa with teamware

Measuring IAA with Teamware

  • Open Teamware

  • Find corpus patents-double-annotation

  • Measure IAA with the respective tool

  • Analyse the disagreements with the AnnDiff tool

GATE Summer School - July 27-31, 2009


Producing the gold standard

Producing the Gold Standard

  • Selected patents from two very different fields: mechanical engineering and biomedical technology

  • 51 patents, 2.5 million characters

  • 15 annotators, 1 curator reconciling the differences

GATE Summer School - July 27-31, 2009


The evaluation gold standard

The Evaluation Gold Standard

GATE Summer School - July 27-31, 2009


Preliminary results

Preliminary Results

GATE Summer School - July 27-31, 2009


Running gate apps on millions of documents

Running GATE Apps on Millions of Documents

  • Processed 1.3 million patents in 6 days with 12 parallel processes.

  • Data sets from Matrixware:

    • American patents (USPTO): 1.3 million, 108 GB, average file size - 85KB.

    • European patents (EPO): 27 thousand, 780MB, average file size - 29KB.

GATE Summer School - July 27-31, 2009


Large scale parallel ie

Large-scale Parallel IE

  • Our experiments were carried out on the IRF’s supercomputer with Java (jrockit-R27.4.0-jdk1.5.0 12) with up to 12 processes

  • SGI Altix 4700 system comprising 20 nodes each with four 1.4GHz Itanium cores and 18GB RAM

  • In comparison, we found it 4x faster on Intel Core 2 2.4GHz

GATE Summer School - July 27-31, 2009


Large scale parallel ie 2

Large-Scale, Parallel IE (2)

  • GATE Cloud (A3): dispatches documents to process in parallel; does not stop on error

    • Ongoing project, moving towards Hadoop

    • Contact Hamish for further details

  • Benchmarking facilities: generate time stamps for each resource and display charts from them

    • Help optimising the IE pipelines, esp. JAPE rules

    • Doubled the speed of the patent processing pipeline

    • For a similar third-party GATE-based application we achieved a 10-fold improvement

GATE Summer School - July 27-31, 2009


Optimisation results

Optimisation Results

GATE Summer School - July 27-31, 2009

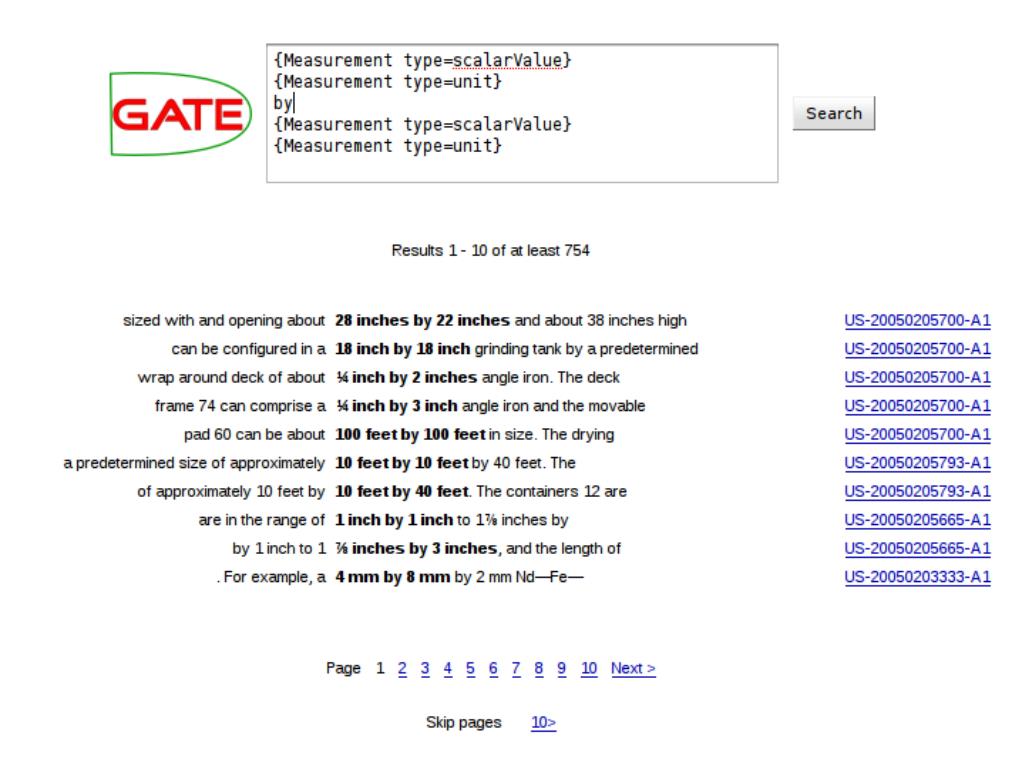

Mimir accessing the text and the semantic annotations

MIMIR: Accessing the Text and the Semantic Annotations

  • Documents: 981,315

  • Tokens: 7,228,889,715 (> 7 billion)

  • Distinct tokens: 18,539,315 (> 18m)

  • Annotation occurrences: 151,775,533 (> 151m)

GATE Summer School - July 27-31, 2009


Patent processing with gate

GATE Summer School - July 27-31, 2009


Patent processing with gate

GATE Summer School - July 27-31, 2009


Patent processing with gate

GATE Summer School - July 27-31, 2009


  • Login
