Recent progress in fabrication structure and properties of carbon fibers

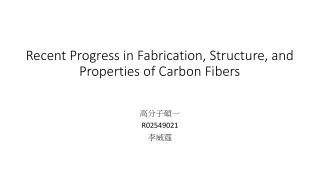

Recent Progress in Fabrication, Structure, and Properties of Carbon Fibers

高分子碩一

R02549021

李威霆


Outline

Outline

  • Author

  • Abstract

  • Introduction

  • Synthesis of PAN Fibers

  • Carbon Fibers with Various Geometries

    Small Diameter and Porous Carbon Fibers

    Hollow Carbon Fibers

    Patterned Carbon Fibers from Polyethylene

  • Concluding Remarks

  • References


Author

Author

  • Dr. Yaodong Liu

  • Title: Research Scientist II

  • Education

    • Ph.D. Georgia Institute of Technology (2010)  Polymer, Textile and Fiber Engineering

    • M.E. Tsinghua University (2002)  Chemical Engineering

    • B.E. Tsinghua University (2002)  Chemical Engineering

  • Work Experience

    • Georgia Institute of Technology (2010  current) Research Scientist II Research Assistant

    • Shanghai Institute of Applied Physics, China

  • Research Interest

    • High performance polymer fiber spinning

    • Structure property relationships in polymer/carbon nanotubes composites

    • Stabilization and carbonization of PANbased carbon fibers


Author1

Author

  • Dr. Satish Kumar received his Ph.D. degree in 1979 from the Indian Institute of Technology, New Delhi, India in the area of Polymer and Fiber Science.

  • He obtained his post-doctoral experience in Polymer Science and Engineering at the University of Massachusetts (1979-82).

  • For the year 1982-83, he was a visiting scientist at the Atomic Energy Commission of France, C. E. N. G., Grenoble, France.

  • During 1984-89 he was associated with the Polymer Branch, Air Force Materials Laboratory, Wright Patterson Air Force Base, Dayton, OH on contract through Universal Energy Systems and the University of Dayton Research Institute.

  • He joined Georgia Tech in 1989, where he is currently serving as Professor in the School of Materials Science and Engineering.


Abstract

Abstract

  • 本篇文獻主要是探討碳纖維的近代發展。

  • 碳纖維主要是以polyacrylonitrile或meso-phase pitch所製成。研究其加工條件、物性、化性和拉伸性質。

  • 碳纖維有特定的幾何形狀,如hollow、porous和patterned,不同形狀的碳纖維有其特定的應用性。

  • 奈米碳管有很好的機械性質,可加工成巨觀的連續纖維,將其混合在碳纖維的precursor fiber可以增加其強度與彈性。

  • 雖然已經有大量研究如何改善碳纖維性質、減少生產開銷,但如何擴展其應用性目前仍是很大的挑戰。


Introduction

Introduction

  • 碳纖維通常含有90%以上的碳,而且有許多良好性質,包含:拉伸強度高(2~7 Gpa)、壓縮強度好(3 Gpa↑)、彈性係數高(200~900 Gpa)、低密度(1.75~2.18 g/cm3)、低熱膨脹。並且有好的抗熱性、導電性、導熱性和抗化學性。

  • 碳纖維可用來做加強材料,應用在飛機、車子、船、機器零件、高級運動用品、壓力容器、風扇葉片、土木工程等。

  • 碳纖維是由適當的precursor fiber製造而成。

  • 碳纖維最早的商業用途是以碳化的棉或竹做為燈絲(1870s)。


Introduction1

Introduction

  • 1960s,碳纖維開始應用在加強材料,當時以rayon做為precursor。

  • PAN(polyacrylonitrile)被發現可做為碳纖維的precursor,比rayon有更高的拉伸和壓縮強度。

  • 後來發現,Petroleum pitch(石油瀝青)也可做碳纖維,有比PAN纖維更高的彈性、更好的導電性和導熱性,但是拉伸強度和壓縮強度較PAN纖維低,而且Pitch純化的過程是昂貴的。

  • PAN纖維在2000℃下可石墨化,可提高彈性係數,但會減少拉伸強度和壓縮強度。

  • 過去也嘗試過以polyester、polyamide、polyethylene、polyvinyl alcohol、polyphenylene和phenolic resin去做碳纖維,但其性質不符合期望。

  • 目前市面上90%的碳纖維由PAN製成,其餘由Pitch製成。


Introduction2

Introduction


Synthesis of pan fibers

Synthesis of PAN Fibers

  • PAN纖維的製造包含合成precursor、紡絲和熱處理。

  • 加熱過程包含三個步驟:

    1. Stabilization(180~300℃):

    經由數小時的氧化改善其熱穩定性,防止纖維

    熔化,增加碳的比率。

    2. Carbonization(350~1700 ℃):

    在惰性環境高溫加熱,去除大部分的非碳原子。

    3. Graphitization(高於2000℃):

    形成石墨結構並改善方向性。


Synthesis of pan fibers1

Synthesis of PAN Fibers


Small diameter and porous carbon fibers

Small Diameter and Porous Carbon Fibers

碳纖維的直徑約為100nm~4μm

Island-in-a-seaGeometry Fiber

Honey-comb Geometry Fiber


Hollow carbon fibers

Hollow Carbon Fibers

Electro-Spinning

Dry-jet wet spinning

  • 使用中空的碳纖維可顯著的減少複合材料的密度。


Patterned carbon fibers from polyethylene

Patterned Carbon Fibers from Polyethylene

  • 碳纖維最常見的形狀為圓形

  • 設計噴絲板的形狀,可做出trilobal、flower、gear等形狀的碳纖維,直徑約為0.5~20μm

  • 雖然這類型的碳纖維的機械性質比較差,但是其特殊的幾何形狀會有廣大的應用性。


Concluding remarks

Concluding Remarks

  • 碳纖維是重要的加強材料,可用來做高性能的複合材料。

  • 然而其製造的成本相對較高,減少其應用的廣泛程度。

  • 其他較便宜的材料像是Lignin(木質素)、Polyolefins(聚烯類)有被考慮用來製造碳纖維,但結構上的應用性並沒有很好。

  • 加工成直徑較小的碳纖維,可增加其拉伸強度。

  • 奈米碳管纖維有好的機械、熱與電的性質。

  • 中空的碳纖維密度小,有比鋼更好的強度而且又比較輕。

  • 多孔洞的碳纖維有較多表面積,可應用於能量的轉換或儲存。


References

References

  • Yaodong Liu & Satish Kumar (2012) Recent Progress in Fabrication, Structure, andProperties of Carbon Fibers, Polymer Reviews, 52:3-4, 234-258

  • http://kumar.mse.gatech.edu/members

  • http://kumar.mse.gatech.edu/

  • http://pslc.ws/macrog/carfsyn.htm
