  1. IPv6Are we there yet?

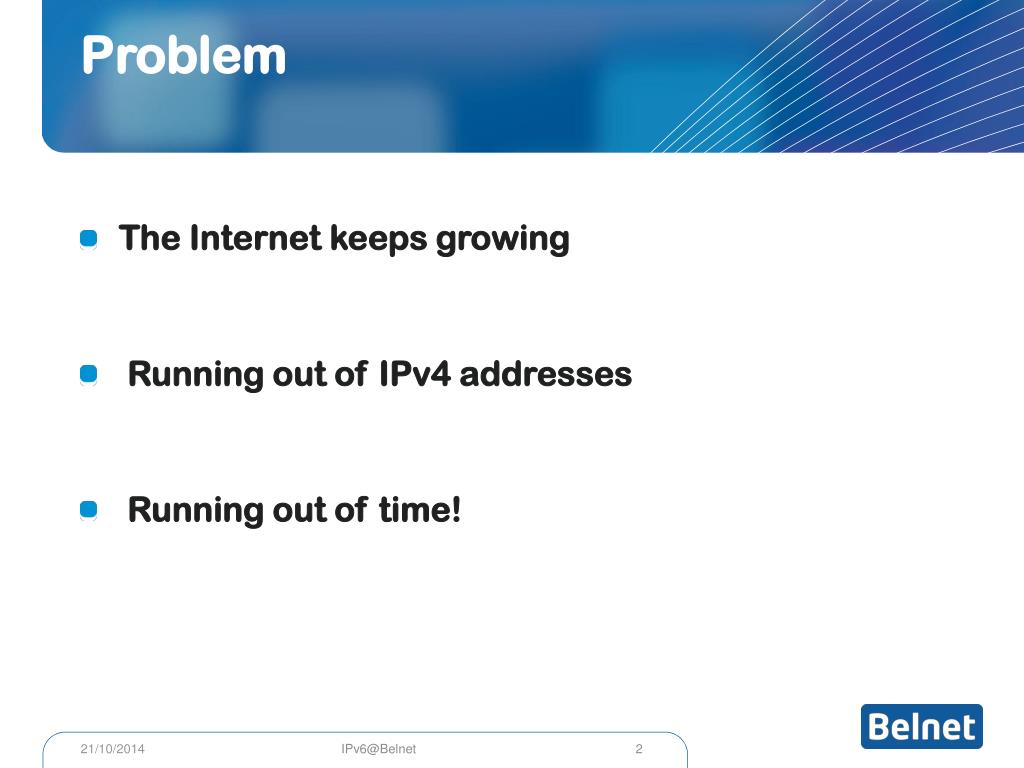

  2. Problem The Internet keeps growing Running out of IPv4 addresses Running out of time! IPv6@Belnet

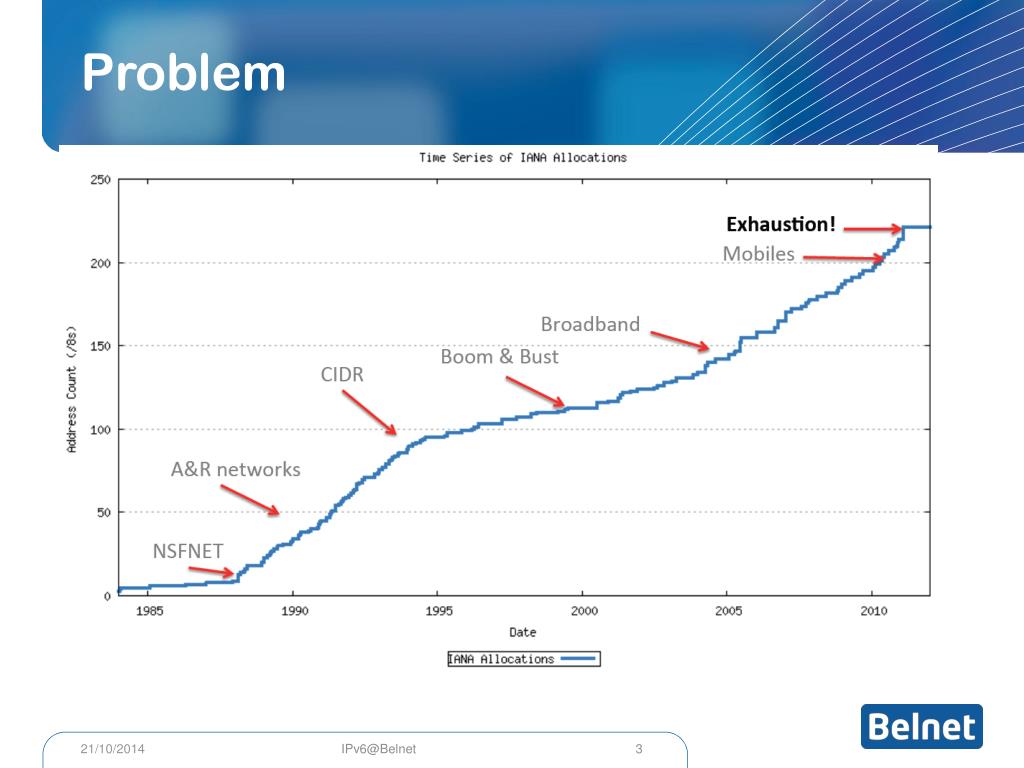

  3. Problem IPv6@Belnet

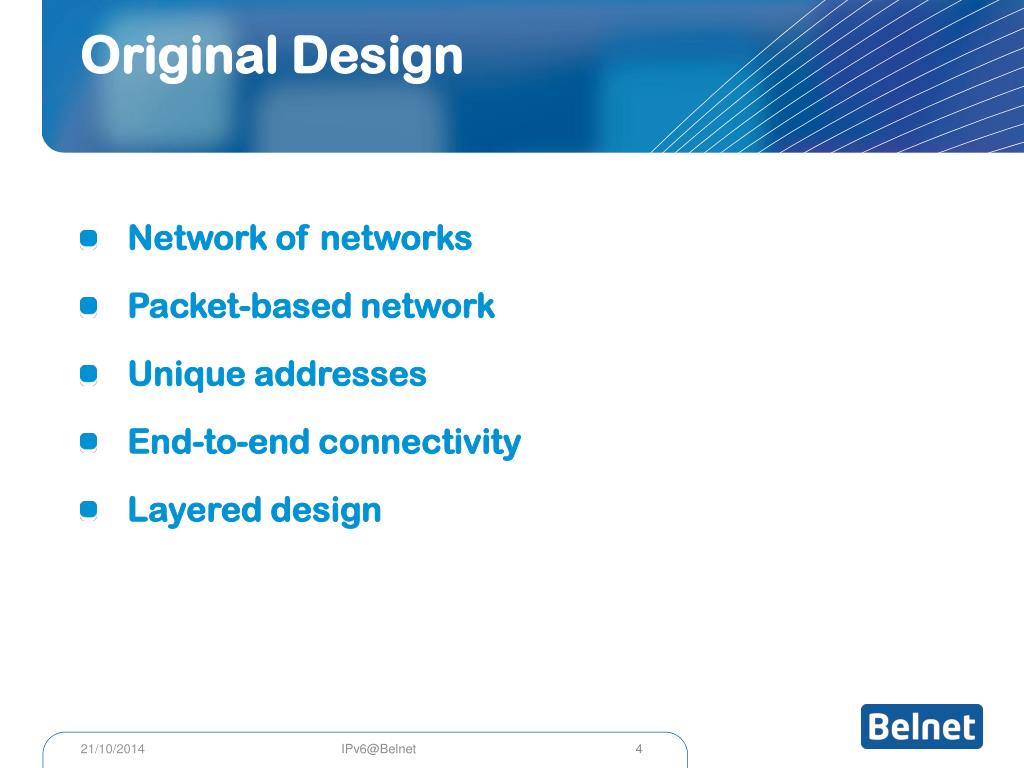

  4. Original Design Network of networks Packet-based network Unique addresses End-to-end connectivity Layered design IPv6@Belnet

  5. Quick fixes Address Resource Management CIDR NAT Rethinking IP, start in 1992 IPv6@Belnet

  6. Extending IPv4 lifetime NAT CPE NAT Carrier-grade CIDR IPv6@Belnet

  7. IPv6@Belnet

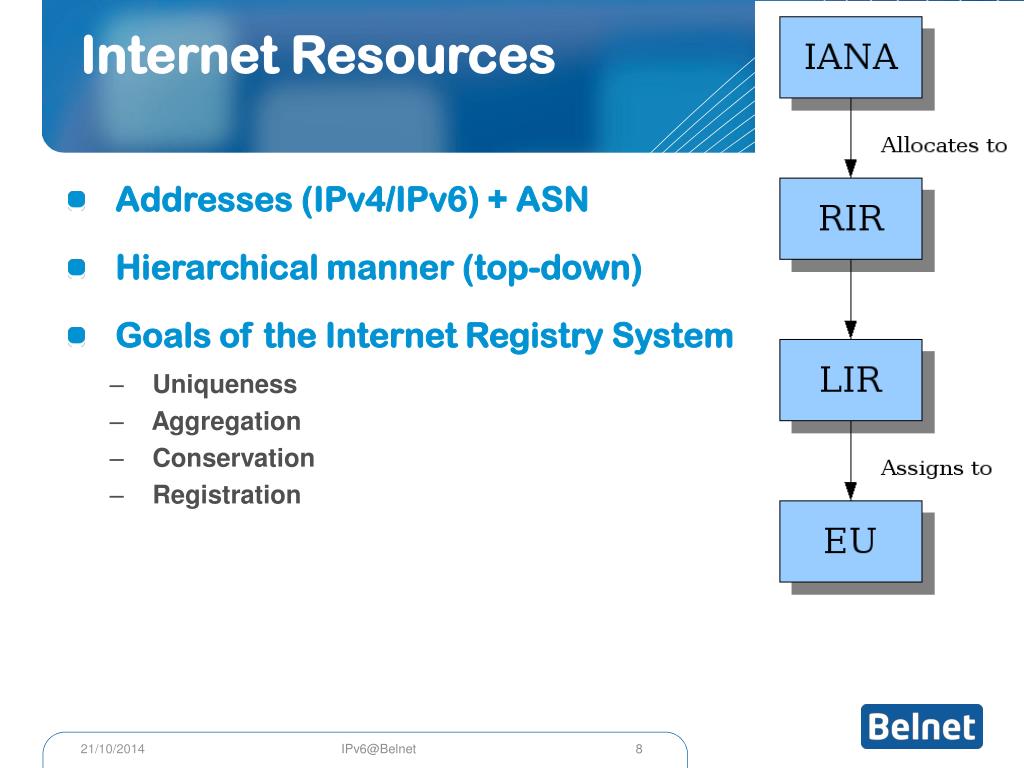

  8. Internet Resources Addresses (IPv4/IPv6) + ASN Hierarchical manner (top-down) Goals of the Internet Registry System Uniqueness Aggregation Conservation Registration IPv6@Belnet

  9. IPv4 depletionHow many IPv4 addresses? 232 = ~4,3 billion IPv4 addresses IPv6@Belnet

  10. What is left? IANA allocates /8 to RIRs 256 /8s is the entire IPv4 Internet Beginning of 2010, IANA had 26 /8s left In February 2011, IANA allocated the last /8 Even RIR’s are running out… APNIC handed out last /8 in April 2012 Microsoft – Nortel  trade of IPv4 blocks Asking legacy holders to become LIR or sponsorship. Ripe is exhausting rapidly http://www.iana.org/assignments/ipv4-address-space/ipv4-address-space.xml IPv6@Belnet

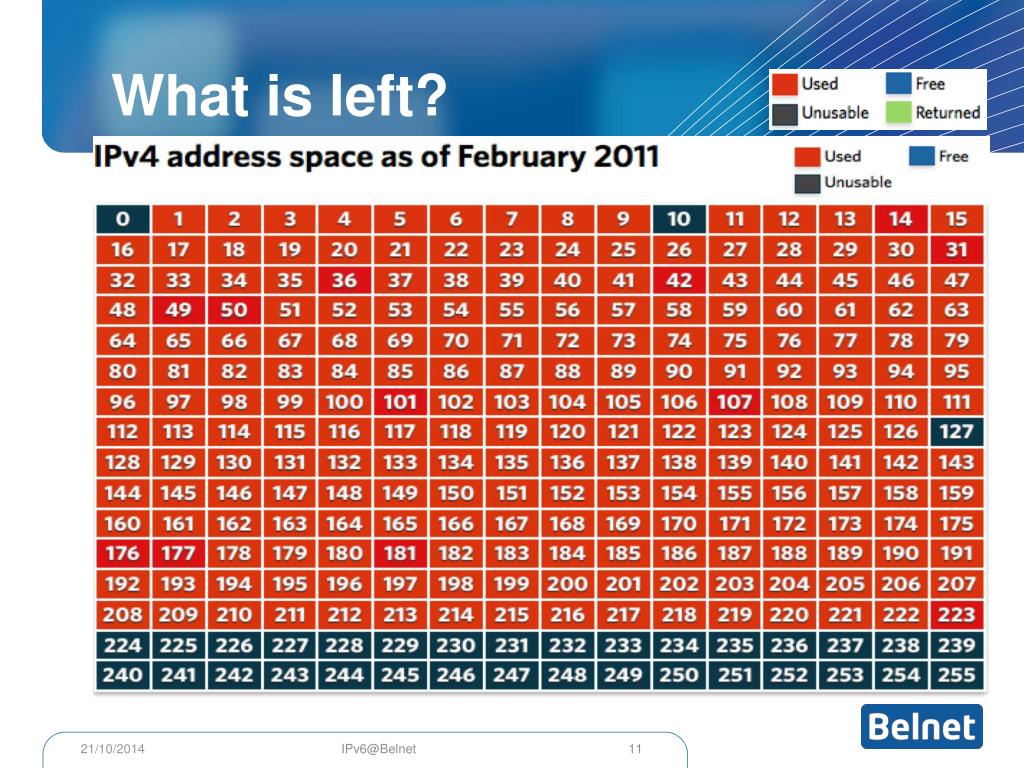

  11. What is left? IPv6@Belnet

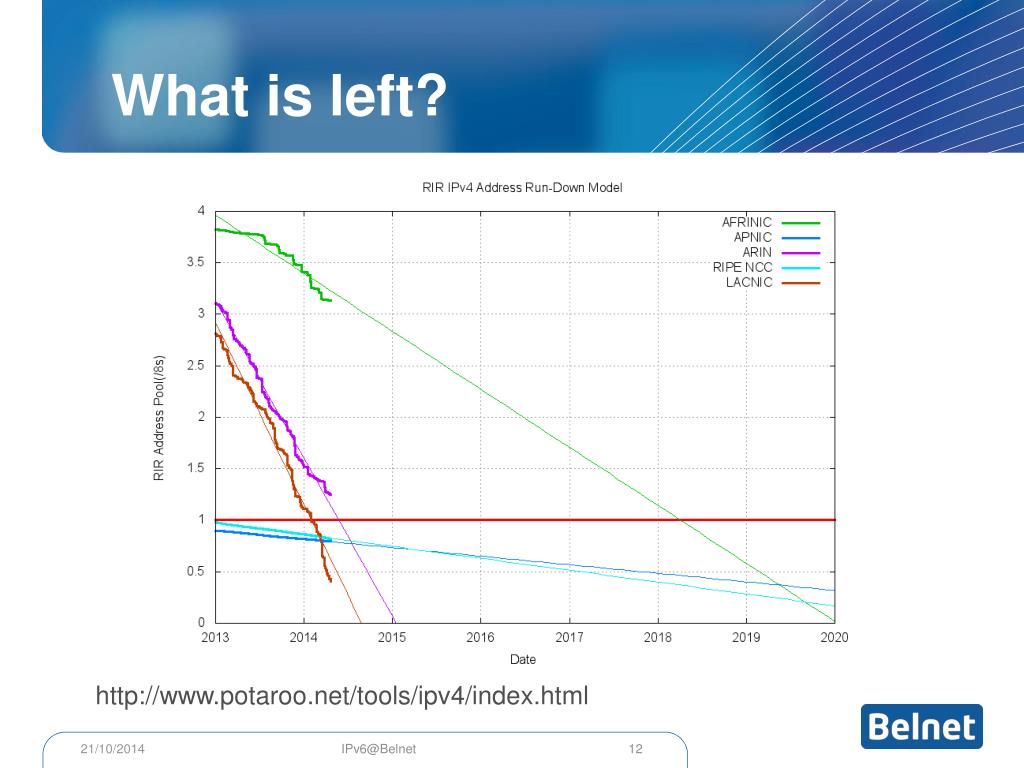

  12. What is left? http://www.potaroo.net/tools/ipv4/index.html IPv6@Belnet

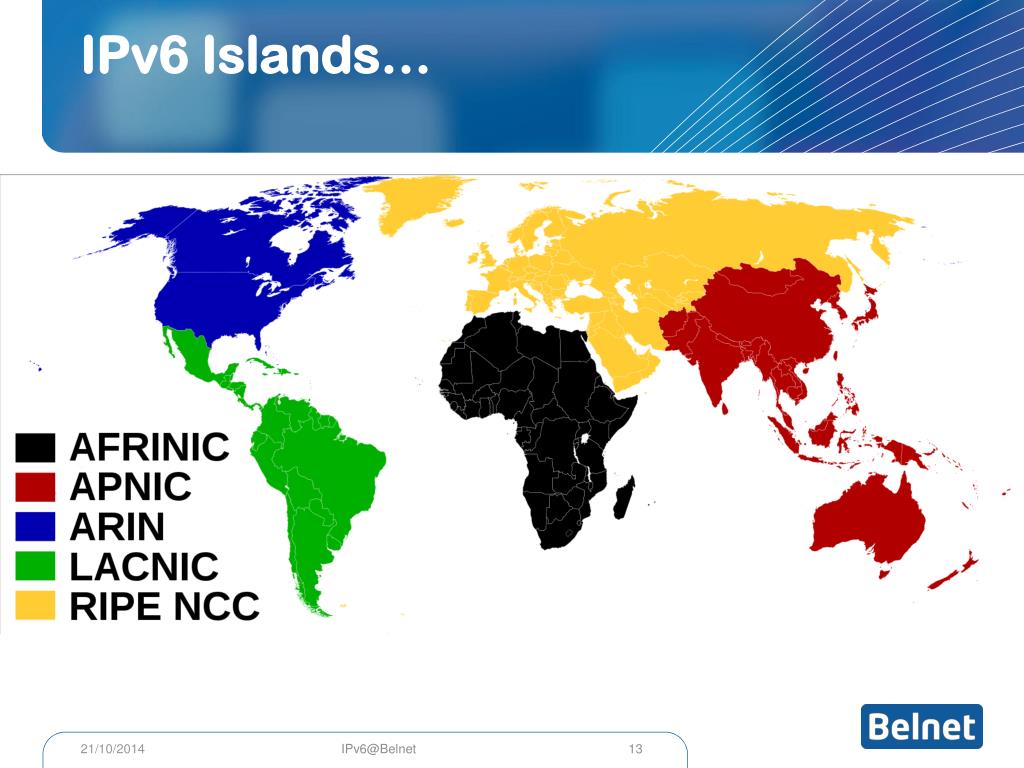

  13. IPv6 Islands… Addresses (IPv4/IPv6) + ASN Hierarchical manner (top-down) Goals of the Internet Registry System Uniqueness Aggregation Conservation Registration IPv6@Belnet

  14. IPv6 to the rescue It is clear that we need a better solution IPv6 to solve address exhaustion Extra features built in IPv6 exists for 16 years Time to act now! IPv6@Belnet

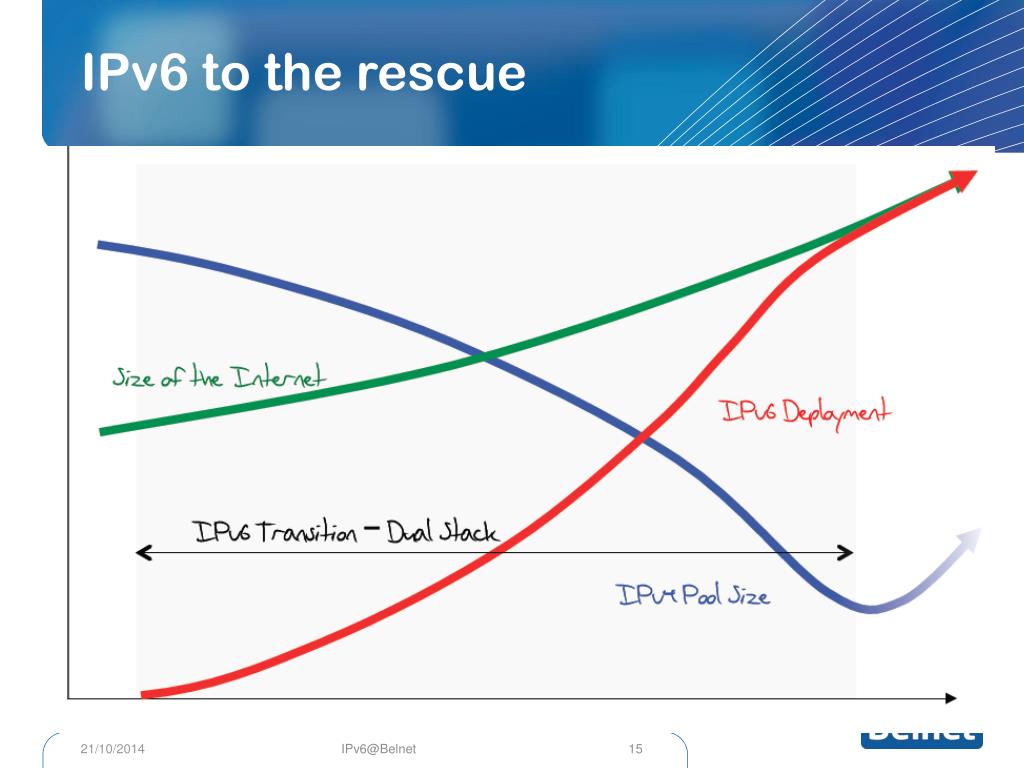

  15. IPv6 to the rescue IPv6@Belnet

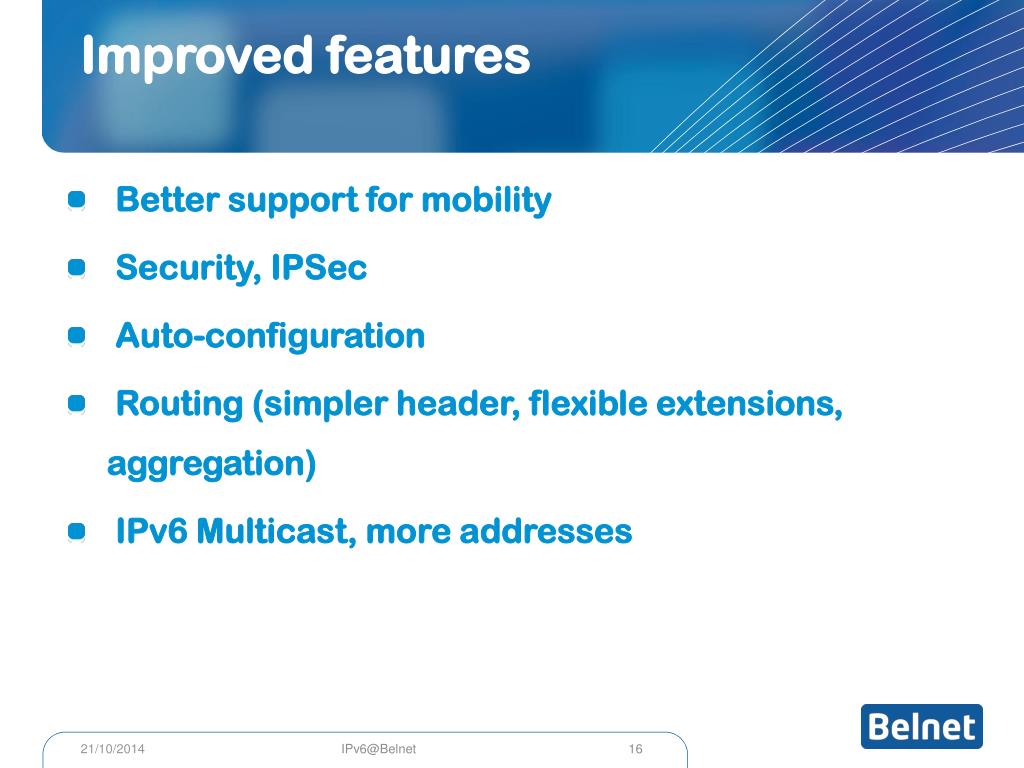

  16. Improved features Better support for mobility Security, IPSec Auto-configuration Routing (simpler header, flexible extensions, aggregation) IPv6 Multicast, more addresses IPv6@Belnet

  17. More… …IP addresses !!!!! 128 bits instead of 32 bits 2128 addresses, 3.4×1038 addresses 340 sextiljoen (undecillion) addresses Let’s just say … a lot of addresses Restore end-to end connectivity Internet as it was meant to be! IPv6@Belnet

  18. Differences Different types and scope of addresses No broadcast, thus no ARP Relies heavily on multicasting Auto-configuration instead of DHCP? Common to have multiple addresses on an interface. What IP will be used to source traffic? IPv6@Belnet

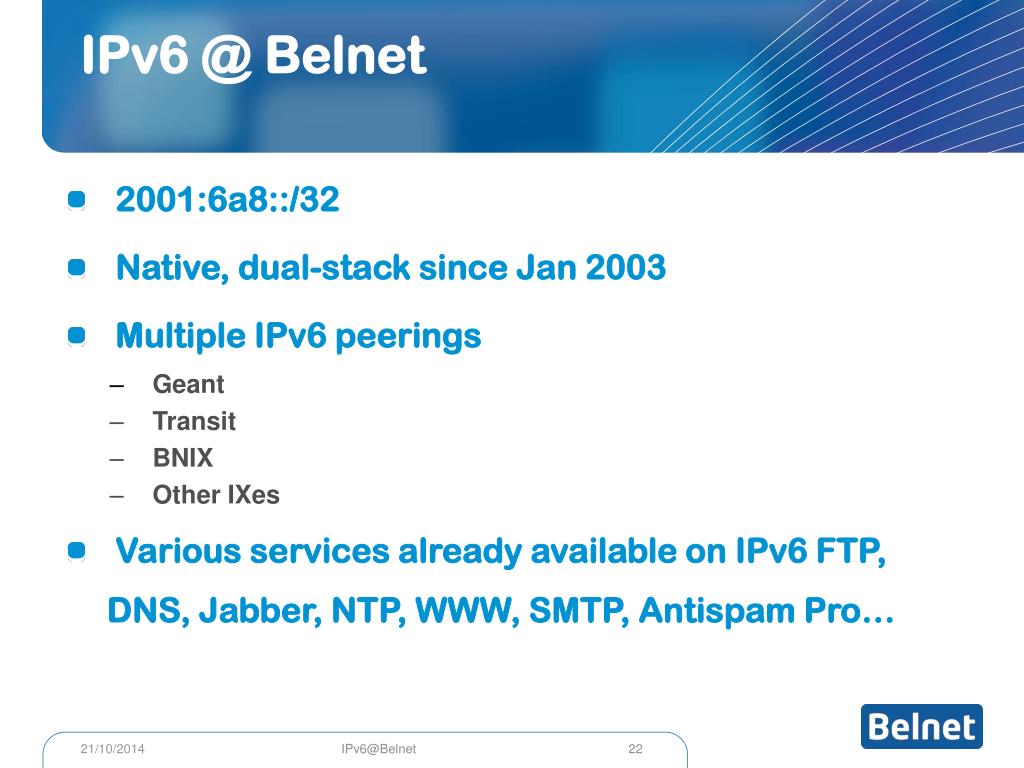

  19. IPv6 @ Belnet 2001:6a8::/32 Native, dual-stack since Jan 2003 Multiple IPv6 peerings Geant Transit BNIX Other IXes Various services already available on IPv6 FTP, DNS, Jabber, NTP, WWW, SMTP, Antispam Pro… IPv6@Belnet

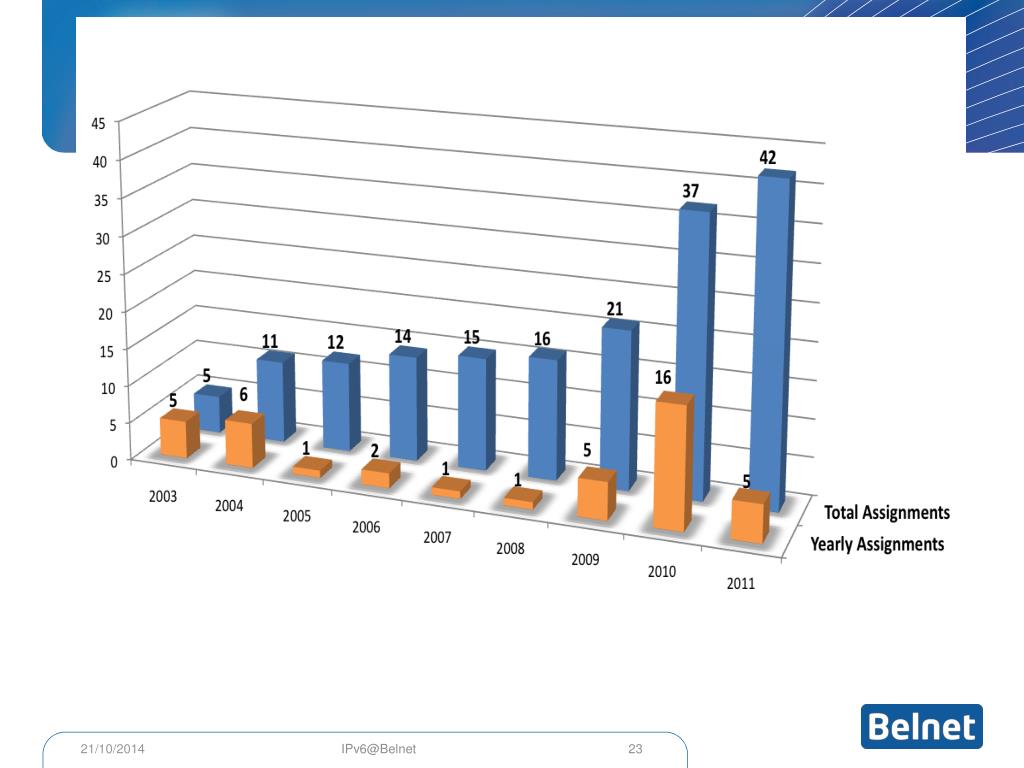

  20. IPv6 assignments • Text • Text • Text IPv6@Belnet

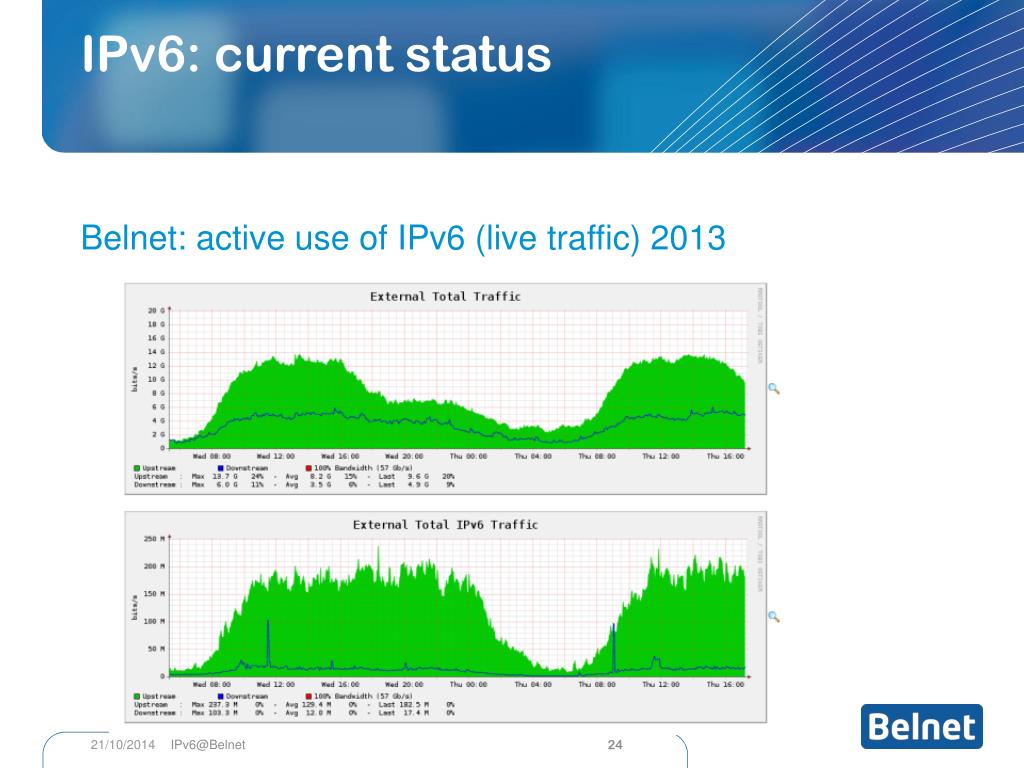

  21. IPv6: current status • Belnet: active use of IPv6 (live traffic) 2013 • 10% of the Belnet customer base IPv6@Belnet

  22. Why you should run IPv6 Belnet: active use of IPv6 (live traffic) 2014 IPv6@Belnet

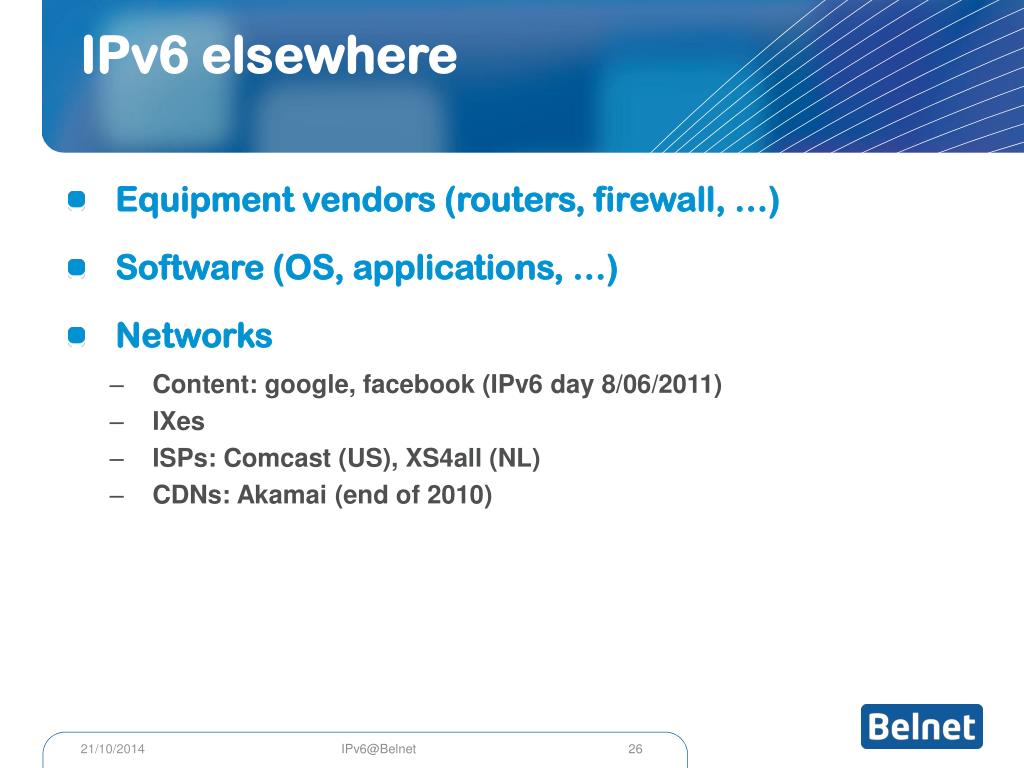

  23. IPv6 elsewhere Equipment vendors (routers, firewall, …) Software (OS, applications, …) Networks Content: google, facebook (IPv6 day 8/06/2011) IXes ISPs: Comcast (US), XS4all (NL) CDNs: Akamai (end of 2010) IPv6@Belnet

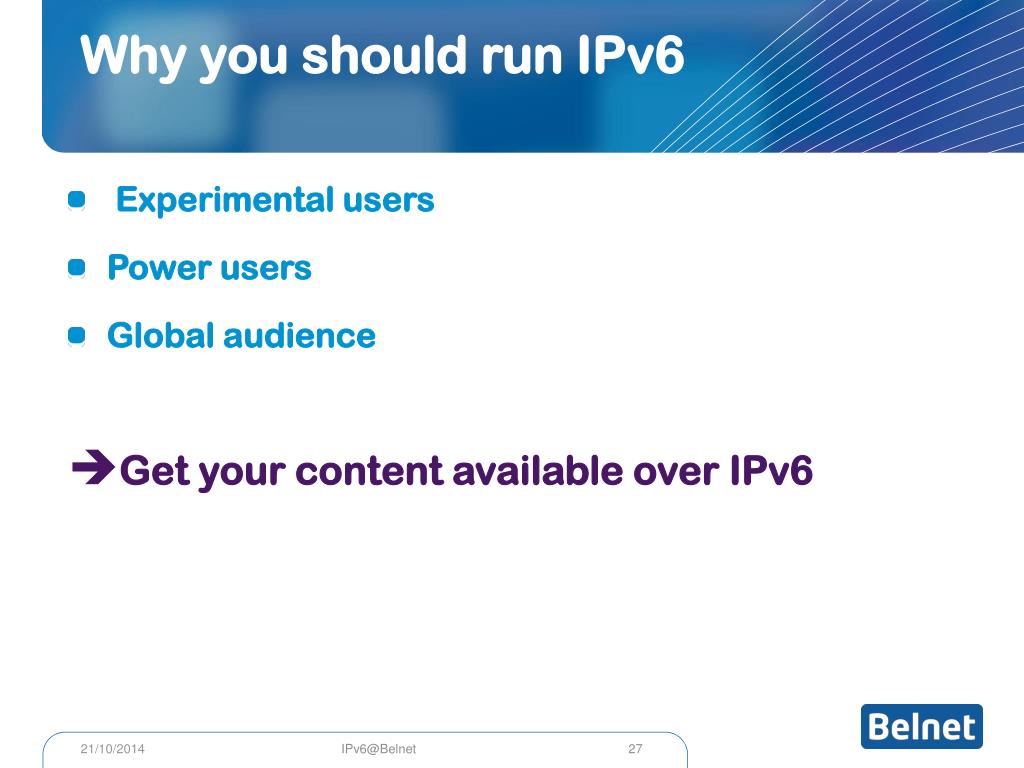

  24. Why you should run IPv6 Experimental users Power users Global audience Get your content available over IPv6 IPv6@Belnet

  25. Interesting Sites https://www.vyncke.org/ipv6status/ IPv6@Belnet

  26. Enabling IPv6 on your network

  27. Your action plan • Equipment inventory • Raise awareness • Get your assignment • Prepare your address plan • Get IPv6 on your DMZ • Get IPv6 on your LAN IPv6@Belnet

  28. Equipment inventory • Routers and firewalls • Does it support IPv6? • At full performance? • Server & Desktop OS • Should be no-brainer for recent OSes • Application software • Does it depend on hard coded IPv4 addresses/ranges? • If built on Apache or IIS no other problems expected... • Other networked gear • Printers? • Switches? RA guard, PACL; RA snooping… IPv6@Belnet

  29. Raise awareness • Your ICT colleagues/Management • Awareness of network changes • No surprises • End users • Migration should be transparent to them • Only warn when deployed on LAN and/or Wi-Fi • Via Intranets? IPv6@Belnet

  30. Prepare your address plan (1) 2001:6a8:3c80:8004:ca2a:14ff:fe15:9cb6 Belnet /32 Customer /48 Host address 65536 assignable /64 ranges 8 0 0 4L V A A1000 0000 0000 0100 azerty IPv6@Belnet

  31. Prepare your address plan (2) • Map your IPv4 address plan into your IPv6 prefix • 10.50.60.0/24 -> 2001:6a8:1234:5060::/64 • Easy, but not always a good idea • Large networks need a decent IPv6 address plan • Use location / VLAN id / type of service... • 2001:6a8:1234:<location><vlan>::/64 • e.g. 2001:6a8:1234:0165::/64 (site 0, vlan 165) • 16 bits to play with IPv6@Belnet

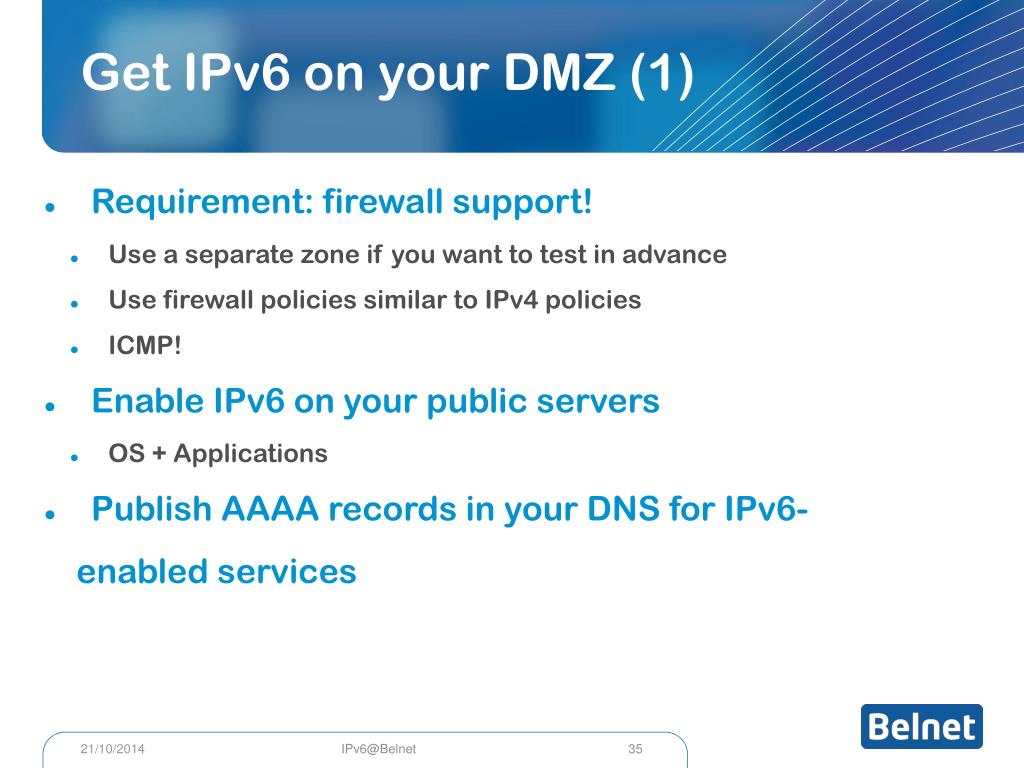

  32. Get IPv6 on your DMZ (1) • Requirement: firewall support! • Use a separate zone if you want to test in advance • Use firewall policies similar to IPv4 policies • ICMP! • Enable IPv6 on your public servers • OS + Applications • Publish AAAA records in your DNS for IPv6-enabled services IPv6@Belnet

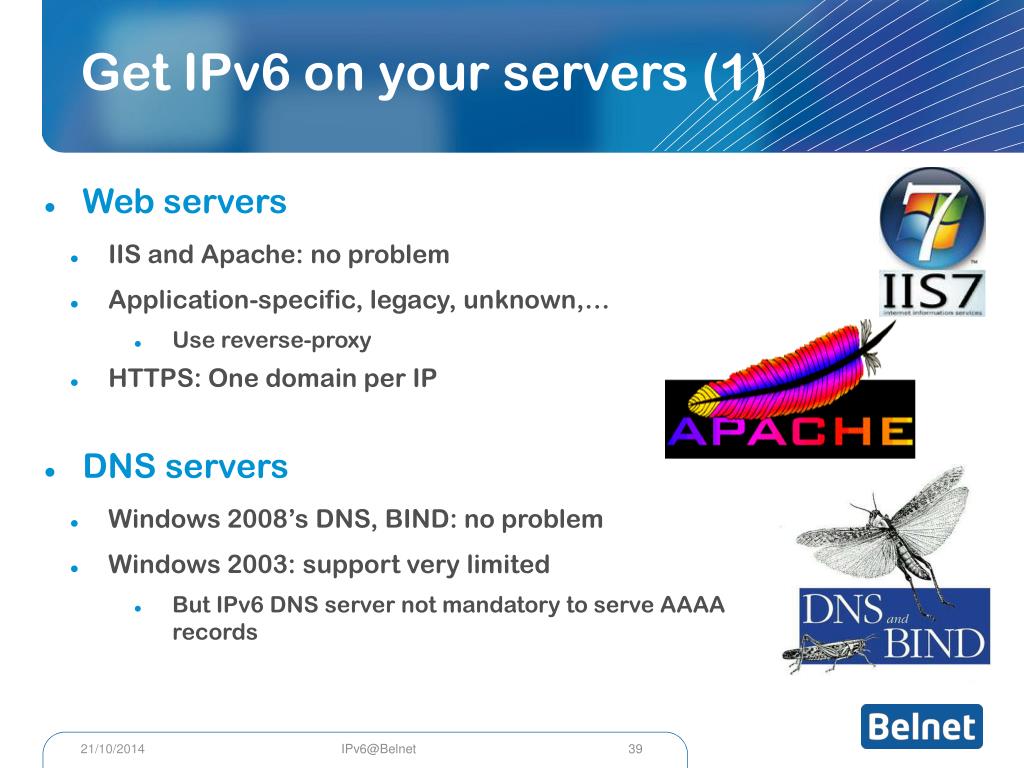

  33. Get IPv6 on your servers (1) • Web servers • IIS and Apache: no problem • Application-specific, legacy, unknown,… • Use reverse-proxy • HTTPS: One domain per IP • DNS servers • Windows 2008’s DNS, BIND: no problem • Windows 2003: support very limited • But IPv6 DNS server not mandatory to serve AAAA records IPv6@Belnet

  34. Get IPv6 on your servers (2) • Mail servers • Very few MTA supported • Even less antispam software • IPv6 blacklisting still experimental • Our advise : do not port MTA now • Get Belnet Antispam Pro (Fully IPv6 compliant) ! IPv6@Belnet

  35. Get IPv6 on your LAN(s) • Use a separate zone if you want to test in advance • One LAN at a time • admin, students, guests, eduroam, ... • Use firewall policies similar to IPv4 policies • Do not forget inbound connections as there is no more NAT! • Filtering inbound ports <1024 is good practice • Filter everything incoming if you want a perfect match between policies • Warn your power users about network changes • You want to know if something is no longer working… IPv6@Belnet

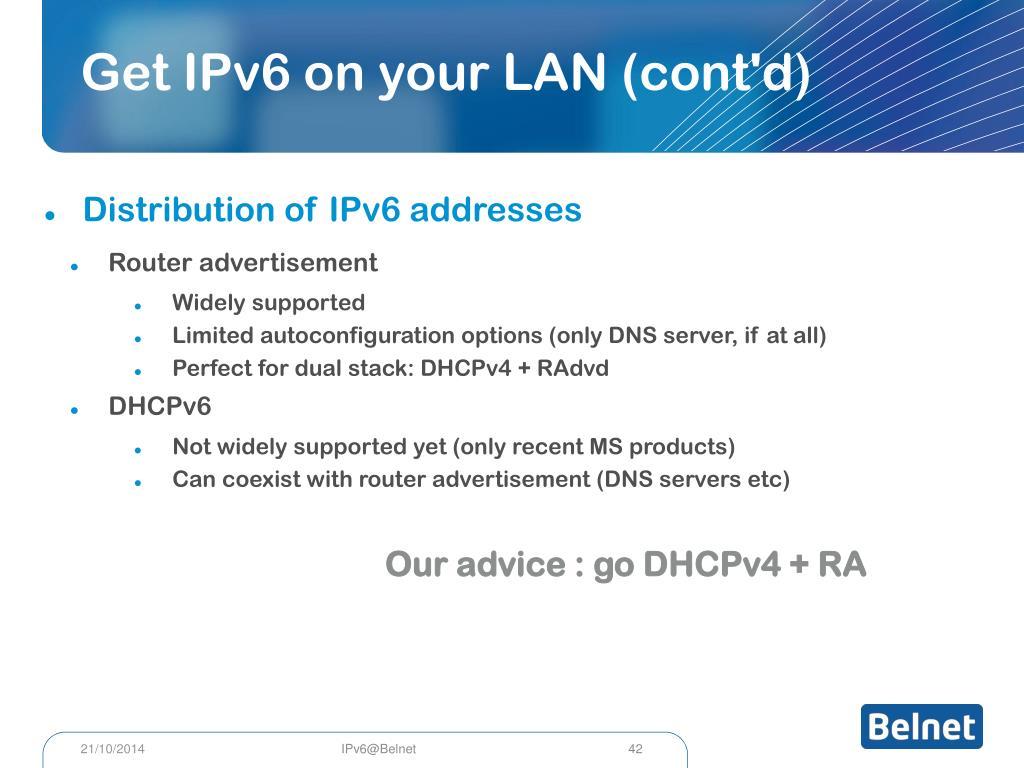

  36. Get IPv6 on your LAN (cont'd) • Distribution of IPv6 addresses • Router advertisement • Widely supported • Limited autoconfiguration options (only DNS server, if at all) • Perfect for dual stack: DHCPv4 + RAdvd • DHCPv6 • Not widely supported yet (only recent MS products) • Can coexist with router advertisement (DNS servers etc) Our advice : go DHCPv4 + RA IPv6@Belnet

  37. Transitioning technologies • Tunneling technologies • Tunnel broker • Belnet hosts a SiXXs.net PoP server • Native addresses • Specific software on routers/stations • 6to4 • Built-in in Windows, OSX, Apple Airport & other home routers • Teredo • Built-in in Windows, • Miredo • Teredo port for Unix/Linux IPv6@Belnet

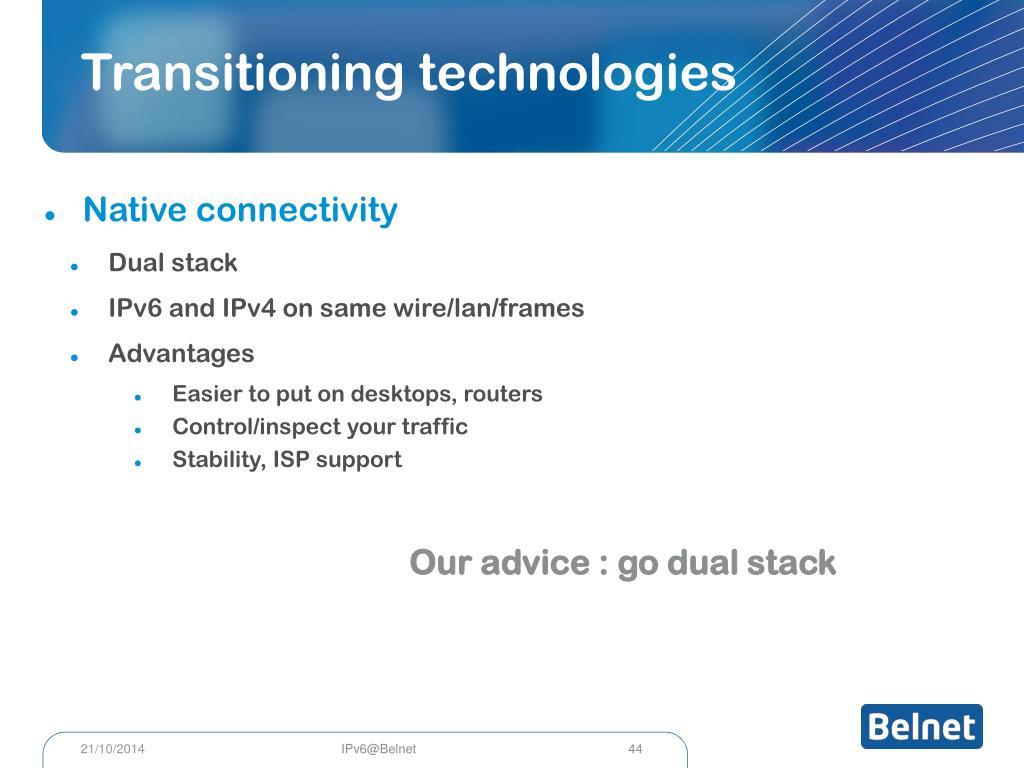

  38. Transitioning technologies • Native connectivity • Dual stack • IPv6 and IPv4 on same wire/lan/frames • Advantages • Easier to put on desktops, routers • Control/inspect your traffic • Stability, ISP support Our advice : go dual stack IPv6@Belnet

  39. Briefly • Follow the steps • Inventory • Awareness • Network plan • DMZ + LAN • Go Dual stack • On the WAN • On the LAN • Belnet is a partner • Ask us questions ! IPv6@Belnet

  40. Thank You
