Presentation Transcript
serological testing in blood transfusion services

Serological Testing InBlood Transfusion Services

Salwa Hindawi

Medical Director of Blood Transfusion Services

KAUH

4th year medical students

introduction
Introduction
  • Serology is the study of antigens and antibodies
  • Immunohematology refers to testing done in blood banks on red blood cells
  • All testing requires the use of Standard Precautions

4th year medical students

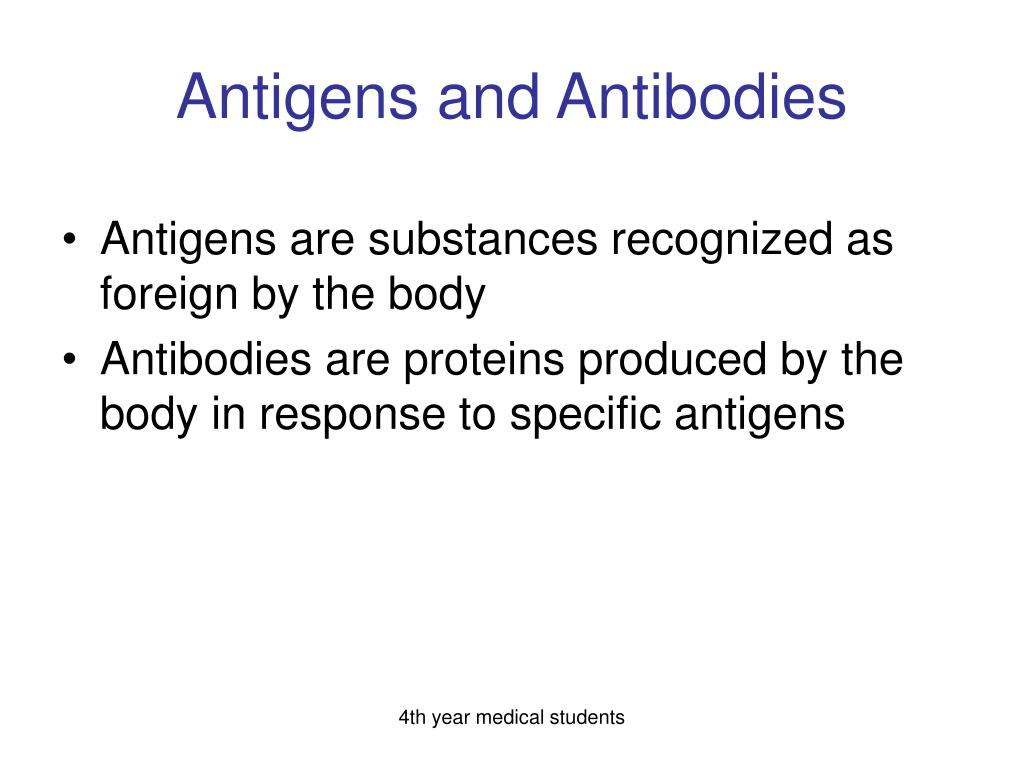

antigens and antibodies
Antigens and Antibodies
  • Antigens are substances recognized as foreign by the body
  • Antibodies are proteins produced by the body in response to specific antigens

4th year medical students

abo group
ABO Group
  • Four blood groups: A, B, O, or AB
  • Almost all serum contains antibodies to ABO antigens it lacks
  • Antibodies are crucial to safe transfusion

4th year medical students

slide5

Red blood cell antigens

type AB

type A

A antigen A and B antigen

B antigen H antigen

(no A or B antigen)

type B

type O

4th year medical students

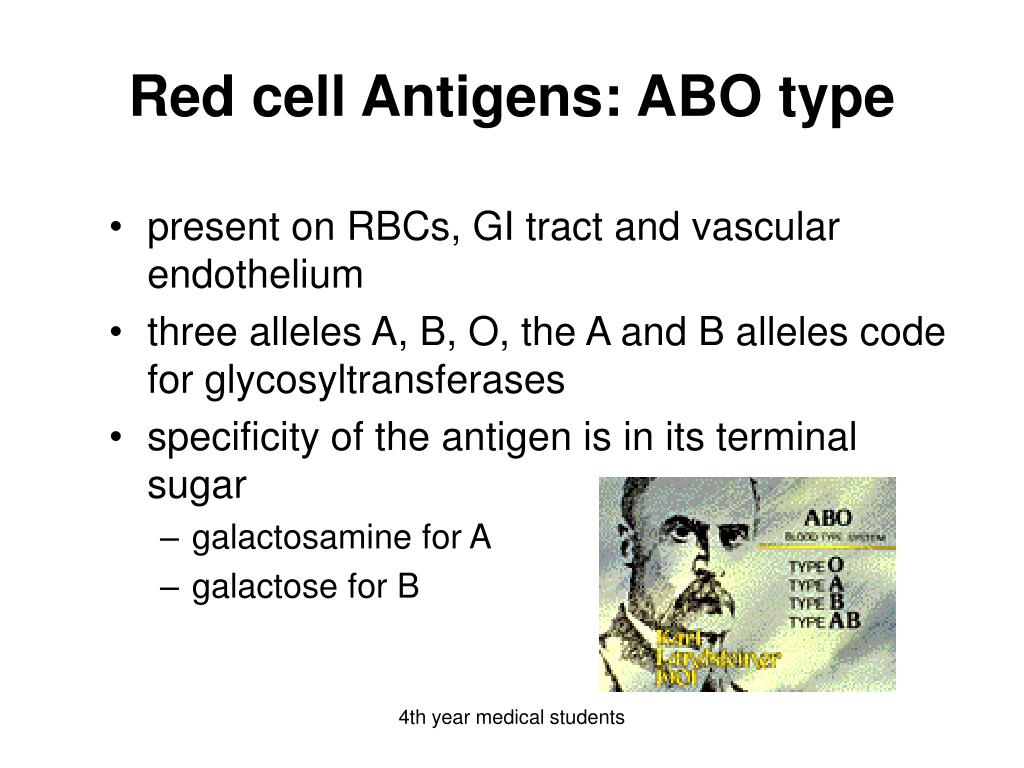

red cell antigens abo type
Red cell Antigens: ABO type
  • present on RBCs, GI tract and vascular endothelium
  • three alleles A, B, O, the A and B alleles code for glycosyltransferases
  • specificity of the antigen is in its terminal sugar
    • galactosamine for A
    • galactose for B

4th year medical students

molecular basis of abo alleles
Molecular basis of ABO alleles
  • fucose added to H-substance
  • precursor
  • product of A allele adds
  • N-acetylgalactosamine
  • product of B allele adds
  • galactose
  • both molecules (A and B) can
  • be expressed on cell surface
  • at the same time
  • in OO individuals H substance
  • is not modified

4th year medical students

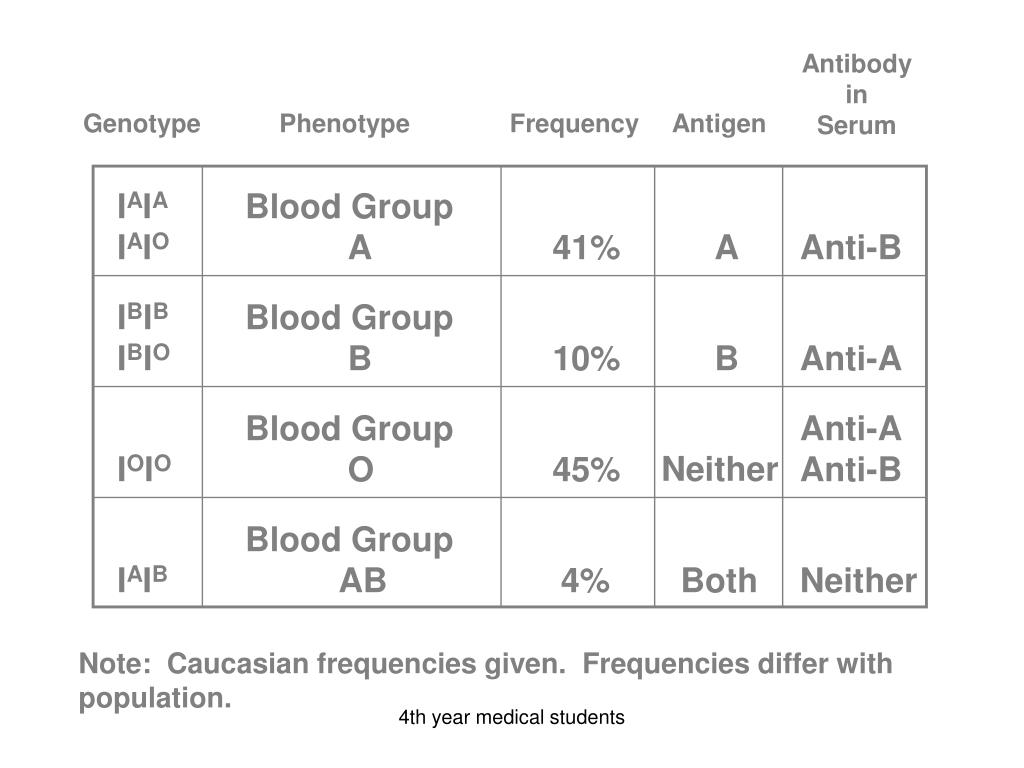

slide8

Antibody

in

Serum

Genotype

Phenotype

Frequency

Antigen

IAIA

IAIO

Blood Group

A

41%

A

Anti-B

IBIB

IBIO

Blood Group

B

10%

B

Anti-A

Neither

IOIO

Blood Group

O

45%

Anti-A

Anti-B

IAIB

Blood Group

AB

4%

Both

Neither

Note: Caucasian frequencies given. Frequencies differ with population.

4th year medical students

rh type
Rh type
  • Rh blood group antigens are present only on RBCs
  • Five important antigens of the Rh system are D, C, E, c, and e
  • Rh positive means that the D antigen is present (85% on the population)
  • Rh negative means that the D antigen is absent (15% of the population)
  • the D antigen is highly immunogenic
  • More than 70-80% of D negative persons receiving D positive blood are expected to develop anti-D

4th year medical students

rh blood group alleles

Multiple Alleles

Weiner

R1

R2

R0

Rz

r

rl

rll

ry

Closely Linked Loci

Fisher-Race

CDe

cDE

cDe

CDE

cde

Cde

cdE

CdE

Rh+

Rh-

Rh Blood Group Alleles
  • Weiner - One complex locus, 8 different alleles
  • Fisher-Race - Three separate loci; simple alleles, D allele most important; D = Rh+; dd = Rh-
  • C and E loci may effect expression of Rh phenotype

4th year medical students

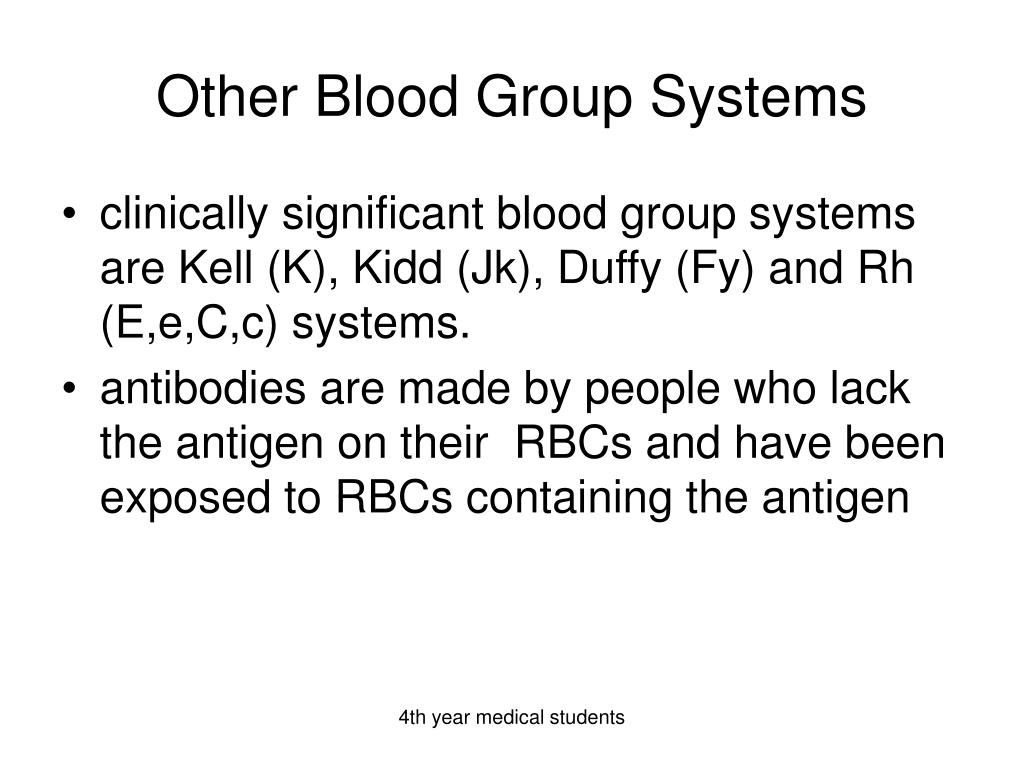

other blood group systems
Other Blood Group Systems
  • clinically significant blood group systems are Kell (K), Kidd (Jk), Duffy (Fy) and Rh (E,e,C,c) systems.
  • antibodies are made by people who lack the antigen on their RBCs and have been exposed to RBCs containing the antigen

4th year medical students

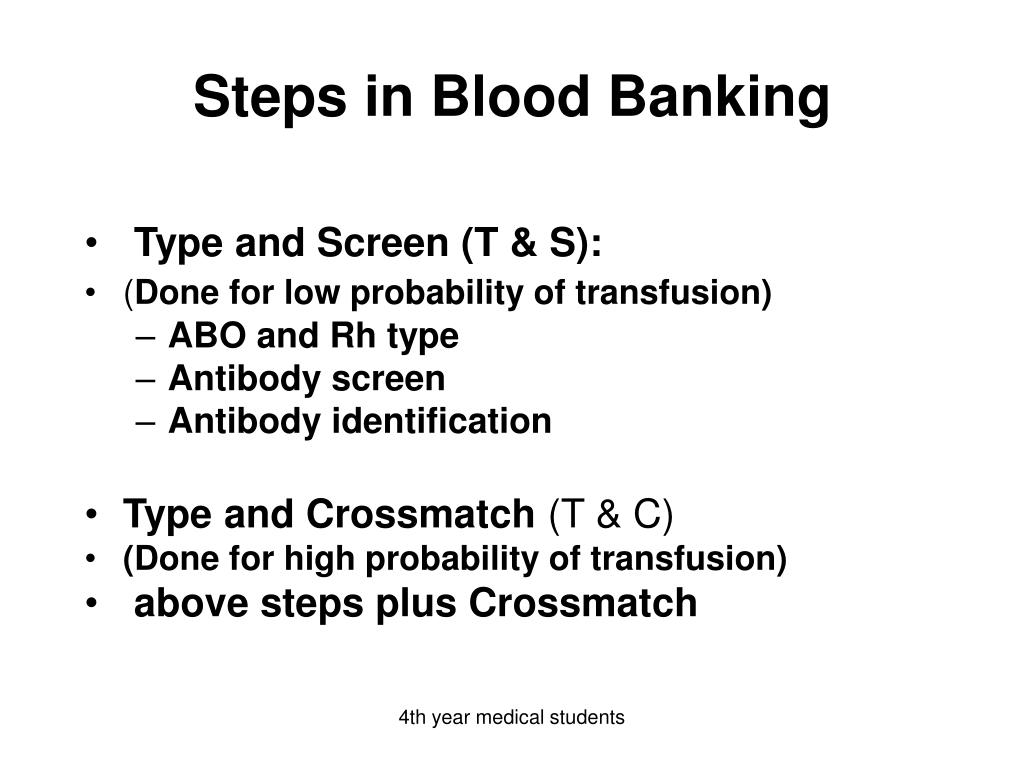

steps in blood banking
Steps in Blood Banking
  • Type and Screen (T & S):
  • (Done for low probability of transfusion)
    • ABO and Rh type
    • Antibody screen
    • Antibody identification
  • Type and Crossmatch (T & C)
  • (Done for high probability of transfusion)
  • above steps plus Crossmatch

4th year medical students

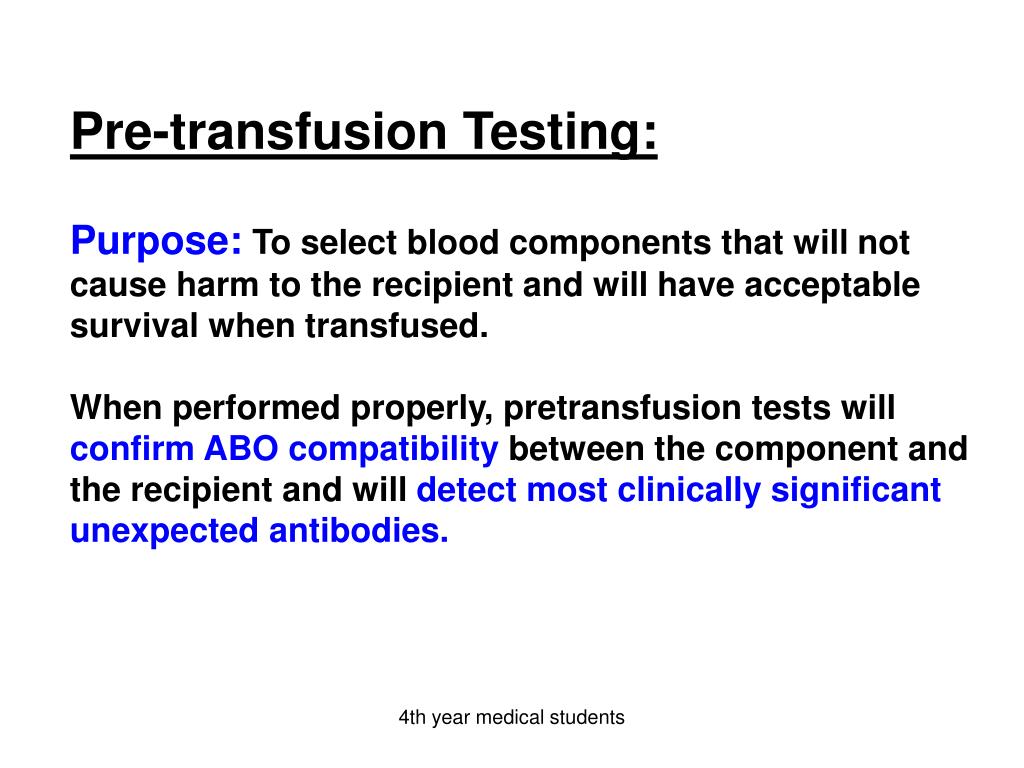

slide13

Pre-transfusion Testing:

Purpose: To select blood components that will not cause harm to the recipient and will have acceptable survival when transfused.

When performed properly, pretransfusion tests will confirm ABO compatibility between the component and the recipient and will detect most clinically significant unexpected antibodies.

4th year medical students

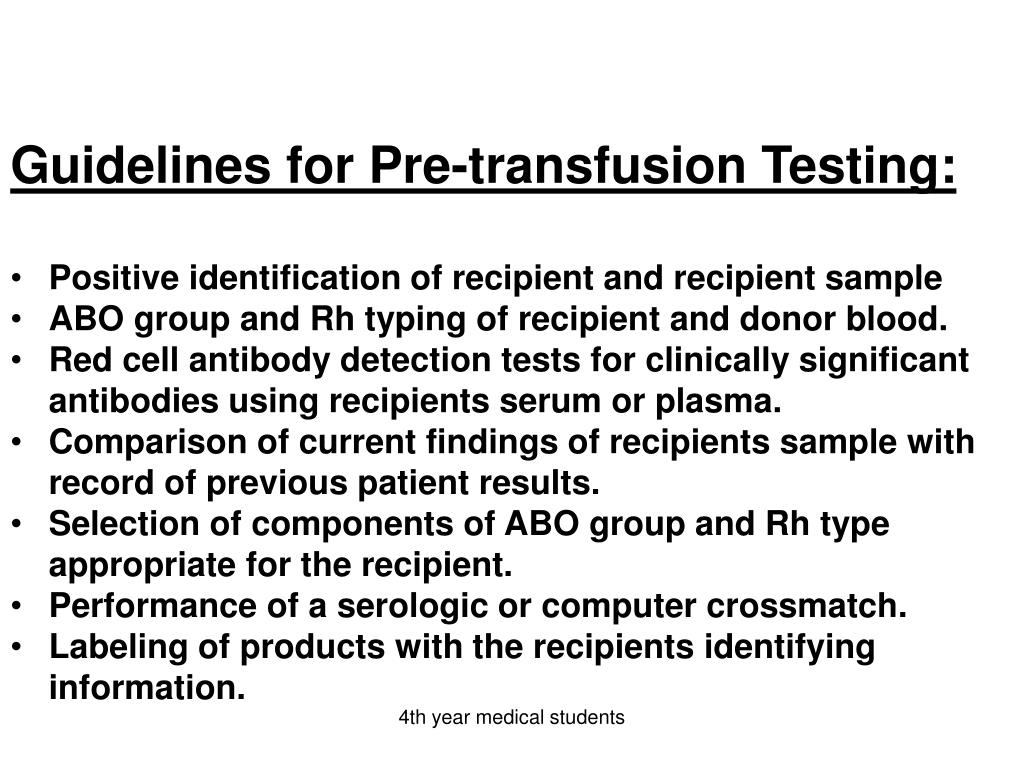

slide14

Guidelines for Pre-transfusion Testing:

  • Positive identification of recipient and recipient sample
  • ABO group and Rh typing of recipient and donor blood.
  • Red cell antibody detection tests for clinically significant antibodies using recipients serum or plasma.
  • Comparison of current findings of recipients sample with record of previous patient results.
  • Selection of components of ABO group and Rh type appropriate for the recipient.
  • Performance of a serologic or computer crossmatch.
  • Labeling of products with the recipients identifying information.

4th year medical students

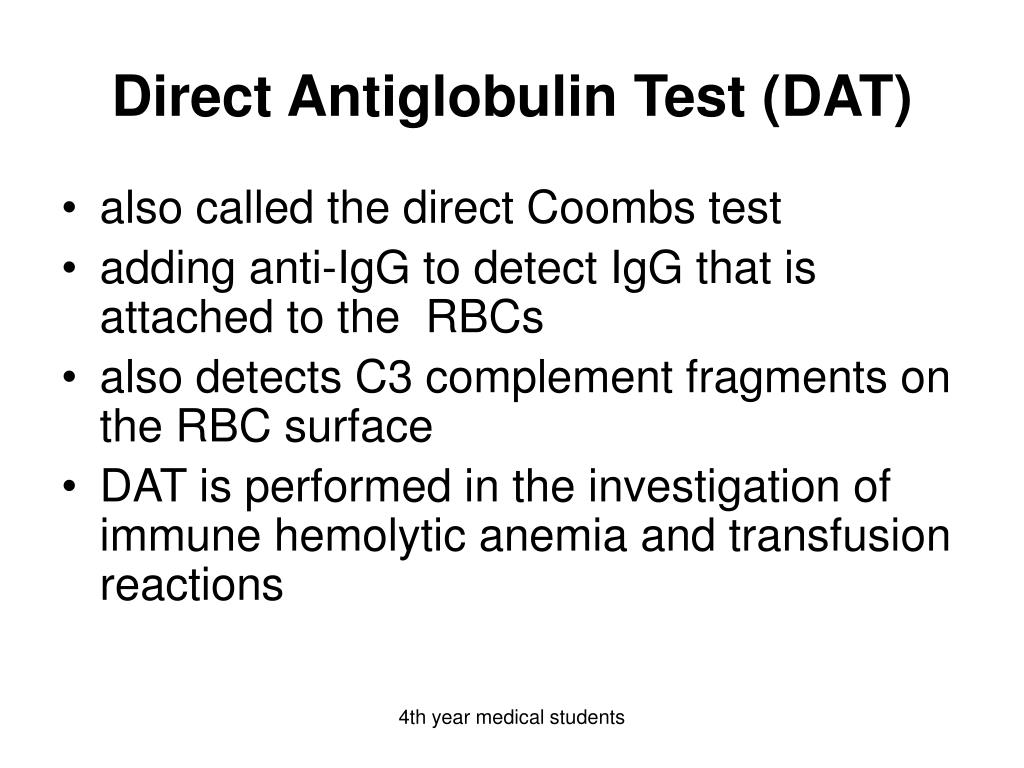

direct antiglobulin test dat
Direct Antiglobulin Test (DAT)
  • also called the direct Coombs test
  • adding anti-IgG to detect IgG that is attached to the RBCs
  • also detects C3 complement fragments on the RBC surface
  • DAT is performed in the investigation of immune hemolytic anemia and transfusion reactions

4th year medical students

indirect antiglobulin test iat
Indirect Antiglobulin Test (IAT)
  • detects free antibodies in the serum
  • the IAT test is performed during the antibody screen and antibody identification

4th year medical students

abo grouping
ABO GROUPING

ABO grouping is the single most important serological test performed on pre-transfusion

4th year medical students

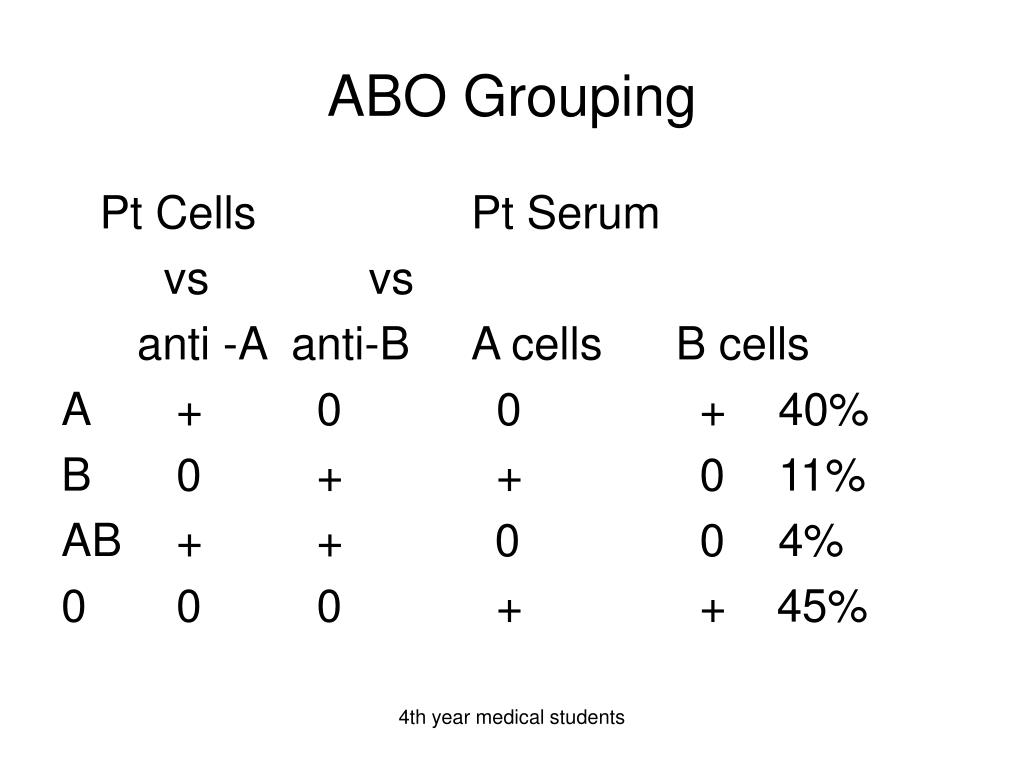

abo grouping1
ABO Grouping

Pt Cells Pt Serum

vs vs

anti -A anti-B A cells B cells

A + 0 0 + 40%

B 0 + + 0 11%

AB + + 0 0 4%

0 0 0 + + 45%

4th year medical students

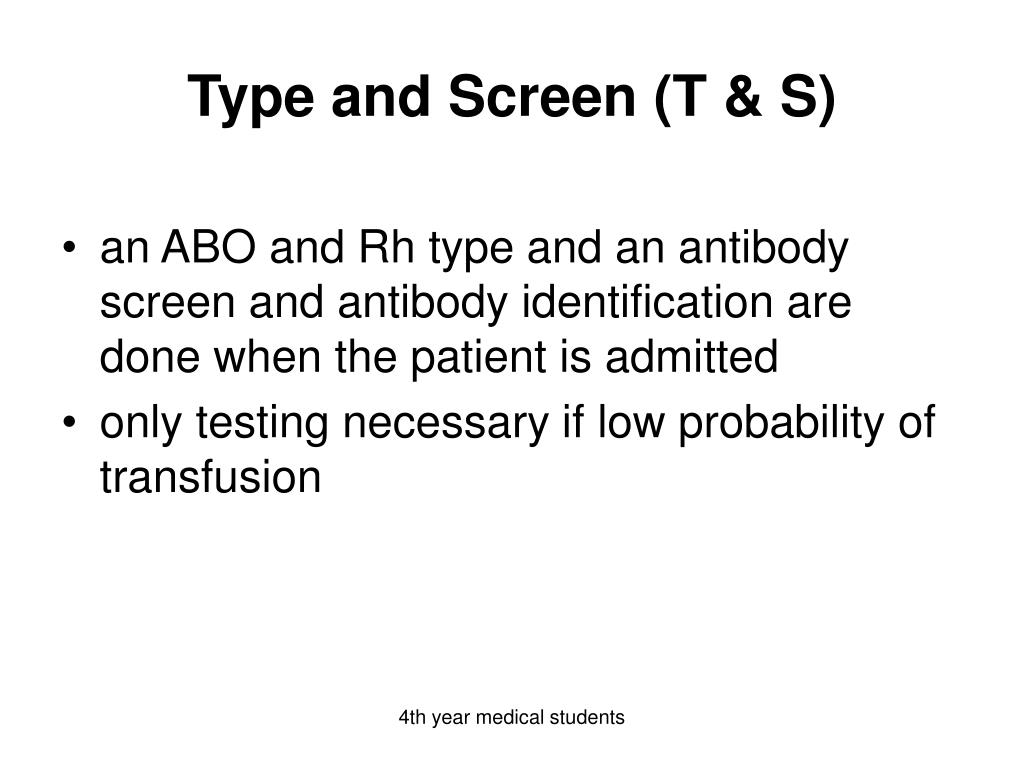

type and screen t s
Type and Screen (T & S)
  • an ABO and Rh type and an antibody screen and antibody identification are done when the patient is admitted
  • only testing necessary if low probability of transfusion

4th year medical students

crossmatch to transfusion ratio c t ratio
Crossmatch to Transfusion ratio (C:T ratio)
  • blood is used more efficiently when the number of units set aside for a particular patient (crossmatched) are actually transfused.
  • when a patient does not need blood, it is good practice to get a T& S but not a T & C
  • C:T ratio is less than 2:1

4th year medical students

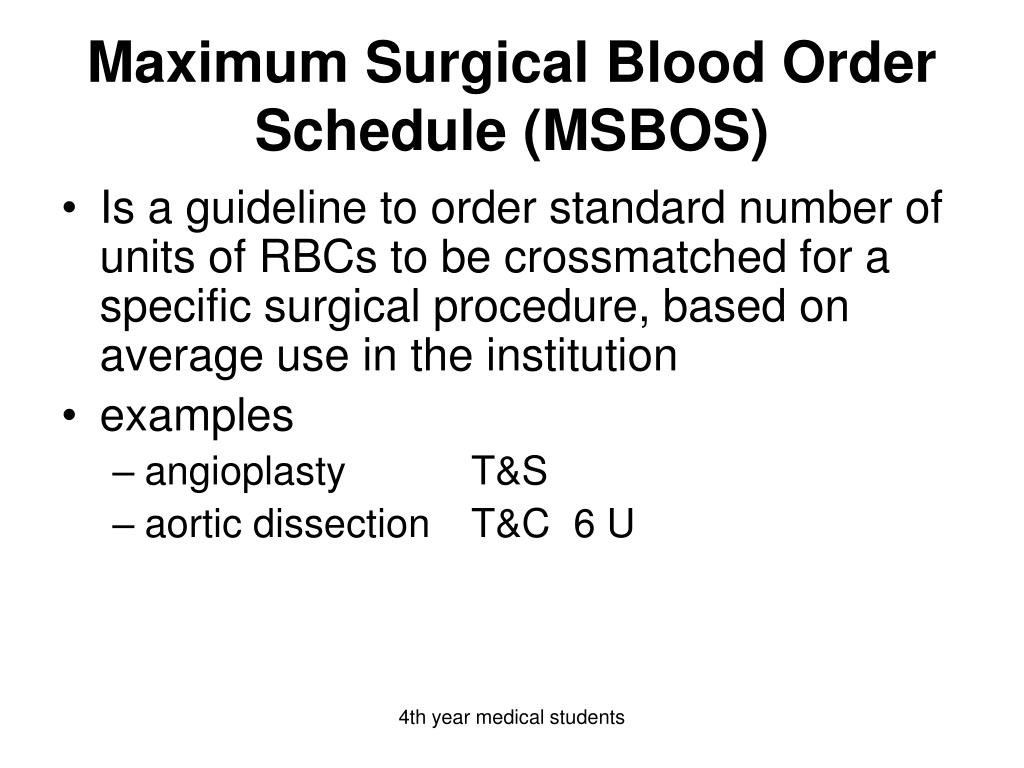

maximum surgical blood order schedule msbos
Maximum Surgical Blood Order Schedule (MSBOS)
  • Is a guideline to order standard number of units of RBCs to be crossmatched for a specific surgical procedure, based on average use in the institution
  • examples
    • angioplasty T&S
    • aortic dissection T&C 6 U

4th year medical students

antibody screening
ANTIBODY SCREENING

that antibody screening should be performed in all pre-transfusion testing.

As a minimum the following antigens must be expressed within the screening cell set:

C, c, D, E, e, K, k, Fya, Fyb, Jka, Jkb, S, s, M, N, Lea

4th year medical students

antibody screen iat
Antibody Screen (IAT)
  • recipients serum is added to 3 test RBCs (in test tubes 1 to 3 ) which have all of the important RBC antigens on them
  • therefore if one or more of the three screening cells is positive then RBC antibody is present in the serum
  • then do an antibody panel to identify the antibody present

4th year medical students

antibody identification iat
Antibody Identification (IAT)
  • after the Ab screening are positive then do an antibody identification
  • recipients’ serum is added to 10 test RBCs in a panel (test tubes 1 to 10) which contain all of the important antigens
  • the antibody in the serum is identified

4th year medical students

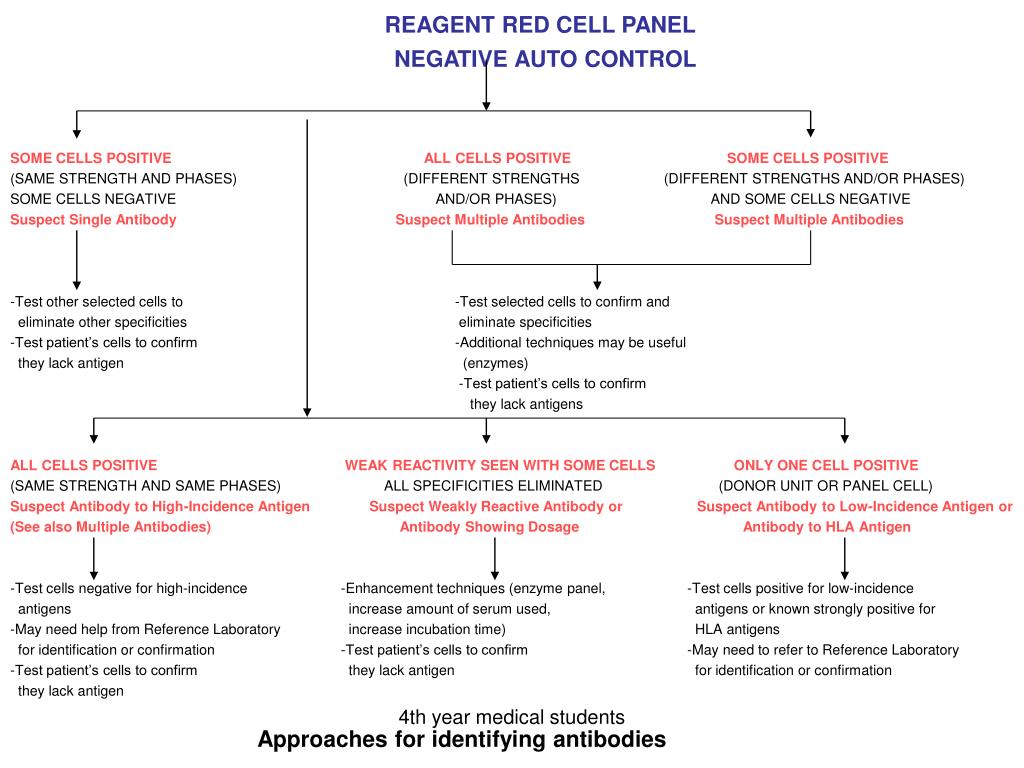

slide25
REAGENT RED CELL PANEL

NEGATIVE AUTO CONTROL

SOME CELLS POSITIVE ALL CELLS POSITIVE SOME CELLS POSITIVE

(SAME STRENGTH AND PHASES) (DIFFERENT STRENGTHS (DIFFERENT STRENGTHS AND/OR PHASES)

SOME CELLS NEGATIVE AND/OR PHASES) AND SOME CELLS NEGATIVE

Suspect Single AntibodySuspect Multiple AntibodiesSuspect Multiple Antibodies

-Test other selected cells to -Test selected cells to confirm and

eliminate other specificities eliminate specificities

-Test patient’s cells to confirm -Additional techniques may be useful

they lack antigen (enzymes)

-Test patient’s cells to confirm

they lack antigens

ALL CELLS POSITIVE WEAK REACTIVITY SEEN WITH SOME CELLS ONLY ONE CELL POSITIVE

(SAME STRENGTH AND SAME PHASES) ALL SPECIFICITIES ELIMINATED (DONOR UNIT OR PANEL CELL)

Suspect Antibody to High-Incidence Antigen Suspect Weakly Reactive Antibody or Suspect Antibody to Low-Incidence Antigen or

(See also Multiple Antibodies) Antibody Showing Dosage Antibody to HLA Antigen

-Test cells negative for high-incidence -Enhancement techniques (enzyme panel, -Test cells positive for low-incidence

antigens increase amount of serum used, antigens or known strongly positive for

-May need help from Reference Laboratory increase incubation time) HLA antigens

for identification or confirmation -Test patient’s cells to confirm -May need to refer to Reference Laboratory

-Test patient’s cells to confirm they lack antigen for identification or confirmation

they lack antigen

Approaches for identifying antibodies

4th year medical students

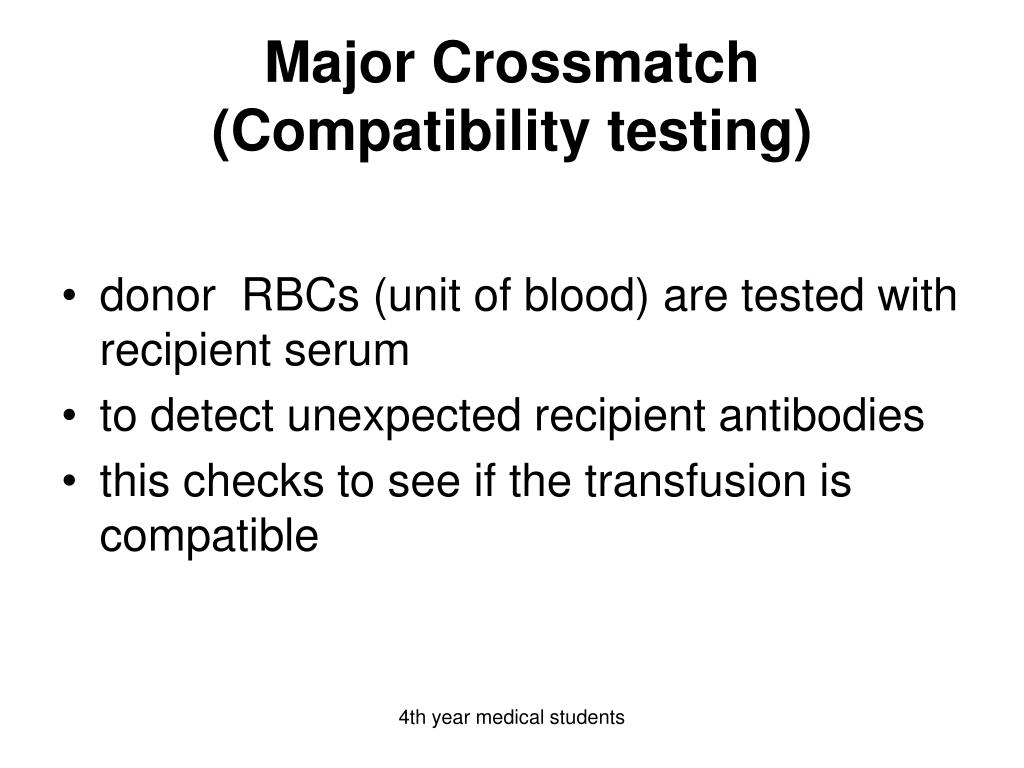

major crossmatch compatibility testing
Major Crossmatch (Compatibility testing)
  • donor RBCs (unit of blood) are tested with recipient serum
  • to detect unexpected recipient antibodies
  • this checks to see if the transfusion is compatible

4th year medical students

crossmatching
CROSSMATCHING

Types of Cross Match:

-serological IAT crossmatch.

-abbreviated serological techniques immediate spin

-non-serological methods

electronic cross Match

4th year medical students

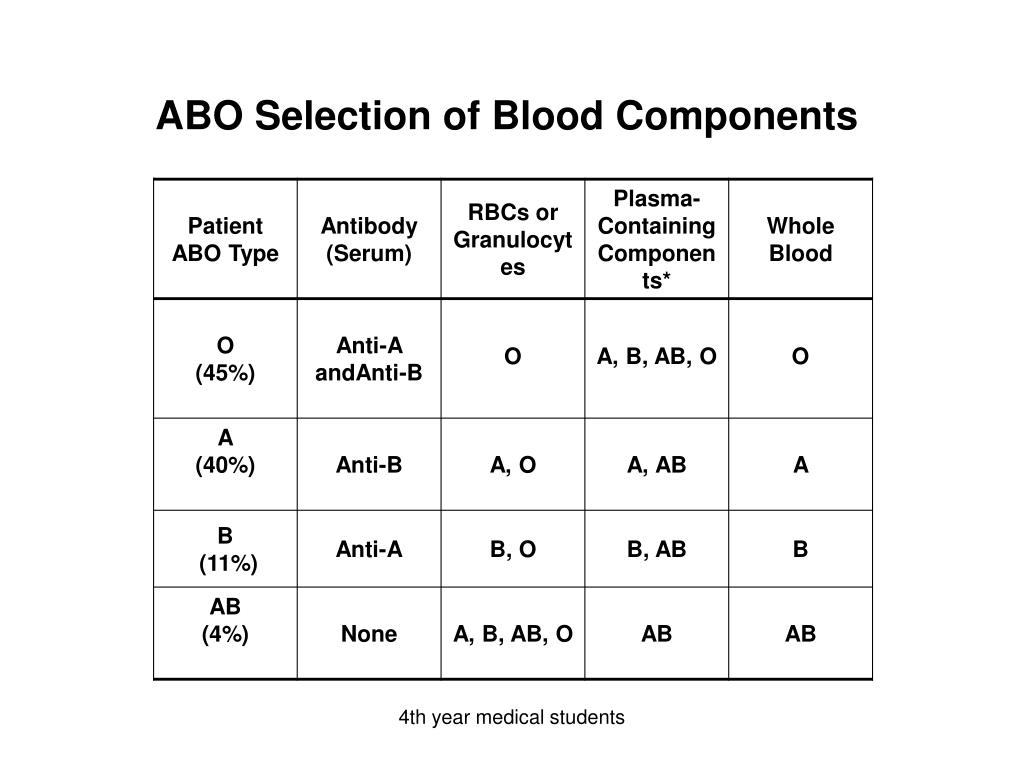

slide28

ABO Selection of Blood Components

4th year medical students

slide29

THANKS

4th year medical students
