  1. BAROID IDP

  2. MYSTERIES OF LIFE WHAT IS DRILLING FLUID?

  3. DRILLING FLUIDS WATER AND….

  4. DRILLING FLUIDS ADDITIVES ADDED TO MAKE THE WATER WORK FOR YOU! ADDITIVES THAT SUPPORT THE HOLE OR BREAK DOWN THE SOIL.

  5. COARSE SOILS SAND GRAVEL ROCK FINE SOILS CLAY LOAM SILT SOIL TYPES

  6. COLLAPSIBLE SAND GRAVEL ROCK COMPACTIBLE CLAY LOAM SILT SOIL TYPES

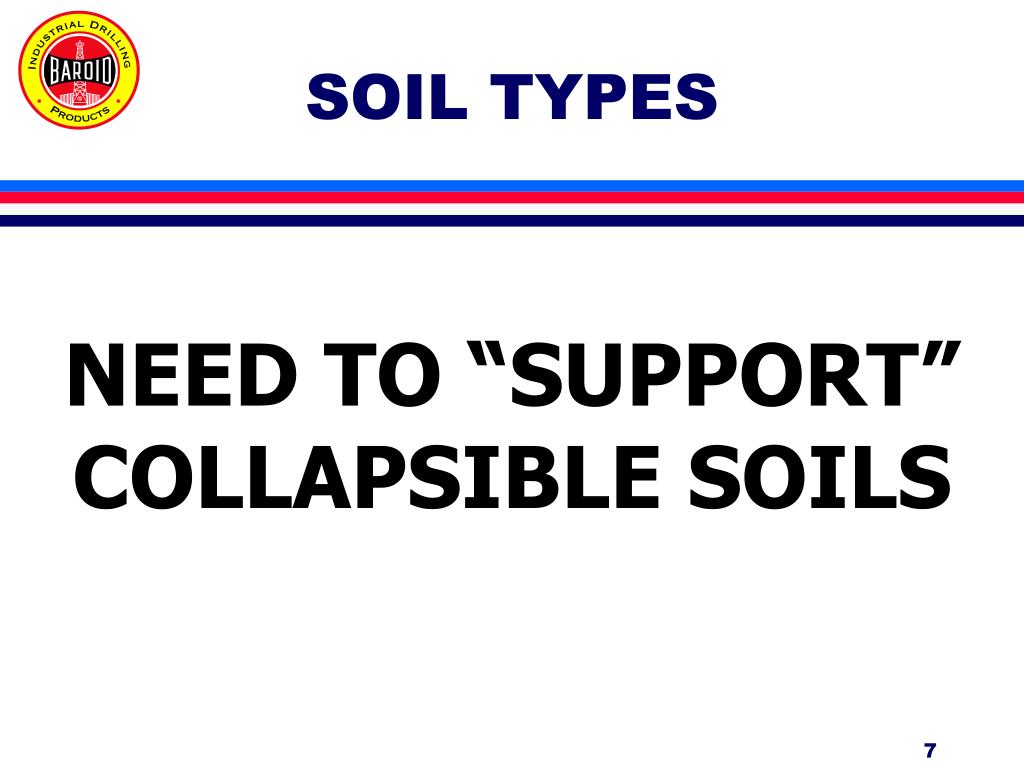

  7. SOIL TYPES NEED TO “SUPPORT” COLLAPSIBLE SOILS

  8. SOIL TYPES NEED TO “BREAK DOWN” COMPACTIBLE SOILS

  9. SOIL TYPES WHAT SOILS DO YOU HAVE?

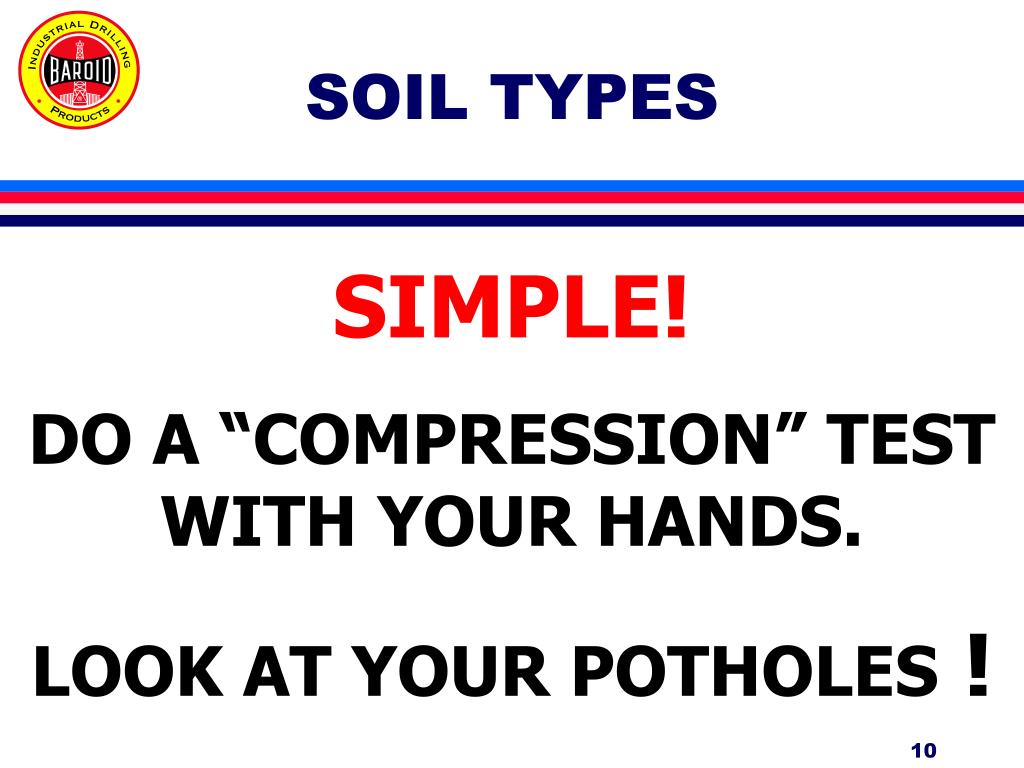

  10. SOIL TYPES SIMPLE! DO A “COMPRESSION” TEST WITH YOUR HANDS. LOOK AT YOUR POTHOLES !

  11. DRILLING FLUIDS DO YOU NEED DRILLING FLUIDS?

  12. DRILLING FLUIDS YES!

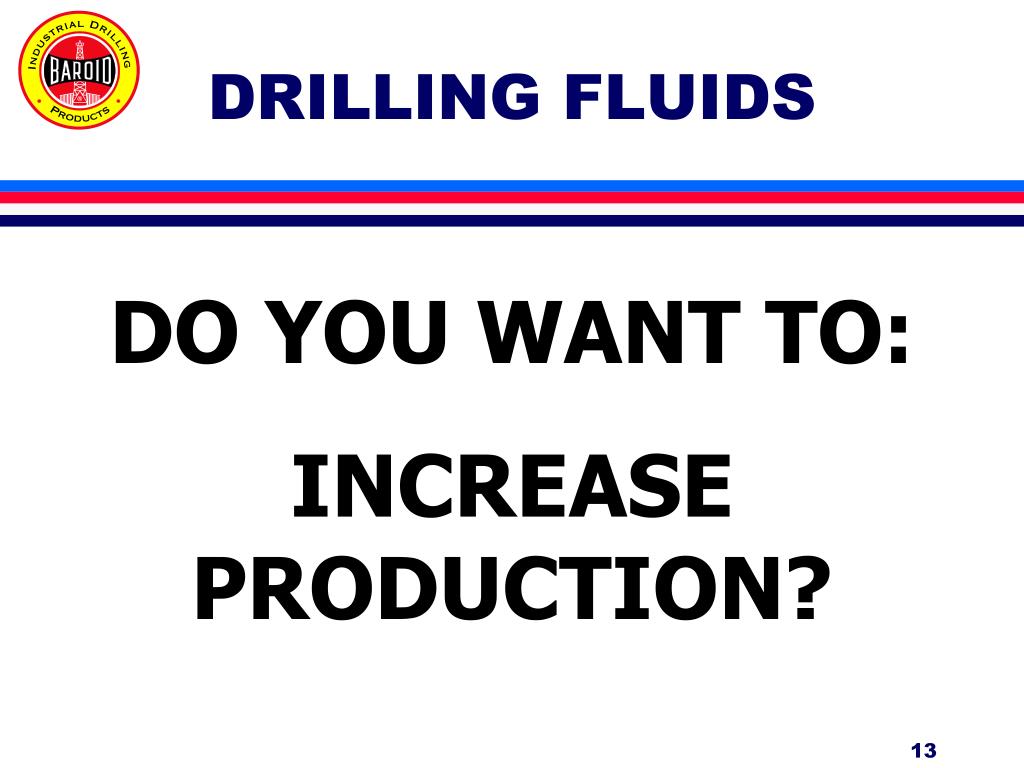

  13. DRILLING FLUIDS DO YOU WANT TO: INCREASE PRODUCTION?

  14. DRILLING FLUIDS DO YOU WANT TO: REDUCE WEAR ON TOOLING?

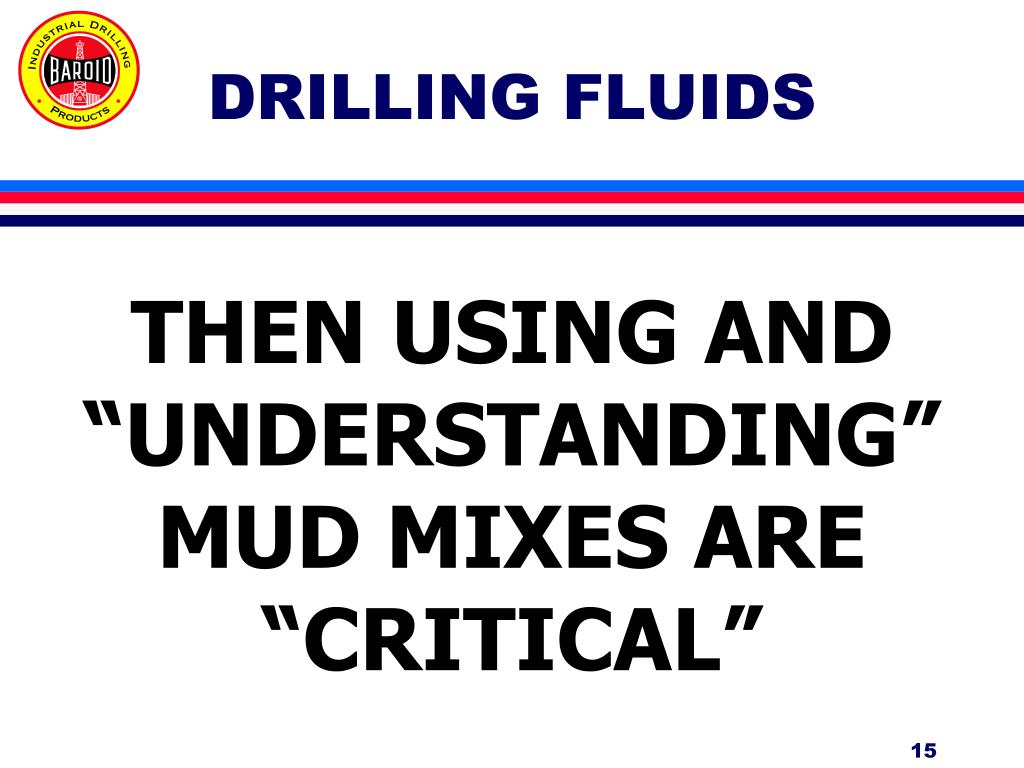

  15. DRILLING FLUIDS THEN USING AND “UNDERSTANDING” MUD MIXES ARE “CRITICAL”

  16. DRILLING FLUIDS EVERYDAY!

  17. DRILLING FLUIDS EVERY BORE!

  18. DRILLING FLUIDS NO SOLO AGUA!

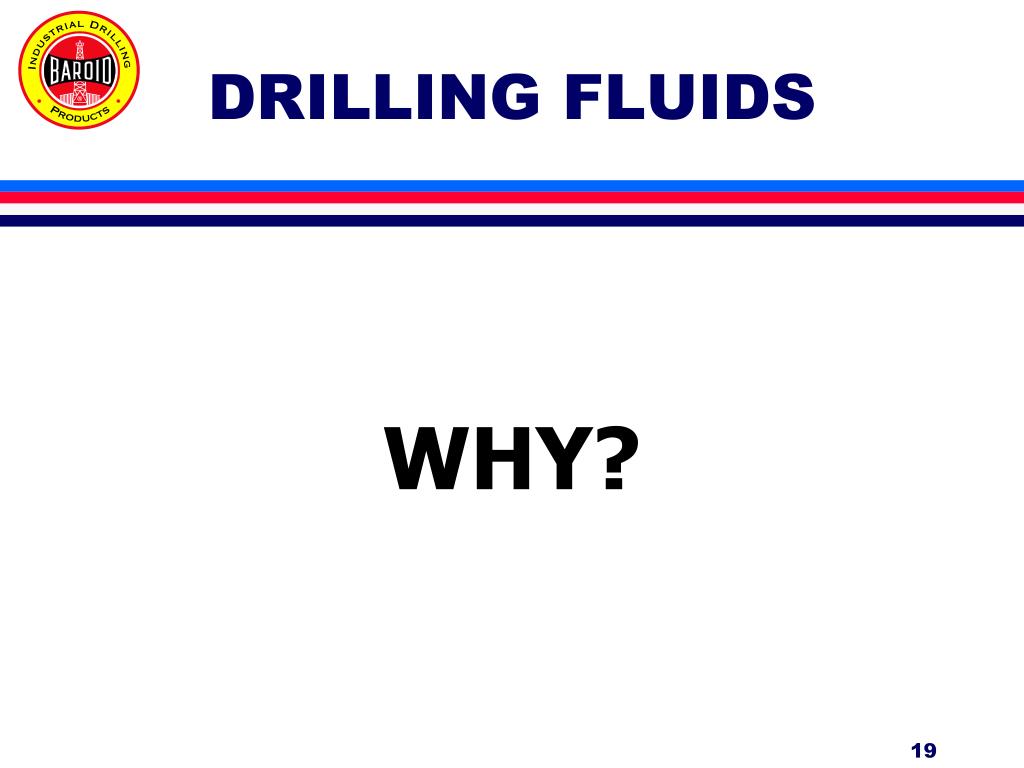

  19. DRILLING FLUIDS WHY?

  20. DRILLING FLUIDS EVER LIFTED A SIDEWALK? OR CRACKED ASPHALT?

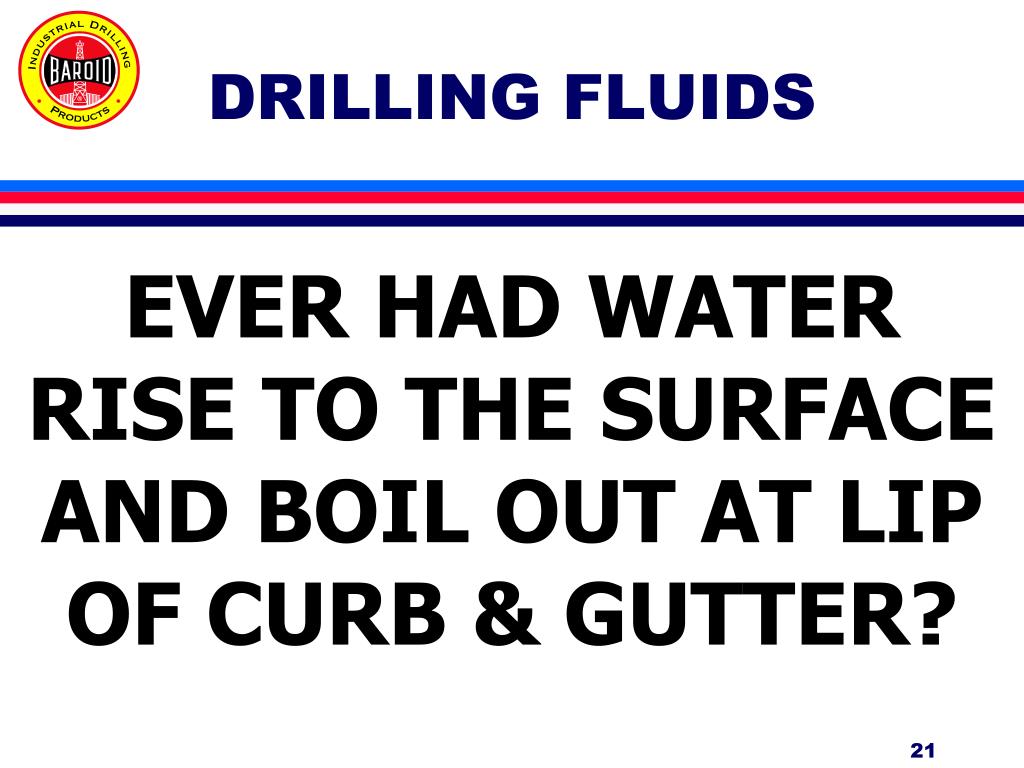

  21. DRILLING FLUIDS EVER HAD WATER RISE TO THE SURFACE AND BOIL OUT AT LIP OF CURB & GUTTER?

  22. DRILLING FLUIDS EVER SEEN THE CARRIAGE HEAD “PULL BACK” AFTER YOU LET GO OF THE CONTROLS?

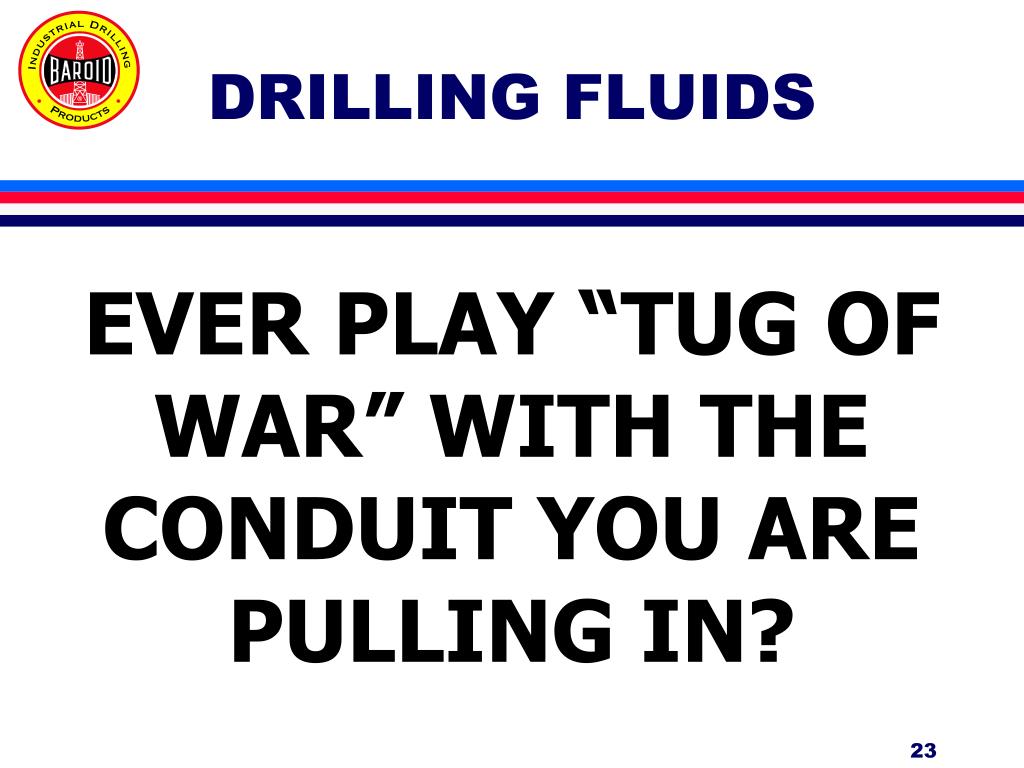

  23. DRILLING FLUIDS EVER PLAY “TUG OF WAR” WITH THE CONDUIT YOU ARE PULLING IN?

  24. DRILLING FLUIDS EVER “STICK” THE CONDUIT?

  25. DRILLING FLUIDS HAS YOUR CONDUIT BEEN TOUGH TO “PROOF” OR BLOW FIBER INTO?

  26. DRILLING FLUIDS EVER HIT A UTILITY?

  27. DRILLING FLUIDS 90% OF “HITS” ARE ON PULLBACK. WHY?

  28. DRILLING FLUIDS DRILL ROD WANTS TO PULL BACK “STRAIGHT” THROUGH EASIEST PATH!

  29. DRILLING FLUIDS THIS IS ALL CAUSED BY THE LACK OF THE RIGHT “MIX”

  30. DRILLING FLUIDS PLUS, THE RIGHT MIX WILL REDUCE THE TRIPS FOR THE VACUUMS!

  31. DRILLING FLUIDS PLUS, THE RIGHT MIX WILL REDUCE THE FRICTION/GRAB ON THE DRILL ROD!

  32. DRILLING FLUIDS THE BASIC “5” CHEMICALS IN CALIFORNIA

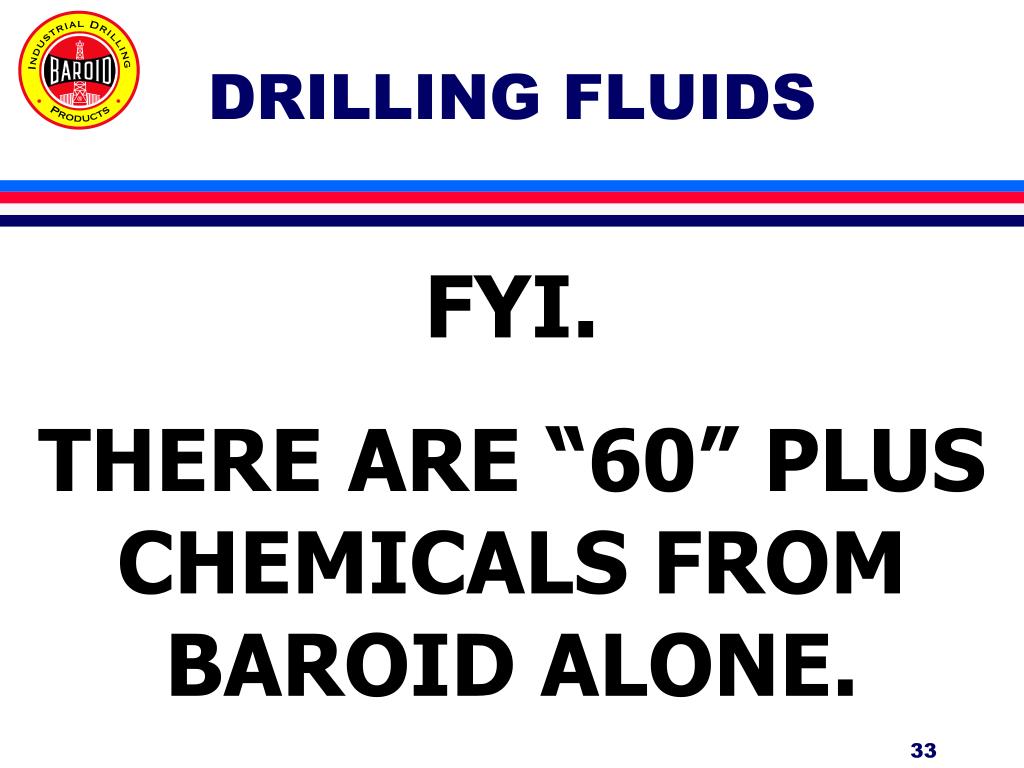

  33. DRILLING FLUIDS FYI. THERE ARE “60” PLUS CHEMICALS FROM BAROID ALONE.

  34. DRILLING FLUIDS BOREGEL/QUICK GEL & WHY BOREGEL?

  35. DRILLING FLUIDS IN “COLLAPSABILE” SOILS, SUPPORTS THE BORE HOLE LIKE TRENCH SHORING

  36. DRILLING FLUIDS BASIC MIX: +(1) BAG PER 150 GALLONS OF WATER

  37. Goal of fluids SUPPORT & STABILIZE BOREHOLE

  38. SAND SOIL

  39. WATER ON SAND

  40. 5 SECONDS LATER

  41. BORE-GEL ON SAND

  42. AFTER 30 SECONDS

  43. AFTER 24 HOURS

  44. DRILLING FLUIDS CONDET 1 GALLON PER 100 GALLONS OF WATER

  45. DRILLING FLUIDS KEEPS CUTTINGS “OFF” TOOLING LIKE DIESEL ON ASPHALT TOOLS.

  46. DRILLING FLUIDS HELPS KEEP CLAYS FROM RE-FORMING

  47. CON-DET

  48. DRILLING FLUIDS POLYMERS POLY-BORE/EZ MUD

  49. DRILLING FLUIDS LUBRICATES CUTTINGS AND PRODUCT

  50. DRILLING FLUIDS BUT CAREFUL, A LITTLE POLYMER GOES A LONG WAY! (1) CUP/1000 GALLONS
