Presentation Transcript


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

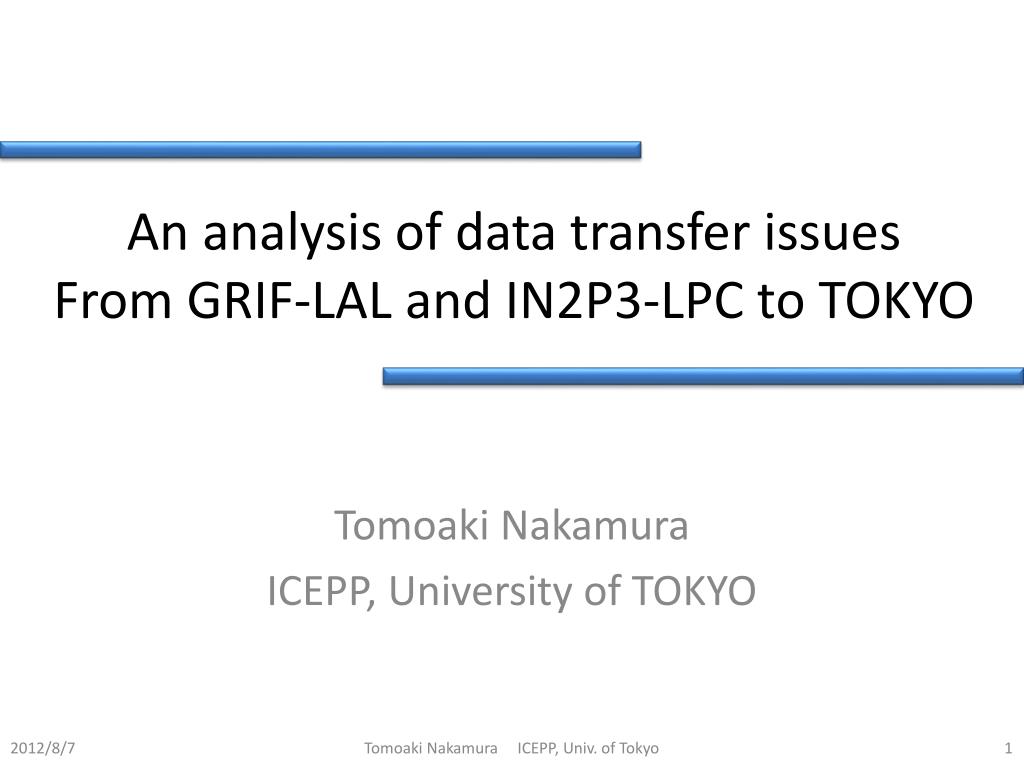

An analysis of data transfer issuesFrom GRIF‐LAL and IN2P3‐LPC to TOKYO

Tomoaki Nakamura

ICEPP, University of TOKYO

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Data transfer matrix in FR-cloud

from Feb. 2012 to Jun. 2012

Problems in transfers from GRIF-LAL and IN2P3-LPC to TOKYO.

Timeout occurs occasionally for files bigger than 1 GB.

Such hotspots affect smooth data distribution in FR-cloud, since DDM assumes uniform connectivity in a cloud.

This problems have already indicated in,

https://savannah.cern.ch/bugs/?90998

GRIF-LAL → TOKYO

IN2P3-LCP → TOKYO

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Transfer from GRIF-LAL to TOKYO (file size: 1GB) , reference LYON

http://www.icepp.jp/monitor/transferspeed/

Data are collected by daily test transfer (file size is 1GB) between storages using the “lcg-rep” with 10 streams.

Plots are shown since Dec. 2011.

For the transfer from GRIF-LAL to TOKYO, almost of data points indicate very slow rate except for some points.

For the transfer from TOKYO to GRIF-LAL, basically no problem even as compared to LYON.

Transfer from TOKYO to GRIF-LAL (file size: 1GB) , reference LYON

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Transfer from IN2P3-LPC to TOKYO (file size: 1GB) reference LYON

Data are collected by same way with GRIF-LAL.

For the transfer from IN2P3-LPC to TOKYO, the transfer rate is not always so bad and much better than the case of GRIF-LAL. However, it is very unstable basically.

For the transfer from TOKYO to IN2P3-LPC, it seems no problem similar to the case for the transfer from TOKYO to GRIF-LAL.

Transfer from TOKYO to IN2P3-LPC (file size: 1GB)reference LYON

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Transfer from GRIF-LAL to TOKYO (file size: 50MB)

~ Dec. 20, 2011

← no data →

Then, go to check older data since Sep. 2011.

These plots are made by using transfer of small files (50MB). It should be insensitive to TCP fair share parameters.

For the transfer from GRIF-LAL to TOKYO, obviously the rate drop down suddenly around Dec.20, 2011.

For the transfer from IN2P3-LPC to TOKYO, there are no significant changes before and after the Dec. 20, 2011.

← no data →

Transfer from IN2P3-LPC to TOKYO (file size: 50MB)

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

perfSONAR at TOKYO (TOKYO : GRIF-LAL)

http://perfsonar2.icepp.jp/serviceTest/index.cgi?eventType=bwctl

As far as take a look at the perfSONAR throughput initiated by an instance at TOKYO, network itself seems to have no problem between GRIF-LAL and TOKYO.

Unfortunately, there are no data by perfSONAR for IN2P3-LPC.

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Transfer from IN2P3-LPC to TOKYO sorted by FSs in IN2P3-LPC

since Dec. 2011

file size: 1GB

● all data points

□ average with standard error

IDNum. transferredFile server

18clrdata-dpm11.in2p3.fr

211clrdata-dpm12.in2p3.fr

312clrdata-dpm13.in2p3.fr

47clrdata-dpm14.in2p3.fr

514clrdata-dpm15.in2p3.fr

611clrdata-dpm16.in2p3.fr

735clrdata-dpm21.in2p3.fr

835clrdata-dpm22.in2p3.fr

932clrdata-dpm25.in2p3.fr

108clrdata-dpm26.in2p3.fr

114clrdata-dpm27.in2p3.fr

127clrdata-dpm28.in2p3.fr

135clrgpfs2srv-dpm02.in2p3.fr

143clrgpfs2srv-dpm03.in2p3.fr

157clrgpfs2srv-dpm04.in2p3.fr

166clrgpfs2srv-dpm05.in2p3.fr

171clrgpfs2srv-dpm06.in2p3.fr

Then, go to check file server dependence.

Average transfer rate indicate some file server dependence.

Need to contact with site admin. of IN2P3-LPC, and check any differences on some parameters in file servers.

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Transfer from IN2P3-LPC to TOKYO sorted by FSs in TOKYO

since Dec. 2011

file size: 1GB

● all data points

□ average with standard error

IDNum. transferredFile server

113lcg-fs01.icepp.jp

217lcg-fs02.icepp.jp

311lcg-fs03.icepp.jp

417lcg-fs04.icepp.jp

511lcg-fs05.icepp.jp

613lcg-fs06.icepp.jp

713lcg-fs07.icepp.jp

812lcg-fs08.icepp.jp

912lcg-fs09.icepp.jp

1010lcg-fs10.icepp.jp

1115lcg-fs11.icepp.jp

1214lcg-fs12.icepp.jp

1311lcg-fs13.icepp.jp

147lcg-fs14.icepp.jp

1511lcg-fs15.icepp.jp

167lcg-fs16.icepp.jp

1712lcg-fs17.icepp.jp

Since TOKYO is just a receiver of file transfer in this case, there is no file server dependence as expected.


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Transfer from GRIF-LAL to TOKYO sorted by FSs in GRIF-LAL

since Dec. 2011

file size: 1GB

● all data points

□ average with standard error

IDNum. transferredFile server

122grid18.lal.in2p3.fr

25grid20.lal.in2p3.fr

31grid21.lal.in2p3.fr

418grid23.lal.in2p3.fr

514grid24.lal.in2p3.fr

630grid27.lal.in2p3.fr

72grid28.lal.in2p3.fr

821grid29.lal.in2p3.fr

925grid37.lal.in2p3.fr

1027grid38.lal.in2p3.fr

1117grid39.lal.in2p3.fr

1215grid41.lal.in2p3.fr

Average transfer rate is too bad except for two file servers.

According to the site admin. of GRIF-LAL, No. 9 and No. 12 are relatively new file servers. However, there are no differences of settings for data transfer in all file servers…

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Transfer from GRIF-LAL to TOKYO sorted by FSs in TOKYO

since Dec. 2011

file size: 1GB

● all data points

□ average with standard error

IDNum. transferredFile server

117lcg-fs01.icepp.jp

26lcg-fs02.icepp.jp

39lcg-fs03.icepp.jp

415lcg-fs04.icepp.jp

515lcg-fs05.icepp.jp

611lcg-fs06.icepp.jp

79lcg-fs07.icepp.jp

813lcg-fs08.icepp.jp

911lcg-fs09.icepp.jp

108lcg-fs10.icepp.jp

1118lcg-fs11.icepp.jp

1212lcg-fs12.icepp.jp

1311lcg-fs13.icepp.jp

1416lcg-fs14.icepp.jp

1513lcg-fs15.icepp.jp

168lcg-fs16.icepp.jp

175lcg-fs17.icepp.jp

There is no file server dependence in TOKYO same as for IN2P3-LPC case.

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Transfer from GRIF-LAL to TOKYO sorted by FSs in GRIF-LAL

Sep.1, 2011 – Dec. 19, 2011

file size: 50MB

● all data points

□ average with standard error

IDNum. transferredFile server

119grid18.lal.in2p3.fr

20grid20.lal.in2p3.fr

31grid21.lal.in2p3.fr

411grid23.lal.in2p3.fr

54grid24.lal.in2p3.fr

615grid27.lal.in2p3.fr

73grid28.lal.in2p3.fr

817grid29.lal.in2p3.fr

921grid37.lal.in2p3.fr

1020grid38.lal.in2p3.fr

1116grid39.lal.in2p3.fr

120grid41.lal.in2p3.fr

Indeed, there was no file server dependence for the transfer from GRIF-LAL to TOKYO before Dec. 20, 2011. The transfer rate was also not so bad even for the 50MB file transferring.

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Transfer from GRIF-LAL to TOKYO sorted by FSs in GRIF-LAL

Dec.20, 2011 – Jul. 1, 2012

file size: 50MB

● all data points

□ average with standard error

IDNum. transferredFile server

120grid18.lal.in2p3.fr

24grid20.lal.in2p3.fr

31grid21.lal.in2p3.fr

417grid23.lal.in2p3.fr

511grid24.lal.in2p3.fr

625grid27.lal.in2p3.fr

72grid28.lal.in2p3.fr

817grid29.lal.in2p3.fr

924grid37.lal.in2p3.fr

1024grid38.lal.in2p3.fr

1114grid39.lal.in2p3.fr

1215grid41.lal.in2p3.fr

However, the average rate was dropped down after Dec. 20 independent of difference of file servers(see previous page).

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

All Sites, 7days average (2011-09-01 ~ 2012-07-01)

AGLT2_DATADISK

AUSTRALIA-ATLAS_DATADISK

BEIJING-LCG2_DATADISK

BNL-OSG2_DATADISK

CA-ALBERTA-WESTGRID-T2_DATADISK

CA-MCGILL-CLUMEQ-T2_DATADISK

CA-SCINET-T2_DATADISK

CA-VICTORIA-WESTGRID-T2_DATADISK

CERN-PROD_DATADISK

CSCS-LCG2_DATADISK

CSTCDIE_DATADISK

CYFRONET-LCG2_DATADISK

DESY-HH_DATADISK

DESY-ZN_DATADISK

FZK-LCG2_DATADISK

GOEGRID_DATADISK

GRIF-IRFU_DATADISK

GRIF-LPNHE_DATADISK

HEPHY-UIBK_DATADISK

IFAE_DATADISK

IFIC-LCG2_DATADISK

ILLINOISHEP_DATADISK

IL-TAU-HEP_DATADISK

IN2P3-CC_DATADISK

IN2P3-CPPM_DATADISK

IN2P3-LAPP_DATADISK

IN2P3-LPC_DATADISK

IN2P3-LPSC_DATADISK

INFN-FRASCATI_DATADISK

INFN-MILANO-ATLASC_DATADISK

INFN-NAPOLI-ATLAS_DATADISK

INFN-ROMA1_DATADISK

INFN-T1_DATADISK

ITEP_DATADISK

JINR-LCG2_DATADISK

LIP-COIMBRA_DATADISK

LIP-LISBON_DATADISK

LRZ-LMU_DATADISK

MPPMU_DATADISK

MWT2_DATADISK

NCG-INGRID-PT_DATADISK

NDGF-T1_DATADISK

NET2_DATADISK

NIKHEF-ELPROD_DATADISK

OU_OCHEP_SWT2_DATADISK

PIC_DATADISK

PRAGUELCG2_DATADISK

RAL-LCG2_DATADISK

RO-02-NIPNE_DATADISK

RO-07-NIPNE_DATADISK

RO-14-ITIM_DATADISK

RO-16-UAIC_DATADISK

RRC-KI_DATADISK

RU-MOSCOW-FIAN-LCG2_DATADISK

RU-MOSCOW-SINP-LCG2_DATADISK

RU-PNPI_DATADISK

RU-PROTVINO-IHEP_DATADISK

SARA-MATRIX_DATADISK

SE-SNIC-T2_DATADISK

SFU-LCG2_DATADISK

SLACXRD_DATADISK

SWT2_CPB_DATADISK

TAIWAN-LCG2_DATADISK

TECHNION-HEP_DATADISK

TOKYO-LCG2_DATADISK

TR-10-ULAKBIM_DATADISK

TRIUMF-LCG2_DATADISK

UAM-LCG2_DATADISK

UKI-LT2-QMUL_DATADISK

UKI-LT2-RHUL_DATADISK

UKI-LT2-UCL-HEP_DATADISK

UKI-NORTHGRID-LANCS-HEP_DATADISK

UKI-NORTHGRID-LIV-HEP_DATADISK

UKI-NORTHGRID-MAN-HEP_DATADISK

UKI-NORTHGRID-SHEF-HEP_DATADISK

UKI-SCOTGRID-ECDF_DATADISK

UKI-SCOTGRID-GLASGOW_DATADISK

UKI-SOUTHGRID-BHAM-HEP_DATADISK

UKI-SOUTHGRID-CAM-HEP_DATADISK

UKI-SOUTHGRID-OX-HEP_DATADISK

UKI-SOUTHGRID-RALPP_DATADISK

UNI-FREIBURG_DATADISK

WEIZMANN-LCG2_DATADISK

WUPPERTALPROD_DATADISK

small: 0 ~ 100MB

Comparison with the other sites.

Data transfer throughput for the transfer from GRIF-LALare extracted from ATLAS dashboad.

Red points are the average for each time bin.

Apparently, you can find a gap around the Dec. 20 even in the average for all file size categories.

medium: 100MB ~ 1GB

large: 1GB ~

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Profiles (2011-09-01 ~ 2012-07-01)

Extracted only average points.

Average throughput have been decreased 30~40% after Dec. 20, 2011 as compared to before.

small: 0 ~ 100MB

~2011-12-20

0.7MB/sec→0.5MB/sec(70%)

medium: 100MB ~ 1GB

5.1MB/sec→3.1MB/sec(60%)

large: 1GB ~

12.9MB/sec→8.5MB/sec(66%)

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Sites (50% down after 2011-12-20)

small: 0 ~ 100MB

down less than 50%

down greater than 50%

medium: 100MB ~ 1GB

large: 1GB ~

To extract sites which has bad connectivity after Dec. 20, all sites are separated as two groups by the 50% threshold of the reduction rate.

Tomoaki Nakamura ICEPP, Univ. of Tokyo

15


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Bad connectivity (● down greater than 50% after 2011-12-20, ●Tier1,●FR-Tier2)

  • large: 1GB ~

  • down less than 50%

  • but data points < 10

  • AUSTRALIA-ATLAS_DATADISK

  • CSTCDIE_DATADISK

  • ILLINOISHEP_DATADISK

  • IL-TAU-HEP_DATADISK

  • ITEP_DATADISK

  • JINR-LCG2_DATADISK

  • OU_OCHEP_SWT2_DATADISK

  • RO-02-NIPNE_DATADISK

  • RO-14-ITIM_DATADISK

  • RO-16-UAIC_DATADISK

  • RU-MOSCOW-FIAN-LCG2_DATADISK

  • RU-MOSCOW-SINP-LCG2_DATADISK

  • RU-PNPI_DATADISK

  • RU-PROTVINO-IHEP_DATADISK

  • SE-SNIC-T2_DATADISK

  • TECHNION-HEP_DATADISK

  • TOKYO-LCG2_DATADISK

  • TR-10-ULAKBIM_DATADISK

  • WEIZMANN-LCG2_DATADISK

  • small: 0 ~ 100MB

  • AUSTRALIA-ATLAS_DATADISK

  • BEIJING-LCG2_DATADISK

  • BNL-OSG2_DATADISK

  • CA-ALBERTA-WESTGRID-T2_DATADISK

  • CA-MCGILL-CLUMEQ-T2_DATADISK

  • CA-SCINET-T2_DATADISK

  • DESY-HH_DATADISK

  • DESY-ZN_DATADISK

  • FZK-LCG2_DATADISK

  • ITEP_DATADISK

  • JINR-LCG2_DATADISK

  • NET2_DATADISK

  • OU_OCHEP_SWT2_DATADISK

  • RO-02-NIPNE_DATADISK

  • RRC-KI_DATADISK

  • RU-PNPI_DATADISK

  • SFU-LCG2_DATADISK

  • SLACXRD_DATADISK

  • SWT2_CPB_DATADISK

  • TAIWAN-LCG2_DATADISK

  • TOKYO-LCG2_DATADISK

  • TRIUMF-LCG2_DATADISK

  • medium: 100MB ~ 1GB

  • AUSTRALIA-ATLAS_DATADISK

  • BNL-OSG2_DATADISK

  • CA-ALBERTA-WESTGRID-T2_DATADISK

  • CA-MCGILL-CLUMEQ-T2_DATADISK

  • CA-SCINET-T2_DATADISK

  • CYFRONET-LCG2_DATADISK

  • DESY-HH_DATADISK

  • DESY-ZN_DATADISK

  • HEPHY-UIBK_DATADISK

  • IN2P3-LPC_DATADISK

  • INFN-FRASCATI_DATADISK

  • INFN-MILANO-ATLASC_DATADISK

  • INFN-NAPOLI-ATLAS_DATADISK

  • ITEP_DATADISK

  • JINR-LCG2_DATADISK

  • LIP-LISBON_DATADISK

  • LRZ-LMU_DATADISK

  • MPPMU_DATADISK

  • MWT2_DATADISK

  • NET2_DATADISK

  • NIKHEF-ELPROD_DATADISK

  • OU_OCHEP_SWT2_DATADISK

  • PRAGUELCG2_DATADISK

  • RO-02-NIPNE_DATADISK

  • RO-07-NIPNE_DATADISK

  • RO-16-UAIC_DATADISK

  • RRC-KI_DATADISK

  • RU-MOSCOW-FIAN-LCG2_DATADISK

  • RU-MOSCOW-SINP-LCG2_DATADISK

  • RU-PNPI_DATADISK

  • RU-PROTVINO-IHEP_DATADISK

  • SFU-LCG2_DATADISK

  • SLACXRD_DATADISK

  • SWT2_CPB_DATADISK

  • TAIWAN-LCG2_DATADISK

  • TOKYO-LCG2_DATADISK

  • TRIUMF-LCG2_DATADISK

  • UKI-LT2-UCL-HEP_DATADISK

  • UKI-NORTHGRID-SHEF-HEP_DATADISK

  • UKI-SCOTGRID-GLASGOW_DATADISK

  • UKI-SOUTHGRID-BHAM-HEP_DATADISK

  • UKI-SOUTHGRID-RALPP_DATADISK

  • UNI-FREIBURG_DATADISK

  • large: 1GB ~

  • BEIJING-LCG2_DATADISK

  • CA-ALBERTA-WESTGRID-T2_DATADISK

  • CA-MCGILL-CLUMEQ-T2_DATADISK

  • CA-SCINET-T2_DATADISK

  • CYFRONET-LCG2_DATADISK

  • DESY-HH_DATADISK

  • HEPHY-UIBK_DATADISK

  • INFN-MILANO-ATLASC_DATADISK

  • LIP-LISBON_DATADISK

  • LRZ-LMU_DATADISK

  • MPPMU_DATADISK

  • NET2_DATADISK

  • PRAGUELCG2_DATADISK

  • RRC-KI_DATADISK

  • SFU-LCG2_DATADISK

  • SLACXRD_DATADISK

  • SWT2_CPB_DATADISK

  • TRIUMF-LCG2_DATADISK

  • UKI-LT2-UCL-HEP_DATADISK

  • UKI-NORTHGRID-LIV-HEP_DATADISK

  • UKI-NORTHGRID-MAN-HEP_DATADISK

  • UKI-NORTHGRID-SHEF-HEP_DATADISK

  • UKI-SCOTGRID-GLASGOW_DATADISK

  • UKI-SOUTHGRID-BHAM-HEP_DATADISK

  • UKI-SOUTHGRID-RALPP_DATADISK

  • UNI-FREIBURG_DATADISK

Only far sites are categorized as bad connectivity group. All sites in France except for the IN2P3-LPC indicates good connectivity (see next page).

Sites listed in right hand side are excluded from the good connectivity group due to the lack of data points. Small number of data points must be originating from the timeout in the DDM sonar.

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Sites (● down less than 50%)

  • medium: 100MB ~ 1GB

  • AGLT2_DATADISK

  • BEIJING-LCG2_DATADISK

  • CA-VICTORIA-WESTGRID-T2_DATADISK

  • CERN-PROD_DATADISK

  • CSCS-LCG2_DATADISK

  • CSTCDIE_DATADISK

  • FZK-LCG2_DATADISK

  • GOEGRID_DATADISK

  • GRIF-IRFU_DATADISK

  • GRIF-LPNHE_DATADISK

  • IFAE_DATADISK

  • IFIC-LCG2_DATADISK

  • ILLINOISHEP_DATADISK

  • IL-TAU-HEP_DATADISK

  • IN2P3-CC_DATADISK

  • IN2P3-CPPM_DATADISK

  • IN2P3-LAPP_DATADISK

  • IN2P3-LPSC_DATADISK

  • INFN-ROMA1_DATADISK

  • INFN-T1_DATADISK

  • LIP-COIMBRA_DATADISK

  • NCG-INGRID-PT_DATADISK

  • NDGF-T1_DATADISK

  • PIC_DATADISK

  • RAL-LCG2_DATADISK

  • RO-14-ITIM_DATADISK

  • SARA-MATRIX_DATADISK

  • SE-SNIC-T2_DATADISK

  • TECHNION-HEP_DATADISK

  • TR-10-ULAKBIM_DATADISK

  • UAM-LCG2_DATADISK

  • UKI-LT2-QMUL_DATADISK

  • UKI-LT2-RHUL_DATADISK

  • UKI-NORTHGRID-LANCS-HEP_DATADISK

  • UKI-NORTHGRID-LIV-HEP_DATADISK

  • UKI-NORTHGRID-MAN-HEP_DATADISK

  • UKI-SCOTGRID-ECDF_DATADISK

  • UKI-SOUTHGRID-CAM-HEP_DATADISK

  • UKI-SOUTHGRID-OX-HEP_DATADISK

  • WEIZMANN-LCG2_DATADISK

  • WUPPERTALPROD_DATADISK

  • large: 1GB ~

  • and data points > 10

  • AGLT2_DATADISK

  • BNL-OSG2_DATADISK

  • CA-VICTORIA-WESTGRID-T2_DATADISK

  • CERN-PROD_DATADISK

  • CSCS-LCG2_DATADISK

  • DESY-ZN_DATADISK

  • FZK-LCG2_DATADISK

  • GOEGRID_DATADISK

  • GRIF-IRFU_DATADISK

  • GRIF-LPNHE_DATADISK

  • IFAE_DATADISK

  • IFIC-LCG2_DATADISK

  • IN2P3-CC_DATADISK

  • IN2P3-CPPM_DATADISK

  • IN2P3-LAPP_DATADISK

  • IN2P3-LPC_DATADISK

  • IN2P3-LPSC_DATADISK

  • INFN-FRASCATI_DATADISK

  • INFN-NAPOLI-ATLAS_DATADISK

  • INFN-ROMA1_DATADISK

  • INFN-T1_DATADISK

  • LIP-COIMBRA_DATADISK

  • MWT2_DATADISK

  • NCG-INGRID-PT_DATADISK

  • NDGF-T1_DATADISK

  • NIKHEF-ELPROD_DATADISK

  • PIC_DATADISK

  • RAL-LCG2_DATADISK

  • RO-07-NIPNE_DATADISK

  • SARA-MATRIX_DATADISK

  • TAIWAN-LCG2_DATADISK

  • UAM-LCG2_DATADISK

  • UKI-LT2-QMUL_DATADISK

  • UKI-LT2-RHUL_DATADISK

  • UKI-NORTHGRID-LANCS-HEP_DATADISK

  • UKI-SCOTGRID-ECDF_DATADISK

  • UKI-SOUTHGRID-CAM-HEP_DATADISK

  • UKI-SOUTHGRID-OX-HEP_DATADISK

  • WUPPERTALPROD_DATADISK

  • small: 0 ~ 100MB

  • AGLT2_DATADISK

  • CA-VICTORIA-WESTGRID-T2_DATADISK

  • CERN-PROD_DATADISK

  • CSCS-LCG2_DATADISK

  • CSTCDIE_DATADISK

  • CYFRONET-LCG2_DATADISK

  • GOEGRID_DATADISK

  • GRIF-IRFU_DATADISK

  • GRIF-LPNHE_DATADISK

  • HEPHY-UIBK_DATADISK

  • IFAE_DATADISK

  • IFIC-LCG2_DATADISK

  • ILLINOISHEP_DATADISK

  • IL-TAU-HEP_DATADISK

  • IN2P3-CC_DATADISK

  • IN2P3-CPPM_DATADISK

  • IN2P3-LAPP_DATADISK

  • IN2P3-LPC_DATADISK

  • IN2P3-LPSC_DATADISK

  • INFN-FRASCATI_DATADISK

  • INFN-MILANO-ATLASC_DATADISK

  • INFN-NAPOLI-ATLAS_DATADISK

  • INFN-ROMA1_DATADISK

  • INFN-T1_DATADISK

  • LIP-COIMBRA_DATADISK

  • LIP-LISBON_DATADISK

  • LRZ-LMU_DATADISK

  • MPPMU_DATADISK

  • MWT2_DATADISK

  • NCG-INGRID-PT_DATADISK

  • NDGF-T1_DATADISK

  • NIKHEF-ELPROD_DATADISK

  • PIC_DATADISK

  • PRAGUELCG2_DATADISK

  • RAL-LCG2_DATADISK

  • RO-07-NIPNE_DATADISK

  • RO-14-ITIM_DATADISK

  • RO-16-UAIC_DATADISK

  • RU-MOSCOW-FIAN-LCG2_DATADISK

  • RU-MOSCOW-SINP-LCG2_DATADISK

  • RU-PROTVINO-IHEP_DATADISK

  • SARA-MATRIX_DATADISK

  • SE-SNIC-T2_DATADISK

  • TECHNION-HEP_DATADISK

  • TR-10-ULAKBIM_DATADISK

  • UAM-LCG2_DATADISK

  • UKI-LT2-QMUL_DATADISK

  • UKI-LT2-RHUL_DATADISK

  • UKI-LT2-UCL-HEP_DATADISK

  • UKI-NORTHGRID-LANCS-HEP_DATADISK

  • UKI-NORTHGRID-LIV-HEP_DATADISK

  • UKI-NORTHGRID-MAN-HEP_DATADISK

  • UKI-NORTHGRID-SHEF-HEP_DATADISK

  • UKI-SCOTGRID-ECDF_DATADISK

  • UKI-SCOTGRID-GLASGOW_DATADISK

  • UKI-SOUTHGRID-BHAM-HEP_DATADISK

  • UKI-SOUTHGRID-CAM-HEP_DATADISK

  • UKI-SOUTHGRID-OX-HEP_DATADISK

  • UKI-SOUTHGRID-RALPP_DATADISK

  • UNI-FREIBURG_DATADISK

  • WEIZMANN-LCG2_DATADISK

  • WUPPERTALPROD_DATADISK

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

Summary

For the transfer from IN2P3-LPC to TOKYO, there are no significant changes in historical viewpoint. The transfer rate itself is not so bad, but the stability is not so good. It seems there is a dependence on several file servers to be used. Settings and parameters for data transfer in all file servers need to be confirmed. I will contact with site admin. of IN2P3-LPC.

For the transfer from GRIF-LAL to TOKYO, a dependence of file server is seen especially for two newer file servers in the 1GB file transfer case. However, there are no difference in settings and parameters for all servers according to the site admin. of GRIF-LAL. The throughput from GRIF-LAL have been dropped down for relatively far sites after Dec. 20, 2011 obviously. I don’t know whether it is a result of some network optimization or not. One of the possibilities of the reduction is LHCONE in France.

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

New site status boad

http://dashb-atlas-ssb.cern.ch/dashboard/request.py/siteview#currentView=Sonar&find[pSC][0][sS]=|cnTOKYO&find[pSC][0][bR]=false&find[pSC][1][sS]=&find[pSC][1][bR]=false&find[pSC][2][sS]=&find[pSC][2][bR]=false&find[pSC][3][sS]=&find[pSC][3][bR]=false&find[pSC][4][sS]=&find[pSC][4][bR]=false&find[pSC][5][sS]=&find[pSC][5][bR]=false&find[pSC][6][sS]=&find[pSC][6][bR]=false&find[pSC][7][sS]=&find[pSC][7][bR]=false&find[pSC][8][sS]=&find[pSC][8][bR]=false&find[pSC][9][sS]=&find[pSC][9][bR]=false&find[pSC][10][sS]=&find[pSC][10][bR]=false&find[pSC][11][sS]=&find[pSC][11][bR]=false&find[pSC][12][sS]=&find[pSC][12][bR]=false&find[pSC][13][sS]=&find[pSC][13][bR]=false&find[pSC][14][sS]=|nen/a&find[pSC][14][bR]=false&find[pSC][15][sS]=&find[pSC][15][bR]=false&find[pSC][16][sS]=&find[pSC][16][bR]=false&find[pSC][17][sS]=&find[pSC][17][bR]=false&find[pSC][18][sS]=&find[pSC][18][bR]=false&find[pSC][19][sS]=&find[pSC][19][bR]=false&find[sS]=and&find[bR]=true&highlight=false

DDM Sonar

perfSONAR

This SSB shows the throughput by “DDM sonar” and “perfSONAR” in one line, and it makes it possible to compare easily both data.

Tomoaki Nakamura ICEPP, Univ. of Tokyo


An analysis of data transfer issues from grif lal and in2p3 lpc to tokyo

An example to check the site connectivity

Basically they have a good correlation each other except for the no data points about the DDM sonar (0 value).

The low value of perfSONAR throughput for FZK is due to the measurement via the firewall in FZK.

Since a point for TAIWAN→TOKYOseems to deviate from the correlation band, the data transfer throughput might be not so

good in spite of the good network connectivity.

For GRIF-LAL, the data points indicating slow value are not included due to the timeout presumably for the case of large file transfer.

Data points are extracted from the new SSB.

Jun. 18, 2012 15:00 UTC

TOKYO-LCG2 vs.

AGLT2

BNL-OSG2

CA-SCINET-T2

CERN-PROD

DESY-HH

FZK-LCG2

GRIF-LAL

INFN-NAPOLI-ATLAS

LRZ-LMU

PIC

PRAGUELCG2

SARA-MATRIX

TAIWAN-LCG2

TRIUMF-LCG2

● To TOKYO

● From TOKYO

Sonar Average Byte Rate Large Files

DDM Sonar: AvgBRL [MB/s]

GRIF-LAL

FZK

GRIF-LAL

TAIWAN

Average Throughput from perfSONAR

perfSONAR: AvgThr [MB/s]

Tomoaki Nakamura ICEPP, Univ. of Tokyo


  • Login
