Presentation Transcript
Ieee computer society category a liaison to jtc 1 sc 7 status report

IEEE Computer Society Category A Liaison to JTC 1/SC 7:Status Report

Jim MooreIEEE CS Liaison Representative

Prepared for IEEE CS SAB

Nov 2007

IEEE-CS/SC7 Liaison Report

Why do we do this

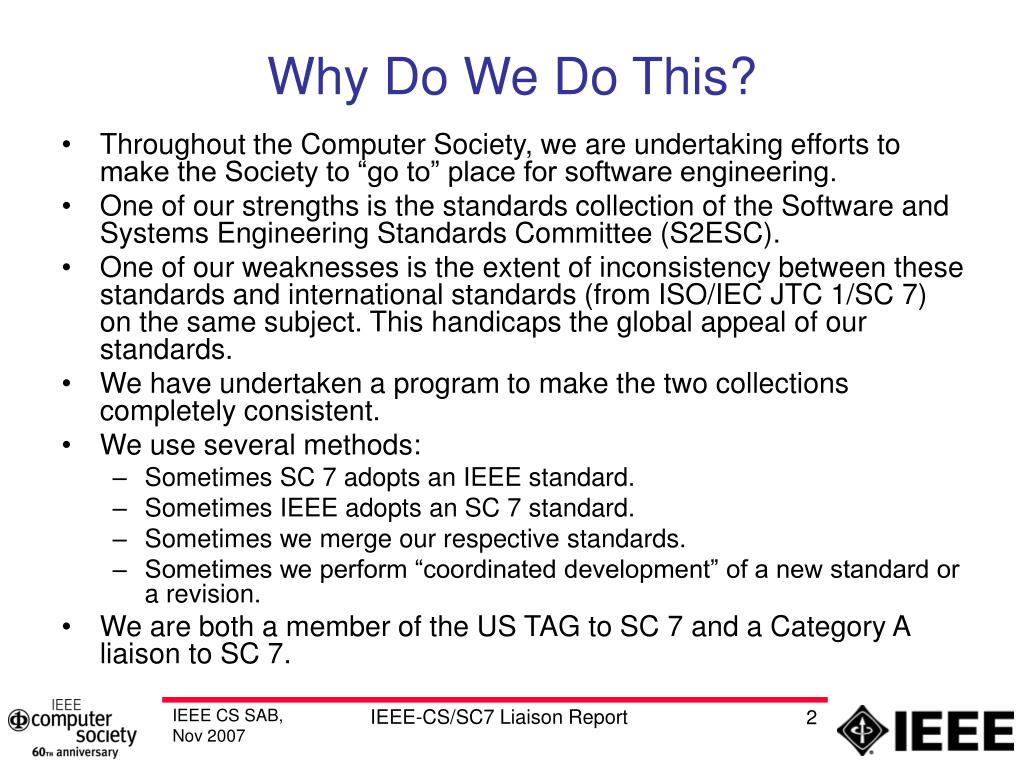

Why Do We Do This?

  • Throughout the Computer Society, we are undertaking efforts to make the Society to “go to” place for software engineering.

  • One of our strengths is the standards collection of the Software and Systems Engineering Standards Committee (S2ESC).

  • One of our weaknesses is the extent of inconsistency between these standards and international standards (from ISO/IEC JTC 1/SC 7) on the same subject. This handicaps the global appeal of our standards.

  • We have undertaken a program to make the two collections completely consistent.

  • We use several methods:

    • Sometimes SC 7 adopts an IEEE standard.

    • Sometimes IEEE adopts an SC 7 standard.

    • Sometimes we merge our respective standards.

    • Sometimes we perform “coordinated development” of a new standard or a revision.

  • We are both a member of the US TAG to SC 7 and a Category A liaison to SC 7.

IEEE-CS/SC7 Liaison Report

Why international standardization

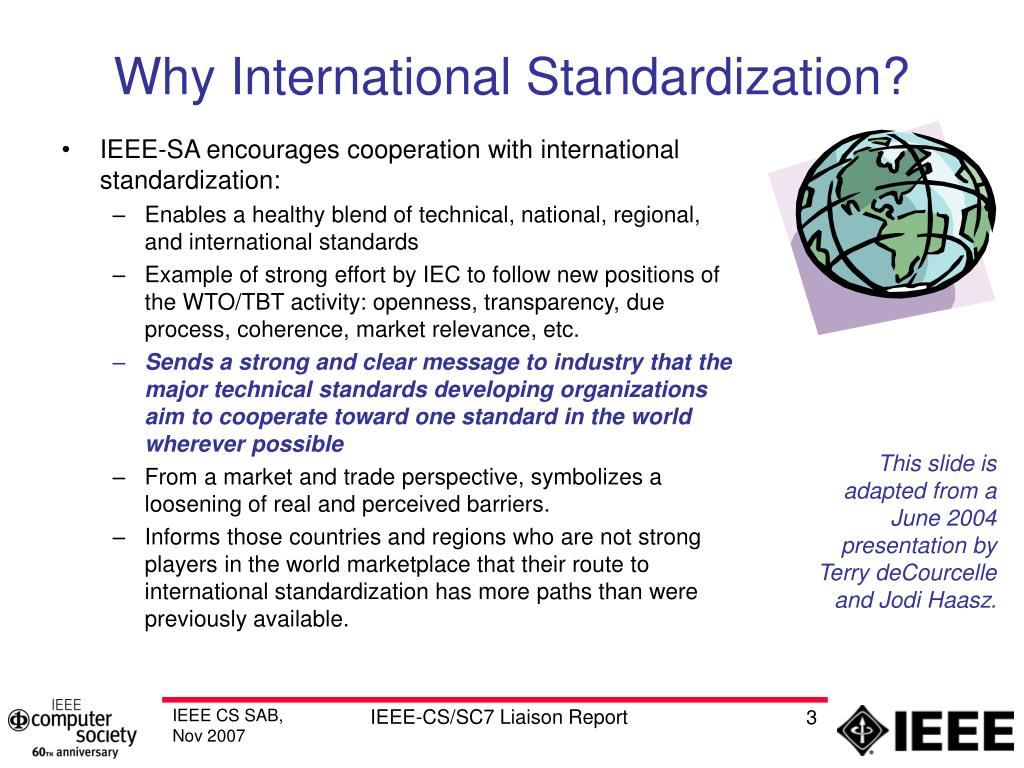

Why International Standardization?

  • IEEE-SA encourages cooperation with international standardization:

    • Enables a healthy blend of technical, national, regional, and international standards

    • Example of strong effort by IEC to follow new positions of the WTO/TBT activity: openness, transparency, due process, coherence, market relevance, etc.

    • Sends a strong and clear message to industry that the major technical standards developing organizations aim to cooperate toward one standard in the world wherever possible

    • From a market and trade perspective, symbolizes a loosening of real and perceived barriers.

    • Informs those countries and regions who are not strong players in the world marketplace that their route to international standardization has more paths than were previously available.

This slide is adapted from a June 2004 presentation by Terry deCourcelle and Jodi Haasz.

IEEE-CS/SC7 Liaison Report

The state of harmonization in 1995
The State of Harmonization in 1995

IEEE-CS/SC7 Liaison Report

The state of harmonization today
The State of Harmonization … Today

IEEE-CS/SC7 Liaison Report

Successes 1 of 2
Successes (1 of 2)

  • Since 1996, IEEE has adopted several SC7 standards

    • 1462 (was ISO/IEC 14102), CASE Tool Evaluation and Selection

      • [SC 7 is revising]

    • 1465 (was ISO/IEC 12119), SW Package Quality

      • [adoption of 25051 revision is planned]

    • 12207.0 (was ISO/IEC 12207), SW LC Processes

      • [coordinated revision underway]

    • 14143.1 (was ISO/IEC 14143-1), Functional Size Measurement

      • [SC 7 has prepared a Corrigendum]

    • 15288, System Life Cycle Processes

      • [coordinated revision underway]

IEEE-CS/SC7 Liaison Report

Successes 2 of 2
Successes (2 of 2)

  • SC7 has adopted IEEE standards

    • 16085 (was IEEE 1540), Risk Management Process

    • 19759, SWEBOK Guide

    • 23026 (was IEEE 2001), Web Site Practices

    • 25961 (was IEEE 1471), Architecture Description

      • [Awaiting publication; coordinated revision underway]

    • 26702 (was IEEE 1220), Systems Engineering Process

      • [Awaiting publication; coordinated revision anticipated]

  • We have jointly revised one shared standard

    • 16085, Risk Management Process

      • [Both ISO and IEEE have published.]

  • Some standards have been merged

    • 14764 (with IEEE 1219), SW Maintenance

      • [Both ISO and IEEE have published.]

  • Other projects are underway






IEEE-CS/SC7 Liaison Report

New projects underway in ieee
New Projects underway in IEEE

  • Adopt ISO/IEC 15289 to replace IEEE 12207.1.

  • Adopt ISO/IEC 20000-1 and 20000-2 to provide a shared basis for work on IT Services and Management.

  • Possible adoption of: ISO/IEC 25051, COTS Product Quality.

    • Balloting group decided that standard should not be adopted and predecessor standard should be withdrawn

    • Comments will be sent to SC 7/WG 6 for their consideration in revising the standard


IEEE-CS/SC7 Liaison Report

A notable project 24765
A Notable Project: 24765

  • Shared vocabulary for software and systems engineering.

  • IEEE contributed IEEE Std 610.12. SC 7 contributed its vocabulary aggregations. Other sources, e.g. PMI, made contributions.

  • IEEE CS has developed and is hosting a database application providing public web access.


  • SC 7/WG 22 will maintain the database and will facilitate the consolidation of alternative definitions.

  • Occasional snapshots of the database will be published as ISO/IEC and IEEE 24765.

  • CD 24765 is currently being balloted in SC7 and will soon enter balloting in IEEE.

IEEE-CS/SC7 Liaison Report

A new cooperative project testing
A New Cooperative Project: Testing

  • BSI will contribute their two standards on testing.

  • IEEE has contributed 829 and 1008.

  • A new four-part standard will be created at the international level.

    • Compatible with international (and IEEE) systems and software processes

    • Compatible with international (and IEEE) documentation standards

    • Compatible with IEEE CS SWEBOK Guide

    • Covering a larger scope than the current standards

  • IEEE-CS has provided Ursula Parker as the editor

  • The NP ballot was approved in May 2007.

IEEE-CS/SC7 Liaison Report

New project revision of 15026 systems assurance
New Project: Revision of 15026, Systems Assurance

  • IEEE has provided editors: Mark Henley and Sam Redwine.

  • New Work Item Proposal was approved.

  • First draft drew good consensus in SC7 CD ballot and approval in IEEE ballot.

  • Another CD ballot will be performed.

  • The editor’s have proposed breaking it into a four-part standard. This question will be balloted in SC7.

IEEE-CS/SC7 Liaison Report

Coordinated development is used by s2esc and jtc 1 sc 7
“Coordinated Development” is used by S2ESC and JTC 1/SC 7

  • Typically SC 7 supplies WG convener, IEEE CS supplies project editor.

  • The idea is to conduct corresponding steps concurrently.

  • All comments are resolved by the ISO working group.

  • Both organizations reach consensus via their own processes according to their own rules.

  • Both organizations publish roughly simultaneously.

IEEE-CS/SC7 Liaison Report

Coordinated development is used by s2esc and jtc 1 sc 71
Coordinated Development is used by S2ESC and JTC 1/SC 7 7


SC 7




SA Staff


Contribute standards

Base Doc


Approve NP



Form BG

Note that there is generally no use for an IEEE working group.




Possibly multiple


Note that there are too many recirculations.



Prepare MS




Publish identical standards



IEEE-CS/SC7 Liaison Report

The fundamental problem
The Fundamental Problem 7

The “normal” ISO development path.

The “normal” IEEE development path.

The flexibility they have available according to their rules.

The flexibility they have available according to their rules.

The space I have left to work in.

Oh yeah, automation is making the processes less flexible

IEEE-CS/SC7 Liaison Report

Some fundamental process differences
Some Fundamental Process Differences 7

IEEE-CS/SC7 Liaison Report

Some problems are surfacing
Some Problems are Surfacing 7

  • Some participants in SC7 under-value the IEEE contribution.

  • Some participants in S2ESC under-value the ISO contribution.

  • Some participants in SC7

    • Equate the IEEE with the US, or

    • Believe that IEEE should appropriately be a “part” of the US

  • OTOH, some IEEE parties believe that IEEE is appropriately on equal status with ISO.

  • Some SC7 participants believe that the IEEE front matter in the joint publication format unequally portrays the IEEE contribution and participation.

  • Those who “operate” the coordinated processes believe that they are too cumbersome and labor intensive.

IEEE-CS/SC7 Liaison Report

Possible improvements
Possible Improvements 7

  • A pending agreement on joint publication format may reduce the problems with the “endgame” and the representation of participation.

  • Nevertheless, the coordinated voting process is still cumbersome and leads to the impression that IEEE is “slowing” the process.

  • A possible improvement—Change the coordination process as follows:

    • IEEE technical materials are contributed at the beginning of the project.

    • SC7 prepares drafts in the normal fashion.

    • An IEEE “poll” is conducted during the first CD ballot and the comments are sent to SC7.

    • SC7 continues its process in the normal manner.

    • IEEE conducts an adoption project after the ISO/IEC version is published.

    • Any comments resulting from adoption are sent to SC7 for consideration in the next revision.

IEEE-CS/SC7 Liaison Report
