Presentation Transcript
bc21d bioenergetics metabolism
BC21D: Bioenergetics & Metabolism

The formation of Acetyl Coenzyme A:

  • Pyruvate dehydrogenase
  • -oxidation
  • Amino acid catabolism

[email protected]

slide2

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

Pyruvate and acetyl CoA are important metabolites at the intersection of many carbon-metabolising pathways.

slide3

Metabolic relationship between

carbohydrate and fat catabolism

Pyruvate

Carboxylase

Pyruvate

Dehydrogenase

Complex

slide4

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

Let us look at pyruvate first.

slide5

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

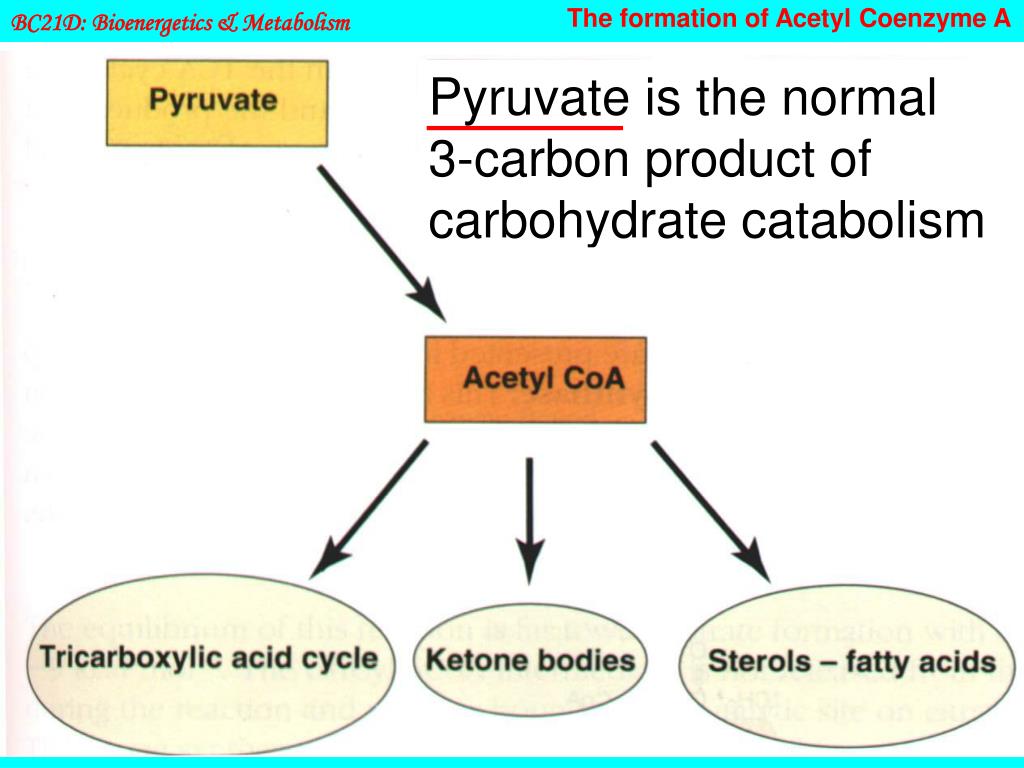

Pyruvate is the normal 3-carbon product of carbohydrate catabolism

slide6

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

1. Glycolysis by either the EMP pathway, or variants such as PPP/HMP.

slide7

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

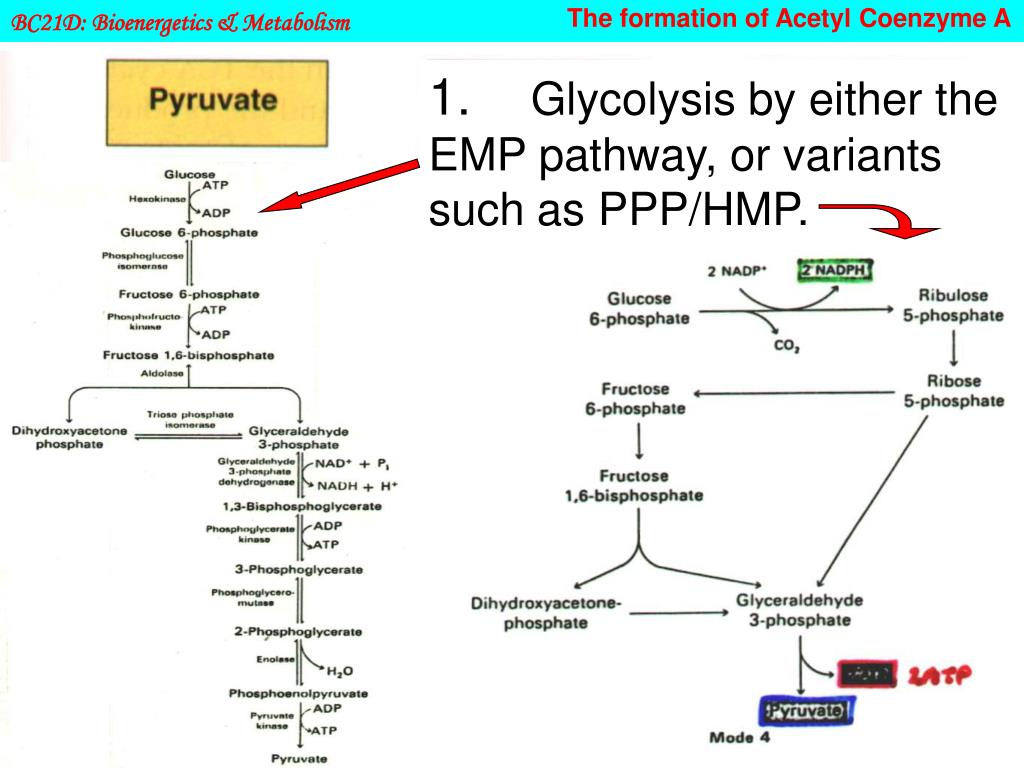

1. Glycolysis by either the EMP pathway, or variants such as PPP/HMP.

slide8

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

These fermentative pathways have PK as the last enzyme.

slide9

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

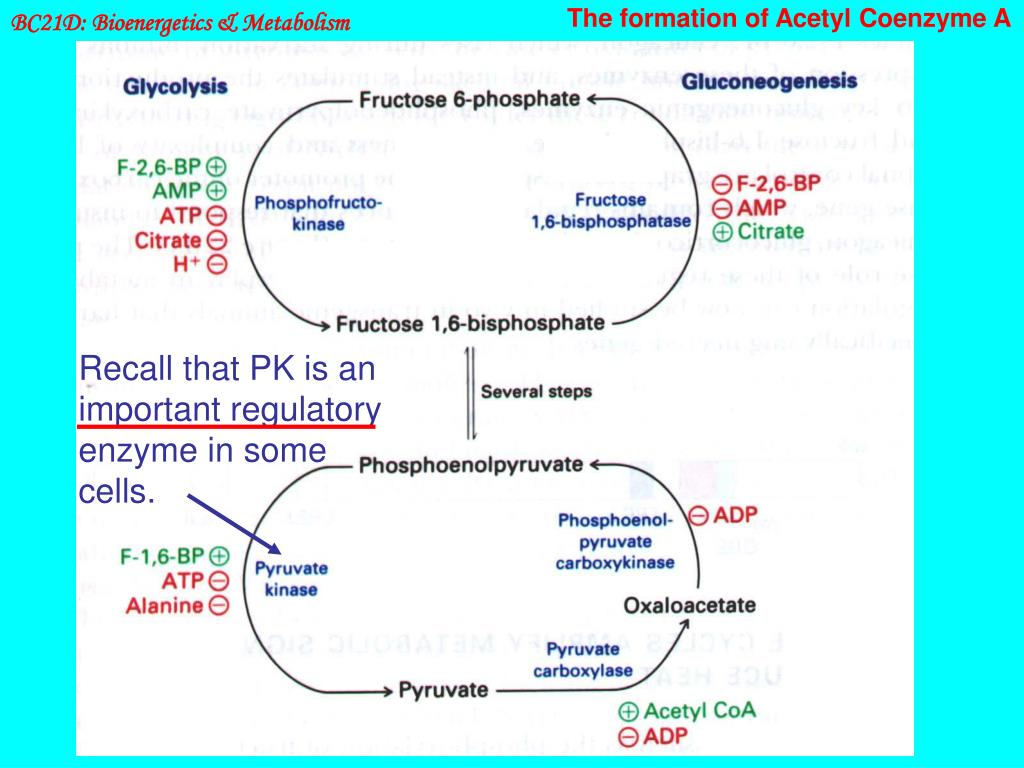

Recall that PK is an important regulatory enzyme in some cells.

slide10

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

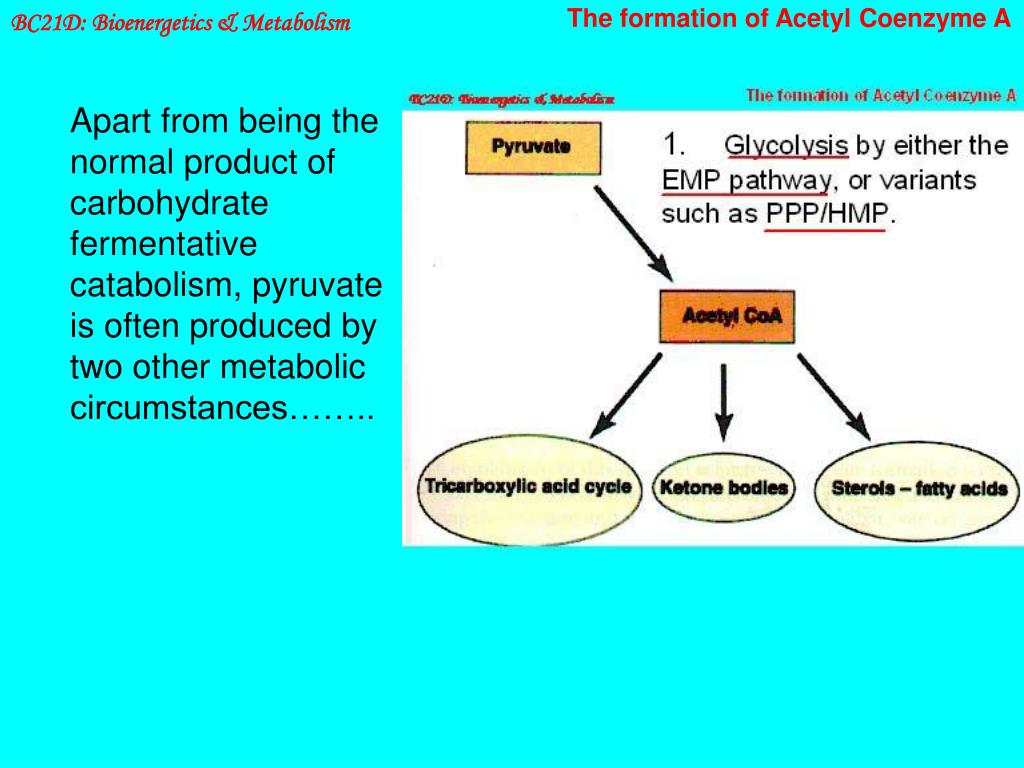

Apart from being the normal product of carbohydrate fermentative catabolism, pyruvate is often produced by two other metabolic circumstances……..

slide11

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

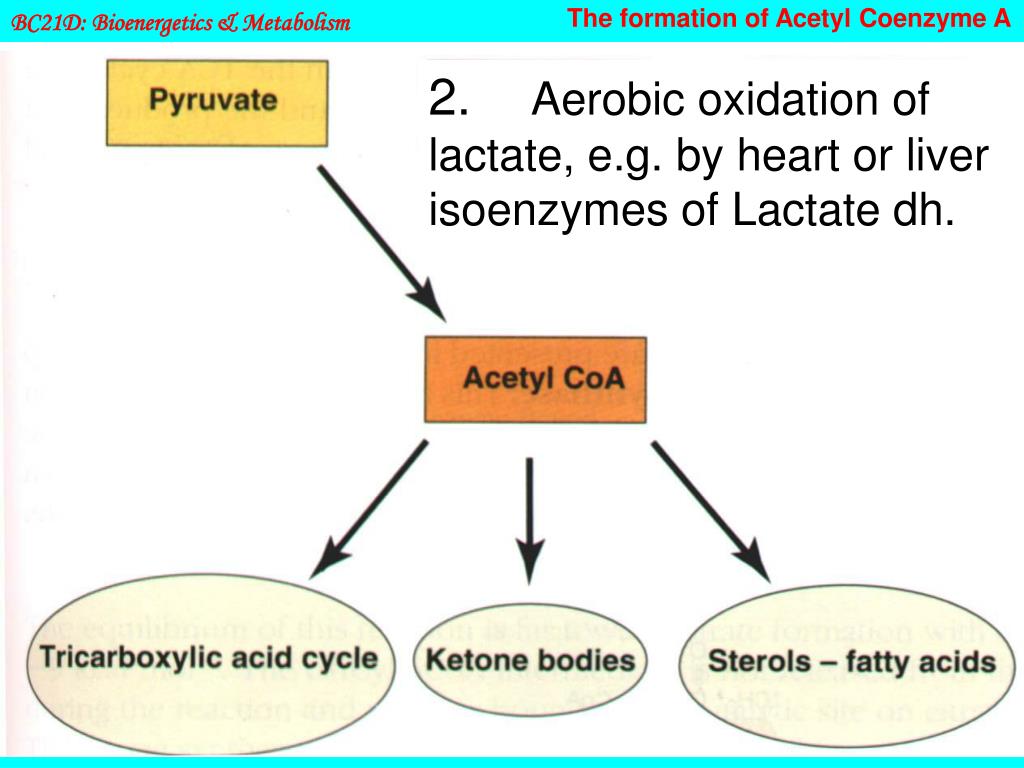

2. Aerobic oxidation of lactate, e.g. by heart or liver isoenzymes of Lactate dh.

slide12

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

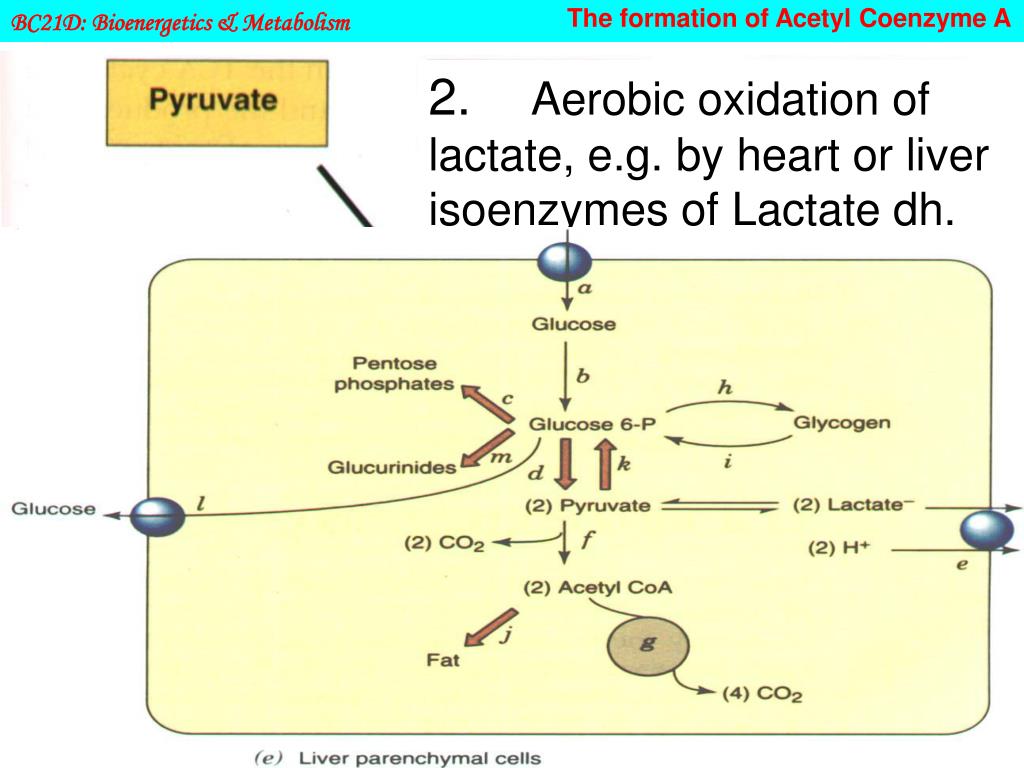

2. Aerobic oxidation of lactate, e.g. by heart or liver isoenzymes of Lactate dh.

slide13

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

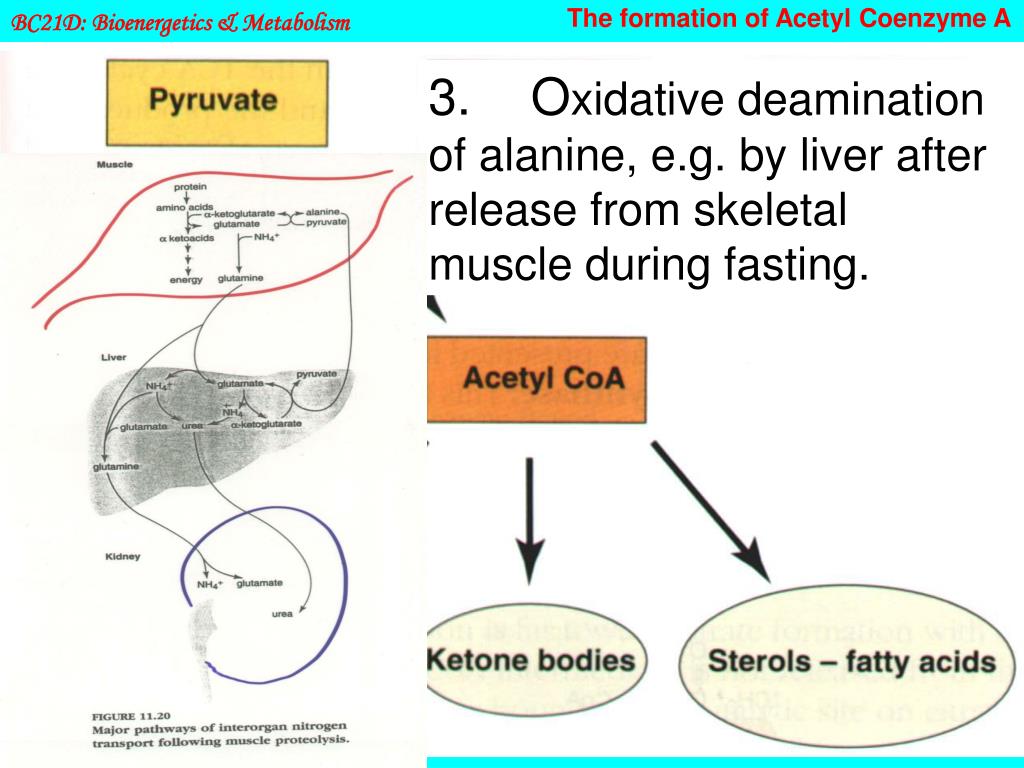

3. Oxidative deamination of alanine, e.g. by liver after release from skeletal muscle during fasting.

slide14

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

3. Oxidative deamination of alanine, e.g. by liver after release from skeletal muscle during fasting.

slide15

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

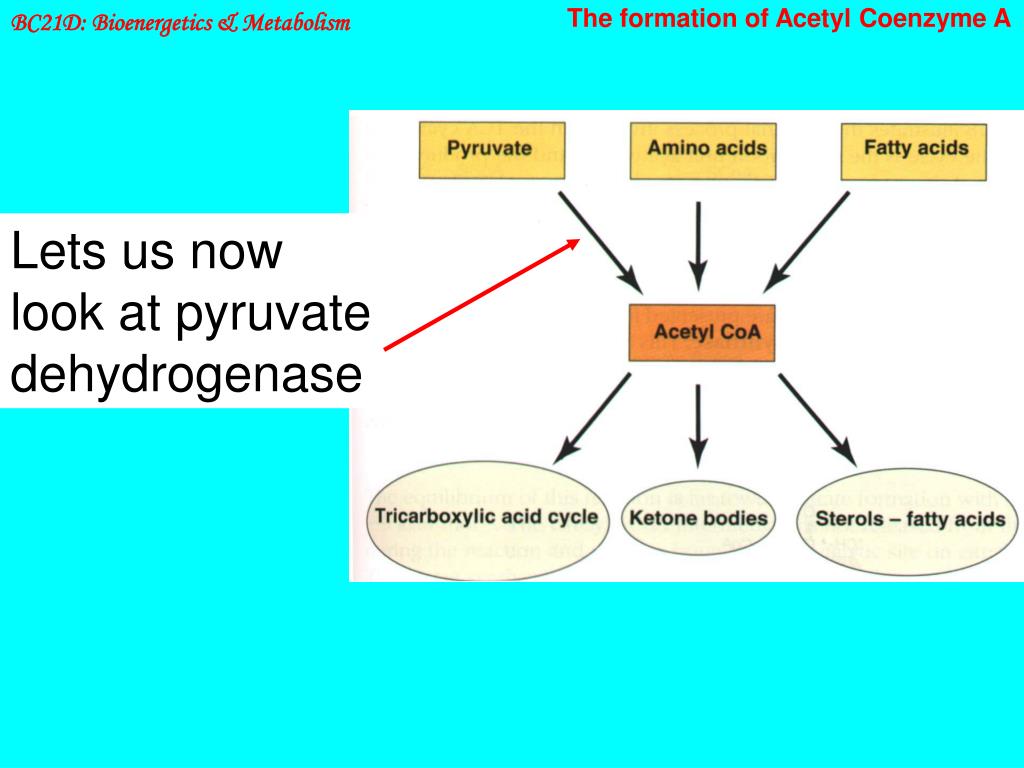

Lets us now look at pyruvate dehydrogenase

slide16

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

slide17

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

slide18

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

slide19

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

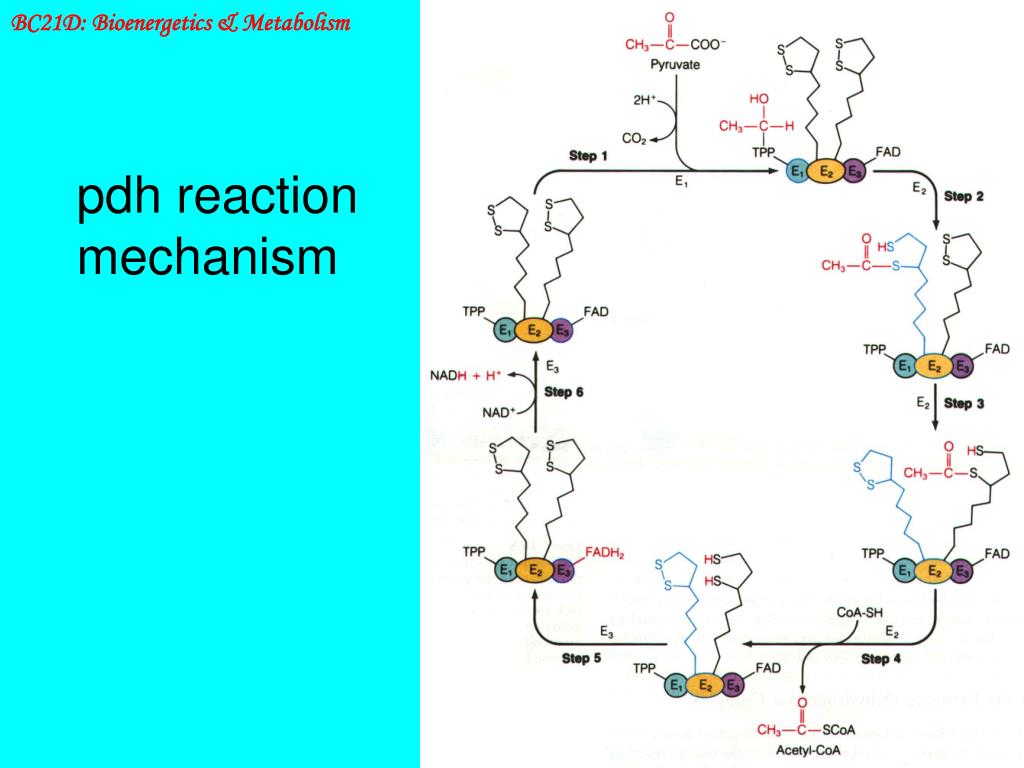

pdh reaction mechanism

slide20

BC21D: Bioenergetics & Metabolism

The formation of Acetyl Coenzyme A

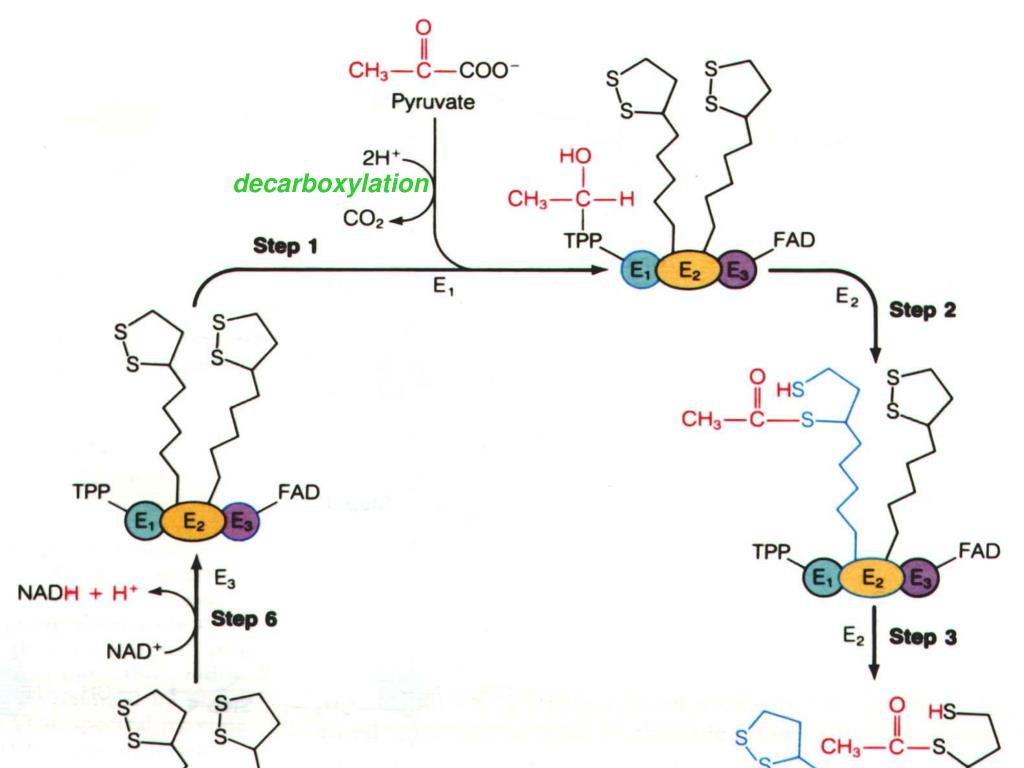

pdh reaction mechanism

slide23

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

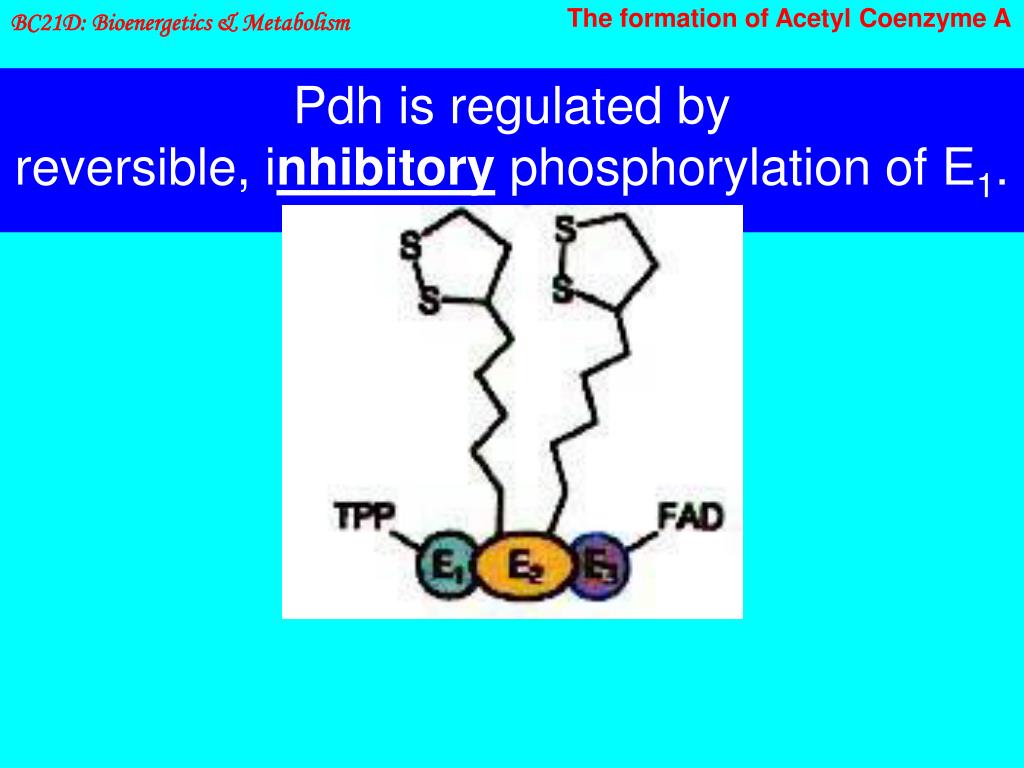

Pdh is regulated by

reversible, inhibitory phosphorylation of E1.

slide24

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

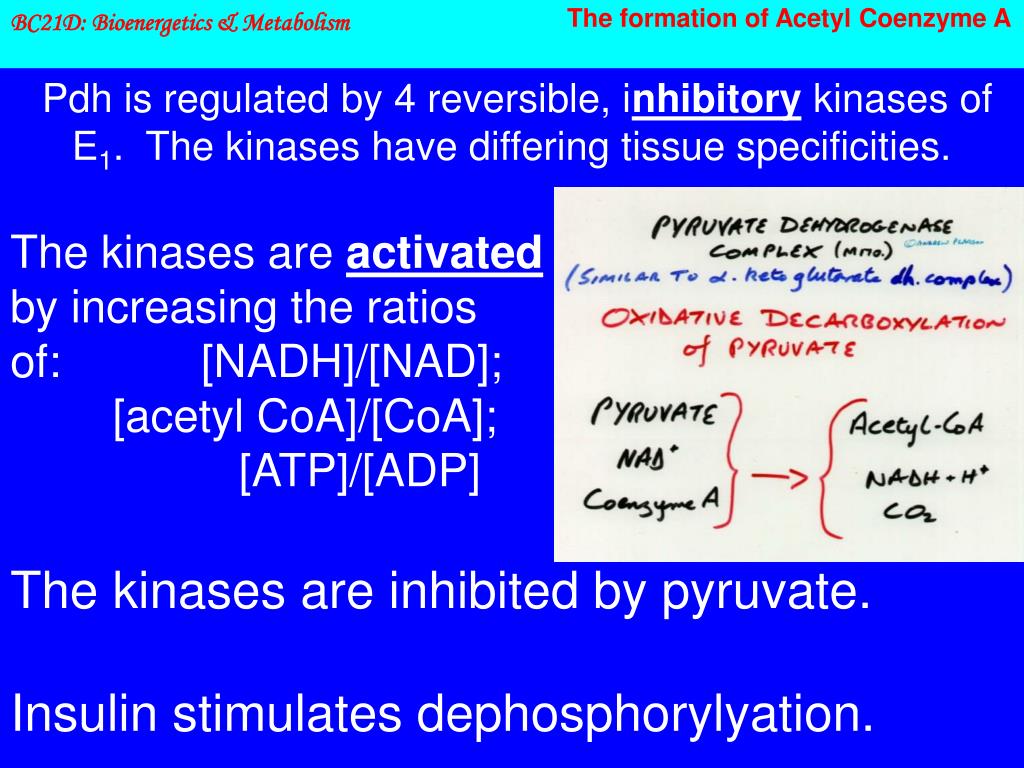

Pdh is regulated by 4 reversible, inhibitory kinases of E1. The kinases have differing tissue specificities.

The kinases are activated

by increasing the ratios

of: [NADH]/[NAD];

[acetyl CoA]/[CoA];

[ATP]/[ADP]

The kinases are inhibited by pyruvate.

Insulin stimulates dephosphorylyation.

slide25

Regulation of the Pyruvate Dehydrogenase Complex

Pyruvate dehydrogenase phosphatase

“Pyruvate dehydrogenase kinase”, actually….

Pyruvate dehydrogenase complex

Pyruvate dehydrogenase kinases 1 – 4, with different tissue specificities

Phosphorylation sites on

Pdh subunit E1

slide26

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

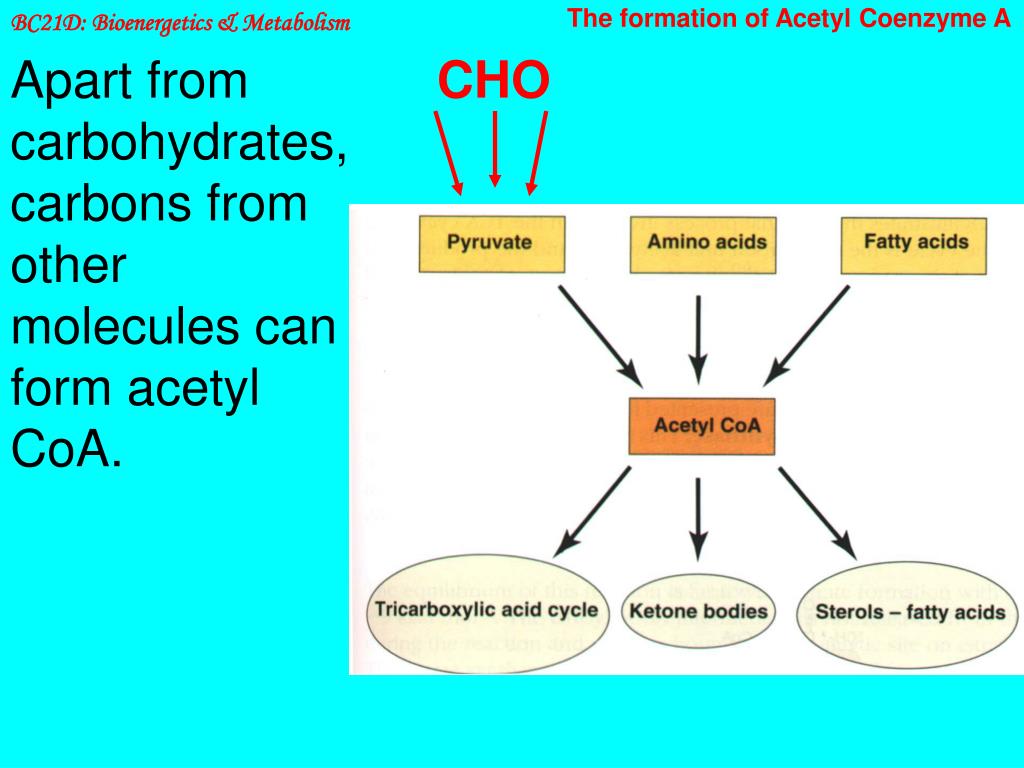

Apart from carbohydrates, carbons from other molecules can form acetyl CoA.

CHO

slide27

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

Parts of

leucine

isoleucine

tryptophan

are degraded to acetyl CoA

slide28

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

Lets us now look at fatty acid degradation

slide29

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

slide30

Figure 3 Modulation of CPT I activity by carbohydrates

The pathway shown in red is the established pathway for the inhibition of hepatic CPT activity by carbohydrates. The other pathways shown are alternative routes that may be operative in heart

Abbreviations : CPT, carnitine palmitoyl transferase ; CAT, carnitine acetyl transferase.

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

slide31

The formation of Acetyl Coenzyme A

BC21D: Bioenergetics & Metabolism

Just to remind you where

we are going with this!
