Direct Current Series

Direct Current Series. 7.1 Series Barriers Relations Series Barriers linked series will have the same current. Parallel Relationship Obstacles in parallel, the voltage between ujung2 obstacles are the same, amounting V.

ciaran-guy
Download Presentation

Direct Current Series

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Direct Current Series

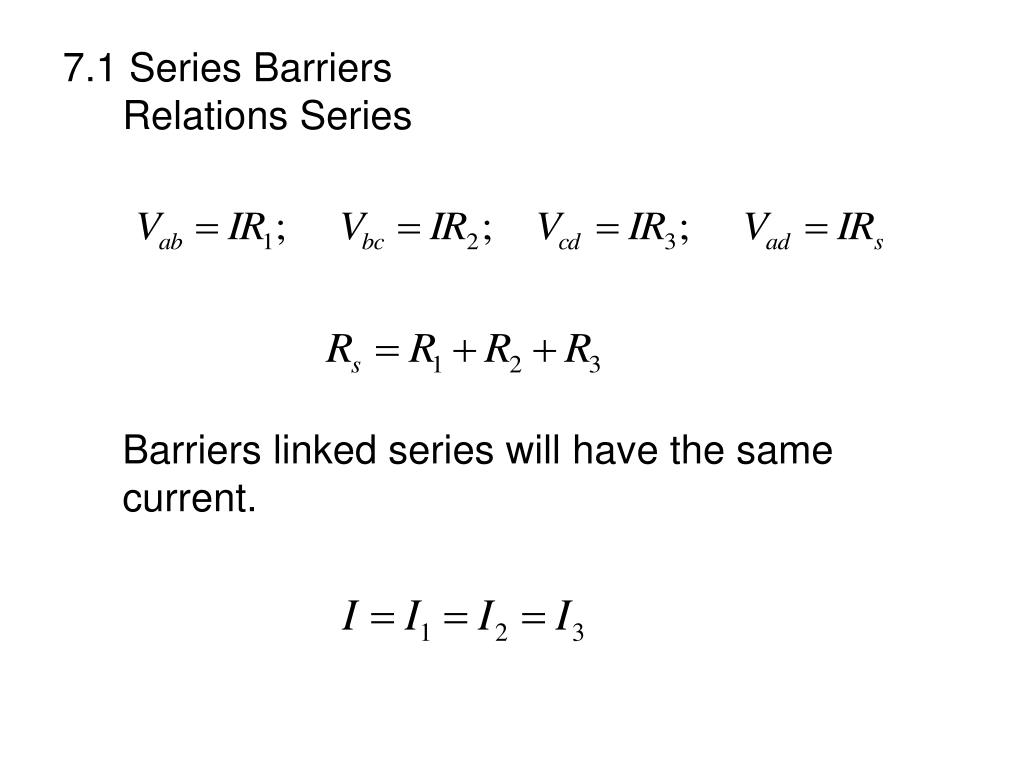

  2. 7.1 Series BarriersRelations SeriesBarriers linked series will have the same current.

  3. Parallel RelationshipObstacles in parallel, the voltage between ujung2 obstacles are the same, amounting V

  4. Wheatstone Bridge BarriersWhen the price R1R3 = R2R4, then R5 is not working, thenMeanwhile, when R1R3 R2R4 ≠, then the series they will have to be replaced: R1, R2 and R5 was changed to Ra, Rb and Rc.

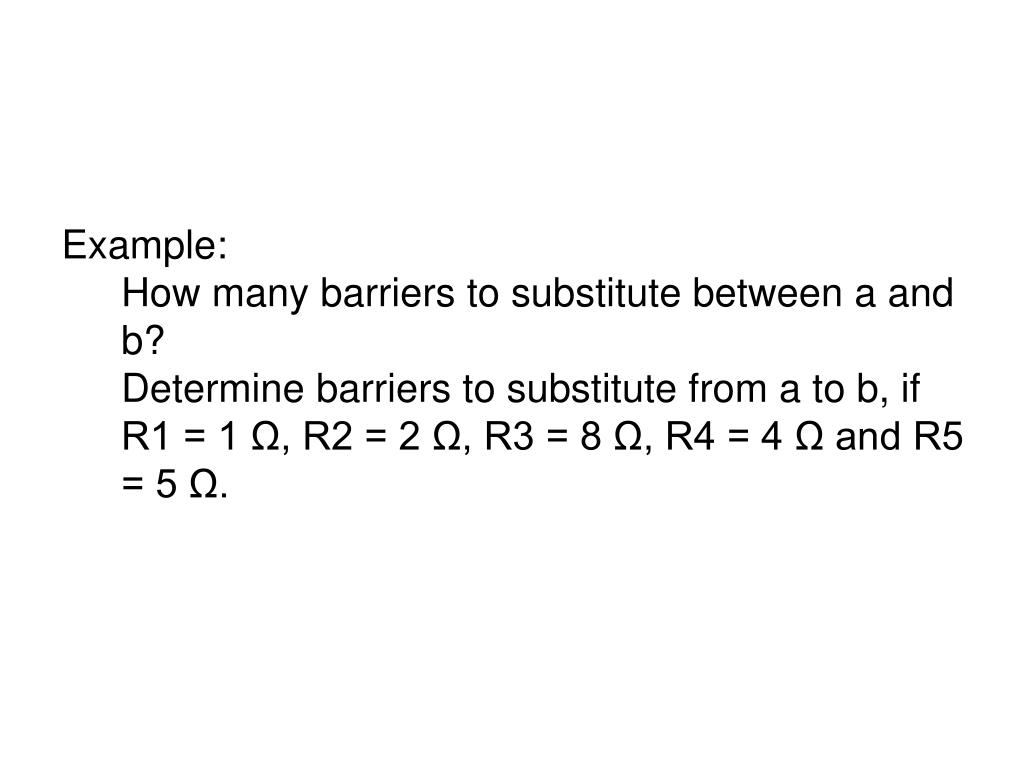

  5. Example:How many barriers to substitute between a and b?Determine barriers to substitute from a to b, if R1 = 1 Ω, R2 = 2 Ω, R3 = 8 Ω, R4 = 4 Ω and R5 = 5 Ω.

  6. 7.2 Rangkaian Listrik Sederhana • Rangkaian Terbuka • Rangkaian tertutup Dalam kenyataannya, arus listrik (I) akan ada bila rangkaian tsb merupakan rangkaian tertutup. Sedangkan untuk rangkaian terbuka tidak ada arus.

  7. Example:Determine the VAB, Vac, VBC.

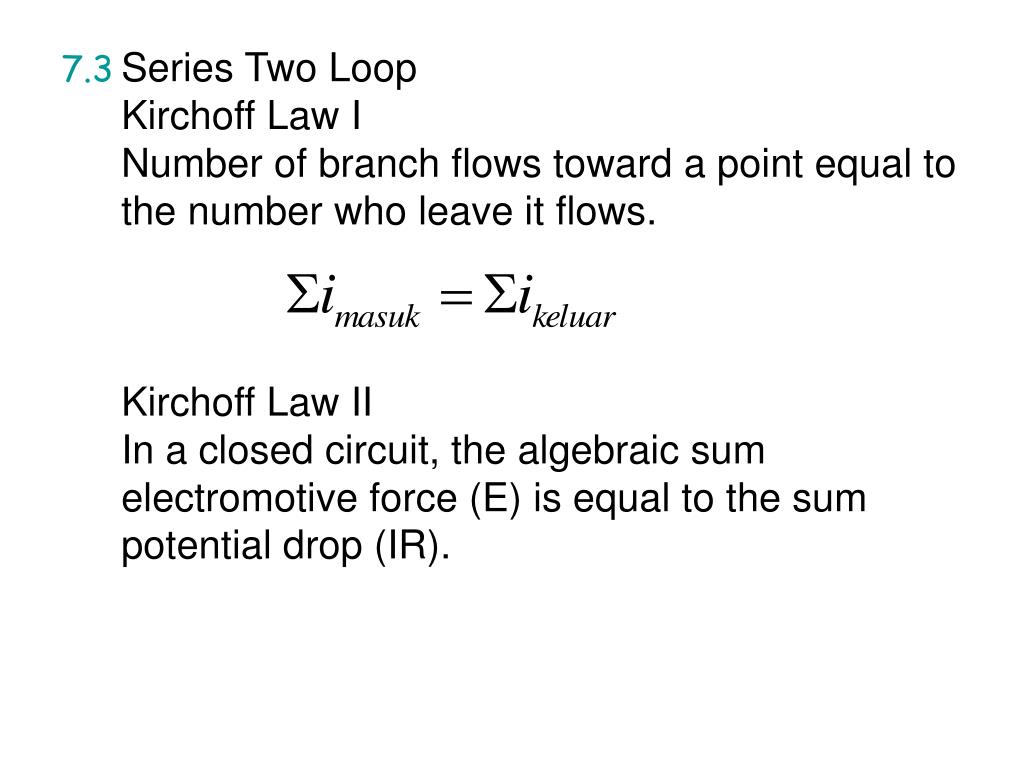

  8. 7.3 Series Two LoopKirchoff Law INumber of branch flows toward a point equal to the number who leave it flows.Kirchoff Law IIIn a closed circuit, the algebraic sum electromotive force (E) is equal to the sum potential drop (IR).

  9. Example:Define I1, I2, I3.

  10. 7.4 Energy and PowerElectrical EnergyElectricityExample:At an indicated 100 W incandescent lamp, 220 V. Determine barriers tsb lights!Incandescent lamps of 60 W, 220 V, mounted on the voltage 110 V, determine the power which lights!
