Decision Procedures An algorithmic point of view

1. Decision ProceduresAn algorithmic point of view Equality Logic andUninterpreted Functions

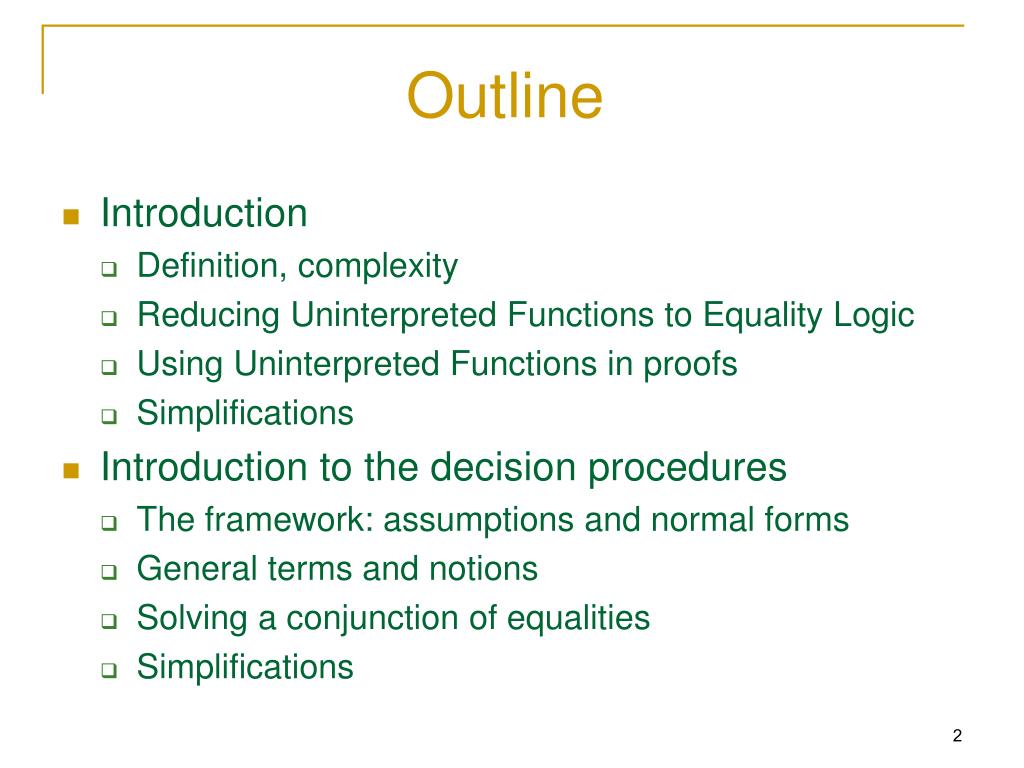

2. Outline • Introduction • Definition, complexity • Reducing Uninterpreted Functions to Equality Logic • Using Uninterpreted Functions in proofs • Simplifications • Introduction to the decision procedures • The framework: assumptions and normal forms • General terms and notions • Solving a conjunction of equalities • Simplifications

3. Equality Logic • A Boolean combination of Equalities and Propositions x1=x2Æ (x2=x3Ç: ((x1=x3) ÆbÆx1= 2)) • We will always push negations inside (NNF): x1=x2Æ (x2=x3Ç ((x1x3) Ç:bÇx1 2)) • Note: the set of Boolean variables is always separate from the set of term variables

4. Equality Logic: the grammar • formula : formulaÇformula | :formula | atom • atom : term-variable = term-variable | term-variable = constant | Boolean-variable term-variables are defined over some (possible infinite) domain. The constants are from the same domain.

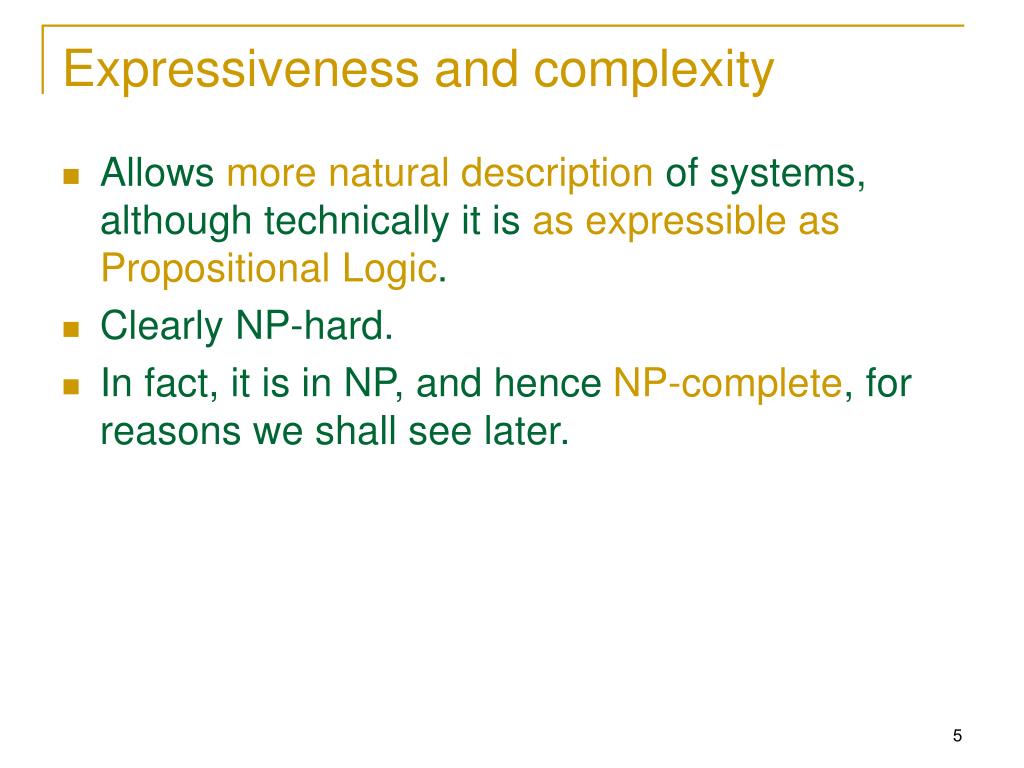

5. Expressiveness and complexity • Allows more natural description of systems,althoughtechnically it is as expressible as Propositional Logic. • Clearly NP-hard. • In fact, it is in NP, and hence NP-complete, for reasons we shall see later.

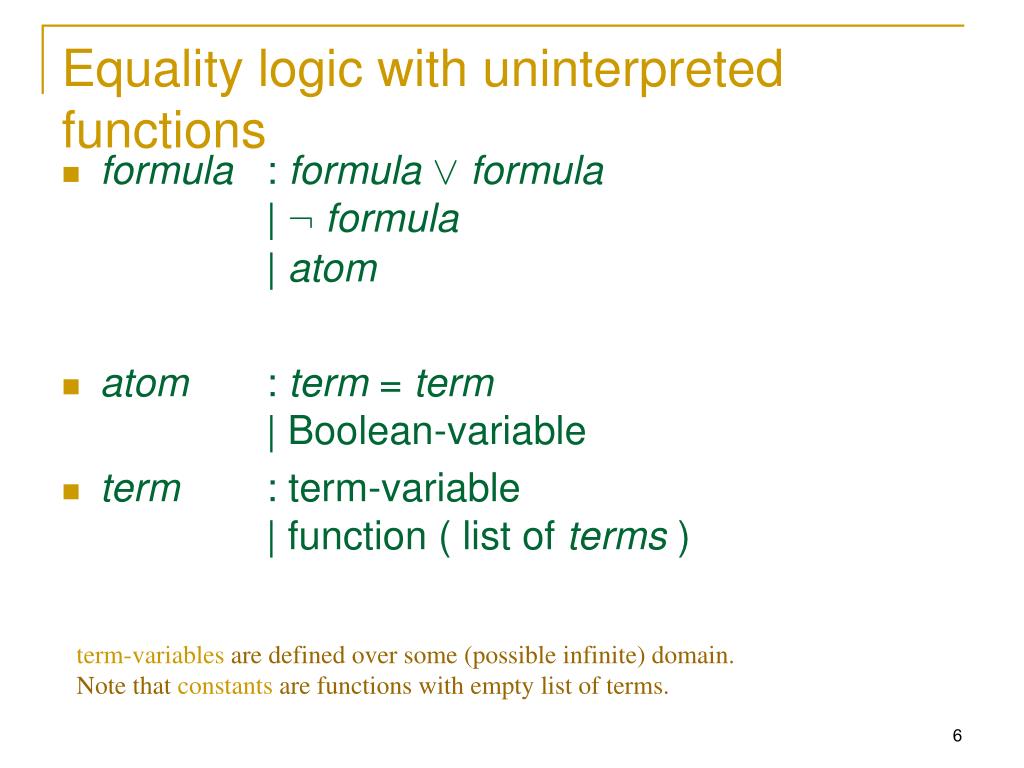

6. Equality logic with uninterpreted functions • formula : formulaÇformula | :formula | atom • atom : term = term | Boolean-variable • term : term-variable | function ( list of terms ) term-variables are defined over some (possible infinite) domain. Note that constants are functions with empty list of terms.

7. What is an uninterpreted function ? • The signature  includes in addition to equality, function and predicate symbols. • The theory restricts the interpretation of these symbols by a single axiom. For n-ary function F: • Sometimes, functional consistency is all that is needed for the proof.

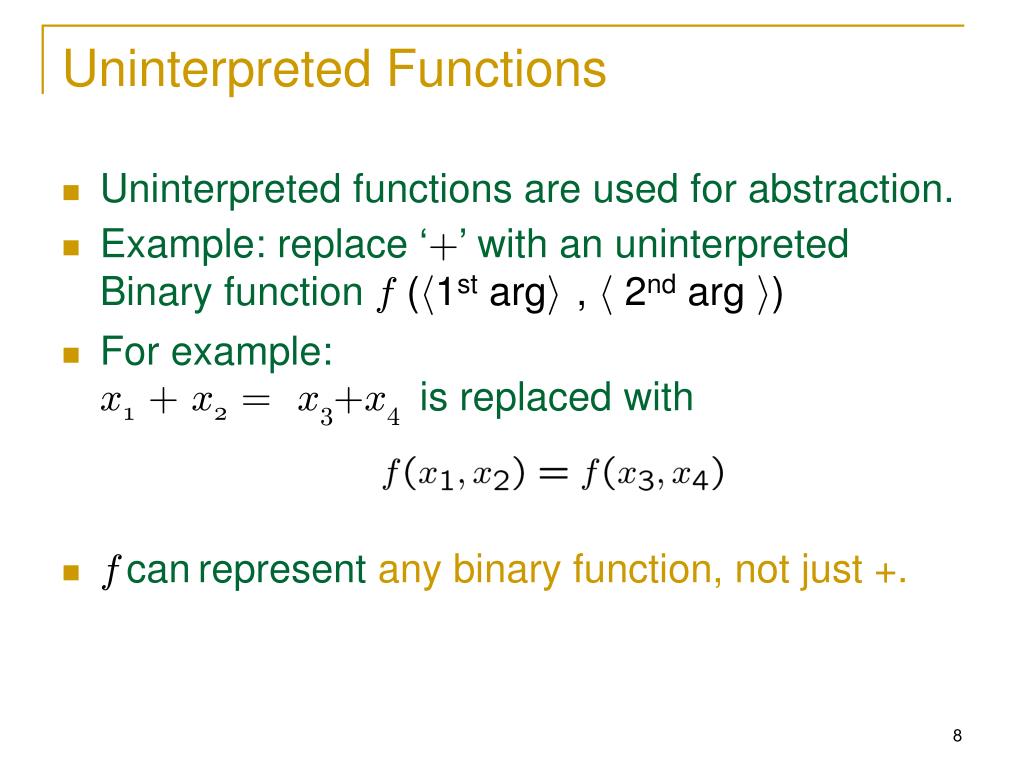

8. Uninterpreted Functions • Uninterpreted functions are used for abstraction. • Example: replace ‘+’ with an uninterpreted Binary function f (h1st argi , h 2nd arg i) • For example: x1+ x2 = x3+x4 is replaced with • fcanrepresent any binary function, not just +.

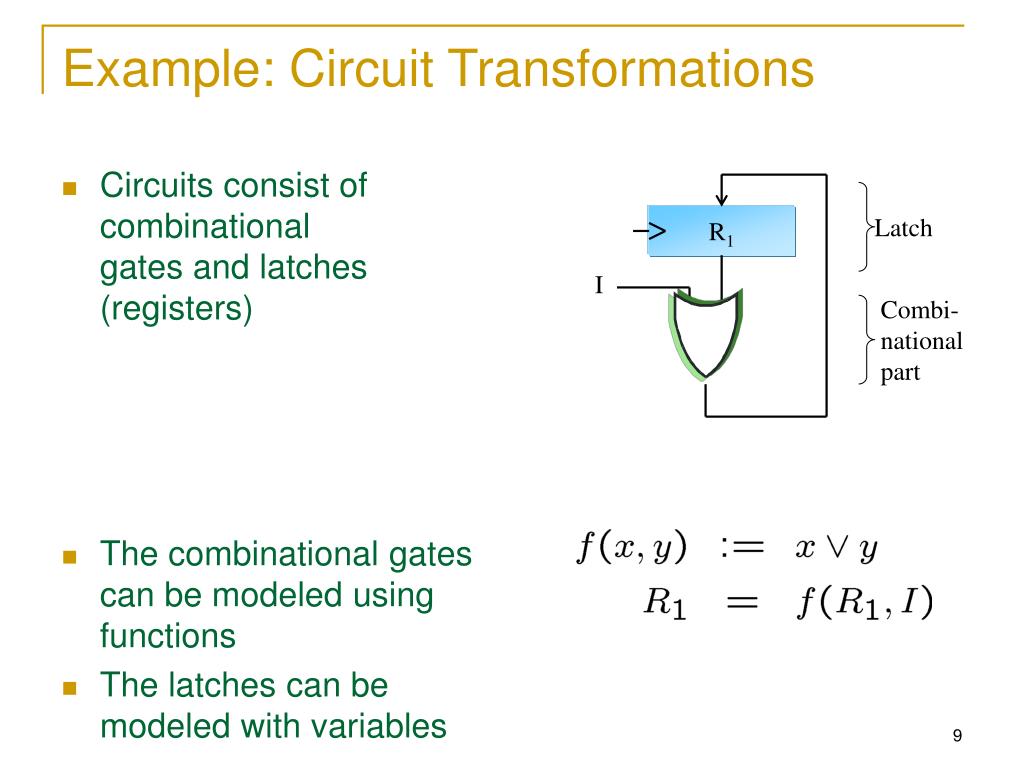

9. Example: Circuit Transformations • Circuits consist of combinationalgates and latches (registers) • The combinational gates can be modeled using functions • The latches can be modeled with variables Latch R1 I Combi- national part

10. Example: Circuit Transformations Some bitvector Input Some function, say I >> 5 Some other function, say L1 & 100110001… Some condition on L2

11. Example: Circuit Transformations • A pipeline processes data in stages • Data is processed in parallel – as in an assembly line • Formal Model: Stage 1 Stage 2 Stage 3

12. Example: Circuit Transformations • The maximum clock frequency depends on the longest path between two latches • Note that the output of g is usedas input to k • We want to speed up the design by postponing k to the third stage • Also note that the circuit only uses one of L3 or L4, never both • We can remove one of the latches

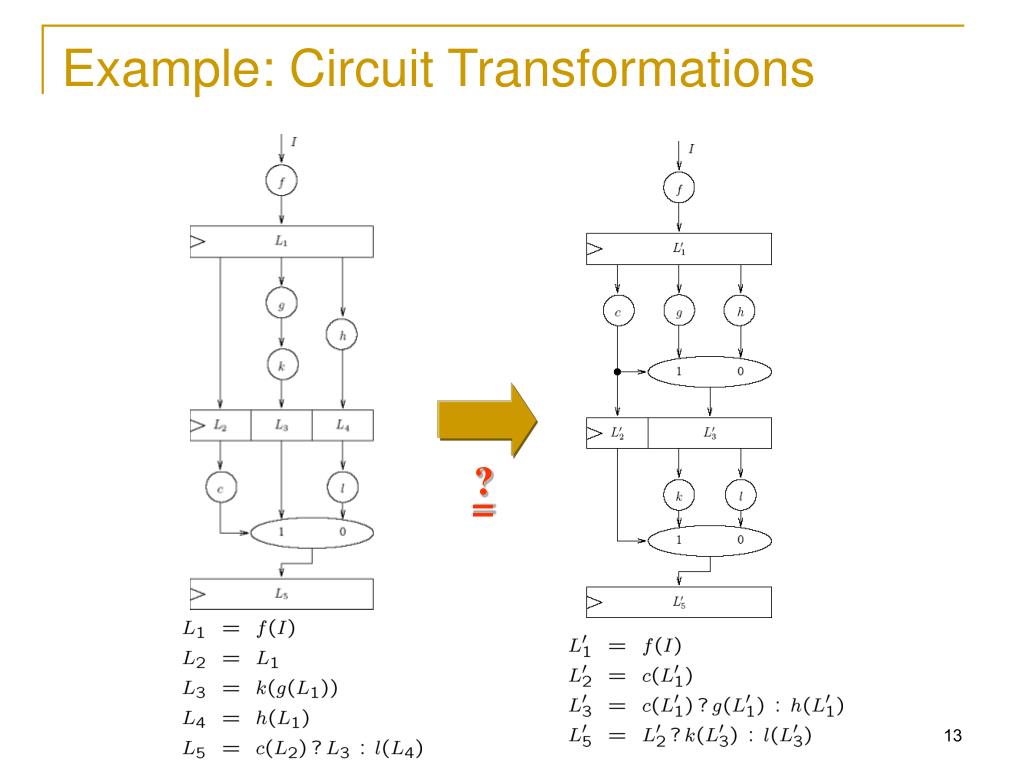

13. Example: Circuit Transformations ? =

14. Example: Circuit Transformations • Equivalence in this case holds regardless of the actual functions • Conclusion: can be decided using Equality Logic and Uninterpreted Functions

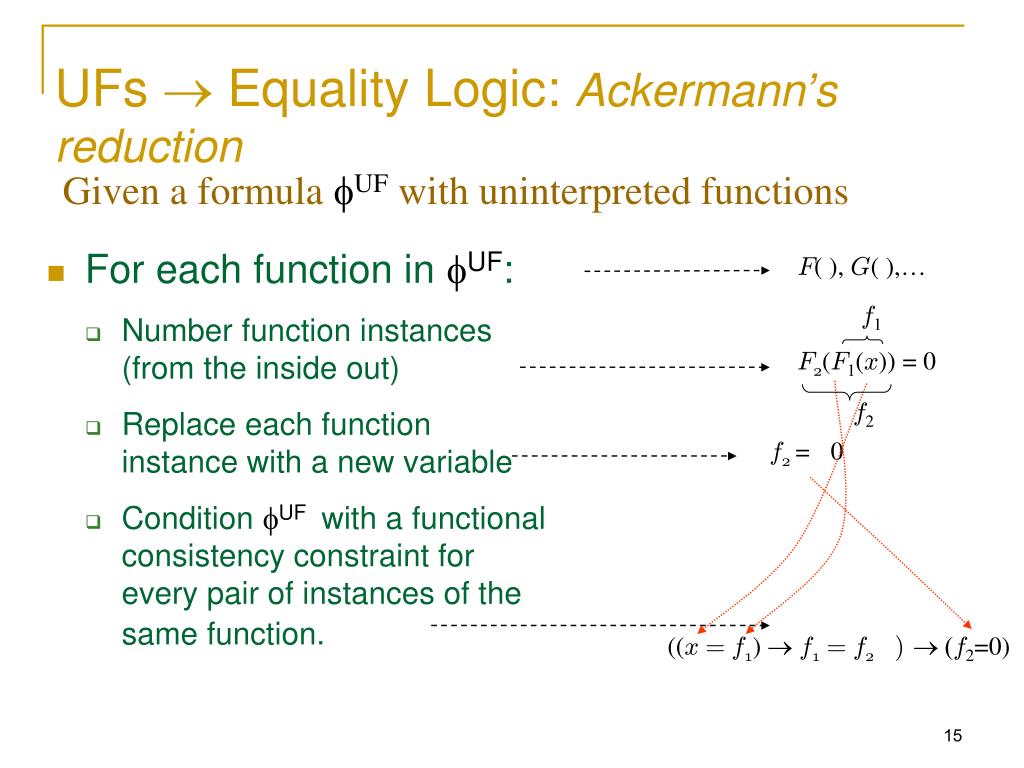

15. F( ), G( ),… f1 F2(F1(x)) = 0 f2 f2 =0 UFs  Equality Logic: Ackermann’s reduction • For each function in UF: • Number function instances (from the inside out) • Replace each function instance with a new variable • Condition UF with a functional consistency constraint for every pair of instances of thesame function. Given a formula UF with uninterpreted functions ((x=f1) f1=f2 )  (f2=0)

16. Ackermann’s reduction : Example • Given the formula(x1x2) Ç (F(x1) =F(x2)) Ç (F(x1) F(x3))which we want to check for validity, we first number the function instances: (x1x2) Ç (F1(x1) =F2(x2)) Ç (F1(x1) F3(x3))

17. Ackermann’s reduction : Example (x1x2) Ç (F1(x1) =F2(x2)) Ç (F1(x1) F3(x3)) • Replace each function with a new variable, (x1x2) Ç (f1 =f2 ) Ç (f1f3 ) • Condition with Functional Consistency constraints:

18. F( ), G( ),… F1(x1) = F2(x2) case x1=x2 : f1true :f2 f1 = UFs  Equality Logic: Bryant’s reduction Given a formula UF with UFs • For each function in UF: • Number function instances (from the inside out) • Replace a function instance Fi with an expression casex1=xi :f1 x2=xi:f2 xi-1 =xi :fi-1 true :fi

19. F( ), G( ),… F1(x1) = F2(x2) UFs  Equality Logic: Bryant’s reduction Given a formula UF with UFs • For each function in UF: • Number function instances (from the inside out) • Replace a function instance Fi with an expression casex1=xi :f1 x2=xi:f2 xi-1 =xi :fi-1 true :fi (x1=x2 → f1= f1)Æ (x1x2 → f1= f2)

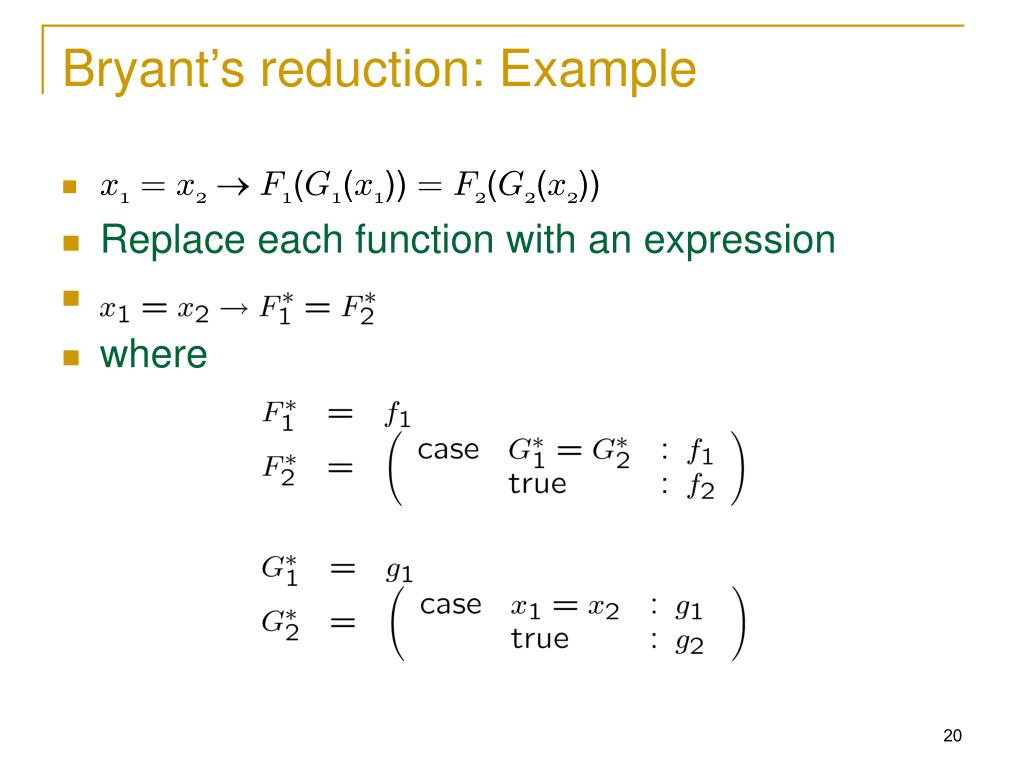

20. Bryant’s reduction: Example • x1=x2F1(G1(x1)) =F2(G2(x2)) • Replace each function with an expression • where

21. Using UFs in proofs • Uninterpreted functions gives us the ability to represent an abstract view of functions. • It over-approximates the concrete system. 1 + 1 = 1 is a contradiction But F(1,1) = 1 is satisfiable ! • Conclusion: unless we are careful, we can give wrong answers and this way lose soundness.

22. Using UFs in proofs • In general a sound and incomplete method is more useful than unsound and complete. • A soundbutincomplete algorithm: • Given a formula with uninterpreted functions UF: • Transform it to Equality Logic formula E • If E is unsatisfiable return Unsatisfiable • Else return ‘Don’t know’

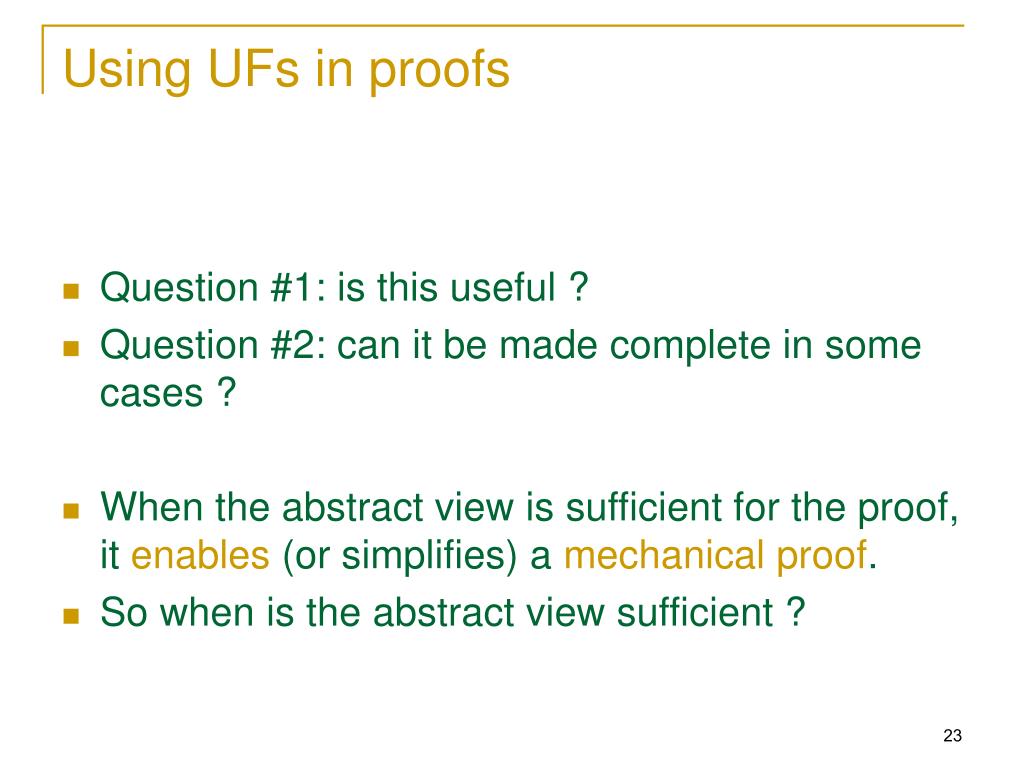

23. Using UFs in proofs • Question #1: is this useful ? • Question #2: can it be made complete in some cases ? • When the abstract view is sufficient for the proof, it enables (or simplifies) a mechanicalproof. • So when is the abstract view sufficient ?

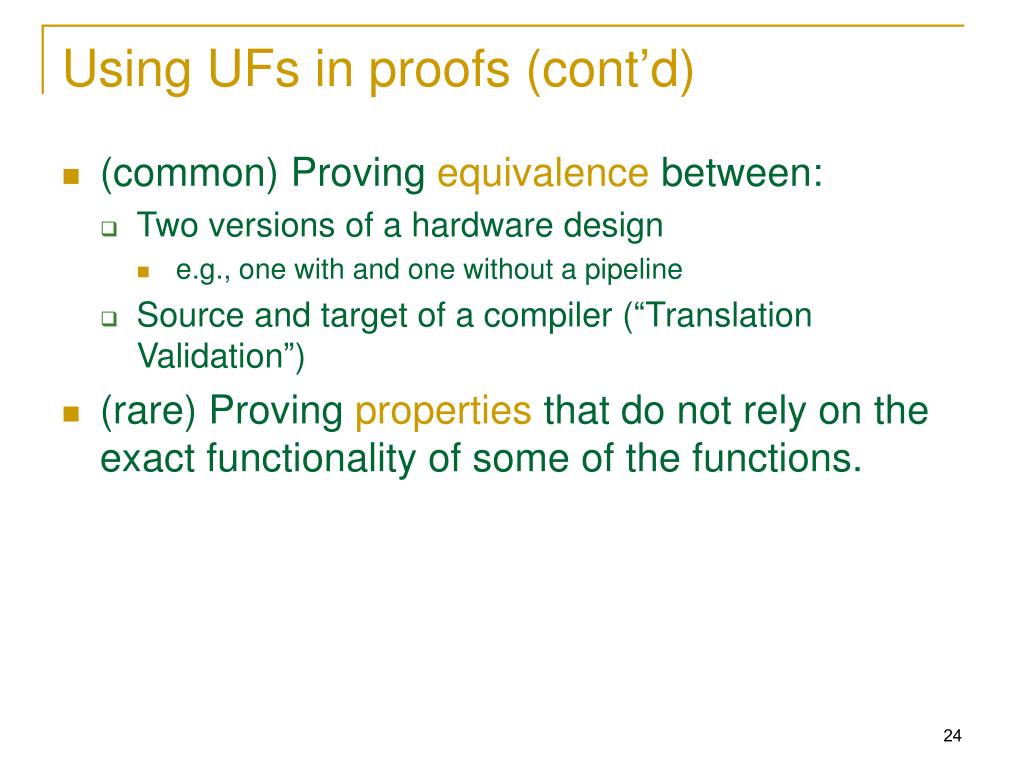

24. Using UFs in proofs (cont’d) • (common) Proving equivalence between: • Two versions of a hardware design • e.g., one with and one without a pipeline • Source and target of a compiler (“Translation Validation”) • (rare) Proving properties that do not rely on the exact functionality of some of the functions.

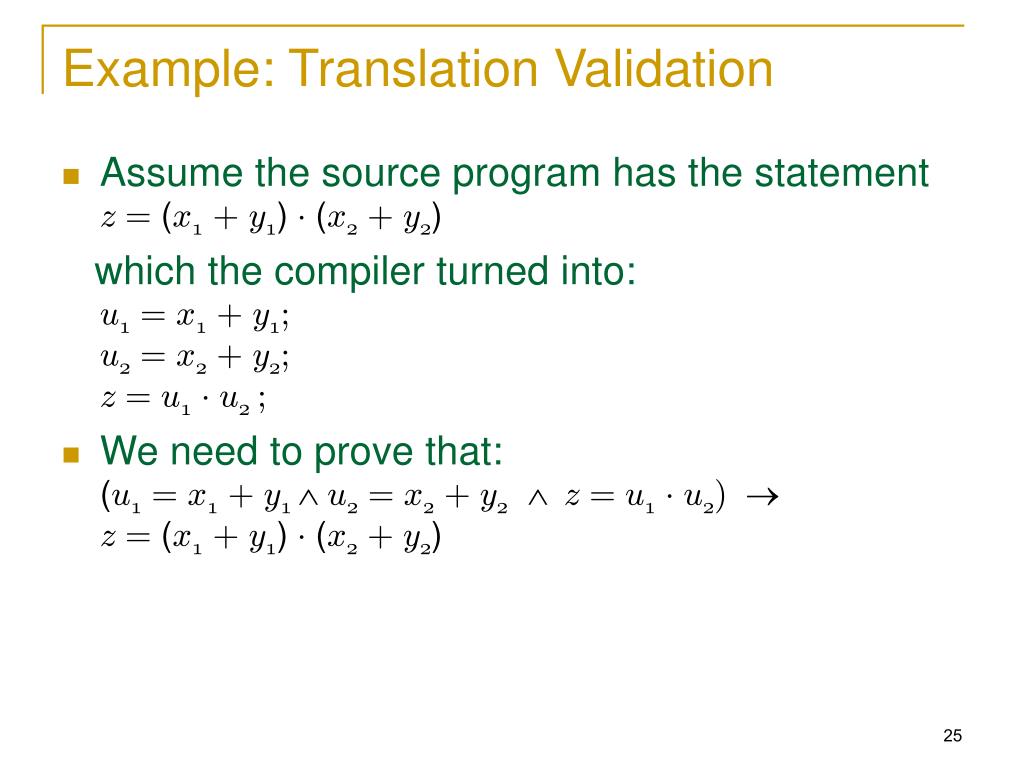

25. Example: Translation Validation • Assume the source program has the statementz= (x1+y1)  (x2+y2) which the compiler turned into:u1=x1+y1;u2=x2+y2;z=u1u2 ; • We need to prove that:(u1=x1+y1 u2=x2+y2  z=u1u2)z= (x1+y1)  (x2+y2)

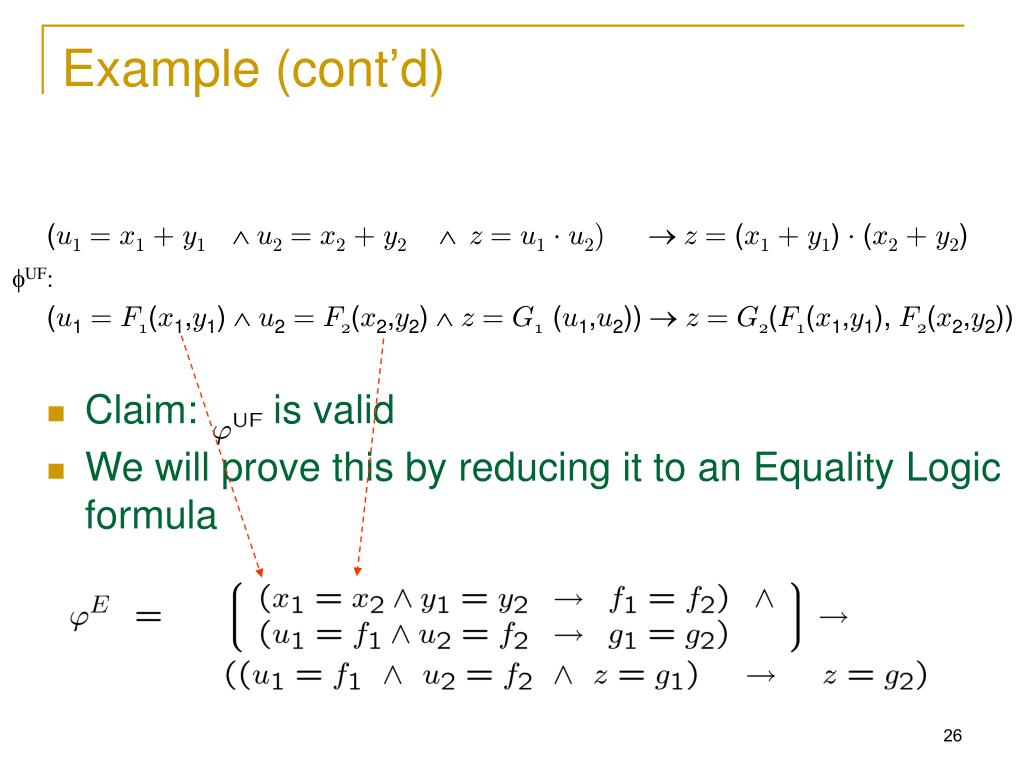

26. Example (cont’d) (u1=x1+y1 u2=x2+y2 z=u1u2) z= (x1+y1)  (x2+y2) (u1=F1(x1,y1) u2=F2(x2,y2) z=G1(u1,u2)) z=G2(F1(x1,y1), F2(x2,y2)) • Claim: is valid • We will prove this by reducing it to an Equality Logic formula UF:

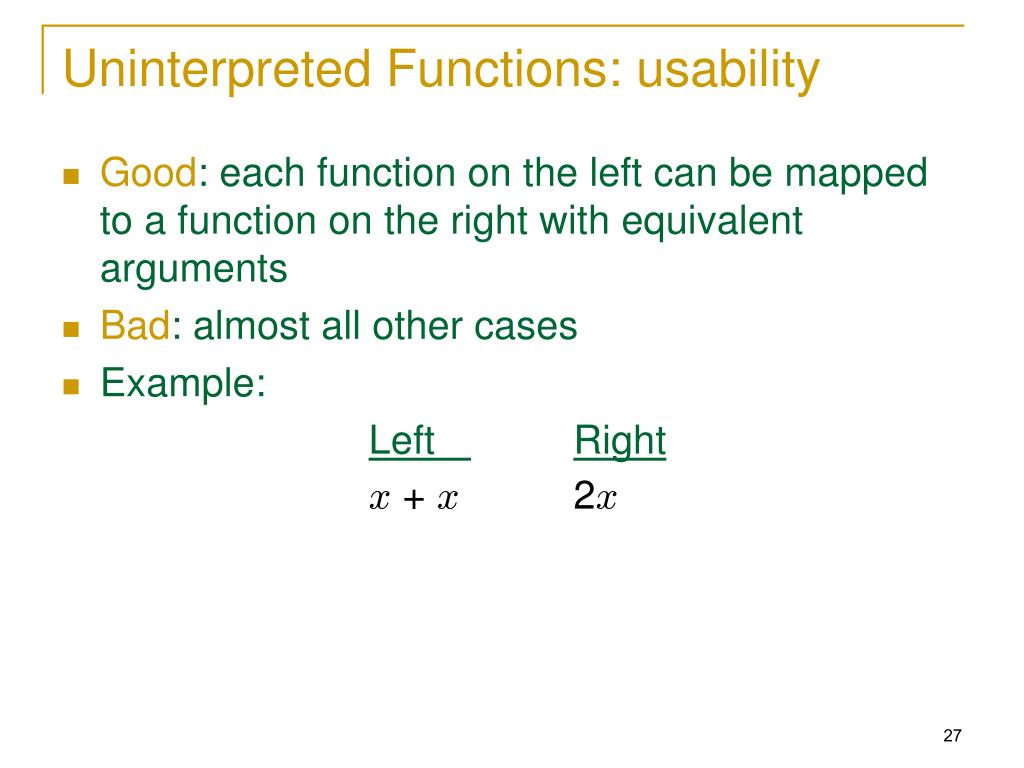

27. Uninterpreted Functions: usability • Good: each function on the left can be mapped to a function on the right with equivalent arguments • Bad: almost all other cases • Example: Left Right x + x 2x

28. Uninterpreted Functions: usability • This is easy to prove: x1=x2y1=y2x1+y1=x2+y2 • This requires knowledge on commutativity: x1=y2y1= x2x1+y1=x2+y2 • easy fix: ((x1=x2y1=y2) (x1=y2x2=y1)) f1= f2 • What about other cases ?useRewriting rules

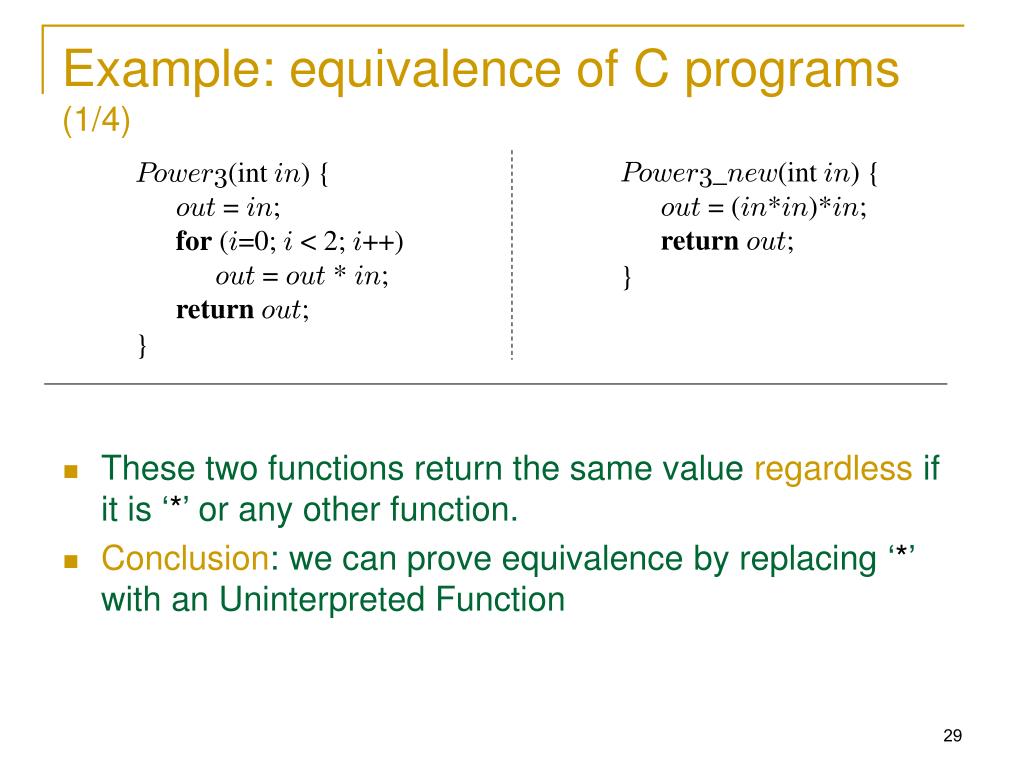

29. These two functions return the same value regardless if it is ‘*’ or any other function. Conclusion: we can prove equivalence by replacing ‘*’ with an Uninterpreted Function Example: equivalence of C programs (1/4) Power3_new(int in) { out = (in*in)*in; return out; } Power3(int in) { out = in; for (i=0; i < 2; i++) out = out * in; return out; }

30. But first… we need to know how to write programs as equations. We will learn one out of several options, namely Static Single Assignment for Bounded programs. Example: equivalence of C programs (1/4) Power3_new(int in) { out = (in*in)*in; return out; } Power3(int in) { out = in; for (i=0; i < 2; i++) out = out * in; return out; }

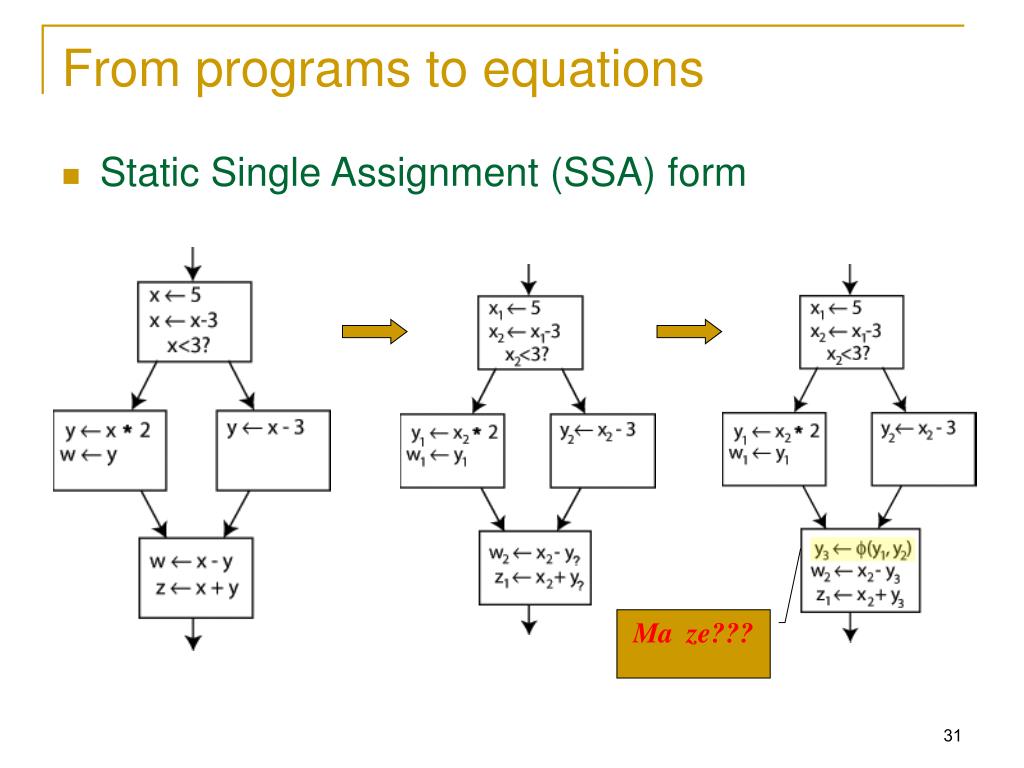

31. From programs to equations • Static Single Assignment (SSA) form Ma ze???

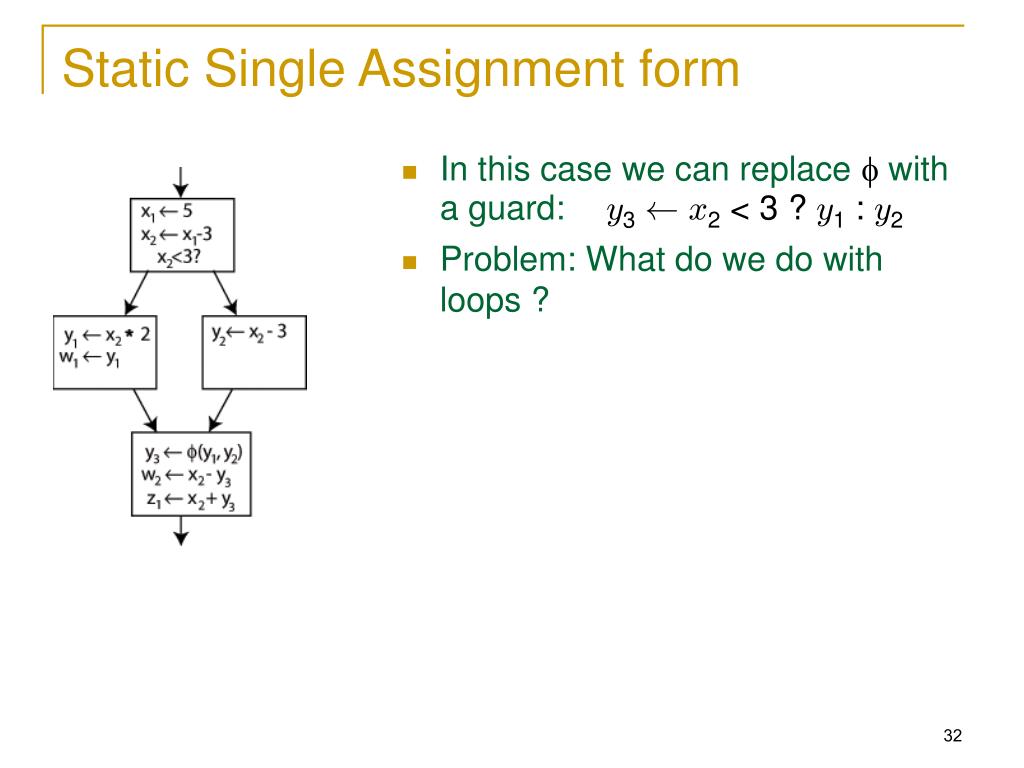

32. In this case we can replace  with a guard: y3Ãx2 < 3 ? y1 : y2 Problem: What do we do with loops ? Static Single Assignment form

33. SSA for bounded programs • For each loop i in a given program, let ki be a bound on its iteration count. • Unroll the program according to the bounds. • We are left with statements and conditions.

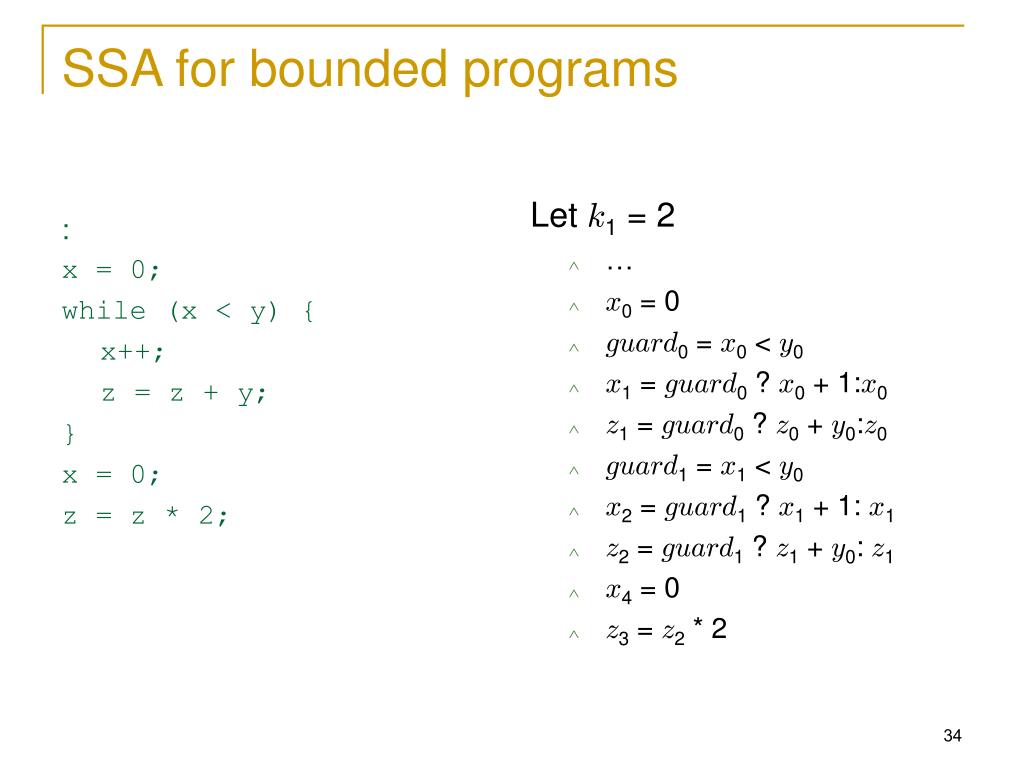

34. : x = 0; while (x < y) { x++; z = z + y; } x = 0; z = z * 2; Let k1 = 2 … x0 = 0 guard0 = x0 < y0 x1 = guard0 ? x0 + 1:x0 z1 = guard0 ? z0 + y0:z0 guard1 = x1 < y0 x2 = guard1 ? x1 + 1: x1 z2 = guard1 ? z1 + y0: z1 x4 = 0 z3 = z2 * 2 SSA for bounded programs

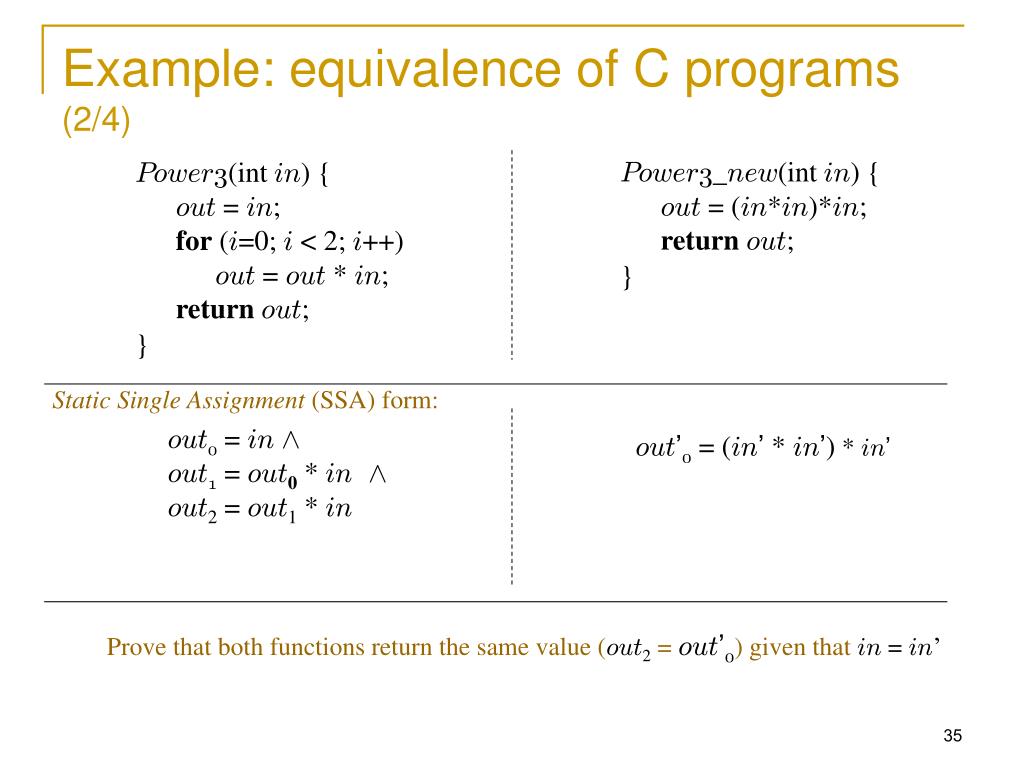

35. Example: equivalence of C programs (2/4) Power3_new(int in) { out = (in*in)*in; return out; } Power3(int in) { out = in; for (i=0; i < 2; i++) out = out * in; return out; } Static Single Assignment (SSA) form: out0 = inÆ out1 = out0 * in Æ out2 = out1 * in out’0 = (in’ * in’) * in’ Prove that both functions return the same value (out2= out’0) given that in = in’

36. Example: equivalence of C programs (3/4) Static Single Assignment (SSA) form: out0 = inÆ out1 = out0 * in Æ out2 = out1 * in out’0 = (in’ * in’) * in’ With Uninterpreted Functions: out’0 = F4(F3(in’ , in’) , in’) out0 = inÆ out1 = F1 (out0 , in) Æ out2 = F2 (out1 , in)

37. Example: equivalence of C programs (4/4) With Uninterpreted Functions: out’0 = F4(F3(in’ , in’) , in’) out0 = inÆ out1 = F1 (out0 , in) Æ out2 = F2 (out1 , in) Ackermann’s reduction: Ea: out0 = inÆ out1 = f1Æ out2 = f2 Eb: out’0 = f4 The Verification Condition (“the proof obligation”) ((out0 = out1 Æin = in) !f1 = f2) Æ ((out0 = in’ Æin = in’) !f1 = f3) Æ ((out0 = f3Æin= in’) !f1 = f4) Æ ((out1 = in’ Æin= in’) !f2 = f3) Æ ((out1 = f3Æin= in’) !f2 = f4) Æ ((in’ = f3Æin’ = in’) !f3 = f4) Ea Æ Eb Æ (in=in’) Æ !out2 = out’0

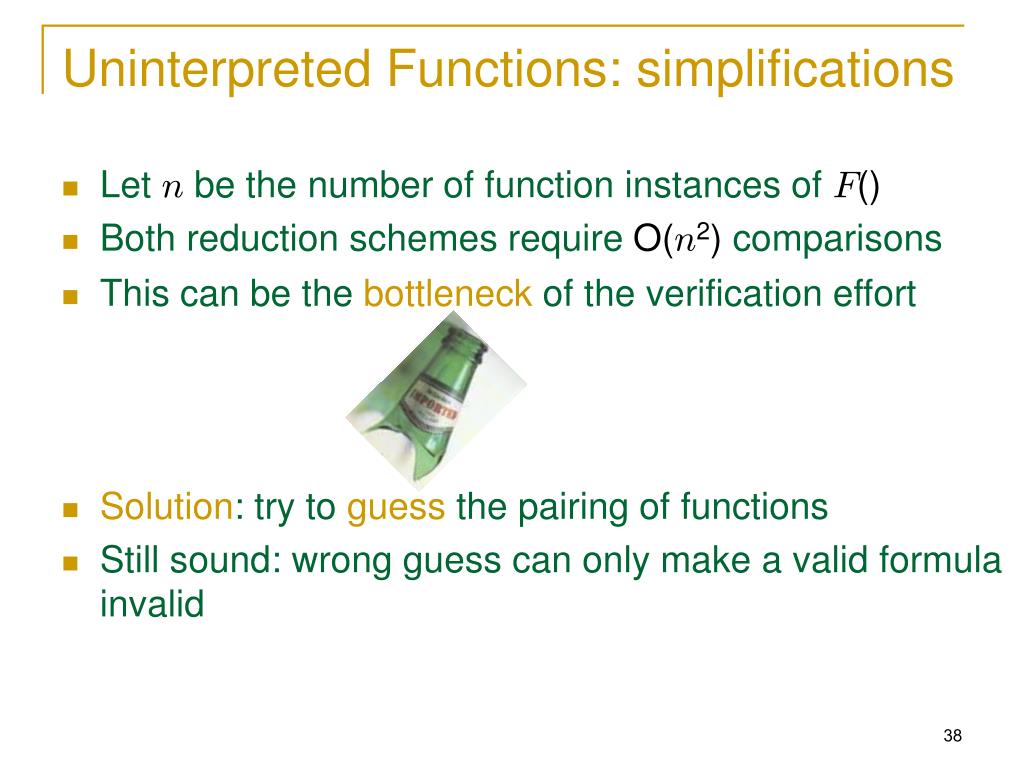

38. Uninterpreted Functions: simplifications • Let n be the number of function instances of F() • Both reduction schemes require O(n2) comparisons • This can be the bottleneck of the verification effort • Solution: try to guess the pairing of functions • Still sound: wrong guess can only make a valid formula invalid

39. UFs: simplifications (1) • Given thatx1 = x1’,x2 = x2’,x3 = x3’,prove² o1 = o2 o1 = (x1 + (a¢x2)) a = x3 + 5 Left f1f2 o2 = (x1’ + (b¢x2’)) b = x3’ + 5 Right f3f4 • 4 function instances  6 comparisons

40. UFs: simplifications (2) o1 = (x1 + (a¢x2)) a = x3 + 5 Left f1f2 o2 = (x1’ + (b¢x2’)) b = x3’ + 5 Right f3f4 • Guess: validity of equivalence does not rely onf1=f2or onf3=f4 • Conclusion: only enforce functional consistency of pairs (Left,Right)

41. UFs: simplifications (3) o1 = (x1 + (a¢x2)) a = x3 + 5 Left f1f2 o2 = (x1’ + (b¢x2’)) b = x3’ + 5 Right f3f4 • Down to 4 comparisons… (from n(n-1)/2 to n2/4) • Another Guess: validity of equivalence only depends on f1 =f3and f2 =f4 • Pattern matching can be useful here ...

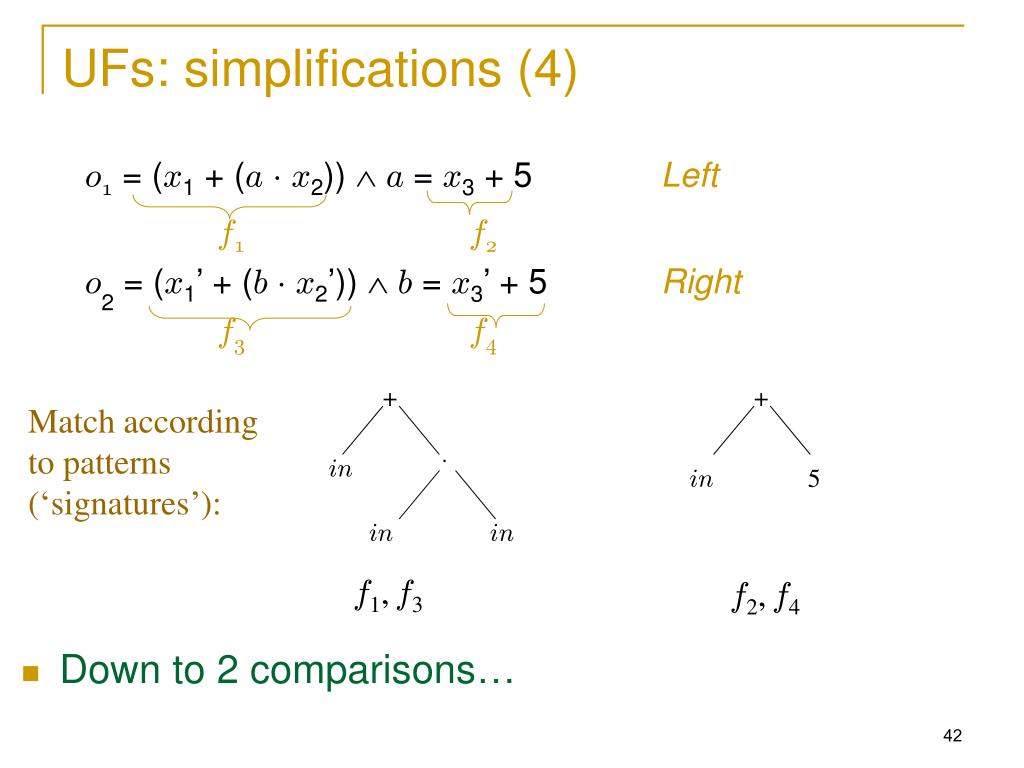

42. + + Match according to patterns (‘signatures’): in ¢ 5 in in in f1,f3 f2,f4 UFs: simplifications (4) o1 = (x1 + (a¢x2)) a = x3 + 5 Left f1f2 o2 = (x1’ + (b¢x2’)) b = x3’ + 5 Right f3f4 • Down to 2 comparisons…

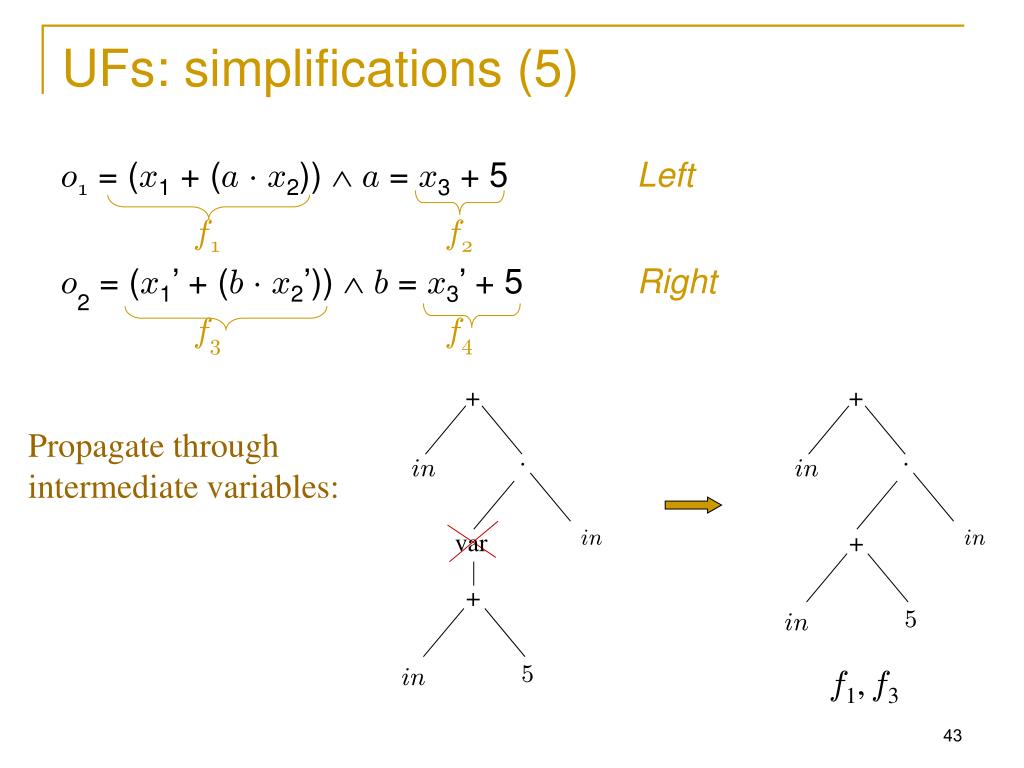

43. UFs: simplifications (5) o1 = (x1 + (a¢x2)) a = x3 + 5 Left f1f2 o2 = (x1’ + (b¢x2’)) b = x3’ + 5 Right f3f4 + + Propagate through intermediate variables: ¢ ¢ in in var + in in + 5 in 5 in f1,f3

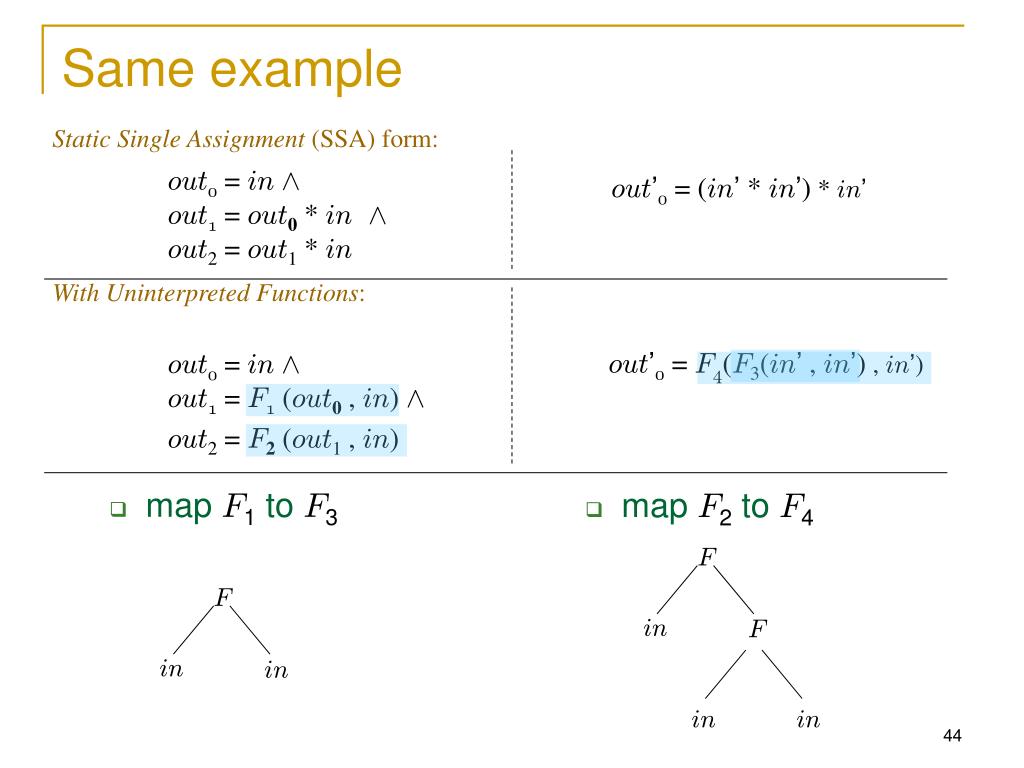

44. F in F in in F in in Same example Static Single Assignment (SSA) form: • map F1 to F3 out0 = inÆ out1 = out0 * in Æ out2 = out1 * in out’0 = (in’ * in’) * in’ With Uninterpreted Functions: out’0 = F4(F3(in’ , in’) , in’) out0 = inÆ out1 = F1 (out0 , in) Æ out2 = F2 (out1 , in) • map F2 to F4

45. Same example, smaller Verification Condition With Uninterpreted Functions: out’0 = F4(F3(in’ , in’) , in’) out0 = inÆ out1 = F1 (out0 , in) Æ out2 = F2 (out1 , in) Ackermann’s reduction: Eb: out’0 = f4 Ea: out0 = inÆ out1 = f1Æ out2 = f2 The Verification Condition has shrunk: ((out0 = in’ Æin = in’) !f1 = f3) Æ ((out1 = f3Æin= in’) !f2 = f4) Æ (in=in’) ÆEa Æ Eb!out2 = out’0

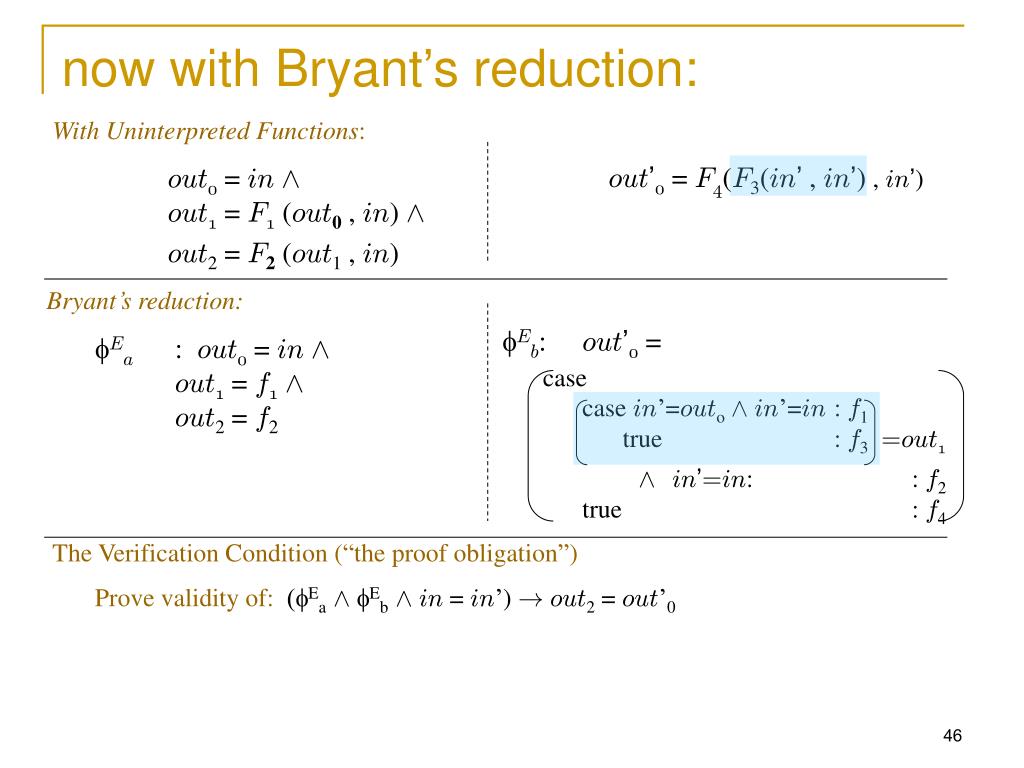

46. now with Bryant’s reduction: With Uninterpreted Functions: out’0 = F4(F3(in’ , in’) , in’) out0 = inÆ out1 = F1 (out0 , in) Æ out2 = F2 (out1 , in) Bryant’s reduction: Eb: out’0 = case case in’=outoÆin’=in : f1 true : f3 =out1 Æ in’=in:: f2 true : f4 Ea: out0 = inÆ out1 = f1Æ out2 = f2 The Verification Condition (“the proof obligation”) Prove validity of:(EaÆEbÆin = in’) !out2 = out’0

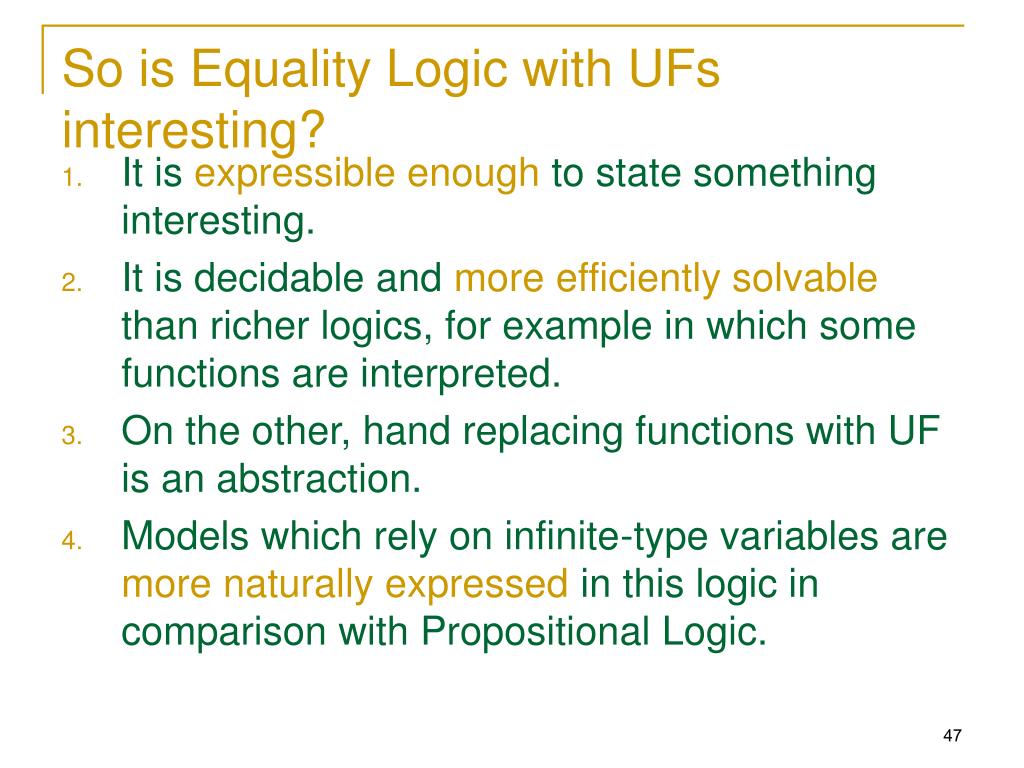

47. So is Equality Logic with UFs interesting? • It is expressible enough to state something interesting. • It is decidable and more efficiently solvable than richer logics, for example in which some functions are interpreted. • On the other, hand replacing functions with UF is an abstraction. • Models which rely on infinite-type variables are more naturally expressed in this logic in comparison with Propositional Logic.
