Tech Talk: How to Extend Checklist Functionality

Tech Talk: How to Extend Checklist Functionality. Tim Climis Rebecca Swords. Outline. Checklist Structure Basics Task extensions Live Example: Immigration Document Creation. Checklist Terminology. Family, Genus, Species, Subspecies Family = campus + e-form group + checklist type

cian
Download Presentation

Tech Talk: How to Extend Checklist Functionality

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Tech Talk: How to Extend Checklist Functionality Tim Climis Rebecca Swords

  2. Outline • Checklist Structure Basics • Task extensions • Live Example: Immigration Document Creation

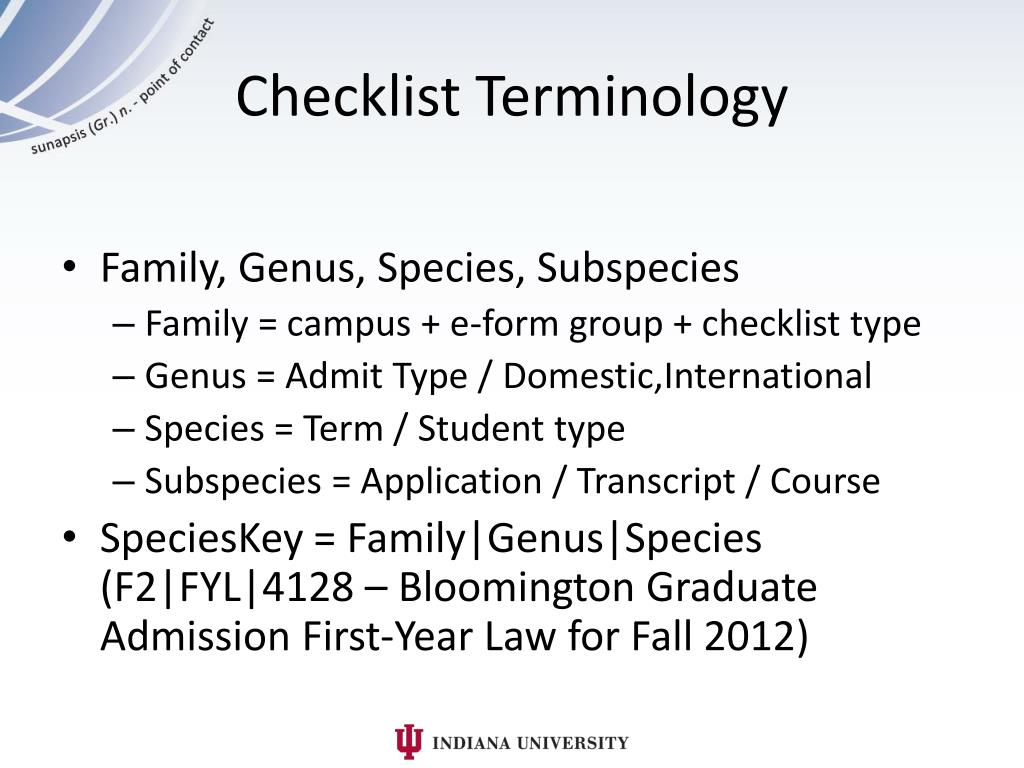

  3. Checklist Terminology • Family, Genus, Species, Subspecies • Family = campus + e-form group + checklist type • Genus = Admit Type / Domestic,International • Species = Term / Student type • Subspecies = Application / Transcript / Course • SpeciesKey = Family|Genus|Species (F2|FYL|4128 – Bloomington Graduate Admission First-Year Law for Fall 2012)

  4. Checklist Table Structure • jbChecklist: associates student, subspecies, and (jb)E-Form Group; produces “checklistID” • jbChecklistSpeciesKey: associates SpeciesKey to a checklistID • jbChecklistStage: records Stage History for checklistID • jbChecklistOfficeTask: records completed Office Tasks for a checklistID

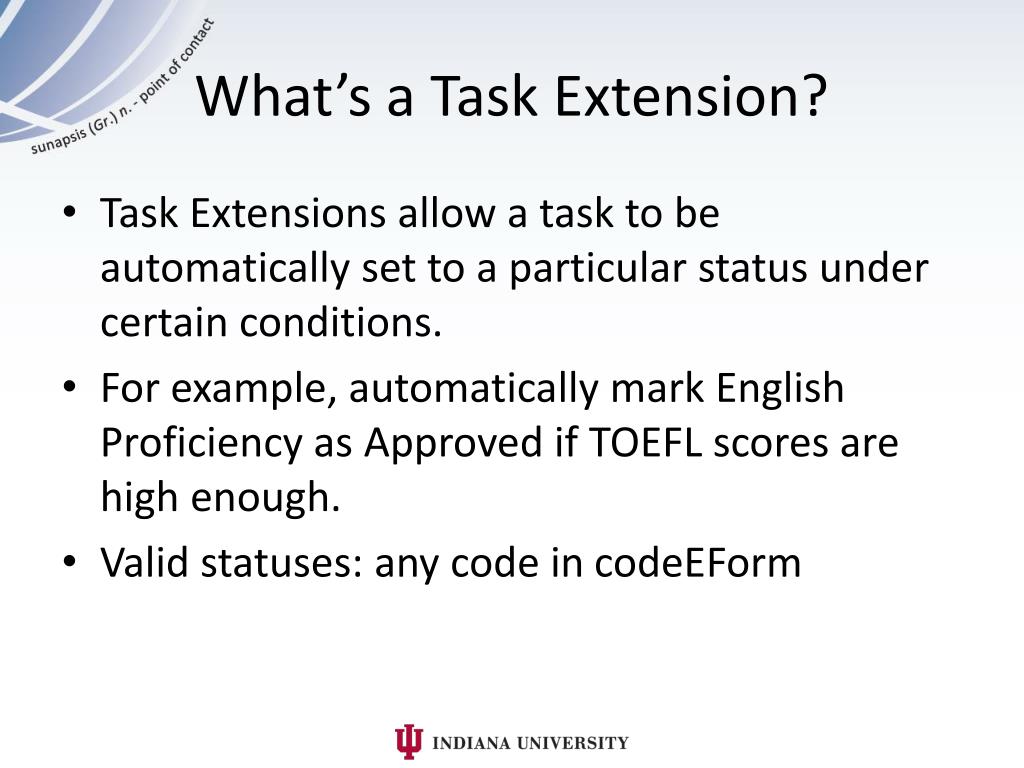

  5. What’s a Task Extension? • Task Extensions allow a task to be automatically set to a particular status under certain conditions. • For example, automatically mark English Proficiency as Approved if TOEFL scores are high enough. • Valid statuses: any code in codeEForm

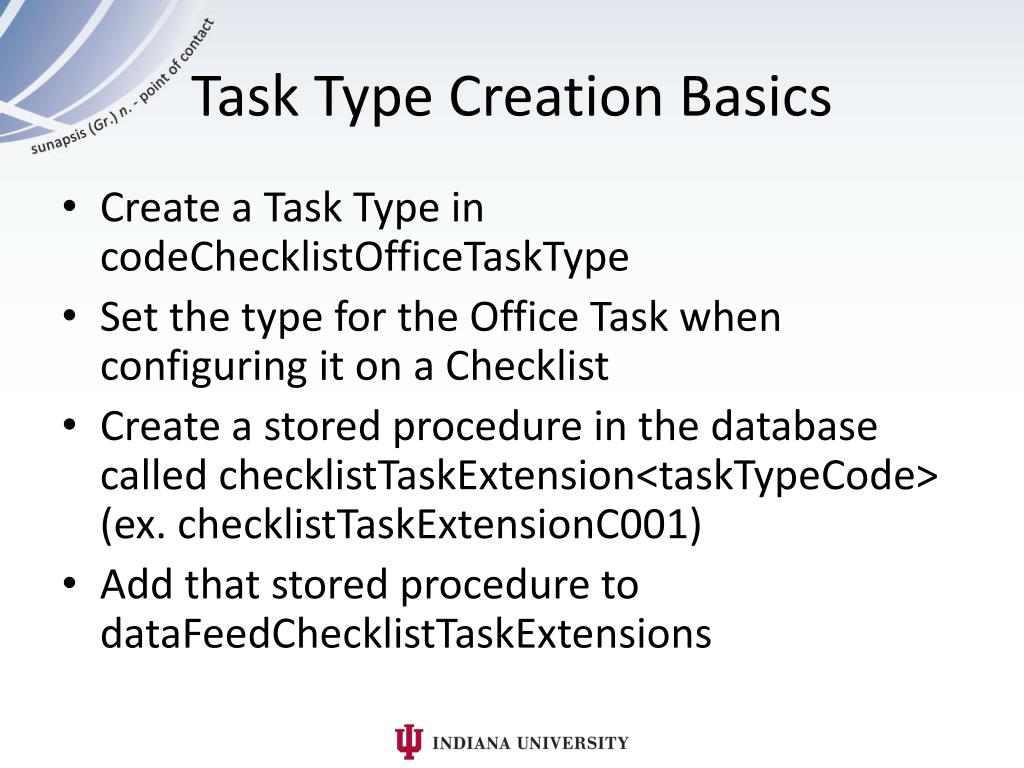

  6. Task Type Creation Basics • Create a Task Type in codeChecklistOfficeTaskType • Set the type for the Office Task when configuring it on a Checklist • Create a stored procedure in the database called checklistTaskExtension<taskTypeCode>(ex. checklistTaskExtensionC001) • Add that stored procedure to dataFeedChecklistTaskExtensions

  7. Creating the Stored Procedure CREATEPROCEDURE[dbo].[checklistTaskExtensionC011]AS BEGIN SETNOCOUNTON; INSERTINTOjbChecklistOfficeTaskExtQueue(idnumber,checklistID,officeTaskID,status) SELECT viewChecklistTaskExtHelper.idnumber, viewChecklistTaskExtHelper.checklistID, viewChecklistTaskExtHelper.officeTaskID, CASE WHENjbChecklistSpeciesKey.speciesKeyLIKE'%4132' THEN'Approved' ELSE'NA' ENDASstatus FROMviewChecklistTaskExtHelper INNERJOINjbChecklistSpeciesKey ONviewChecklistTaskExtHelper.idnumber=jbChecklistSpeciesKey.idnumber ANDviewChecklistTaskExtHelper.checklistID=jbChecklistSpeciesKey.checklistID WHEREviewChecklistTaskExtHelper.taskType=‘C011' END

  8. Write a SELECT Query • Select the students you want to be checked, the task to set, and the status to set to. • Use viewChecklistTaskExtHelper like a function • TaskID = viewChecklistTaskExtHelper(student, checklist, taskType)

  9. Let’s Write a Task Extension • Sunapsis comes with an extension for marking immigration documents as created but it doesn’t handle change of level well • Let’s make our own

  10. Take-aways • Understand the basics of Checklists’ underlying structure • Know what a task extension is, and how to write one
