Natural deduction

Natural Deduction

Proving Validity


The basics of deduction

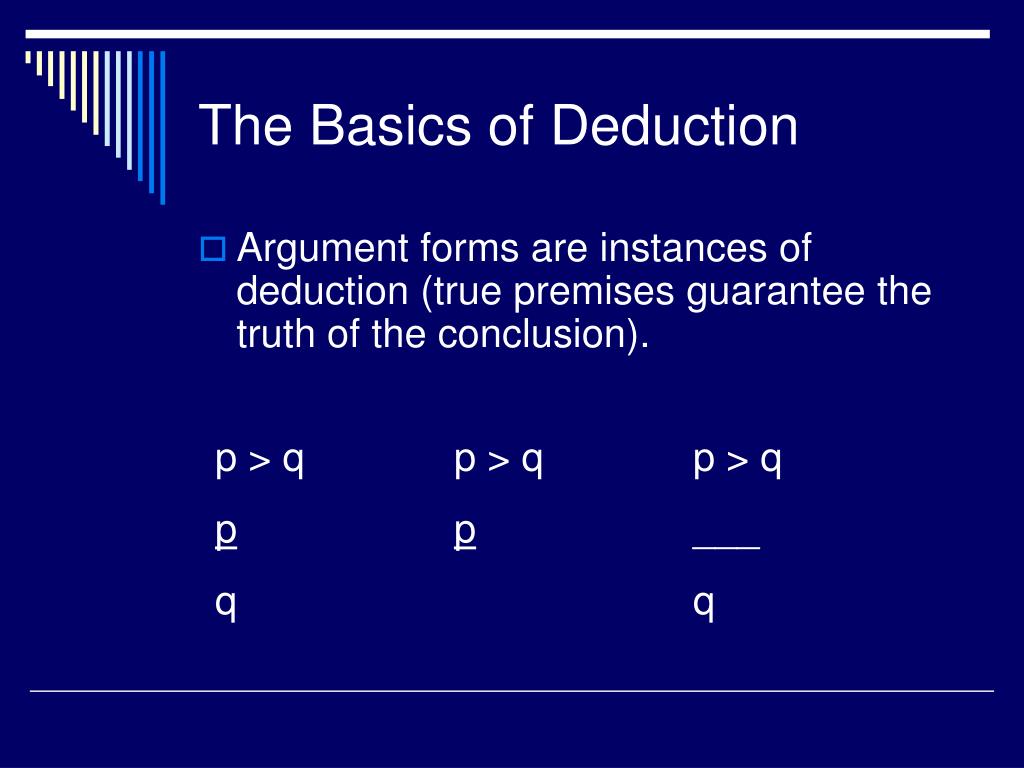

The Basics of Deduction

  • Argument forms are instances of deduction (true premises guarantee the truth of the conclusion).

p > q

p

q

p > q

p

p > q

___

q


Argument forms as rules

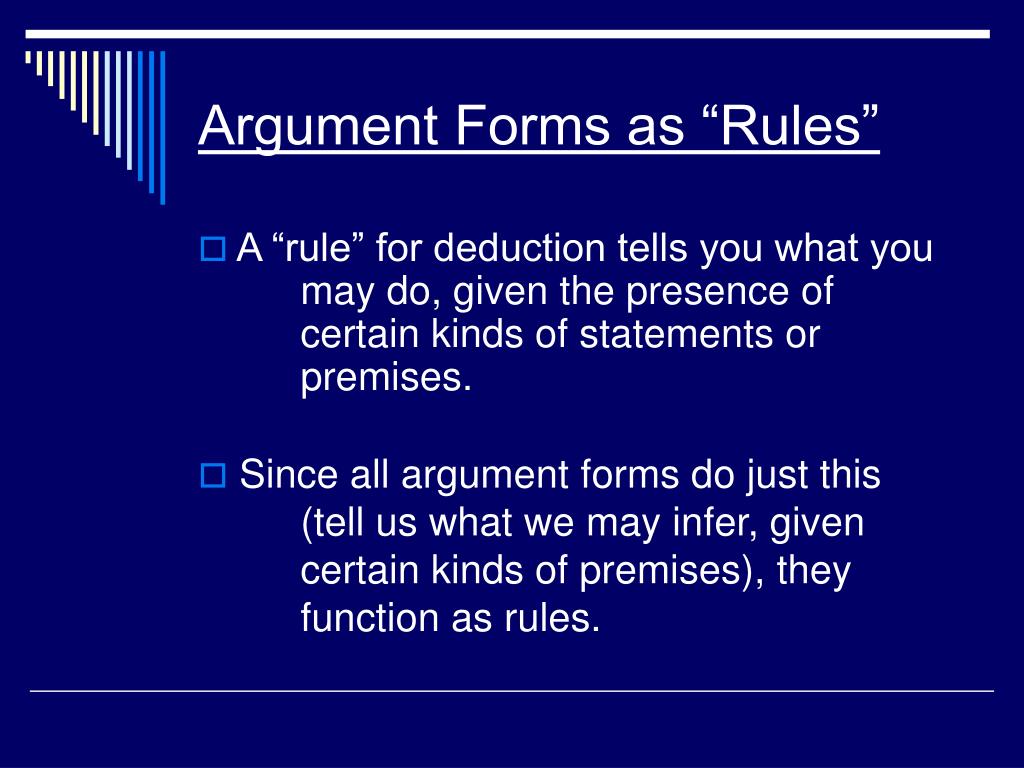

Argument Forms as “Rules”

  • A “rule” for deduction tells you what you may do, given the presence of certain kinds of statements or premises.

  • Since all argument forms do just this (tell us what we may infer, given certain kinds of premises), they function as rules.


A simple example p 344 3

A Simple Example (p. 344, #3)

We use the first line to record the conclusion the “rule” lets us draw.

To do so correctly, we have to know what rule to follow – or what argument form this argument illustrates. Use the second line to record this.

1. R > D

2. E > R

_______ ____

2. E > R

1. R > D

E > D___ _HS_


Another example p 344 6

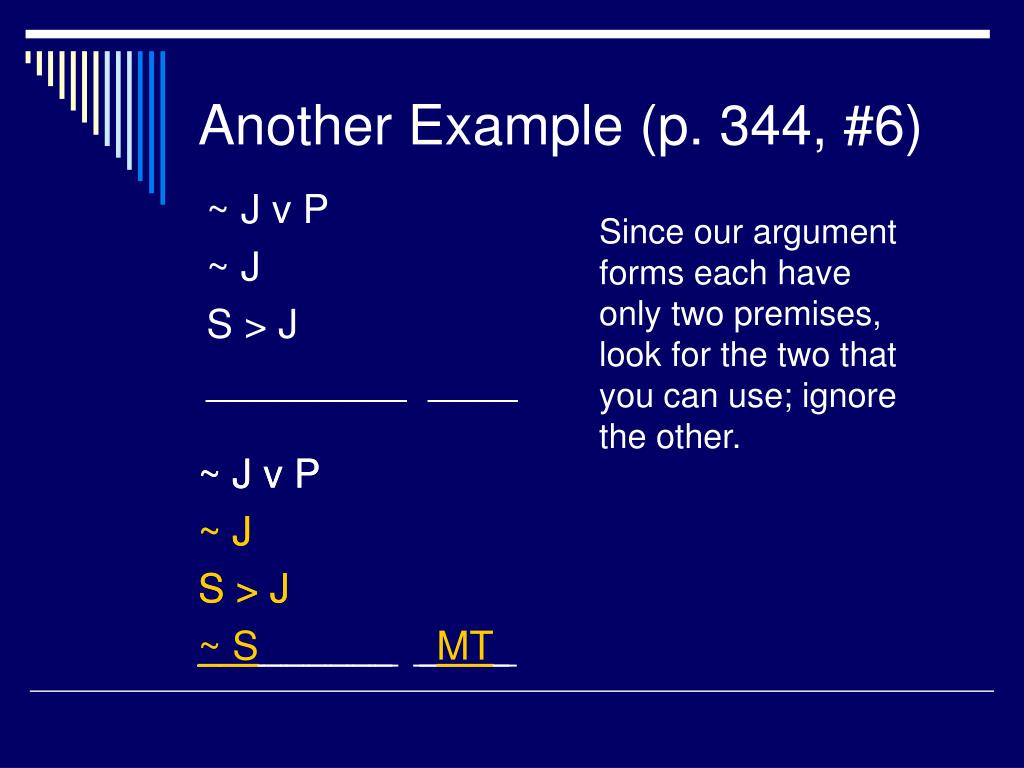

Another Example (p. 344, #6)

Since our argument forms each have only two premises, look for the two that you can use; ignore the other.

~ J v P

~ J

S > J

_________ ____

~ J v P

~ J

S > J

_________ ____

~ J v P

~ J

S > J

~ S______ _MT_


Your strategy for finding conclusions

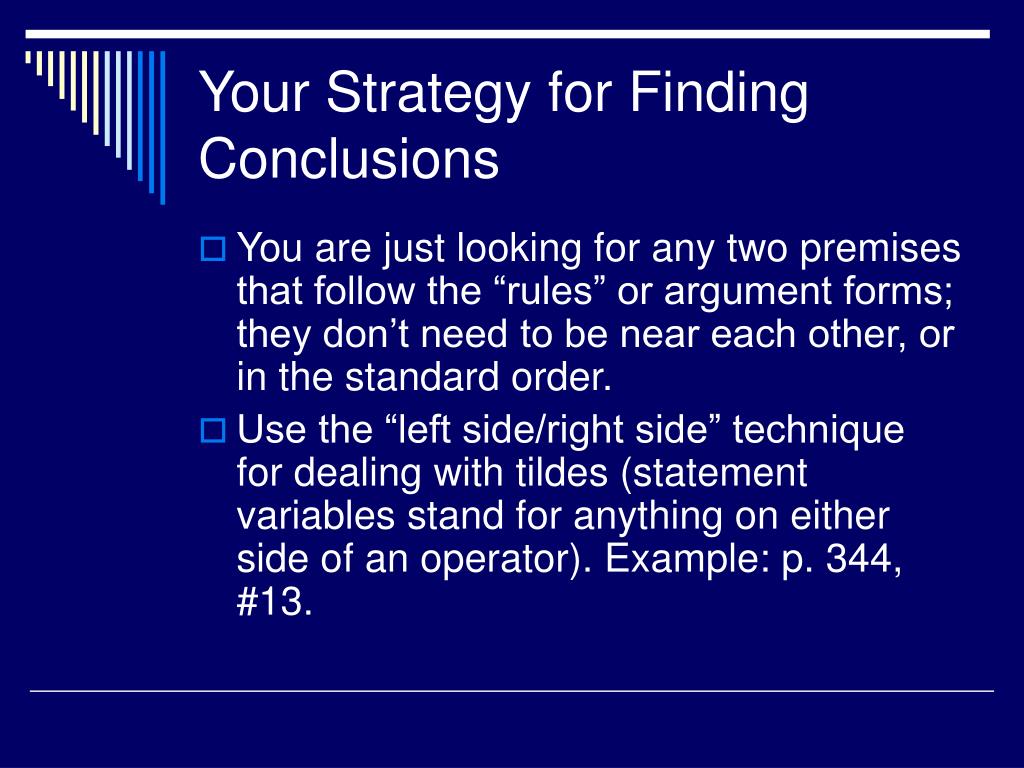

Your Strategy for Finding Conclusions

  • You are just looking for any two premises that follow the “rules” or argument forms; they don’t need to be near each other, or in the standard order.

  • Use the “left side/right side” technique for dealing with tildes (statement variables stand for anything on either side of an operator). Example: p. 344, #13.


Multiple step deductions

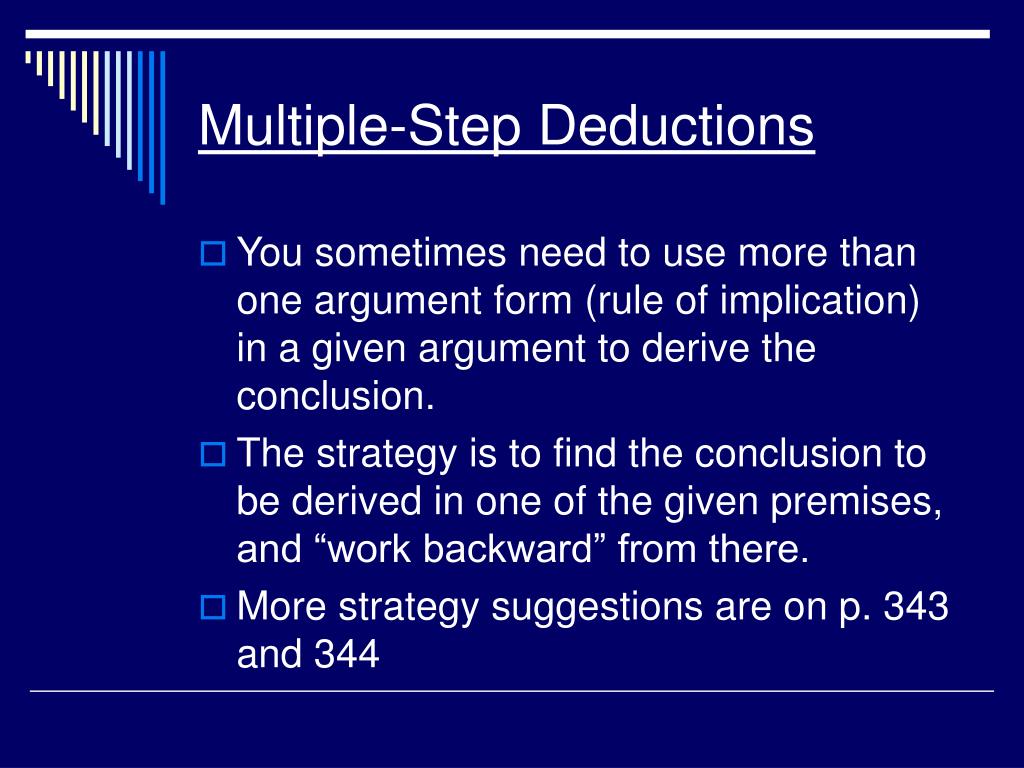

Multiple-Step Deductions

  • You sometimes need to use more than one argument form (rule of implication) in a given argument to derive the conclusion.

  • The strategy is to find the conclusion to be derived in one of the given premises, and “work backward” from there.

  • More strategy suggestions are on p. 343 and 344


Example 1 p 346 12

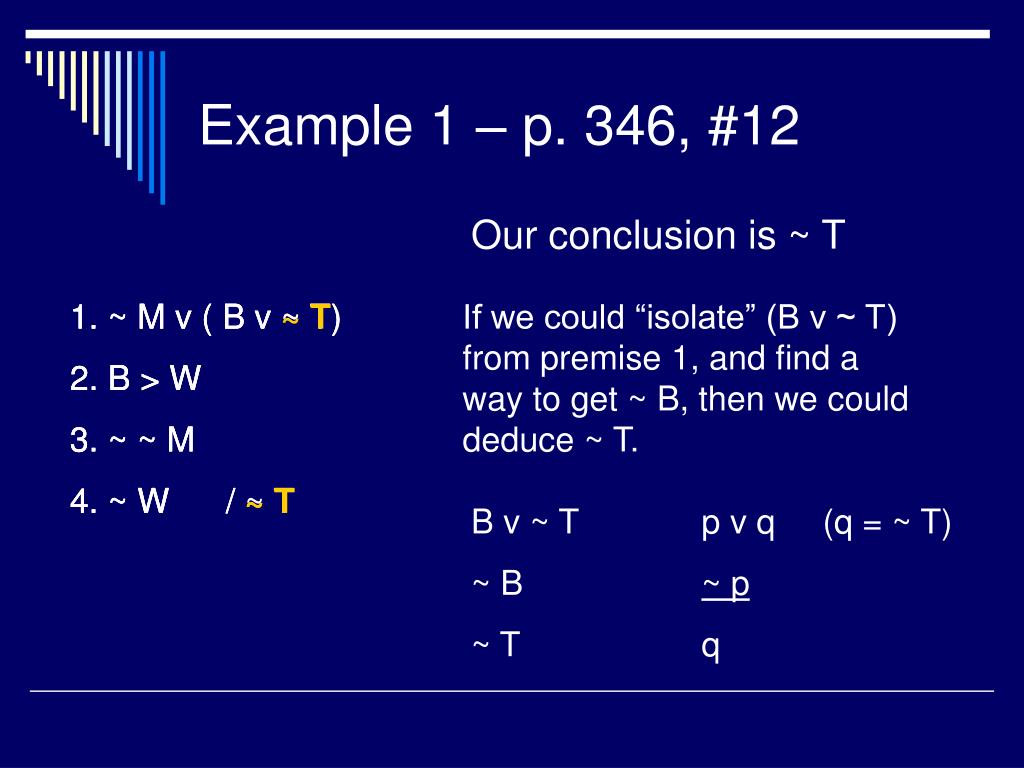

Example 1 – p. 346, #12

Our conclusion is ~ T

1. ~ M v ( B v ~ T)

2. B > W

3. ~ ~ M

4. ~ W / ~ T

1. ~ M v ( B v ~ T)

2. B > W

3. ~ ~ M

4. ~ W / ~ T

1. ~ M v ( B v ~ T)

2. B > W

3. ~ ~ M

4. ~ W / ~ T

If we could “isolate” (B v ~ T) from premise 1, and find a way to get ~ B, then we could deduce ~ T.

B v ~ T

~ B

~ T

p v q (q = ~ T)

~ p

q


Example 1 continued

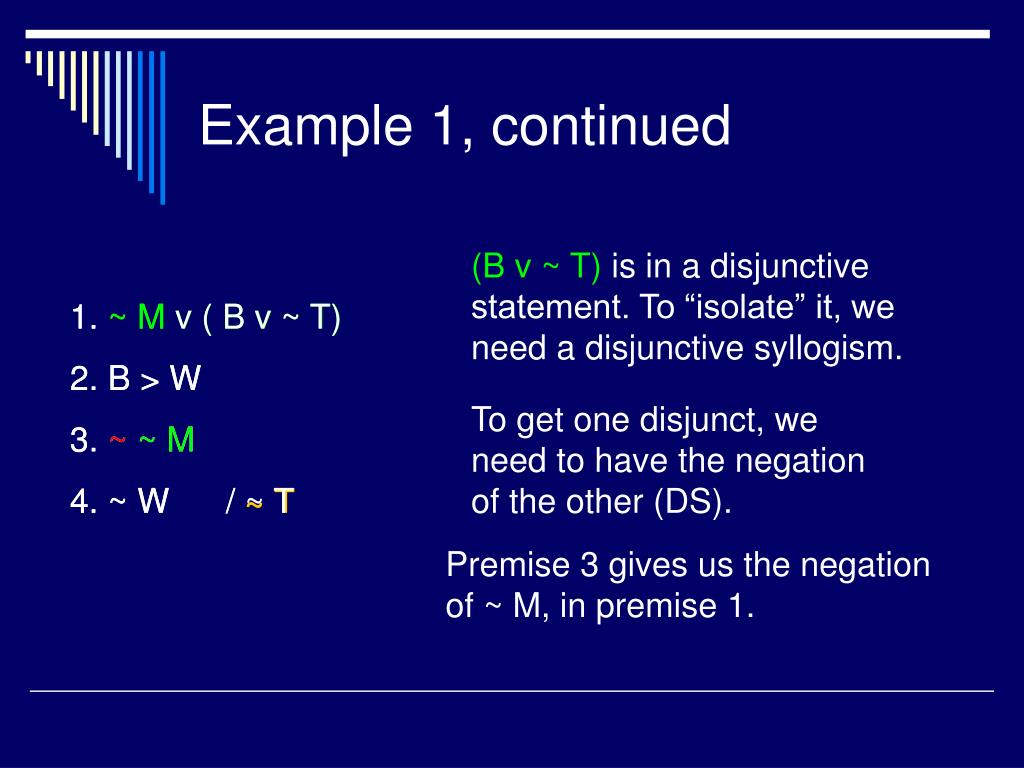

Example 1, continued

(B v ~ T) is in a disjunctive statement. To “isolate” it, we need a disjunctive syllogism.

1. ~ M v ( B v ~ T)

2. B > W

3. ~ ~ M

4. ~ W / ~ T

1. ~ M v ( B v ~ T)

2. B > W

3. ~~ M

4. ~ W / ~ T

To get one disjunct, we need to have the negation of the other (DS).

Premise 3 gives us the negation of ~ M, in premise 1.


Example 1 partial deduction

Example 1 – Partial Deduction

1. ~ M v ( B v ~ T)

2. B > W

3. ~ ~ M

4. ~ W / ~ T

5. B v ~ T 1, 3 DS

1. ~ M v ( B v ~ T)

2. B > W

3. ~ ~ M

4. ~ W / ~ T

Now we need to get ~ B, so we can deduce ~ T through another DS.


Example 1 full deduction

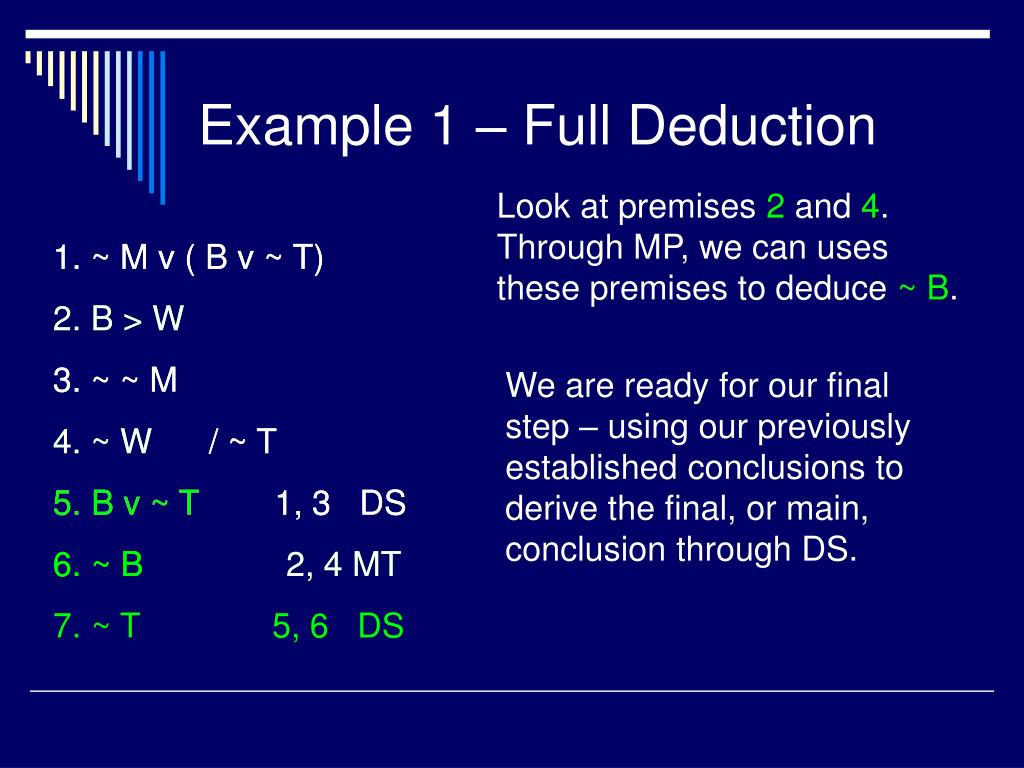

Example 1 – Full Deduction

Look at premises 2 and 4. Through MP, we can uses these premises to deduce ~ B.

  • 1. ~ M v ( B v ~ T)

  • 2. B > W

  • 3. ~ ~ M

  • 4. ~ W / ~ T

  • B v ~ T 1, 3 DS

  • ~ B2, 4 MT

  • 1. ~ M v ( B v ~ T)

  • 2. B > W

  • 3. ~ ~ M

  • 4. ~ W / ~ T

  • B v ~ T 1, 3 DS

  • ~ B 2, 4 MT

  • ~ T 5, 6 DS

We are ready for our final step – using our previously established conclusions to derive the final, or main, conclusion through DS.


Multiple step deductions conclusions

Multiple Step Deductions - Conclusions

  • Use your knowledge of argument forms to apply the (first 4) rules of implication to show validity through deduction.

  • Be flexible in finding premise pairs; they may be anywhere in the argument.

  • Be stringent in your justifications; every line must show premise numbers and the rule through which you connect them to the derived statement.
