TRS (Tip, Ring, Sleeve)

Phono Jack or Stereo Jack- 1/8 Also called a “Mini”


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Notice the single ring for and 1/4 inch --- Used on a Telephone

TRS (Tip, Ring, Sleeve)

Phono Jack or Stereo Jack-– ¼”


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

RCA


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

This cable carries the highest quality digital audio and video signals


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Fire Wire


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

XLR

Rejects hum

and other electronicinterference andcan be used forlonger runs.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

F-Connecter


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

BNC


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

HDMI


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

USB Connector


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

TOSLINK- To hook the video and audio to a transmitter

that transmits the broadcast ( standardized optical fiber connection).


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

S- Video Cord


Microphones

Microphones


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Natural Sound is defined as?

Ambient or sound naturally occurring

at a location.

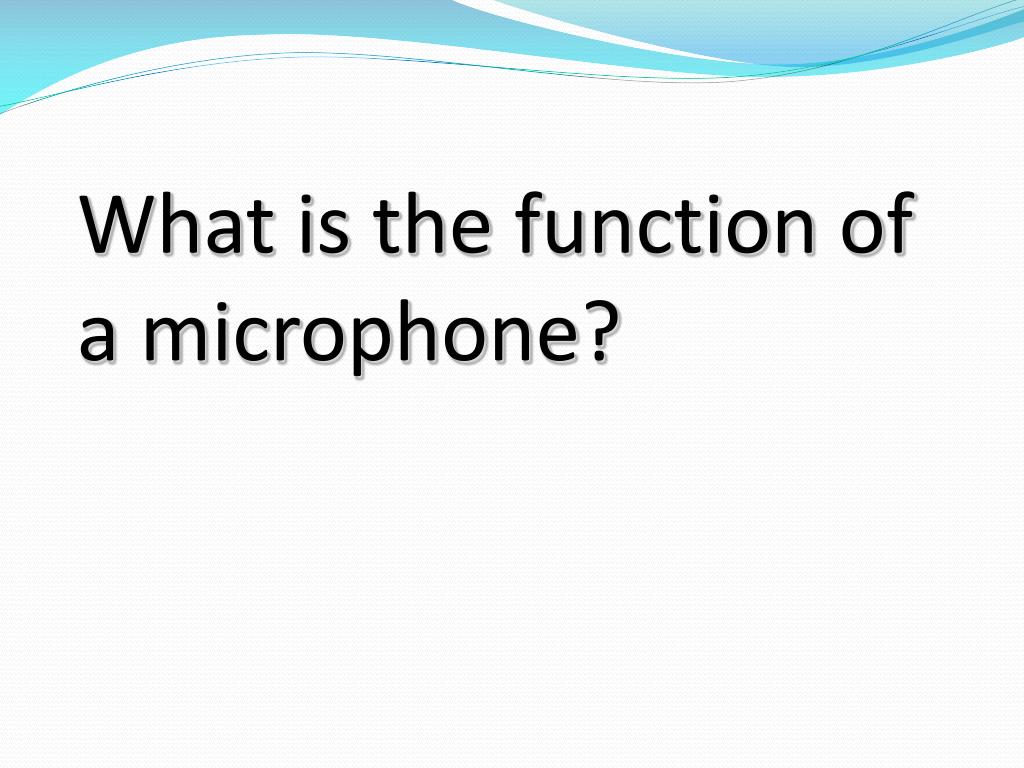

What is the function of a microphone

What is the function of a microphone?


Converts sound into an electrical signal

Converts sound into an electrical signal.


Microphone transducers

Microphone transducers

  • The component of a microphone that converts sound into an electrical signal.


Dynamic transducer no battery

Dynamic Transducer (No Battery)

A mic whose sound pickup device consists of a diaphragm that is attached to

a movable coil. As the diaphragm vibrates with the air pressure from the sound,the coil moves within a magnetic field, generating an electric current.Dynamic microphones work via electromagnetic induction.

They are robust, relatively inexpensive and resistant to moisture.

This, coupled with their potentially high gain before feedback, makes

them ideal for on-stage use.


Microphone with condenser transducer battery

Microphone with Condenser Transducer (Battery)

A mic whose diaphragm consists of a condenser plate that vibrateswith thesound pressure against another fixed condenser plate.Also called an electret or capacitor microphone.


Microphone with a ribbon condenser

Microphone with a Ribbon Condenser

A mic whose sound pickup device consists of a ribbon that vibrates withthe sound pressure within a magnetic field. This is the most fragile andthus, the most sensitive of all microphones.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What is the most common microphone pickup pattern?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Cardioid means "heart-shaped", from the Greek root word "cardi". A cardioid pickup pattern means pickup to the front of the microphone, and to a lesser extent the sides, with good rejection of sound to the back of the microphone.

Cardioid


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

If you only had one microphone to use for a round table discussion, which pick-up pattern would you use?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Omni-Directional

(All Directional) An omnidirectional microphone picks up sound equally 360 degrees around the microphone capsule.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What microphone would be best at picking up audio in two different directions?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Bi-Directional- Sound coming from two directions.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What type of pick-up pattern would you use to pick up sounds better from the front than from the sides or back?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Unidirectional- Pickup pattern in which the microphone can pick up sounds better from the front than from the sides or back.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Most camera have a built in microphone which contains what type up pick-up pattern?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Cardioid pattern


What type of microphone would be best in long distance recording

What type of microphone would be best in long distance recording?


Shotgun boom microphone

Shotgun/Boom microphone

** These microphones have a hyper-cardioid microphone. This is similar to cardioid but with a tighter area of front

sensitivity and a smaller lobe of rear sensitivity.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Name the microphone that can be pinned onto your talent during an interview?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Lavaliere Microphone

Talk normally when wearing this.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Name the type of microphone

that is handled by the performer

with the ability to talk with anyone

in the audience?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Hand (stick)


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What is the purpose of the “pop filter”?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Filters out or eliminates sudden air blasts when people speak or sing into a microphone.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What is the function of a windscreen?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Acoustic foam rubber put over a

microphone to cut down wind noise.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What is a wind sock?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

A wind screen made from synthetic material and resemblesmore a mop than a wind screen.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Audio Mixer


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What are the functions of an audio mixer?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Amplifies weak signals

Controls volume

Creates one Mixed signal


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

The LED meters on an audio mixer show the audio level.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What type of cable carries the highest quality digital audio and video signals?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Firewire1394 IEEE


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What does the mic/line inputs do

on an audio mixer?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Allows for the switching of a

microphone or an audio output

from a source such as a VCR or

other audio recorder.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What is the purpose of

mic/line faders?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Sound-volume control that

works by sliding a button

along a specific scale.


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What device on an audio

mixer measures the relative

loudness volume units

of sound?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

VU meter


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Name the button on an audio mixer that is used to

control the signal strength of the mixed output

from an audio mixer?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

Master fader (red button)


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

What is the line out on an audio mixer do?


Trs tip ring sleeve phono jack or stereo jack 1 8 also called a mini

The final mixed and quality-processed

Signal that is sent from the audio mixer.
