  1. Union Chapel Mine Evidence of Change Through Time

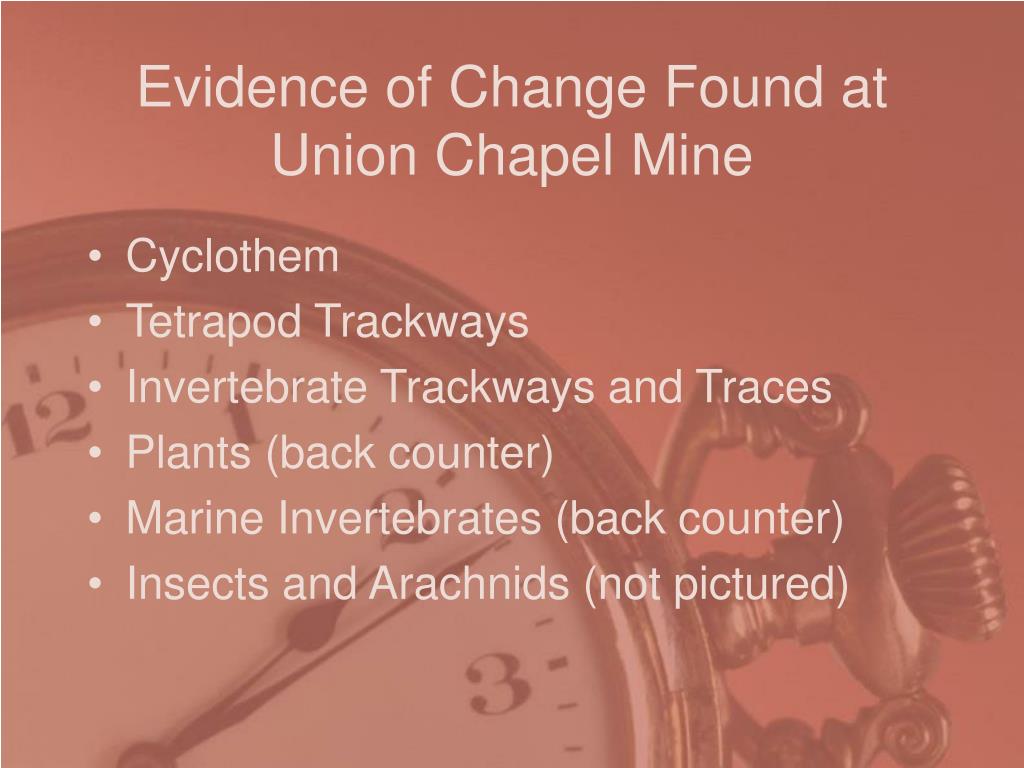

  2. Evidence of Change Found at Union Chapel Mine • Cyclothem • Tetrapod Trackways • Invertebrate Trackways and Traces • Plants (back counter) • Marine Invertebrates (back counter) • Insects and Arachnids (not pictured)

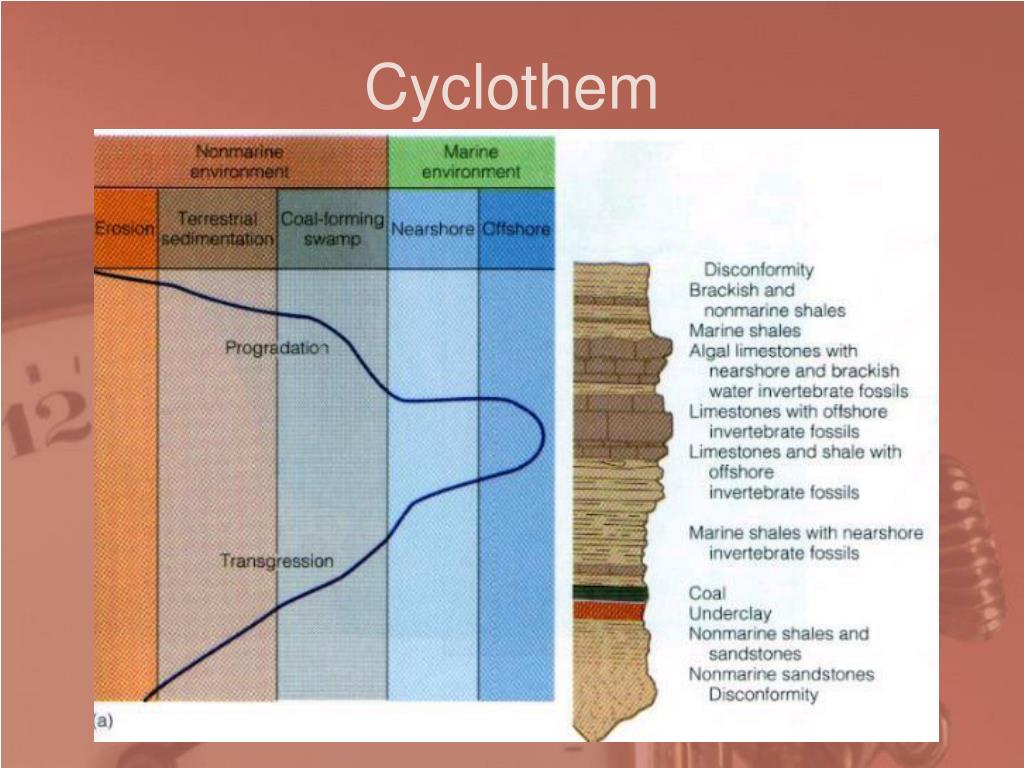

  3. Cyclothem

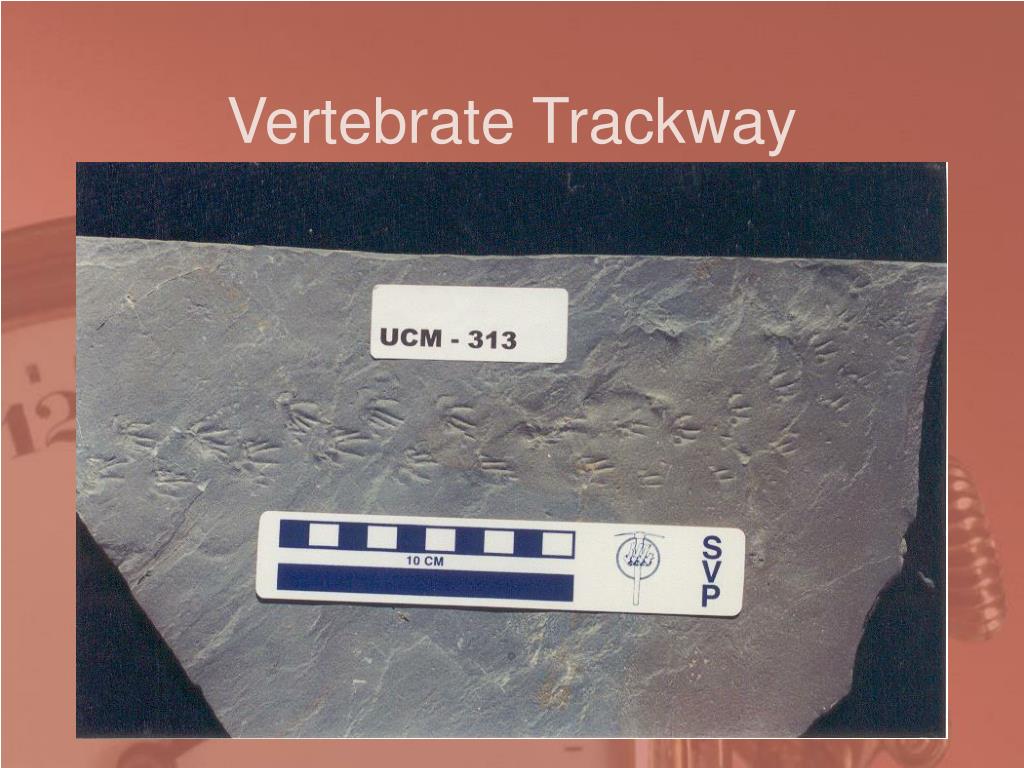

  4. Vertebrate Trackway

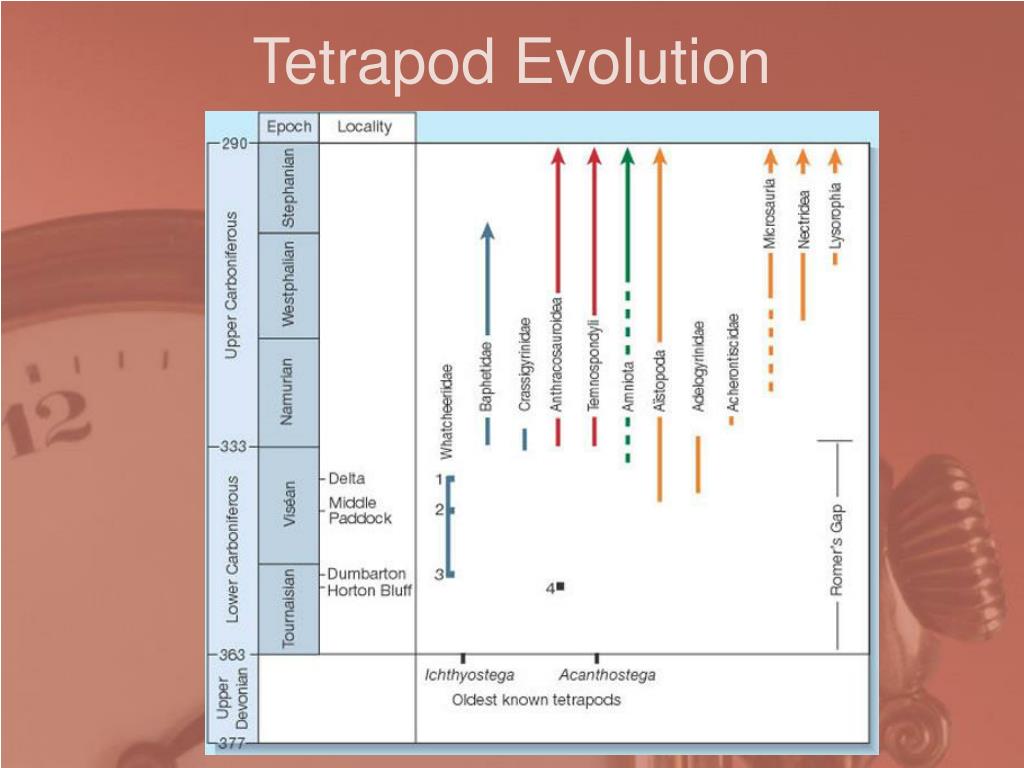

  5. Tetrapod Evolution

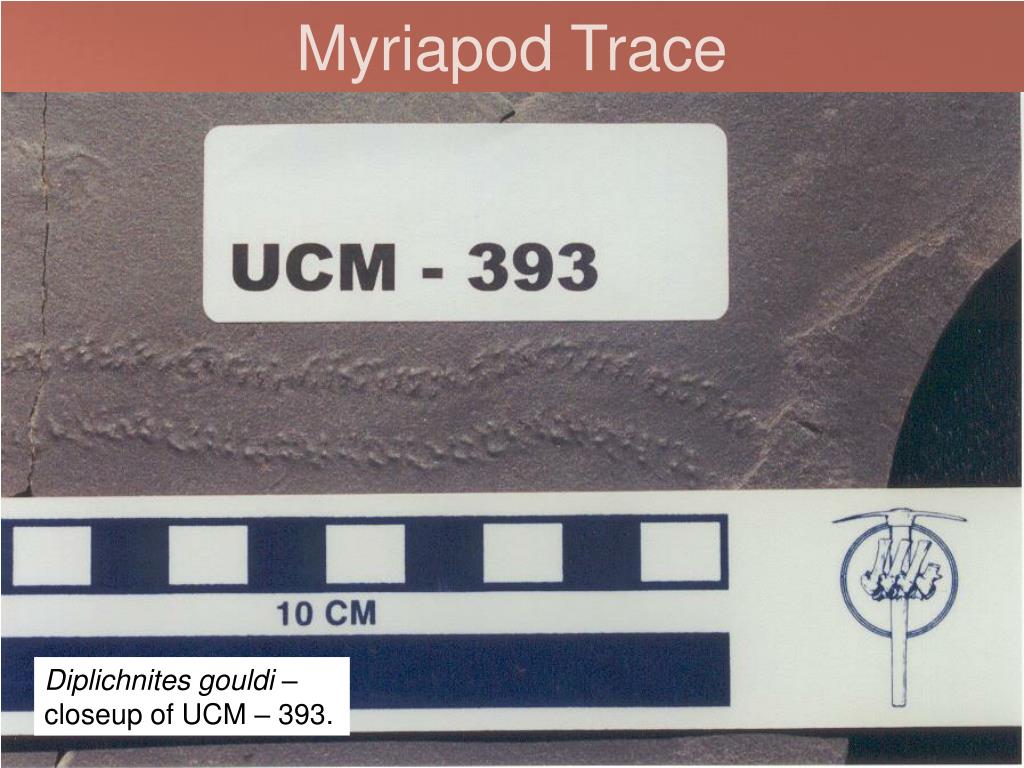

  6. Myriapod Trace Diplichnites gouldi – closeup of UCM – 393.

  7. Arthropleura

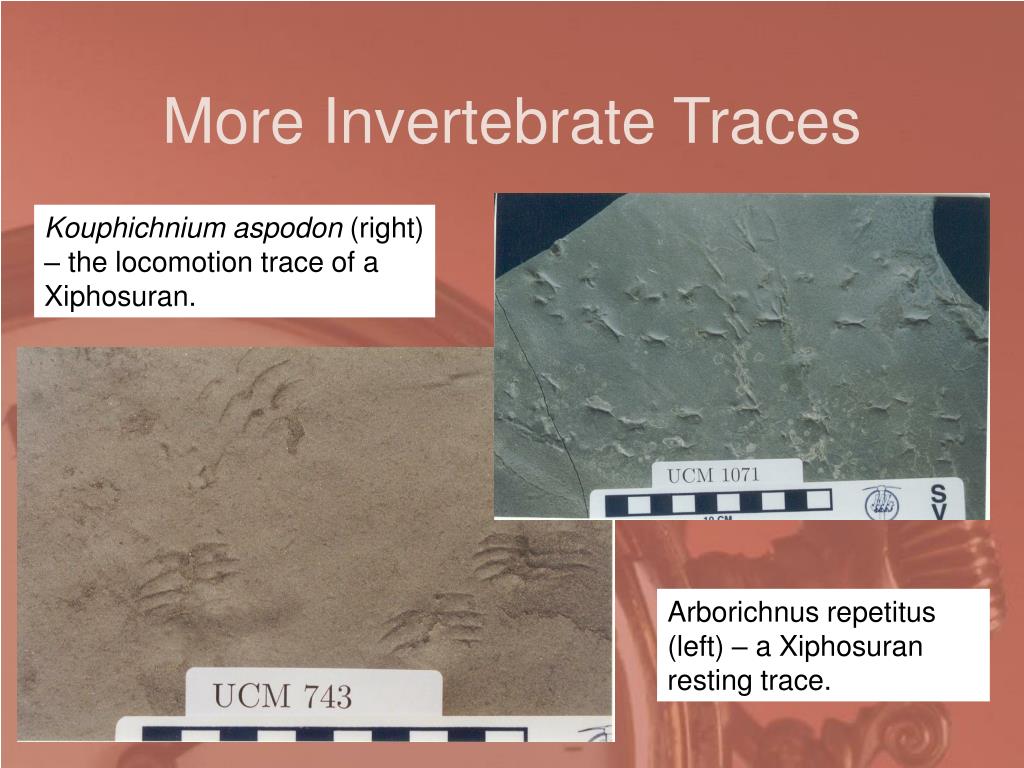

  8. More Invertebrate Traces Kouphichnium aspodon (right) – the locomotion trace of a Xiphosuran. Arborichnus repetitus (left) – a Xiphosuran resting trace.

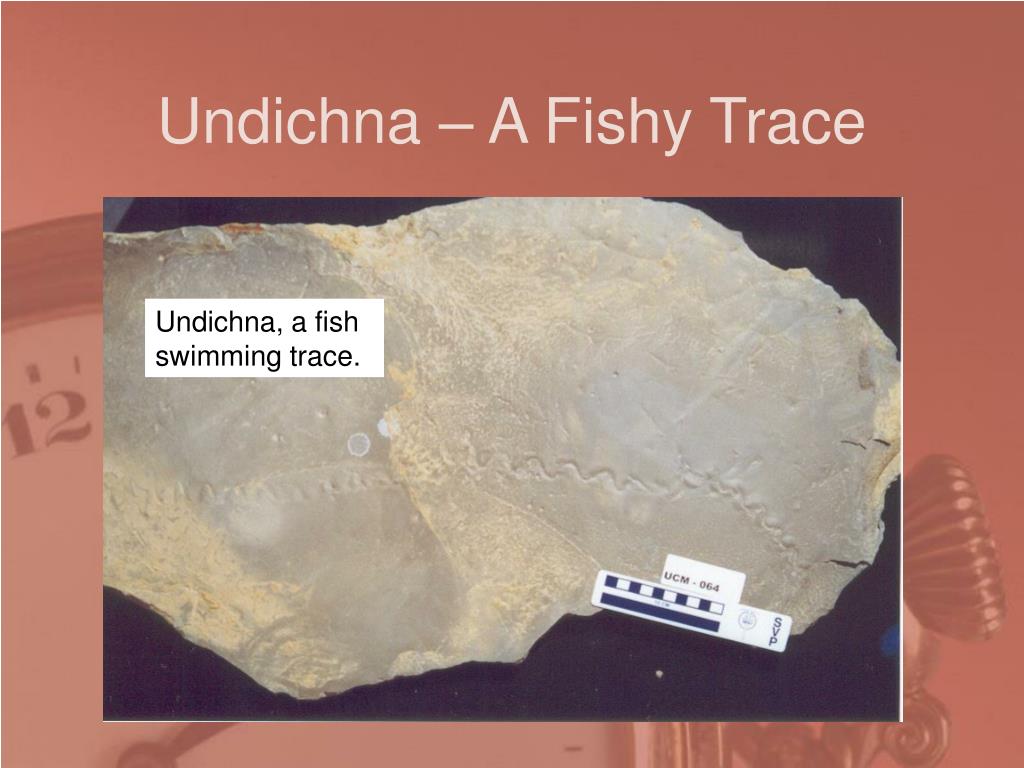

  9. Undichna – A Fishy Trace Undichna, a fish swimming trace.

  10. A Paleozoic Fish

  11. Tales Told by the Evidence of Union Chapel Mine • Time Frame • Coal Swamp • Alabama During the Pennsylvanian • Pennsylvanian Global Map • Plate Tectonics

  12. Geologic Time Scale

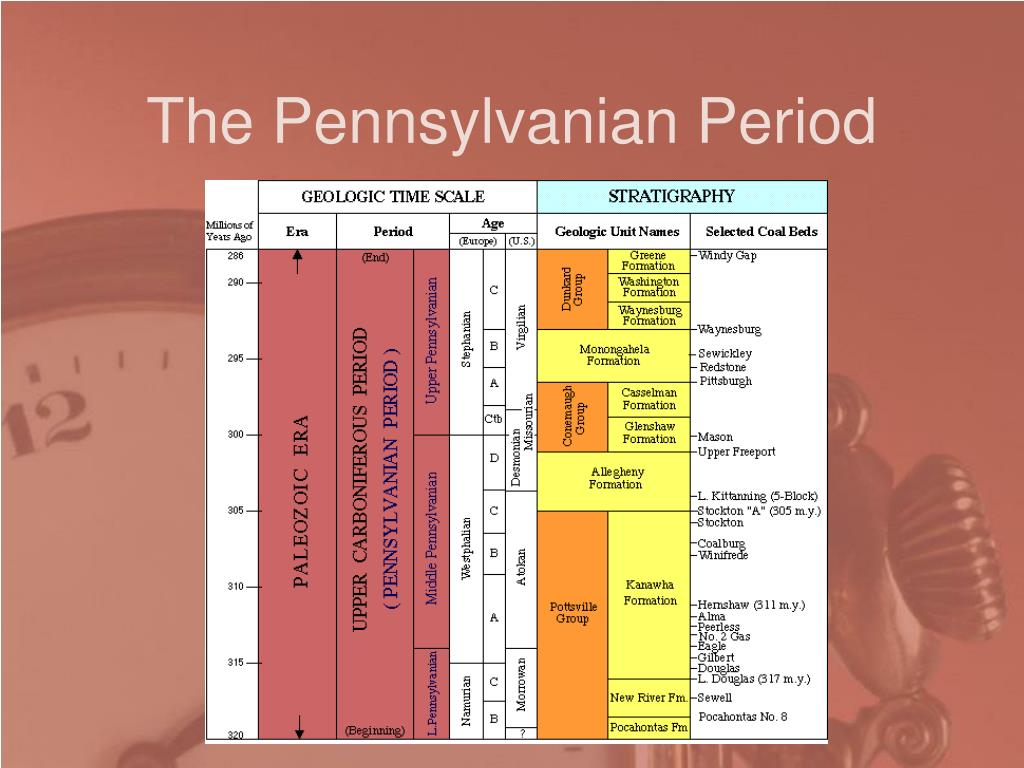

  13. The Pennsylvanian Period

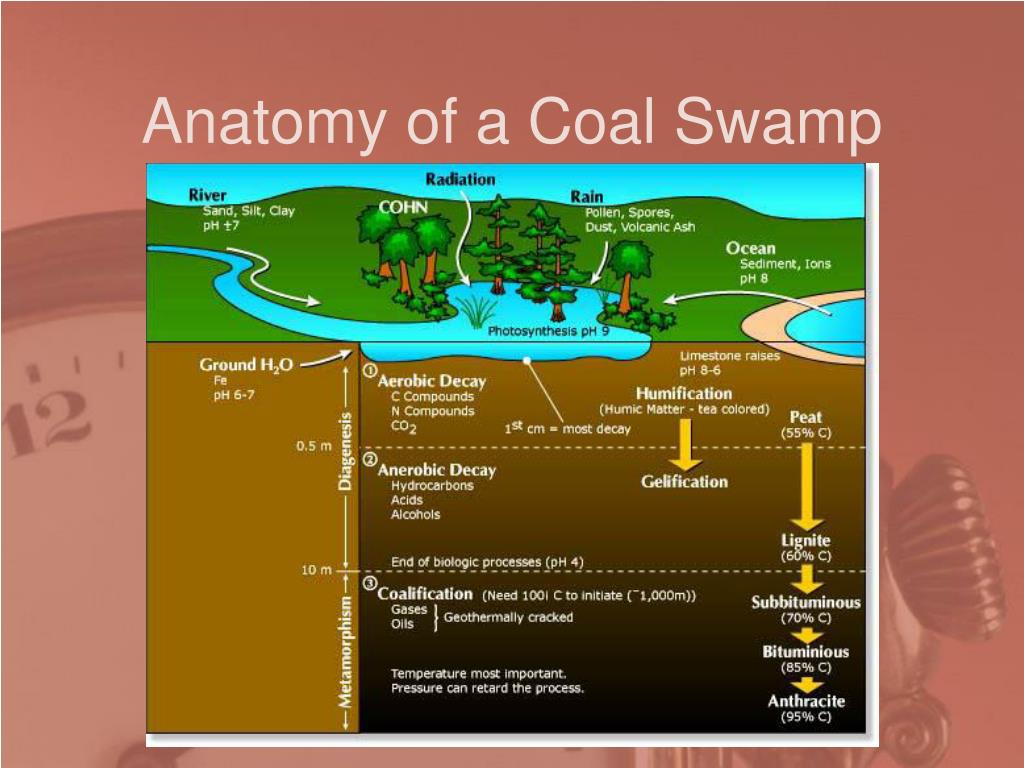

  14. Anatomy of a Coal Swamp

  15. Pennsylvanian Forest

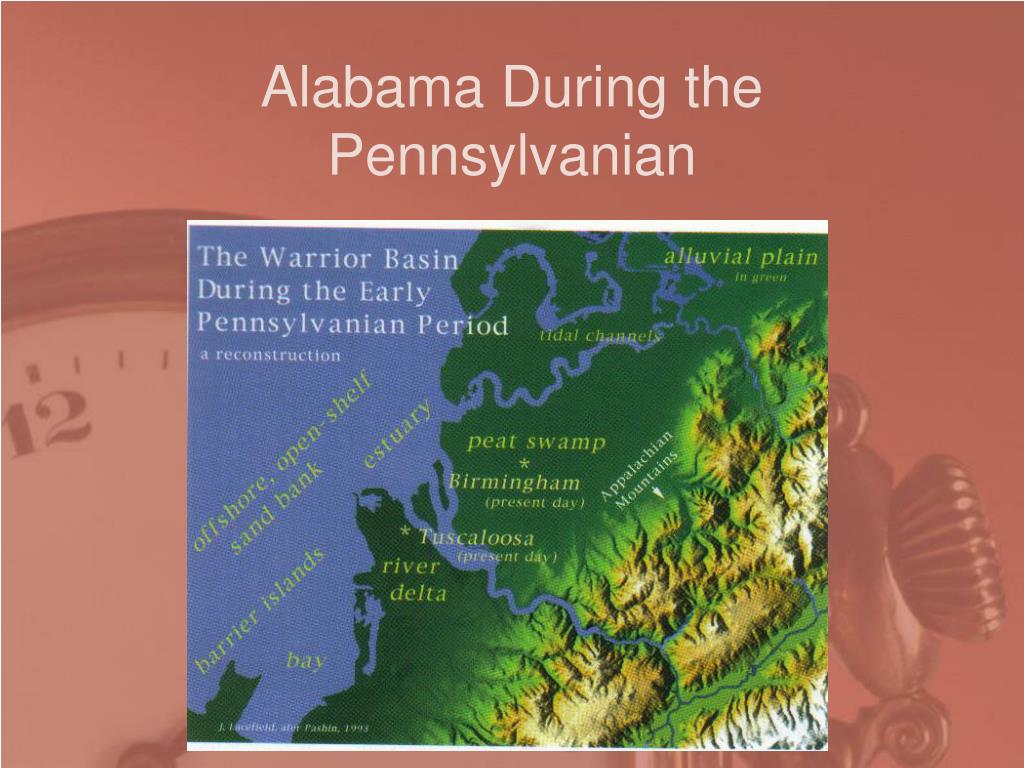

  16. Alabama During the Pennsylvanian

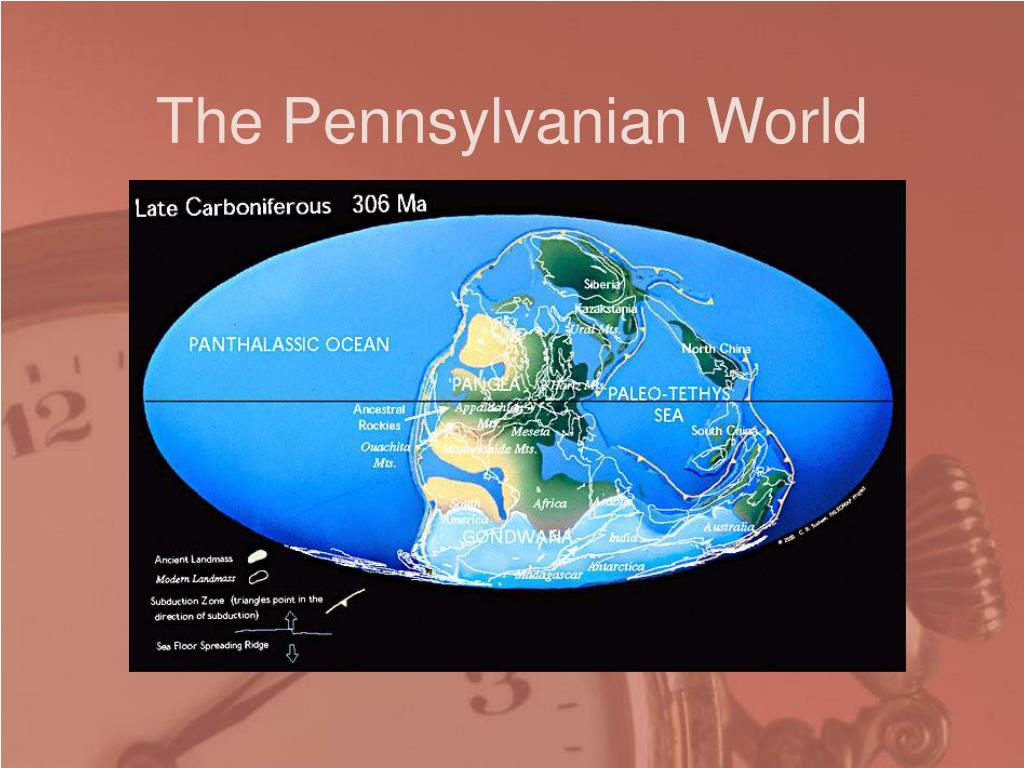

  17. The Pennsylvanian World

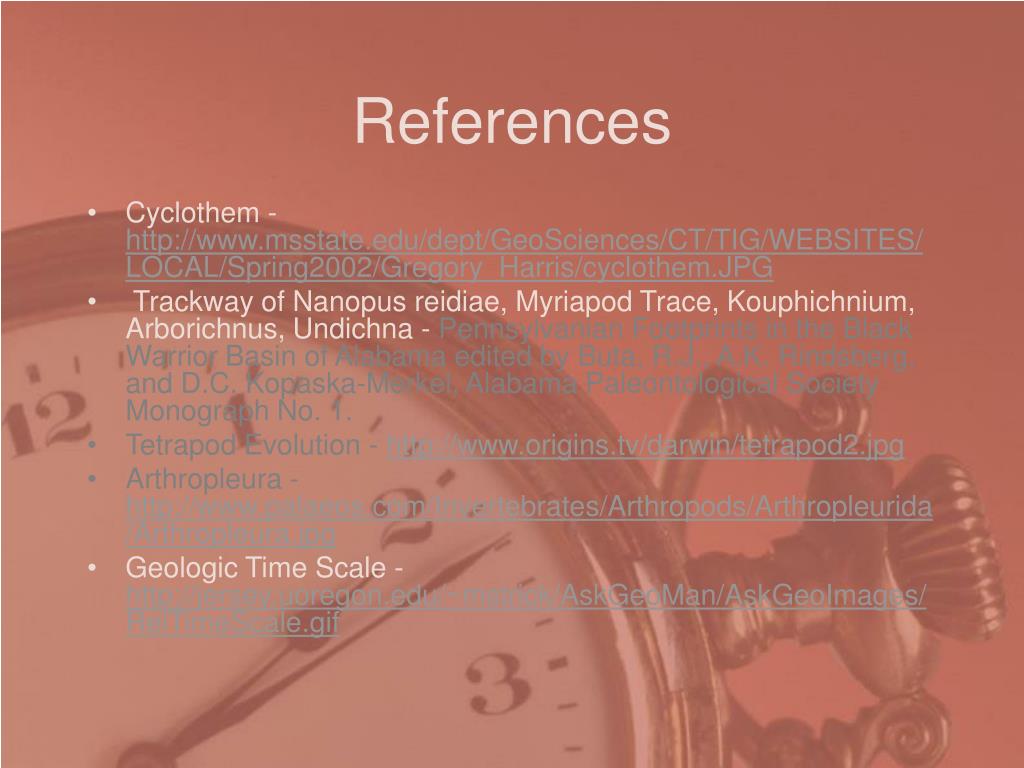

  18. References • Cyclothem - http://www.msstate.edu/dept/GeoSciences/CT/TIG/WEBSITES/LOCAL/Spring2002/Gregory_Harris/cyclothem.JPG • Trackway of Nanopus reidiae, Myriapod Trace, Kouphichnium, Arborichnus, Undichna - Pennsylvanian Footprints in the Black Warrior Basin of Alabama edited by Buta, R.J., A.K. Rindsberg, and D.C. Kopaska-Merkel, Alabama Paleontological Society Monograph No. 1. • Tetrapod Evolution - http://www.origins.tv/darwin/tetrapod2.jpg • Arthropleura - http://www.palaeos.com/Invertebrates/Arthropods/Arthropleurida/Arthropleura.jpg • Geologic Time Scale - http://jersey.uoregon.edu/~mstrick/AskGeoMan/AskGeoImages/RelTimeScale.gif

  19. References • Anatomy of a Coal Swamp - http://smtc.uwyo.edu/coal/images/anatomy_of_a_Swamp.jpg • Pennsylvanian Forest - http://www.karencarr.com/Images/Gallery/2004_gallery_pennsylvanian.jpg • Alabama Paleomap – Lacefield, Jim, Lost Worlds in Alabama Rocks. • Late Carboniferous Paleomap - http://www.scotese.com/images/306.jpg
