Key things laboratory introduction

Key Things: Laboratory Introduction

  • Be able to correctly identify, spell and understand the use of all lab equipment

  • Recognize the safety symbols

  • Read over working with chemicals – you will need to know how to work with chemicals for your labs

  • Know your lab safety rules

  • Know the steps to follow in case of injury

    • What are your first aid procedures?


Math intro ch 5 1

Math Intro – Ch 5.1

  • Scientific Notation

    • Expresses numbers as a multiple of two factors: a number between 1 and 9 X 10 raised to a power (exponent)

      • When moving a decimal to the left it is a positive exponent.

      • When moving a decimal to the right it is a negative exponent.


Key things laboratory introduction

  • Adding and Subtracting

    • Be sure that the exponents are the same

      • Then add or subtract the decimal number as listed

  • Multiplication and Division

    • To multiply – multiply the first factors then add the exponents

    • To divide – divide the first factors then subtract the exponent of the divisor from the exponent of the dividend


Key things laboratory introduction

  • Write the following numbers in scientific notation

    0.0045834 mm 438,904 s

  • Complete the following addition and subtraction problems

    6.23 x 106 kL + 5.34 x 107 kL

    9.87 x 104 g – 6.2 x 103 g

  • Complete the following multiplication and division problems

    (4.8 x 105 km) * (2.0 x 103 km)

    (8.4 x 106 L) ÷ (2.0 x 103 L)


Math intro 2

Math Intro -2

  • Fractions to decimals

    1/5 = 0.2

    1/4 = 0.25

    1/3 = 0.33

    1/2 = 0.5

    2/3 = 0.67

    3/4 = 0.75

    4/5 = 0.8


Math intro 1

Math Intro 1

  • Seven basic SI units

    • Base units are based on a physical object or process

    • length (m - meter), mass (kg - kilogram), time (s - second), electric current (A -ampere), temperature (K - Kelvin), amount (mol - mole), luminous intensity (cd - candela)

  • Derived units are created by multiplying or dividing the 7 basic units

    • 1 L = 1 dm3

    • 1 mL = 1 cm3

    • J = kgm2/s2


Key things laboratory introduction

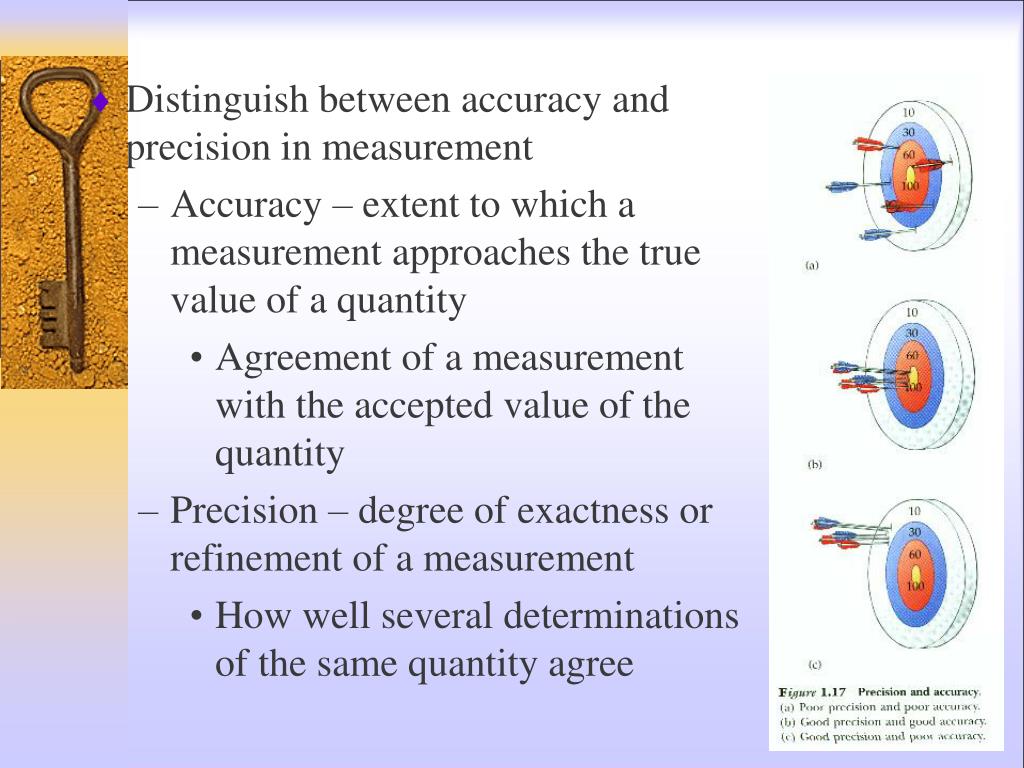

  • Distinguish between accuracy and precision in measurement

    • Accuracy – extent to which a measurement approaches the true value of a quantity

      • Agreement of a measurement with the accepted value of the quantity

    • Precision – degree of exactness or refinement of a measurement

      • How well several determinations of the same quantity agree


Math intro

Math Intro

  • Calculating percent error

    % error = theoretical – actual x 100

    theoretical

    The accepted length of a steel pipe is 5-m. Calculate the percent error for each of these measurements

    • 5.25 m

    • 4.75 m

    • 5.5 m


Key things laboratory introduction

  • Rules recognizing significant figures

    • Non-zero numbers are always significant

    • Zeros between non-zero numbers are always significant

    • All final zeros to the right of the decimal place are significant

    • Zeros that act as placeholders are not significant. Convert quantities to scientific notation to remove placeholder zeros

    • Counting numbers and defined constants have an infinite number of significant figures


Math intro1

Math Intro

  • Rounding Rules

    • If the digit to the immediate right of the last significant figure is less than five, do not change the last significant figure

    • If the digit to the immediate right of the last significant figure is greater than five, round up the last significant figure


Math intro2

Math Intro

  • How many significant figures in the following measurements?

    • 431,801 kg

    • 10,235.0 mg

    • 0.004384010 cm

    • 0.00986451cg

  • Write the above in scientific notation to four significant figures


Math intro 5 2

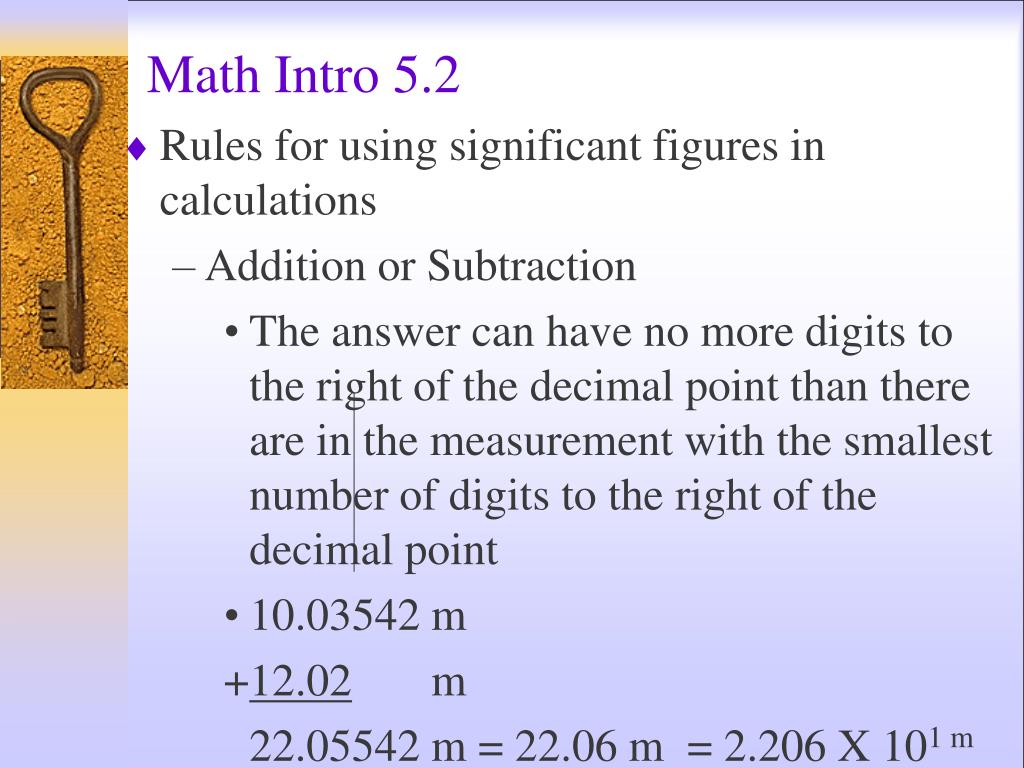

Math Intro 5.2

  • Rules for using significant figures in calculations

    • Addition or Subtraction

      • The answer can have no more digits to the right of the decimal point than there are in the measurement with the smallest number of digits to the right of the decimal point

      • 10.03542 m

        +12.02 m

        22.05542 m = 22.06 m = 2.206 X 101 m


Math intro3

Math Intro

  • Rules for using significant figures in calculations

    • Multiplication or Division

      • The answer can have no more significant figures than there are in the measurement with the smallest number of significant digits

        • 1.1135 g/mL * 500. mL = 556.75g = 5.5675 x 102g = 5.57 x 102g


Math intro4

Math Intro

  • Round the answers to each of the following problems to the correct significant figures

    • 7.31 x 104 + 3.23 x 103

    • 8.54 x 10-3 – 3.41 x 10-4

    • (2.4 x 102) * (3.26 x 104)

    • (1.024 x 102) ÷ (5.12 x 101)


Math intro5

Math Intro

  • Use metric prefixes to convert metric units

    • 1G= 109 base units

    • 1 M = 106 base units

    • 1 k= 103 base units

    • 1 d = 10-1 base units

    • 1c= 10-2 base units

    • 1 m = 10-3 base units

    • 1ų = 10-6base units

    • 1 n = 10-9 base units

    • 1 p = 10-12 base units


Math intro 5 3

Math Intro -5.3

  • Convert the following measurements

    • 5.7 g to milligrams

    • 45.3 mm to meters

    • 10 km to centimeters

    • 783 kg to milligrams

    • 98 mL to deciliters


Conversion practice

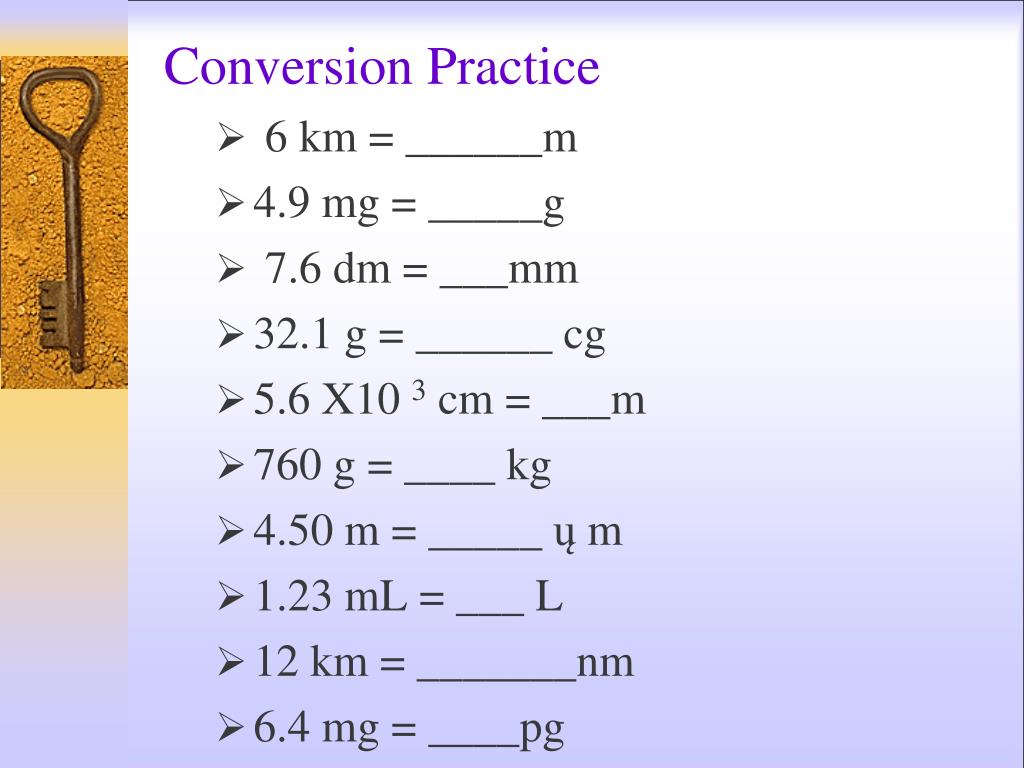

Conversion Practice

  • 6 km = ______m

  • 4.9 mg = _____g

  • 7.6 dm = ___mm

  • 32.1 g = ______ cg

  • 5.6 X10 3 cm = ___m

  • 760 g = ____ kg

  • 4.50 m = _____ ų m

  • 1.23 mL = ___ L

  • 12 km = _______nm

  • 6.4 mg = ____pg


Conversion practice1

Conversion Practice

  • 6 km = 6X103 m

  • 4.9 mg = 4.9X10-3g

  • 7.6 dm = 7.6X102 mm

  • 32.1 g = 3.21X103 cg

  • 5.6 X10 3 cm = 5.6X101m

  • 760 g = 7.6 X10-1 kg

  • 4.50 m = 4.50X106ų m

  • 1.23 mL = 1.23X10-3 L

  • 12 km = 1.2 X1013nm

  • 6.4 mg = 6.4X109pg


Review terms

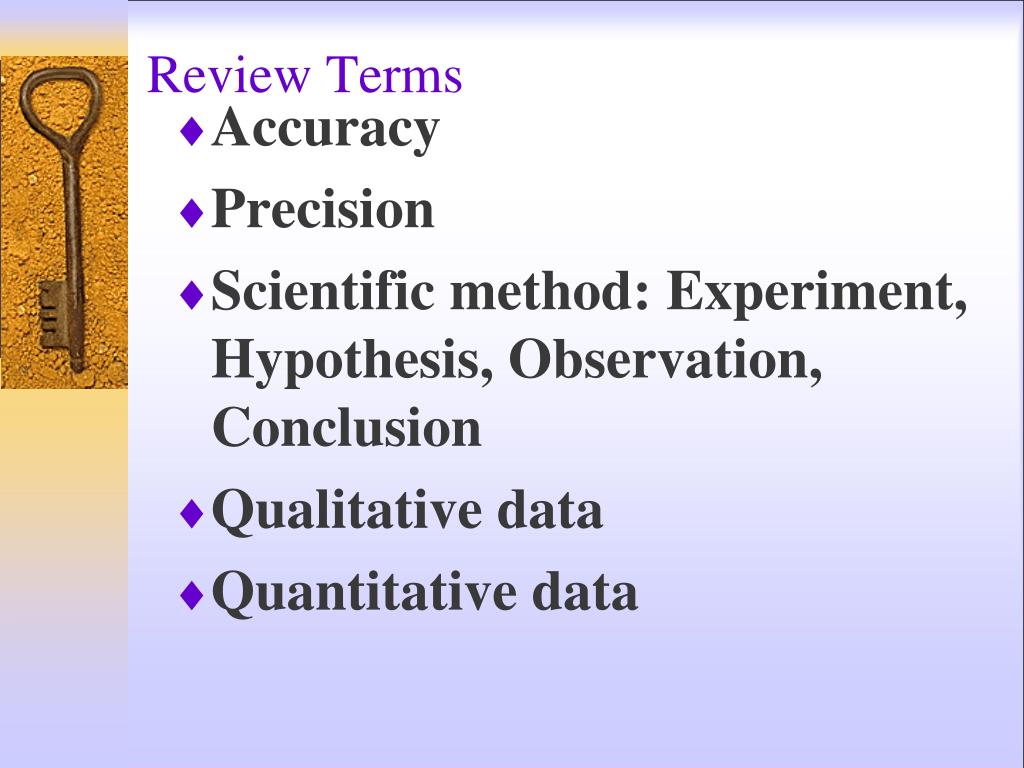

Review Terms

  • Accuracy

  • Precision

  • Scientific method: Experiment, Hypothesis, Observation, Conclusion

  • Qualitative data

  • Quantitative data


Review terms1

Review Terms

  • Significant figure rules and exponent rules

  • base unit- define and base units

  • scientific notation and rounding

  • conversion factor

  • dimensional analysis-know all metric conversions


More conversion practice problems

More Conversion Practice Problems

  • 254.3 g = ______kg

  • 2.75 kg = ______g

  • 534.1 g = ______cg

  • 1.75 dm = ______m

  • 8.7 mm = _______m

  • 45.6 ML = ______L

  • 672 cg = _______g


More conversion practice problems1

More Conversion Practice Problems

  • 254.3 g = 2.543 X 10 -1 kg

  • 2.75 kg = 2.75 X 10 3 g

  • 534.1 g = 5.34 X 10 4 cg

  • 1.75 dm = 1.75 X 10-1 m

  • 8.7 mm = 8.7 X 10 -3 m

  • 45.6 ML = 4.56 X 10 7 L

  • 672 cg = 6.72 g


Key things chapter 5

Key Things: Chapter 5

  • Know and understand your vocabulary words

  • Be able to identify the difference between qualitative and quantitative data

  • Be able to identify the difference between accuracy and precision

  • Be able to convert using dimensional analysis

  • Know the steps of the scientific method

  • Be able to describe the differences between a hypothesis, theory, and a law
