Assignment 7 solutions. Karnaugh Map for "b". Truth Table. BA. DC. Another Example: 7 segment displays. BA. BA. DC. DC. Another Example: 7 segment displays. BA. BA. DC. DC. C'+A'B'+AB. Another Example: 7 segment displays. Karnaugh Map for "f". Truth Table. BA. DC.

Download Presentation

Assignment 7 solutions

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Assignment 7 solutions

Assignment 7 solutions

Karnaugh Map for "b"

Truth Table

BA

DC

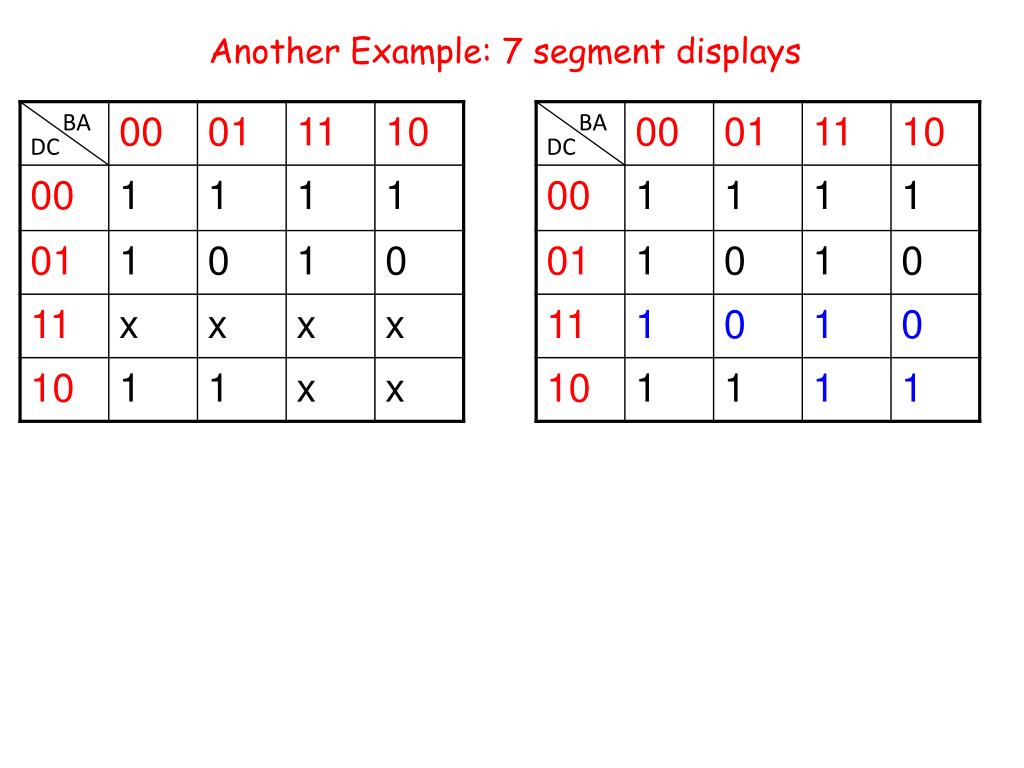

Another example 7 segment displays

Another Example: 7 segment displays

BA

BA

DC

DC


Another example 7 segment displays1

Another Example: 7 segment displays

BA

BA

DC

DC

C'+A'B'+AB


Another example 7 segment displays2

Another Example: 7 segment displays

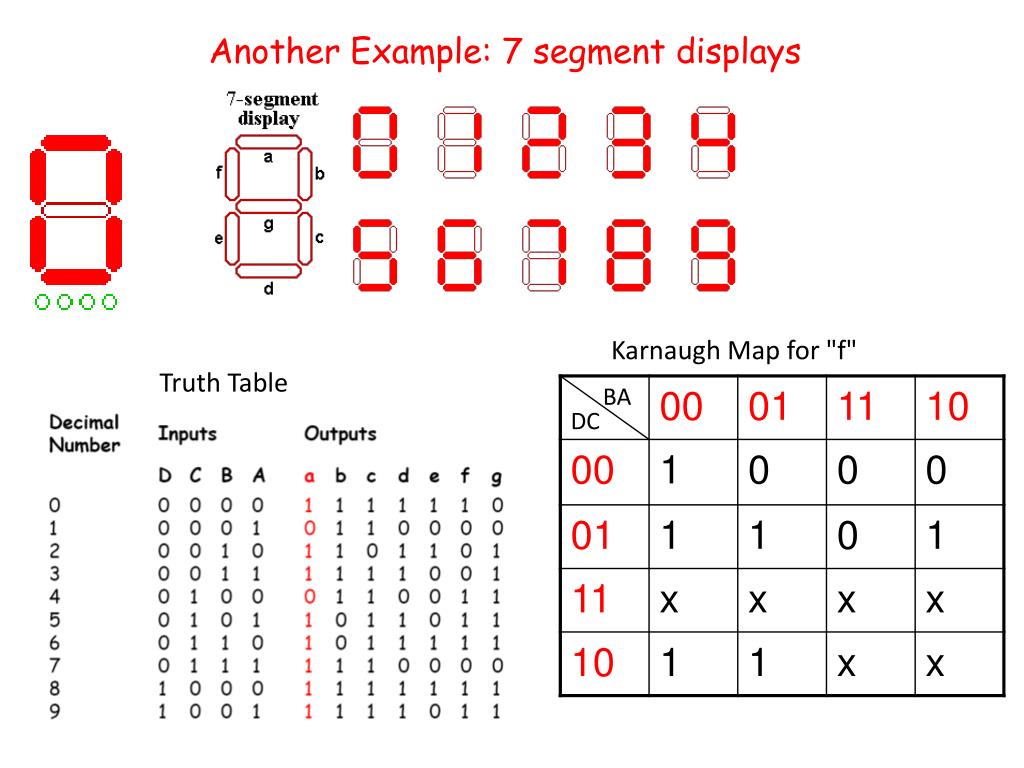

Karnaugh Map for "f"

Truth Table

BA

DC

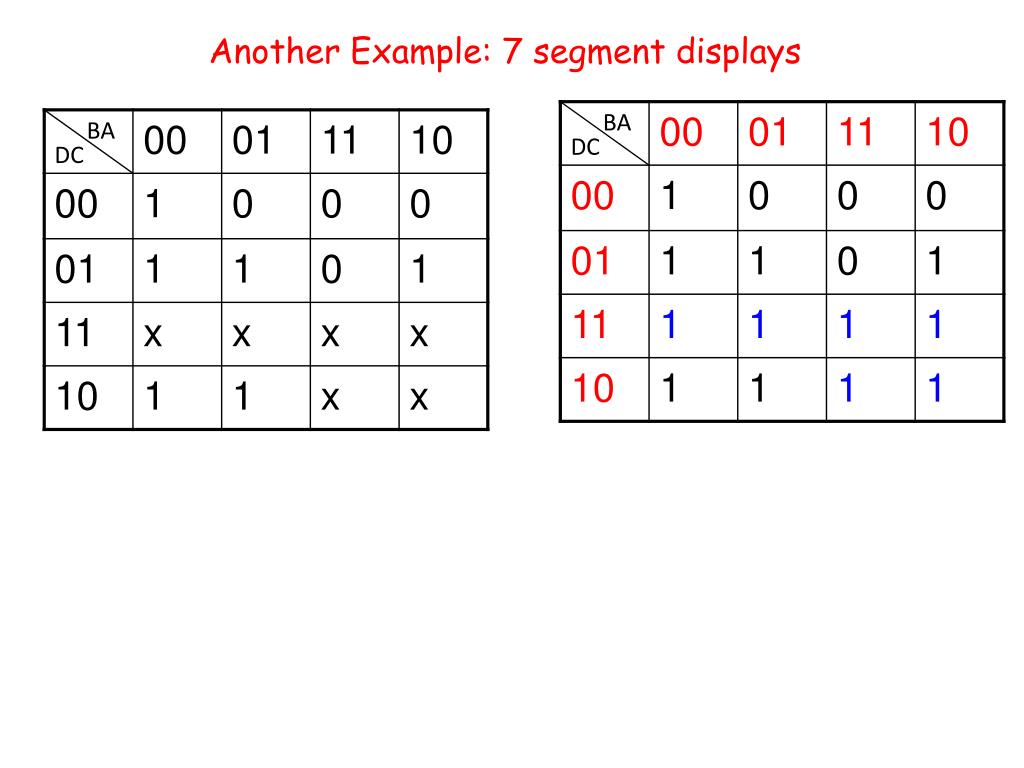

Another example 7 segment displays3

Another Example: 7 segment displays

BA

BA

DC

DC


Assignment 7 solutions

D

B'A'

BA

BA

DC

DC

B'C

A'C

BA

BA

DC

DC


Assignment 7 solutions

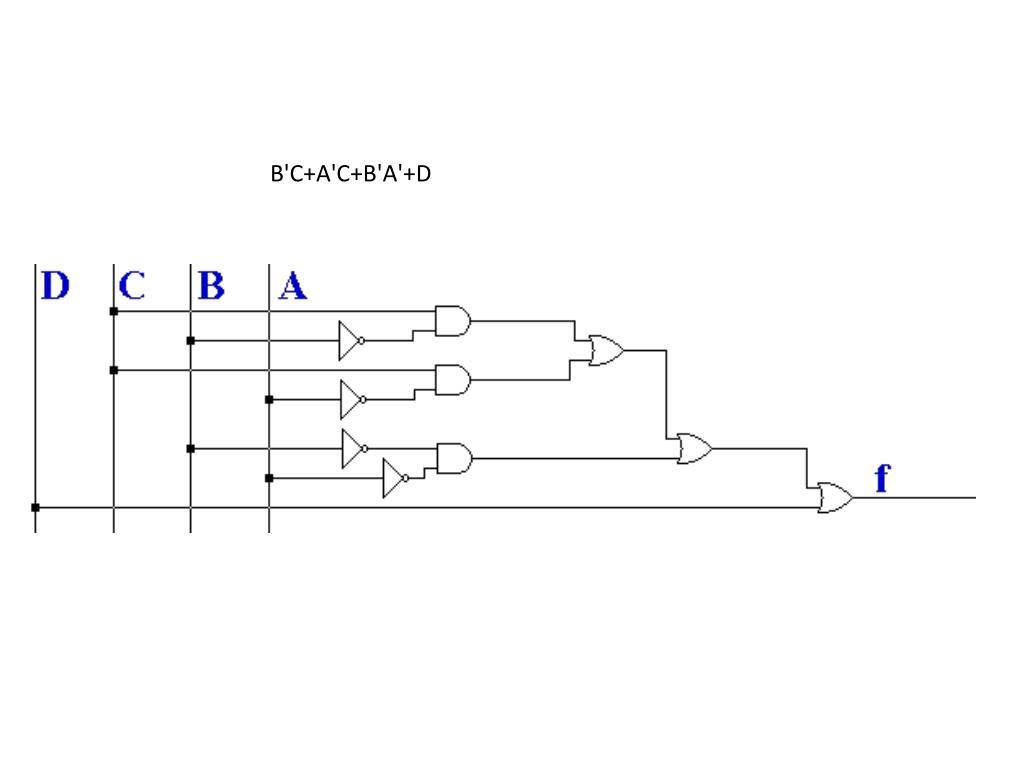

B'C+A'C+B'A'+D


Assignment 7 solutions

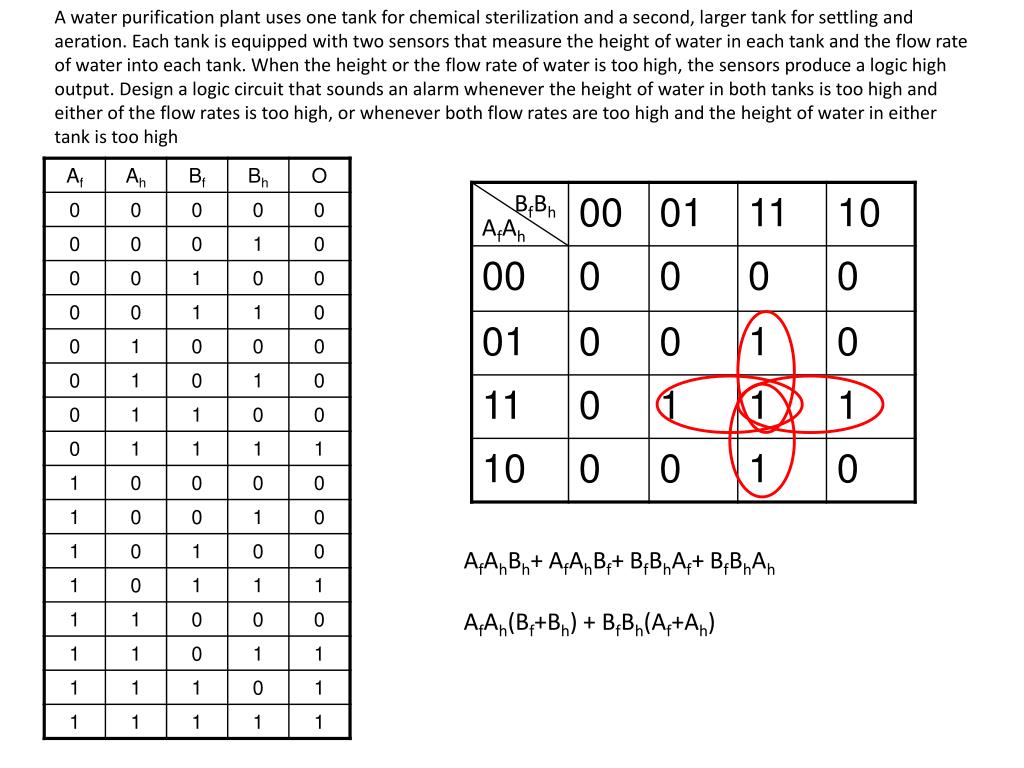

A water purification plant uses one tank for chemical sterilization and a second, larger tank for settling and aeration. Each tank is equipped with two sensors that measure the height of water in each tank and the flow rate of water into each tank. When the height or the flow rate of water is too high, the sensors produce a logic high output. Design a logic circuit that sounds an alarm whenever the height of water in both tanks is too high and either of the flow rates is too high, or whenever both flow rates are too high and the height of water in either tank is too high

BfBh

AfAh

AfAhBh+ AfAhBf+ BfBhAf+ BfBhAh

AfAh(Bf+Bh) + BfBh(Af+Ah)


Assignment 7 solutions

A water purification plant uses one tank for chemical sterilization and a second, larger tank for settling and aeration. Each tank is equipped with two sensors that measure the height of water in each tank and the flow rate of water into each tank. When the height or the flow rate of water is too high, the sensors produce a logic high output. Design a logic circuit that sounds an alarm whenever the height of water in both tanks is too high and either of the flow rates is too high, or whenever both flow rates are too high and the height of water in either tank is too high

AfAh(Bf+Bh)

AfAh(Bf+Bh) + BfBh(Af+Ah)

BfBh(Af+Ah)
