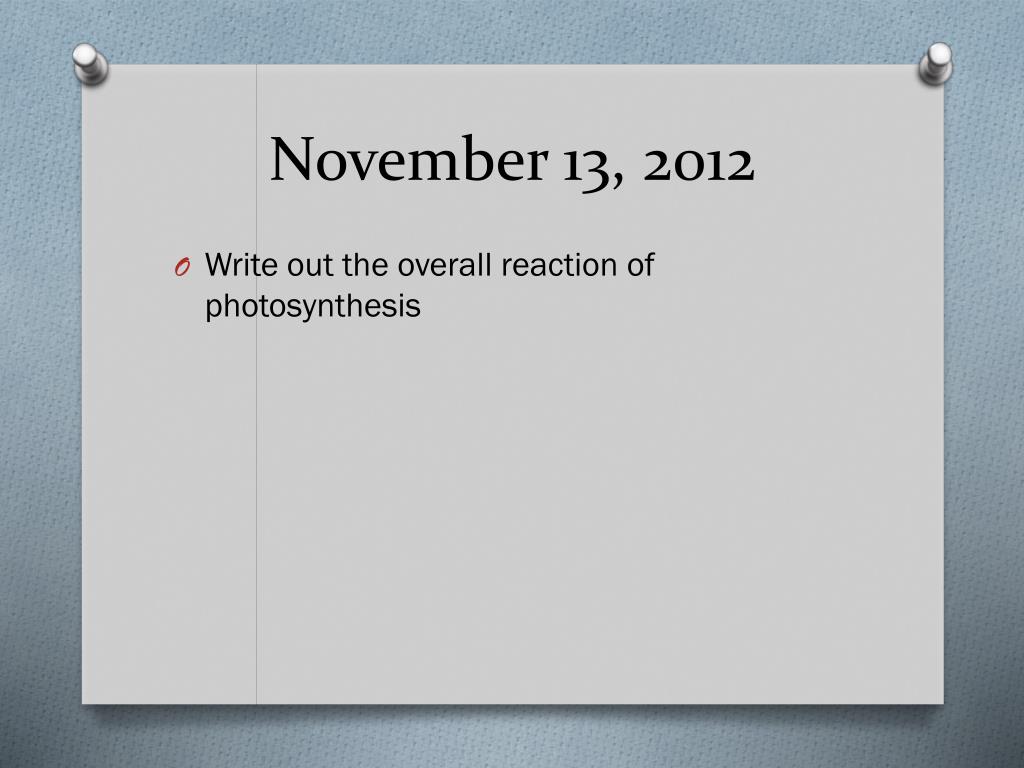

  1. November 13, 2012 • Write out the overall reaction of photosynthesis

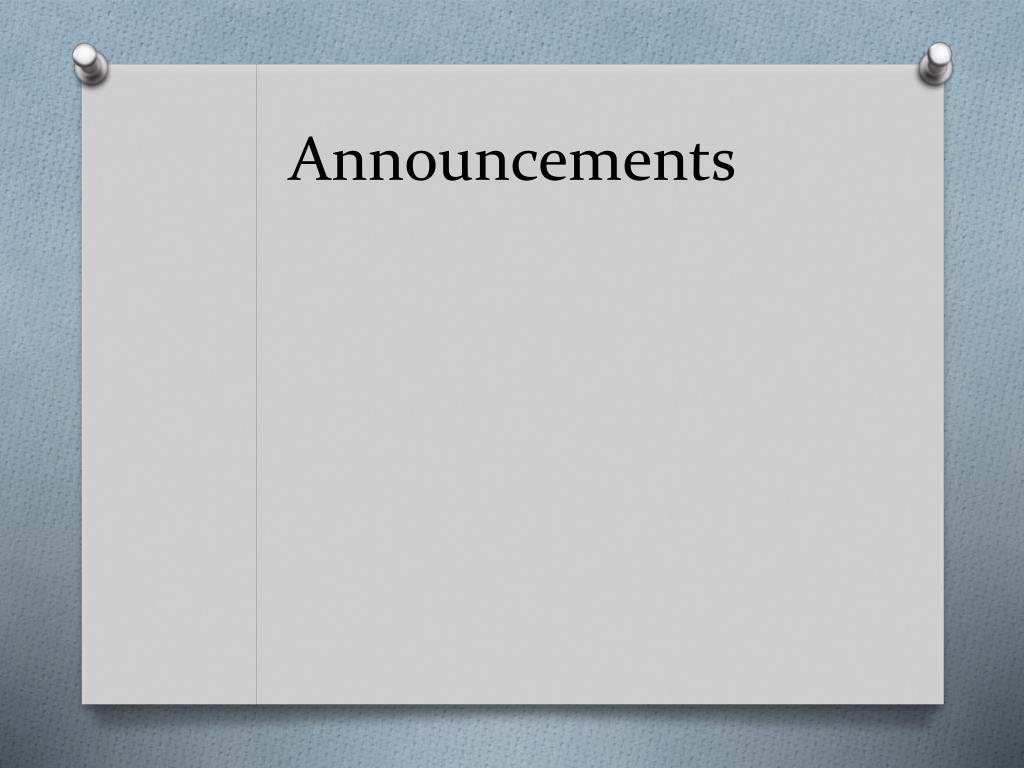

  2. Announcements

  3. Review of Photosynthesis • At your tables pull out your notes and come up with answers to these questions. • What is Photosynthesis? • Where does the mass of a plant come from as it grows? • What are the reactants of Photosynthesis (what goes in)? What are the products (what comes out)?

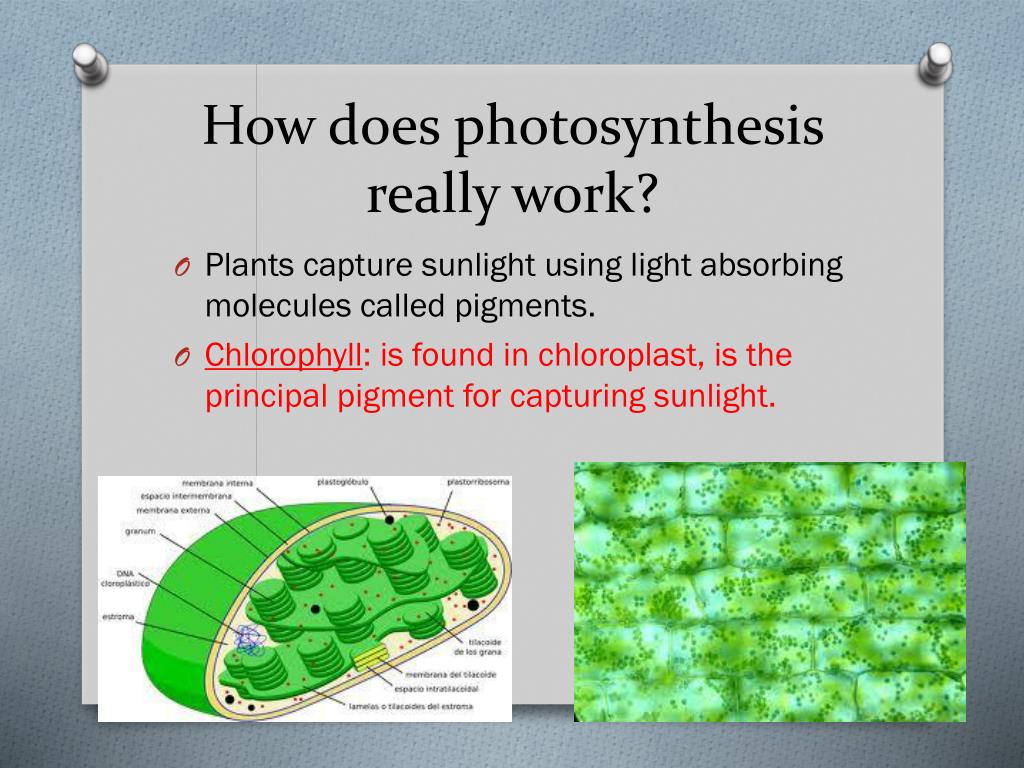

  4. How does photosynthesis really work? • Plants capture sunlight using light absorbing molecules called pigments. • Chlorophyll: is found in chloroplast, is the principal pigment for capturing sunlight.

  5. Chlorophyll • There are two types of chlorophyll (A and B) and each captures different wave lengths of UV light.

  6. Photosynthesis can be broken up into three steps • Light dependent reactions • Electron Transport Chain • Light independent reactions (Calvin Cycle)

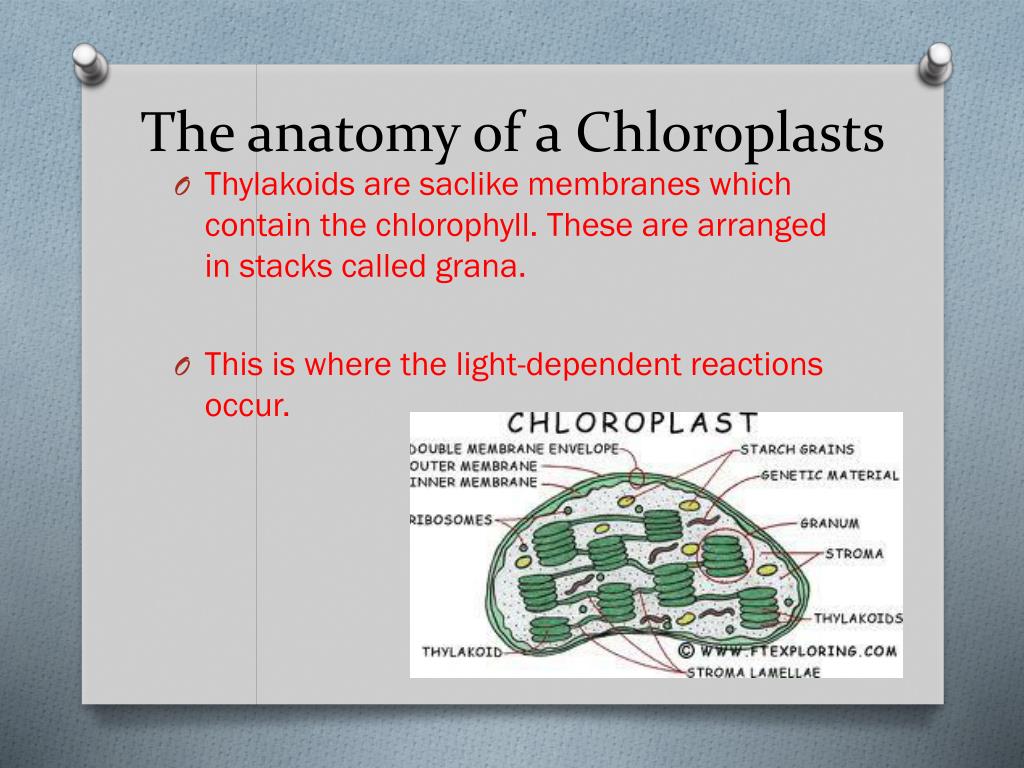

  7. The anatomy of a Chloroplasts • Thylakoids are saclike membranes which contain the chlorophyll. These are arranged in stacks called grana. • This is where the light-dependent reactions occur.

  8. Chloroplast anatomy • The stroma is the region outside the thylakoid membranes. This is where the light-independent reactions take place.

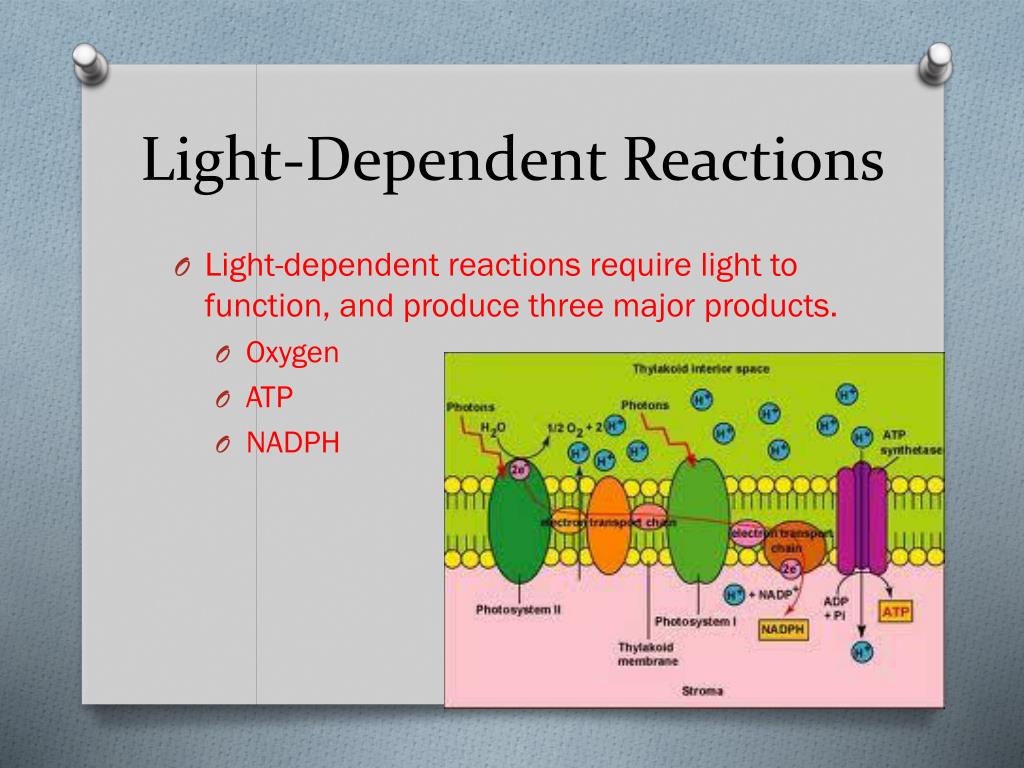

  9. Light-Dependent Reactions • Light-dependent reactions require light to function, and produce three major products. • Oxygen • ATP • NADPH

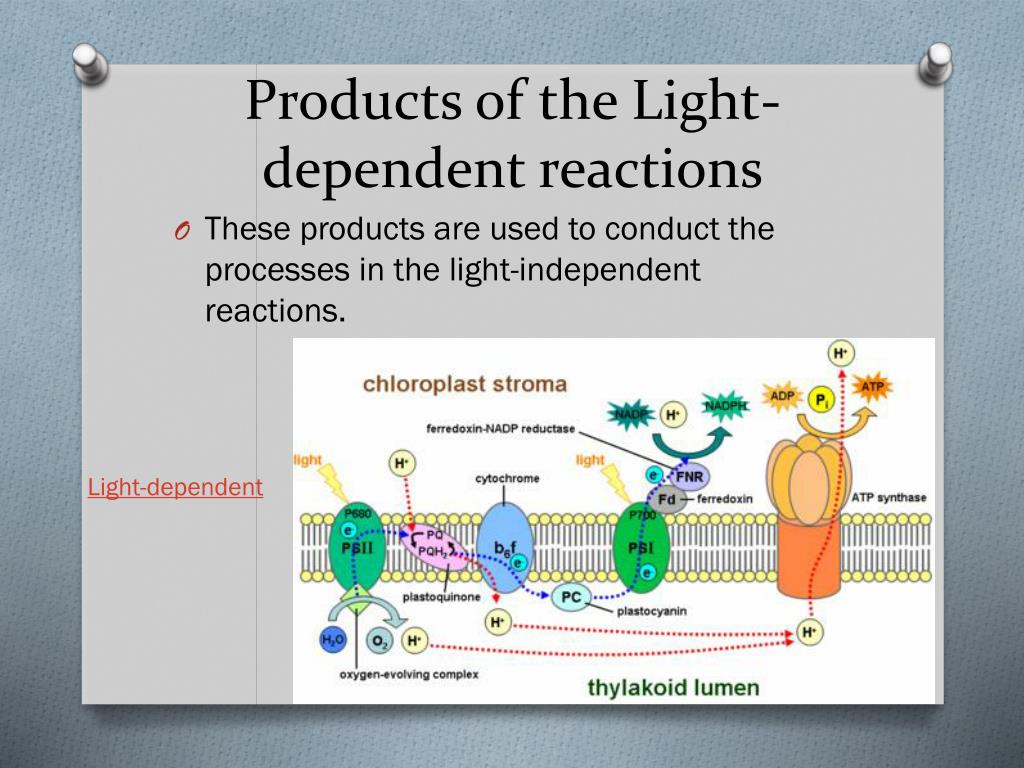

  10. Products of the Light-dependent reactions • These products are used to conduct the processes in the light-independent reactions. Light-dependent

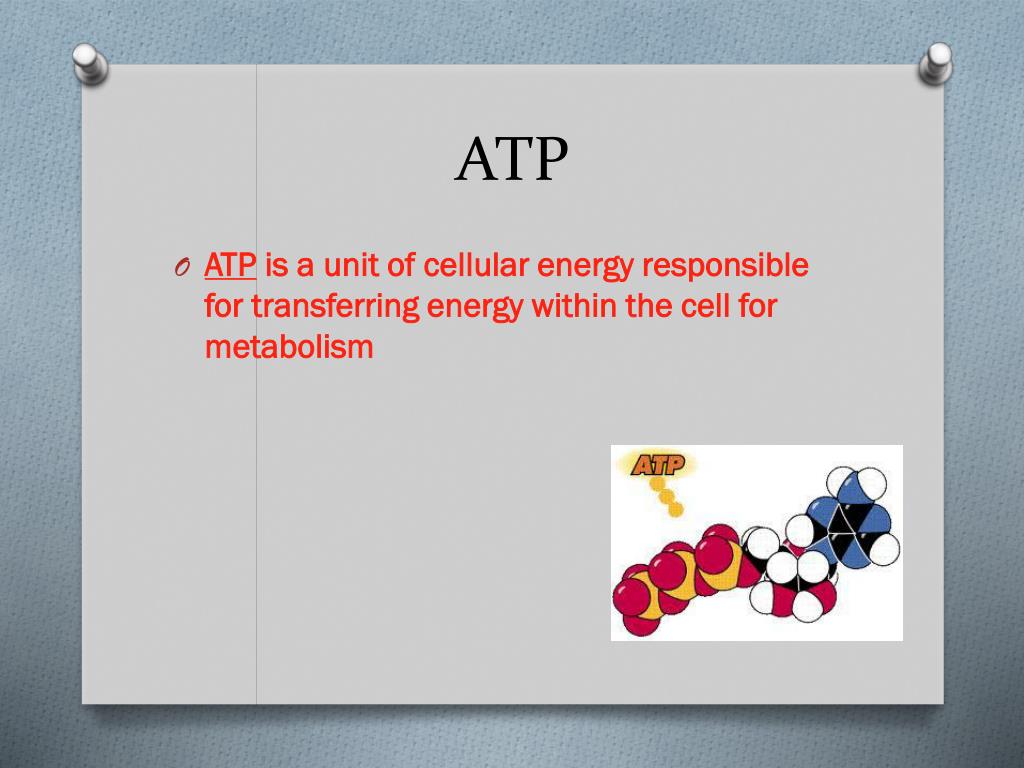

  11. ATP • ATP is a unit of cellular energy responsible for transferring energy within the cell for metabolism

  12. NADPH • This is an electron carrier used to transfer energy.

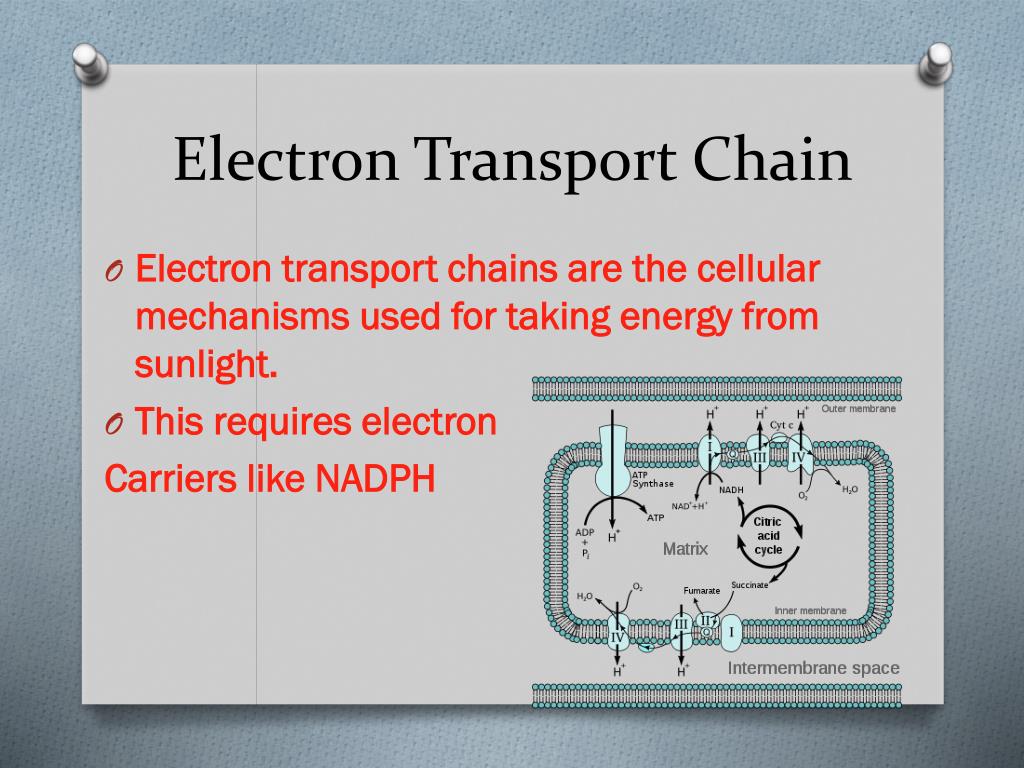

  13. Electron Transport Chain • Electron transport chains are the cellular mechanisms used for taking energy from sunlight. • This requires electron Carriers like NADPH

  14. Light-independent Reactions • Light-independent reactions take place in the stroma, outside of the thylakoid membrane • The Calvin Cycle uses ATP NADPH from the previous reactions to produce high-energy sugars.

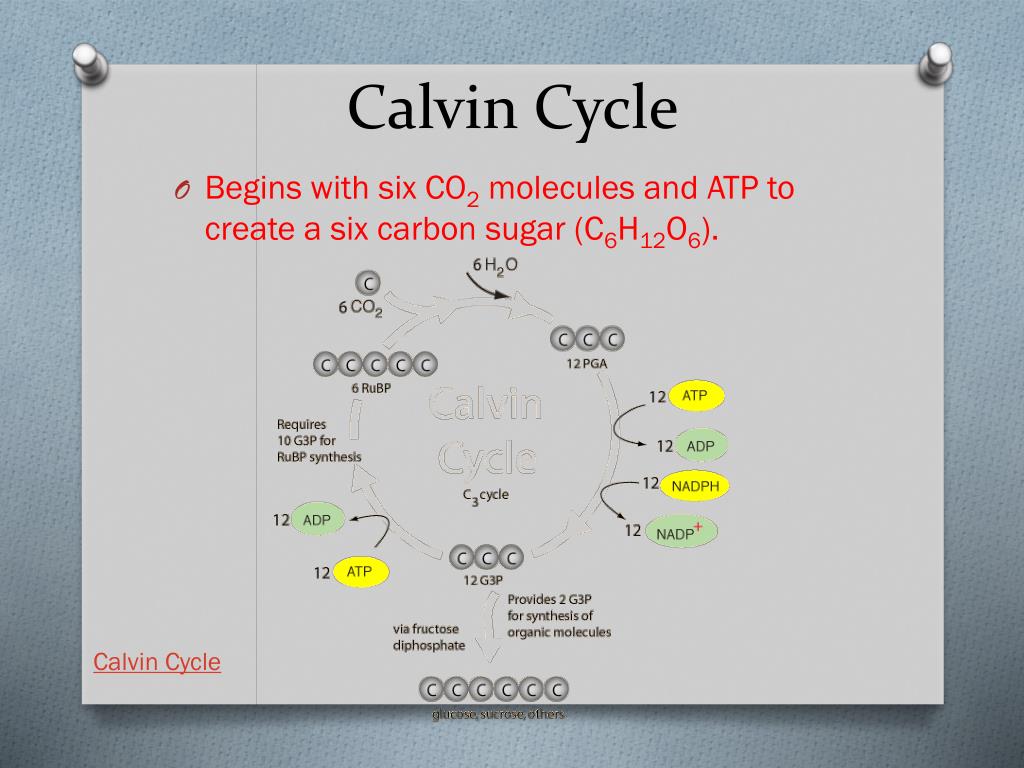

  15. Calvin Cycle • Begins with six CO2 molecules and ATP to create a six carbon sugar (C6H12O6). Calvin Cycle
