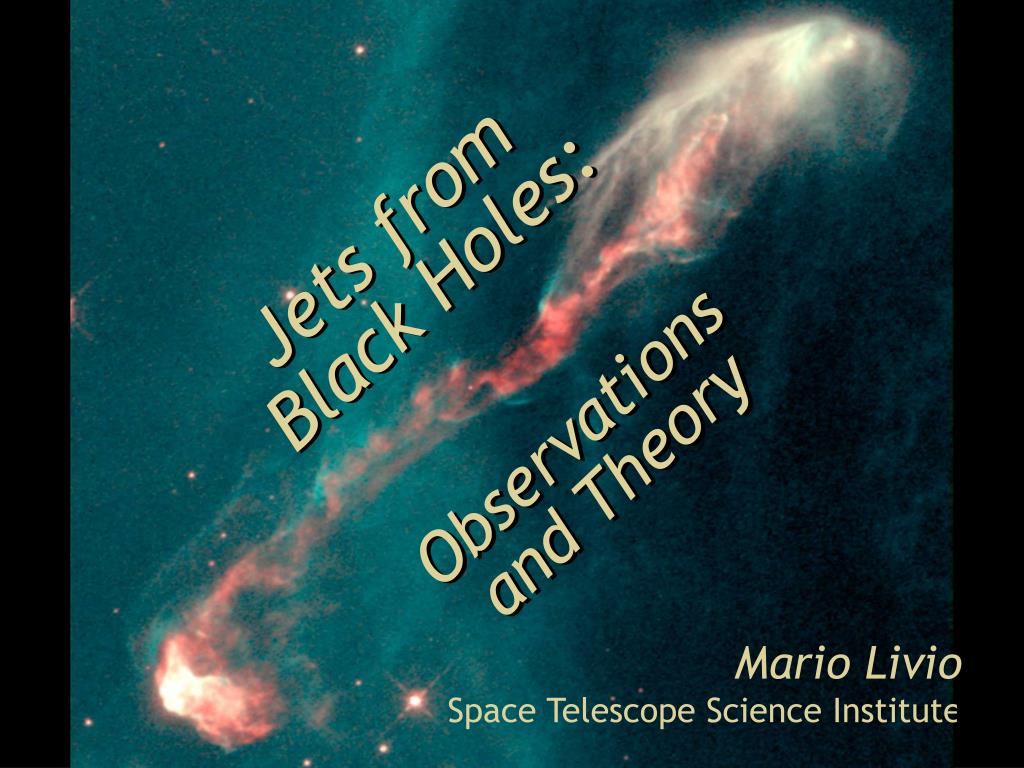

  1. Jets from Black Holes:Observations and Theory Mario LivioSpace Telescope Science Institute

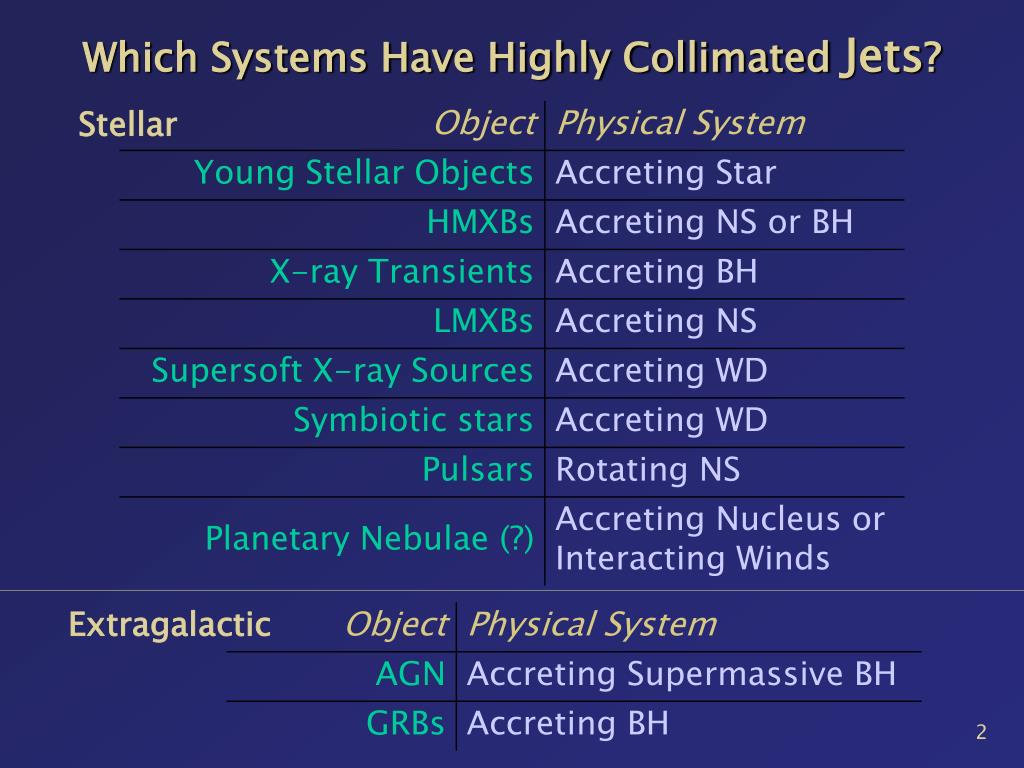

  2. Which Systems Have Highly Collimated Jets? Stellar Extragalactic

  3. Jets in Young Stellar Objects

  4. HH 901 Carina Nebula

  5. Jet in M87: From 60 kpc to 0.06 pc

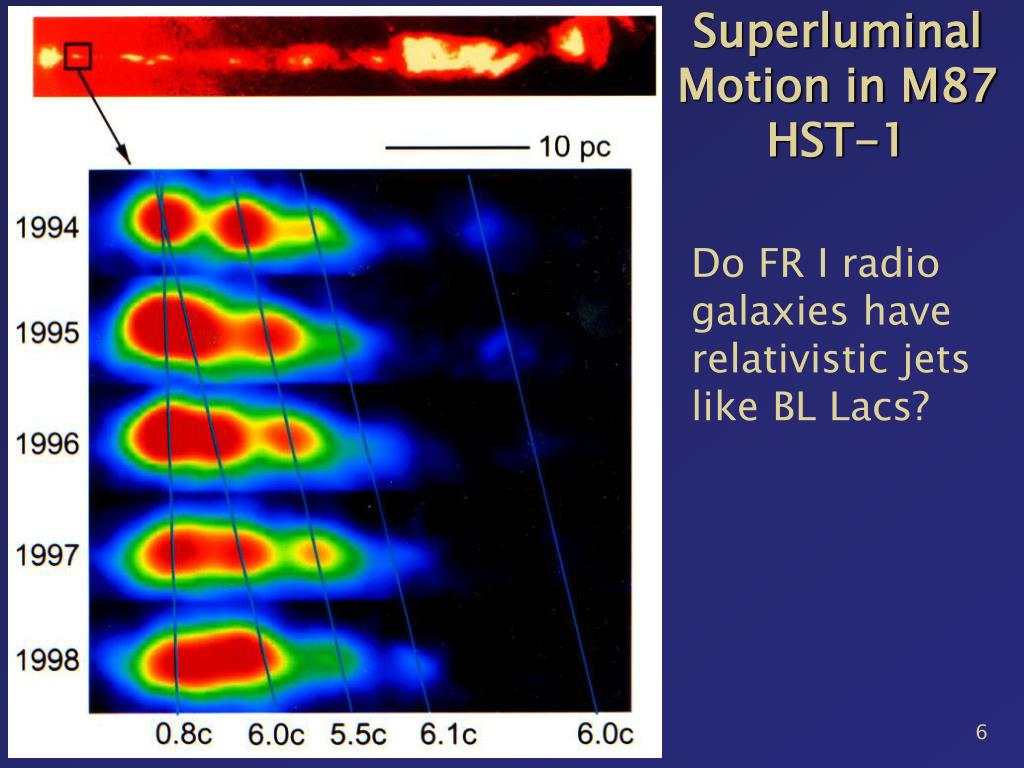

  6. Superluminal Motion in M87 HST-1 Do FR I radio galaxies have relativistic jets like BL Lacs?

  7. “Superluminal” sources • GRS 1915+105V ~ 0.9c • Some extragalactic jets showV > 0.995c

  8. Gamma Ray Burst Hosts

  9. Symbiotic Systems Southern Crab NebulaHe2-104 STScI-PRC99-32

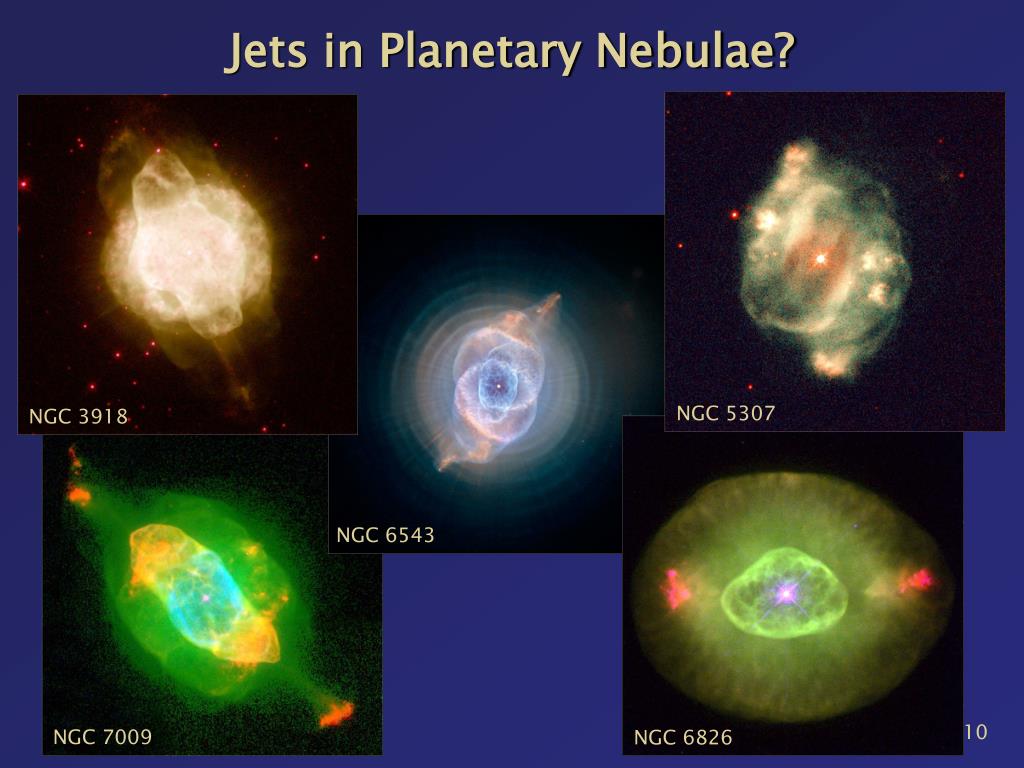

  10. NGC 6543 Jets in Planetary Nebulae? NGC 5307 NGC 3918 NGC 7009 NGC 6826

  11. High mass x-ray binaries SS 433

  12. Supersoft X-Ray Sources RXJ 0513-69

  13. Pulsar Jets Vela Pulsar Crab Pulsar Chandra Chandra

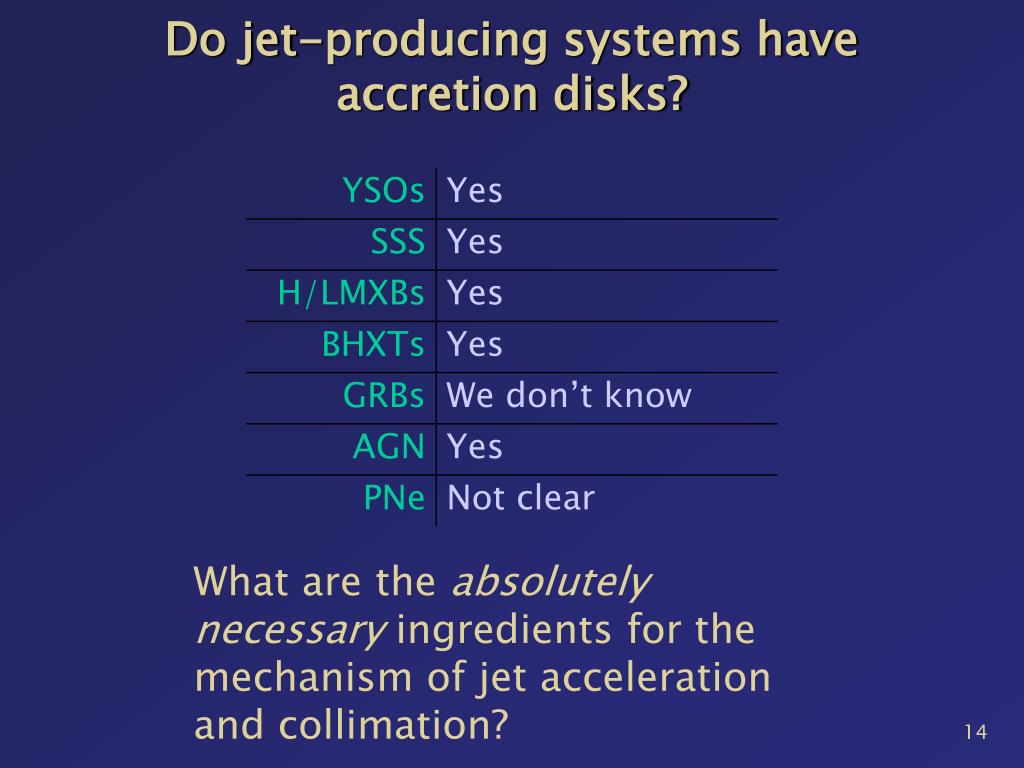

  14. Do jet-producing systems have accretion disks? What are the absolutely necessary ingredients for the mechanism of jet acceleration and collimation?

  15. [O I] l6300 Profiles for T Tauri Stars Redshifted component not seen because of disk.

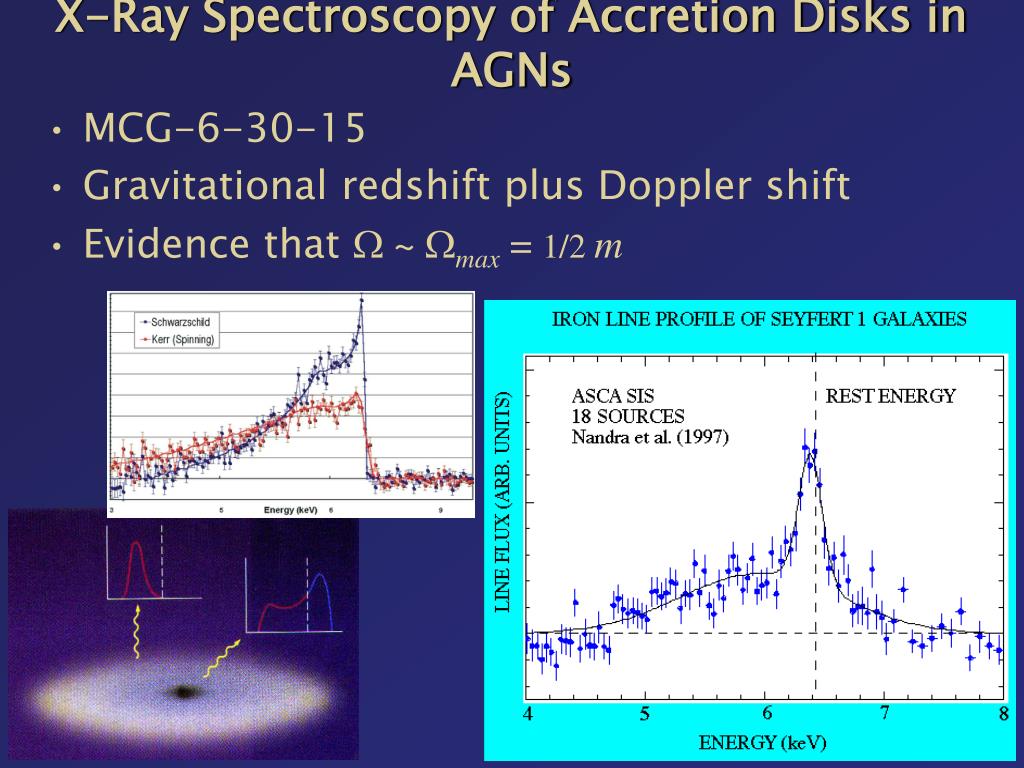

  16. X-Ray Spectroscopy of Accretion Disks in AGNs • MCG-6-30-15 • Gravitational redshift plus Doppler shift • Evidence that  ~ max = 1/2 m

  17. Do Jets Require an Accretion Disk? Qualified Yes “Interacting winds”, “ion torus”, Pulsars, need more work

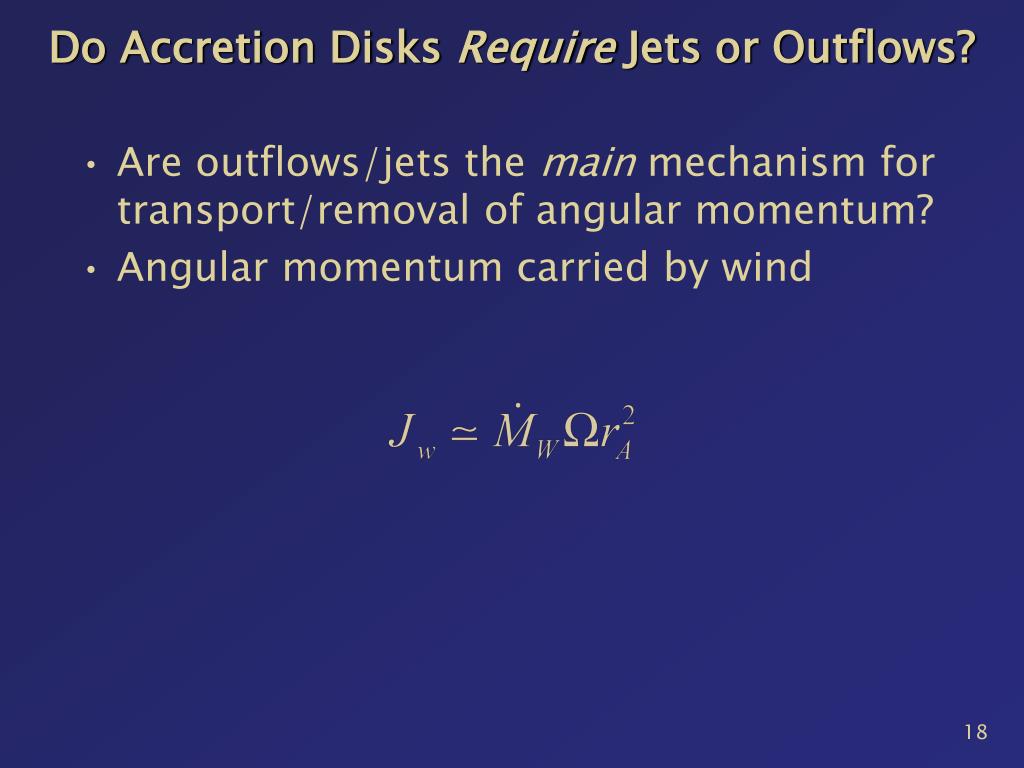

  18. Do Accretion Disks Require Jets or Outflows? • Are outflows/jets the main mechanism for transport/removal of angular momentum? • Angular momentum carried by wind

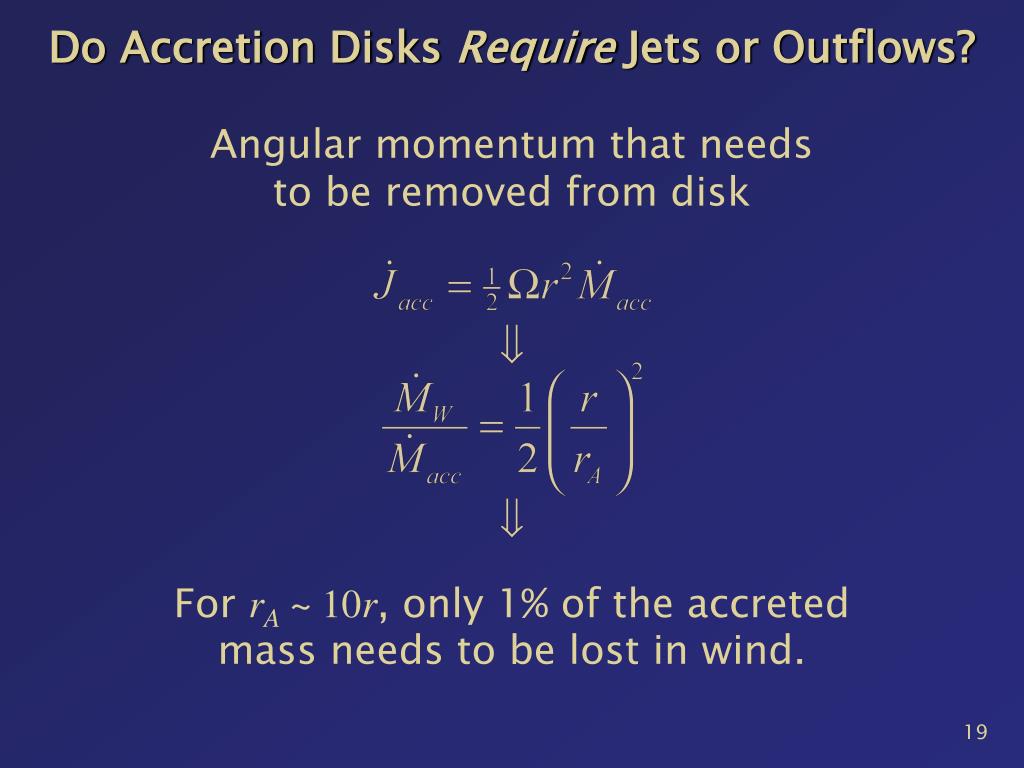

  19. Do Accretion Disks Require Jets or Outflows? Angular momentum that needs to be removed from disk For rA ~ 10r, only 1% of the accreted mass needs to be lost in wind.

  20. Behavior of Disk Radius During Dwarf Nova Outburst • At outburst, matter diffuses inward. Angular momentum of that matter is transferred to outer parts of the disk. Radius expandsObservationally: • Disks in U Gem, OY Car, HT Cas and Z Cha larger in outburst. U Gem

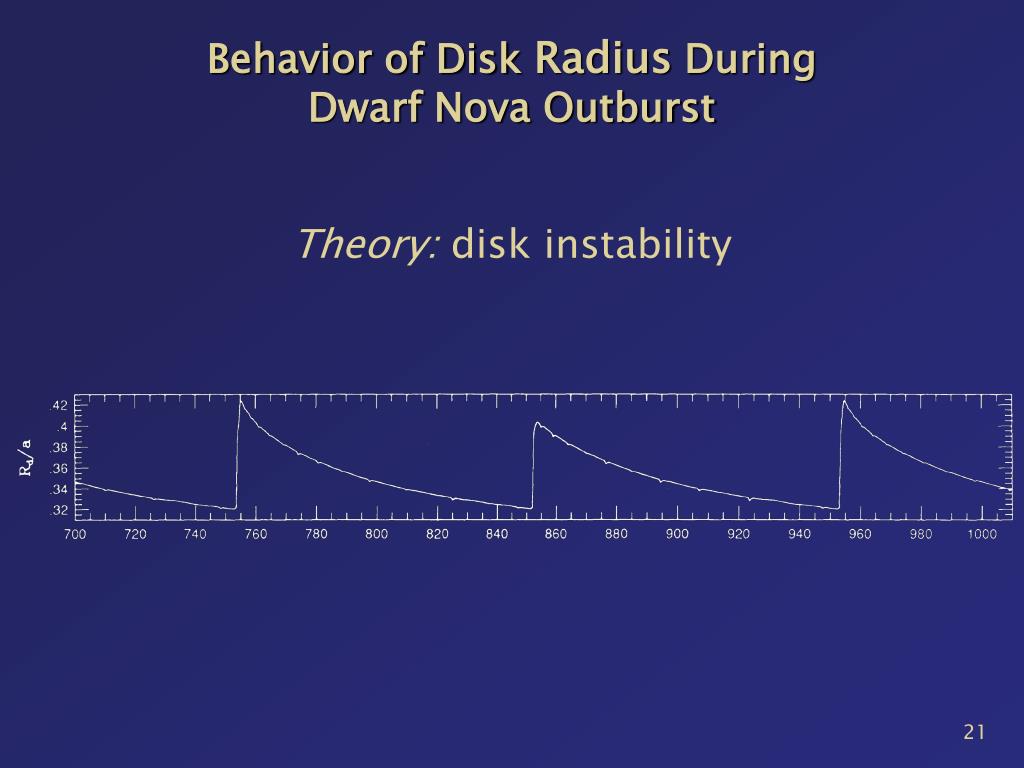

  21. Behavior of Disk Radius During Dwarf Nova Outburst Theory: disk instability

  22. Do accretion disks require jets or outflows for angular momentum removal? Probably not. • More observations of rotation in jets and bipolar outflows are needed (velocity gradients).

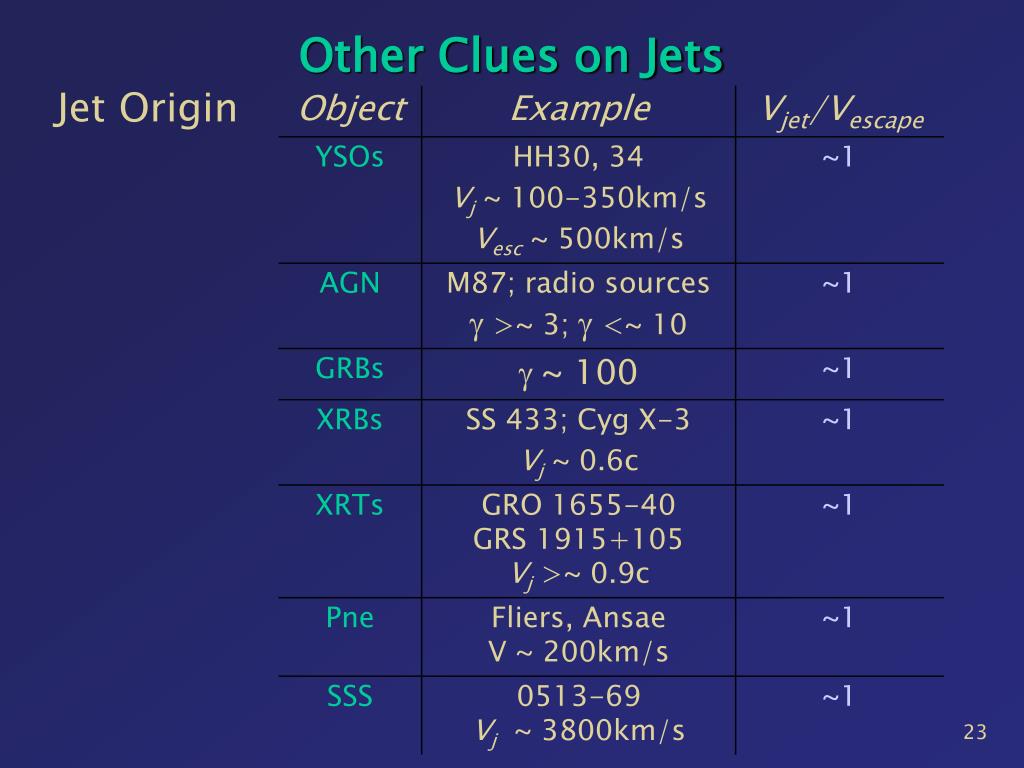

  23. Other Clues on Jets Jet Origin

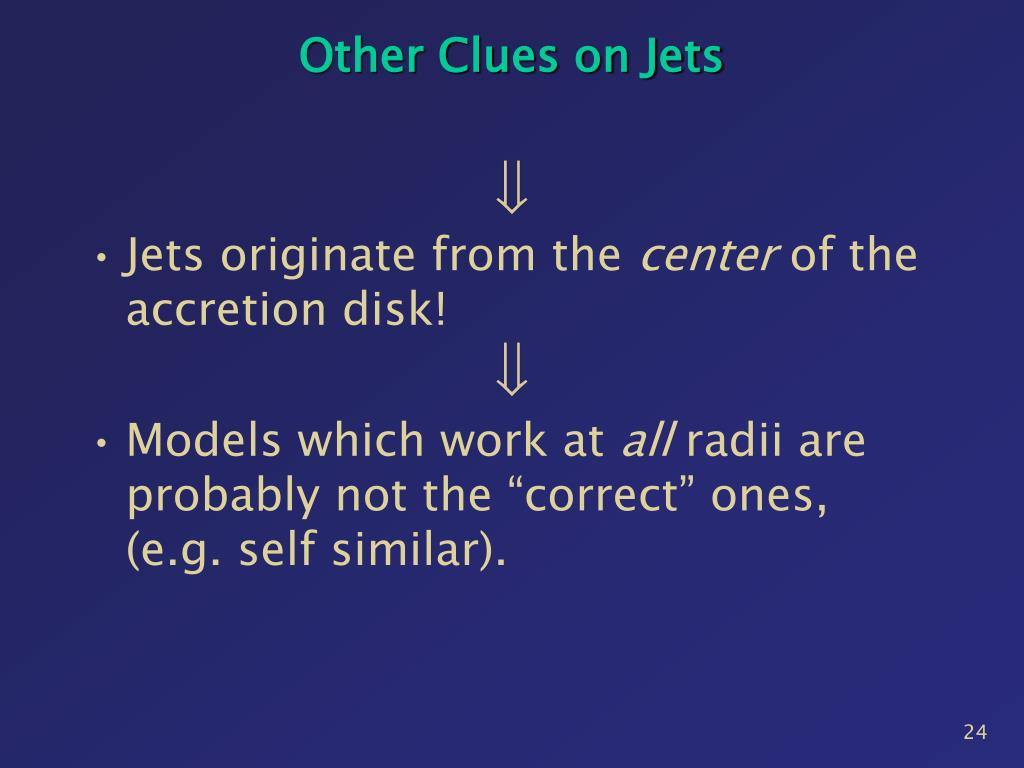

  24. Other Clues on Jets • Jets originate from the center of the accretion disk! • Models which work at all radii are probably not the “correct” ones, (e.g. self similar).

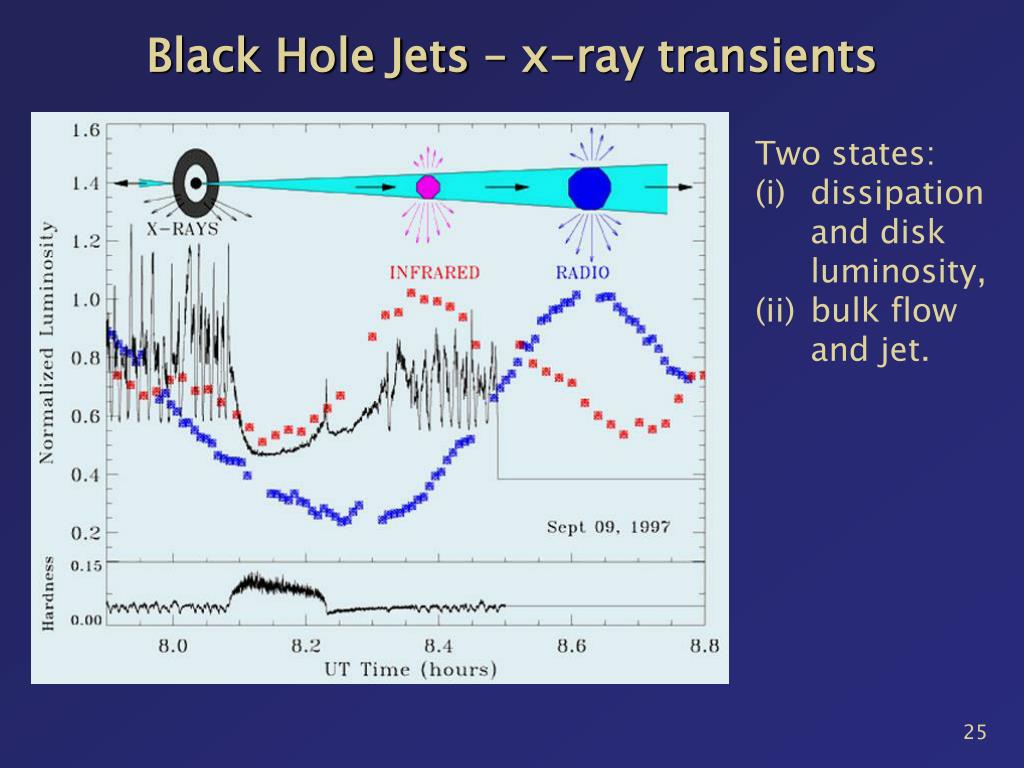

  25. Black Hole Jets – x-ray transients • Two states: • dissipation and disk luminosity, • bulk flow and jet.

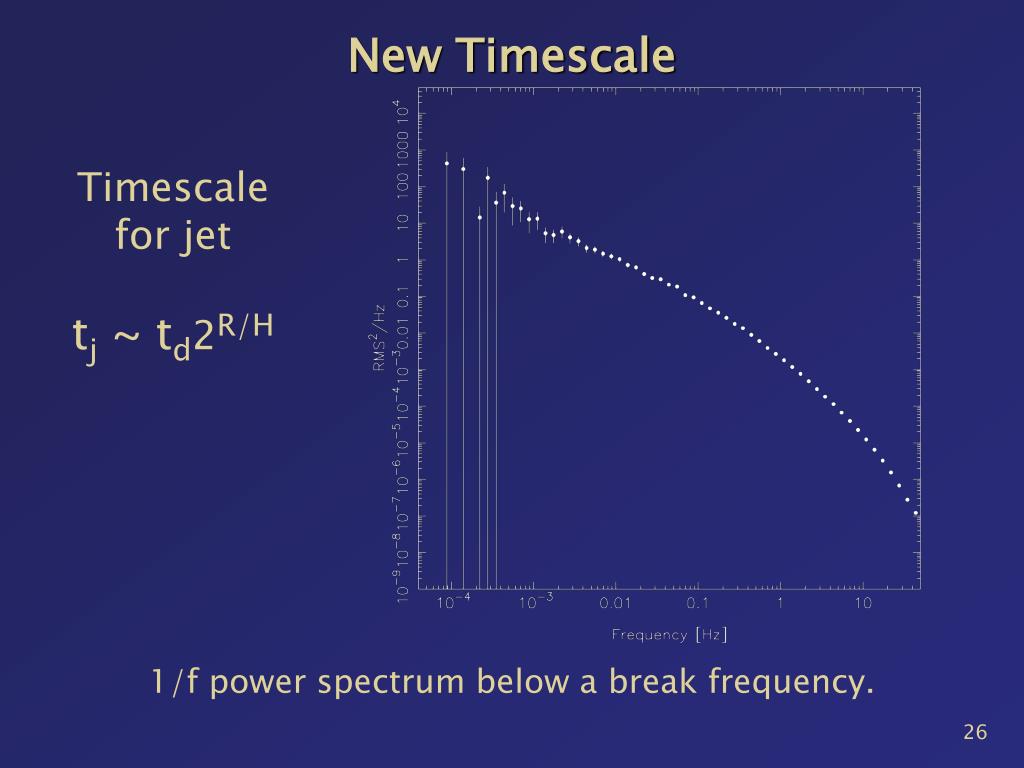

  26. New Timescale Timescale for jettj ~ td2R/H 1/f power spectrum below a break frequency.

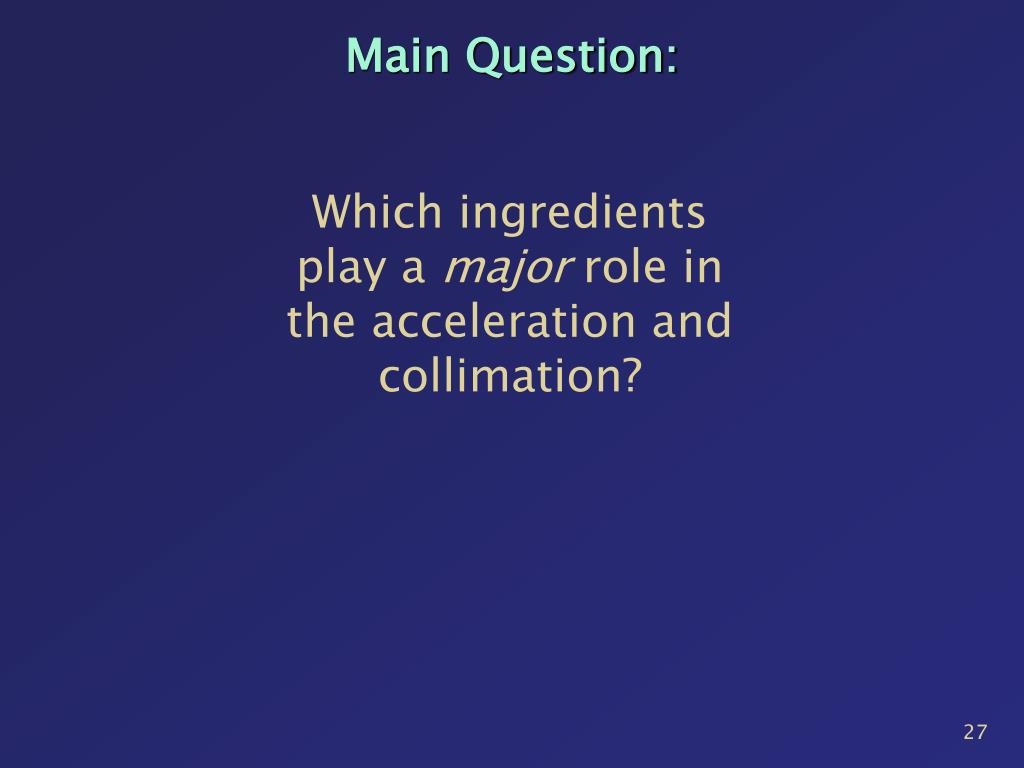

  27. Main Question: Which ingredients play a major role in the acceleration and collimation?

  28. Ingredients which may notbe absolutely necessary

  29. What Does Work? A reasonably ordered large-scale magnetic field threading the disk!

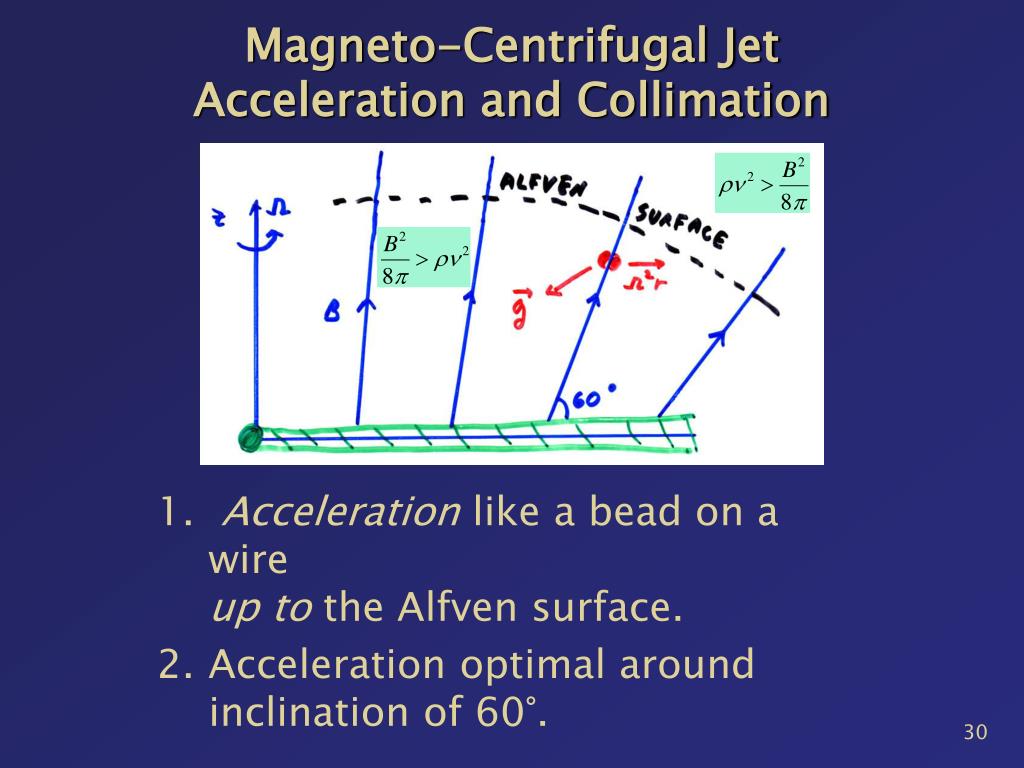

  30. Magneto-Centrifugal Jet Acceleration and Collimation • Acceleration like a bead on a wire up to the Alfven surface. • Acceleration optimal around inclination of 60°.

  31. Collimation Outside Alfven Surface Collimation by hoop stress? BUT Kink Instability

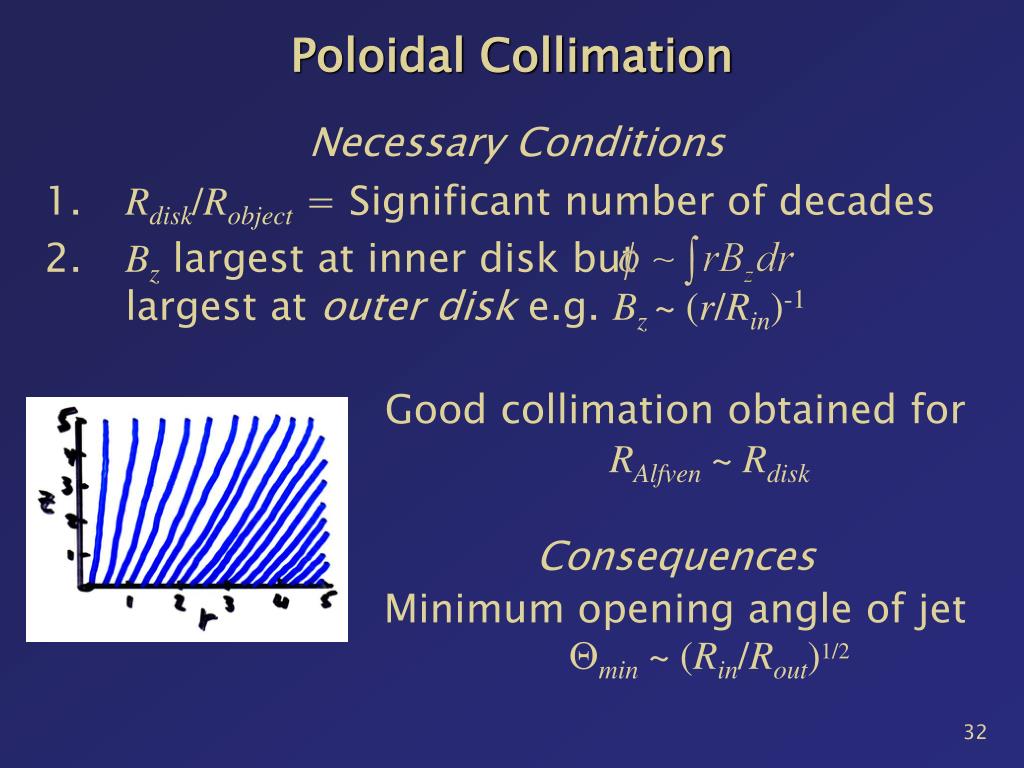

  32. Poloidal Collimation Necessary Conditions • Rdisk/Robject = Significant number of decades • Bz largest at inner disk but largest at outer disk e.g. Bz ~ (r/Rin)-1 Good collimation obtained forRAlfven ~ Rdisk Consequences Minimum opening angle of jetmin ~ (Rin/Rout)1/2

  33. M87 Junor, Biretta, Livio 1999

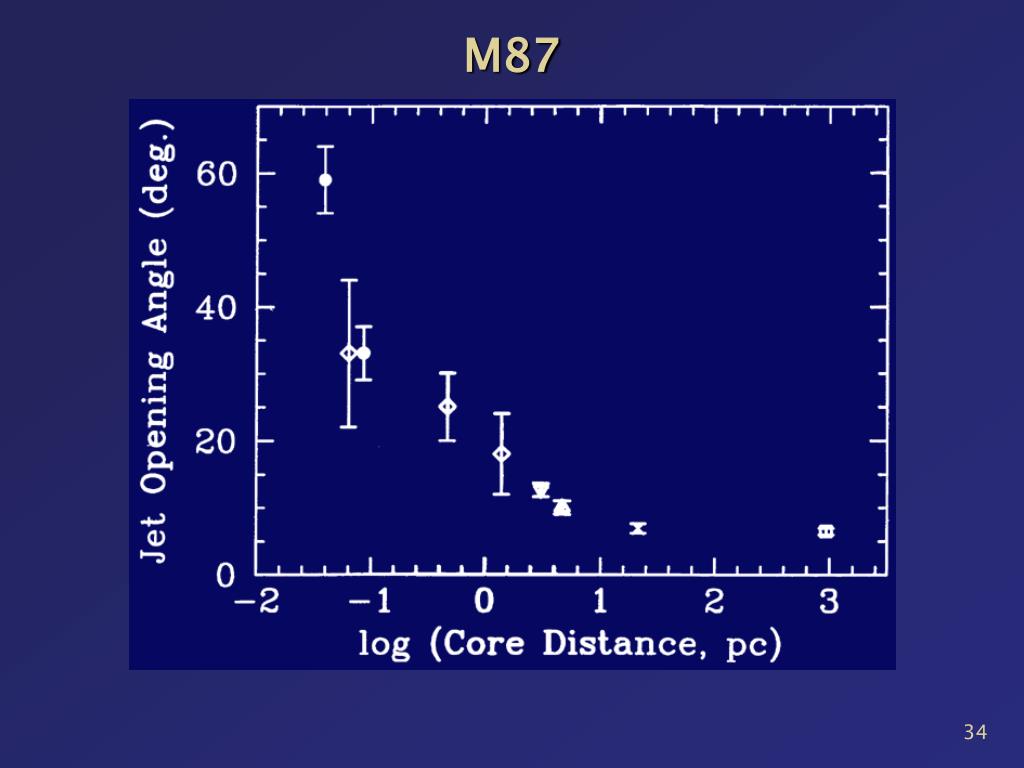

  34. M87

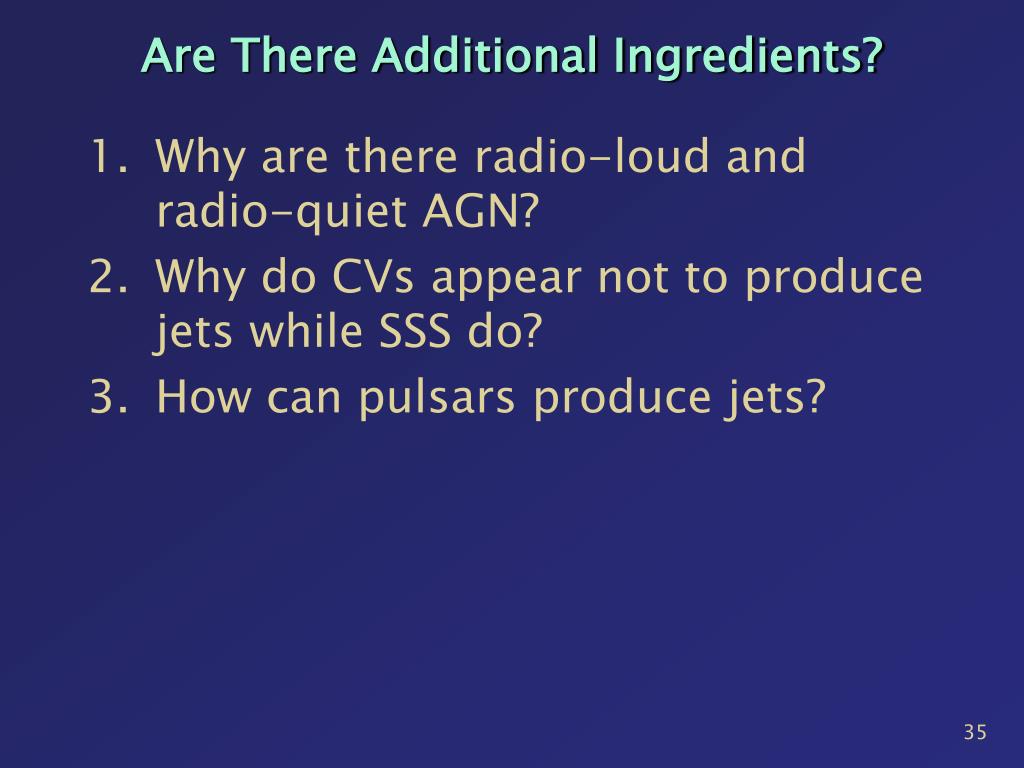

  35. Are There Additional Ingredients? • Why are there radio-loud and radio-quiet AGN? • Why do CVs appear not to produce jets while SSS do? • How can pulsars produce jets?

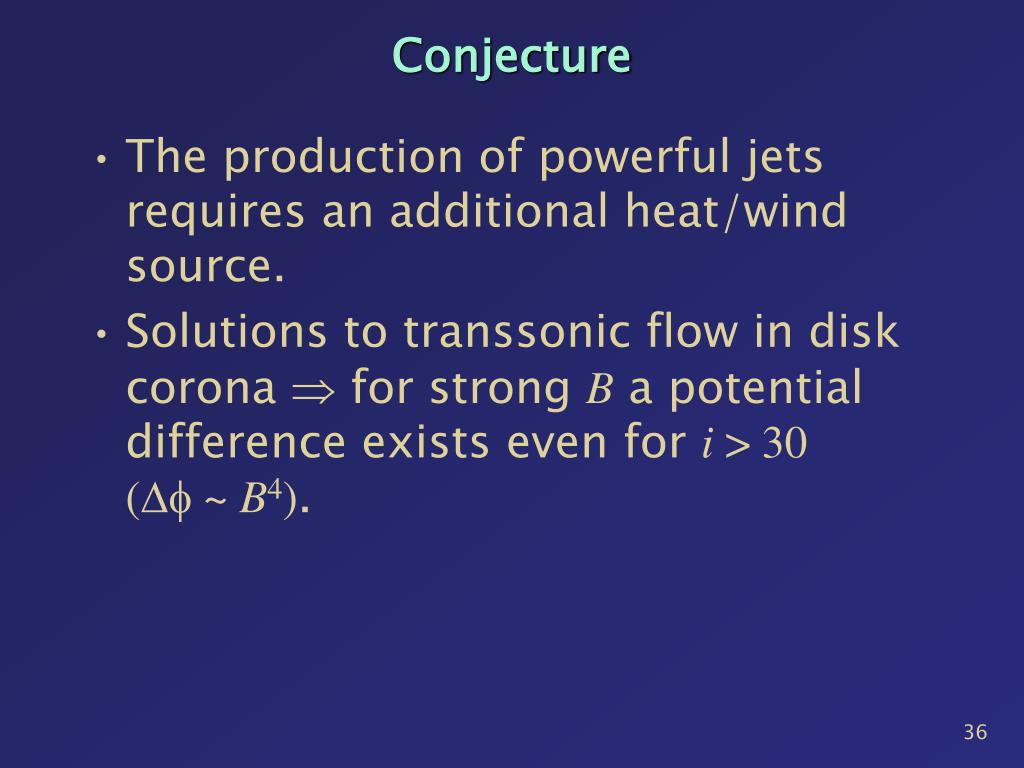

  36. Conjecture • The production of powerful jets requires an additional heat/wind source. • Solutions to transsonic flow in disk corona  for strong B a potential difference exists even for i > 30 (Df ~ B4).

  37. Radio Loud vs. Radio Quiet AGN Central engineparameters:

  38. Recent simulations: Magnetic “Tower”

  39. Simulation results for spinning black hole • Outgoing velocity ~0.4 - 0.6 c in funnel wall jet • Poynting flux dominates within funnel • Both pressure and Lorentz forces important for acceleration • Existence of funnel jet depends on establishing radial funnel field • Jet luminosity increases with hole spin – Poynting flux jet is powered by the black hole

  40. Simulations: dependence on black hole spin

  41. Spins of Black Holes? • RISCO, a*, determined on the basis of x-ray continuum data (even beyond thermal-dominant state). • Study of plunging orbits important. Spin estimates based on stress-free inner boundary condition give upper limit on a*?

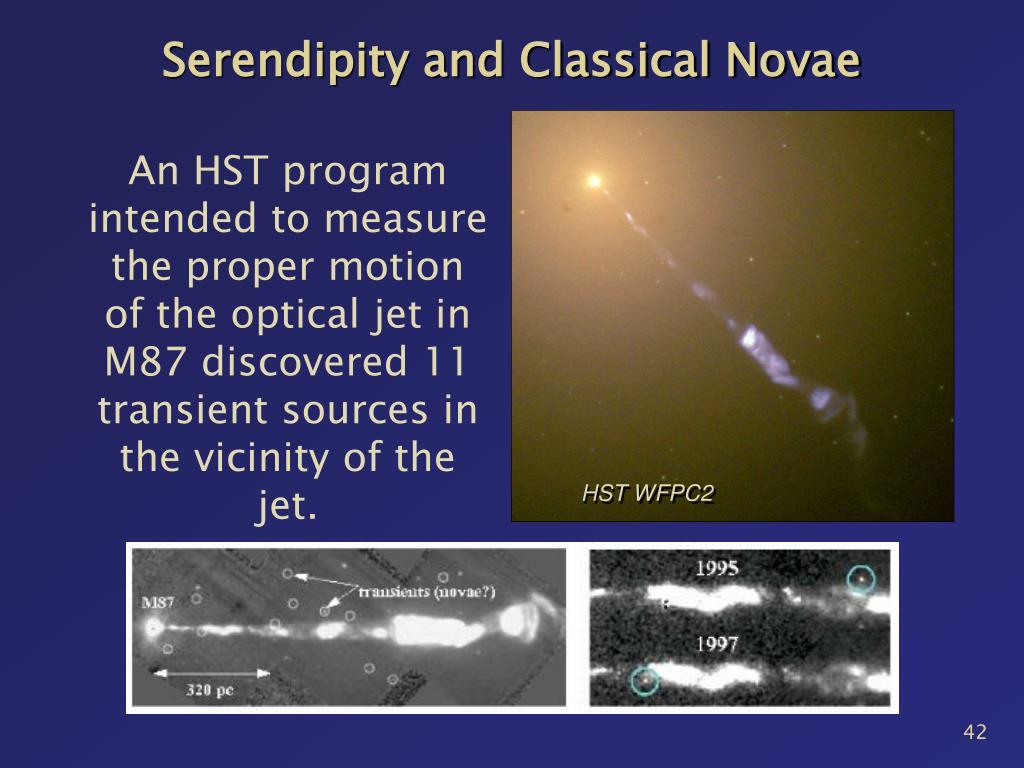

  42. Serendipity and Classical Novae An HST program intended to measure the proper motion of the optical jet in M87 discovered 11 transient sources in the vicinity of the jet. HST WFPC2

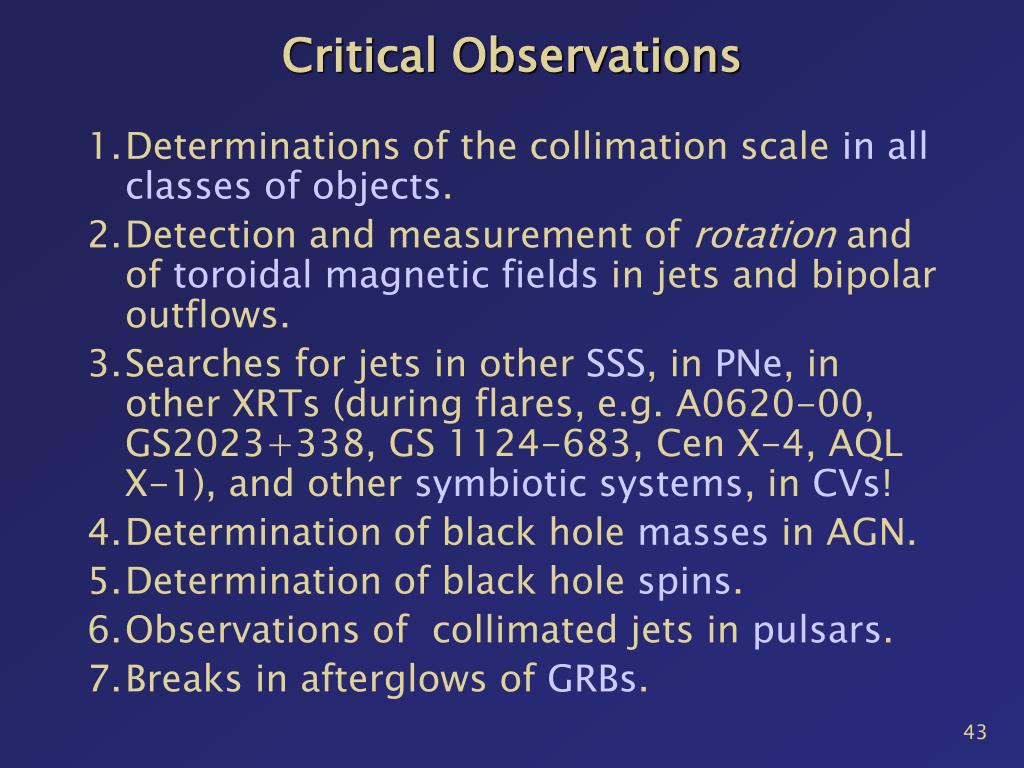

  43. Critical Observations • Determinations of the collimation scale in all classes of objects. • Detection and measurement of rotation and of toroidal magnetic fields in jets and bipolar outflows. • Searches for jets in other SSS, in PNe, in other XRTs (during flares, e.g. A0620-00, GS2023+338, GS 1124-683, Cen X-4, AQL X-1), and other symbiotic systems, in CVs! • Determination of black hole masses in AGN. • Determination of black hole spins. • Observations of collimated jets in pulsars. • Breaks in afterglows of GRBs.
