Va auto

VA-auto

  • Goal: make the VA configuration simpler

    • Don’t need to make configures on all VA routers.

      • Only APRs and partial ASBRs.

    • Don’t need to change the configurations on all VA routers when the VPs change. (e.g., VP add/del/split/merge).

      • VP-range vs VP-list

    • Don’t need to make much configuration on all VA routers.

      • Configure pop-prefix-list on partial ASBRs.


How to know what to fib install

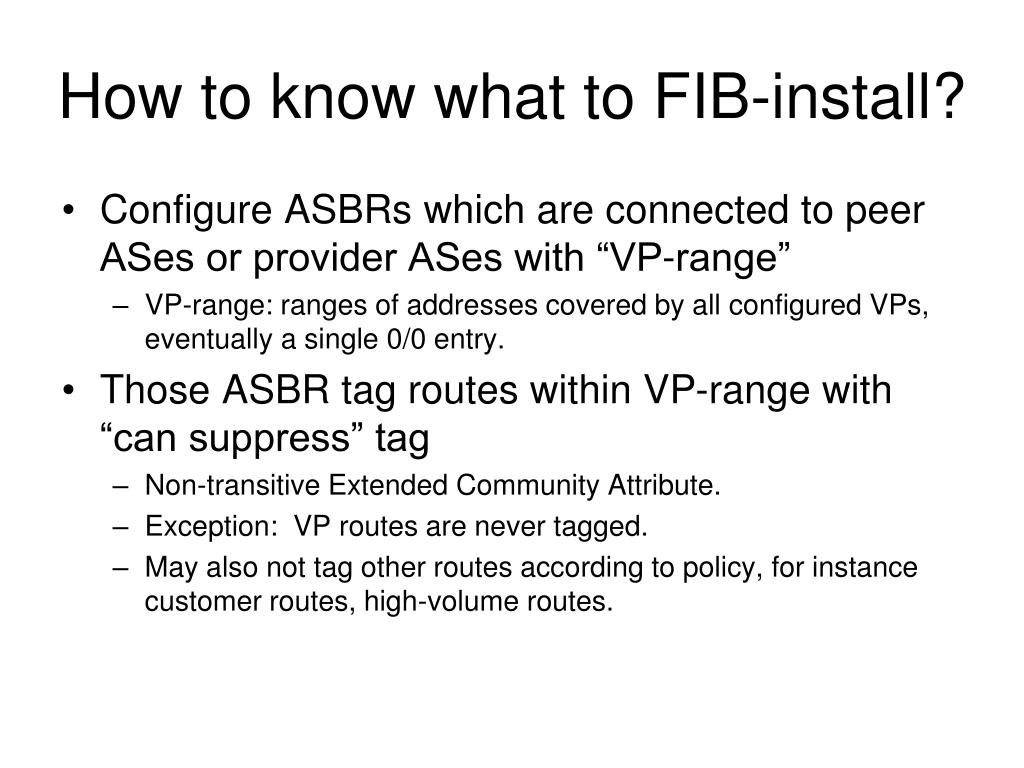

How to know what to FIB-install?

  • Configure ASBRs which are connected to peer ASes or provider ASes with “VP-range”

    • VP-range: ranges of addresses covered by all configured VPs, eventually a single 0/0 entry.

  • Those ASBR tag routes within VP-range with “can suppress” tag

    • Non-transitive Extended Community Attribute.

    • Exception: VP routes are never tagged.

    • May also not tag other routes according to policy, for instance customer routes, high-volume routes.


Selective fib installation

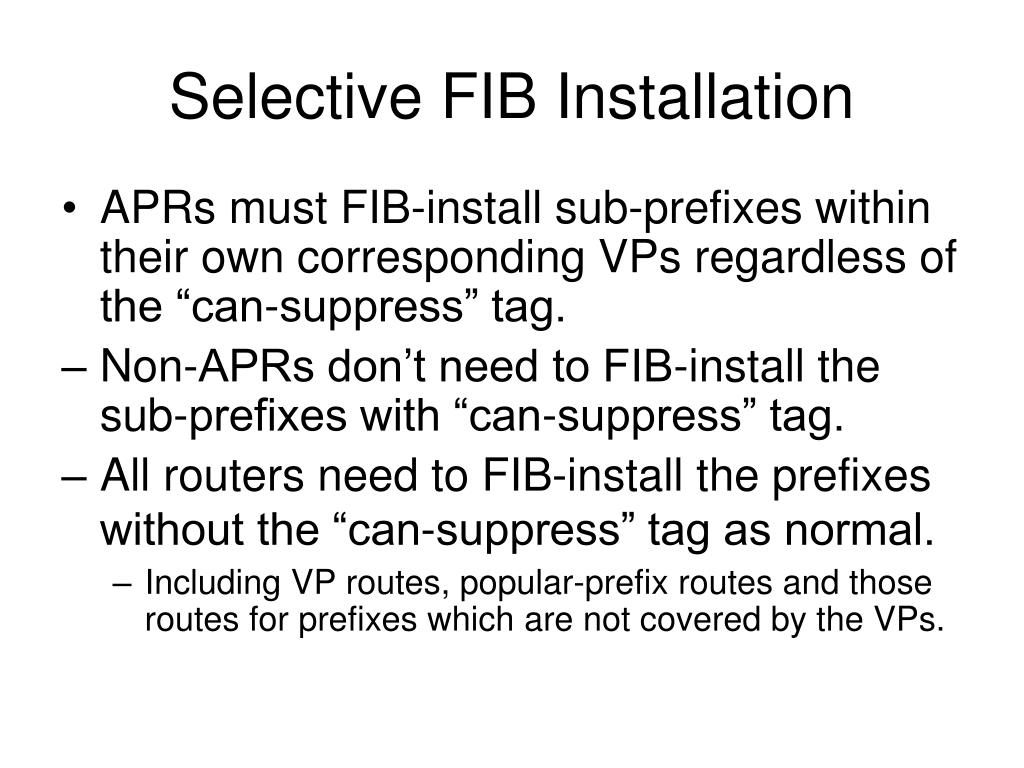

Selective FIB Installation

  • APRs must FIB-install sub-prefixes within their own corresponding VPs regardless of the “can-suppress” tag.

  • Non-APRs don’t need to FIB-install the sub-prefixes with “can-suppress” tag.

  • All routers need to FIB-install the prefixes without the “can-suppress” tag as normal.

    • Including VP routes, popular-prefix routes and those routes for prefixes which are not covered by the VPs.


Next step

Next Step

  • Last call for an informational RFC?
