Presentation Transcript

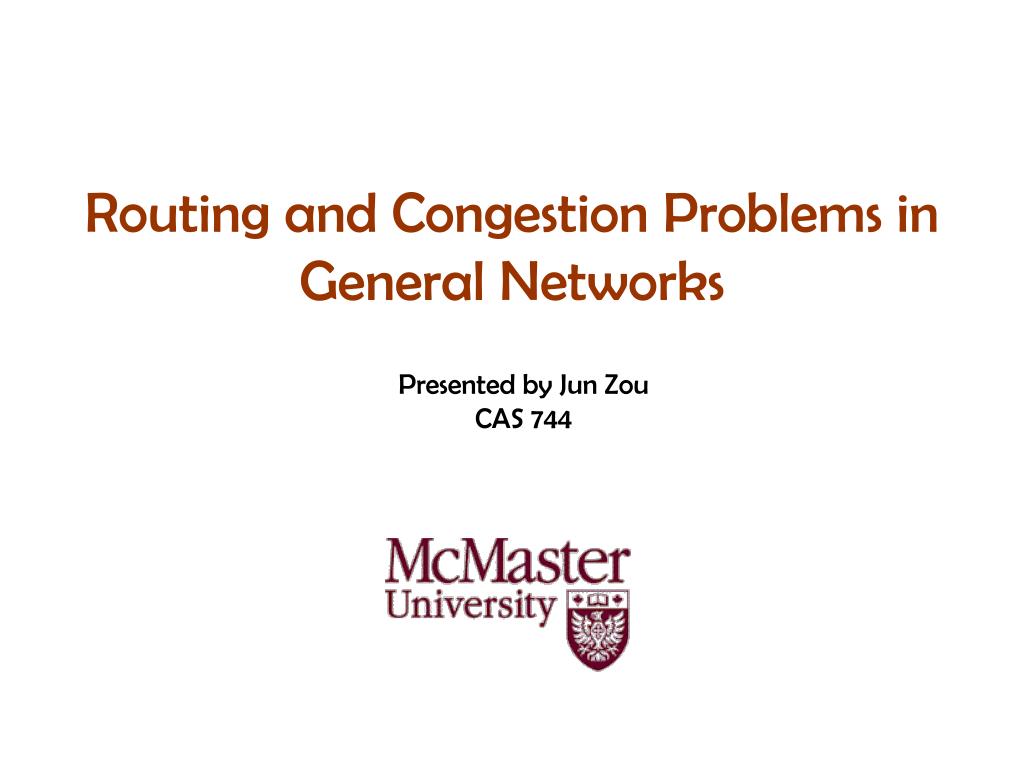

Routing and congestion problems in general networks

Routing and Congestion Problems in General Networks

Presented by Jun Zou

CAS 744



  • 1. Introduction to Routing and Congestion

  • 2. Network Model and Objective

  • 3. Construction of Tree

  • 4. Simulation Graph on Tree

  • 5. Simulation Tree on Graph

  • 6. Conclusion and Application

  • 7. References: its full paper and improved one

1 introduction to routing

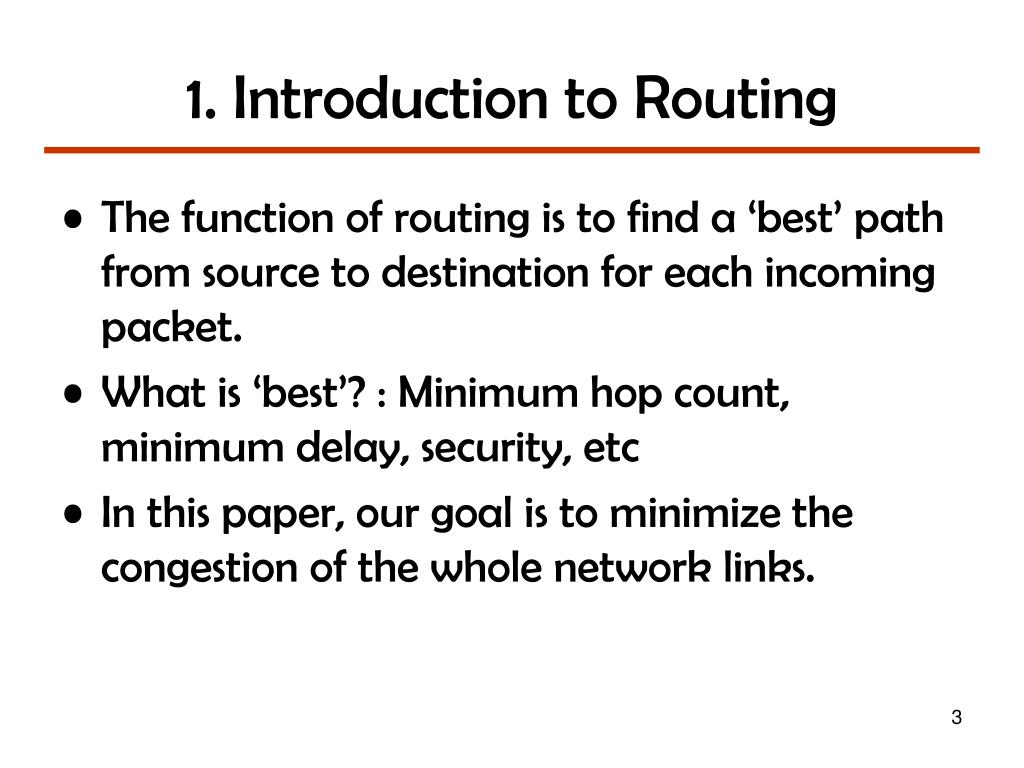

1. Introduction to Routing

  • The function of routing is to find a ‘best’ path from source to destination for each incoming packet.

  • What is ‘best’? : Minimum hop count, minimum delay, security, etc

  • In this paper, our goal is to minimize the congestion of the whole network links.

2 1 network model

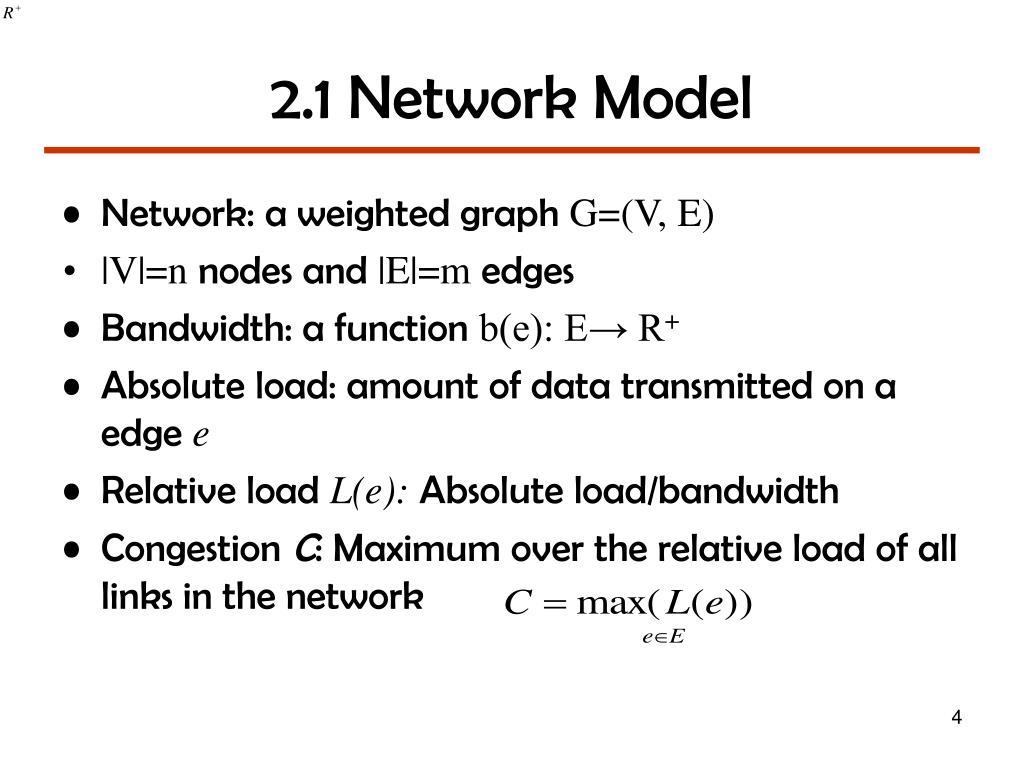

2.1 Network Model

  • Network: a weighted graph G=(V, E)

  • |V|=n nodes and |E|=m edges

  • Bandwidth: a function b(e): E→ R+

  • Absolute load: amount of data transmitted on a edge e

  • Relative load L(e): Absolute load/bandwidth

  • Congestion C: Maximum over the relative load of all links in the network

2 2 two approaches to solve routing problems

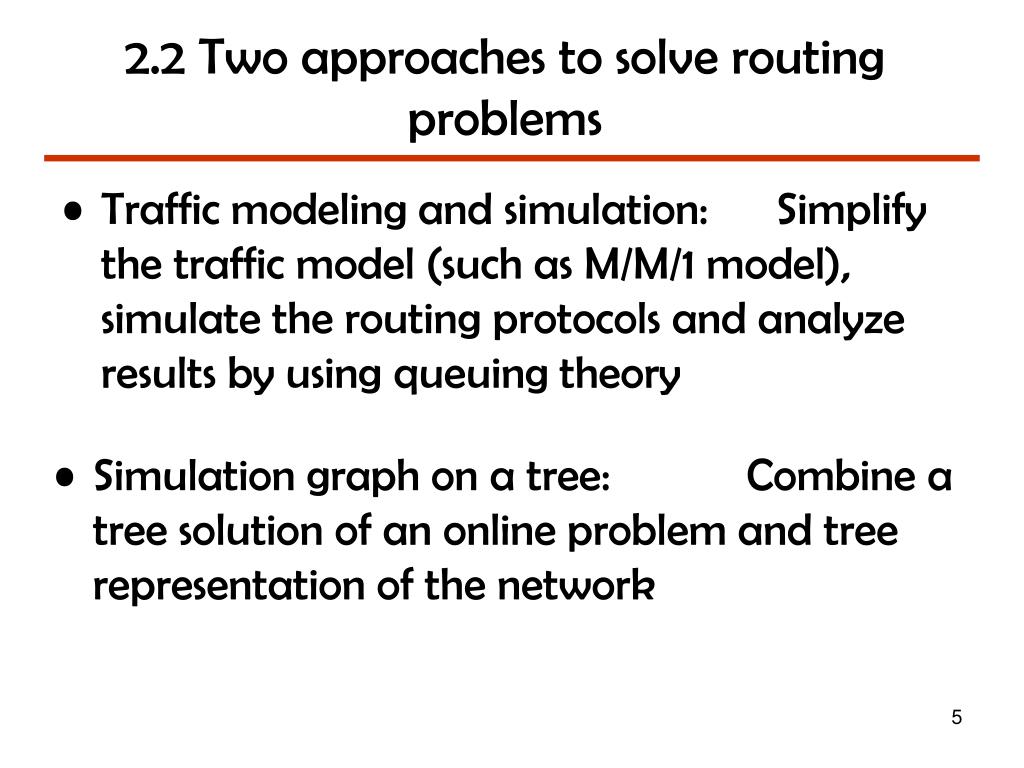

2.2 Two approaches to solve routing problems

  • Traffic modeling and simulation: Simplify the traffic model (such as M/M/1 model), simulate the routing protocols and analyze results by using queuing theory

  • Simulation graph on a tree: Combine a tree solution of an online problem and tree representation of the network

2 3 oblivious online routing algorithms

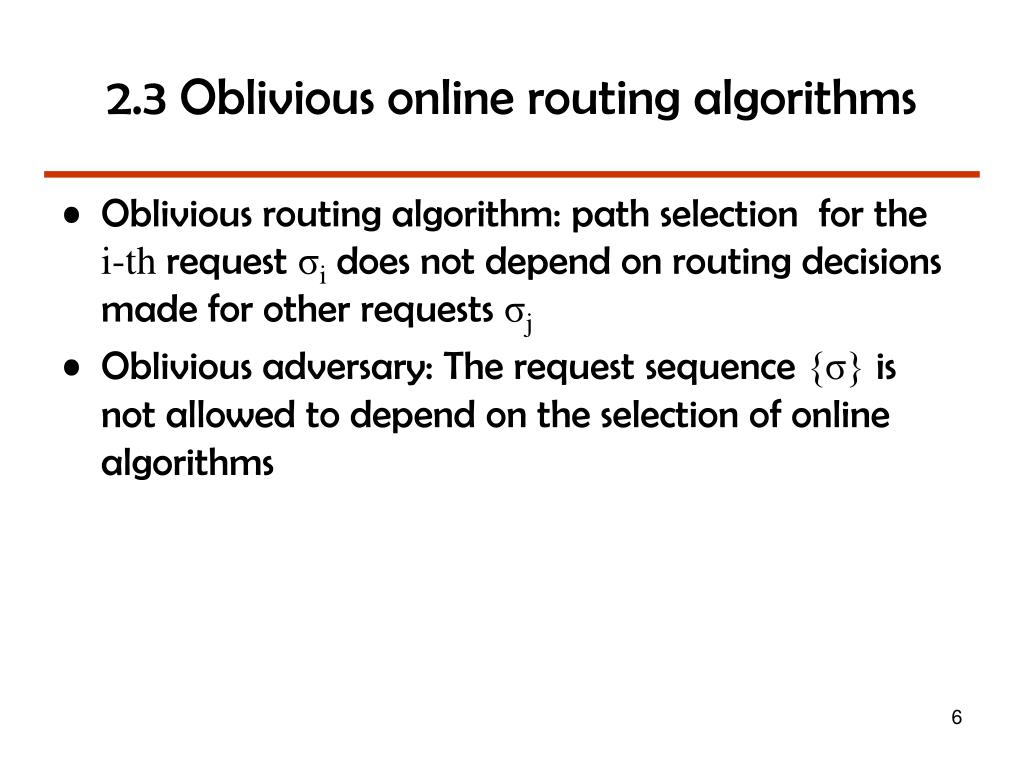

2.3 Oblivious online routing algorithms

  • Oblivious routing algorithm: path selection for the i-th request σi does not depend on routing decisions made for other requests σj

  • Oblivious adversary: The request sequence {σ} is not allowed to depend on the selection of online algorithms

2 4 assumption and target

2.4 Assumption and target

  • Assumption: There is a ct-competitive online algorithm for the tree TG=(Vt, Et)associated with a graph G=(V,E):


  • Target: For the same algorithm, find a small factor c for the graph G=(V,E) , satisfying


2 5 three steps to achieve it

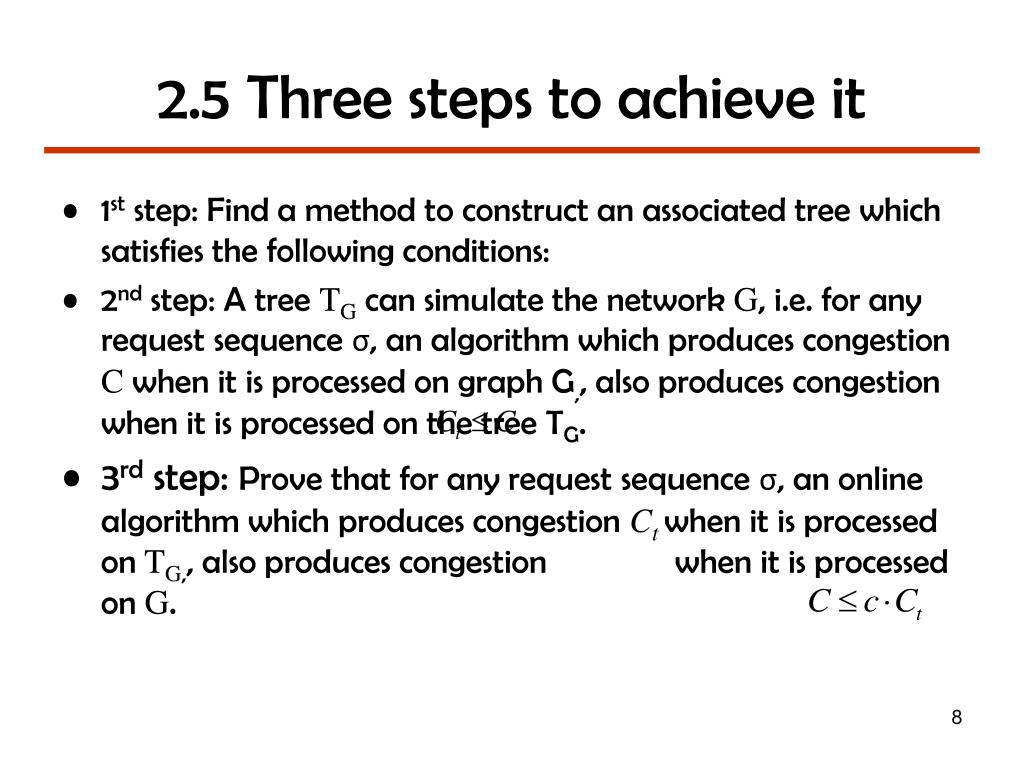

2.5 Three steps to achieve it

  • 1st step: Find a method to construct an associated tree which satisfies the following conditions:

  • 2nd step: A tree TG can simulate the network G, i.e. for any request sequence σ, an algorithm which produces congestion C when it is processed on graph G,, also produces congestion when it is processed on the tree TG.

  • 3rd step: Prove that for any request sequence σ, an online algorithm which produces congestion Ctwhen it is processed on TG,, also produces congestion when it is processed on G.

3 1 construct a tree

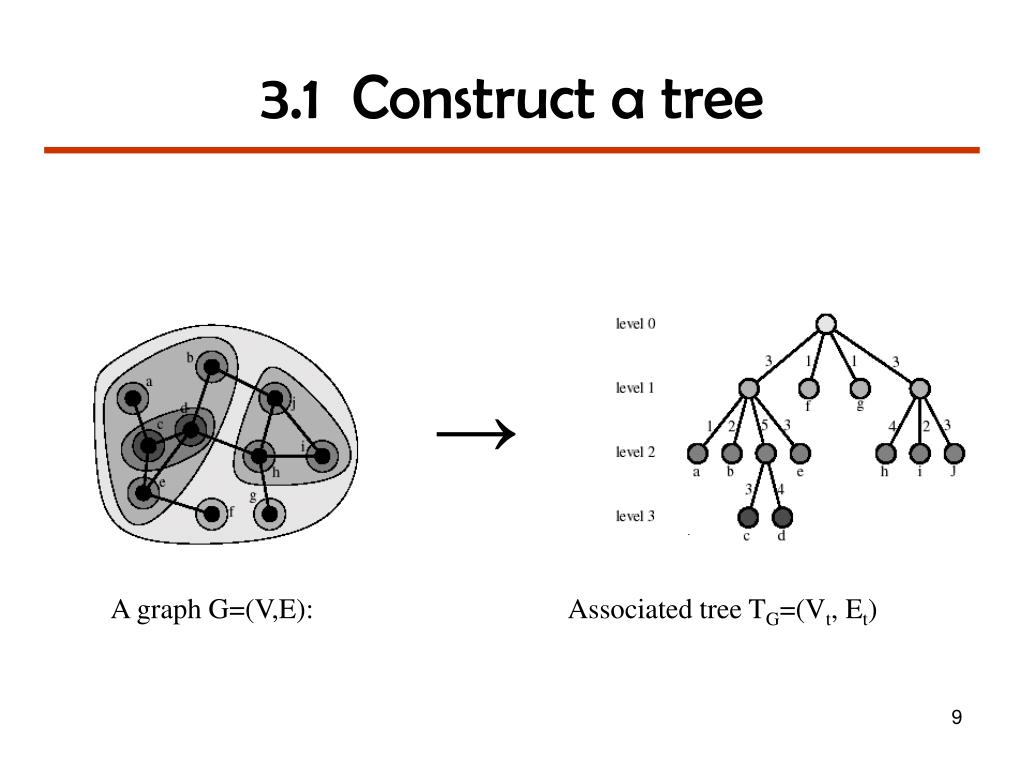

3.1 Construct a tree

A graph G=(V,E): Associated tree TG=(Vt, Et)

3 2 definitions

3.2 Definitions

  • Vt: a node inTG

  • SVt: the cluster in G corresponding to Vt

  • Bandwidth between two sets

  • Bandwidth of edges leaving set X:

  • The height of TG: h(TG)

  • Set of all level nodes:

3 2 definitions con t

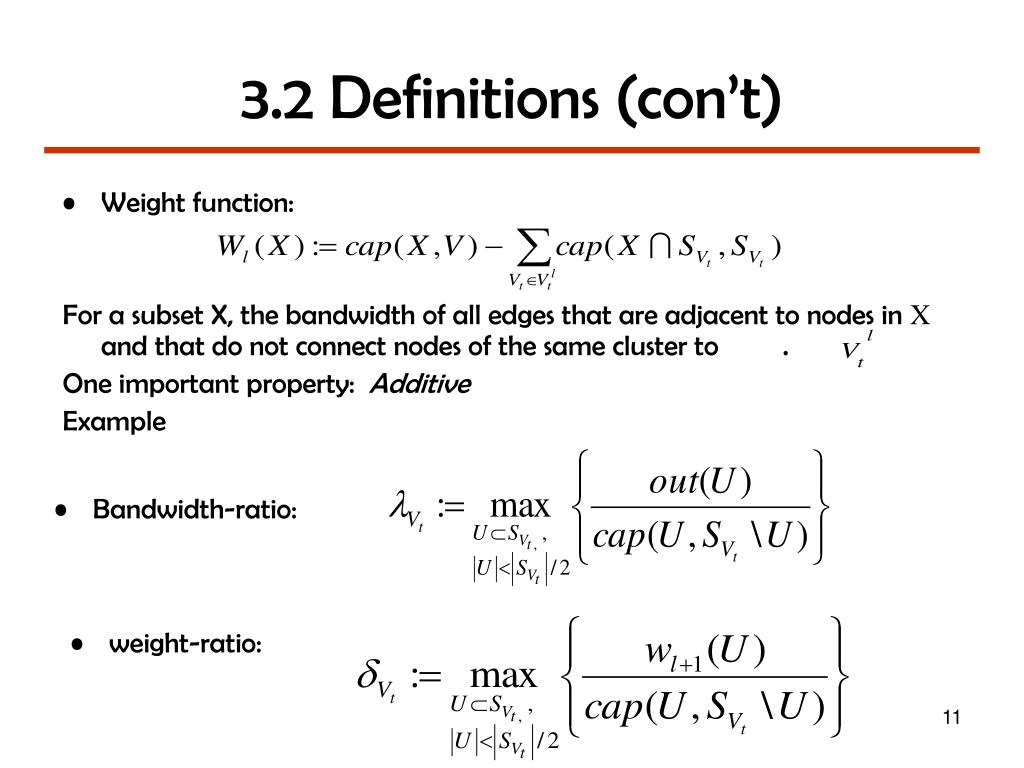

3.2 Definitions (con’t)

  • Weight function:

    For a subset X, the bandwidth of all edges that are adjacent to nodes in X and that do not connect nodes of the same cluster to .

    One important property: Additive


  • Bandwidth-ratio:

  • weight-ratio:

4 1how to simulate g on t g

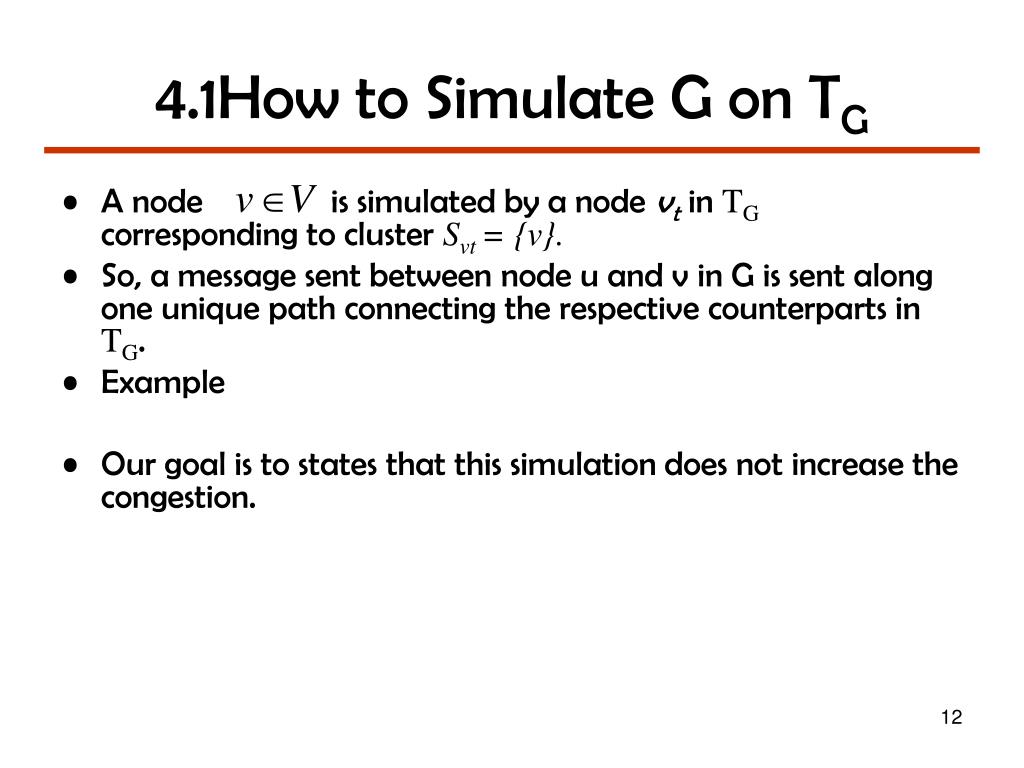

4.1How to Simulate G on TG

  • A node is simulated by a node vt in TG corresponding to cluster Svt = {v}.

  • So, a message sent between node u and v in G is sent along one unique path connecting the respective counterparts in TG.

  • Example

  • Our goal is to states that this simulation does not increase the congestion.

4 2 theorem 1

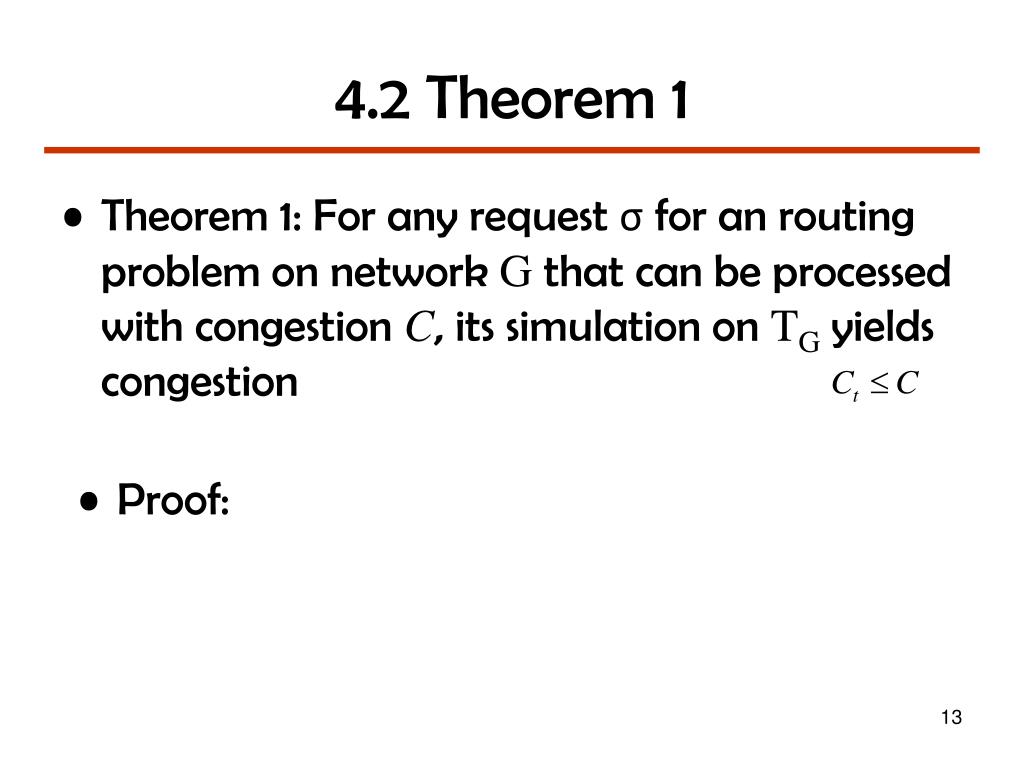

4.2 Theorem 1

  • Theorem 1: For any request σ for an routing problem on network G that can be processed with congestion C, its simulation on TG yields congestion

  • Proof:

5 1how to simulate t g on g

5.1How to Simulate TG on G

  • A level node vt of TG is simulated by a random node of the corresponding cluster Svt with the probability:

  • Example

5 2 theorem 2

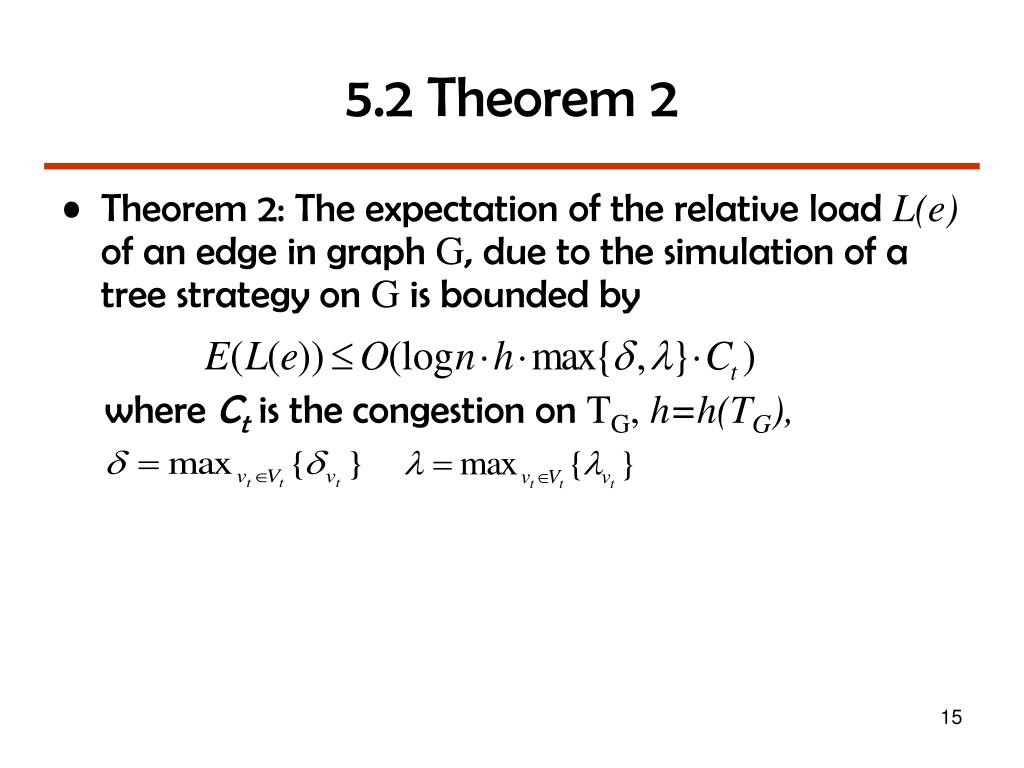

5.2 Theorem 2

  • Theorem 2: The expectation of the relative load L(e) of an edge in graph G, due to the simulation of a tree strategy on G is bounded by

where Ctis the congestion on TG, h=h(TG),

5 2 1 cmcf problem

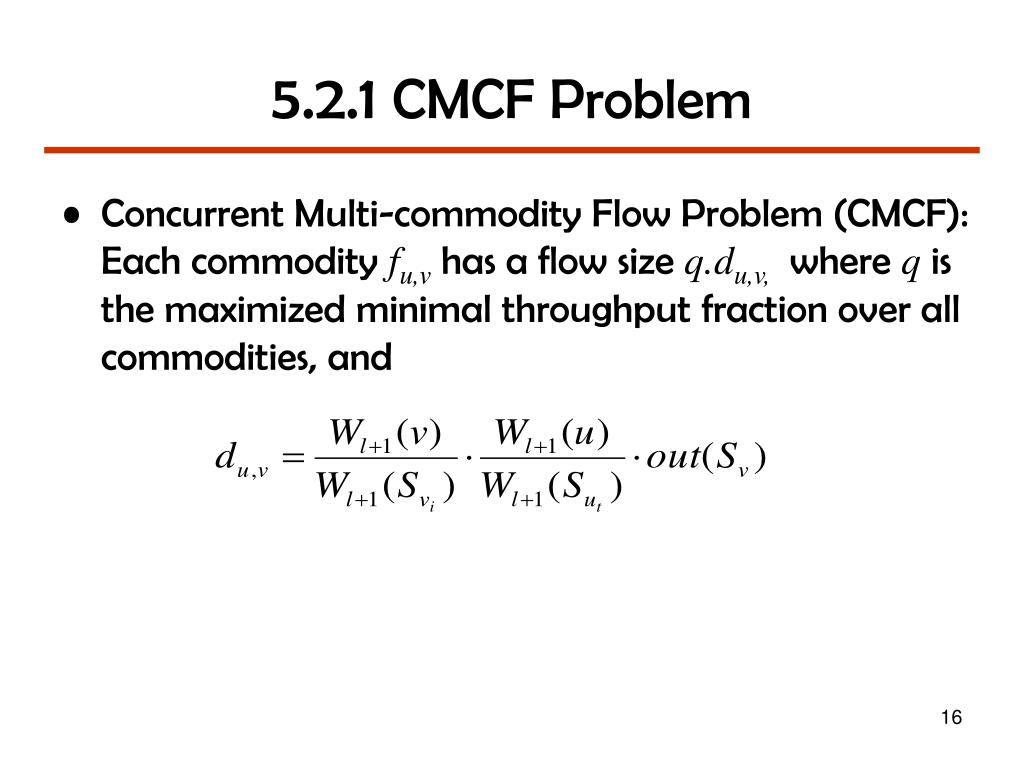

5.2.1 CMCF Problem

  • Concurrent Multi-commodity Flow Problem (CMCF): Each commodity fu,vhas a flow size q.du,v, where q is the maximized minimal throughput fraction over all commodities, and

5 2 2 absolute relative load on g

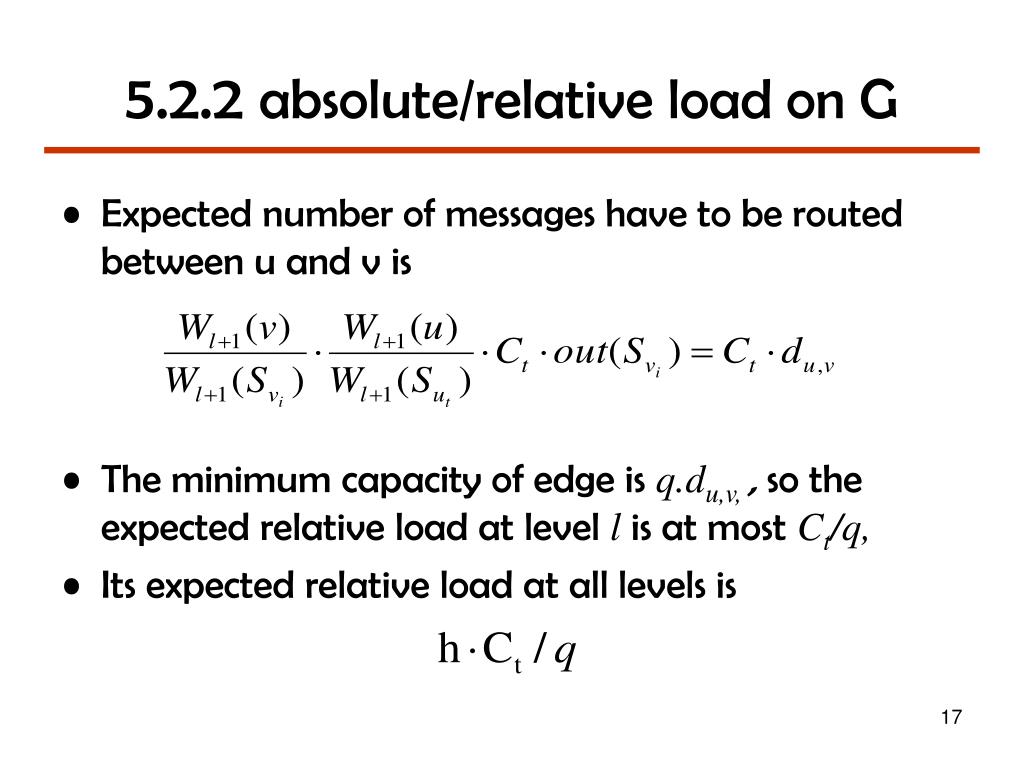

5.2.2 absolute/relative load on G

  • Expected number of messages have to be routed between u and v is

  • The minimum capacity of edge is q.du,v,, so the expected relative load at level l is at mostCt/q,

  • Its expected relative load at all levels is

5 2 3 capacity ratio

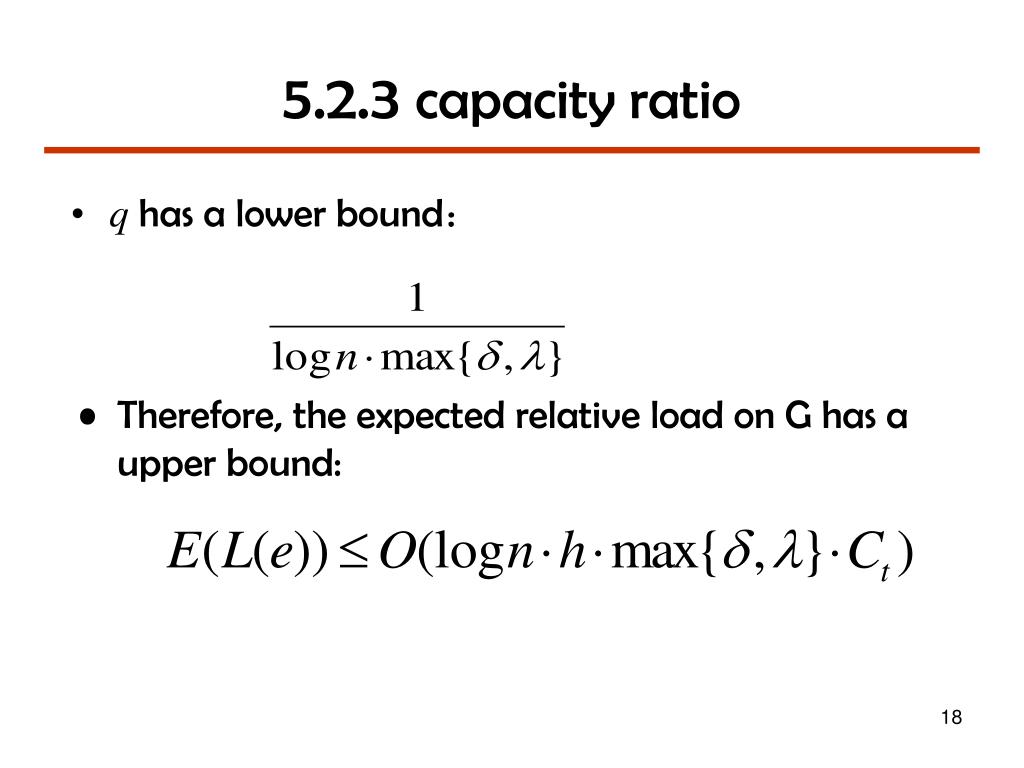

5.2.3 capacity ratio

  • q has a lower bound:

  • Therefore, the expected relative load on G has a upper bound:

5 2 4 next target

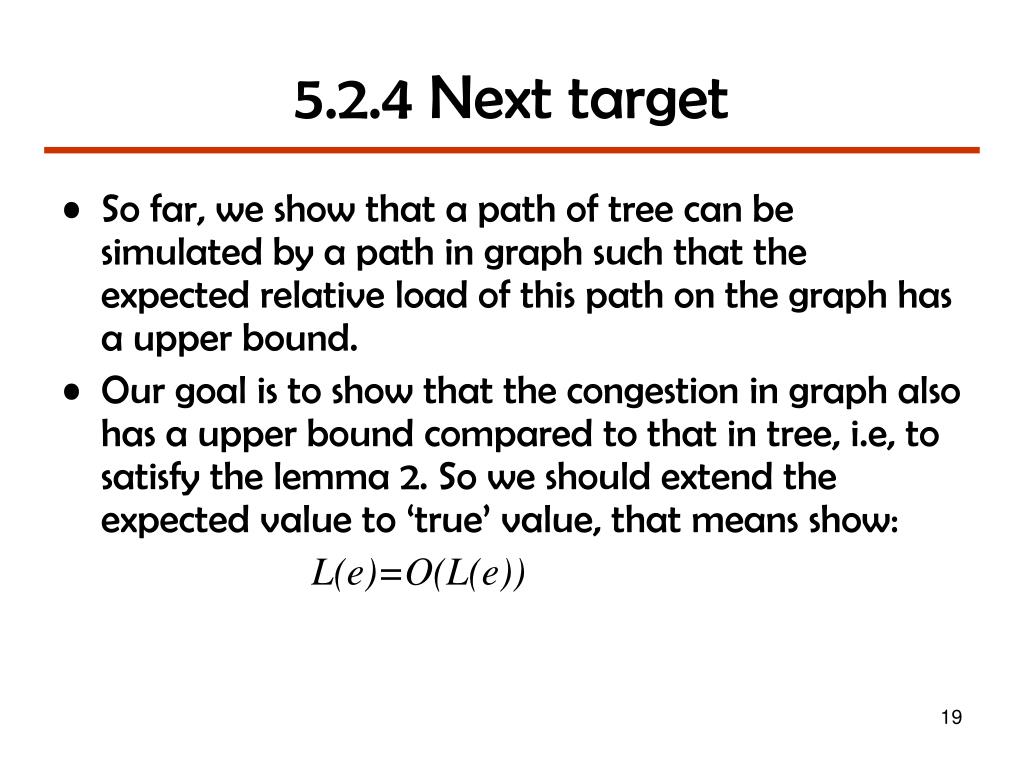

5.2.4 Next target

  • So far, we show that a path of tree can be simulated by a path in graph such that the expected relative load of this path on the graph has a upper bound.

  • Our goal is to show that the congestion in graph also has a upper bound compared to that in tree, i.e, to satisfy the lemma 2. So we should extend the expected value to ‘true’ value, that means show:


5 3 theorem 3

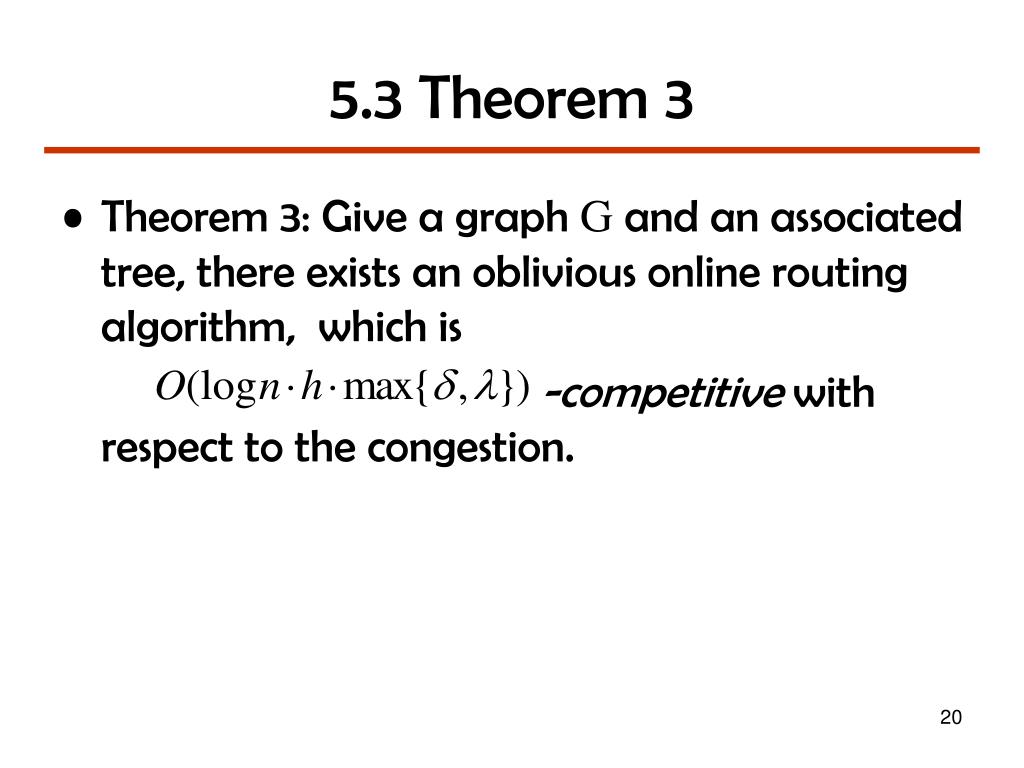

5.3 Theorem 3

  • Theorem 3: Give a graph G and an associated tree, there exists an oblivious online routing algorithm, which is

    -competitive with respect to the congestion.

5 3 1 proof and chernoff bound

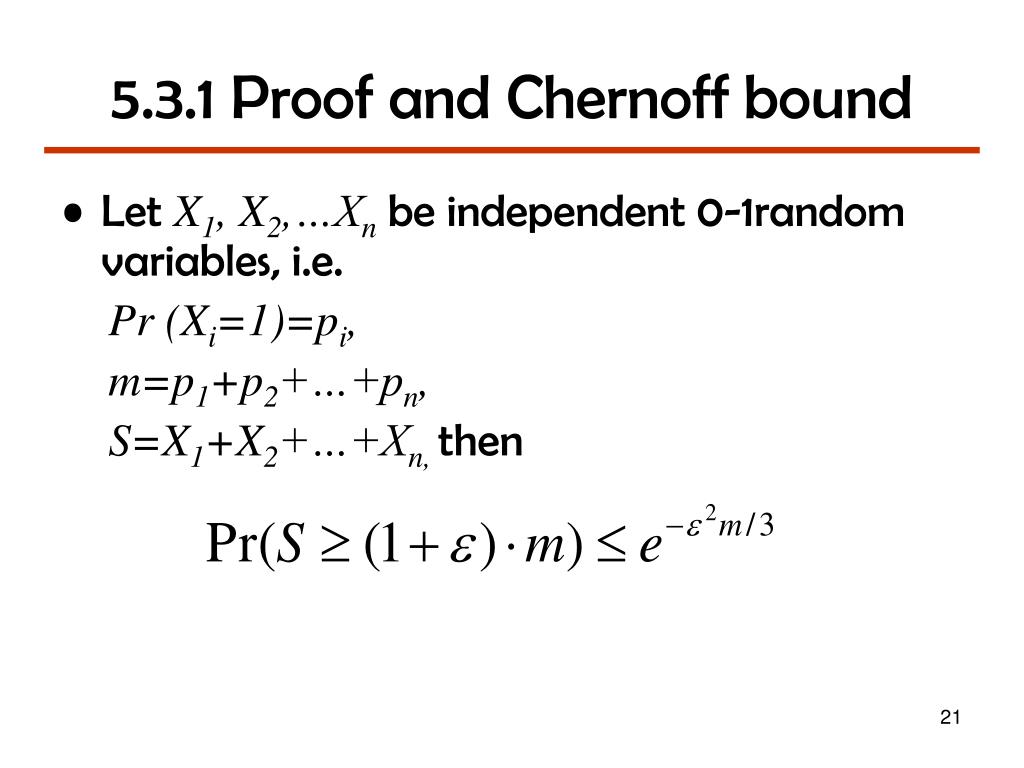

5.3.1 Proof and Chernoff bound

  • Let X1, X2,…Xn be independent 0-1random variables, i.e.

    Pr (Xi=1)=pi,



5 3 2 improvement to theorem 3

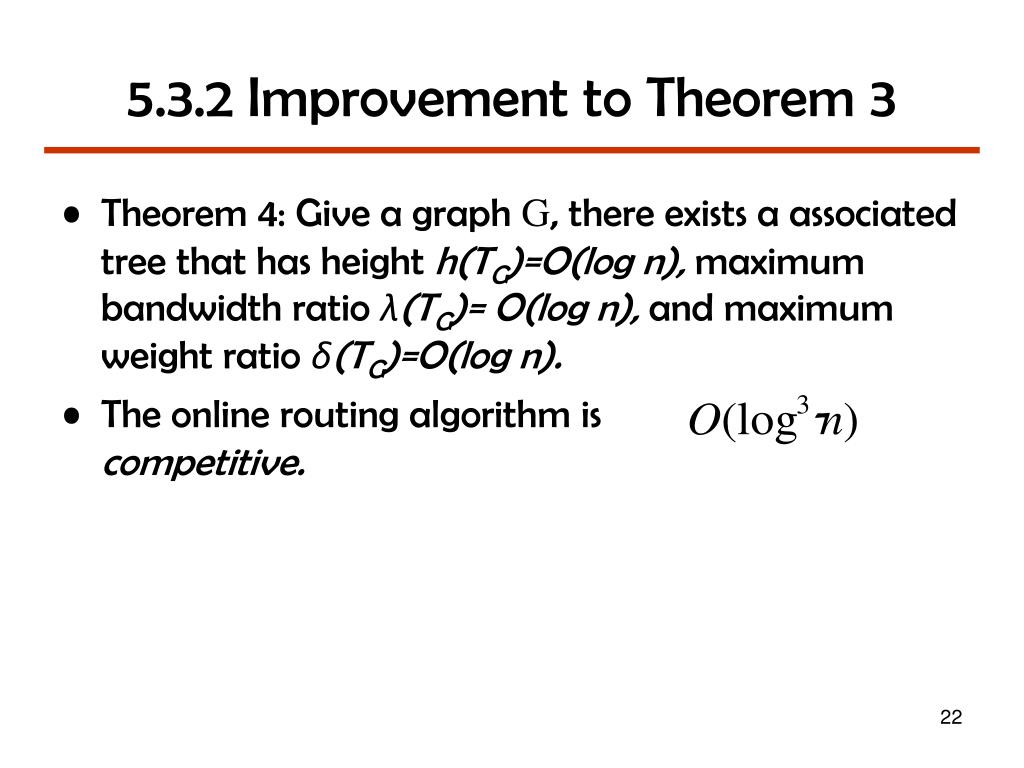

5.3.2 Improvement to Theorem 3

  • Theorem 4: Give a graph G, there exists a associated tree that has height h(TG)=O(log n), maximum bandwidth ratio λ(TG)= O(log n), and maximum weight ratio δ(TG)=O(log n).

  • The online routing algorithm is -competitive.

6 conclusion and application

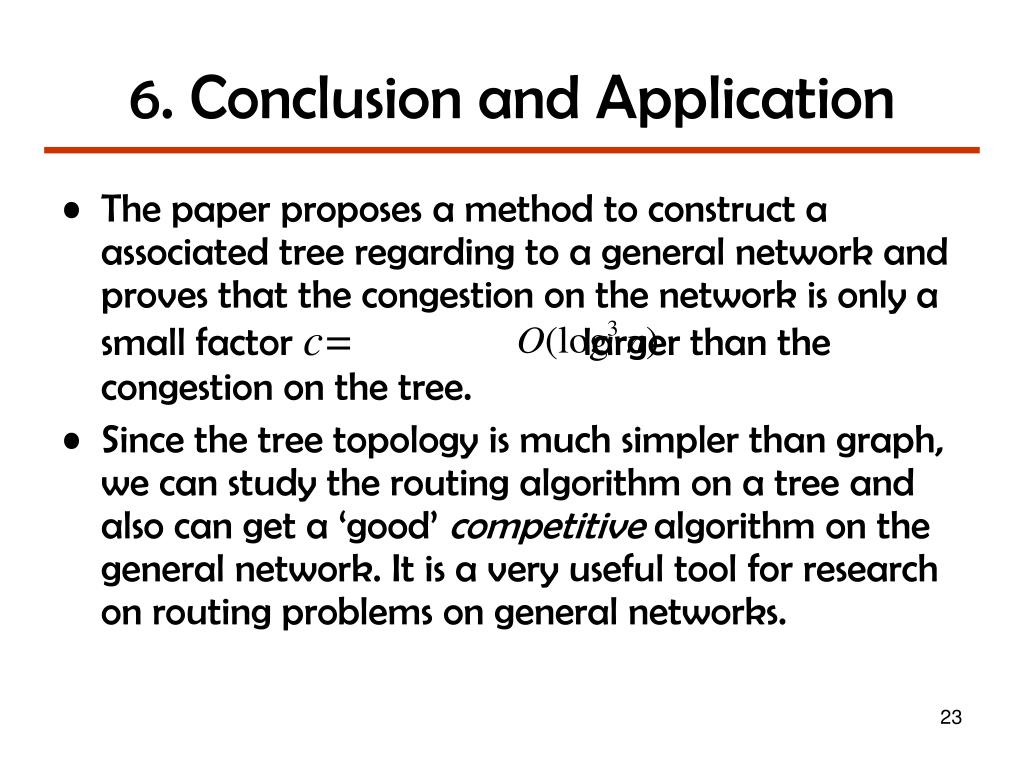

6. Conclusion and Application

  • The paper proposes a method to construct a associated tree regarding to a general network and proves that the congestion on the network is only a small factor c= larger than the congestion on the tree.

  • Since the tree topology is much simpler than graph, we can study the routing algorithm on a tree and also can get a ‘good’ competitive algorithm on the general network. It is a very useful tool for research on routing problems on general networks.

7 reference

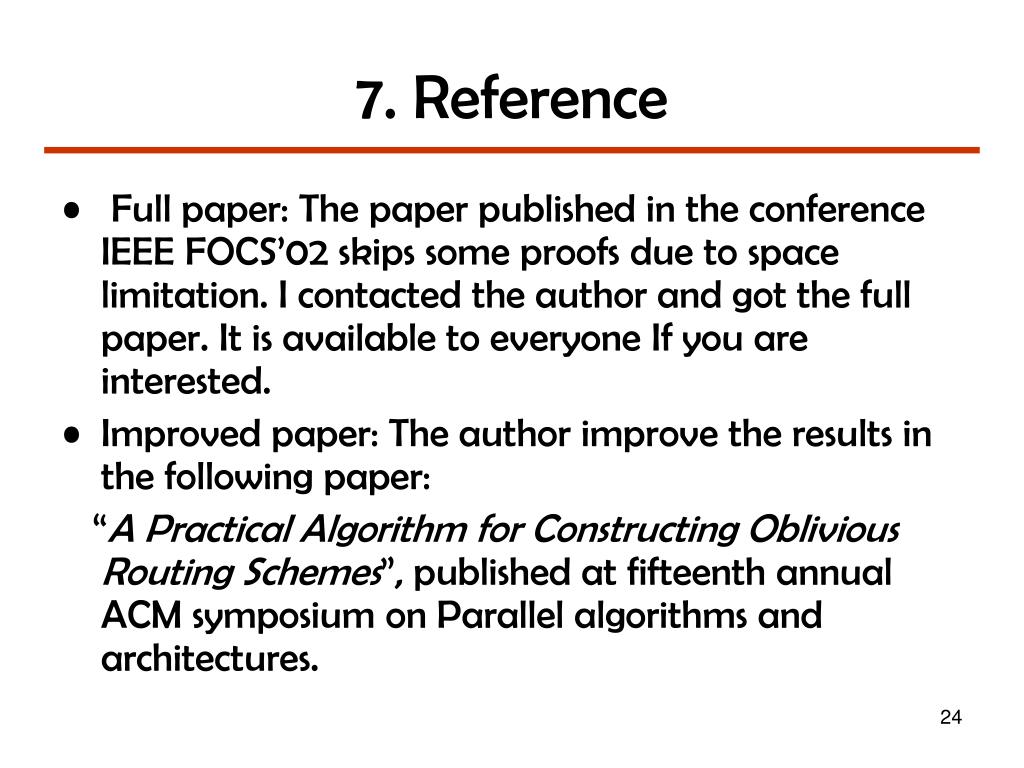

7. Reference

  • Full paper: The paper published in the conference IEEE FOCS’02 skips some proofs due to space limitation. I contacted the author and got the full paper. It is available to everyone If you are interested.

  • Improved paper: The author improve the results in the following paper:

    “A Practical Algorithm for Constructing Oblivious Routing Schemes”, published at fifteenth annual ACM symposium on Parallel algorithms and architectures.
