  1. BINOCULAR VISION AND STRABISMUS

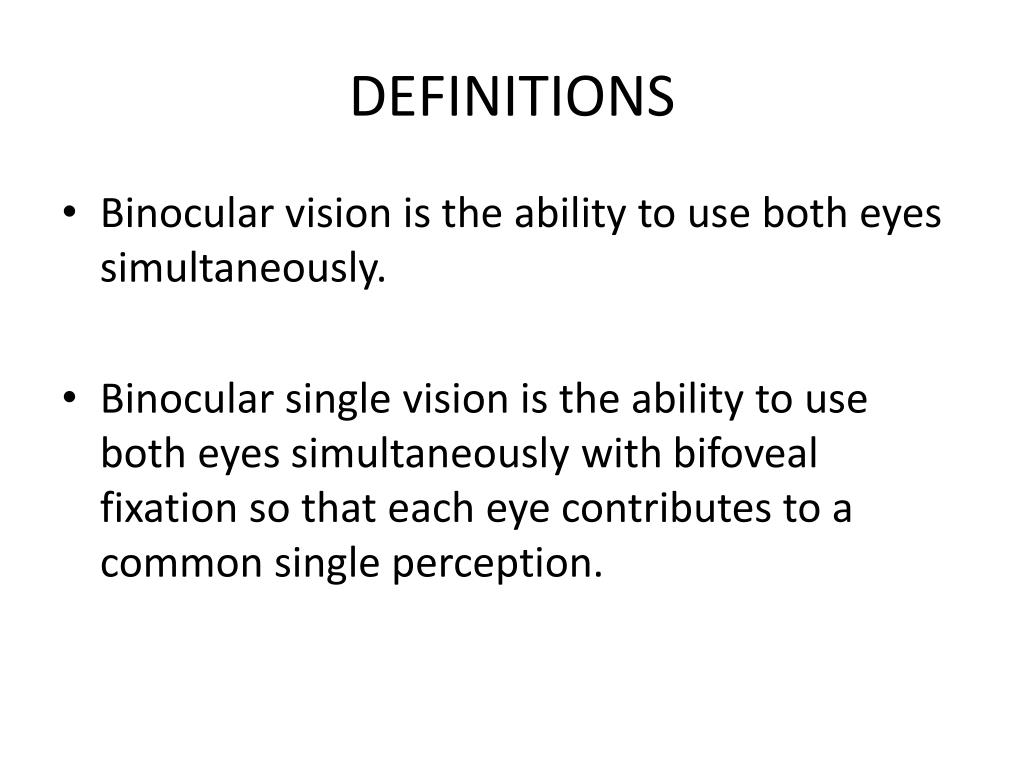

  2. DEFINITIONS • Binocular vision is the ability to use both eyes simultaneously. • Binocular single vision is the ability to use both eyes simultaneously with bifoveal fixation so that each eye contributes to a common single perception.

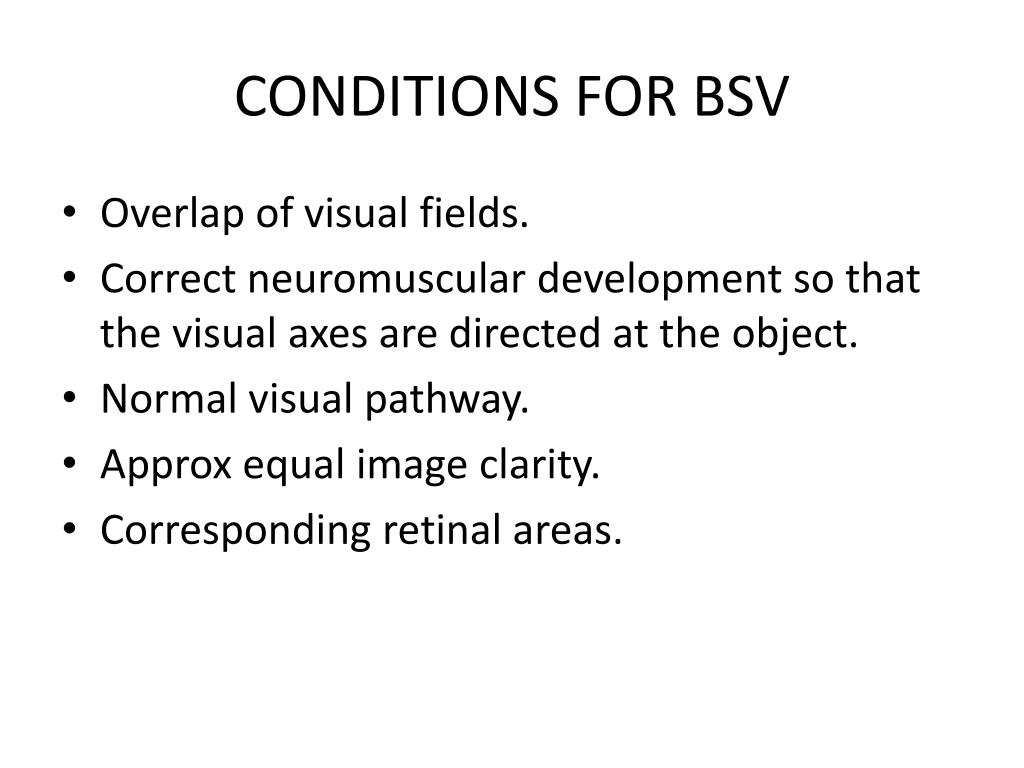

  3. CONDITIONS FOR BSV • Overlap of visual fields. • Correct neuromuscular development so that the visual axes are directed at the object. • Normal visual pathway. • Approx equal image clarity. • Corresponding retinal areas.

  4. STRABISMUS • Misalignment of the visual axes which initially results in confusion and diplopia. • Visual axis is the line which passes from the fovea to the point of fixation. The visual axes of the 2 eyes normally intersect at the point of fixation.

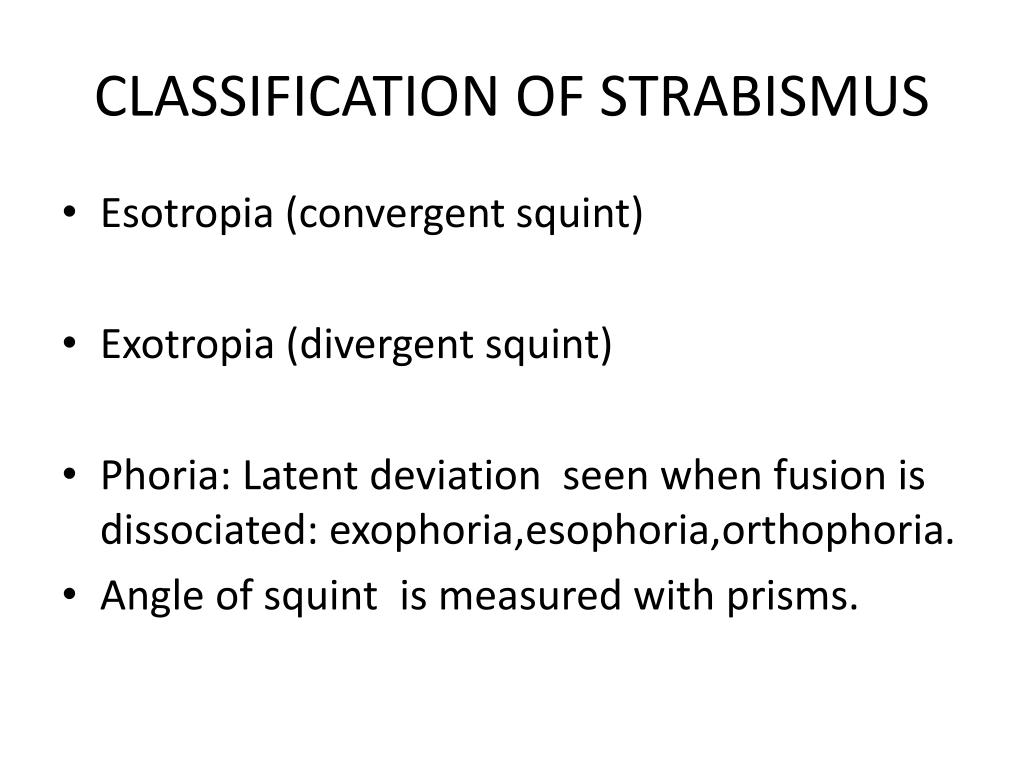

  5. CLASSIFICATION OF STRABISMUS • Esotropia (convergent squint) • Exotropia (divergent squint) • Phoria: Latent deviation seen when fusion is dissociated: exophoria,esophoria,orthophoria. • Angle of squint is measured with prisms.

  6. ESOTROPIA.. • Accommodative : • Refractive: due to excessive hypermetropiabw +4.00DS and +7.00DS but normal AC/A ratio. • Non refractive: excessive convergence wt high AC/A ratio, no sig .refractive error.

  7. MANAGEMENT OF ACCOMMODATIVE ESOTROPIA • Refraction • Bifocals (executive type) • Miotic therapy: 4% pilocarpine 4X daily x 6 wks. Then gradually reduce freq and strength to minimal effective dose. It induces peripheral accommodationso less acommodative effort is required for near vision resulting in less AC. • Amblyopia Rx • Surgery: Bilateral MR recession or recession/resection on amblyopic eye.

  8. NON-ACCOMMODATIVE ESOTROPIA • Essential infantile: develops 1st 6 months of life in a normal infant. • Large angle bw 30-70 prism diopters and stable(dist=near). • Alternating fixation at primary gaze. • Cross fixation in side gaze mimicking 6th nerve palsy with failure of abduction.

  9. MANAGEMENT • Eyes should be aligned: by 2 years . • Refract to r/o any possible errors. • Definitive Rx is surgery: bilateral medial rectus recession . • Acceptable goal: alignment within 10 prism diopters.

  10. EXOTROPIA • CONSTANT: congenital • Present at birth • Normal refraction • Large constant angle • Neurological anomalies frequently present. • RX: surgical: bilateral lateral rectus recession + resection of MR depending n the angle.

  11. CONSTANT EXOTROPIA contd.. • Sensory : • Result of binocular view disruption by acquired lesions eg: • Cataract or other media opacities. • In children < 5yrs or adults • RX : correction of amblyopia followed by surgery.

  12. INTERMITTENT EXOTROPIA • Presentation usually around 2 years of age. • May be due to divergence excess, convergence weakness. • May be precipitated by bright light, day dreaming, fatigue, illness, stress. • May degenerate, remains constant or rarely decrease.

  13. TREATMENT OF INTERMITTENT EXOTROPIA • Spectacle correction in myopes may correct it. • Orthoptic treatment: occlusion therapy, diplopia awareness and fusional convergence. • Surgery: necessary by 5 years: lateral rectus recession.
