Lecture 3 networks and distributed systems

Lecture 3 – Networks and Distributed Systems

CSE 490h – Introduction to Distributed Computing, Spring 2007

Except as otherwise noted, the content of this presentation is licensed under the Creative Commons Attribution 2.5 License.


Outline

Outline

  • Networking

  • Remote Procedure Calls (RPC)

    • Activity

  • Transaction Processing Systems

  • Discussion

    • RPC, Web 2.0, MapReduce, Reliability…


Fundamentals of networking

Fundamentals of Networking


Sockets the internet tubes

Sockets: The Internet = tubes?

  • A socket is the basic network interface

  • Provides a two-way “pipe” abstraction between two applications

  • Client creates a socket, and connects to the server, who receives a socket representing the other side


Ports

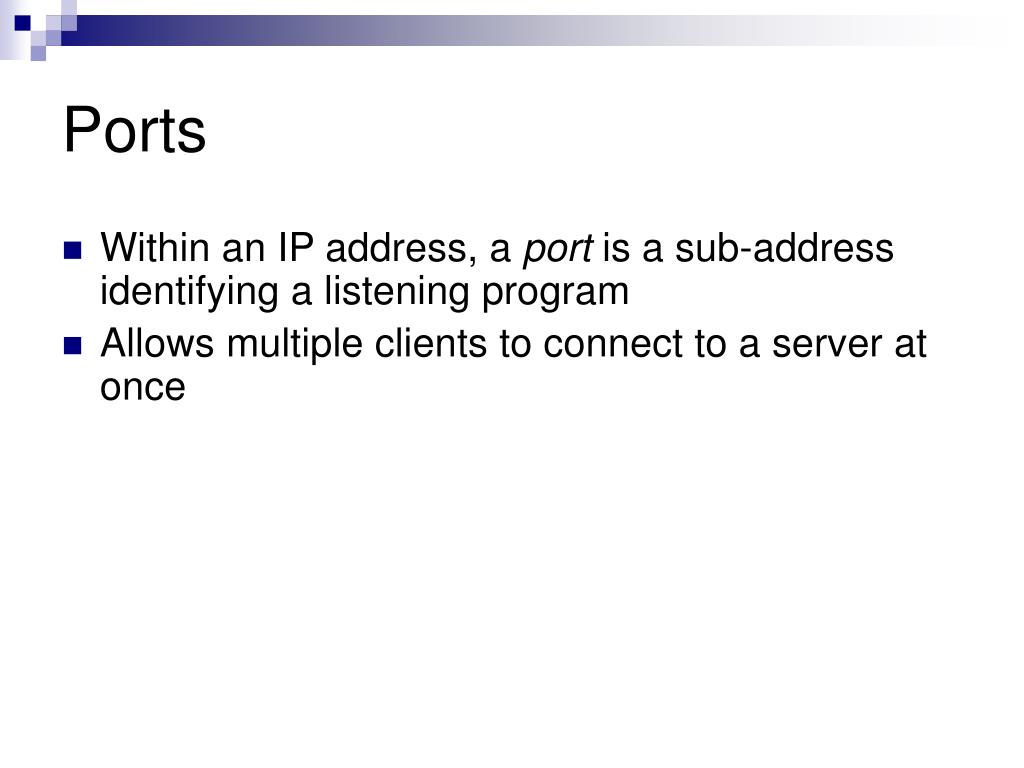

Ports

  • Within an IP address, a port is a sub-address identifying a listening program

  • Allows multiple clients to connect to a server at once


Example web server 1 3

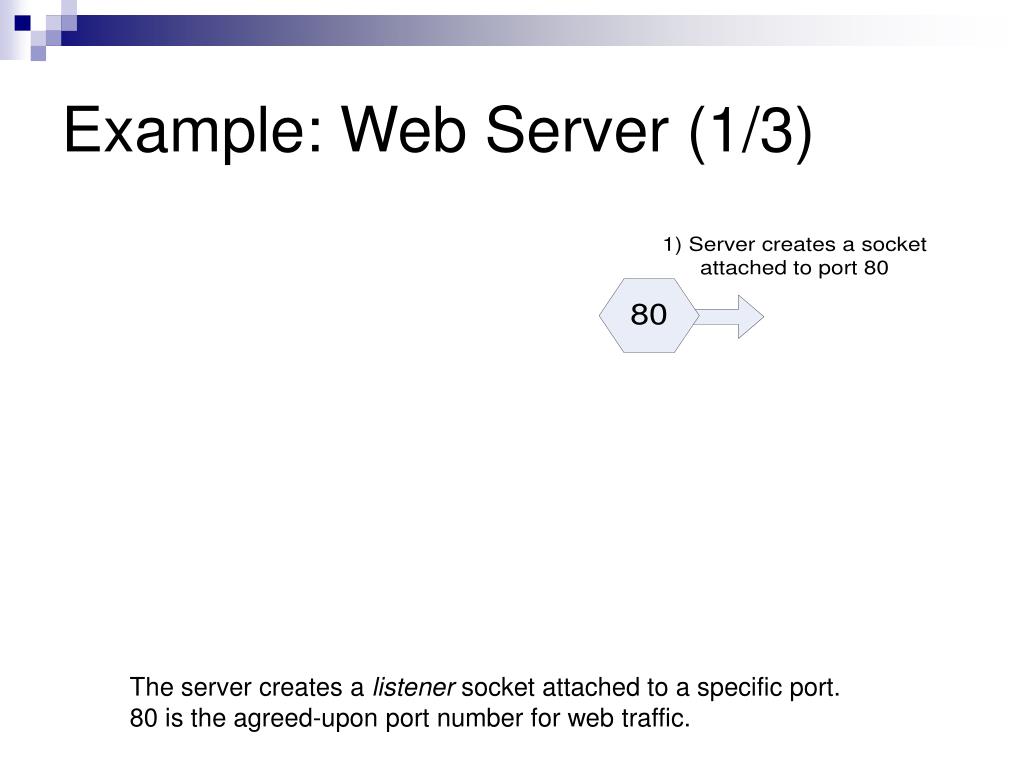

Example: Web Server (1/3)

The server creates a listener socket attached to a specific port. 80 is the agreed-upon port number for web traffic.


Example web server 2 3

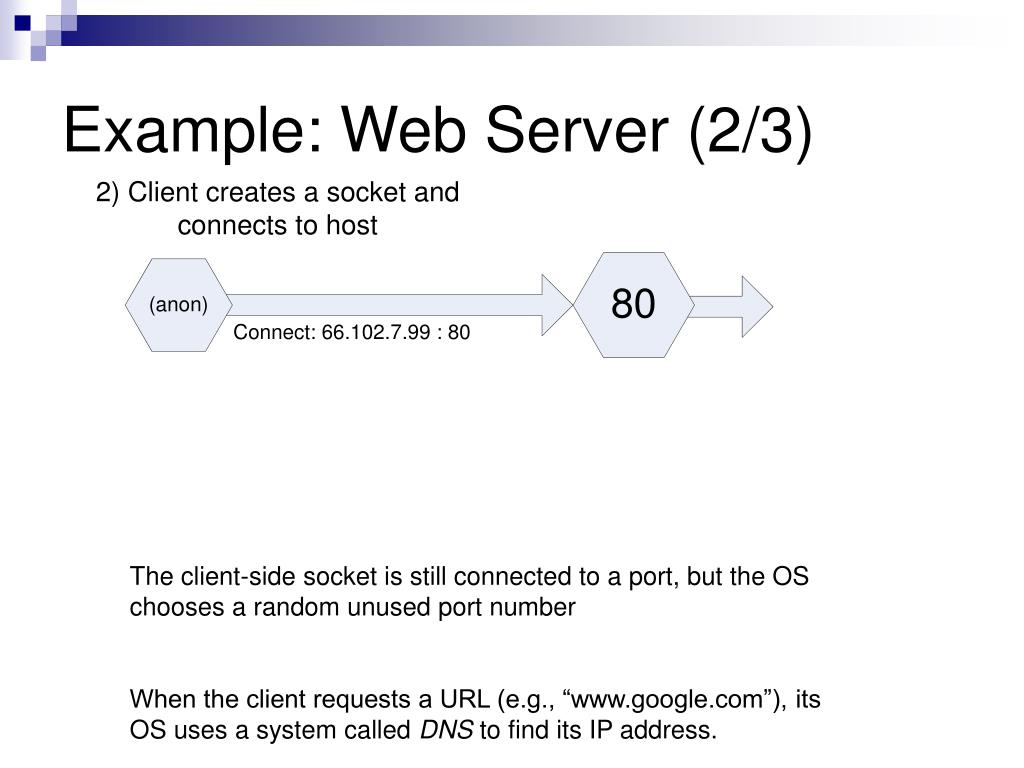

Example: Web Server (2/3)

The client-side socket is still connected to a port, but the OS chooses a random unused port number

When the client requests a URL (e.g., “www.google.com”), its OS uses a system called DNS to find its IP address.


Example web server 3 3

Example: Web Server (3/3)

Server chooses a randomly-numbered port to handle this particular client

Listener is ready for more incoming connections, while we process the current connection in parallel


What makes this work

What makes this work?

  • Underneath the socket layer are several more protocols

  • Most important are TCP and IP (which are used hand-in-hand so often, they’re often spoken of as one protocol: TCP/IP)

Even more low-level protocols handle how data is sent over Ethernet wires, or how bits are sent through the air using 802.11 wireless…


Ip the internet protocol

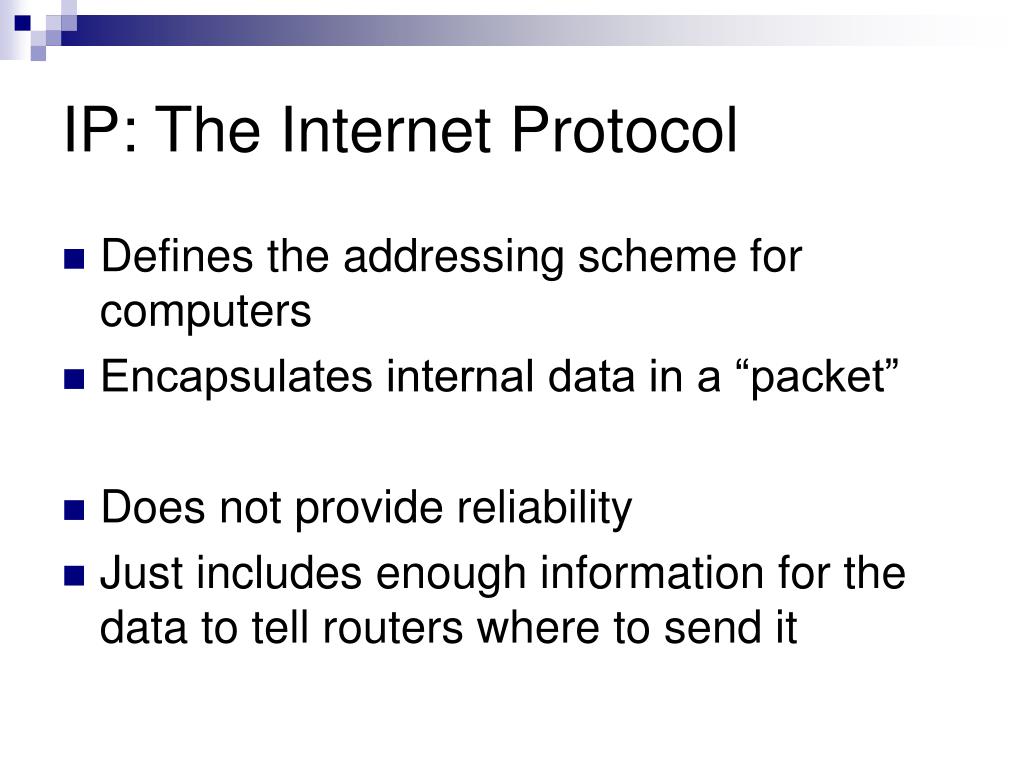

IP: The Internet Protocol

  • Defines the addressing scheme for computers

  • Encapsulates internal data in a “packet”

  • Does not provide reliability

  • Just includes enough information for the data to tell routers where to send it


Tcp transmission control protocol

TCP: Transmission Control Protocol

  • Built on top of IP

  • Introduces concept of “connection”

  • Provides reliability and ordering


Why is this necessary

Why is This Necessary?

  • Not actually tube-like “underneath the hood”

  • Unlike phone system (circuit switched), the packet switched Internet uses many routes at once


Networking issues

Networking Issues

  • If a party to a socket disconnects, how much data did they receive?

  • … Did they crash? Or did a machine in the middle?

  • Can someone in the middle intercept/modify our data?

  • Traffic congestion makes switch/router topology important for efficient throughput


Remote procedure calls rpc

Remote Procedure Calls (RPC)


How rpc doesn t work

How RPC Doesn’t Work

  • Regular client-server protocols involve sending data back and forth according to a shared state

Client: Server:

HTTP/1.0 index.html GET

200 OK

Length: 2400

(file data)

HTTP/1.0 hello.gif GET

200 OK

Length: 81494


Remote procedure call

Remote Procedure Call

  • RPC servers will call arbitrary functions in dll, exe, with arguments passed over the network, and return values back over network

Client: Server:

foo.dll,bar(4, 10, “hello”)

“returned_string”

foo.dll,baz(42)

err: no such function


Possible interfaces

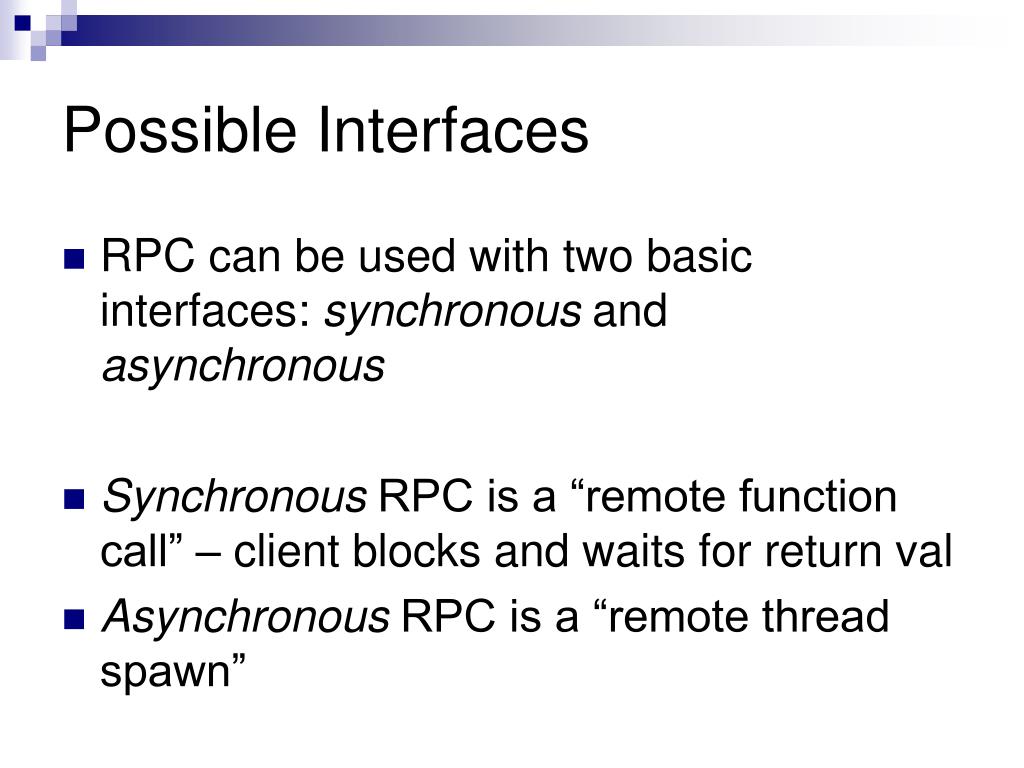

Possible Interfaces

  • RPC can be used with two basic interfaces: synchronous and asynchronous

  • Synchronous RPC is a “remote function call” – client blocks and waits for return val

  • Asynchronous RPC is a “remote thread spawn”


Synchronous rpc

Synchronous RPC


Asynchronous rpc

Asynchronous RPC


Asynchronous rpc 2 callbacks

Asynchronous RPC 2: Callbacks


Wrapper functions

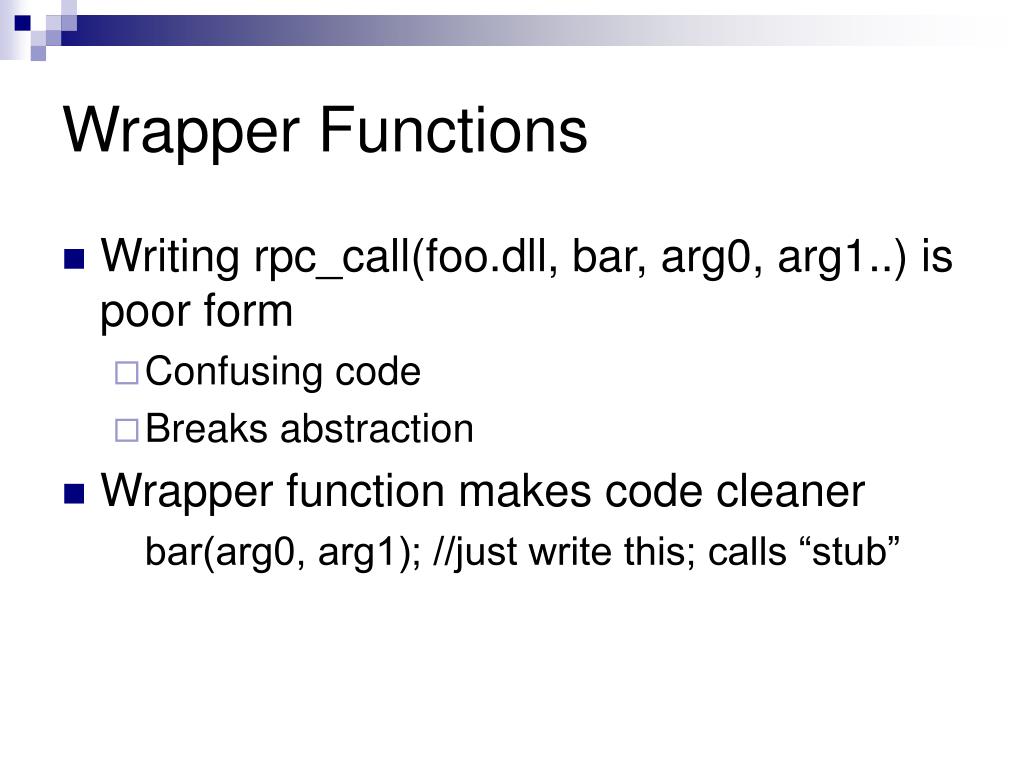

Wrapper Functions

  • Writing rpc_call(foo.dll, bar, arg0, arg1..) is poor form

    • Confusing code

    • Breaks abstraction

  • Wrapper function makes code cleaner

    bar(arg0, arg1); //just write this; calls “stub”


More design considerations

More Design Considerations

  • Who can call RPC functions? Anybody?

  • How do you handle multiple versions of a function?

  • Need to marshal objects

  • How do you handle error conditions?

  • Numerous protocols: DCOM, CORBA, JRMI…


Rpc activity

RPC Activity


Transaction processing systems

Transaction Processing Systems

(We’re using the blue cover sheets on the TPS reports now…)


Tps definition

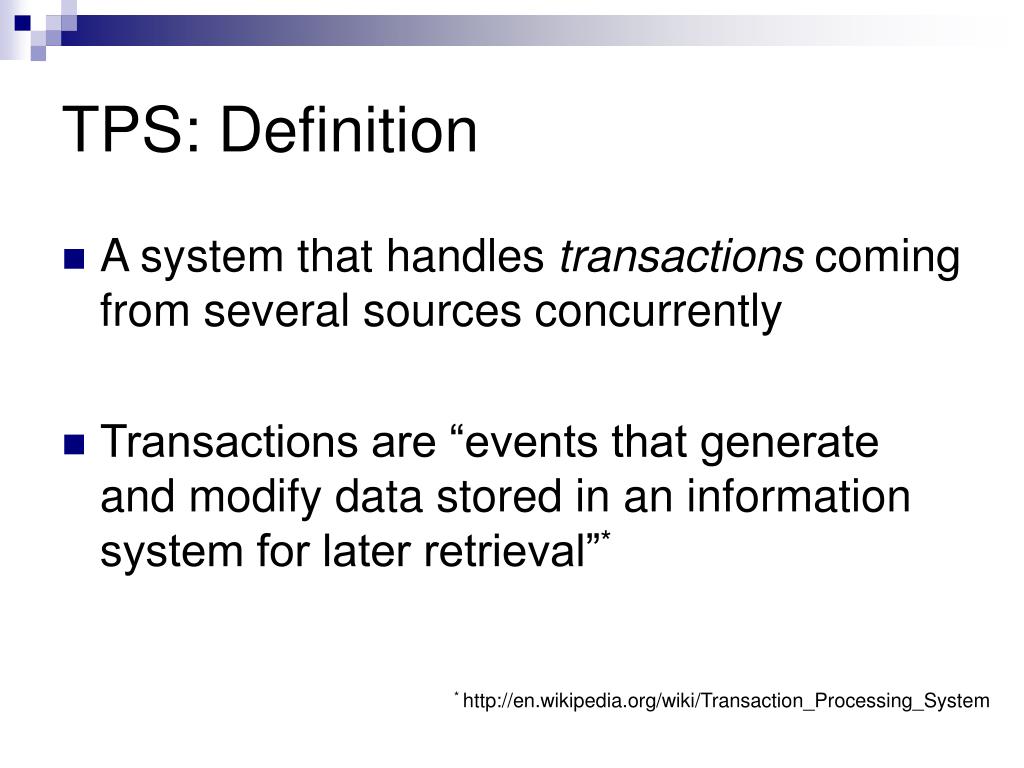

TPS: Definition

  • A system that handles transactions coming from several sources concurrently

  • Transactions are “events that generate and modify data stored in an information system for later retrieval”*

* http://en.wikipedia.org/wiki/Transaction_Processing_System


Key features of tps acid

Key Features of TPS: ACID

  • “ACID” is the acronym for the features a TPS must support:

  • Atomicity – A set of changes must all succeed or all fail

  • Consistency – Changes to data must leave the data in a valid state when the full change set is applied

  • Isolation – The effects of a transaction must not be visible until the entire transaction is complete

  • Durability – After a transaction has been committed successfully, the state change must be permanent.


Atomicity durability

Atomicity & Durability

What happens if we write half of a transaction to disk and the power goes out?


Logging the undo buffer

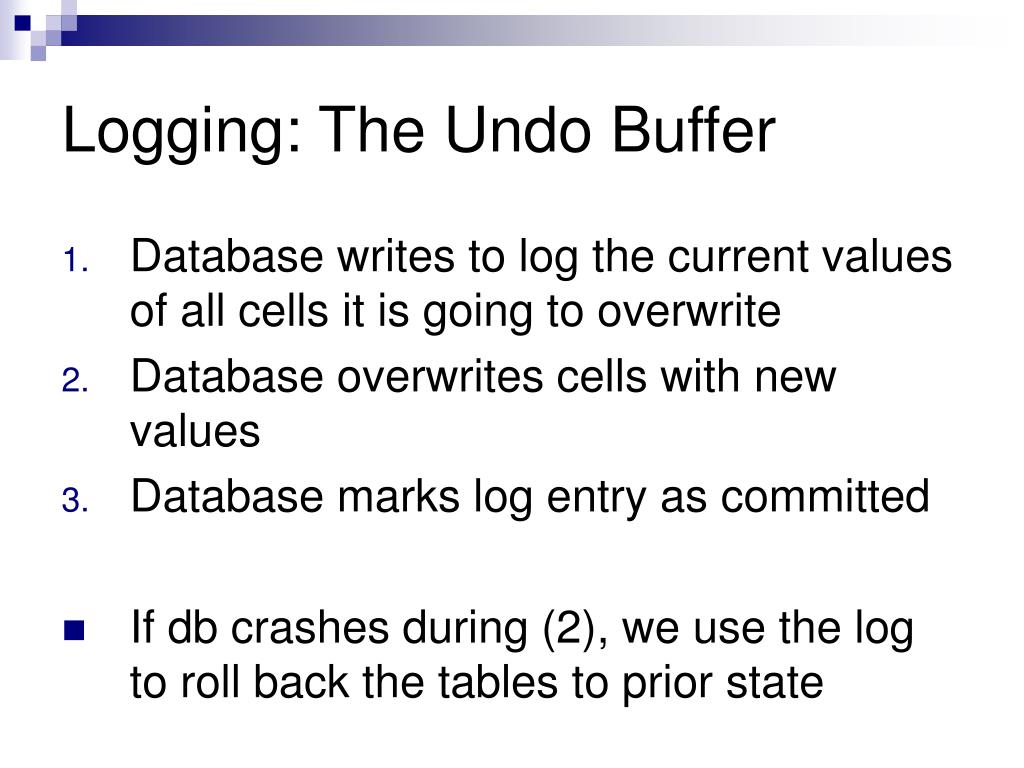

Logging: The Undo Buffer

  • Database writes to log the current values of all cells it is going to overwrite

  • Database overwrites cells with new values

  • Database marks log entry as committed

  • If db crashes during (2), we use the log to roll back the tables to prior state


Consistency data types

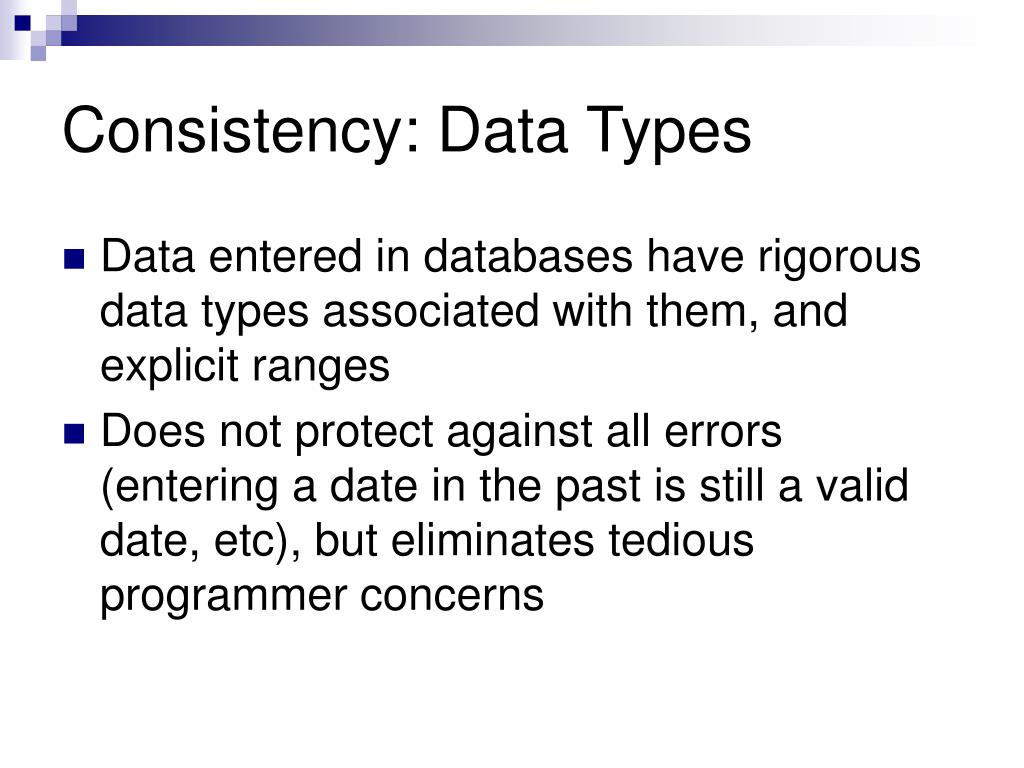

Consistency: Data Types

  • Data entered in databases have rigorous data types associated with them, and explicit ranges

  • Does not protect against all errors (entering a date in the past is still a valid date, etc), but eliminates tedious programmer concerns


Consistency foreign keys

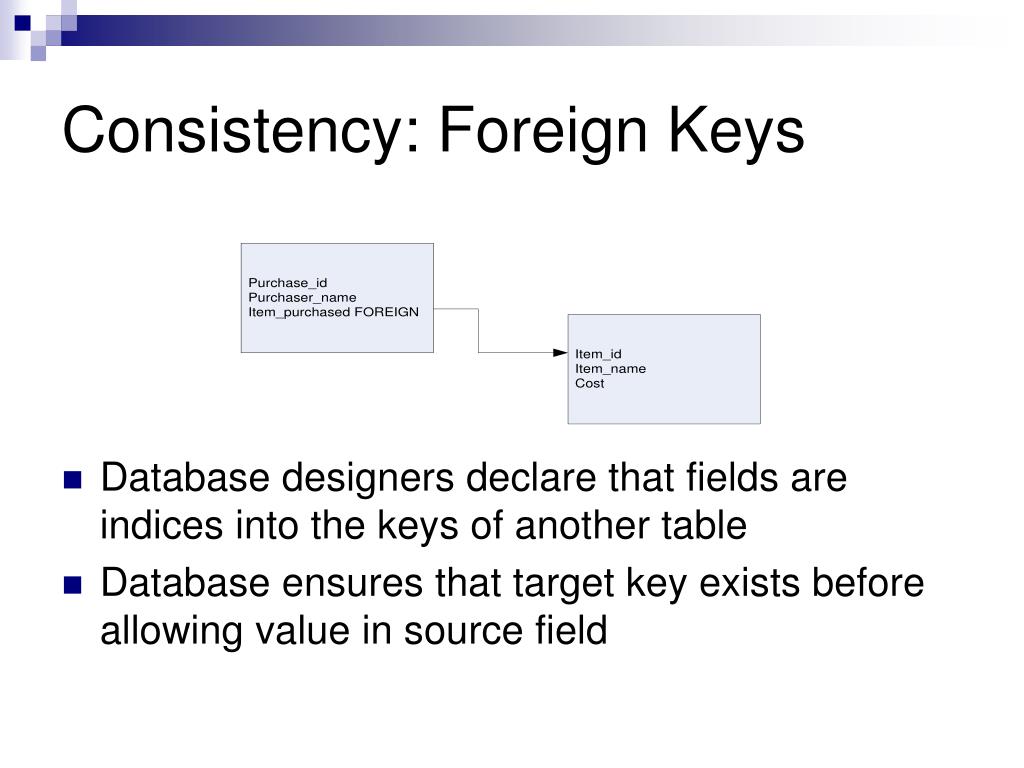

Consistency: Foreign Keys

  • Database designers declare that fields are indices into the keys of another table

  • Database ensures that target key exists before allowing value in source field


Isolation

Isolation

  • Using mutual-exclusion locks, we can prevent other processes from reading data we are in the process of writing

  • When a database is prepared to commit a set of changes, it locks any records it is going to update before making the changes


Faulty locking

Faulty Locking

  • Locking alone does not ensure isolation!

  • Changes to table A are visible before changes to table B – this is not an isolated transaction


Two phase locking

Two-Phase Locking

  • After a transaction has released any locks, it may not acquire any new locks

  • Effect: The lock set owned by a transaction has a “growing” phase and a “shrinking” phase


Relationship to distributed comp

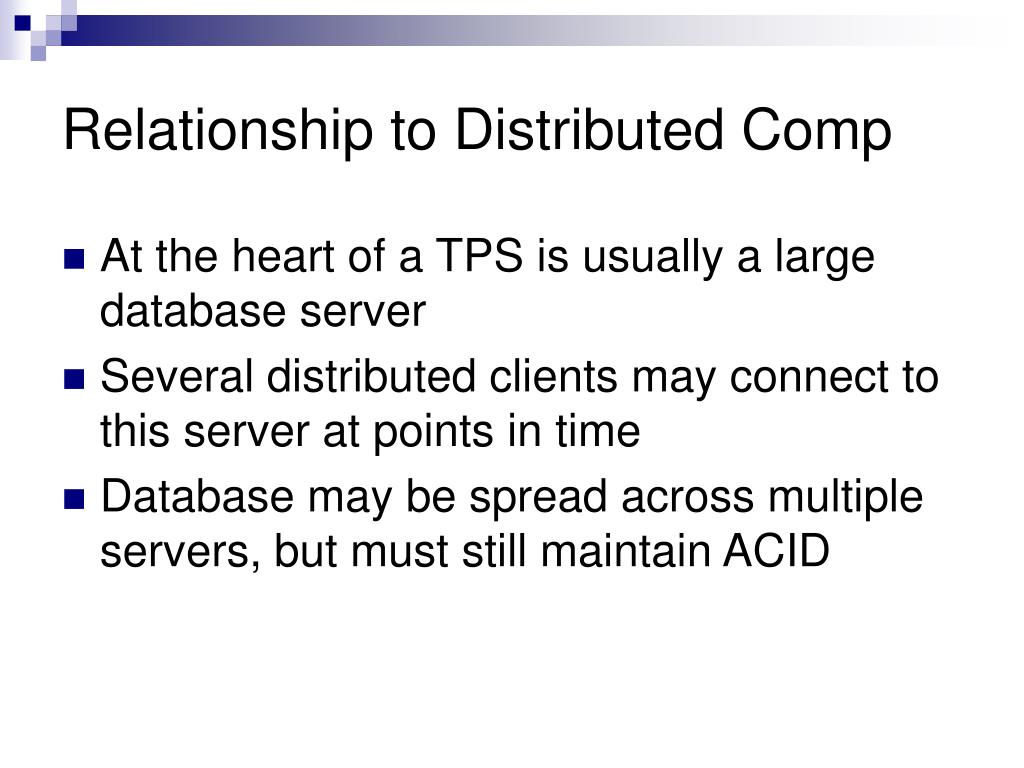

Relationship to Distributed Comp

  • At the heart of a TPS is usually a large database server

  • Several distributed clients may connect to this server at points in time

  • Database may be spread across multiple servers, but must still maintain ACID


Conclusions

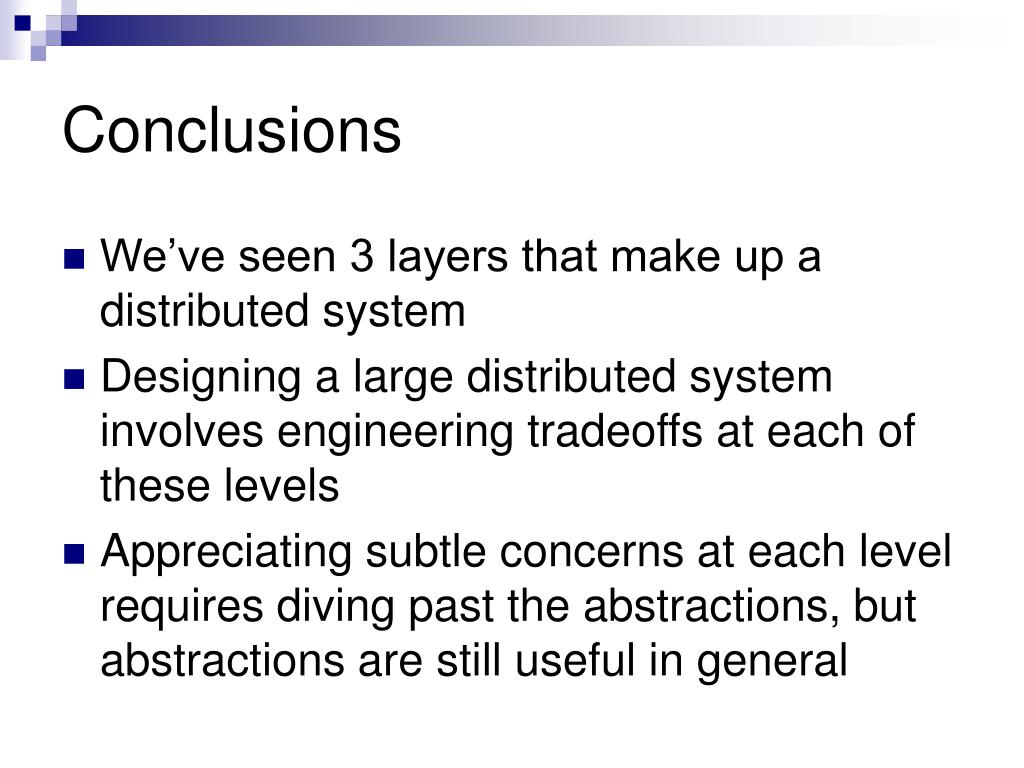

Conclusions

  • We’ve seen 3 layers that make up a distributed system

  • Designing a large distributed system involves engineering tradeoffs at each of these levels

  • Appreciating subtle concerns at each level requires diving past the abstractions, but abstractions are still useful in general


Discussion

Discussion

Distributed System Design


Next time

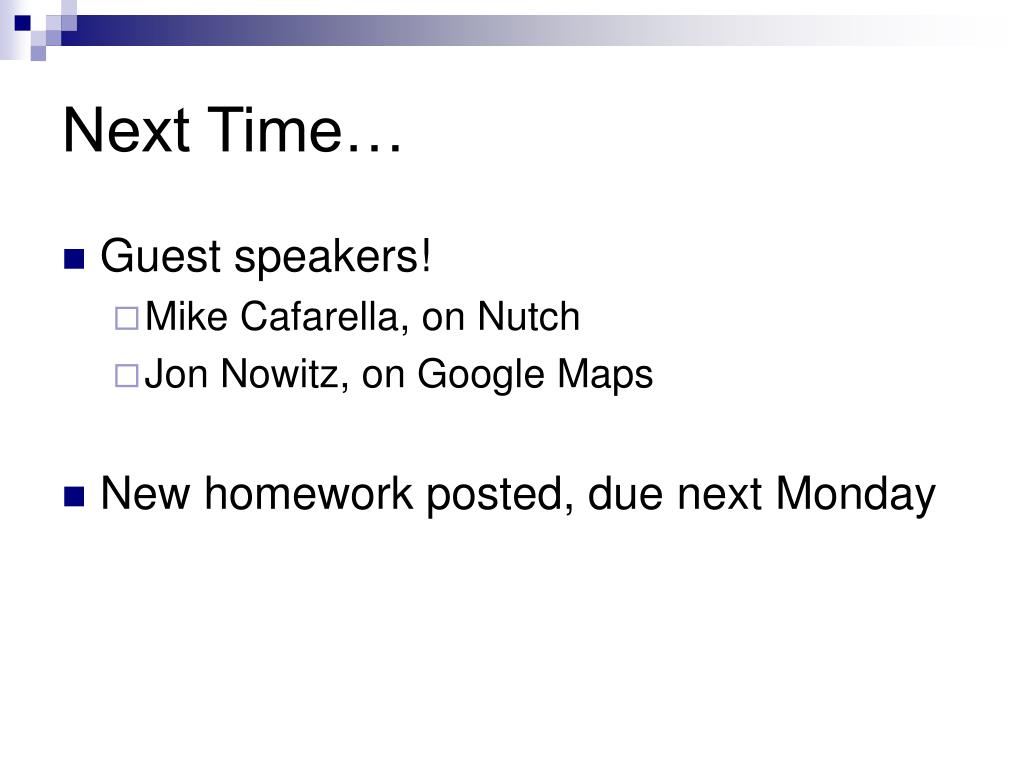

Next Time…

  • Guest speakers!

    • Mike Cafarella, on Nutch

    • Jon Nowitz, on Google Maps

  • New homework posted, due next Monday
